INTRODUCTION
Congratulations on your choice of the RS3200 remote keyless security system to protect your
vehicle! To get the most from the system, we strongly recommend that you read this Owner’s Guide
completely to learn all of its features and functions.
The RS3200 provides the convenience of remote keyless operation, enabling you to A
RM and
D
ISARM at the same time you remotely lock and unlock the doors. The system provides compre -
hensive security protection through point-of-entry monitoring, glass breakage detection and ignition
switch monitoring. While A
RMED, the system will be TRIGGERED and sound an ALARM when a door
is forcibly unlocked or opened*, or when a window is tapped on or broken. During the A
LARM, the
vehicle’s horn sounds and the headlights, tail lights and front marker lights flash. A l s o , the vehicle’s
starter is disabled, to prevent engine start.
An important note about your system
Throughout this guide, there are references to the S
TATUS MONITOR for this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the G
LASS
B
REAKAGE SENSOR’S microphone. In vehicles with an engine immobilizer, there is already a LED
installed in the vehicle, so the RS3200 utilizes the engine immobilizer system LED and a micro-
phone mounted in a separate location. If your vehicle falls into this category, remember to look at
that LED when the information refers to the S
TATUS MONITOR. If you do not know where the LED is
located, refer to your vehicle’s owner’s guide for specific information.
About the ignition-controlled automatic door locking/unlocking function.
The RS3200 is programmed to automatically lock your vehicle’s doors when you turn the key in the
ignition switch to the “ON” or “START” position, and unlock them when you turn the key back to the
“ACC” or “LOCK” position. You may disable this feature by reprogramming the system; refer to page
18 for programming information.
* When the system is P
ASSIVELY (AUTOMATICALLY) ARMED, there is an ENTRY DELAY that will
elapse when a door is opened before an A
LARM is TRIGGERED.
YOUR ENGINE IMMOBILIZER SYSTEM LED MAY LOOK DIFFERENT THAN THE ONE
ILLUSTRATED HERE
LIGHTS FOR
30 SECONDS(PRE-ARMING)THEN STARTS FLASHING(SYSTEM IS ARMED)
Page 2 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 19
SCION
SECURITY
REMOTE CONTROL BATTERY REPLACEMENT
The following shows the procedure to replace the batteries in your remote controls. We recommend
that you replace the batteries at least once a year, or when the remote control’s transmitting range
diminishes. You may obtain the replacement battery from your Scion dealer, as well as many retail -
ers that sell watch batteries. The battery replacement type is a Lithium CR2025.
Important notes on battery replacement:
When replacing the battery, be careful not to lose the components.
Take care not to bend or damage the rubber gasket.
REMOVE THE BATTERY
1. Lay the remote control on a towel or other soft material.
Place it with the back side facing up.
2. Using a coin, pry open the remote control.
Use gentle pressure to avoid deforming the plastic.
3. Set the back cover aside.
4. Remove the rubber gasket and set it aside.
5. Push the battery down and toward you, and hold it
down.
6. Pry the back edge of the battery up and toward you.
SCION
123123123
123123
123
123
Page 4 of 23

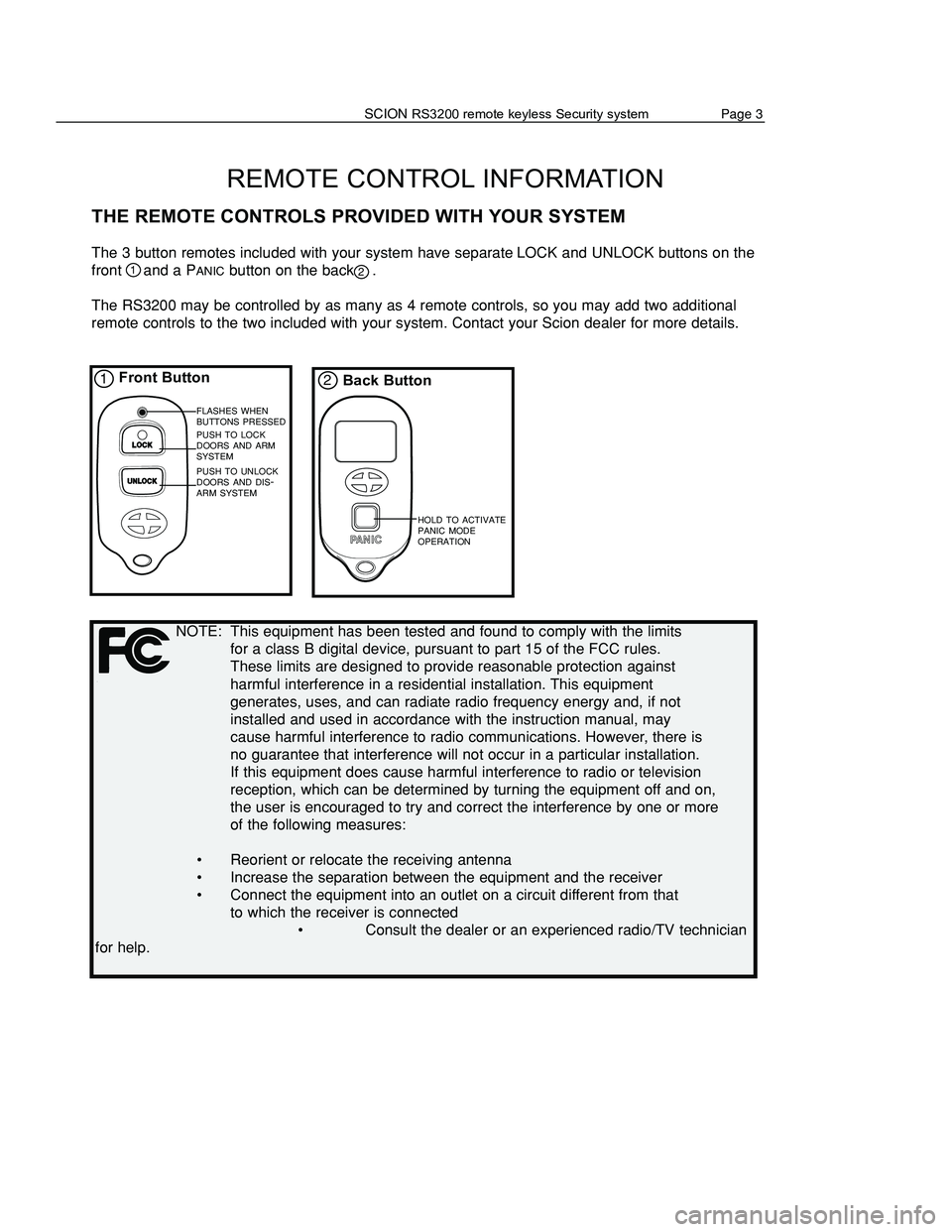

REMOTE CONTROL INFORMATION
THE REMOTE CONTROLS PROVIDED WITH YOUR SYSTEM
The 3 button remotes included with your system have separate LOCK and UNLOCK buttons on the
front and a PANIC button on the back .
The RS3200 may be controlled by as many as 4 remote controls, so you may add two additional
remote controls to the two included with your system. Contact your Scion dealer for more details.
NOTE: This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one or more
of the following measures:
t 3 F P S J F O U P S S F M P D B U F U I F S F D F J W J O H B O U F O O B
t * O D S F B T F U I F T F Q B S B U J P O C F U X F F O U I F F R V J Q N F O U B O E U I F S F D F J W F S
t $ P O O F D U U I F F R V J Q N F O U J O U P B O P V U M F U P O B D J S D V J U E J G G F S F O U G S P N U I B U
to which the receiver is connected
t $ P O T V M U U I F E F B M F S P S B O F Y Q F S J F O D F E S B E J P 5 7 U F D I O J D J B O
for help.

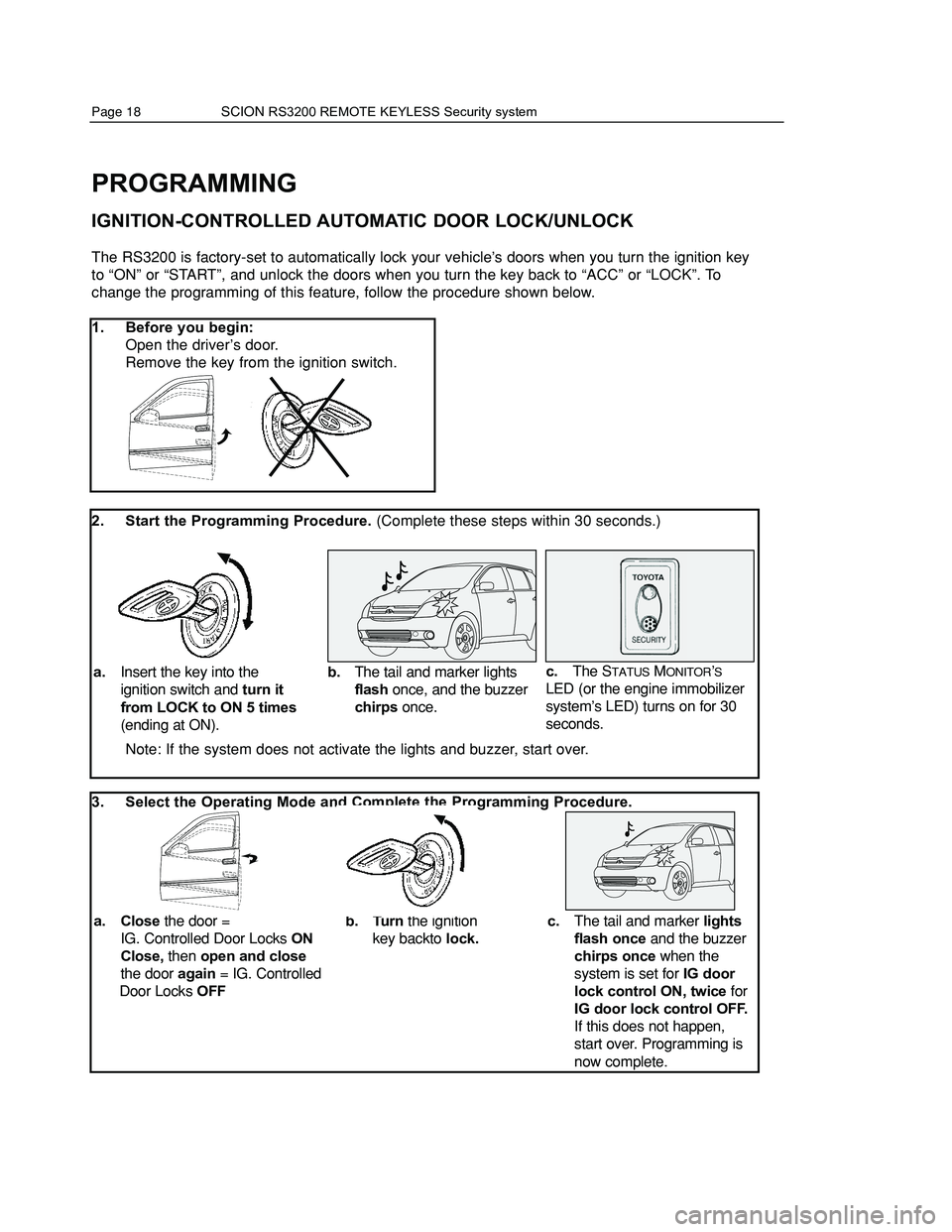

PROGRAMMING
IGNITION-CONTROLLED AUTOMATIC DOOR LOCK/UNLOCK
The RS3200 is factory-set to automatically lock your vehicle’s doors when you turn the ignition key
to “ON” or “START”, and unlock the doors when you turn the key back to “ACC” or “LOCK”. To
change the programming of this feature, follow the procedure shown below.
1. Before you begin:
Open the driver’s door.
Remove the key from the ignition switch.
2. Start the Programming Procedure. (Complete these steps within 30 seconds.)
Note: If the system does not activate the lights and buzzer, start over.
3. Select the Operating Mode and Complete the Programming Procedure.
Page 18 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 3
Front Button
FLASHES WHEN BUTTONS PRESSED
PUSH TO LOCK DOORS AND ARM SYSTEM PUSH TO UNLOCK DOORS AND DIS-ARM SYSTEM
Back Button
HOLD TO ACTIVATE PANIC MODE OPERATION
a. Insert the key into the
ignition switch and turn it
from LOCK to ON 5 times
(ending at ON). c.
The STATUS MONI TOR’S
LED (or the engine immobilizer
system’s LED) turns on for 30
seconds.
b. Turn the ignition
key backto lock.
a. Close the door =
IG. Controlled Door Locks ON
Close, then open and close
the door again = IG. Controlled
Door Locks OFF c.
The tail and marker lights
flash once and the buzzer
chirps once when the
system is set for IG door
lock control ON, twice for
IG door lock control OFF.
If this does not happen,
start over. Programming is
now complete.
b. The tail and marker lights
flash once, and the buzzer
chirps once.
123123
123123
Page 6 of 23

PROGRAMMING
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION
The RS3200 is factory-set to unlock the driver’s door when the UNLOCK button is pressed on the
remote control, then unlock the remaining doors when the UNLOCK button is pressed again within 3
seconds. You may change the programming so all doors will unlock at once when the UNLOCK but-
ton is pressed by following the steps below.
1. Before you begin: 2. Start the Programming Procedure.
Open the driver’s door. (Complete these steps within 40 seconds.)
Remove the key from the ignition switch.
Note: If the system does not activate the lights and buzzer, start over.
Page 16 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 5
BRIEF DESCRIPTION–RS3200 FEATURES
a. Insert the key into,
and remove it
from the ignition
switch 2 times.
e. Insert the key into
the ignition and
leave it in.
c. Insert the key
into, and remove
it from the ignition
switch 1 time.
g. Turn the key from
LOCK to ON 4
times (ending at
LOCK.) h.
Remove the key
from the ignition
switch.
b. Close, then open
the driver’s door
2 times.
f. Close the driver’s
door.d. Close , then open
the driver’s door
2 times.
i. The tail and marker lights flash 4 times, the
buzzer chirps 4 times , and the doors lock
and unlock 4 times.
When an alarm is TRIGGERED, the system disables the vehicle’s start -
er and prevents engine start until the system is reset (DISARMED).
During an alarm, the system will loce the doors if one is unlocked and
will continue to do so for the duration of the alarm.
The user is notified that an alarm occurred. Upon DISARMING the sys -
tem after an alarm was TRIGGERED, the vehicle’s tail and marker lights
will be turned on, and the BUZZER sounds for 2 seconds.
You may TRIGGER a PANIC ALARM by pressing the PANIC button on
the back of the remote control to draw attention to your vehicle. During
the PANIC ALARM, the head, tail and marker lights flash, and the horn
sounds but the starter is not disabled.
The RS3200 flashes the vehicle’s tail and marker lights during REMOTE
ARMING and REMOTE DISARMING, as well as during an alarm. Also,
the headlights flash during an alarm.
When the system is REMOTE DISARMED, it turns on the interior lights
in the vehicle for 30 seconds, or until the key is inserted into the ignition
switch. It also turns them on during an alarm.
During an alarm, the RS3200 activates the vehicle’s horn.
If power tot the RS3200 is disrupted while it is ARMED, an alarm is
TRIGGERED once power is restored.
This panel houses the GLASS BREAKAGE SENSOR microphone and
the flashing LED that indicates the operating status of the security sys -
tem. (In vehicles with an engine immobilizer system, that system’s LED
and a seperate microphone are used instead.)
The RS3200 utilizes a PIEZO BUZZER, usually mounted in the engine
compartment, to sounds confirmation “chirps” and tones for function
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle’s doors when you turn the
ignition key to “ON” or “START”, and unlocks the doors when you turn
the key back to “ACC” or “LOCK”.
The buzzer sounds for 5 seconds when you attempt to REMOTE ARM
the system while a door is open. You can stop the warning by closing
the door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with the
RS3200 is approximately 50 feet. Please refer to page 10 for a descrip -
tion of factors that may affect the performance (operating range) of the
remote controls.
STARTER DISABLE
FORCED LOCK DURING ALARM
TRIGGER MEMORY
PANIC MODE OPERATION
EXTERIOR LIGHT ACTIVATION
INTERIOR LIGHT ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-CONTROLLED
AUTOMATIC DOOR LOCK /
UNLOCK
DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
FEATURES
FUNCTIONS
Page 9 of 23

OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 is programmed to PASSIVELY ARM, the system will ARM after the ignition key is
removed and all doors are closed; you do not need to lock the doors. When you come back to your
vehicle and open a door, you must insert the key into the ignition switch and turn it to “ON” during
the E
NTRY DELAY (0, 15 or 30 seconds), or an ALARM will be TRIGGERED. If you lock the doors, regu -
lar A
RMING will override PASSIVE ARMING; there will be no ENTRY DELAY. See the PROGRAMMING
section on page 15 to activate the P
ASSIVE ARMING mode, as well as select the ENTRY DELAY time.
To P
ASSIVELY ARM the system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RM while any of the doors are open.)
Close the hatch, if necessary. (The system will not A
RM while
the hatch is open.)
After the last door or hatch is closed:
The S
TATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing. The system is now ARMED.
To D
ISARM the PASSIVELY ARMED system:
Enter the vehicle through a front door.
The E
NTRY DELAY begins:
The S
TATUS MONITOR’S LED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRY DELAY ends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARM the system following any of the methods
described on page 7.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGER MEMORY was activated; an ALARM was
T
RIGGERED while you were away from the vehicle.
* If the E
NTRY DELAY time elapses before the ignition switch is turned to “ON”, an ALARM will
be T
RIGGERED. To DISARM the system during an ALARM, insert the ignition key and turn it to
“ON”, or press and release the remote control’s UNLOCK button.
Page 8 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 13
THE SYSTEM ARMS 30 SECONDS AFTER THE LAST ENTRY POINT
(DOOR OR HATCH) IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
SCION
SECURITY
LIGHTS FOR
30 SECONDS(PRE-ARM-ING)THEN STARTS FLASHING(SYSTEM IS ARMED)
SCION
SECURITY
TURNS ON
(NO FLASHING) DURING THE ENTRY DELAY
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARM is triggered in any way other than initial detection by the GLASS BREAKAGE SENSOR, the
following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button. After
60 seconds of A
LARM, the system will REARM and continue to protect the vehicle.
W
ARN-AWA Y ALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASS BREAKAGE SENSOR
T
RIGGERS a WARN AWAY ALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker lights flash repeatedly for 20 seconds.
The interior lights turn on for 20 seconds.
If the G
LASS BREAKAGE SENSOR detects noise again, or if a door or hatch is opened while the system is
still A
RMED, the regular ALARM (described above) is activated.
STOPPING AN ALARM
Simply DISARM the system using the remote control or key as described on page 7.
THE HORN SOUNDS
FOR 20 SECONDS
HEADLIGHTS FLASH FOR 20 SECONDS
MARKER LIGHTS FLASH
FOR 20 SECONDS TAIL
LIGHTS FLASH
FOR 20 SECONDS
THE HORN SOUNDS
FOR 60 SECONDS
HEADLIGHTS FLASH FOR 60 SECONDS
THE STARTER IS DISABLED UNTIL THE SYSTEM IS DISARMED
MARKER LIGHTS FLASH
FOR 60 SECONDS TAIL
LIGHTS FLASH
FOR 60 SECONDS
INTERIOR
LIGHTS TURN ON FOR 60 SECONDS
INTERIOR LIGHTS TURN ON FOR 20 SECONDS
123
123
123123
123
123
Page 14 of 23

OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 is programmed to PASSIVELY ARM, the system will ARM after the ignition key is
removed and all doors are closed; you do not need to lock the doors. When you come back to your
vehicle and open a door, you must insert the key into the ignition switch and turn it to “ON” during
the E
NTRY DELAY (0, 15 or 30 seconds), or an ALARM will be TRIGGERED. If you lock the doors, regu -
lar A
RMING will override PASSIVE ARMING; there will be no ENTRY DELAY. See the PROGRAMMING
section on page 15 to activate the P
ASSIVE ARMING mode, as well as select the ENTRY DELAY time.
To P
ASSIVELY ARM the system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RM while any of the doors are open.)
Close the hatch, if necessary. (The system will not A
RM while
the hatch is open.)
After the last door or hatch is closed:
The S
TATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing. The system is now ARMED.
To D
ISARM the PASSIVELY ARMED system:
Enter the vehicle through a front door.
The E
NTRY DELAY begins:
The S
TATUS MONITOR’S LED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRY DELAY ends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARM the system following any of the methods
described on page 7.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGER MEMORY was activated; an ALARM was
T
RIGGERED while you were away from the vehicle.
* If the E
NTRY DELAY time elapses before the ignition switch is turned to “ON”, an ALARM will
be T
RIGGERED. To DISARM the system during an ALARM, insert the ignition key and turn it to
“ON”, or press and release the remote control’s UNLOCK button.
Page 8 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 13
THE SYSTEM ARMS 30 SECONDS AFTER THE LAST ENTRY POINT
(DOOR OR HATCH) IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
SCION
SECURITY
LIGHTS FOR
30 SECONDS(PRE-ARM-ING)THEN STARTS FLASHING(SYSTEM IS ARMED)
SCION
SECURITY
TURNS ON
(NO FLASHING) DURING THE ENTRY DELAY
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARM is triggered in any way other than initial detection by the GLASS BREAKAGE SENSOR, the
following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button. After
60 seconds of A
LARM, the system will REARM and continue to protect the vehicle.
W
ARN-AWA Y ALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASS BREAKAGE SENSOR
T
RIGGERS a WARN AWAY ALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker lights flash repeatedly for 20 seconds.
The interior lights turn on for 20 seconds.
If the G
LASS BREAKAGE SENSOR detects noise again, or if a door or hatch is opened while the system is
still A
RMED, the regular ALARM (described above) is activated.
STOPPING AN ALARM
Simply DISARM the system using the remote control or key as described on page 7.
THE HORN SOUNDS
FOR 20 SECONDS
HEADLIGHTS FLASH FOR 20 SECONDS
MARKER LIGHTS FLASH
FOR 20 SECONDS TAIL
LIGHTS FLASH
FOR 20 SECONDS
THE HORN SOUNDS
FOR 60 SECONDS
HEADLIGHTS FLASH FOR 60 SECONDS
THE STARTER IS DISABLED UNTIL THE SYSTEM IS DISARMED
MARKER LIGHTS FLASH
FOR 60 SECONDS TAIL
LIGHTS FLASH
FOR 60 SECONDS
INTERIOR
LIGHTS TURN ON FOR 60 SECONDS
INTERIOR LIGHTS TURN ON FOR 20 SECONDS
123
123
123123
123
123
Page 17 of 23

PROGRAMMING
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION
The RS3200 is factory-set to unlock the driver’s door when the UNLOCK button is pressed on the
remote control, then unlock the remaining doors when the UNLOCK button is pressed again within 3
seconds. You may change the programming so all doors will unlock at once when the UNLOCK but-
ton is pressed by following the steps below.
1. Before you begin: 2. Start the Programming Procedure.
Open the driver’s door. (Complete these steps within 40 seconds.)
Remove the key from the ignition switch.
Note: If the system does not activate the lights and buzzer, start over.
Page 16 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 5
BRIEF DESCRIPTION–RS3200 FEATURES
a. Insert the key into,
and remove it
from the ignition
switch 2 times.
e. Insert the key into
the ignition and
leave it in.
c. Insert the key
into, and remove
it from the ignition
switch 1 time.
g. Turn the key from
LOCK to ON 4
times (ending at
LOCK.) h.
Remove the key
from the ignition
switch.
b. Close, then open
the driver’s door
2 times.
f. Close the driver’s
door.d. Close , then open
the driver’s door
2 times.
i. The tail and marker lights flash 4 times, the
buzzer chirps 4 times , and the doors lock
and unlock 4 times.
When an alarm is TRIGGERED, the system disables the vehicle’s start -
er and prevents engine start until the system is reset (DISARMED).
During an alarm, the system will loce the doors if one is unlocked and
will continue to do so for the duration of the alarm.
The user is notified that an alarm occurred. Upon DISARMING the sys -
tem after an alarm was TRIGGERED, the vehicle’s tail and marker lights
will be turned on, and the BUZZER sounds for 2 seconds.
You may TRIGGER a PANIC ALARM by pressing the PANIC button on
the back of the remote control to draw attention to your vehicle. During
the PANIC ALARM, the head, tail and marker lights flash, and the horn
sounds but the starter is not disabled.
The RS3200 flashes the vehicle’s tail and marker lights during REMOTE
ARMING and REMOTE DISARMING, as well as during an alarm. Also,
the headlights flash during an alarm.
When the system is REMOTE DISARMED, it turns on the interior lights
in the vehicle for 30 seconds, or until the key is inserted into the ignition
switch. It also turns them on during an alarm.
During an alarm, the RS3200 activates the vehicle’s horn.
If power tot the RS3200 is disrupted while it is ARMED, an alarm is
TRIGGERED once power is restored.
This panel houses the GLASS BREAKAGE SENSOR microphone and
the flashing LED that indicates the operating status of the security sys -
tem. (In vehicles with an engine immobilizer system, that system’s LED
and a seperate microphone are used instead.)
The RS3200 utilizes a PIEZO BUZZER, usually mounted in the engine
compartment, to sounds confirmation “chirps” and tones for function
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle’s doors when you turn the
ignition key to “ON” or “START”, and unlocks the doors when you turn
the key back to “ACC” or “LOCK”.
The buzzer sounds for 5 seconds when you attempt to REMOTE ARM
the system while a door is open. You can stop the warning by closing
the door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with the
RS3200 is approximately 50 feet. Please refer to page 10 for a descrip -
tion of factors that may affect the performance (operating range) of the
remote controls.
STARTER DISABLE
FORCED LOCK DURING ALARM
TRIGGER MEMORY
PANIC MODE OPERATION
EXTERIOR LIGHT ACTIVATION
INTERIOR LIGHT ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-CONTROLLED
AUTOMATIC DOOR LOCK /
UNLOCK
DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
FEATURES
FUNCTIONS
Page 19 of 23

REMOTE CONTROL INFORMATION
THE REMOTE CONTROLS PROVIDED WITH YOUR SYSTEM
The 3 button remotes included with your system have separate LOCK and UNLOCK buttons on the
front and a PANIC button on the back .
The RS3200 may be controlled by as many as 4 remote controls, so you may add two additional
remote controls to the two included with your system. Contact your Scion dealer for more details.
NOTE: This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one or more
of the following measures:
t 3 F P S J F O U P S S F M P D B U F U I F S F D F J W J O H B O U F O O B
t * O D S F B T F U I F T F Q B S B U J P O C F U X F F O U I F F R V J Q N F O U B O E U I F S F D F J W F S
t $ P O O F D U U I F F R V J Q N F O U J O U P B O P V U M F U P O B D J S D V J U E J G G F S F O U G S P N U I B U
to which the receiver is connected
t $ P O T V M U U I F E F B M F S P S B O F Y Q F S J F O D F E S B E J P 5 7 U F D I O J D J B O
for help.
PROGRAMMING
IGNITION-CONTROLLED AUTOMATIC DOOR LOCK/UNLOCK
The RS3200 is factory-set to automatically lock your vehicle’s doors when you turn the ignition key
to “ON” or “START”, and unlock the doors when you turn the key back to “ACC” or “LOCK”. To
change the programming of this feature, follow the procedure shown below.
1. Before you begin:
Open the driver’s door.
Remove the key from the ignition switch.
2. Start the Programming Procedure. (Complete these steps within 30 seconds.)
Note: If the system does not activate the lights and buzzer, start over.
3. Select the Operating Mode and Complete the Programming Procedure.
Page 18 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 3
Front Button
FLASHES WHEN BUTTONS PRESSED
PUSH TO LOCK DOORS AND ARM SYSTEM PUSH TO UNLOCK DOORS AND DIS-ARM SYSTEM
Back Button
HOLD TO ACTIVATE PANIC MODE OPERATION
a. Insert the key into the
ignition switch and turn it
from LOCK to ON 5 times
(ending at ON). c.
The STATUS MONI TOR’S
LED (or the engine immobilizer
system’s LED) turns on for 30
seconds.
b. Turn the ignition
key backto lock.
a. Close the door =
IG. Controlled Door Locks ON
Close, then open and close
the door again = IG. Controlled
Door Locks OFF c.
The tail and marker lights
flash once and the buzzer
chirps once when the
system is set for IG door
lock control ON, twice for
IG door lock control OFF.
If this does not happen,
start over. Programming is
now complete.
b. The tail and marker lights
flash once, and the buzzer
chirps once.
123123
123123
Page 20 of 23

INTRODUCTION
Congratulations on your choice of the RS3200 remote keyless security system to protect your
vehicle! To get the most from the system, we strongly recommend that you read this Owner’s Guide
completely to learn all of its features and functions.
The RS3200 provides the convenience of remote keyless operation, enabling you to A
RM and
D
ISARM at the same time you remotely lock and unlock the doors. The system provides compre -
hensive security protection through point-of-entry monitoring, glass breakage detection and ignition
switch monitoring. While A
RMED, the system will be TRIGGERED and sound an ALARM when a door
is forcibly unlocked or opened*, or when a window is tapped on or broken. During the A
LARM, the
vehicle’s horn sounds and the headlights, tail lights and front marker lights flash. A l s o , the vehicle’s
starter is disabled, to prevent engine start.
An important note about your system
Throughout this guide, there are references to the S
TATUS MONITOR for this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the G
LASS
B
REAKAGE SENSOR’S microphone. In vehicles with an engine immobilizer, there is already a LED
installed in the vehicle, so the RS3200 utilizes the engine immobilizer system LED and a micro-
phone mounted in a separate location. If your vehicle falls into this category, remember to look at
that LED when the information refers to the S
TATUS MONITOR. If you do not know where the LED is
located, refer to your vehicle’s owner’s guide for specific information.
About the ignition-controlled automatic door locking/unlocking function.
The RS3200 is programmed to automatically lock your vehicle’s doors when you turn the key in the
ignition switch to the “ON” or “START” position, and unlock them when you turn the key back to the
“ACC” or “LOCK” position. You may disable this feature by reprogramming the system; refer to page
18 for programming information.
* When the system is P
ASSIVELY (AUTOMATICALLY) ARMED, there is an ENTRY DELAY that will
elapse when a door is opened before an A
LARM is TRIGGERED.
YOUR ENGINE IMMOBILIZER SYSTEM LED MAY LOOK DIFFERENT THAN THE ONE
ILLUSTRATED HERE
LIGHTS FOR
30 SECONDS(PRE-ARMING)THEN STARTS FLASHING(SYSTEM IS ARMED)
Page 2 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 19
SCION
SECURITY
REMOTE CONTROL BATTERY REPLACEMENT
The following shows the procedure to replace the batteries in your remote controls. We recommend
that you replace the batteries at least once a year, or when the remote control’s transmitting range
diminishes. You may obtain the replacement battery from your Scion dealer, as well as many retail -
ers that sell watch batteries. The battery replacement type is a Lithium CR2025.
Important notes on battery replacement:
When replacing the battery, be careful not to lose the components.
Take care not to bend or damage the rubber gasket.
REMOVE THE BATTERY
1. Lay the remote control on a towel or other soft material.
Place it with the back side facing up.
2. Using a coin, pry open the remote control.
Use gentle pressure to avoid deforming the plastic.
3. Set the back cover aside.
4. Remove the rubber gasket and set it aside.
5. Push the battery down and toward you, and hold it
down.
6. Pry the back edge of the battery up and toward you.
SCION
123123123
123123
123
123
