A: HB2 halogen bulbs
B: Wedge base bulbs
C: Wedge base bulbs (amber)
D: Double end bulbs
—Headlights
1. Unplug the connector. Remove the
rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.

206
3. Install the rubber cover as shown
and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Scion dealer.
73A019
73A020
—Front turn signal lights —Parking lights

207
If either the left or right front side
marker lights burns out, contact your
Scion dealer.
NOTICE
Do not try to replace the front side
marker light bulbs by yourself. You
may damage the vehicle.73a022
Front of vehicle
73a023
73a024
—Front side marker lights —Side turn signal lights

208

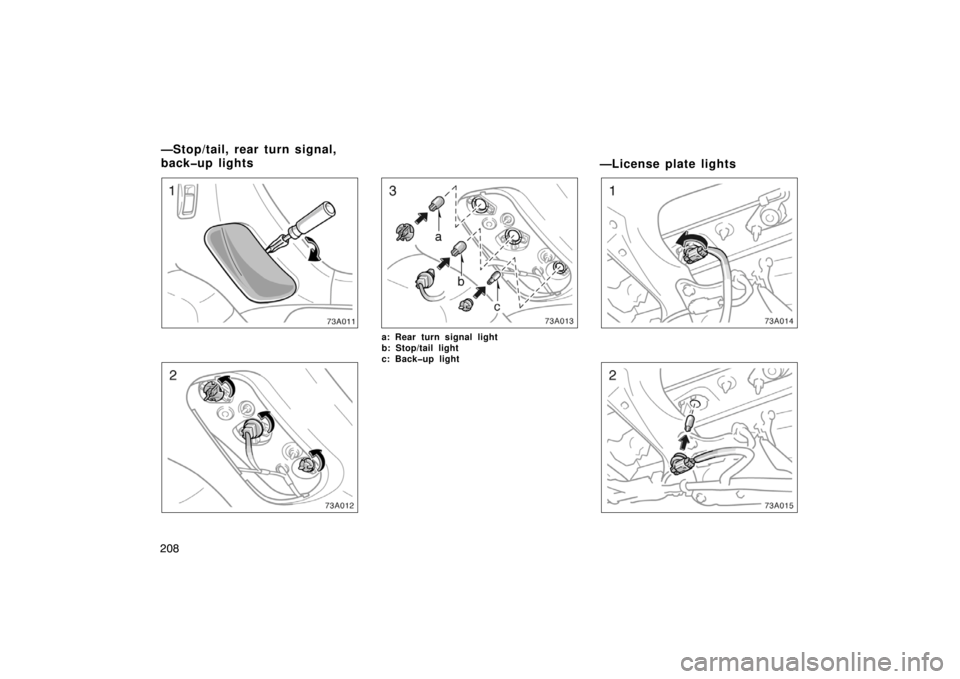

a: Rear turn signal light
b: Stop/tail light
c: Backup light
—License plate lights
—Stop/tail, rear turn signal,
backup lights

209
—High mounted stoplights

210

211
SPECIFICATIONS
Dimensions and weightss212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications213 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires215 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses216 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8

212
Dimensions and weights
Overall length mm (in.):
3915 (154.1)
Overall width mm (in.):
1695 (66.7)
Overall height mm (in.):
1530 (60.2)
Wheelbase mm (in.):
2370 (93.3)
Front tread mm (in.):
1455 (57.3)
Rear tread mm (in.):
1430 (56.3)
Vehicle capacity weight
(occupants+cargo) kg (lb.):
375 (825)
Engine
Model:
1NZ−FE
Type:
4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.):
75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1497 (91.3)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87 (Re-
search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.):
45 (11.9, 9.9)

213
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO K16R−U
NGK BKR5EYA
Spark plug gap, mm(in.):
0.8 (0.031)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
“Genuine Motor Oil” is filled in your Scion
vehicle. Use Scion approved “Genuine Mo-
tor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.Oil grade:
API grade SL “Energy−Conserving” or
ILSAC multigrade engine oil
Please contact your Scion dealer for fur-
ther details.
Recommended oil viscosity:

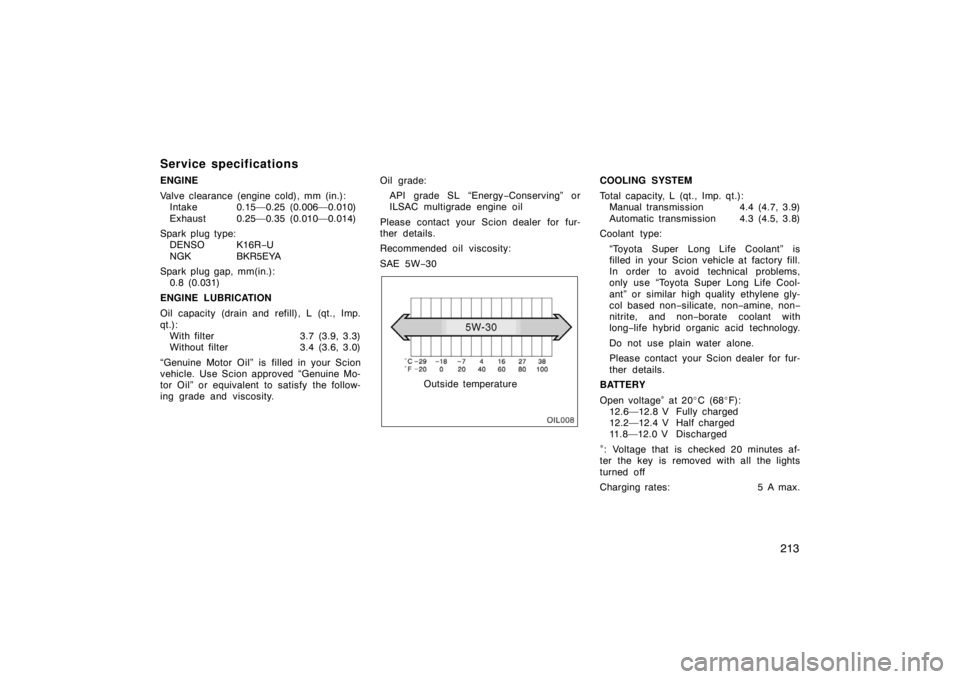

SAE 5W−30
OIL008
Outside temperature
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission 4.4 (4.7, 3.9)
Automatic transmission 4.3 (4.5, 3.8)
Coolant type:
“Toyota Super Long Life Coolant” is
filled in your Scion vehicle at factory fill.
In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non−silicate, non−amine, non−
nitrite, and non−borate coolant with
long−life hybrid organic acid technology.
Do not use plain water alone.
Please contact your Scion dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

214
CLUTCH
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
1.9 (2.0, 1.7)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
2.9 (3.1, 2.6)
Fluid type:
Genuine ATF Type T−IV
Change automatic transmission fluid only
as necessary.Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide”. When
changing the automatic transmission fluid,
use only “Genuine ATF Type T−IV” (ATF
JWS3309 or NWS6500) to aid in assuring
optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Genuine ATF Type T
IV” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
50 (2.0)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
6—9 clicks
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
