Recycled or used salvage:Used parts and assemblies that have been
removed from another vehicle. There are no systems in place to regu-
late the quality or safety of these parts.
Remanufactured: Parts that have been returned to like-new condition
through repair, refurbishing or rebuilding.
Warranty Coverage
Warranties for collision repair parts are provided by the manufacturer
or distributor of the parts. Warranty coverage varies. Your insurance
company or collision repair facility should provide you with written
warranty statements for all parts used in the repair of your vehicle.
Scion warranty coverage remains intact only when vehicle repairs
are completed with Scion Authorized Parts. Scion warranties do
not cover imitation or used salvage parts or any damage or failures
caused by the use of such parts.
Scion Maintenance & Repair Support5
Collision Repair Parts ‹‹

Scheduled Maintenance Log 18
›› Maintenance Log
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 10.
7,500 Miles or 6 Months
❑Replace engine oil and oil filter1
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
5,000 Miles or 4 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
10,000 Miles or 8 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE: D
EALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Note: If you drive your vehicle under any of
the special operating conditions noted on
pages 10–11, you may need to perform spe-
cific services at 5,000-mile intervals. See the
5,000-mile maintenance charts for details.

Scheduled Maintenance Log19
Maintenance Log ‹‹
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2Specific services apply to specific operating conditions. See pages 10–11 for details.
15,000 Miles or 12 Months
15,000 Miles or 12 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Drive shaft boots
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Engine coolant level
__ Exhaust pipes and mountings
__ Steering gear box
__ Steering linkage and boots

Scheduled Maintenance Log 20
›› Maintenance Log
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 10.
22,500 Miles or 18 Months
❑Replace engine oil and oil filter1
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
20,000 Miles or 16 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
25,000 Miles or 20 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE: D
EALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Note: If you drive your vehicle under any of
the special operating conditions noted on
pages 10–11, you may need to perform spe-
cific services at 5,000-mile intervals. See the
5,000-mile maintenance charts for details.

Scheduled Maintenance Log21
Maintenance Log ‹‹
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2Specific services apply to specific operating conditions. See pages 10–11 for details.3Required under the terms of the Emission Control Warranty.4Applies to manual transmission models only.
30,000 Miles or 24 Months
30,000 Miles or 24 Months
❑Replace engine air filter
❑Replace engine oil and oil filter1
❑Replace spark plugs3
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Differential oil
__ Drive shaft boots
__ Engine coolant level
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect nuts and bolts on chassis and body
❑Replace differential oil4
❑Replace manual transmission oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

Scheduled Maintenance Log 22
›› Maintenance Log
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 10.
37,500 Miles or 30 Months
❑Replace engine oil and oil filter1
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
35,000 Miles or 28 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
40,000 Miles or 32 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE: D
EALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Note: If you drive your vehicle under any of
the special operating conditions noted on
pages 10–11, you may need to perform spe-
cific services at 5,000-mile intervals. See the
5,000-mile maintenance charts for details.

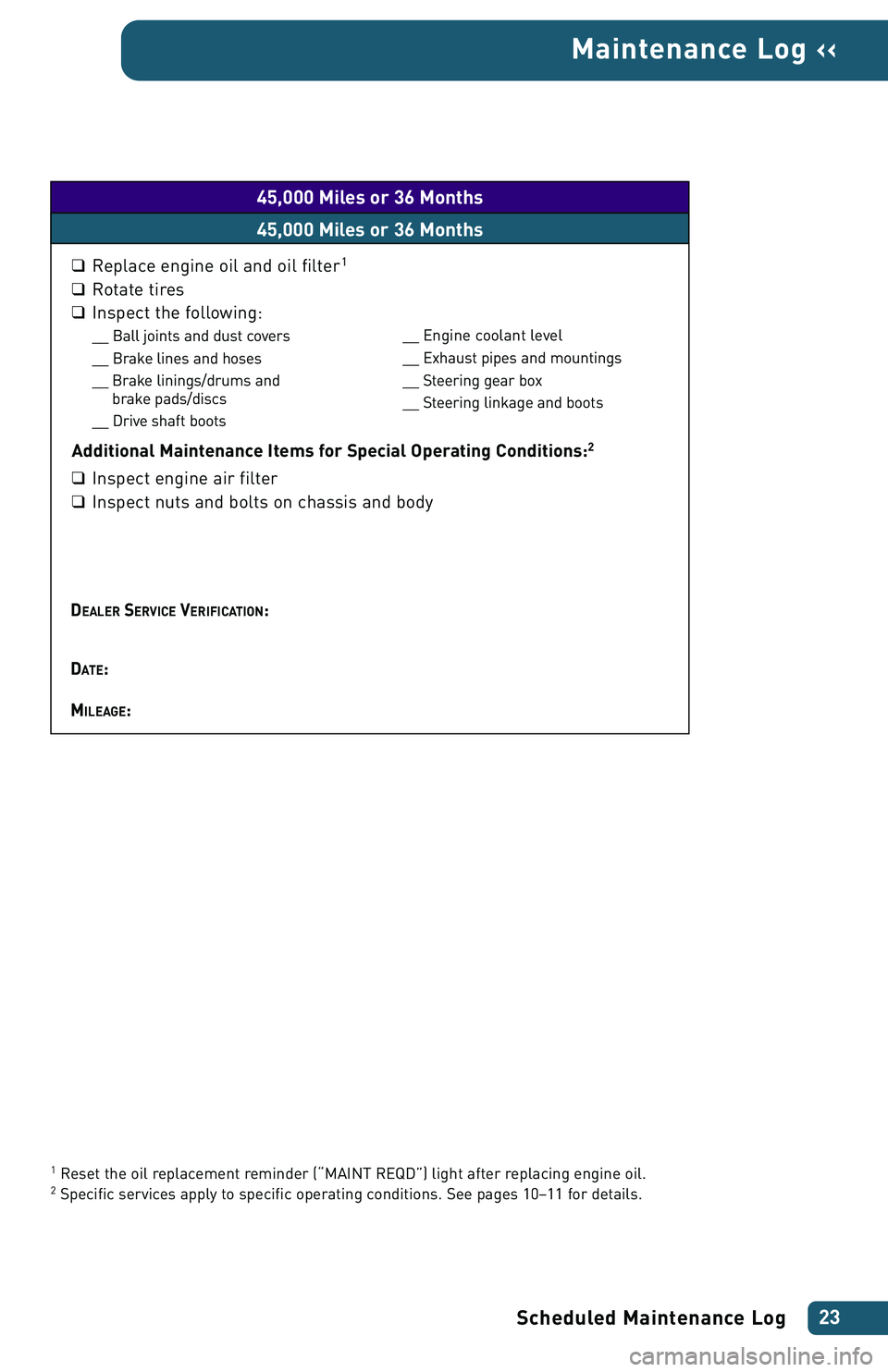

Scheduled Maintenance Log23
Maintenance Log ‹‹
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2Specific services apply to specific operating conditions. See pages 10–11 for details.
45,000 Miles or 36 Months
45,000 Miles or 36 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Drive shaft boots
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Engine coolant level
__ Exhaust pipes and mountings
__ Steering gear box
__ Steering linkage and boots

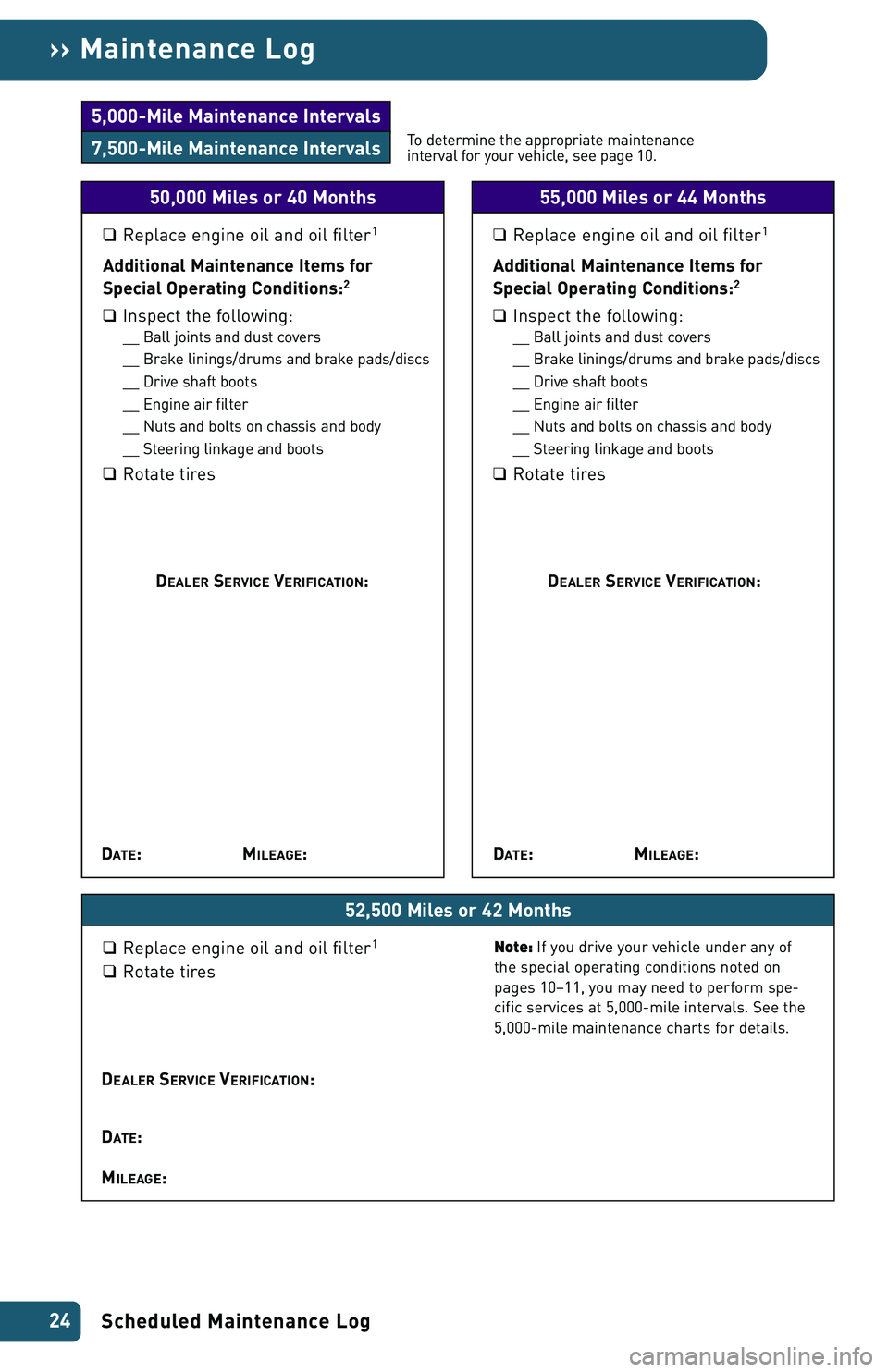

Scheduled Maintenance Log 24
›› Maintenance Log
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 10.
52,500 Miles or 42 Months
❑Replace engine oil and oil filter1
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
50,000 Miles or 40 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
55,000 Miles or 44 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE: D
EALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Note: If you drive your vehicle under any of
the special operating conditions noted on
pages 10–11, you may need to perform spe-
cific services at 5,000-mile intervals. See the
5,000-mile maintenance charts for details.

Scheduled Maintenance Log25
Maintenance Log ‹‹
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2Specific services apply to specific operating conditions. See pages 10–11 for details.3Required under the terms of the Emission Control Warranty.4Initial inspection at 60,000 miles. Inspect every 15,000 miles thereafter.
60,000 Miles or 48 Months
60,000 Miles or 48 Months
❑Replace engine air filter
❑Replace engine oil and oil filter1
❑Replace spark plugs3
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Differential oil
__ Drive belts
4
__ Drive shaft boots
__ Engine coolant level
__ Engine valve clearance
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect nuts and bolts on chassis and body
❑Replace transmission fluid or oil
❑Replace differential oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

Scheduled Maintenance Log 26
›› Maintenance Log
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 10.
67,500 Miles or 54 Months
❑Replace engine oil and oil filter1
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
65,000 Miles or 52 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
70,000 Miles or 56 Months
❑Replace engine oil and oil filter1
Additional Maintenance Items for
Special Operating Conditions:2
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE: D
EALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Note: If you drive your vehicle under any of
the special operating conditions noted on
pages 10–11, you may need to perform spe-
cific services at 5,000-mile intervals. See the
5,000-mile maintenance charts for details.
