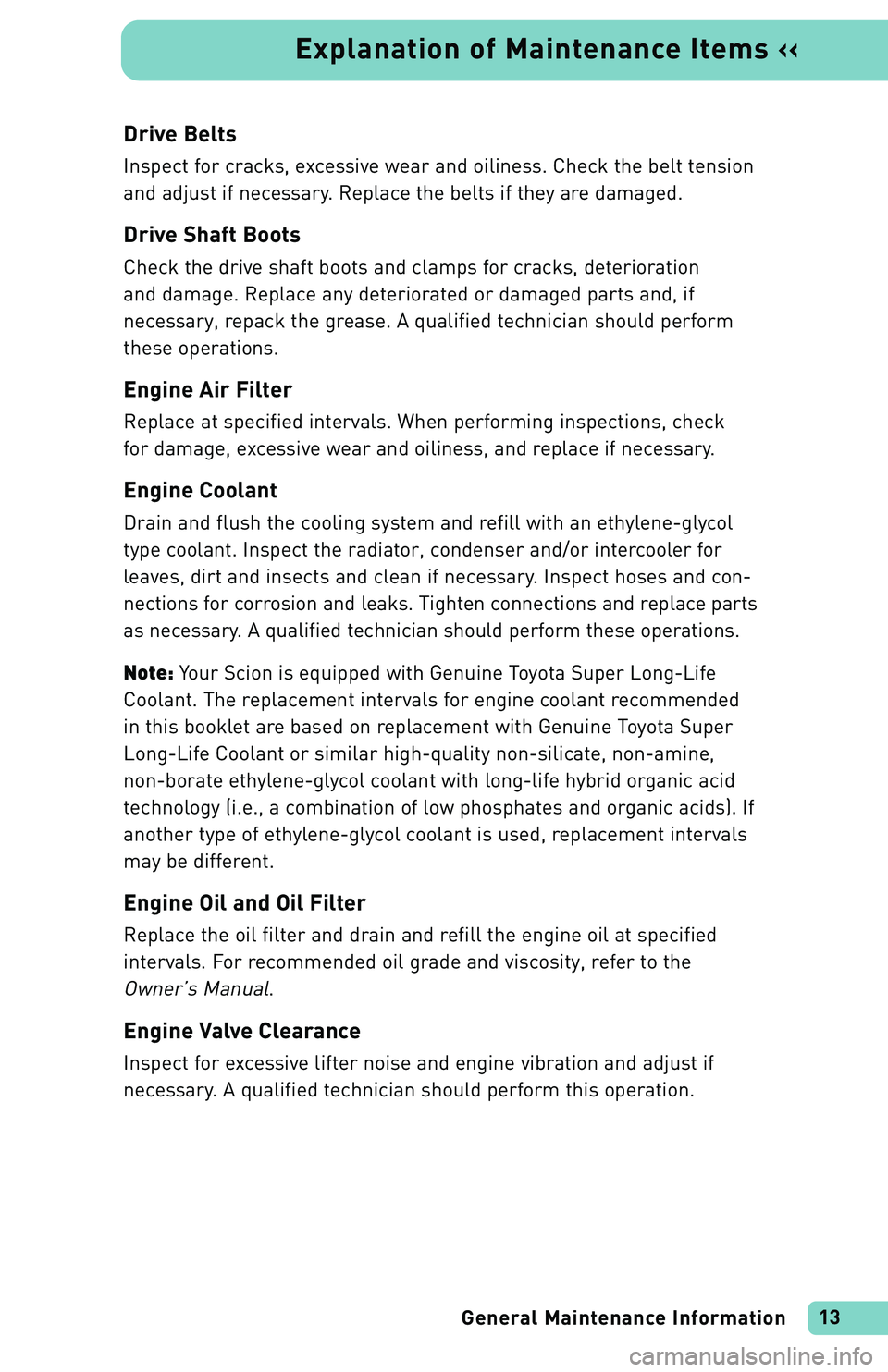

Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension
and adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration
and damage. Replace any deteriorated or damaged parts and, if
necessary, repack the grease. A qualified technician should perform
these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check
for damage, excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethylene-glycol
type coolant. Inspect the radiator, condenser and/or intercooler for
leaves, dirt and insects and clean if necessary. Inspect hoses and con-
nections for corrosion and leaks. Tighten connections and replace parts
as necessary. A qualified technician should perform these operations.
Note:Your Scion is equipped with Genuine Toyota Super Long-Life
Coolant. The replacement intervals for engine coolant recommended
in this booklet are based on replacement with Genuine Toyota Super
Long-Life Coolant or similar high-quality non-silicate, non-amine,
non-borate ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e., a combination of low phosphates and organic acids). If
another type of ethylene-glycol coolant is used, replacement intervals
may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified
intervals. For recommended oil grade and viscosity, refer to the
Owner’s Manual.
Engine Valve Clearance
Inspect for excessive lifter noise and engine vibration and adjust if
necessary. A qualified technician should perform this operation.
General Maintenance Information13
Explanation of Maintenance Items ‹‹

Scheduled Maintenance Log25
Maintenance Log ‹‹
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2Specific services apply to specific operating conditions. See pages 10–11 for details.3Required under the terms of the Emission Control Warranty.4Initial inspection at 60,000 miles. Inspect every 15,000 miles thereafter.

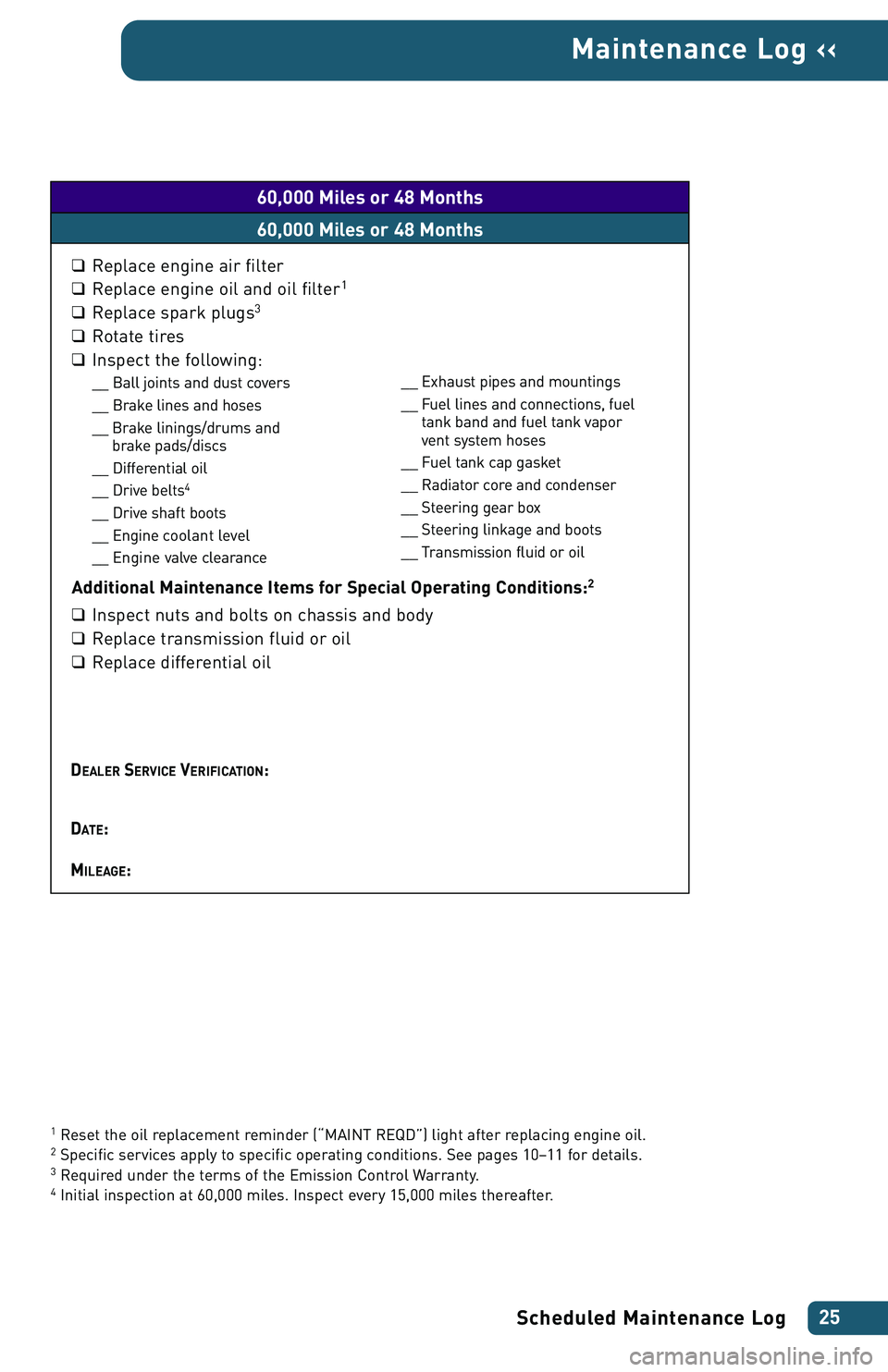

60,000 Miles or 48 Months
60,000 Miles or 48 Months
❑Replace engine air filter
❑Replace engine oil and oil filter1
❑Replace spark plugs3
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Differential oil
__ Drive belts
4
__ Drive shaft boots
__ Engine coolant level
__ Engine valve clearance
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect nuts and bolts on chassis and body
❑Replace transmission fluid or oil
❑Replace differential oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

Scheduled Maintenance Log27
Maintenance Log ‹‹
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2Specific services apply to specific operating conditions. See pages 10–11 for details.

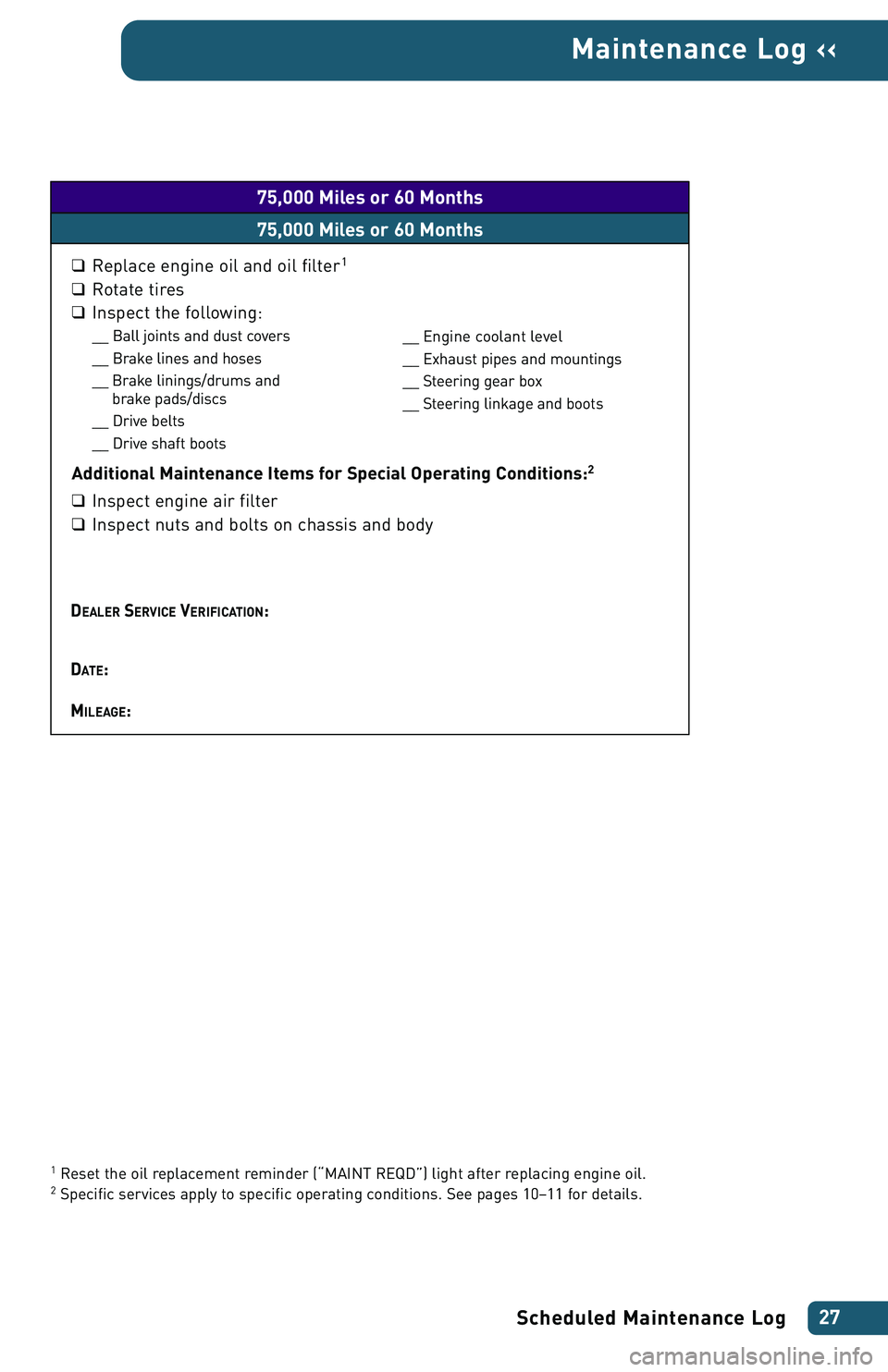

75,000 Miles or 60 Months
75,000 Miles or 60 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Drive belts
__ Drive shaft boots
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Engine coolant level
__ Exhaust pipes and mountings
__ Steering gear box
__ Steering linkage and boots

Scheduled Maintenance Log29
Maintenance Log ‹‹
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2Specific services apply to specific operating conditions. See pages 10–11 for details.3Initial replacement at 90,000 miles/72 months. Replace every 50,000 miles/40 months thereafter.
See page 13 for additional information.
4Required under the terms of the Emission Control Warranty.5Applies to manual transmission models only.

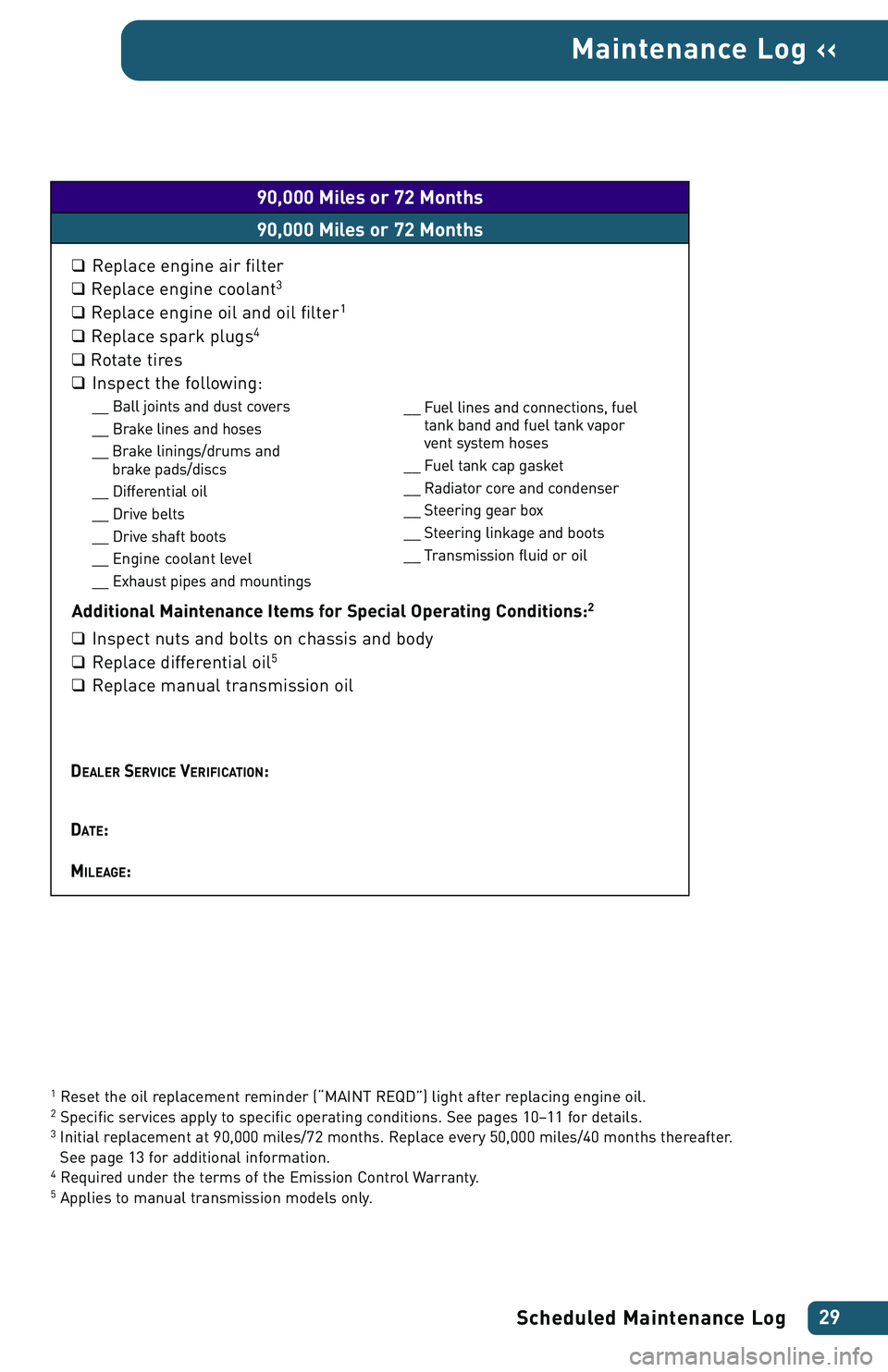

90,000 Miles or 72 Months
90,000 Miles or 72 Months
❑Replace engine air filter
❑ Replace engine coolant3
❑ Replace engine oil and oil filter1
❑ Replace spark plugs4
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Differential oil
__ Drive belts
__ Drive shaft boots
__ Engine coolant level
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect nuts and bolts on chassis and body
❑Replace differential oil5
❑Replace manual transmission oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

Scheduled Maintenance Log31
Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Specific services apply to specific operating conditions. See pages 10–11 for details.
105,000 Miles or 84 Months
105,000 Miles or 84 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Drive belts
__ Drive shaft boots
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Engine coolant level
__ Exhaust pipes and mountings
__ Steering gear box
__ Steering linkage and boots

Scheduled Maintenance Log33
Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Specific services apply to specific operating conditions. See pages 10–11for details.3 Required under the terms of the Emission Control Warranty.

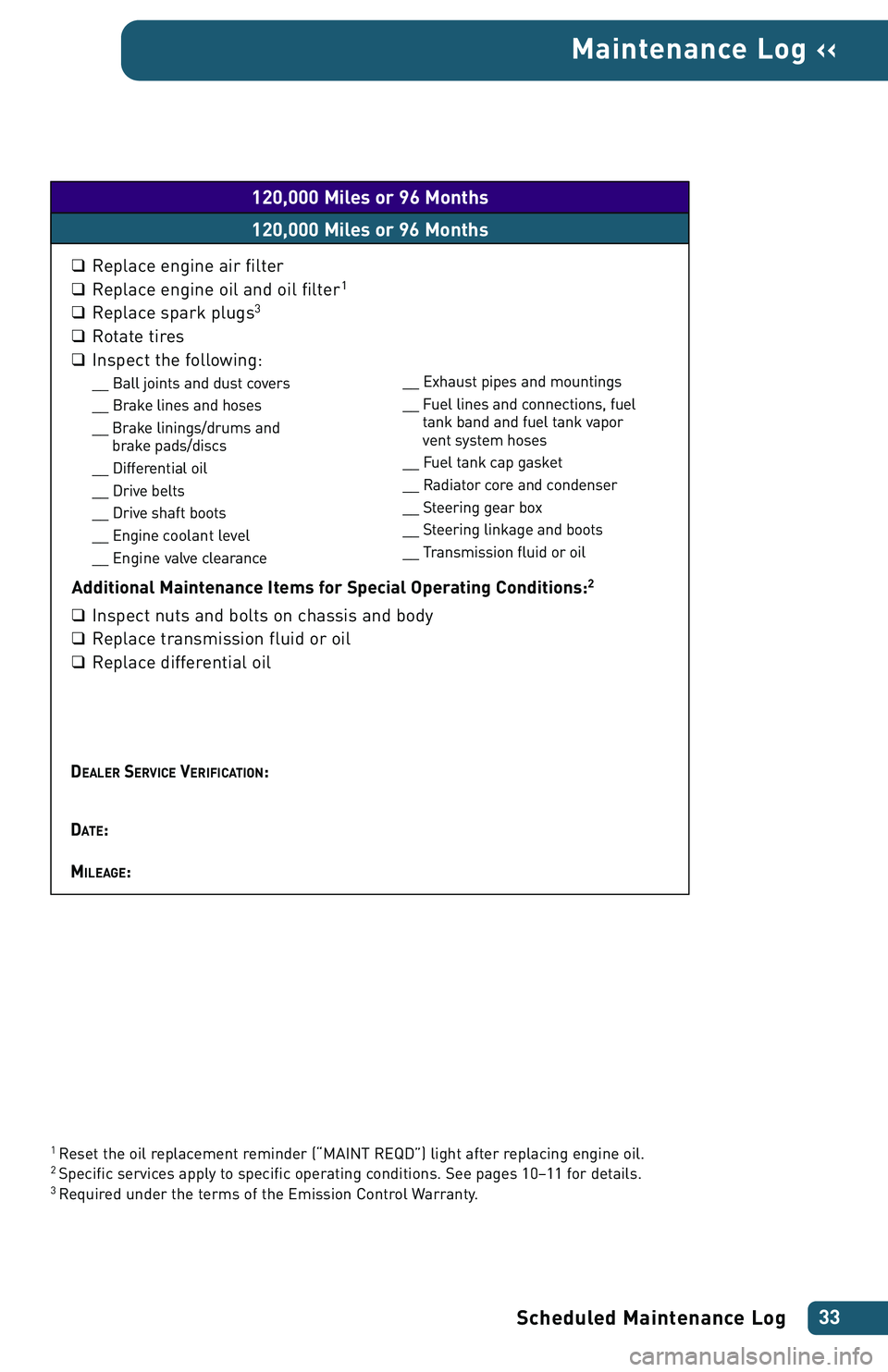

120,000 Miles or 96 Months
120,000 Miles or 96 Months
❑Replace engine air filter
❑Replace engine oil and oil filter1
❑Replace spark plugs3
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
__ Differential oil
__ Drive belts
__ Drive shaft boots
__ Engine coolant level
__ Engine valve clearance
Additional Maintenance Items for Special Operating Conditions:2
❑Inspect nuts and bolts on chassis and body
❑Replace transmission fluid or oil
❑Replace differential oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
