sensor TOYOTA xA 2005 Accessories, Audio & Navigation (in English)

PROGRAMMING
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION
The RS3200 is factory-set to unlock the driver’s door when the UNLOCK button is pressed on the
remote control, then unlock the remaining doors when the UNLOCK button is pressed again within 3
seconds. You may change the programming so all doors will unlock at once when the UNLOCK but-
ton is pressed by following the steps below.
1. Before you begin: 2. Start the Programming Procedure.
Open the driver’s door. (Complete these steps within 40 seconds.)
Remove the key from the ignition switch.

Note: If the system does not activate the lights and buzzer, start over.
Page 16 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 5
BRIEF DESCRIPTION–RS3200 FEATURES
a. Insert the key into,
and remove it
from the ignition
switch 2 times.
e. Insert the key into
the ignition and
leave it in.
c. Insert the key
into, and remove
it from the ignition
switch 1 time.
g. Turn the key from
LOCK to ON 4
times (ending at
LOCK.) h.
Remove the key
from the ignition
switch.
b. Close, then open
the driver’s door
2 times.
f. Close the driver’s
door.d. Close , then open
the driver’s door
2 times.
i. The tail and marker lights flash 4 times, the
buzzer chirps 4 times , and the doors lock
and unlock 4 times.
When an alarm is TRIGGERED, the system disables the vehicle’s start -
er and prevents engine start until the system is reset (DISARMED).
During an alarm, the system will loce the doors if one is unlocked and
will continue to do so for the duration of the alarm.
The user is notified that an alarm occurred. Upon DISARMING the sys -
tem after an alarm was TRIGGERED, the vehicle’s tail and marker lights
will be turned on, and the BUZZER sounds for 2 seconds.
You may TRIGGER a PANIC ALARM by pressing the PANIC button on
the back of the remote control to draw attention to your vehicle. During
the PANIC ALARM, the head, tail and marker lights flash, and the horn
sounds but the starter is not disabled.
The RS3200 flashes the vehicle’s tail and marker lights during REMOTE
ARMING and REMOTE DISARMING, as well as during an alarm. Also,
the headlights flash during an alarm.
When the system is REMOTE DISARMED, it turns on the interior lights
in the vehicle for 30 seconds, or until the key is inserted into the ignition
switch. It also turns them on during an alarm.
During an alarm, the RS3200 activates the vehicle’s horn.
If power tot the RS3200 is disrupted while it is ARMED, an alarm is
TRIGGERED once power is restored.
This panel houses the GLASS BREAKAGE SENSOR microphone and
the flashing LED that indicates the operating status of the security sys -
tem. (In vehicles with an engine immobilizer system, that system’s LED
and a seperate microphone are used instead.)
The RS3200 utilizes a PIEZO BUZZER, usually mounted in the engine
compartment, to sounds confirmation “chirps” and tones for function
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle’s doors when you turn the
ignition key to “ON” or “START”, and unlocks the doors when you turn
the key back to “ACC” or “LOCK”.
The buzzer sounds for 5 seconds when you attempt to REMOTE ARM
the system while a door is open. You can stop the warning by closing
the door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with the
RS3200 is approximately 50 feet. Please refer to page 10 for a descrip -
tion of factors that may affect the performance (operating range) of the
remote controls.
STARTER DISABLE
FORCED LOCK DURING ALARM
TRIGGER MEMORY
PANIC MODE OPERATION
EXTERIOR LIGHT ACTIVATION
INTERIOR LIGHT ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-CONTROLLED
AUTOMATIC DOOR LOCK /
UNLOCK
DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
FEATURES
FUNCTIONS

PROGRAMMING

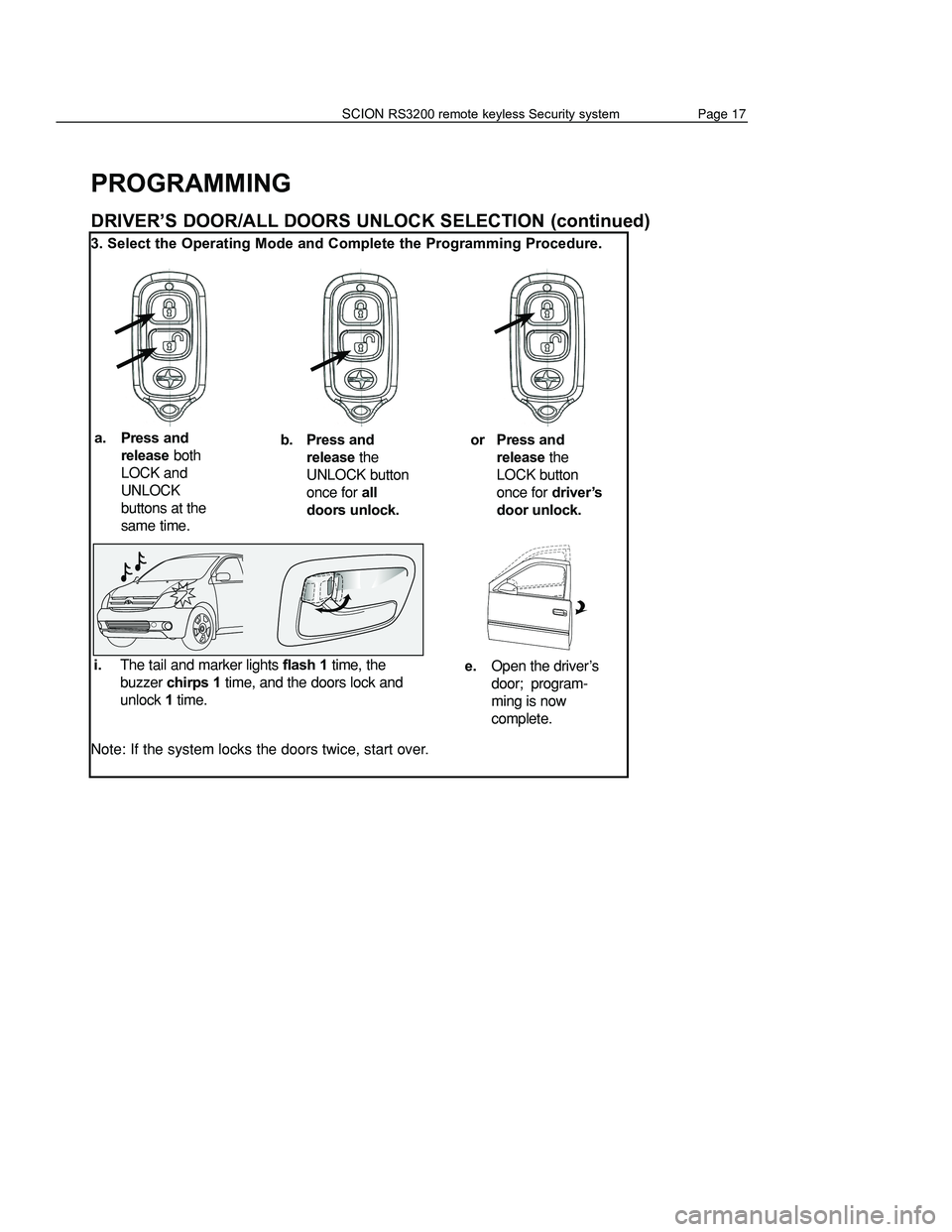

DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION (continued)
3. Select the Operating Mode and Complete the Programming Procedure.
Note: If the system locks the doors twice, start over.
Page 4 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 17
BRIEF DESCRIPTION–RS3200 FEATURES
a. Press and
release both
LOCK and
UNLOCK
buttons at the
same time.b. Press and
release the
UNLOCK button
once for all
doors unlock.or Press and
release the
LOCK button
once for driver’s
door unlock.
e. Open the driver’s
door; program-
ming is now
complete.i. The tail and marker lights flash 1 time, the
buzzer chirps 1 time, and the doors lock and
unlock 1 time.
The RS3200 will arm 30 seconds after the LOCK button on the remote
control is pressed, and DISARM when the UNLOCK button is pressed.
When the LOCK button is pressed, all the vehicle’s doors lock. When the
UNLOCK button is pressed, the driver’s door unlocks*, but if the UNLOCK
button is pressed again within 3 seconds, the remaining doors unlock.
The RS3200 will automatically RELOCK the vehicle’s doors if no door is
opened within 30 seconds after REMOTE DISARMING, the will REARM
30 seconds later.
The RS3200 will arm 30 seconds after you close and lock the vehicle’s
doors with the key, and will DISARM when you unlock a door with the key.
The RS3200 may be programmed to automatically arm 30 seconds after
the ignition key is removed, the vehicle exited and the last door and the
trunk are closed, without the necessity of locking the doors.
The RS3200 may be DISARMED with the vehicle’s ignition key after it
was PASSIVELY ARMED.
When the RS3200 has been PASSIVELY ARMED, and ENTRY DELAY
(user-selectable at 0,15, or 30 seconds) will start when a door is opened
before an ALARM is TRIGGERED.
When you lock the vehicle with a central lock switch (while a door is open)
the RS3200 will rm 30 seconds after you close all the doors and the hatch
(if open).
The RS3200 may be DISARMED by inserting the key into the ignition
switch and turning it to “ON”.
Forcibly unlocking or opening a door or hatch while the RS3200 is
ARMED will TRIGGER and ALARM immediately**. ( If the system was
PASSIVELY ARMED, the ENTRY DELAY must pass before the ALARM is
TRIGGERED).
The RS3200 utilizes a microphone (usually mounted in the STATUS
MONITOR) to sense the noise from tapping on window glass, or glass
breaking, and TRIGGER an ALARM. It is fine tuned to “listen” for this type
of noise, and ignore other sounds.
When the GLASS BREAKAGE SENSOR’S microphone picks up tapping
or breaking of window glass, it TRIGGERS a WARN AWAY ALARM; the
headlights and tail and marker lights flash, and the horn sounds for 20
seconds, but the starter is not disabled. If there is another detection of
glass tapping or breaking, or if a door is opened or unlocked without a
key, the regular ALARM is TRIGGERED.
While ARMED, the RS3200 monitors the ignition switch. If an attempt is
made to start the vehicle without a key, an ALARM is triggered.
REMOTE ARMING
/ DISARMING
& LOCKING /
UNLOCKING
AUTOMATIC
REARMING
KEY
ARMING / DISARMING
PASSIVE
(AUTOMATIC) ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
GLASS BREAKAGE
SENSOR
WARN AWAY ALARM
IGNITION SWITCH

FEATURES FUNCTIONS
* You may program the system to unlock all the doors with one press on the UNLOCK button.
See page 16 for programming instructions.
** The alarm will not trigger if the passenger side door is forcibly unlocked, until the passenger door is
opened.

INTRODUCTION
Congratulations on your choice of the RS3200 remote keyless security system to protect your
vehicle! To get the most from the system, we strongly recommend that you read this Owner’s Guide
completely to learn all of its features and functions.
The RS3200 provides the convenience of remote keyless operation, enabling you to A
RM and
D
ISARM at the same time you remotely lock and unlock the doors. The system provides compre -
hensive security protection through point-of-entry monitoring, glass breakage detection and ignition
switch monitoring. While A
RMED, the system will be TRIGGERED and sound an ALARM when a door
is forcibly unlocked or opened*, or when a window is tapped on or broken. During the A
LARM, the
vehicle’s horn sounds and the headlights, tail lights and front marker lights flash. A l s o , the vehicle’s
starter is disabled, to prevent engine start.
An important note about your system
Throughout this guide, there are references to the S
TATUS MONITOR for this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the G
LASS
B
REAKAGE SENSOR’S microphone. In vehicles with an engine immobilizer, there is already a LED
installed in the vehicle, so the RS3200 utilizes the engine immobilizer system LED and a micro-
phone mounted in a separate location. If your vehicle falls into this category, remember to look at
that LED when the information refers to the S
TATUS MONITOR. If you do not know where the LED is
located, refer to your vehicle’s owner’s guide for specific information.
About the ignition-controlled automatic door locking/unlocking function.
The RS3200 is programmed to automatically lock your vehicle’s doors when you turn the key in the
ignition switch to the “ON” or “START” position, and unlock them when you turn the key back to the
“ACC” or “LOCK” position. You may disable this feature by reprogramming the system; refer to page
18 for programming information.
* When the system is P
ASSIVELY (AUTOMATICALLY) ARMED, there is an ENTRY DELAY that will
elapse when a door is opened before an A
LARM is TRIGGERED.
YOUR ENGINE IMMOBILIZER SYSTEM LED MAY LOOK DIFFERENT THAN THE ONE
ILLUSTRATED HERE
LIGHTS FOR
30 SECONDS(PRE-ARMING)THEN STARTS FLASHING(SYSTEM IS ARMED)
Page 2 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 19
SCION
SECURITY

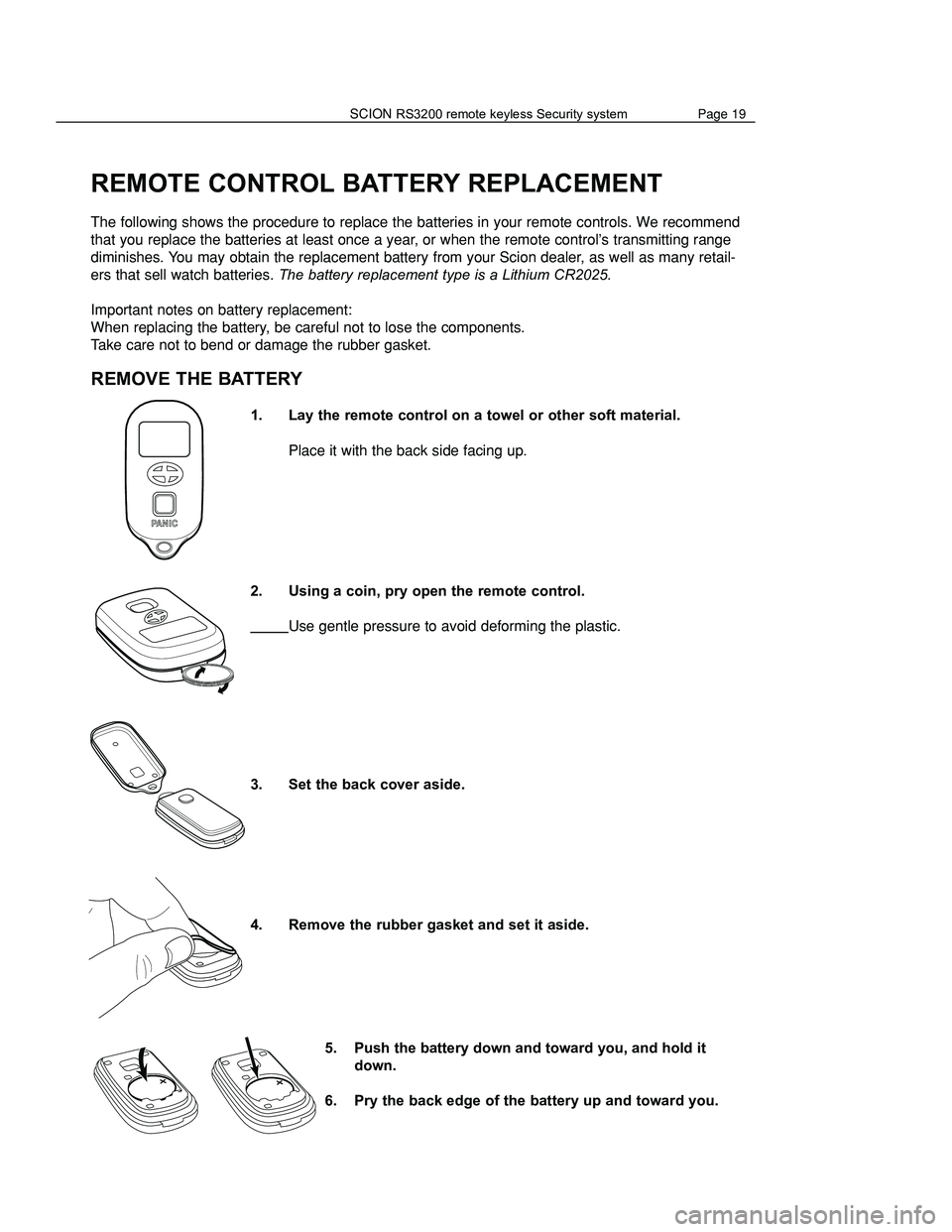

REMOTE CONTROL BATTERY REPLACEMENT
The following shows the procedure to replace the batteries in your remote controls. We recommend
that you replace the batteries at least once a year, or when the remote control’s transmitting range
diminishes. You may obtain the replacement battery from your Scion dealer, as well as many retail -
ers that sell watch batteries. The battery replacement type is a Lithium CR2025.
Important notes on battery replacement:
When replacing the battery, be careful not to lose the components.
Take care not to bend or damage the rubber gasket.
REMOVE THE BATTERY
1. Lay the remote control on a towel or other soft material.
Place it with the back side facing up.
2. Using a coin, pry open the remote control.
Use gentle pressure to avoid deforming the plastic.
3. Set the back cover aside.
4. Remove the rubber gasket and set it aside.
5. Push the battery down and toward you, and hold it
down.
6. Pry the back edge of the battery up and toward you.
SCION
123123123
123123
123
123

Page 20 SCION RS3200 REMOTE KEYLESS Security system
To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use.
TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION 2

REMOTE CONTROL INFORMATION
THE REMOTE CONTROL INCLUDED WITH YOUR SYSTEM 3

BRIEF DESCRIPTION–RS3200 FEATURES 4, 5

OPERATION
ARMING THE RS3200 (except PASSIVE ARMING) 6
DISARMING THE RS3200 (except PASSIVE DISARMING) 7
PASSIVE (AUTOMATIC) ARMING & DISARMING 8
AUTOMATIC REARMING 9
ARMING SUSPENSION 9

MISCELLANEOUS
DOOR AJAR WARNING 10
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 10
REMOTE CONTROL RANGE 10

ALARM INFORMATION
PANIC MODE OPERATION 11
ALARM TRIGGERS 12
ALARM DESCRIPTIONS 13
STOPPING AN ALARM 13

GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE 14

PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 15
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION 16, 17
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 18

REMOTE CONTROL BATTERY REPLACEMENT
REMOVE THE BATTERY 19
INSTALL THE BATTERY 20
WARNING AND CAUTION INFORMATION 21
REMOTE CONTROL BATTERY REPLACEMENT
INSTALL THE BATTERY
1. Hold the battery with the plus side up.
Handle the battery with a cloth or tissue; body oils and moisture can
interfere with operation and may reduce the life of the battery.
2. Insert the new battery as shown.
Place the edge of the battery in the contacts first, then slide the
battery back and down.
3. Place the rubber gasket back on the remote control.
Make sure the gasket is seated properly.
4. Place the back cover back on the top half of the remote control.
Place even pressure and listen for the halves to “snap” together.
SCION RS3200 remote keyless Security system Page 1
