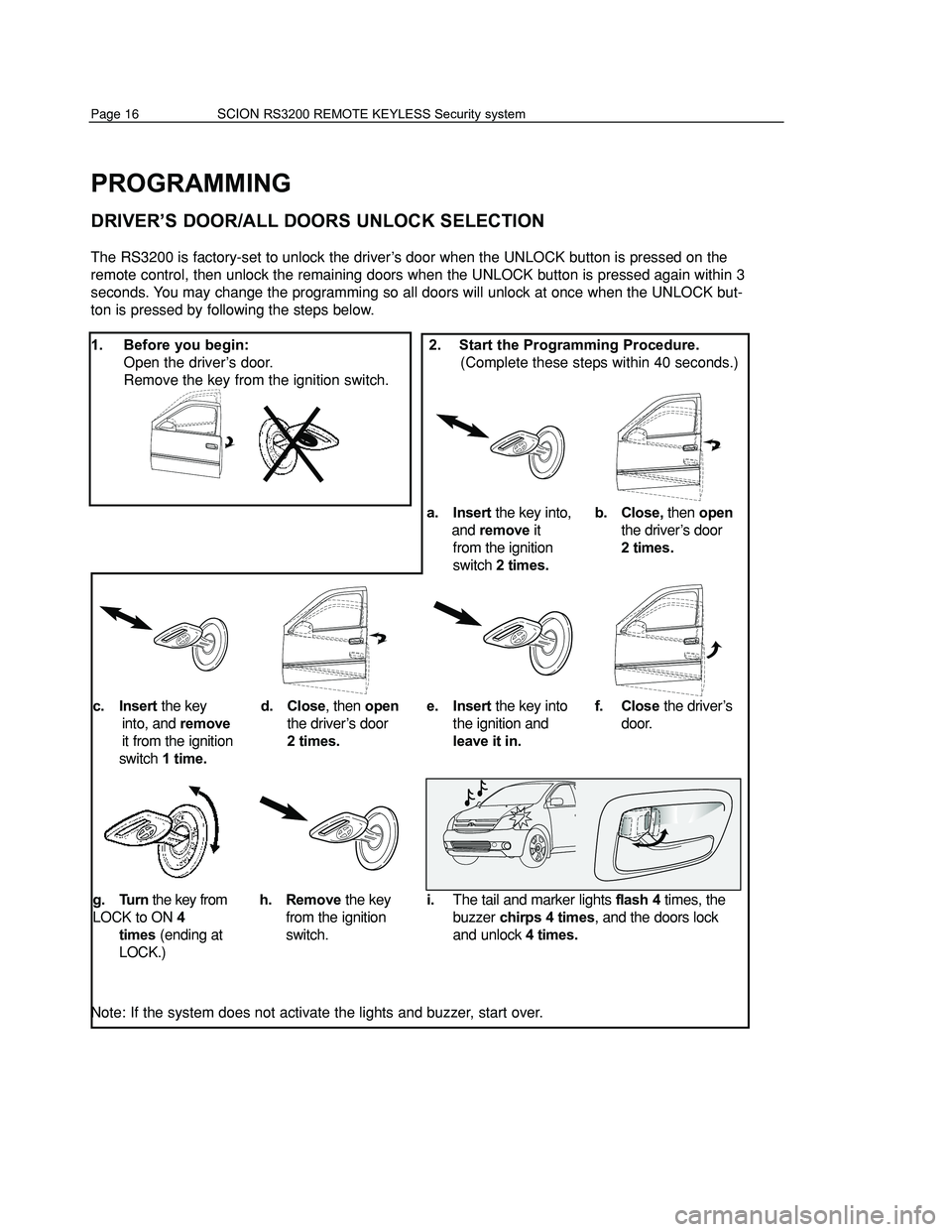

PROGRAMMING
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION
The RS3200 is factory-set to unlock the driver’s door when the UNLOCK button is pressed on the
remote control, then unlock the remaining doors when the UNLOCK button is pressed again within 3
seconds. You may change the programming so all doors will unlock at once when the UNLOCK but-
ton is pressed by following the steps below.
1. Before you begin: 2. Start the Programming Procedure.
Open the driver’s door. (Complete these steps within 40 seconds.)
Remove the key from the ignition switch.
Note: If the system does not activate the lights and buzzer, start over.
Page 16 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 5
BRIEF DESCRIPTION–RS3200 FEATURES
a. Insert the key into,
and remove it
from the ignition
switch 2 times.
e. Insert the key into
the ignition and
leave it in.
c. Insert the key
into, and remove
it from the ignition
switch 1 time.
g. Turn the key from
LOCK to ON 4
times (ending at
LOCK.) h.
Remove the key
from the ignition
switch.
b. Close, then open
the driver’s door
2 times.
f. Close the driver’s
door.d. Close , then open
the driver’s door
2 times.
i. The tail and marker lights flash 4 times, the
buzzer chirps 4 times , and the doors lock
and unlock 4 times.
When an alarm is TRIGGERED, the system disables the vehicle’s start -
er and prevents engine start until the system is reset (DISARMED).
During an alarm, the system will loce the doors if one is unlocked and
will continue to do so for the duration of the alarm.
The user is notified that an alarm occurred. Upon DISARMING the sys -
tem after an alarm was TRIGGERED, the vehicle’s tail and marker lights
will be turned on, and the BUZZER sounds for 2 seconds.
You may TRIGGER a PANIC ALARM by pressing the PANIC button on
the back of the remote control to draw attention to your vehicle. During
the PANIC ALARM, the head, tail and marker lights flash, and the horn
sounds but the starter is not disabled.
The RS3200 flashes the vehicle’s tail and marker lights during REMOTE
ARMING and REMOTE DISARMING, as well as during an alarm. Also,
the headlights flash during an alarm.
When the system is REMOTE DISARMED, it turns on the interior lights
in the vehicle for 30 seconds, or until the key is inserted into the ignition
switch. It also turns them on during an alarm.
During an alarm, the RS3200 activates the vehicle’s horn.
If power tot the RS3200 is disrupted while it is ARMED, an alarm is
TRIGGERED once power is restored.
This panel houses the GLASS BREAKAGE SENSOR microphone and
the flashing LED that indicates the operating status of the security sys -
tem. (In vehicles with an engine immobilizer system, that system’s LED
and a seperate microphone are used instead.)
The RS3200 utilizes a PIEZO BUZZER, usually mounted in the engine
compartment, to sounds confirmation “chirps” and tones for function
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle’s doors when you turn the
ignition key to “ON” or “START”, and unlocks the doors when you turn
the key back to “ACC” or “LOCK”.
The buzzer sounds for 5 seconds when you attempt to REMOTE ARM
the system while a door is open. You can stop the warning by closing
the door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with the
RS3200 is approximately 50 feet. Please refer to page 10 for a descrip -
tion of factors that may affect the performance (operating range) of the
remote controls.
STARTER DISABLE
FORCED LOCK DURING ALARM
TRIGGER MEMORY

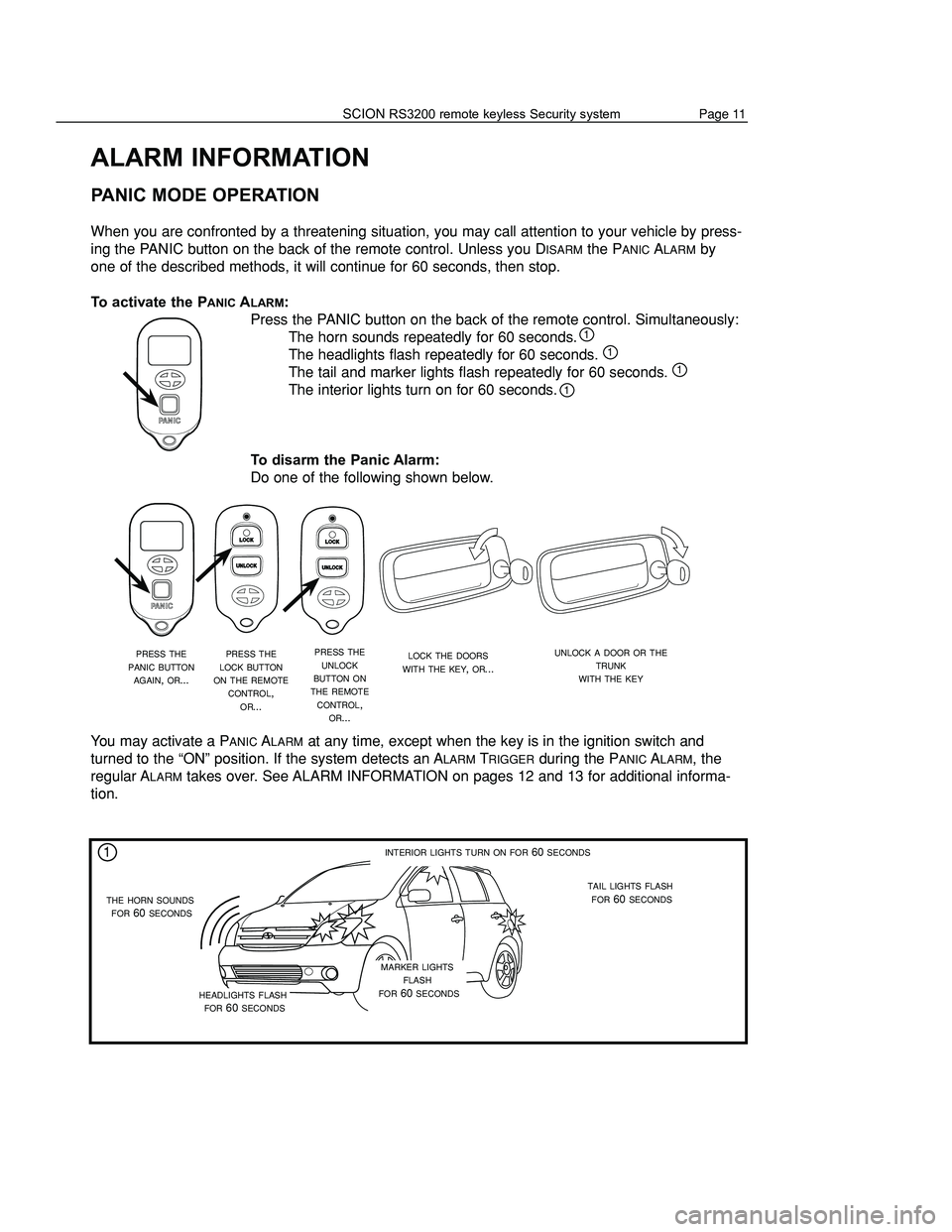

PANIC MODE OPERATION
EXTERIOR LIGHT ACTIVATION
INTERIOR LIGHT ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-CONTROLLED
AUTOMATIC DOOR LOCK /
UNLOCK

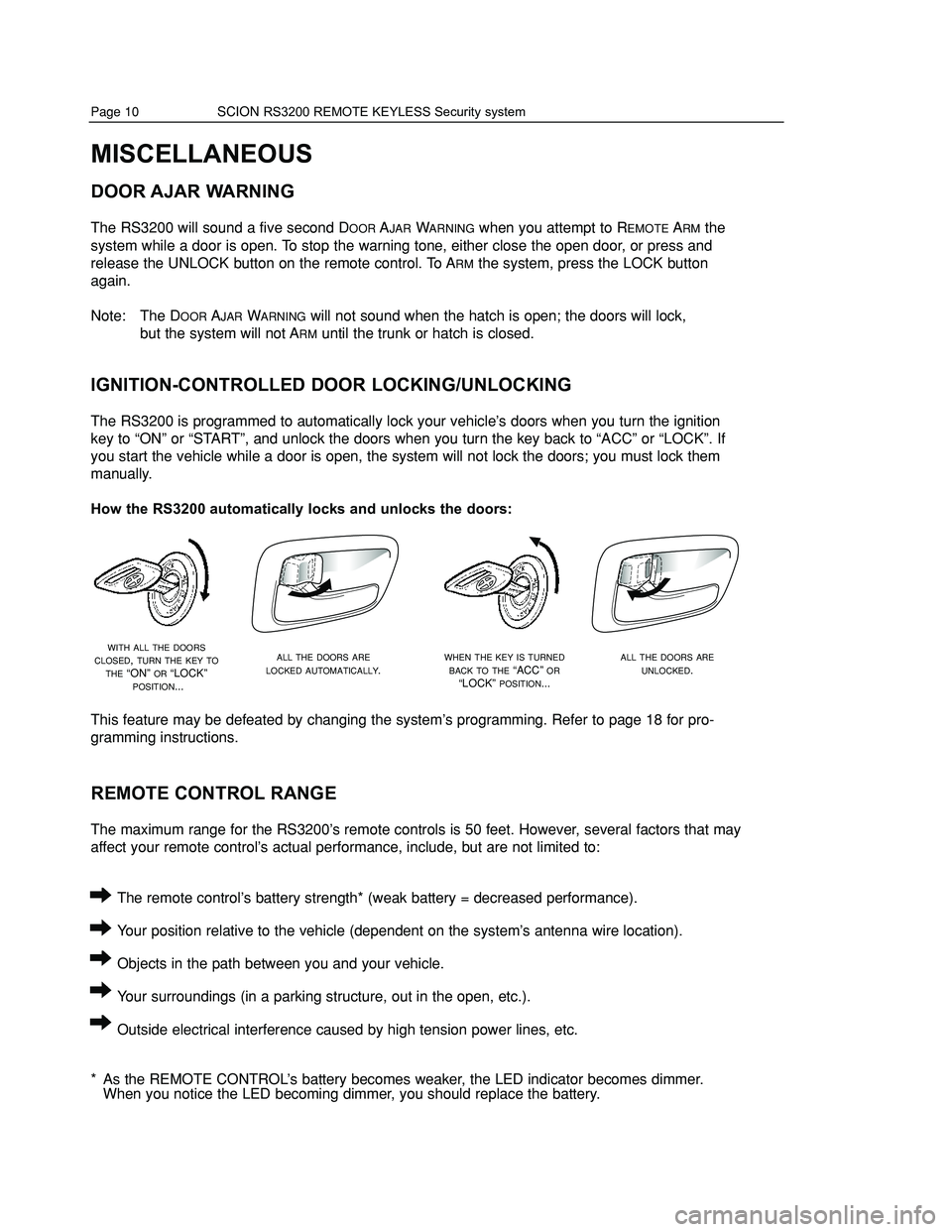

DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
FEATURES
FUNCTIONS
Page 8 of 23
OPERATION
DISARMING THE RS3200 (except PASSIVE DISARMING)
The system may be DISARMED in several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the driver’s door key switch and turn it toward the
rear of the vehicle:
The S
TATUS MONITOR’S LED stops flashing. The system
is now D
ISARMED.*
In the case of Sienna and 4Runner, you may also disarm the
system using the key in the back door; all the doors will unlock at the
same time. This feature is not available for Celica; you must disarm
the system before opening the hatch, or else an A
LARM will be
Triggered.
Unlock the doors with the remote control:
Press the UNLOCK button on the remote control. Simultaneously:
The driver’s door unlocks.
The vehicle’s tail and marker lights flash twice.
The interior lights turn on for 30 seconds.
The S
TATUS MONITOR’S LED stops flashing.
The system is now DISARMED.*
Press the UNLOCK button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON.
The S
TATUS MONITOR’S LED stops flashing. The system
is now D
ISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGER MEMORY was activated; an ALARM was
T
RIGGERED while you were away from the vehicle.
THE TAIL AND MARKER LIGHTS FLASH TWICE AND THE INTE-RIOR LIGHTS TURN ON FOR 30 SECONDS WHEN THE SYSTEM IS REMOTE DISARMED
Page 14 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 7
SCION
SECURITY
TURN TOWARD THE REAR
OF THE VEHICLE
TURN THE KEY TO “ON” TO DISARM THE SYSTEM
THE
DRIVER’S DOOR UNLOCKS WHEN THE SYSTEM IS REMOTE DISARMED
PUSH THE UNLOCK BUTTON
STOPS FLASHING WHEN THE SYSTEM IS DISARMED
THE BUZZER CHIRPS TWICE WHEN THE SYSTEM IS REMOTE DISARMED

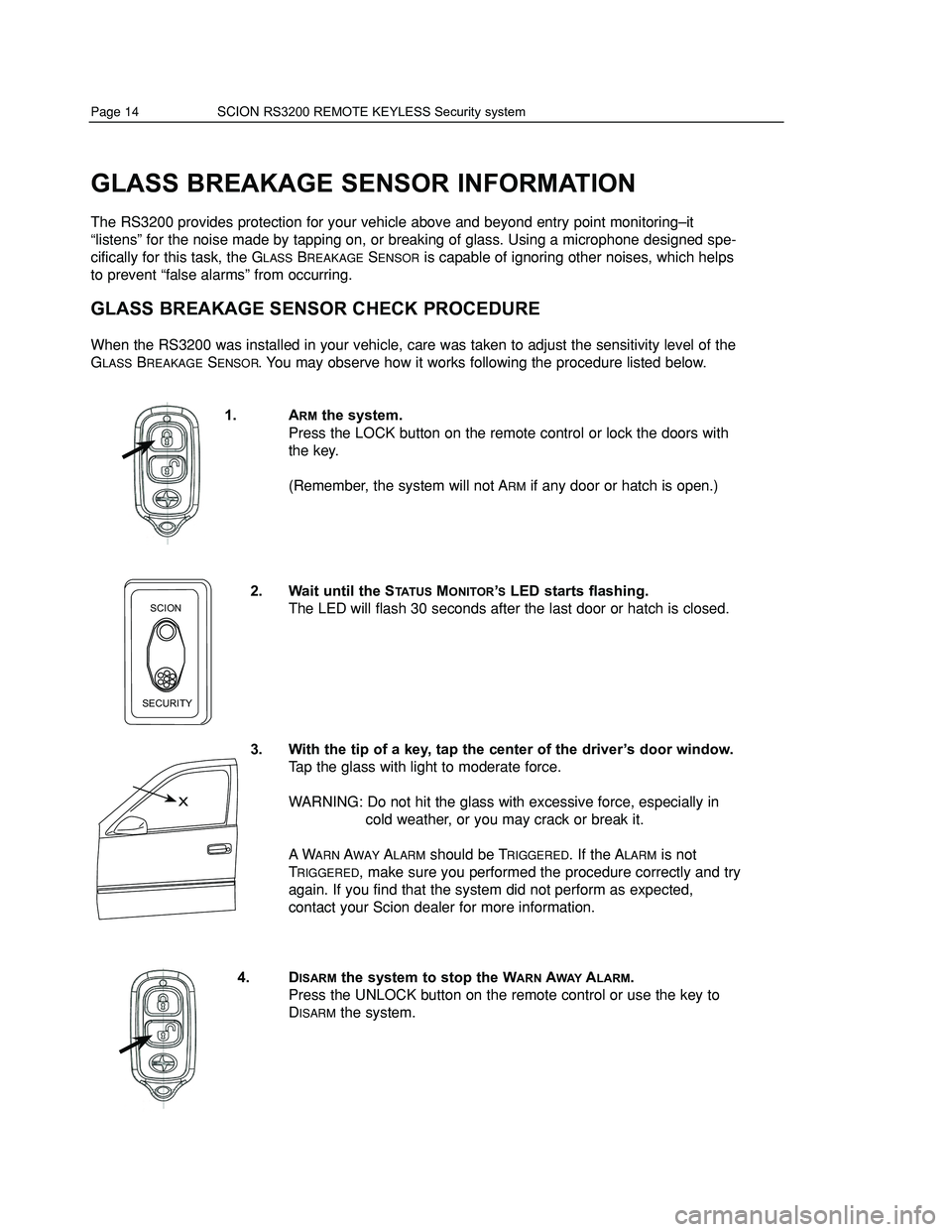

GLASS BREAKAGE SENSOR INFORMATION
The RS3200 provides protection for your vehicle above and beyond entry point monitoring–it
“listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed spe -
cifically for this task, the G
LASS BREAKAGE SENSOR is capable of ignoring other noises, which helps
to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 was installed in your vehicle, care was taken to adjust the sensitivity level of the
G
LASS BREAKAGE SENSOR. You may observe how it works following the procedure listed below.
1. A
RM the system.
Press the LOCK button on the remote control or lock the doors with
the key.
(Remember, the system will not A
RM if any door or hatch is open.)
2. Wait until the S
TATUS MONIT OR’S LED starts flashing.
The LED will flash 30 seconds after the last door or hatch is closed.
3. With the tip of a key, tap the center of the driver’s door window.
Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially in
cold weather, or you may crack or break it.
A W
ARN AWAY ALARM should be TRIGGERED. If the ALARM is not
T
RIGGERED, make sure you performed the procedure correctly and try
again. If you find that the system did not perform as expected,
contact your Scion dealer for more information.
4. D
ISARM the system to stop the WARN AWAY ALARM.
Press the UNLOCK button on the remote control or use the key to
D
ISARM the system.
SCION
SECURITY
123
You must disarm the system before opening the hatch, or else the Alarm will
be triggered.
123
123
123
123
123
123123123
Page 9 of 23
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 is programmed to PASSIVELY ARM, the system will ARM after the ignition key is
removed and all doors are closed; you do not need to lock the doors. When you come back to your
vehicle and open a door, you must insert the key into the ignition switch and turn it to “ON” during
the E
NTRY DELAY (0, 15 or 30 seconds), or an ALARM will be TRIGGERED. If you lock the doors, regu -
lar A
RMING will override PASSIVE ARMING; there will be no ENTRY DELAY. See the PROGRAMMING
section on page 15 to activate the P
ASSIVE ARMING mode, as well as select the ENTRY DELAY time.
To P
ASSIVELY ARM the system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RM while any of the doors are open.)
Close the hatch, if necessary. (The system will not A
RM while
the hatch is open.)
After the last door or hatch is closed:
The S
TATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing. The system is now ARMED.
To D
ISARM the PASSIVELY ARMED system:
Enter the vehicle through a front door.
The E
NTRY DELAY begins:
The S
TATUS MONITOR’S LED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRY DELAY ends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARM the system following any of the methods
described on page 7.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGER MEMORY was activated; an ALARM was
T
RIGGERED while you were away from the vehicle.
* If the E
NTRY DELAY time elapses before the ignition switch is turned to “ON”, an ALARM will
be T
RIGGERED. To DISARM the system during an ALARM, insert the ignition key and turn it to
“ON”, or press and release the remote control’s UNLOCK button.
Page 8 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 13
THE SYSTEM ARMS 30 SECONDS AFTER THE LAST ENTRY POINT
(DOOR OR HATCH) IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
SCION
SECURITY
LIGHTS FOR
30 SECONDS(PRE-ARM-ING)THEN STARTS FLASHING(SYSTEM IS ARMED)
SCION
SECURITY
TURNS ON
(NO FLASHING) DURING THE ENTRY DELAY

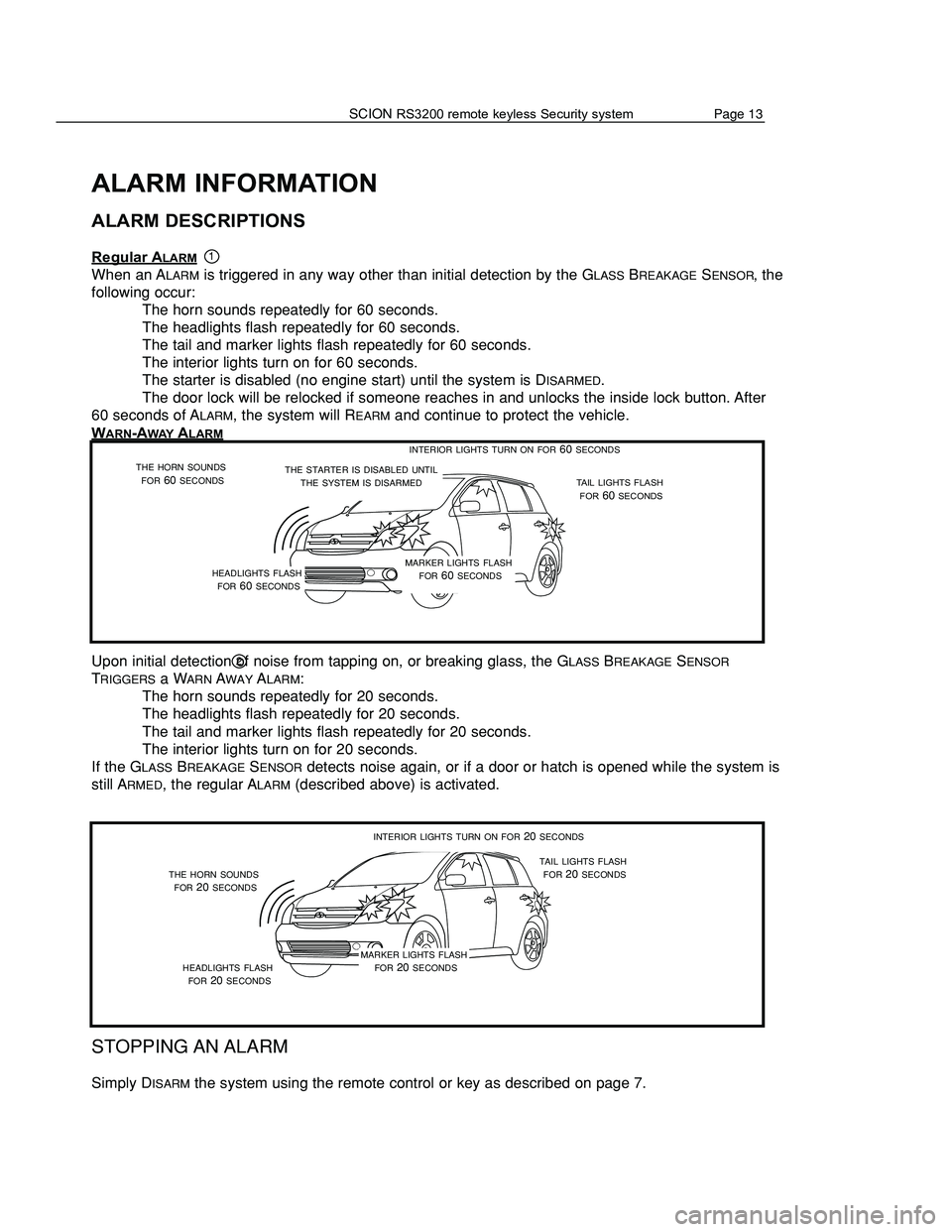

ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARM is triggered in any way other than initial detection by the GLASS BREAKAGE SENSOR, the
following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button. After
60 seconds of A
LARM, the system will REARM and continue to protect the vehicle.
W
ARN-AWA Y ALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASS BREAKAGE SENSOR
T
RIGGERS a WARN AWAY ALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker lights flash repeatedly for 20 seconds.
The interior lights turn on for 20 seconds.
If the G
LASS BREAKAGE SENSOR detects noise again, or if a door or hatch is opened while the system is
still A
RMED, the regular ALARM (described above) is activated.
STOPPING AN ALARM
Simply DISARM the system using the remote control or key as described on page 7.
THE HORN SOUNDS
FOR 20 SECONDS
HEADLIGHTS FLASH FOR 20 SECONDS
MARKER LIGHTS FLASH
FOR 20 SECONDS TAIL
LIGHTS FLASH
FOR 20 SECONDS
THE HORN SOUNDS
FOR 60 SECONDS
HEADLIGHTS FLASH FOR 60 SECONDS
THE STARTER IS DISABLED UNTIL THE SYSTEM IS DISARMED
MARKER LIGHTS FLASH
FOR 60 SECONDS TAIL
LIGHTS FLASH
FOR 60 SECONDS
INTERIOR
LIGHTS TURN ON FOR 60 SECONDS
INTERIOR LIGHTS TURN ON FOR 20 SECONDS
123
123
123123
123
123
Page 11 of 23
ALARM INFORMATION
PANIC MODE OPERATION
When you are confronted by a threatening situation, you may call attention to your vehicle by press-
ing the PANIC button on the back of the remote control. Unless you D
ISARM the PANIC ALARM by
one of the described methods, it will continue for 60 seconds, then stop.
To activate the P
ANIC ALARM:
Press the PANIC button on the back of the remote control. Simultaneously:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
To disarm the Panic Alarm:
Do one of the following shown below.
You may activate a P
ANIC ALARM at any time, except when the key is in the ignition switch and
turned to the “ON” position. If the system detects an A
LARM TRIGGER during the PANIC ALARM, the
regular A
LARM takes over. See ALARM INFORMATION on pages 12 and 13 for additional informa -
tion.
P ANIC
Page 10 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 11
MISCELLANEOUS
DOOR AJAR WARNING
The RS3200 will sound a five second DOOR AJAR WARNING when you attempt to REMOTE ARM the
system while a door is open. To stop the warning tone, either close the open door, or press and
release the UNLOCK button on the remote control. To A
RM the system, press the LOCK button
again.
Note: The D
OOR AJAR WARNING will not sound when the hatch is open; the doors will lock,
but the system will not A
RM until the trunk or hatch is closed.
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING
The RS3200 is programmed to automatically lock your vehicle’s doors when you turn the ignition
key to “ON” or “START”, and unlock the doors when you turn the key back to “ACC” or “LOCK”. If
you start the vehicle while a door is open, the system will not lock the doors; you must lock them
manually.
How the RS3200 automatically locks and unlocks the doors:
This feature may be defeated by changing the system’s programming. Refer to page 18 for pro -
gramming instructions.
REMOTE CONTROL RANGE
The maximum range for the RS3200’s remote controls is 50 feet. However, several factors that may
affect your remote control’s actual performance, include, but are not limited to:
The remote control’s battery strength* (weak battery = decreased performance).
Your position relative to the vehicle (dependent on the system’s antenna wire location).
Objects in the path between you and your vehicle.
Your surroundings (in a parking structure, out in the open, etc.).
Outside electrical interference caused by high tension power lines, etc.
* As the REMOTE CONTROL’s battery becomes weaker, the LED indicator becomes dimmer.
When you notice the LED becoming dimmer, you should replace the battery.
WITH ALL THE DOORS CLOSED, TURN THE KEY TO THE “ON” OR “LOCK”
POSITION...
ALL THE DOORS ARE LOCKED AUTOMATICALLY.WHEN THE KEY IS TURNED BACK TO THE “ACC” OR
“LOCK” POSITION...
ALL THE DOORS ARE UNLOCKED.
THE HORN SOUNDS
FOR 60 SECONDS
HEADLIGHTS FLASH FOR 60 SECONDS
MARKER LIGHTS FLASH
FOR 60 SECONDS
TAIL LIGHTS FLASH
FOR 60 SECONDS
INTERIOR LIGHTS TURN ON FOR 60 SECONDS123
123
123
123
123
123
123
123
123
123
PRESS THE LOCK BUTTON ON THE REMOTE CONTROL,OR...
PRESS THE PANIC BUTTON AGAIN, OR...
PRESS THE UNLOCK BUTTON ON THE REMOTE CONTROL, OR...
LOCK THE DOORS WITH THE KEY, OR...
UNLOCK A DOOR OR THE TRUNK
WITH THE KEY
Page 12 of 23
ALARM INFORMATION
PANIC MODE OPERATION
When you are confronted by a threatening situation, you may call attention to your vehicle by press-
ing the PANIC button on the back of the remote control. Unless you D
ISARM the PANIC ALARM by
one of the described methods, it will continue for 60 seconds, then stop.
To activate the P
ANIC ALARM:
Press the PANIC button on the back of the remote control. Simultaneously:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
To disarm the Panic Alarm:
Do one of the following shown below.
You may activate a P
ANIC ALARM at any time, except when the key is in the ignition switch and
turned to the “ON” position. If the system detects an A
LARM TRIGGER during the PANIC ALARM, the
regular A
LARM takes over. See ALARM INFORMATION on pages 12 and 13 for additional informa -
tion.
P ANIC
Page 10 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 11
MISCELLANEOUS
DOOR AJAR WARNING
The RS3200 will sound a five second DOOR AJAR WARNING when you attempt to REMOTE ARM the
system while a door is open. To stop the warning tone, either close the open door, or press and
release the UNLOCK button on the remote control. To A
RM the system, press the LOCK button
again.
Note: The D
OOR AJAR WARNING will not sound when the hatch is open; the doors will lock,
but the system will not A
RM until the trunk or hatch is closed.
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING
The RS3200 is programmed to automatically lock your vehicle’s doors when you turn the ignition
key to “ON” or “START”, and unlock the doors when you turn the key back to “ACC” or “LOCK”. If
you start the vehicle while a door is open, the system will not lock the doors; you must lock them
manually.
How the RS3200 automatically locks and unlocks the doors:
This feature may be defeated by changing the system’s programming. Refer to page 18 for pro -
gramming instructions.
REMOTE CONTROL RANGE
The maximum range for the RS3200’s remote controls is 50 feet. However, several factors that may
affect your remote control’s actual performance, include, but are not limited to:
The remote control’s battery strength* (weak battery = decreased performance).
Your position relative to the vehicle (dependent on the system’s antenna wire location).
Objects in the path between you and your vehicle.
Your surroundings (in a parking structure, out in the open, etc.).
Outside electrical interference caused by high tension power lines, etc.
* As the REMOTE CONTROL’s battery becomes weaker, the LED indicator becomes dimmer.
When you notice the LED becoming dimmer, you should replace the battery.
WITH ALL THE DOORS CLOSED, TURN THE KEY TO THE “ON” OR “LOCK”
POSITION...
ALL THE DOORS ARE LOCKED AUTOMATICALLY.WHEN THE KEY IS TURNED BACK TO THE “ACC” OR
“LOCK” POSITION...
ALL THE DOORS ARE UNLOCKED.
THE HORN SOUNDS
FOR 60 SECONDS
HEADLIGHTS FLASH FOR 60 SECONDS
MARKER LIGHTS FLASH
FOR 60 SECONDS
TAIL LIGHTS FLASH
FOR 60 SECONDS
INTERIOR LIGHTS TURN ON FOR 60 SECONDS123
123
123
123
123
123
123
123
123
123
PRESS THE LOCK BUTTON ON THE REMOTE CONTROL,OR...
PRESS THE PANIC BUTTON AGAIN, OR...
PRESS THE UNLOCK BUTTON ON THE REMOTE CONTROL, OR...
LOCK THE DOORS WITH THE KEY, OR...
UNLOCK A DOOR OR THE TRUNK
WITH THE KEY
Page 14 of 23
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 is programmed to PASSIVELY ARM, the system will ARM after the ignition key is
removed and all doors are closed; you do not need to lock the doors. When you come back to your
vehicle and open a door, you must insert the key into the ignition switch and turn it to “ON” during
the E
NTRY DELAY (0, 15 or 30 seconds), or an ALARM will be TRIGGERED. If you lock the doors, regu -
lar A
RMING will override PASSIVE ARMING; there will be no ENTRY DELAY. See the PROGRAMMING
section on page 15 to activate the P
ASSIVE ARMING mode, as well as select the ENTRY DELAY time.
To P
ASSIVELY ARM the system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RM while any of the doors are open.)
Close the hatch, if necessary. (The system will not A
RM while
the hatch is open.)
After the last door or hatch is closed:
The S
TATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing. The system is now ARMED.
To D
ISARM the PASSIVELY ARMED system:
Enter the vehicle through a front door.
The E
NTRY DELAY begins:
The S
TATUS MONITOR’S LED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRY DELAY ends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARM the system following any of the methods
described on page 7.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGER MEMORY was activated; an ALARM was
T
RIGGERED while you were away from the vehicle.
* If the E
NTRY DELAY time elapses before the ignition switch is turned to “ON”, an ALARM will
be T
RIGGERED. To DISARM the system during an ALARM, insert the ignition key and turn it to
“ON”, or press and release the remote control’s UNLOCK button.
Page 8 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 13
THE SYSTEM ARMS 30 SECONDS AFTER THE LAST ENTRY POINT
(DOOR OR HATCH) IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
SCION
SECURITY
LIGHTS FOR
30 SECONDS(PRE-ARM-ING)THEN STARTS FLASHING(SYSTEM IS ARMED)
SCION
SECURITY
TURNS ON
(NO FLASHING) DURING THE ENTRY DELAY
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARM is triggered in any way other than initial detection by the GLASS BREAKAGE SENSOR, the
following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button. After
60 seconds of A
LARM, the system will REARM and continue to protect the vehicle.
W
ARN-AWA Y ALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASS BREAKAGE SENSOR
T
RIGGERS a WARN AWAY ALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker lights flash repeatedly for 20 seconds.
The interior lights turn on for 20 seconds.
If the G
LASS BREAKAGE SENSOR detects noise again, or if a door or hatch is opened while the system is
still A
RMED, the regular ALARM (described above) is activated.
STOPPING AN ALARM
Simply DISARM the system using the remote control or key as described on page 7.
THE HORN SOUNDS
FOR 20 SECONDS
HEADLIGHTS FLASH FOR 20 SECONDS
MARKER LIGHTS FLASH
FOR 20 SECONDS TAIL
LIGHTS FLASH
FOR 20 SECONDS
THE HORN SOUNDS
FOR 60 SECONDS
HEADLIGHTS FLASH FOR 60 SECONDS
THE STARTER IS DISABLED UNTIL THE SYSTEM IS DISARMED
MARKER LIGHTS FLASH
FOR 60 SECONDS TAIL
LIGHTS FLASH
FOR 60 SECONDS
INTERIOR
LIGHTS TURN ON FOR 60 SECONDS
INTERIOR LIGHTS TURN ON FOR 20 SECONDS
123
123
123123
123
123
Page 15 of 23
OPERATION
DISARMING THE RS3200 (except PASSIVE DISARMING)
The system may be DISARMED in several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the driver’s door key switch and turn it toward the
rear of the vehicle:
The S
TATUS MONITOR’S LED stops flashing. The system
is now D
ISARMED.*
In the case of Sienna and 4Runner, you may also disarm the
system using the key in the back door; all the doors will unlock at the
same time. This feature is not available for Celica; you must disarm
the system before opening the hatch, or else an A
LARM will be
Triggered.
Unlock the doors with the remote control:
Press the UNLOCK button on the remote control. Simultaneously:
The driver’s door unlocks.
The vehicle’s tail and marker lights flash twice.
The interior lights turn on for 30 seconds.
The S
TATUS MONITOR’S LED stops flashing.
The system is now DISARMED.*
Press the UNLOCK button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON.
The S
TATUS MONITOR’S LED stops flashing. The system
is now D
ISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGER MEMORY was activated; an ALARM was
T
RIGGERED while you were away from the vehicle.
THE TAIL AND MARKER LIGHTS FLASH TWICE AND THE INTE-RIOR LIGHTS TURN ON FOR 30 SECONDS WHEN THE SYSTEM IS REMOTE DISARMED
Page 14 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 7
SCION
SECURITY
TURN TOWARD THE REAR
OF THE VEHICLE
TURN THE KEY TO “ON” TO DISARM THE SYSTEM
THE
DRIVER’S DOOR UNLOCKS WHEN THE SYSTEM IS REMOTE DISARMED
PUSH THE UNLOCK BUTTON
STOPS FLASHING WHEN THE SYSTEM IS DISARMED
THE BUZZER CHIRPS TWICE WHEN THE SYSTEM IS REMOTE DISARMED
GLASS BREAKAGE SENSOR INFORMATION
The RS3200 provides protection for your vehicle above and beyond entry point monitoring–it
“listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed spe -
cifically for this task, the G
LASS BREAKAGE SENSOR is capable of ignoring other noises, which helps
to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 was installed in your vehicle, care was taken to adjust the sensitivity level of the
G
LASS BREAKAGE SENSOR. You may observe how it works following the procedure listed below.
1. A
RM the system.
Press the LOCK button on the remote control or lock the doors with
the key.
(Remember, the system will not A
RM if any door or hatch is open.)
2. Wait until the S
TATUS MONIT OR’S LED starts flashing.
The LED will flash 30 seconds after the last door or hatch is closed.
3. With the tip of a key, tap the center of the driver’s door window.
Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially in
cold weather, or you may crack or break it.
A W
ARN AWAY ALARM should be TRIGGERED. If the ALARM is not
T
RIGGERED, make sure you performed the procedure correctly and try
again. If you find that the system did not perform as expected,
contact your Scion dealer for more information.
4. D
ISARM the system to stop the WARN AWAY ALARM.
Press the UNLOCK button on the remote control or use the key to
D
ISARM the system.
SCION
SECURITY
123
You must disarm the system before opening the hatch, or else the Alarm will
be triggered.
123
123
123
123
123
123123123
Page 17 of 23
PROGRAMMING
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION
The RS3200 is factory-set to unlock the driver’s door when the UNLOCK button is pressed on the
remote control, then unlock the remaining doors when the UNLOCK button is pressed again within 3
seconds. You may change the programming so all doors will unlock at once when the UNLOCK but-
ton is pressed by following the steps below.
1. Before you begin: 2. Start the Programming Procedure.
Open the driver’s door. (Complete these steps within 40 seconds.)
Remove the key from the ignition switch.
Note: If the system does not activate the lights and buzzer, start over.
Page 16 SCION RS3200 REMOTE KEYLESS Security systemSCION RS3200 remote keyless Security system Page 5
BRIEF DESCRIPTION–RS3200 FEATURES
a. Insert the key into,
and remove it
from the ignition
switch 2 times.
e. Insert the key into
the ignition and
leave it in.
c. Insert the key
into, and remove
it from the ignition
switch 1 time.
g. Turn the key from
LOCK to ON 4
times (ending at
LOCK.) h.
Remove the key
from the ignition
switch.
b. Close, then open
the driver’s door
2 times.
f. Close the driver’s
door.d. Close , then open
the driver’s door
2 times.
i. The tail and marker lights flash 4 times, the
buzzer chirps 4 times , and the doors lock
and unlock 4 times.
When an alarm is TRIGGERED, the system disables the vehicle’s start -
er and prevents engine start until the system is reset (DISARMED).
During an alarm, the system will loce the doors if one is unlocked and
will continue to do so for the duration of the alarm.
The user is notified that an alarm occurred. Upon DISARMING the sys -
tem after an alarm was TRIGGERED, the vehicle’s tail and marker lights
will be turned on, and the BUZZER sounds for 2 seconds.
You may TRIGGER a PANIC ALARM by pressing the PANIC button on
the back of the remote control to draw attention to your vehicle. During
the PANIC ALARM, the head, tail and marker lights flash, and the horn
sounds but the starter is not disabled.
The RS3200 flashes the vehicle’s tail and marker lights during REMOTE
ARMING and REMOTE DISARMING, as well as during an alarm. Also,
the headlights flash during an alarm.
When the system is REMOTE DISARMED, it turns on the interior lights
in the vehicle for 30 seconds, or until the key is inserted into the ignition
switch. It also turns them on during an alarm.
During an alarm, the RS3200 activates the vehicle’s horn.
If power tot the RS3200 is disrupted while it is ARMED, an alarm is
TRIGGERED once power is restored.
This panel houses the GLASS BREAKAGE SENSOR microphone and
the flashing LED that indicates the operating status of the security sys -
tem. (In vehicles with an engine immobilizer system, that system’s LED
and a seperate microphone are used instead.)
The RS3200 utilizes a PIEZO BUZZER, usually mounted in the engine
compartment, to sounds confirmation “chirps” and tones for function
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle’s doors when you turn the
ignition key to “ON” or “START”, and unlocks the doors when you turn
the key back to “ACC” or “LOCK”.
The buzzer sounds for 5 seconds when you attempt to REMOTE ARM
the system while a door is open. You can stop the warning by closing
the door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with the
RS3200 is approximately 50 feet. Please refer to page 10 for a descrip -
tion of factors that may affect the performance (operating range) of the
remote controls.
STARTER DISABLE
FORCED LOCK DURING ALARM
TRIGGER MEMORY
PANIC MODE OPERATION
EXTERIOR LIGHT ACTIVATION
INTERIOR LIGHT ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-CONTROLLED
AUTOMATIC DOOR LOCK /
UNLOCK
DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
FEATURES
FUNCTIONS
