173
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).

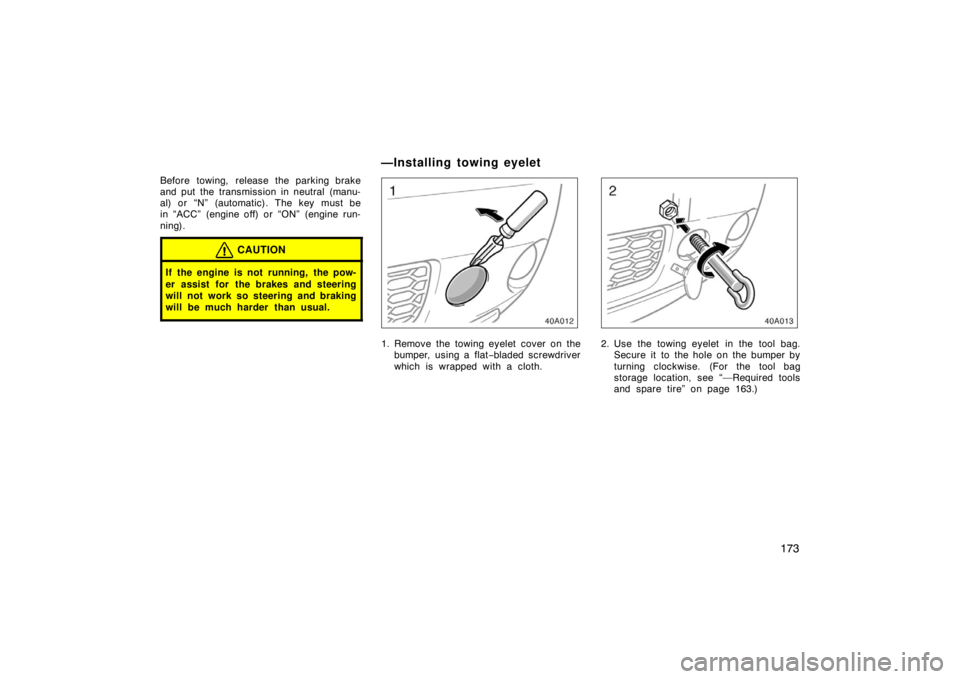

CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
1. Remove the towing eyelet cover on thebumper, using a flat −bladed screwdriver
which is wrapped with a cloth.2. Use the towing eyelet in the tool bag. Secure it to the hole on the bumper by
turning clockwise. (For the tool bag
storage location, see “—Required tools
and spare tire” on page 163.)
—Installing towing eyelet

174

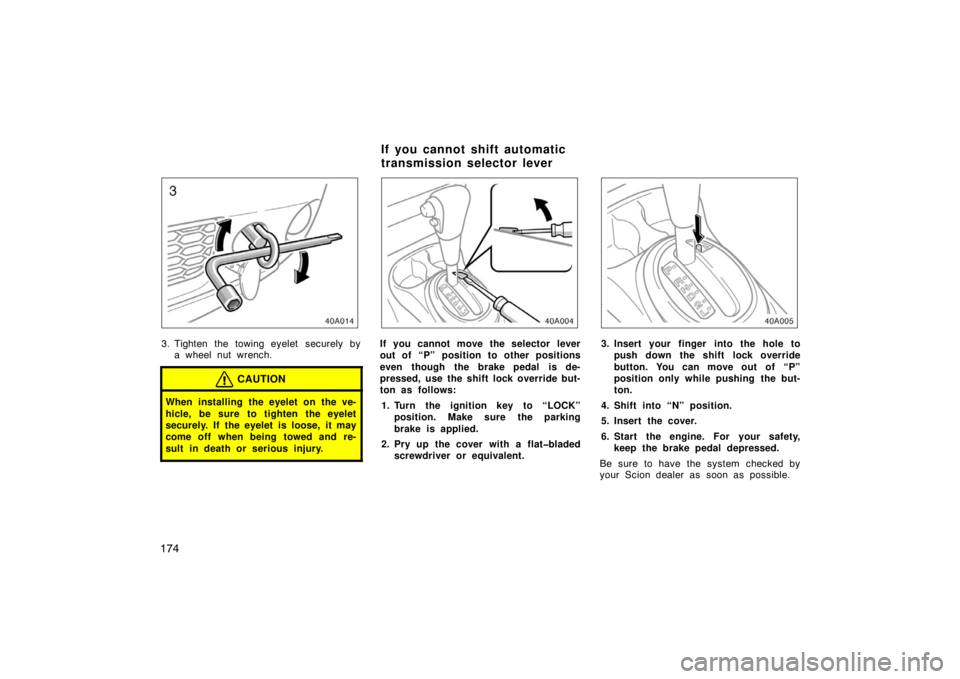

3. Tighten the towing eyelet securely bya wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the eyelet
securely. If the eyelet is loose, it may
come off when being towed and re-
sult in death or serious injury.
If you cannot move the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:
1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flatbladed screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can move out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Scion dealer as soon as possible.
If you cannot shift automatic
transmission selector lever

175
If you lose your keys
You can purchase a new key at your
Scion dealer if you can give them the
key number.
See the suggestion given in “Keys” on
page 8.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Scion
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.

176

177
CORROSION PREVENTION AND
APPEARANCE CARE
Protecting your Scion from corrosionn178
. . . . . . . . . . . . . . . . . . . . . . . .
Washing and waxing your Scion 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the interior 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 5

178
Scion, through its diligent research, design
and use of the most advanced technology
available, helps prevent corrosion and pro-
vides you with the finest quality vehicle
construction. Now, it is up to you. Proper
care of your Scion can help ensure long−
term corrosion prevention.
The most common causes of corrosion
to your vehicle are:
The accumulation of road salt, dirt and
moisture in hard −to −reach areas under
the vehicle.
Chipping of paint, or undercoating
caused by minor accidents or by
stones and gravel.
Care is especially important if you live
in particular areas or operate your ve-
hicle under certain environmental condi-
tions:
Road salt or dust control chemicals will
accelerate corrosion, as will the pres-
ence of salt in the air near the sea −
coast or in areas of industrial pollution.
High humidity accelerates corrosion es-
pecially when temperatures range just
above the freezing point.
Wetness or dampness to certain parts
of your vehicle for an extended period
of time, may cause corrosion even
though other parts of the vehicle may
be dry.
High ambient temperatures can cause
corrosion to those components of the
vehicle which do not dry quickly due to
lack of proper ventilation.
The above signifies the necessity to keep
your vehicle, particularly the underside, as
clean as possible and to repair any dam-
age to paint or protective coatings as
soon as possible.
To help prevent corrosion on your
Scion, follow these guidelines:
Wash your vehicle frequently. It is, of
course, necessary to keep your vehicle
clean by regular washing, but to prevent
corrosion, the following points should be
observed:
If you drive on salted roads in the
winter or if you live near the ocean,
you should hose off the undercarriage
at least once a month to minimize cor-
rosion.
High pressure water or steam is effec-
tive for cleaning the vehicle’s underside
and wheel housings. Pay particular
attention to these areas as it is difficult
to see all the mud and dirt. It will do
more harm than good to simply wet the
mud and debris without removing. The
lower edge of doors, rocker panels and
frame members have drain holes which
should not be allowed to clog with dirt
as trapped water in these areas can
cause corrosion.
Wash the underside of the vehicle thor-
oughly when winter is over.
See “Washing and waxing your Scion” for
more tips.
Check the condition of your vehicle’s
paint and trim. If you find any chips or
scratches in the paint, touch them up im-
mediately to prevent corrosion from start-
ing. If the chips or scratches have gone
through the bare metal, have a qualified
body shop make the repair.
Protecting your Scion from
corrosion

179
Check the interior of your vehicle. Wa-
ter and dirt can accumulate under the
floor mats and could cause corrosion. Oc-
casionally check under the mats to make
sure the area is dry. Be particularly care-
ful when transporting chemicals, cleans-
ers, fertilizers, salt, etc.; these should be
transported in proper containers. If a spill
or leak should occur, immediately clean
and dry the area.
Use mud shields on your wheels. If you
drive on salted or gravel roads, mud
shields help protect your vehicle. Full −size
shields, which come as near to the ground
as possible, are the best. We recommend
that the fittings and the area where the
shields are installed be treated to resist
corrosion. Your Scion dealer will be happy
to assist in supplying and installing the
shields if they are recommended for your
area.
Keep your vehicle in a well ventilated
garage or a roofed place. Do not park
your vehicle in a damp, poorly venti-
lated garage. If you wash your vehicle in
the garage, or if you drive it covered with
water or snow, your garage may be so
damp as to cause corrosion. Even if your
garage is heated, a wet vehicle can cor-
rode if the ventilation is poor. Washing your Scion
Keep your vehicle clean by regular
washing.
The following cases may cause weakness
to the paint or corrosion to the body and
parts. Wash your vehicle as soon as pos-
sible.
When driving in a coastal area
When driving on a road sprinkled with
antifreeze
When exposed to coal tar, tree sap,
bird droppings and carcass of an insect
When driving in areas where there is
a lot of smoke, soot, dust, iron dust or
chemical substances
When the vehicle becomes remarkably
dirty with dust and mud
Handwashing your Scion
Work in the shade and wait until the
vehicle body is not hot to the touch.
CAUTION
When cleaning under floor or chassis,
be careful not to injure your hands.
1. Rinse off loose dirt with a hose. Re- move any mud or road salt from the
underside of the vehicle or in the
wheel wells.
2. Wash with a mild car −wash soap,
mixed according to the manufacturer ’s
instructions. Use a soft cotton mitt and
keep it wet by dipping it frequently into
the wash water. Do not rub hard—let
the soap and water remove the dirt.
Fuel filler door: Do not apply water (high −
pressure car wash, for example) at or
near the fuel tank inlet with the fuel filler
door opened. If the water enters the air
vent, you may experience trouble with re-
fueling or rough engine idling.
Plastic bumpers: Wash carefully. Do not
scrub with abrasive cleaners. The bumper
faces are soft.
Road tar: Remove with turpentine or
cleaners that are marked safe for painted
surfaces.
Wa sh in g an d waxin g yo u r
Scion

180
NOTICE
Do not use organic substances (gaso-
line, kerosene, benzine or strong sol-
vents), which may be toxic or cause
damage.
3. Rinse thoroughly—dried soap cancause streaking. In hot weather you
may need to rinse each section right
after you wash it.
4. To prevent water spots, dry the vehicle using a clean soft cotton towel. Do not
rub or press hard—you might scratch
the paint. Automatic car wash
Your vehicle may be washed in an auto-
matic car wash, but remember that the
paint can be scratched by some types of
brushes, unfiltered washing water, or the
washing process itself. Scratching reduces
paint durability and gloss, especially on
darker colors. The manager of the car
wash should be able to advise you wheth-
er the process is safe for the paint on
your vehicle.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Scion through an automatic
car wash.
Waxing your Scion
Polishing and waxing is recommended
to maintain the original beauty of your
Scion’s finish.
Apply wax once a month or if the vehicle
surface does not repel water well.
1. Always wash and dry the vehicle be- fore you begin waxing, even if you are
using a combined cleaner and wax.
2. Use a good quality polish and wax. If the finish has become extremely weath-
ered, use a car −cleaning polish, fol-
lowed by a separate wax. Carefully fol-
low the manufacturer ’s instructions and
precautions. Be sure to polish and wax
the chrome trim as well as the paint.
3. Wax the vehicle again when water does not bead but remains on the sur-
face in large patches.
NOTICE
Always remove the plastic bumpers if
your vehicle is repainted and placed
in a high heat paint waxing booth.
High temperatures could damage the
bumpers.

181
Cleaning the interior
CAUTION
Vehicles with side airbags:
Be careful not to splash water or
spill liquid on the floor. This may
prevent the side airbags from acti-
vating correctly, resulting in serious
injury.
Do not wash the vehicle floor with
water, or allow water to get onto
the floor when cleaning the vehicle
interior or exterior. Water may get
into audio components or other
electrical components above or un-
der the floor carpet (or mat) and
cause a malfunction; and it may
cause body corrosion.
Vinyl interior
The vinyl upholstery may be easily
cleaned with a mild soap or detergent
and water.
First vacuum over the upholstery to re-
move loose dirt. Then, using a sponge or
soft cloth, apply the soap solution to the
vinyl. After allowing it to soak in for a few
minutes to loosen the dirt, remove the dirt
and wipe off the soap with a clean damp
cloth. If all the dirt do not come off, re-
peat the procedure. Commercial foaming−
type vinyl cleaners are also available
which work well. Follow the manufacturer’s
instructions.
NOTICE
Do not use solvent, thinner, gasoline
or window cleaner on the interior.
Carpets
Use a good foamtype shampoo to
clean the carpets.
Begin by vacuuming thoroughly to remove
as much dirt as possible. Several types of
foam cleaners are available; some are in
aerosol cans and others are powders or
liquids which you mix with water to pro-
duce a foam. To shampoo the carpets,
use a sponge or brush to apply the foam.
Rub in overlapping circles.
Do not apply water—the best results are
obtained by keeping the carpet as dry as
possible. Read the shampoo instructions
and follow them closely.
Seat belts
The seat belts may be cleaned with
mild soap and water or with lukewarm
water.
Use a cloth or sponge. As you are clean-
ing, check the belts for excessive wear,
fraying, or cuts.
NOTICE
 Do not use dye or bleach on the
belts—it may weaken them.
 Do not use the belts until they be-
come dry.

182
Windows
The windows may be cleaned with any
household window cleaner.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Air conditioning control panel, instru-
ment panel, console panel, and
switches
Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or luke-
warm water then lightly wipe off dirt.
NOTICE
Do not use organic substances (sol-
vents, kerosene, alcohol, gasoline,
etc.) or alkaline or acidic solutions.
These chemicals can cause discol-
oring, staining or peeling of the
surface.
 If you use cleaners or polishing
agents, make sure their ingredients
do not include the substances men-
tioned above.
 If you use a liquid car freshener, do
not spill the liquid onto the ve-
hicle’s interior surfaces. It may con-
tain the ingredients mentioned
above. Immediately clean any spill
using the method mentioned above.
If you have any questions about the
cleaning of your Scion, your local Scion
dealer will be pleased to answer them.
