SCION
To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use. TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION
2
REMOTE CONTROL INFORMATION
THE REMOTE CONTROL INCLUDED WITH YOUR SYSTEM 3
BRIEF DESCRIPTION – SECURITY WITH RKE FEATURES
4, 5
OPERATION
ARMING THE SECURITY (except PASSIVE ARMING) 6
DISARMING THE SECURITY (except PASSIVE DISARMING) 7
PASSIVE (AUTOMATIC) ARMING & DISARMING 8
AUTOMATIC REARMING 9
ARMING SUSPENSION 9
MISCELLANEOUS
DOOR AJAR WARNING 10
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 10
REMOTE CONTROL RANGE 10
ALARM INFORMATION
PANIC MODE OPERATION 11
ALARM TRIGGERS 12
ALARM DESCRIPTIONS 13
STOPPING AN ALARM 13
RADAR SENSOR INFORMATION
RADAR SENSOR CHECK PROCEDURE 14
RADAR SENSOR OFF MODE 14
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 15
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION 16, 17
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 18
REMOTE CONTROL BATTERY REPLACEMENT
REMOVE THE BATTERY 19
INSTALL THE BATTERY 20
WARNING AND CAUTION INFORMATION
21

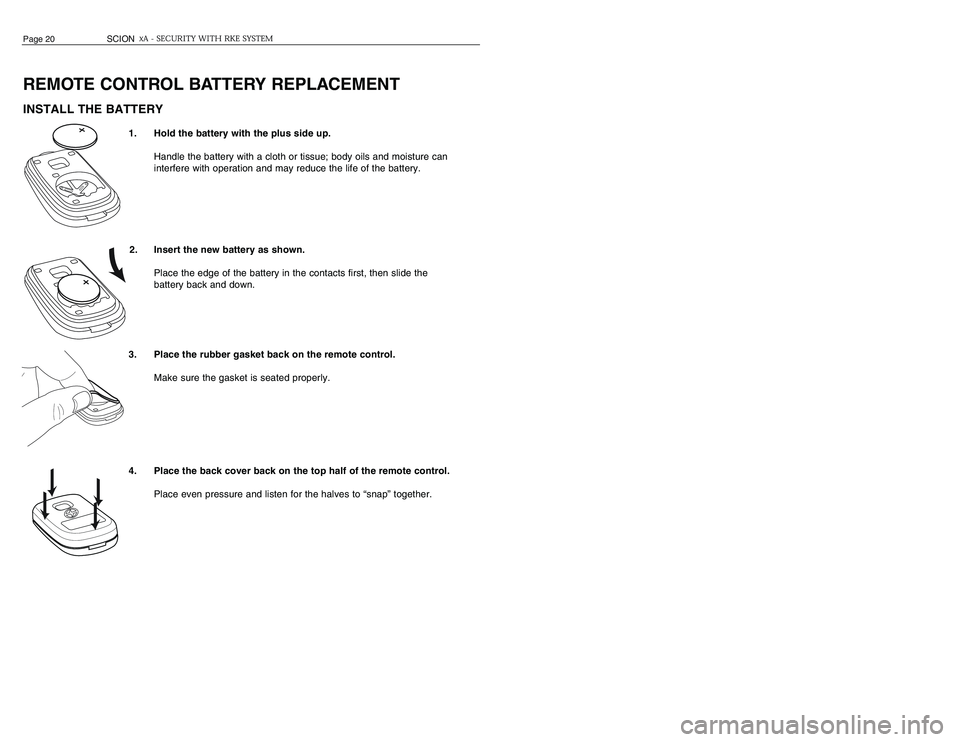

REMOTE CONTROL BATTERY REPLACEMENTINSTALL THE BATTERY
1. Hold the battery with the plus side up.
Handle the battery with a cloth or tissue; body oils and moisture can
interfere with operation and may reduce the life of the battery.
2. Insert the new battery as shown.
Place the edge of the battery in the contacts first, then slide the
battery back and down.
3. Place the rubber gasket back on the remote control.
Make sure the gasket is seated properly.
4. Place the back cover back on the top half of the remote control.
Place even pressure and listen for the halves to “snap” together.
SCION
Page 1
Page 5 of 23
PROGRAMMINGDRIVER’S DOOR/ALL DOORS UNLOCK SELECTION (continued)3. Select the Operating Mode and Complete the Programming Procedure.
Note: If the system locks the doors twice, start over.
Page 4
SCION
SCION
Page 17

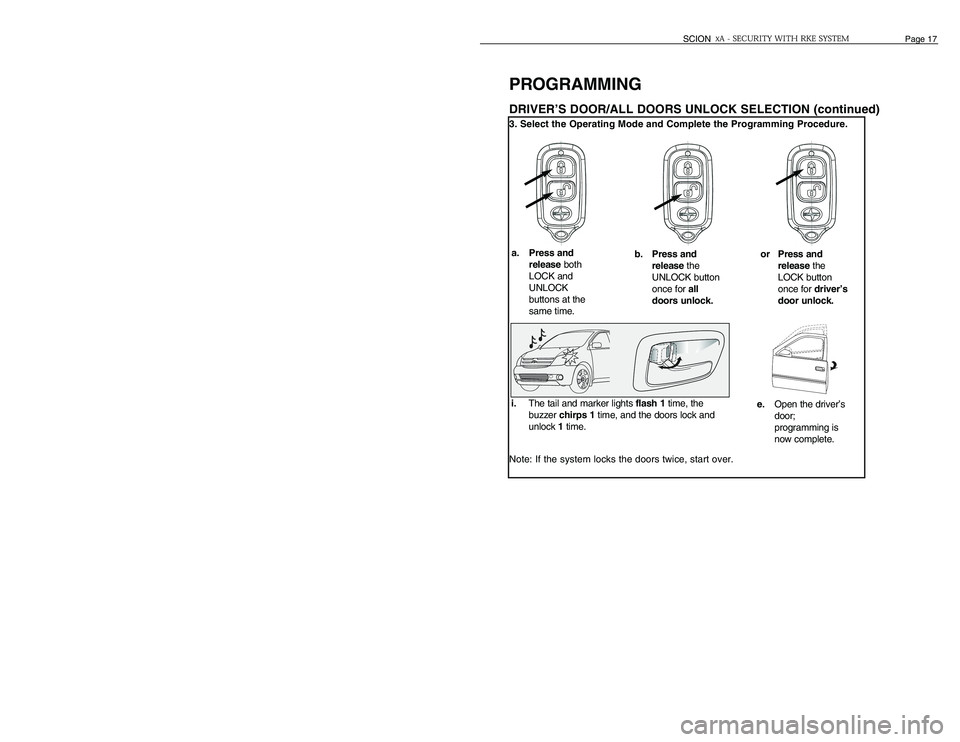

BRIEF DESCRIPTION–xA SECURITY WITH RKE FEATURES
a. Press and
releaseboth
LOCK and
UNLOCK
buttons at the
same time.
b. Press and
releasethe
UNLOCK button
once for all
doors unlock.
or Press and
releasethe
LOCK button
once for driver’s
door unlock.e.Open the driver’s
door;
programming is
now complete.
i.The tail and marker lights flash 1time, the
buzzer chirps 1time, and the doors lock and
unlock 1 time.
The xA Security with RKE will arm 30 seconds after the LOCK button on
the remote control is pressed, and DISARM when the UNLOCK button is
pressed. When the LOCK button is pressed, all the vehicle’s doors lock.
When the UNLOCK button is pressed, the driver’s door unlocks*, but if the
UNLOCK button is pressed again within 3 seconds, the remaining doors
unlock.
The xA Security with RKE will automatically RELOCK the vehicle’s doors if
no door is opened within 30 seconds after REMOTE DISARMING, the will
REARM 30 seconds later.
The xA Security with RKE will arm 30 seconds after you close and lock
the vehicle’s doors with the key, and will DISARM when you unlock a door
with the key.
The xA Security with RKE may be programmed to automatically arm 30
seconds after the ignition key is removed, the vehicle exited and the last
door and the trunk are closed, without the necessity of locking the doors.
The xA Security with RKE may be DISARMED with the vehicle’s ignition
key after it was PASSIVELY ARMED.
When the xA Security with RKE has been PASSIVELY ARMED, and
ENTRY DELAY (user-selectable at 0,15, or 30 seconds) will start when a
door is opened before an ALARM is TRIGGERED.
When you lock the vehicle with a central lock switch (while a door is open)
the xA Security with RKE will rm 30 seconds after you close all the doors
and the hatch (if open).
The xA Security with RKE may be DISARMED by inserting the key into
the ignition switch and turning it to “ON”.
Forcibly unlocking or opening a door or hatch while the xA Security with
RKE is ARMED will TRIGGER and ALARM immediately**. (If the system
was PASSIVELY ARMED, the ENTRY DELAY must pass before the
ALARM is TRIGGERED).
The xA-Security utilizes RADAR SENSOR.
The RADAR SENSOR works synchronize with vehicle theft deterrent sys-
tem.If somebody intrudes into the vehicle while the vehicle theft deterrent
system is set, the alarm blows the vehicle's horn intermittently and flashes
the emergency flashers.
Note
To prevent false alarms from triggered in case of following conditions:
•A child or pet is left in the vehicle.
•Any window or moon roof is left opened.
•When parking in the noisy area or in the roof parking.
•The vehicle body or glass is subjected to strong impact from the outside
(such as highly pressurized car wash).
•When transporting by car carrier.
•A cellphone in cup holder or center console covered storage is left in the
vehicle.
•When a bag on the seat in the vehicle,the detection area may change.
While ARMED, the xA Security with RKE monitors the ignition switch. If an
attempt is made to start the vehicle without a key, an ALARM is triggered. REMOTE ARMING /
DISARMING & LOCK-
ING / UNLOCKING
AUTOMATIC
REARMING
KEY
ARMING / DISARMING
PASSIVE
(AUTOMATIC) ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
RADAR SENSOR
IGNITION SWITCH
MONITORING
FEATURES FUNCTIONS* You may program the system to unlock all the doors with one press on the UNLOCK button.
See page 16 for programming instructions.
** The alarm will not trigger if the passenger side door is forcibly unlocked, until the passenger door is
opened.
Page 8 of 23
OPERATIONDISARMING THE xA SECURITY WITH RKE (except PASSIVE DISARMING)The system may be D
ISARMED
in several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the driver’s door key switch and turn it toward the
rear of the vehicle:
The S
TATUS
MONITOR
’SLED stops flashing. The system
is now D
ISARMED
.*
In the case of Sienna and 4Runner, you may also disarm the
system using the key in the back door; all the doors will unlock at the
same time. This feature is not available for Celica; you must disarm
the system before opening the hatch, or else an A
LARM
will be
Triggered.
Unlock the doors with the remote control:
Press the UNLOCK button on the remote control. Simultaneously:
The driver’s door unlocks.
The vehicle’s tail and marker lights flash twice.
The interior lights turn on for 30 seconds.
The S
TATUS
MONITOR
’SLED stops flashing. The system is
now D
ISARMED
.*
Press the UNLOCK button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON.
The S
TATUS
MONITOR
’SLED stops flashing. The system
is now D
ISARMED
.
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED
, the T
RIGGER
MEMORY
was activated; an A
LARM
was
T
RIGGERED
while you were away from the vehicle.
THE TAIL AND MARKER LIGHTS FLASH TWICE AND THE INTE
-
RIOR LIGHTS TURN ON FOR
30 SECONDS WHEN THE SYSTEM
IS REMOTE DISARMED
Page 14
SCION
SCION
Page 7
SCIONSECURITYTURN TOWARD THE REAR
OF THE VEHICLETURN THE KEY TO
“ON” TO
DISARM THE SYSTEM
THE DRIVER
’SDOOR UNLOCKS
WHEN THE SYSTEM IS REMOTE
DISARMED
PUSH THE UNLOCK BUTTON
STOPS
FLASHING
WHEN THE
SYSTEM IS
DISARMED
THE BUZZER CHIRPS TWICE WHEN THE SYSTEM IS
REMOTE DISARMED

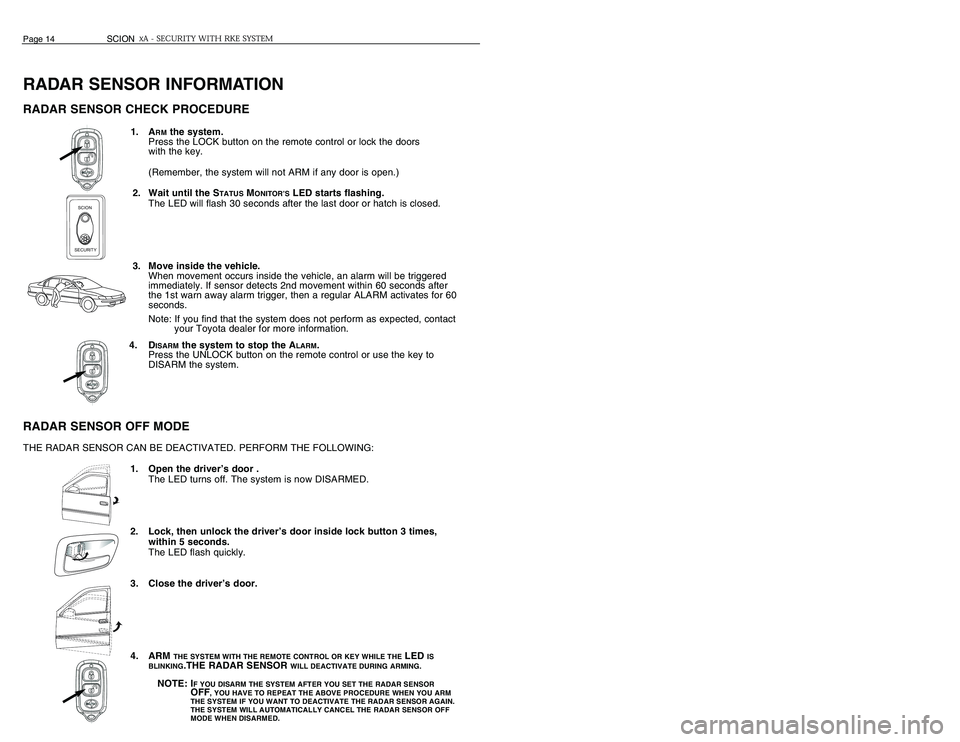

RADAR SENSOR INFORMATIONRADAR SENSOR CHECK PROCEDURE
1. A
RM
the system.
Press the LOCK button on the remote control or lock the doors
with the key.
(Remember, the system will not ARM if any door is open.)
2. Wait until the S
TATUS
MONITOR’S
LED starts flashing.
The LED will flash 30 seconds after the last door or hatch is closed.
3. Move inside the vehicle.
When movement occurs inside the vehicle, an alarm will be triggered
immediately. If sensor detects 2nd movement within 60 seconds after
the 1st warn away alarm trigger, then a regular ALARM activates for 60
seconds.
Note: If you find that the system does not perform as expected, contact
your Toyota dealer for more information.
4. D
ISARM
the system to stop the A
LARM
.
Press the UNLOCK button on the remote control or use the key to
DISARM the system.
RADAR SENSOR OFF MODETHE RADAR SENSOR CAN BE DEACTIVATED. PERFORM THE FOLLOWING:
1. Open the driver’s door .
The LED turns off. The system is now DISARMED.
2. Lock, then unlock the driver’s door inside lock button 3 times,
within 5 seconds.
The LED flash quickly.
3. Close the driver’s door.
4. ARM
THE SYSTEM WITH THE REMOTE CONTROL OR KEY WHILE THE
LED
IS
BLINKING
.THE RADAR SENSOR
WILL DEACTIVATE DURING ARMING.
NOTE: I
F YOU DISARM THE SYSTEM AFTER YOU SET THE RADAR SENSOROFF
, YOU HAVE TO REPEAT THE ABOVE PROCEDURE WHEN YOU ARM
THE SYSTEM IF YOU WANT TO DEACTIVATE THE RADAR SENSOR AGAIN.
THE SYSTEM WILL AUTOMATICALLY CANCEL THE RADAR SENSOR OFF
MODE WHEN DISARMED.
SCIONSECURITY
1
You must disarm the system before opening the hatch, or else the Alarm will
be triggered.
2
3
311
1
2
3
Page 9 of 23
OPERATIONPASSIVE (AUTOMATIC) ARMING & DISARMINGWhen the xA Security with RKE is programmed to P
ASSIVELY
ARM, the system will A
RM
after the
ignition key is removed and all doors are closed; you do not need to lock the doors. When you come
back to your vehicle and open a door, you must insert the key into the ignition switch and turn it to
“ON” during the E
NTRY
DELAY
(0, 15 or 30 seconds), or an A
LARM
will be T
RIGGERED
. If you lock the
doors, regular A
RMING
will override P
ASSIVE
ARMING
; there will be no E
NTRY
DELAY
. See the PRO-
GRAMMING section on page 15 to activate the P
ASSIVE
ARMING
mode, as well as select the E
NTRY
DELAY
time.
To P
ASSIVELY
ARM
the system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RM
while any of the doors are open.)
Close the hatch, if necessary. (The system will not A
RM
while
the hatch is open.)
After the last door or hatch is closed:
The S
TATUS
MONITOR
’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED
.
To D
ISARM
the P
ASSIVELY
ARMED
system:
Enter the vehicle through a front door.
The E
NTRY
DELAY
begins:
The STATUS
MONITOR
’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the E
NTRY
DELAY
ends.*
The LED turns off. The system is now D
ISARMED
.
You may also D
ISARM
the system following any of the methods
described on page 7.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED
, the T
RIGGER
MEMORY
was activated; an A
LARM
was
T
RIGGERED
while you were away from the vehicle.
*If the E
NTRY
DELAY
time elapses before the ignition switch is turned to “ON”, an A
LARM
will
be T
RIGGERED
. To D
ISARM
the system during an A
LARM
, insert the ignition key and turn it to
“ON”, or press and release the remote control’s UNLOCK button.
Page 8
SCION
SCION
Page 13
THE SYSTEM ARMS
30 SECONDS
AFTER THE LAST ENTRY POINT
(DOOR OR HATCH
)
IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT
TO
“ON”
SCIONSECURITY
LIGHTS FOR30 SECONDS(PRE-ARM
-
ING)THEN
STARTS
FLASHING(SYSTEM IS
ARMED
)
SCIONSECURITY
TURNS ON(NO
FLASHING
)
DURING THE
ENTRY
DELAY

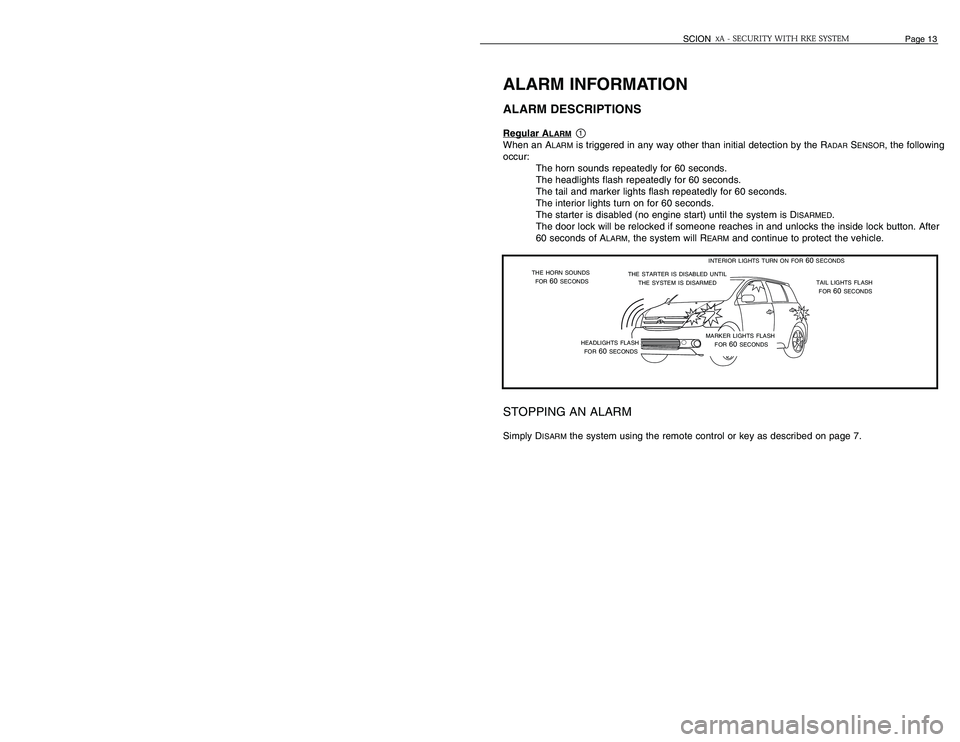

ALARM INFORMATIONALARM DESCRIPTIONSRegular
ALARM
When an A
LARM
is triggered in any way other than initial detection by the R
ADAR
SENSOR
,the following
occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED
.
The door lock will be relocked if someone reaches in and unlocks the inside lock button. After
60 seconds of A
LARM
, the system will R
EARM
and continue to protect the vehicle.
STOPPING AN ALARMSimply D
ISARM
the system using the remote control or key as described on page 7.
THE HORN SOUNDS
FOR
60 SECONDS
HEADLIGHTS FLASH
FOR
60 SECONDS
THE STARTER IS DISABLED UNTIL
THE SYSTEM IS DISARMED
MARKER LIGHTS FLASH
FOR
60 SECONDSTAIL LIGHTS FLASH
FOR
60 SECONDS INTERIOR LIGHTS TURN ON FOR
60 SECONDS
1
2
2
1
1
Page 10 of 23
OPERATIONAUTOMATIC REARMINGWhen you unlock the doors using the remote control, the xA Security with RKE is D
ISARMED
at the
same time. However, if you do not open a door within 30 seconds, the system will relock the doors
and the xA Security with RKE will R
EARM
30 seconds later.
0
15
30 45
Page 12
SCION
SCION
Page 9
THE DOORS ARE
UNLOCKED BY PRESSING
THE UNLOCK BUTTON ON
THE REMOTE CONTROL
...
WHEN NO DOOR OR
HATCH IS OPENED
...
FOR MORE THAN
30
SECONDS
...
THE X
A SECURITY WITHRKE
AUTOMATICALLY RELOCKS
THE DOORS
, THEN
AUTOMATICALLY REARMS
.
THE LED LIGHTS UP
FOR
30 SECONDS
(PRE-ARM
), THEN
FLASHES WHEN THE
SYSTEM IS ARMED

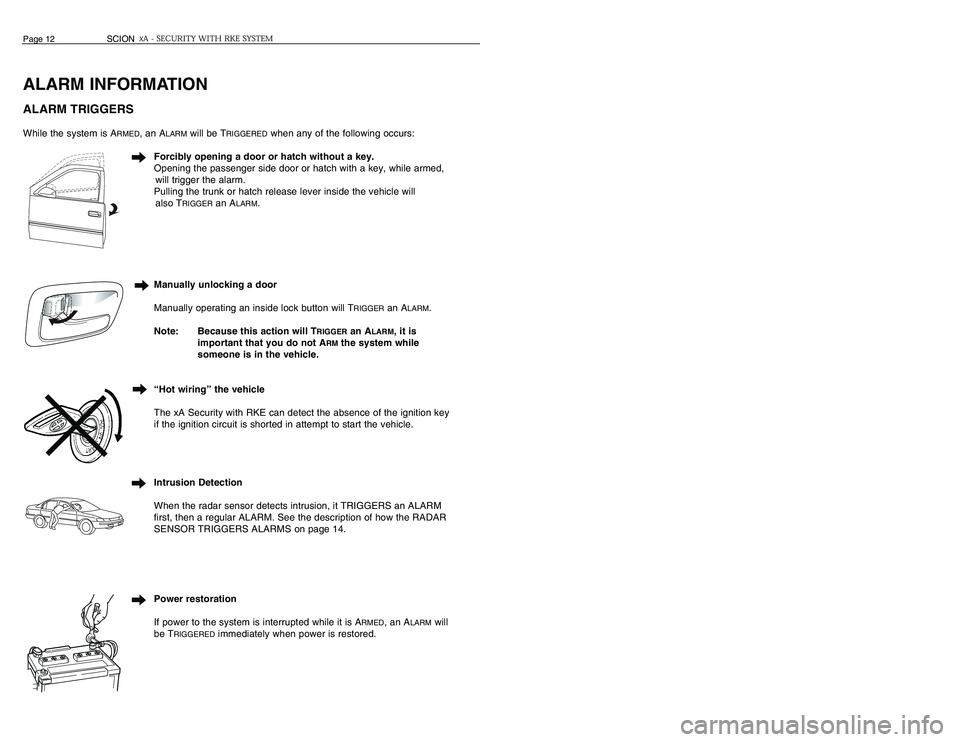

ALARM INFORMATIONALARM TRIGGERSWhile the system is A
RMED
, an A
LARM
will be T
RIGGERED
when any of the following occurs:
Forcibly opening a door or hatch without a key.
Opening the passenger side door or hatch with a key, while armed,
will trigger the alarm.
Pulling the trunk or hatch release lever inside the vehicle will
also T
RIGGER
an A
LARM
.
Manually unlocking a door
Manually operating an inside lock button will T
RIGGER
an A
LARM
.
Note: Because this action will T
RIGGER
an A
LARM
, it is
important that you do not A
RM
the system while
someone is in the vehicle.
“Hot wiring” the vehicle
The xA Security with RKE can detect the absence of the ignition key
if the ignition circuit is shorted in attempt to start the vehicle.
Intrusion Detection
When the radar sensor detects intrusion, it TRIGGERS an ALARM
first, then a regular ALARM. See the description of how the RADAR
SENSOR TRIGGERS ALARMS on page 14.
Power restoration
If power to the system is interrupted while it is A
RMED
, an A
LARM
will
be T
RIGGERED
immediately when power is restored.
SCIONSECURITY
Page 13 of 23
OPERATIONAUTOMATIC REARMINGWhen you unlock the doors using the remote control, the xA Security with RKE is D
ISARMED
at the
same time. However, if you do not open a door within 30 seconds, the system will relock the doors
and the xA Security with RKE will R
EARM
30 seconds later.
0
15
30 45
Page 12
SCION
SCION
Page 9
THE DOORS ARE
UNLOCKED BY PRESSING
THE UNLOCK BUTTON ON
THE REMOTE CONTROL
...
WHEN NO DOOR OR
HATCH IS OPENED
...
FOR MORE THAN
30
SECONDS
...
THE X
A SECURITY WITHRKE
AUTOMATICALLY RELOCKS
THE DOORS
, THEN
AUTOMATICALLY REARMS
.
THE LED LIGHTS UP
FOR
30 SECONDS
(PRE-ARM
), THEN
FLASHES WHEN THE
SYSTEM IS ARMED
ALARM INFORMATIONALARM TRIGGERSWhile the system is A
RMED
, an A
LARM
will be T
RIGGERED
when any of the following occurs:
Forcibly opening a door or hatch without a key.
Opening the passenger side door or hatch with a key, while armed,
will trigger the alarm.
Pulling the trunk or hatch release lever inside the vehicle will
also T
RIGGER
an A
LARM
.
Manually unlocking a door
Manually operating an inside lock button will T
RIGGER
an A
LARM
.
Note: Because this action will T
RIGGER
an A
LARM
, it is
important that you do not A
RM
the system while
someone is in the vehicle.
“Hot wiring” the vehicle
The xA Security with RKE can detect the absence of the ignition key
if the ignition circuit is shorted in attempt to start the vehicle.
Intrusion Detection
When the radar sensor detects intrusion, it TRIGGERS an ALARM
first, then a regular ALARM. See the description of how the RADAR
SENSOR TRIGGERS ALARMS on page 14.
Power restoration
If power to the system is interrupted while it is A
RMED
, an A
LARM
will
be T
RIGGERED
immediately when power is restored.
SCIONSECURITY
Page 14 of 23
OPERATIONPASSIVE (AUTOMATIC) ARMING & DISARMINGWhen the xA Security with RKE is programmed to P
ASSIVELY
ARM, the system will A
RM
after the
ignition key is removed and all doors are closed; you do not need to lock the doors. When you come
back to your vehicle and open a door, you must insert the key into the ignition switch and turn it to
“ON” during the E
NTRY
DELAY
(0, 15 or 30 seconds), or an A
LARM
will be T
RIGGERED
. If you lock the
doors, regular A
RMING
will override P
ASSIVE
ARMING
; there will be no E
NTRY
DELAY
. See the PRO-
GRAMMING section on page 15 to activate the P
ASSIVE
ARMING
mode, as well as select the E
NTRY
DELAY
time.
To P
ASSIVELY
ARM
the system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RM
while any of the doors are open.)
Close the hatch, if necessary. (The system will not A
RM
while
the hatch is open.)
After the last door or hatch is closed:
The S
TATUS
MONITOR
’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED
.
To D
ISARM
the P
ASSIVELY
ARMED
system:
Enter the vehicle through a front door.
The E
NTRY
DELAY
begins:
The STATUS
MONITOR
’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the E
NTRY
DELAY
ends.*
The LED turns off. The system is now D
ISARMED
.
You may also D
ISARM
the system following any of the methods
described on page 7.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED
, the T
RIGGER
MEMORY
was activated; an A
LARM
was
T
RIGGERED
while you were away from the vehicle.
*If the E
NTRY
DELAY
time elapses before the ignition switch is turned to “ON”, an A
LARM
will
be T
RIGGERED
. To D
ISARM
the system during an A
LARM
, insert the ignition key and turn it to
“ON”, or press and release the remote control’s UNLOCK button.
Page 8
SCION
SCION
Page 13
THE SYSTEM ARMS
30 SECONDS
AFTER THE LAST ENTRY POINT
(DOOR OR HATCH
)
IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT
TO
“ON”
SCIONSECURITY
LIGHTS FOR30 SECONDS(PRE-ARM
-
ING)THEN
STARTS
FLASHING(SYSTEM IS
ARMED
)
SCIONSECURITY
TURNS ON(NO
FLASHING
)
DURING THE
ENTRY
DELAY
ALARM INFORMATIONALARM DESCRIPTIONSRegular
ALARM
When an A
LARM
is triggered in any way other than initial detection by the R
ADAR
SENSOR
,the following
occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED
.
The door lock will be relocked if someone reaches in and unlocks the inside lock button. After
60 seconds of A
LARM
, the system will R
EARM
and continue to protect the vehicle.
STOPPING AN ALARMSimply D
ISARM
the system using the remote control or key as described on page 7.
THE HORN SOUNDS
FOR
60 SECONDS
HEADLIGHTS FLASH
FOR
60 SECONDS
THE STARTER IS DISABLED UNTIL
THE SYSTEM IS DISARMED
MARKER LIGHTS FLASH
FOR
60 SECONDSTAIL LIGHTS FLASH
FOR
60 SECONDS INTERIOR LIGHTS TURN ON FOR
60 SECONDS
1
2
2
1
1
Page 15 of 23
OPERATIONDISARMING THE xA SECURITY WITH RKE (except PASSIVE DISARMING)The system may be D
ISARMED
in several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the driver’s door key switch and turn it toward the
rear of the vehicle:
The S
TATUS
MONITOR
’SLED stops flashing. The system
is now D
ISARMED
.*
In the case of Sienna and 4Runner, you may also disarm the
system using the key in the back door; all the doors will unlock at the
same time. This feature is not available for Celica; you must disarm
the system before opening the hatch, or else an A
LARM
will be
Triggered.
Unlock the doors with the remote control:
Press the UNLOCK button on the remote control. Simultaneously:
The driver’s door unlocks.
The vehicle’s tail and marker lights flash twice.
The interior lights turn on for 30 seconds.
The S
TATUS
MONITOR
’SLED stops flashing. The system is
now D
ISARMED
.*
Press the UNLOCK button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON.
The S
TATUS
MONITOR
’SLED stops flashing. The system
is now D
ISARMED
.
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED
, the T
RIGGER
MEMORY
was activated; an A
LARM
was
T
RIGGERED
while you were away from the vehicle.
THE TAIL AND MARKER LIGHTS FLASH TWICE AND THE INTE
-
RIOR LIGHTS TURN ON FOR
30 SECONDS WHEN THE SYSTEM
IS REMOTE DISARMED
Page 14
SCION
SCION
Page 7
SCIONSECURITYTURN TOWARD THE REAR
OF THE VEHICLETURN THE KEY TO
“ON” TO
DISARM THE SYSTEM
THE DRIVER
’SDOOR UNLOCKS
WHEN THE SYSTEM IS REMOTE
DISARMED
PUSH THE UNLOCK BUTTON
STOPS
FLASHING
WHEN THE
SYSTEM IS
DISARMED
THE BUZZER CHIRPS TWICE WHEN THE SYSTEM IS
REMOTE DISARMED
RADAR SENSOR INFORMATIONRADAR SENSOR CHECK PROCEDURE
1. A
RM
the system.
Press the LOCK button on the remote control or lock the doors
with the key.
(Remember, the system will not ARM if any door is open.)
2. Wait until the S
TATUS
MONITOR’S
LED starts flashing.
The LED will flash 30 seconds after the last door or hatch is closed.
3. Move inside the vehicle.
When movement occurs inside the vehicle, an alarm will be triggered
immediately. If sensor detects 2nd movement within 60 seconds after
the 1st warn away alarm trigger, then a regular ALARM activates for 60
seconds.
Note: If you find that the system does not perform as expected, contact
your Toyota dealer for more information.
4. D
ISARM
the system to stop the A
LARM
.
Press the UNLOCK button on the remote control or use the key to
DISARM the system.
RADAR SENSOR OFF MODETHE RADAR SENSOR CAN BE DEACTIVATED. PERFORM THE FOLLOWING:
1. Open the driver’s door .
The LED turns off. The system is now DISARMED.
2. Lock, then unlock the driver’s door inside lock button 3 times,
within 5 seconds.
The LED flash quickly.
3. Close the driver’s door.
4. ARM
THE SYSTEM WITH THE REMOTE CONTROL OR KEY WHILE THE
LED
IS
BLINKING
.THE RADAR SENSOR
WILL DEACTIVATE DURING ARMING.
NOTE: I
F YOU DISARM THE SYSTEM AFTER YOU SET THE RADAR SENSOROFF
, YOU HAVE TO REPEAT THE ABOVE PROCEDURE WHEN YOU ARM
THE SYSTEM IF YOU WANT TO DEACTIVATE THE RADAR SENSOR AGAIN.
THE SYSTEM WILL AUTOMATICALLY CANCEL THE RADAR SENSOR OFF
MODE WHEN DISARMED.
SCIONSECURITY
1
You must disarm the system before opening the hatch, or else the Alarm will
be triggered.
2
3
311
1
2
3
Page 18 of 23
PROGRAMMINGDRIVER’S DOOR/ALL DOORS UNLOCK SELECTION (continued)3. Select the Operating Mode and Complete the Programming Procedure.
Note: If the system locks the doors twice, start over.
Page 4
SCION
SCION
Page 17
BRIEF DESCRIPTION–xA SECURITY WITH RKE FEATURES
a. Press and
releaseboth
LOCK and
UNLOCK
buttons at the
same time.
b. Press and
releasethe
UNLOCK button
once for all
doors unlock.
or Press and
releasethe
LOCK button
once for driver’s
door unlock.e.Open the driver’s
door;
programming is
now complete.
i.The tail and marker lights flash 1time, the
buzzer chirps 1time, and the doors lock and
unlock 1 time.
The xA Security with RKE will arm 30 seconds after the LOCK button on
the remote control is pressed, and DISARM when the UNLOCK button is
pressed. When the LOCK button is pressed, all the vehicle’s doors lock.
When the UNLOCK button is pressed, the driver’s door unlocks*, but if the
UNLOCK button is pressed again within 3 seconds, the remaining doors
unlock.
The xA Security with RKE will automatically RELOCK the vehicle’s doors if
no door is opened within 30 seconds after REMOTE DISARMING, the will
REARM 30 seconds later.
The xA Security with RKE will arm 30 seconds after you close and lock
the vehicle’s doors with the key, and will DISARM when you unlock a door
with the key.
The xA Security with RKE may be programmed to automatically arm 30
seconds after the ignition key is removed, the vehicle exited and the last
door and the trunk are closed, without the necessity of locking the doors.
The xA Security with RKE may be DISARMED with the vehicle’s ignition
key after it was PASSIVELY ARMED.
When the xA Security with RKE has been PASSIVELY ARMED, and
ENTRY DELAY (user-selectable at 0,15, or 30 seconds) will start when a
door is opened before an ALARM is TRIGGERED.
When you lock the vehicle with a central lock switch (while a door is open)
the xA Security with RKE will rm 30 seconds after you close all the doors
and the hatch (if open).
The xA Security with RKE may be DISARMED by inserting the key into
the ignition switch and turning it to “ON”.
Forcibly unlocking or opening a door or hatch while the xA Security with
RKE is ARMED will TRIGGER and ALARM immediately**. (If the system
was PASSIVELY ARMED, the ENTRY DELAY must pass before the
ALARM is TRIGGERED).
The xA-Security utilizes RADAR SENSOR.
The RADAR SENSOR works synchronize with vehicle theft deterrent sys-
tem.If somebody intrudes into the vehicle while the vehicle theft deterrent
system is set, the alarm blows the vehicle's horn intermittently and flashes
the emergency flashers.
Note
To prevent false alarms from triggered in case of following conditions:
•A child or pet is left in the vehicle.
•Any window or moon roof is left opened.
•When parking in the noisy area or in the roof parking.
•The vehicle body or glass is subjected to strong impact from the outside
(such as highly pressurized car wash).
•When transporting by car carrier.
•A cellphone in cup holder or center console covered storage is left in the
vehicle.
•When a bag on the seat in the vehicle,the detection area may change.
While ARMED, the xA Security with RKE monitors the ignition switch. If an
attempt is made to start the vehicle without a key, an ALARM is triggered. REMOTE ARMING /
DISARMING & LOCK-
ING / UNLOCKING
AUTOMATIC
REARMING
KEY
ARMING / DISARMING
PASSIVE
(AUTOMATIC) ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
RADAR SENSOR
IGNITION SWITCH
MONITORING
FEATURES FUNCTIONS* You may program the system to unlock all the doors with one press on the UNLOCK button.
See page 16 for programming instructions.
** The alarm will not trigger if the passenger side door is forcibly unlocked, until the passenger door is
opened.
Page 21 of 23
Page 20
SCION
To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use. TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION
2
REMOTE CONTROL INFORMATION
THE REMOTE CONTROL INCLUDED WITH YOUR SYSTEM 3
BRIEF DESCRIPTION – SECURITY WITH RKE FEATURES
4, 5
OPERATION
ARMING THE SECURITY (except PASSIVE ARMING) 6
DISARMING THE SECURITY (except PASSIVE DISARMING) 7
PASSIVE (AUTOMATIC) ARMING & DISARMING 8
AUTOMATIC REARMING 9
ARMING SUSPENSION 9
MISCELLANEOUS
DOOR AJAR WARNING 10
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 10
REMOTE CONTROL RANGE 10
ALARM INFORMATION
PANIC MODE OPERATION 11
ALARM TRIGGERS 12
ALARM DESCRIPTIONS 13
STOPPING AN ALARM 13
RADAR SENSOR INFORMATION
RADAR SENSOR CHECK PROCEDURE 14
RADAR SENSOR OFF MODE 14
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 15
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION 16, 17
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 18
REMOTE CONTROL BATTERY REPLACEMENT
REMOVE THE BATTERY 19
INSTALL THE BATTERY 20
WARNING AND CAUTION INFORMATION
21
REMOTE CONTROL BATTERY REPLACEMENTINSTALL THE BATTERY
1. Hold the battery with the plus side up.
Handle the battery with a cloth or tissue; body oils and moisture can
interfere with operation and may reduce the life of the battery.
2. Insert the new battery as shown.
Place the edge of the battery in the contacts first, then slide the
battery back and down.
3. Place the rubber gasket back on the remote control.
Make sure the gasket is seated properly.
4. Place the back cover back on the top half of the remote control.
Place even pressure and listen for the halves to “snap” together.
SCION
Page 1
