TOYOTA xA 2006 Owners Manual (in English)

223

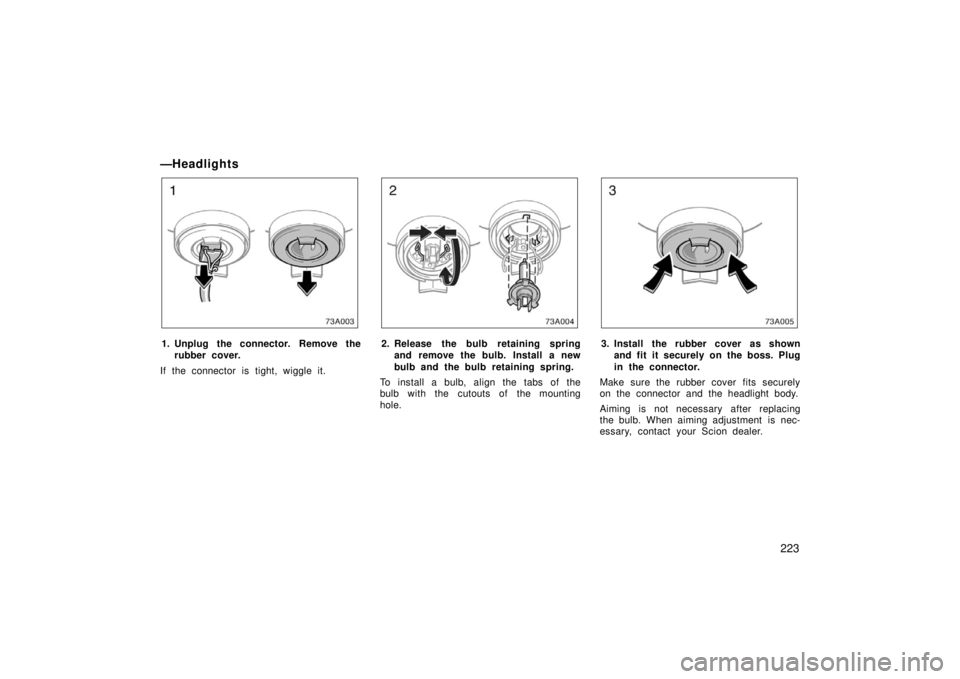

—Headlights
1. Unplug the connector. Remove therubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Scion dealer.

224

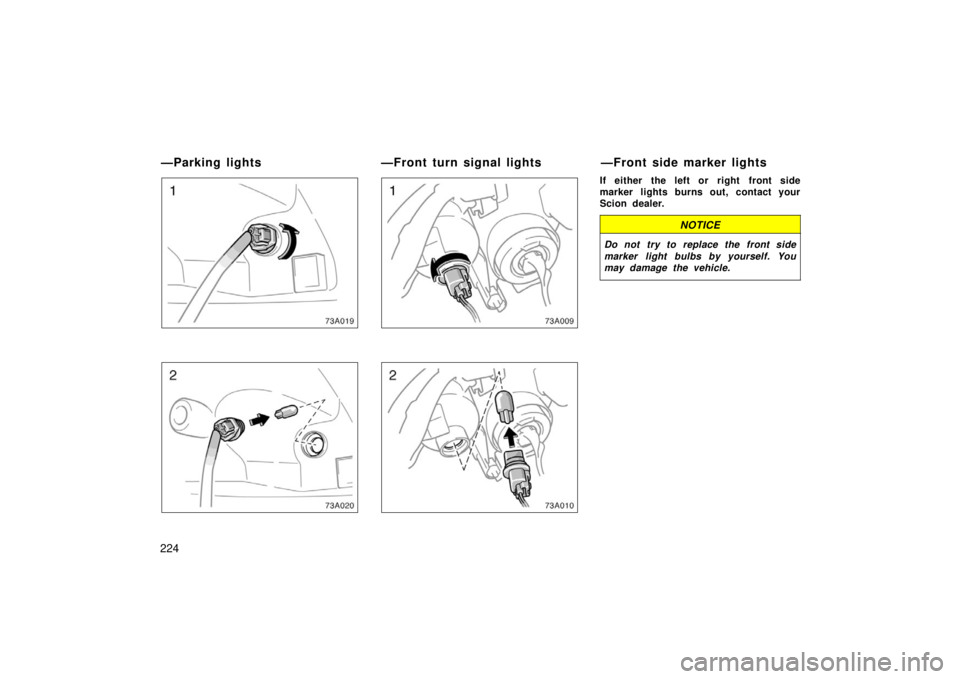

73A019
73A020
If either the left or right front side
marker lights burns out, contact your
Scion dealer.
NOTICE
Do not try to replace the front side
marker light bulbs by yourself. You
may damage the vehicle.

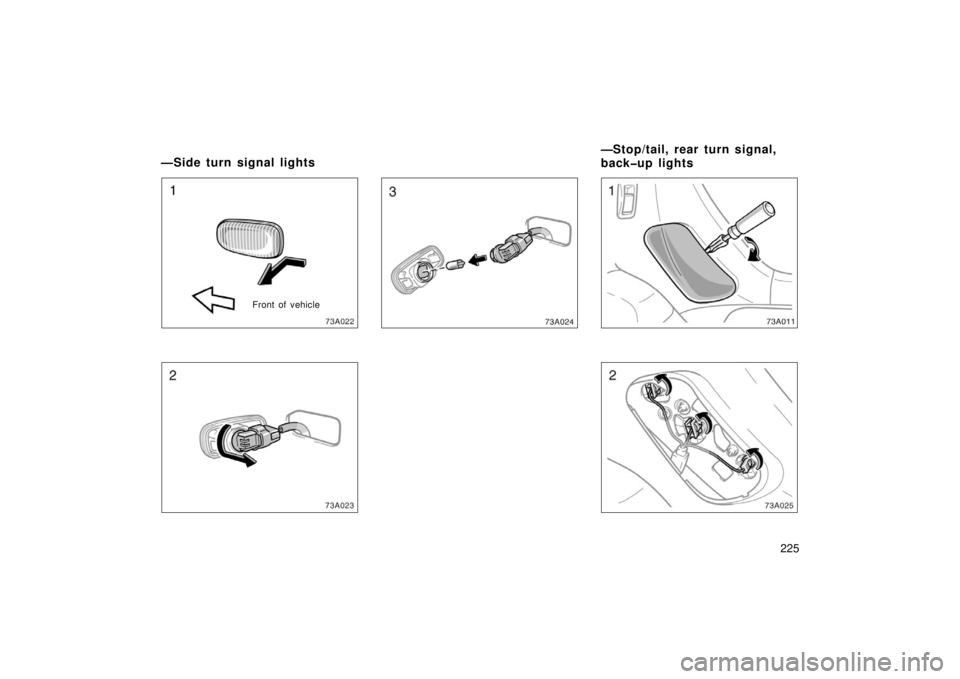

—Parking lights—Front turn signal lights —Front side marker lights

225
73a022
Front of vehicle
73a023
73a024
73a025

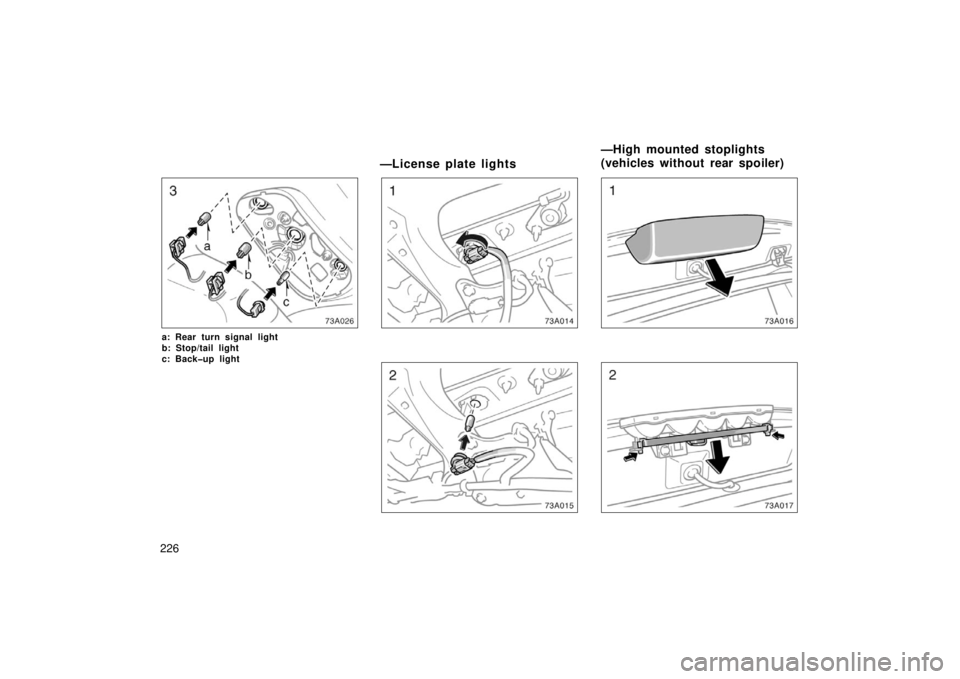

—Side turn signal lights—Stop/tail, rear turn signal,
backup lights

226
73a026
a: Rear turn signal light
b: Stop/tail light
c: Backup light
—License plate lights

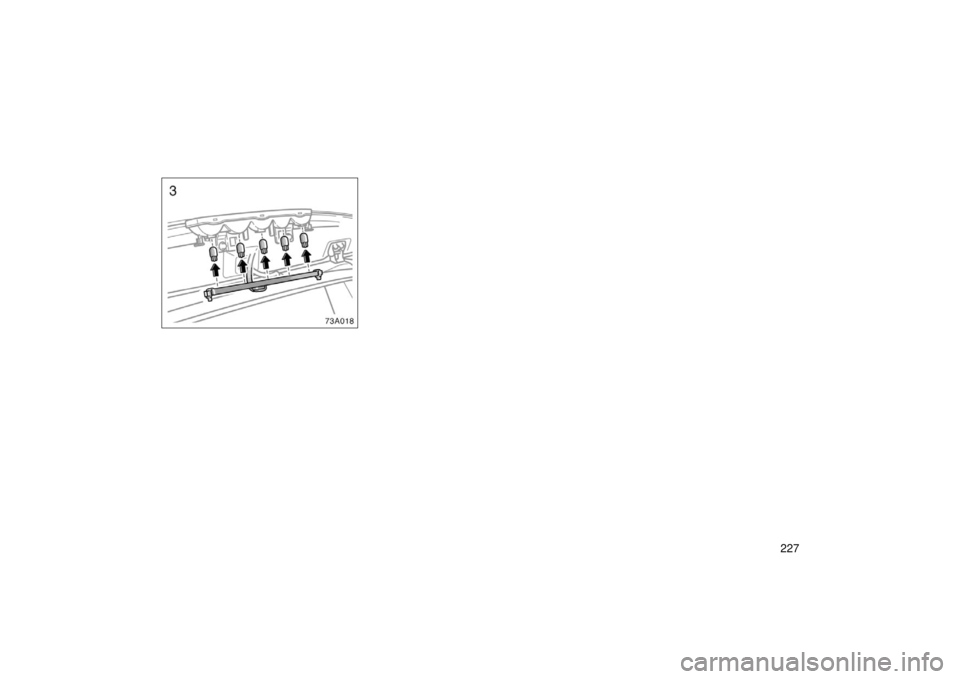

—High mounted stoplights
(vehicles without rear spoiler)

227

228

229
SPECIFICATIONS
Specifications
Dimensions and weightss230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 233
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

230
Dimensions and weights
Overall length mm (in.):3915 (154.1)
Overall width mm (in.): 1695 (66.7)
Overall height mm (in.): 1530 (60.2)
Wheelbase mm (in.): 2370 (93.3)
Front tread mm (in.): 1455 (57.3)
Rear tread mm (in.):
1430 (56.3)
Vehicle capacity weight
(occupants+cargo) kg (lb.): 375 (825)
Engine
Model:1.5 L 4 −cylinder (1NZ− FE)
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1497 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87 (Re-search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp.gal.): 45 (11.9, 9.9)

231
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15 – 0.25 (0.006 – 0.010)
Exhaust 0.25 – 0.35 (0.010 – 0.014)
Spark plug type: DENSO K16R −U
NGK BKR5EYA
Spark plug gap, mm(in.): 0.8 (0.031)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt.,
Imp.qt.): With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
“Genuine Motor Oil” is used in your Scion
vehicle. Use Scion approved “Genuine Mo-
tor Oil” or equivalent to satisfy the follow-
ing grade and viscosity. Oil grade:
ILSAC multigrade engine oil
Please contact your Scion dealer for fur-
ther details.
Recommended oil viscosity:
SAE 5W −30
OIL008
Outside temperature
COOLING SYSTEM
Total capacity, L (qt., Imp.qt.):
Manual transmission 4.4 (4.7, 3.9)
Automatic transmission 4.3 (4.5, 3.8)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Scion vehicle at factory fill.
In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non −silicate, non− amine, non−
nitrite, and non −borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Scion dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6 – 12.8 V Fully charged
12.2 – 12.4 V Half charged
11.8 – 12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

232
CLUTCH
Pedal free play, mm (in.):5 – 15 (0.2 – 0.6)
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp.qt.): 1.9 (2.0, 1.7)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt., Imp.qt.): 2.9 (3.1, 2.6)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T
−IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle. BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
50 (2.0)
Pedal free play, mm (in.): 1 – 6 (0.04 – 0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6 – 9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
