TOYOTA xA 2006 Owners Manual (in English)

103

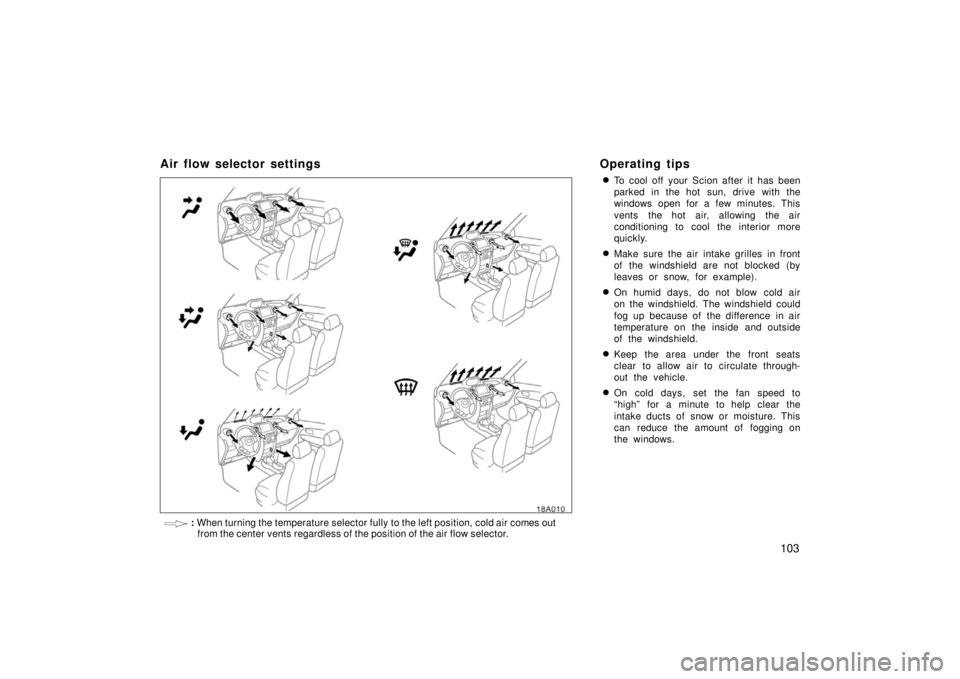

Air flow selector settingsOperating tips
To cool off your Scion after it has been
parked in the hot sun, drive with the
windows open for a few minutes. This
vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
“high” for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
: When turning the temperature selector fully to the left position, cold air comes out
from the center vents regardless of the position of the air flow selector.

104
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATED, which will close off
the outside passage and prevent out-
side air and dust from entering the
vehicle interior.
Heating
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.
Air conditioning
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, turn the temperature
selector knob fully towards COLD and
change the air intake selector mode
RECIRCULATE.

105
Ventilation
For best results, set controls to:Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone to
heat; blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

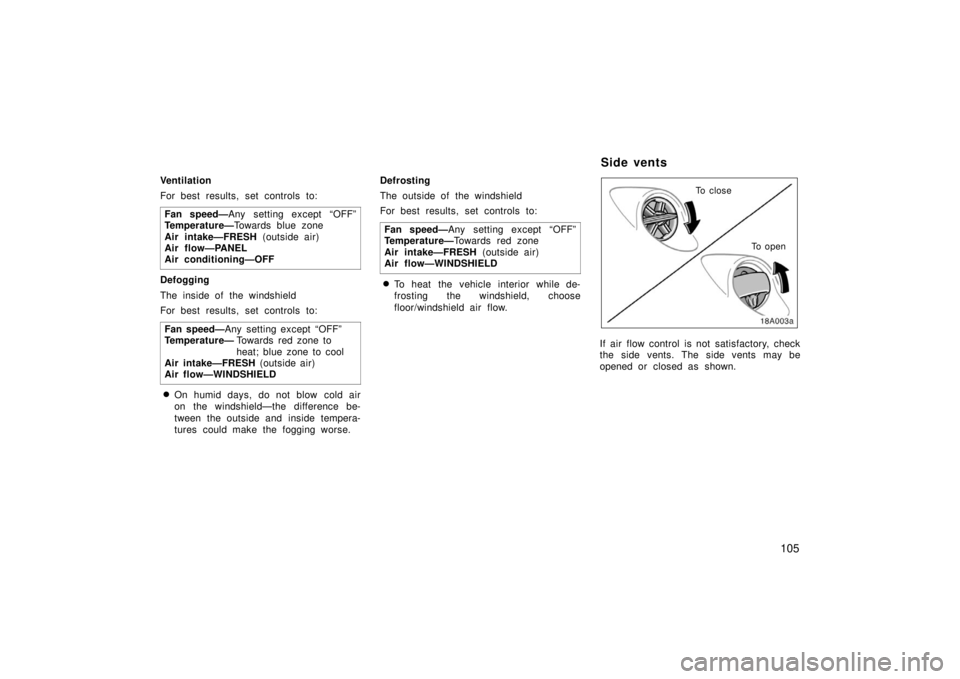

To c l o s e
To open
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
Side vents

106
The air conditioning filter information
label is placed on the inside of the
glove box as shown and indicates that
the filters have been installed.
The air conditioning filters prevent dust
from entering the vehicle through the air
conditioning vent.
Air conditioning
filter No.1Air conditioning
filter No.2
The air conditioning filters are behind
the glove box. The air conditioning filters may clog
after long use. The filters may need to
be replaced if the air flow of the air
conditioning and heater experiences ex-
treme reductions in operating efficiency,
or if the windows become to fog up
easily in FRESH mode.
To maintain the air conditioning efficiency,
clean the air conditioning filters according
to the maintenance schedule. In dusty
areas or areas with heavy traffic flow,
such as inner city or desert areas, early
replacement may be required. (For sched-
uled maintenance information, please refer
to the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
Air conditioning filters
(on some models)—
—Checking and cleaning the
air conditioning filters

107
1. Remove the glove box from the in-strument panel.2. Pull out the air conditioning filtercase as shown in the illustration.3. Clean the filter No.1.
Blow the dust of the filter No.1 with com-
pressed air from the backside of the filter
No.1.
If it is dirty or torn, it should be replaced.

108
4. Clean the filter No.2.
Clean the surface of the filter No.2 using
a moist cloth.
If it is dirty or torn, it should be replaced.
INFORMATION
Frequency of the cleaning varies de-
pending on road conditions (dusty
road, etc.). Earlier cleaning is rec-
ommended.
The air filters should be installed
properly in position. The use of air
conditioning with the air filters re-
moved may cause deteriorated dust-
proof performance and than affect
air conditioning performance.

109
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls (steering switches) 111
. . . . . . . . . . . . . . . . . . . . .
AUX adapter 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary box 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Cup holders 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage storage box 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Luggage cover 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

11 0

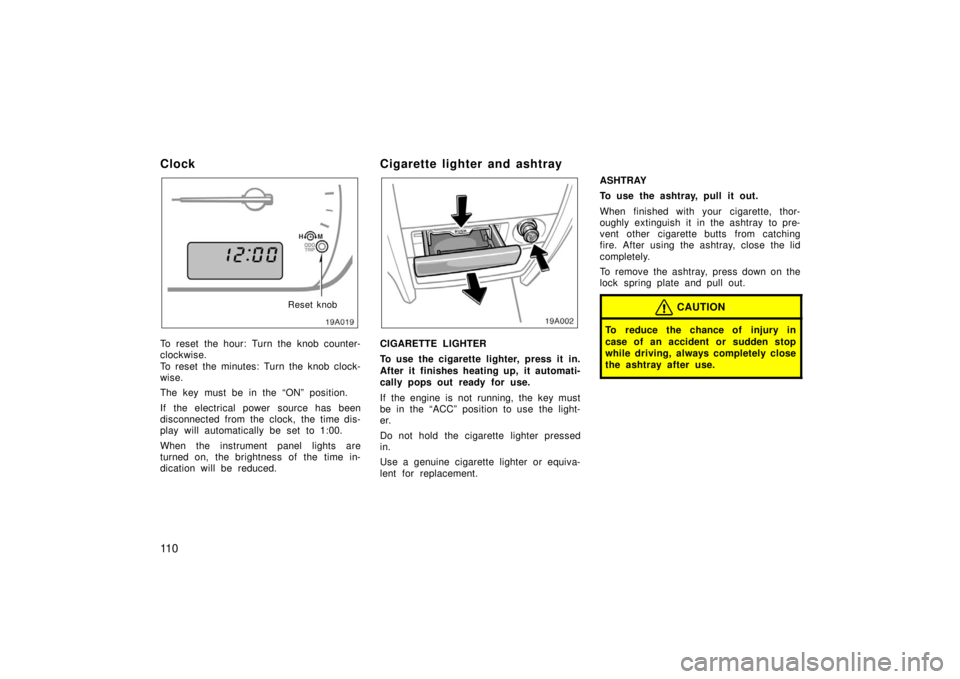

Clock
Reset knob
To reset the hour: Turn the knob counter-
clockwise.
To reset the minutes: Turn the knob clock-
wise.
The key must be in the “ON” position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position to use the light-
er.
Do not hold the cigarette lighter pressed
in.
Use a genuine cigarette lighter or equiva-
lent for replacement.ASHTRAY
To use the ashtray, pull it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.

111

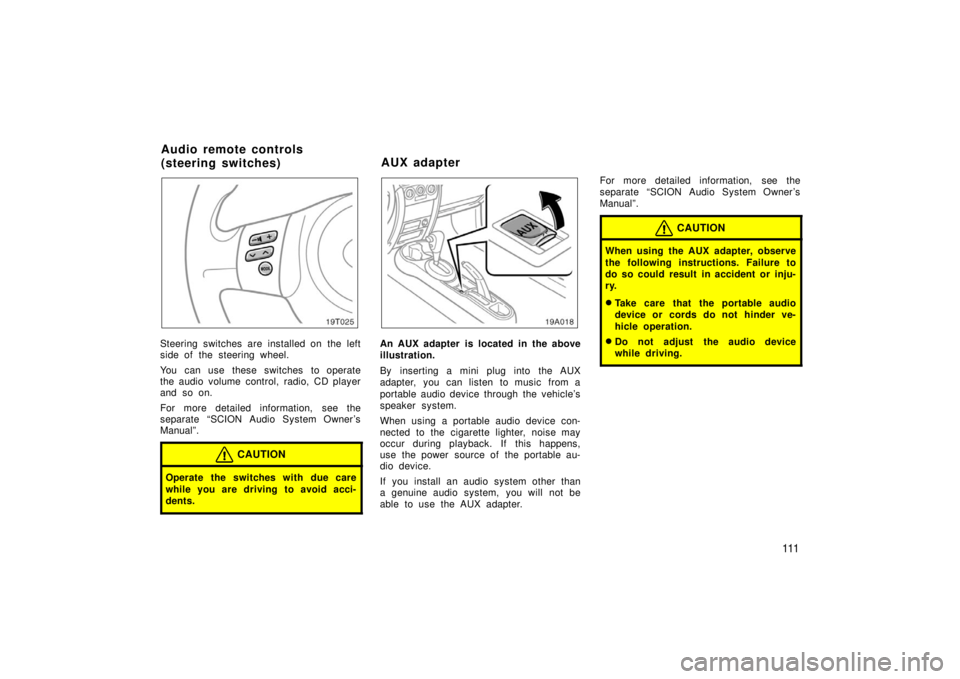

19T025
Steering switches are installed on the left
side of the steering wheel.
You can use these switches to operate
the audio volume control, radio, CD player
and so on.
For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual”.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.
19A018
An AUX adapter is located in the above
illustration.
By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
When using a portable audio device con-
nected to the cigarette lighter, noise may
occur during playback. If this happens,
use the power source of the portable au-
dio device.
If you install an audio system other than
a genuine audio system, you will not be
able to use the AUX adapter.For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual”.
CAUTION
When using the AUX adapter, observe
the following instructions. Failure to
do so could result in accident or inju-
ry.
Take care that the portable audio
device or cords do not hinder ve-
hicle operation.
Do not adjust the audio device
while driving.
Audio remote controls
(steering switches)
AUX adapter

11 2
Glo ve bo x
To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Auxiliary box
To use the box, push the lid.
The auxiliary box light turns on or off as
any door is opened or closed.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
During hot weather, the interior of the
vehicle becomes very hot. Do not
leave anything flammable or deform-
able such as a lighter, glasses, etc.
inside.
