glove box TOYOTA xA 2006 Owners Manual (in English)

2

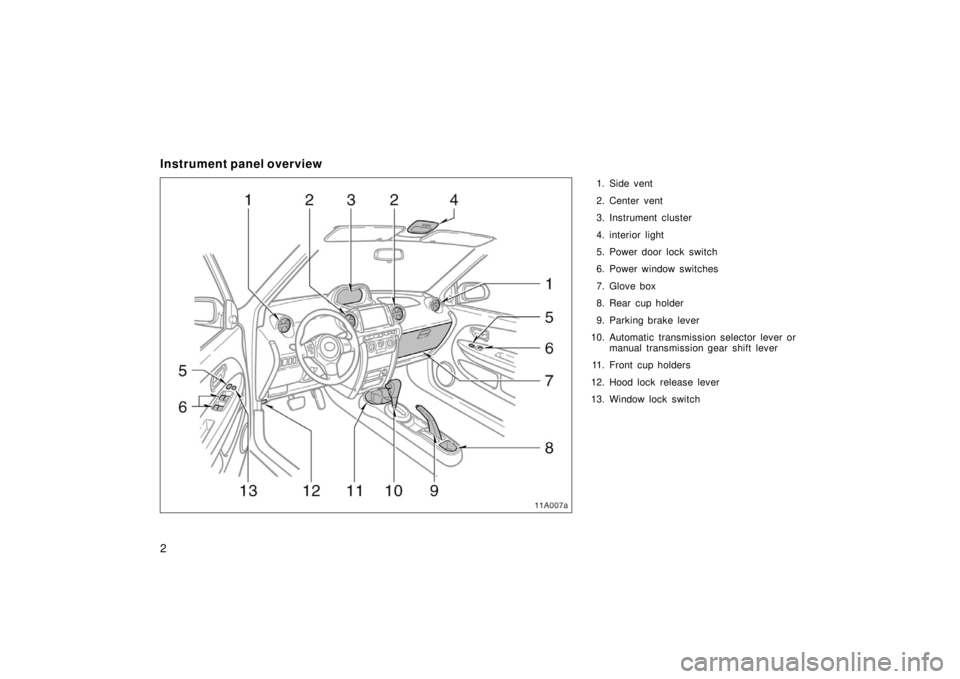

Instrument panel overview
1. Side vent
2. Center vent
3. Instrument cluster
4. interior light
5. Power door lock switch
6. Power window switches
7. Glove box
8. Rear cup holder
9. Parking brake lever
10. Automatic transmission selector lever or manual transmission gear shift lever
11. Front cup holders
12. Hood lock release lever
13. Window lock switch
11A007a

106

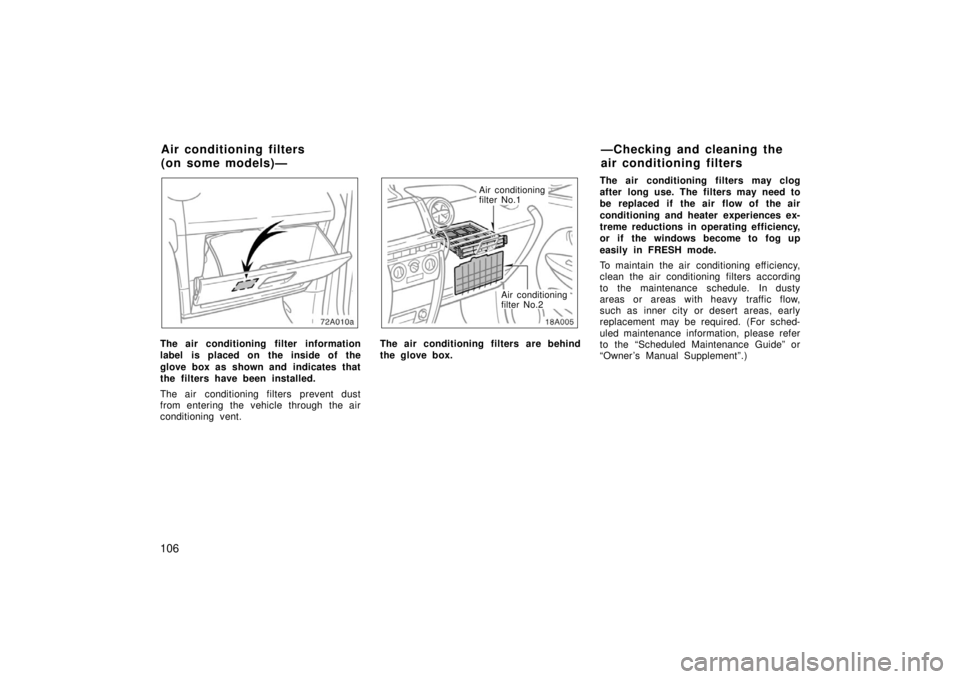

The air conditioning filter information
label is placed on the inside of the
glove box as shown and indicates that
the filters have been installed.
The air conditioning filters prevent dust
from entering the vehicle through the air
conditioning vent.
Air conditioning
filter No.1Air conditioning
filter No.2
The air conditioning filters are behind
the glove box. The air conditioning filters may clog
after long use. The filters may need to
be replaced if the air flow of the air
conditioning and heater experiences ex-
treme reductions in operating efficiency,
or if the windows become to fog up
easily in FRESH mode.
To maintain the air conditioning efficiency,
clean the air conditioning filters according
to the maintenance schedule. In dusty
areas or areas with heavy traffic flow,
such as inner city or desert areas, early
replacement may be required. (For sched-
uled maintenance information, please refer
to the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
Air conditioning filters
(on some models)—
—Checking and cleaning the
air conditioning filters

107

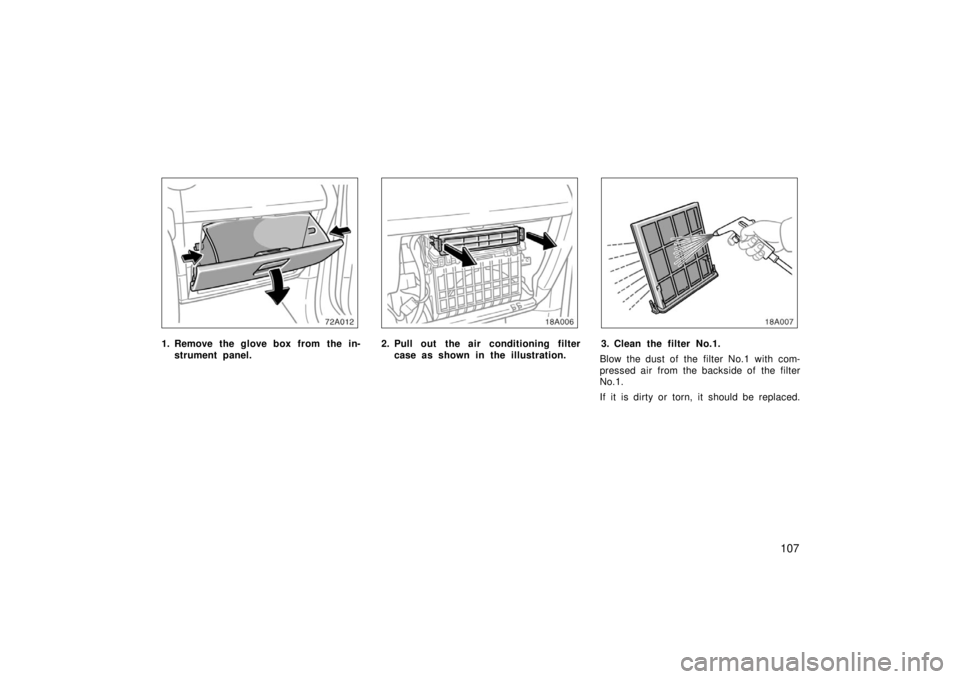

1. Remove the glove box from the in-strument panel.2. Pull out the air conditioning filtercase as shown in the illustration.3. Clean the filter No.1.
Blow the dust of the filter No.1 with com-
pressed air from the backside of the filter
No.1.
If it is dirty or torn, it should be replaced.

109
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls (steering switches) 111
. . . . . . . . . . . . . . . . . . . . .
AUX adapter 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary box 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Cup holders 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage storage box 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Luggage cover 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

11 2

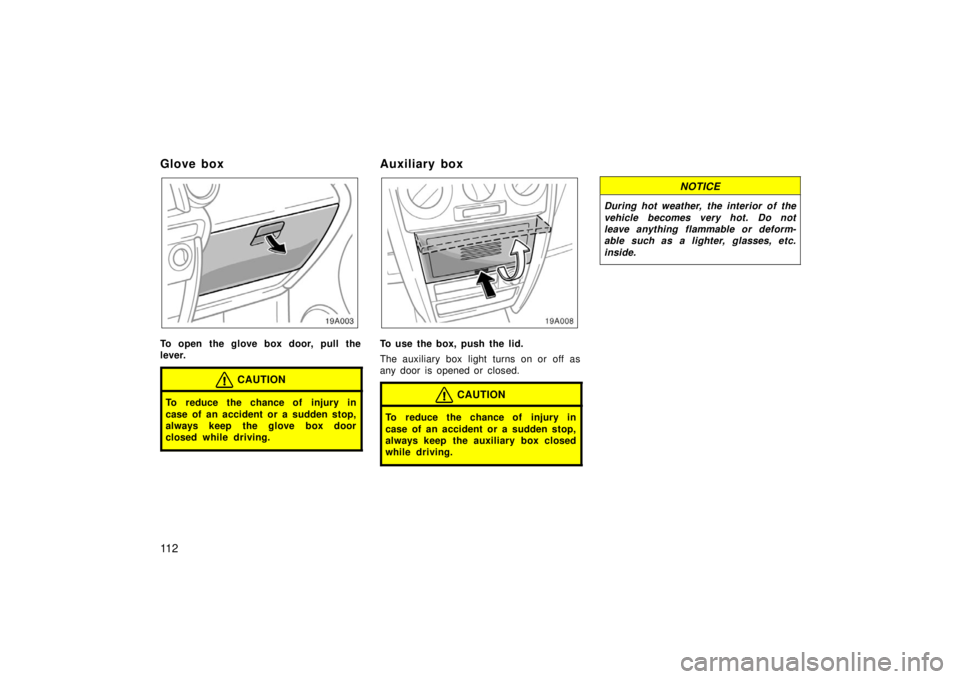

Glo ve bo x
To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Auxiliary box
To use the box, push the lid.
The auxiliary box light turns on or off as
any door is opened or closed.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
During hot weather, the interior of the
vehicle becomes very hot. Do not
leave anything flammable or deform-
able such as a lighter, glasses, etc.
inside.
