181
3-4. Using the
storage features
3
Interior features

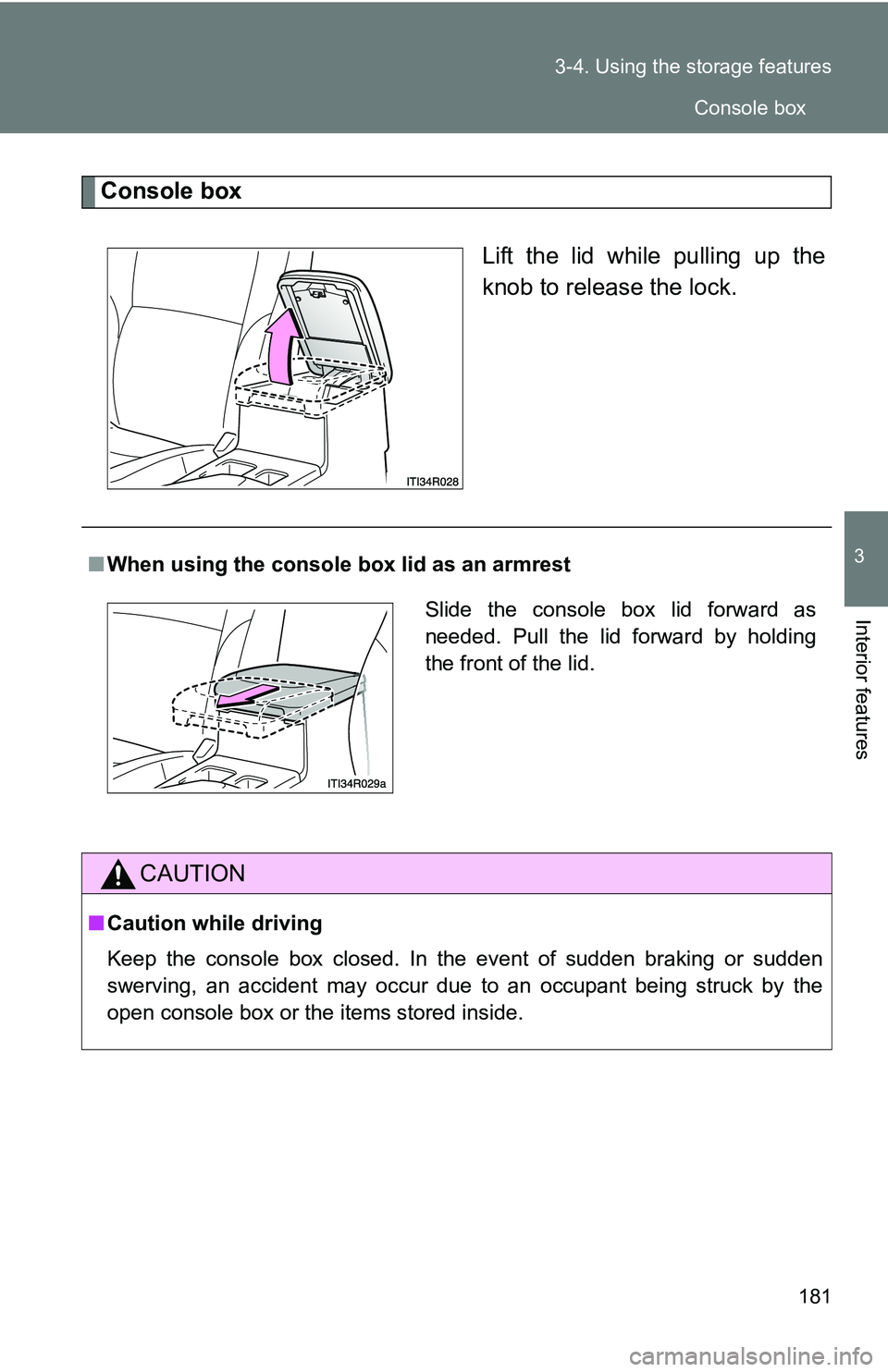

Console box
Lift the lid while pulling up the
knob to release the lock.
■When using the console box lid as an armrest
CAUTION
■Caution while driving
Keep the console box closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open console box or the items stored inside.
Slide the console box lid forward as
needed. Pull the lid forward by holding
the front of the lid.
Console box

182 3-4. Using the storage features

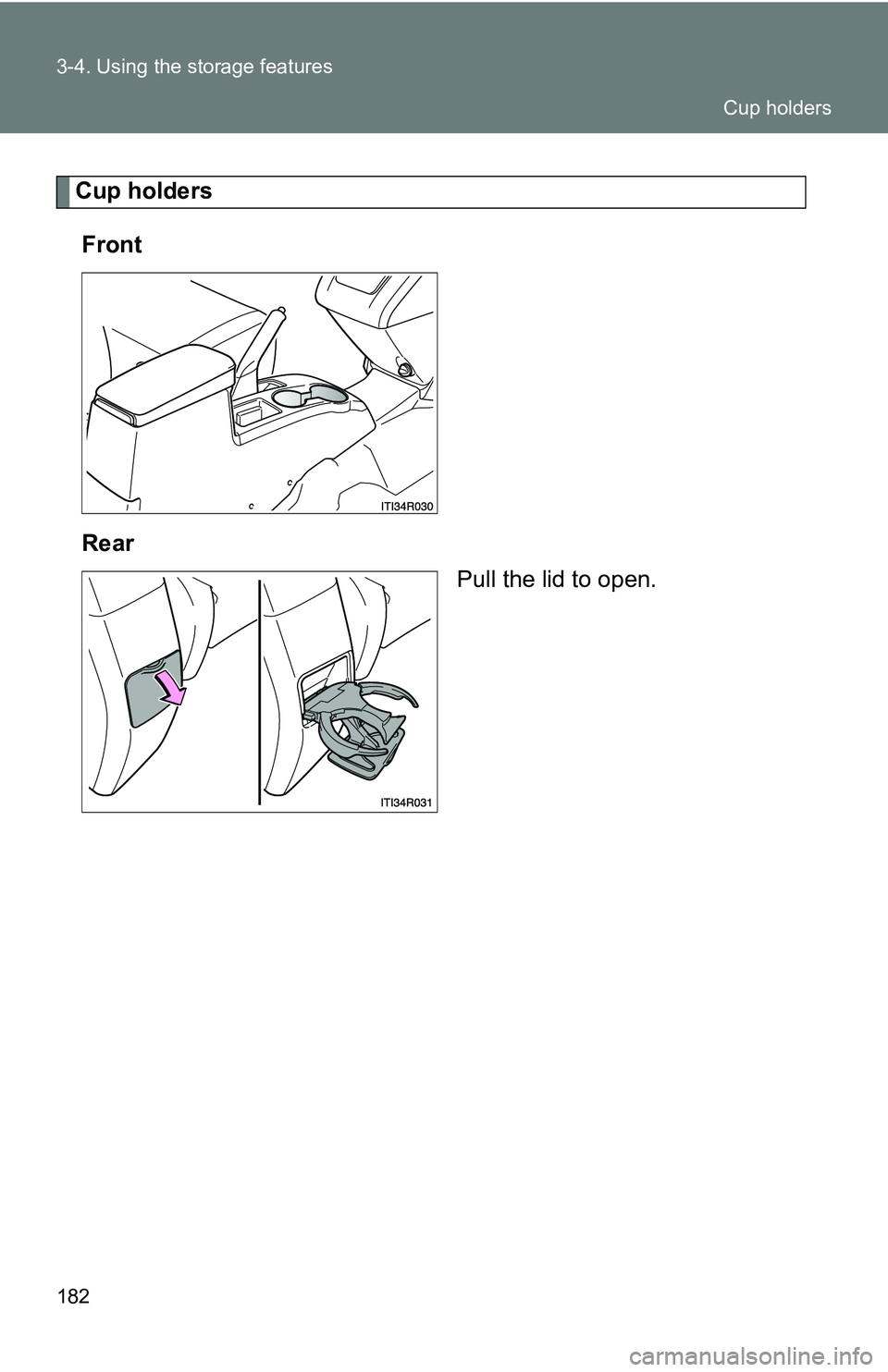

Cup holdersFront
Rear Pull the lid to open.
Cup holders

183
3-4. Using the
storage features
3
Interior features

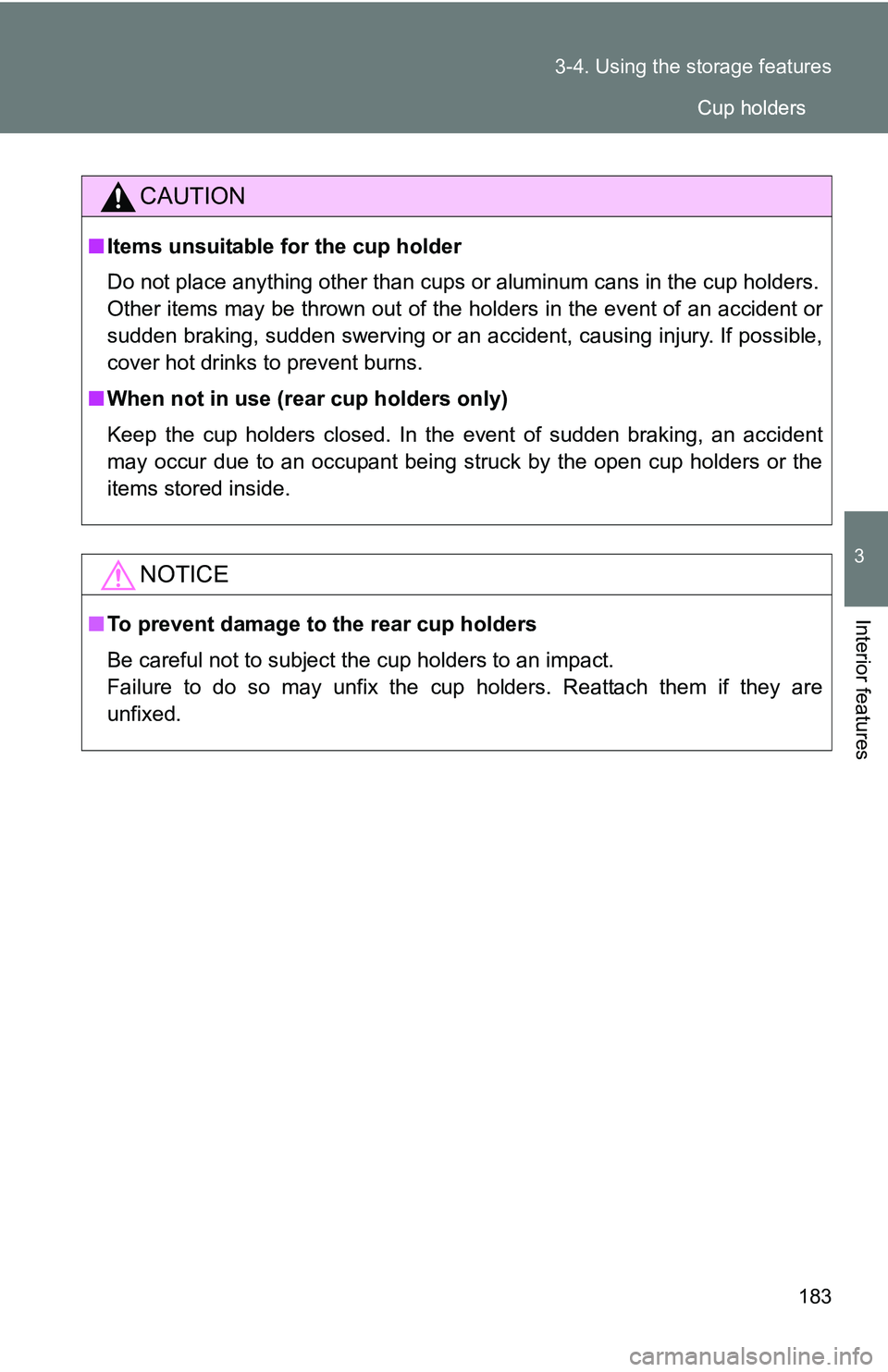

CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, sudden swerving or an accident, causing injury. If possible,
cover hot drinks to prevent burns.
■ When not in use (rear cup holders only)
Keep the cup holders closed. In the event of sudden braking, an accident
may occur due to an occupant being struck by the open cup holders or the
items stored inside.
NOTICE
■To prevent damage to the rear cup holders
Be careful not to subject the cup holders to an impact.
Failure to do so may unfix the cup holders. Reattach them if they are
unfixed.
Cup holders Cup holders

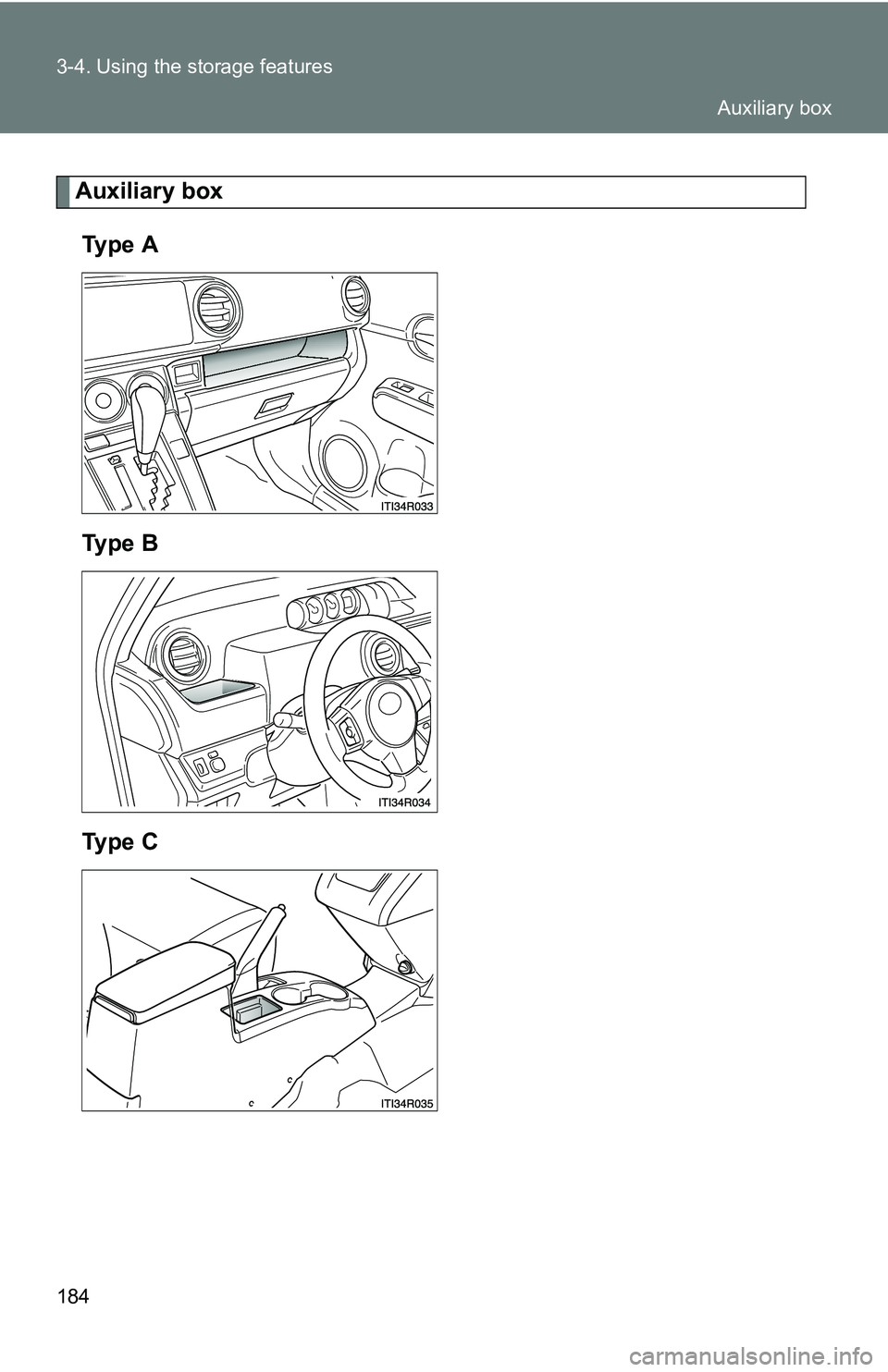

184 3-4. Using the storage features
Auxiliary boxTy p e A
Ty p e B
Ty p e C
Auxiliary box

185
3-4. Using the
storage features
3
Interior features

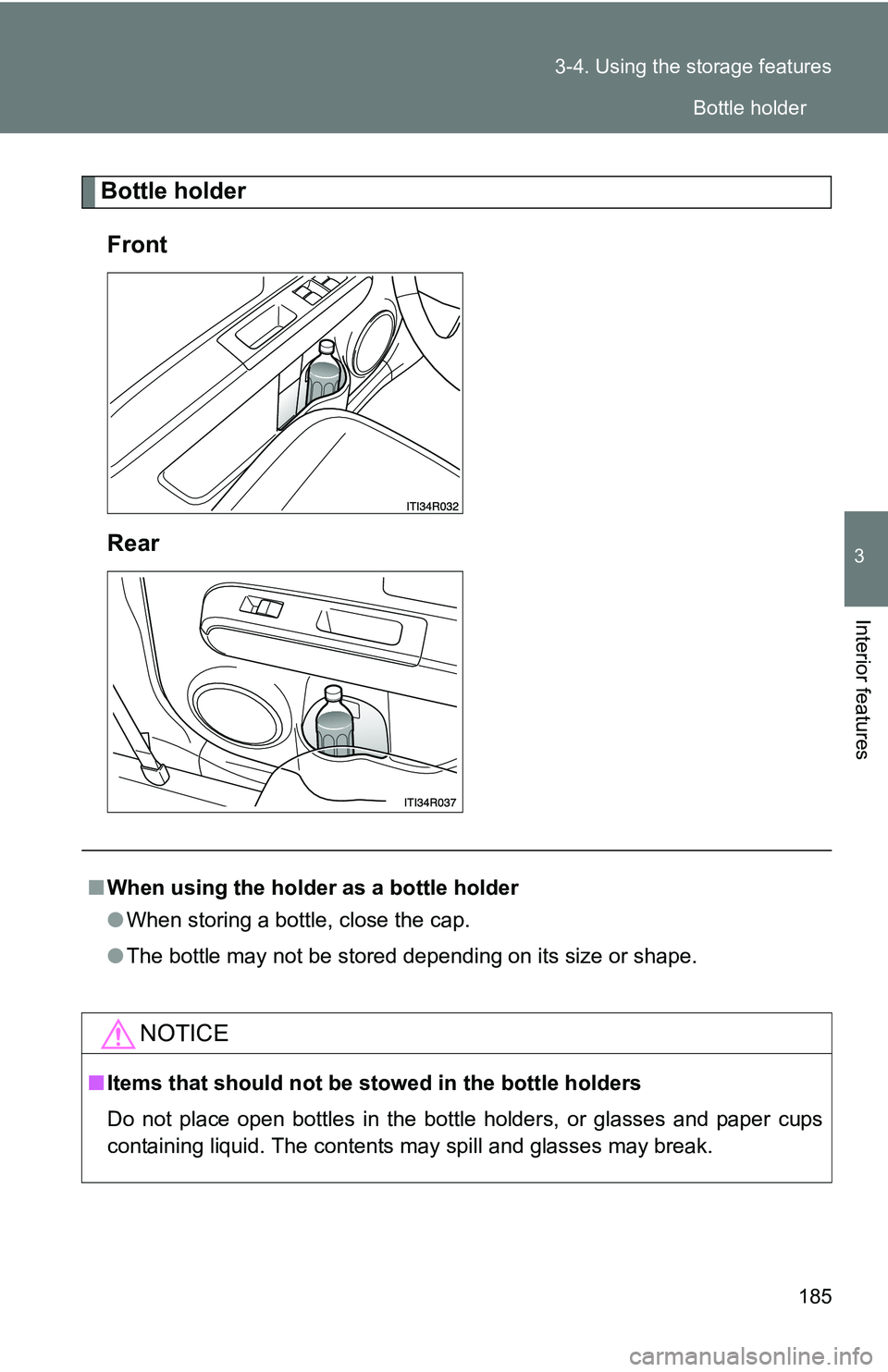

Bottle holder
Front
Rear
■ When using the holder as a bottle holder
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
NOTICE
■Items that should not be stowed in the bottle holders
Do not place open bottles in the bottle holders, or glasses and paper cups
containing liquid. The contents may spill and glasses may break.
Bottle holder

186
3-5. Other interior features

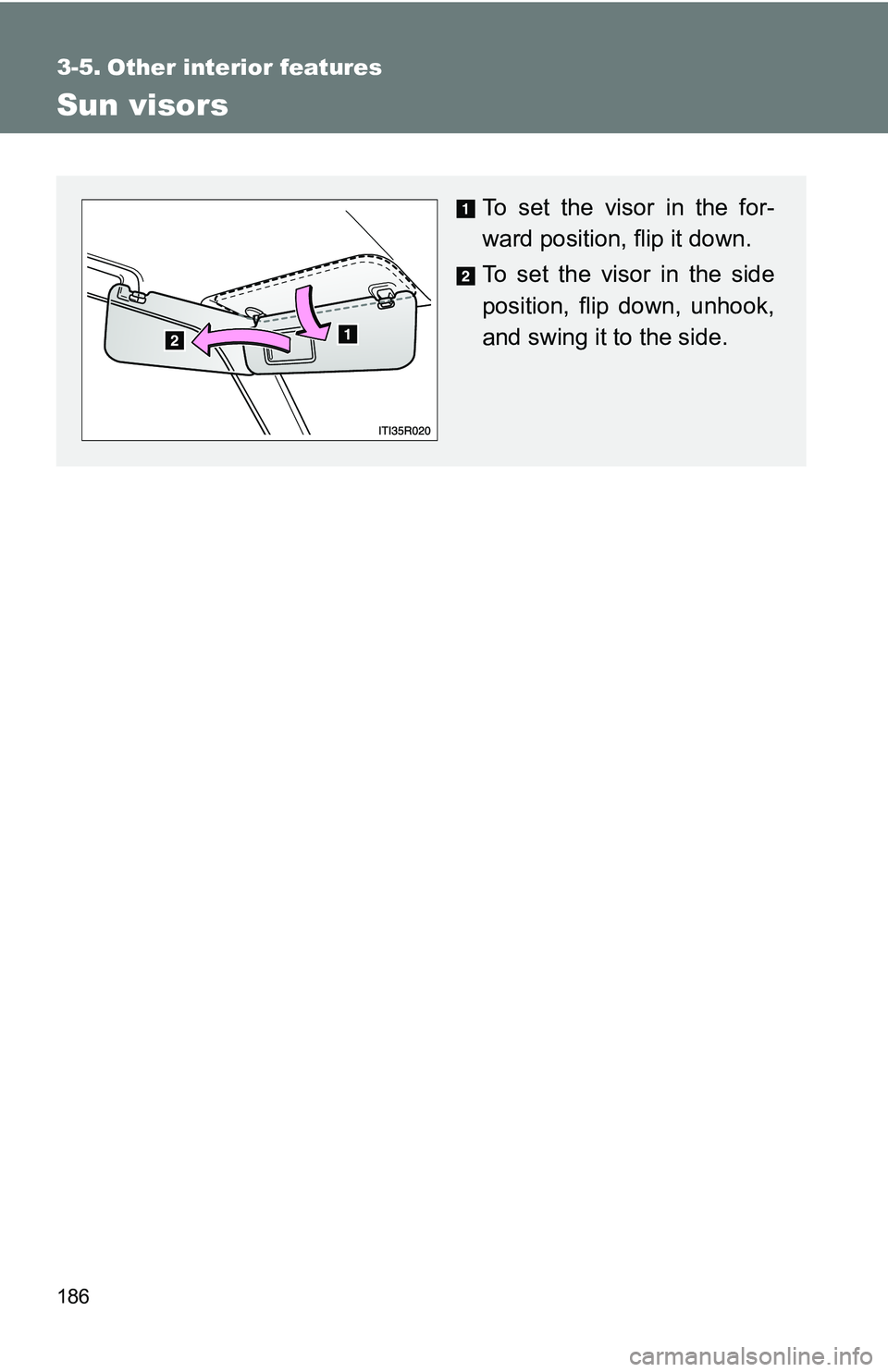

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.

187
3-5. Other interior features
3
Interior features

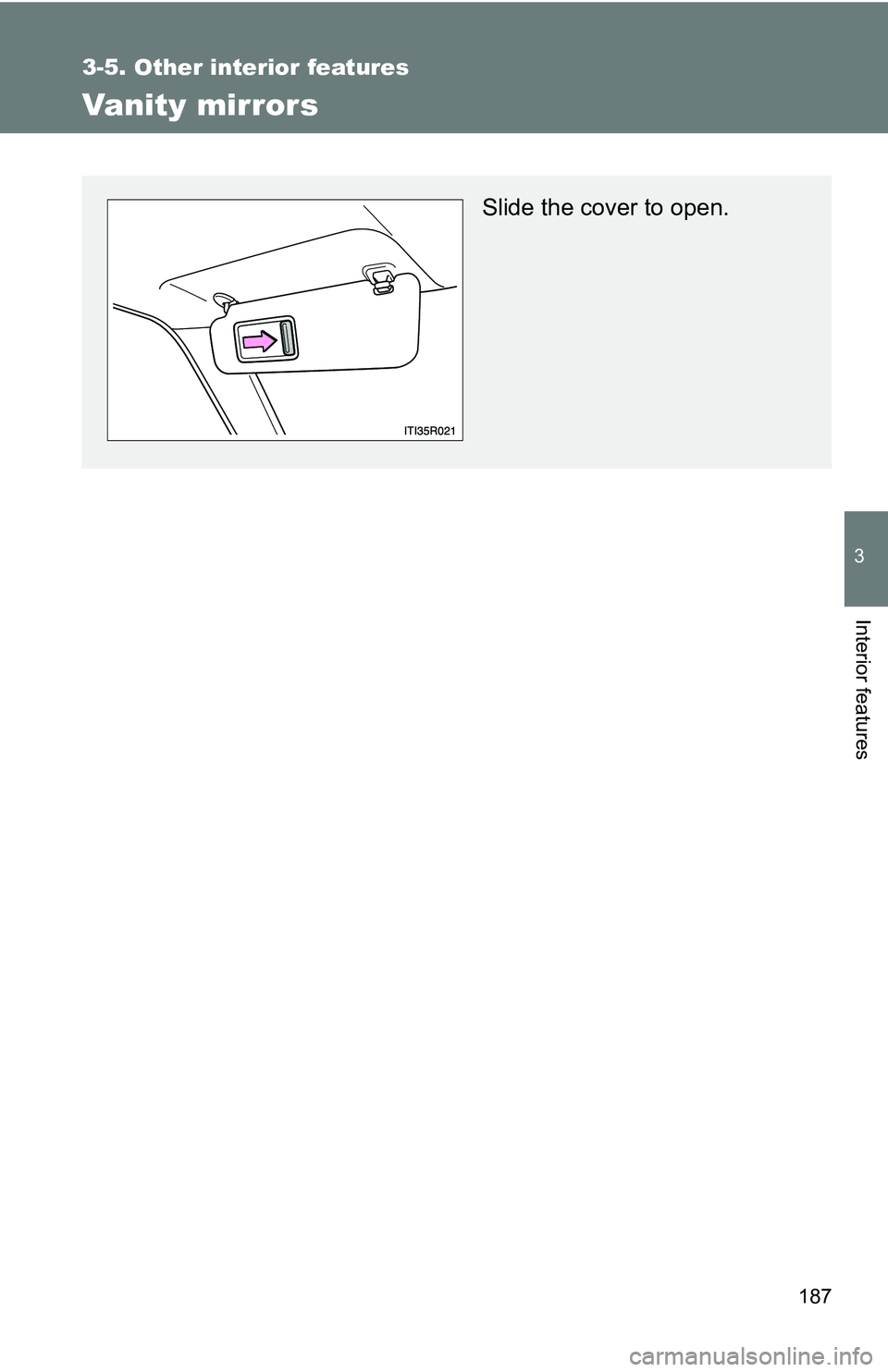

Vanity mirrors
Slide the cover to open.

188
3-5. Other interior features

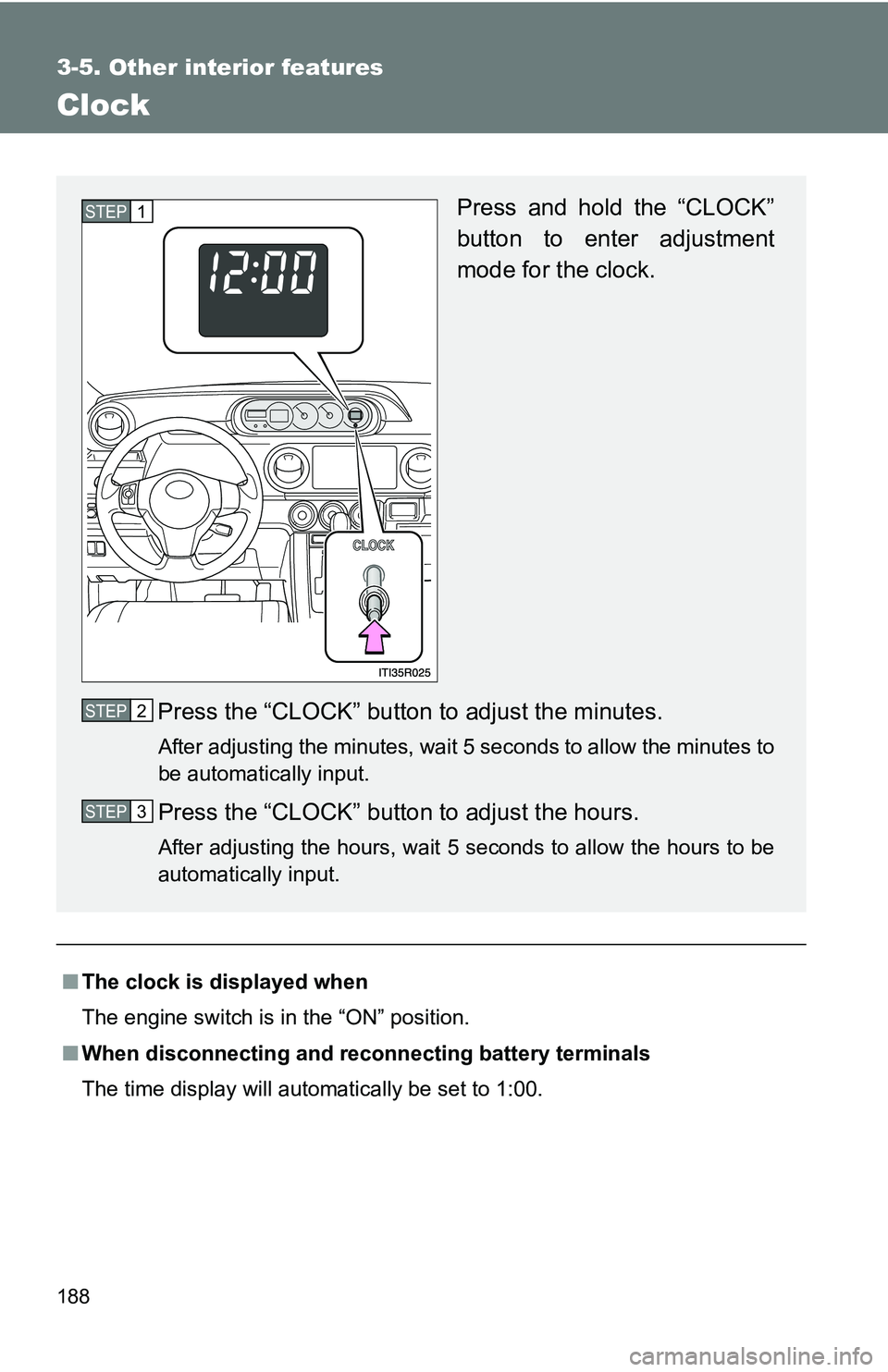

Clock
■The clock is displayed when
The engine switch is in the “ON” position.
■ When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Press and hold the “CLOCK”
button to enter adjustment
mode for the clock.
Press the “CLOCK” button to adjust the minutes.
After adjusting the minutes, wait 5 seconds to allow the minutes to
be automatically input.
Press the “CLOCK” button to adjust the hours.
After adjusting the hours, wait 5 seconds to allow the hours to be
automatically input.
STEP 1
STEP 2
STEP 3

189
3-5. Other interior features
3
Interior features

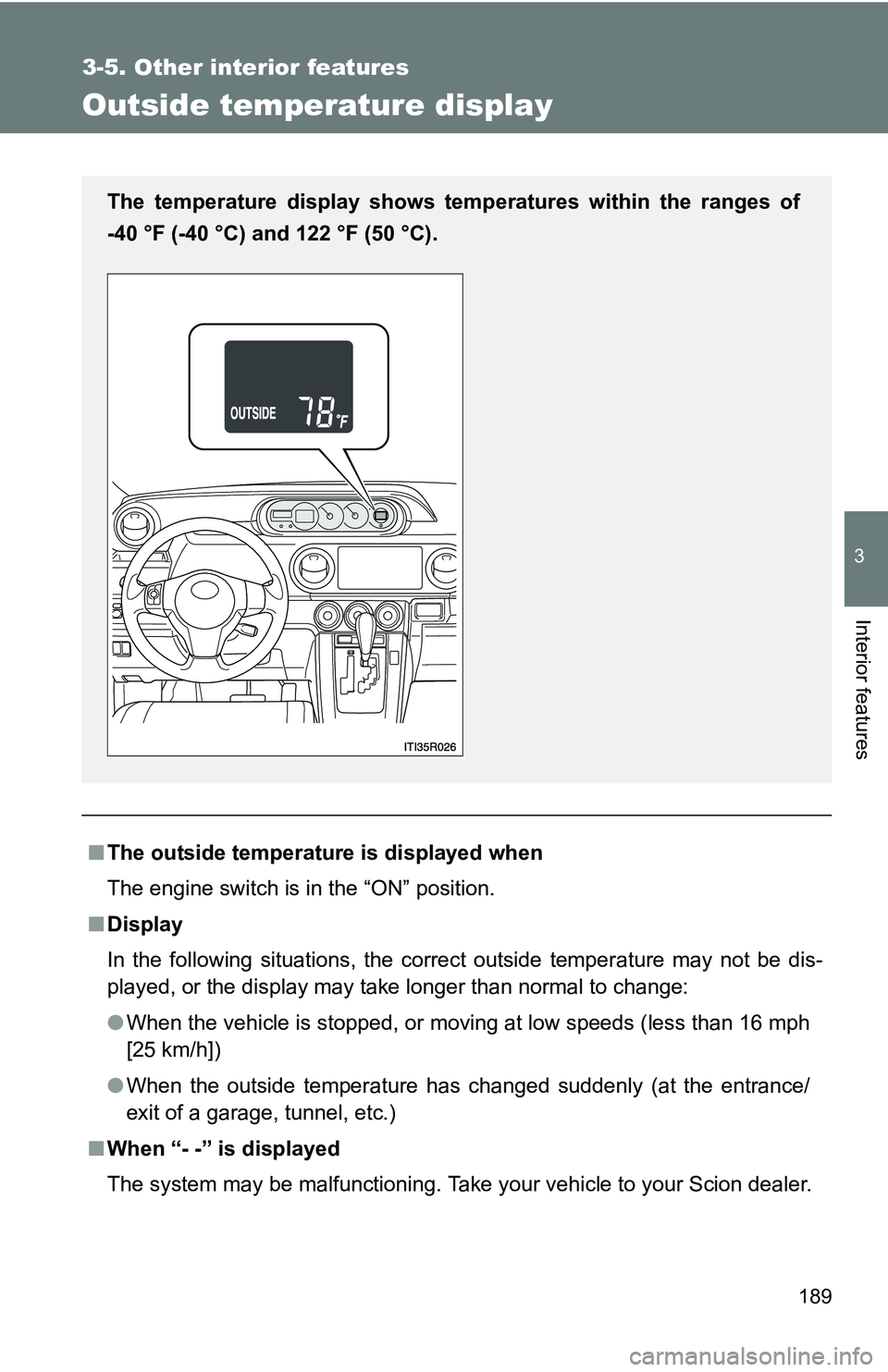

Outside temperature display
■The outside temperatur e is displayed when
The engine switch is in the “ON” position.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 16 mph
[25 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■ When “- -” is displayed
The system may be malfunctioning. Take your vehicle to your Scion dealer.
The temperature display shows te mperatures within the ranges of
-40 °F (-40 °C) and 122 °F (50 °C).

190
3-5. Other interior features
Power outlet
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not\
running.
The power outlet can be used for 12 V accessories that run on less
than 10 A.
