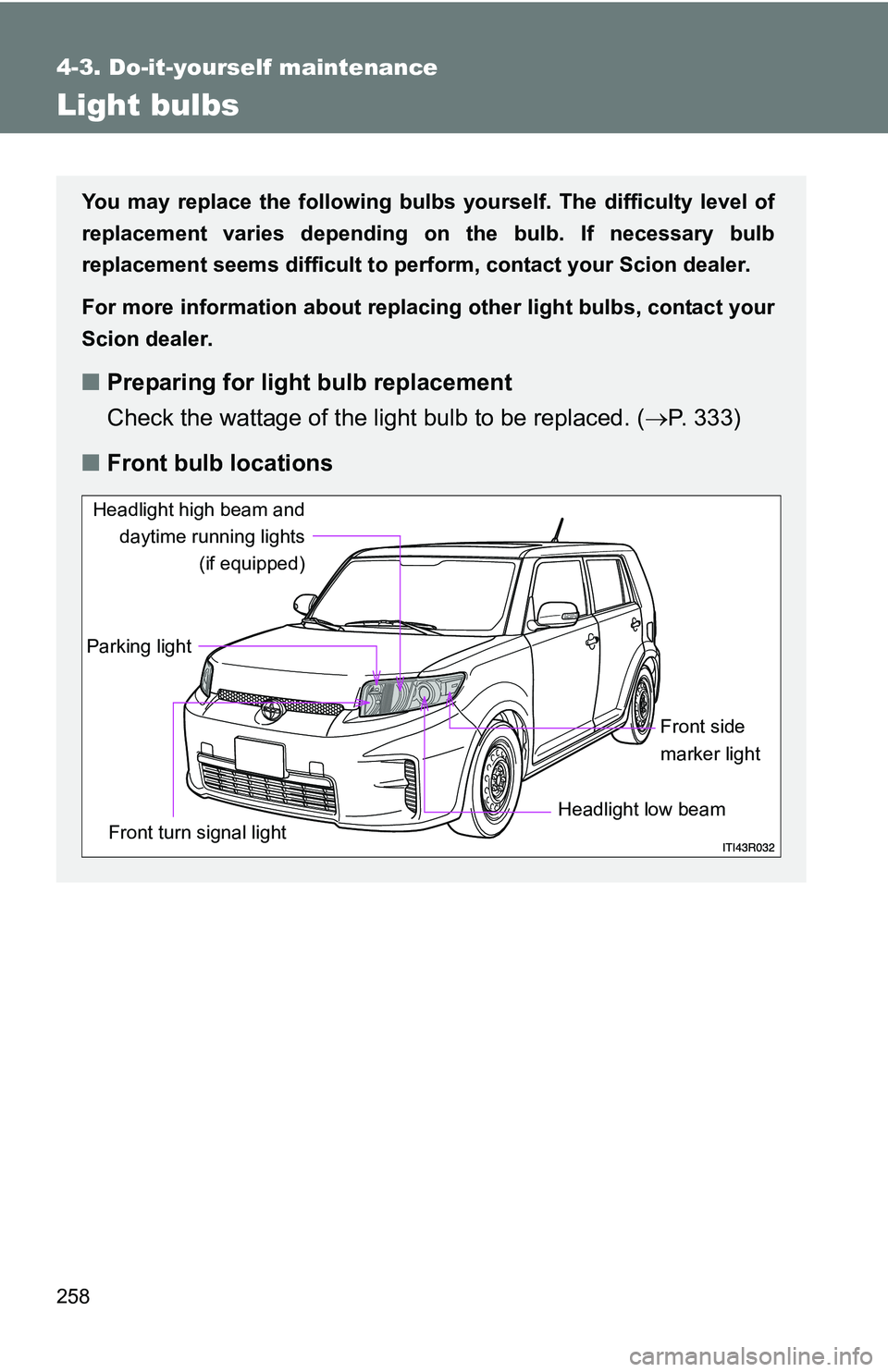

258
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perf orm, contact your Scion dealer.
For more information about replacing other light bulbs, contact your
Scion dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 333)
■ Front bulb locations
Parking light
Headlight high beam and
daytime running lights (if equipped)
Headlight low beam Front side
marker light
Front turn signal light

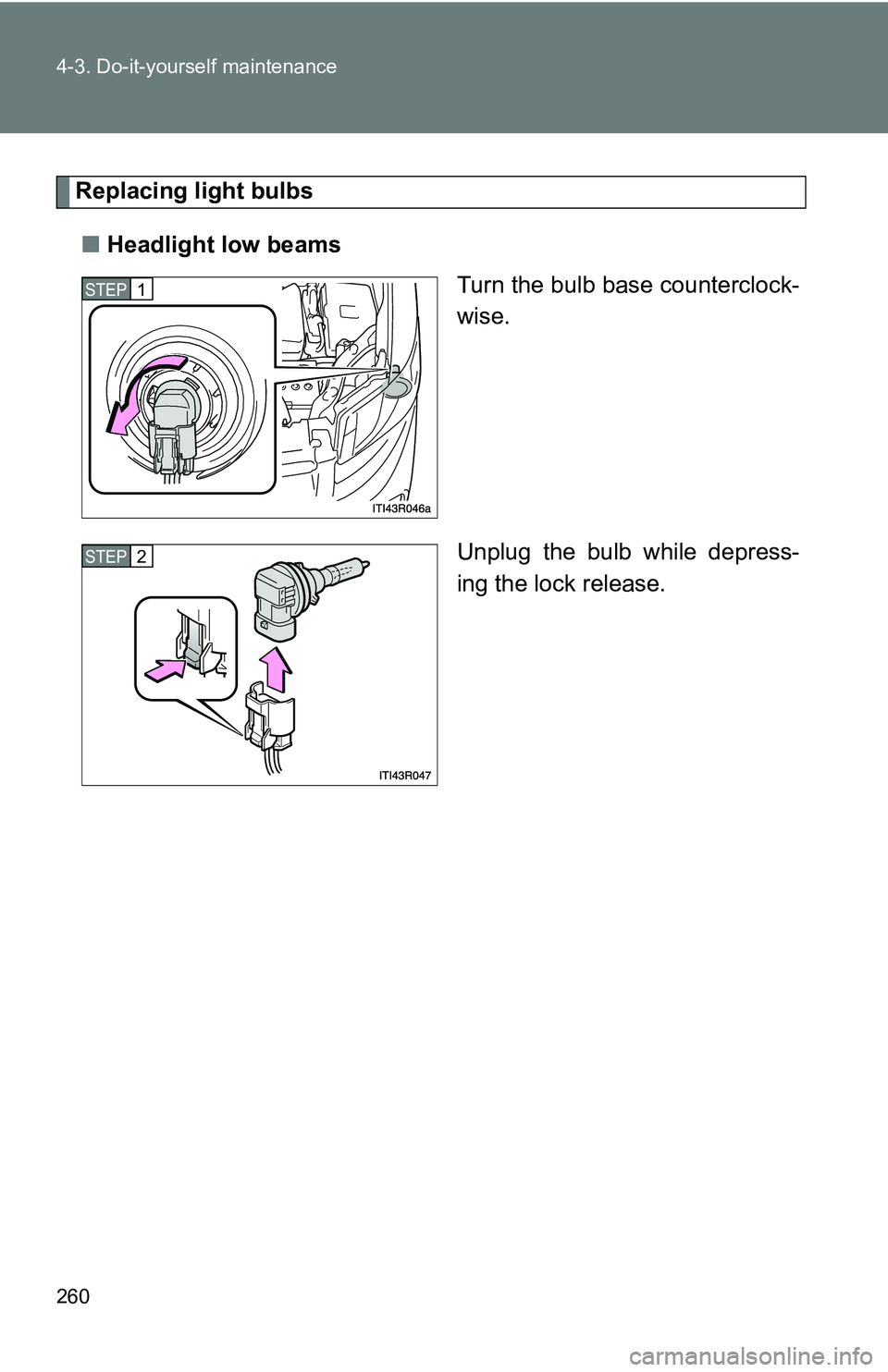

260 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight low beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2

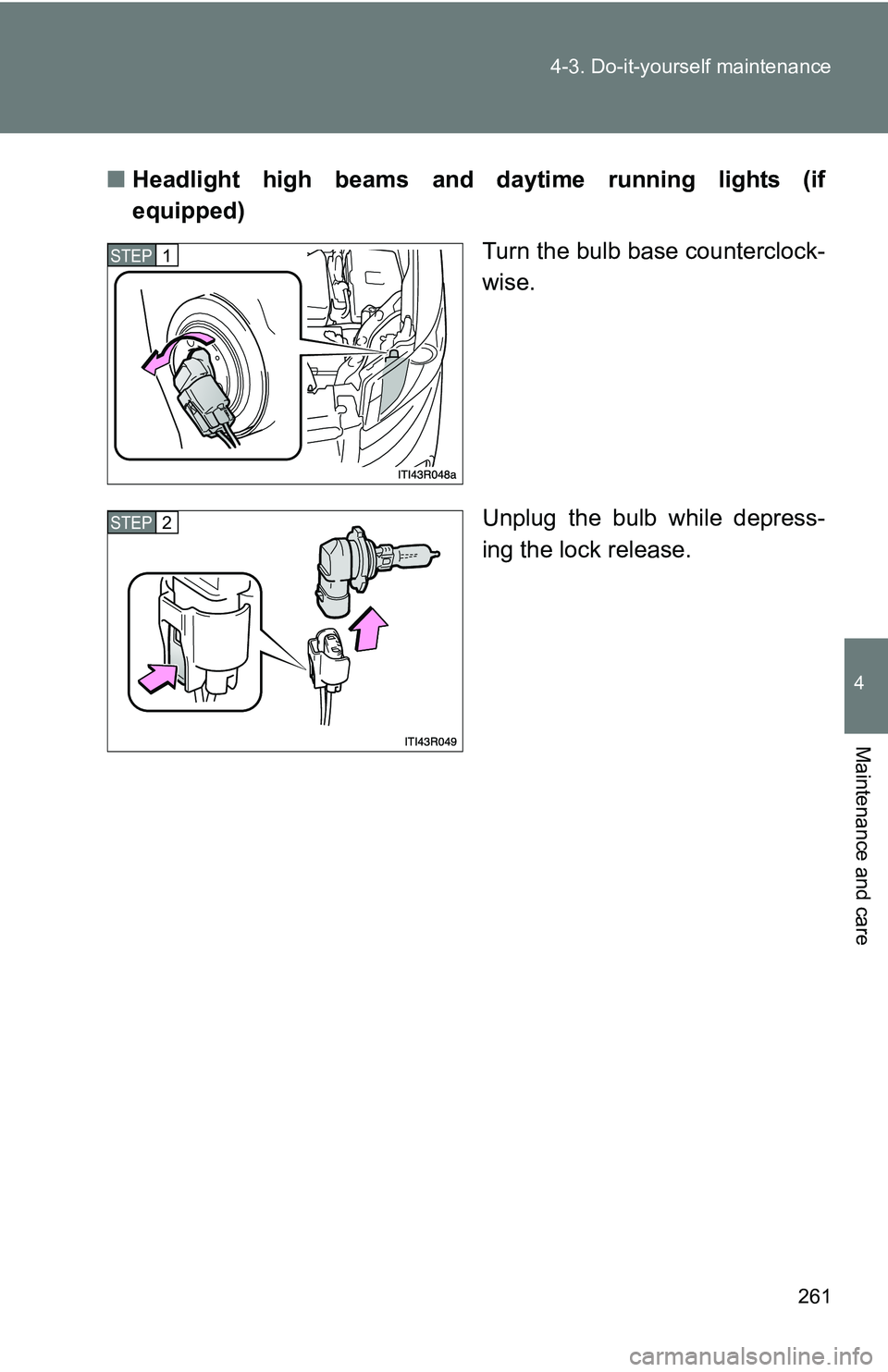

261
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Headlight high beams and daytime running lights (if
equipped)
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2

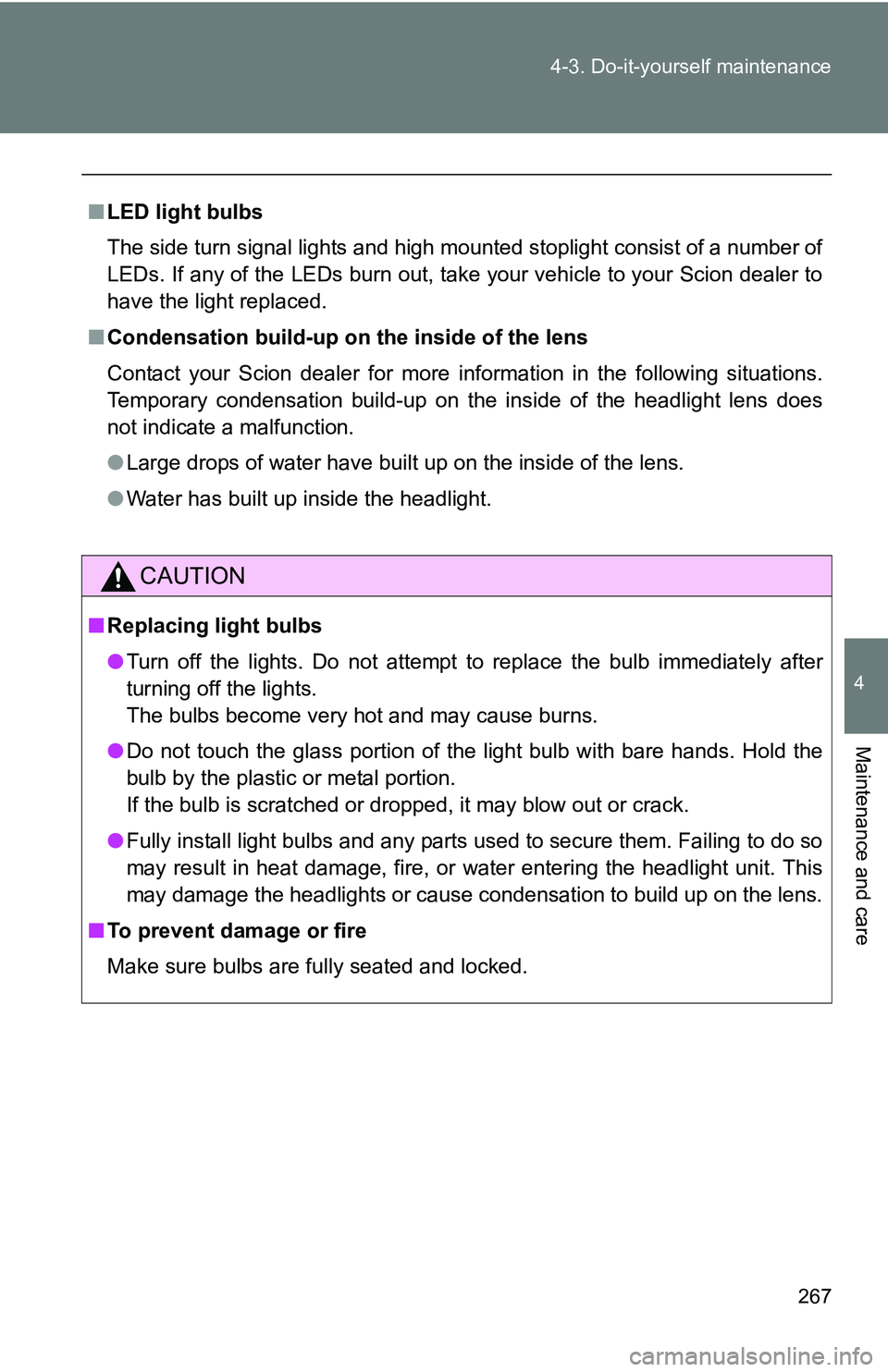

267
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
LED light bulbs
The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Scion dealer to
have the light replaced.
■ Condensation build-up on th e inside of the lens
Contact your Scion dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

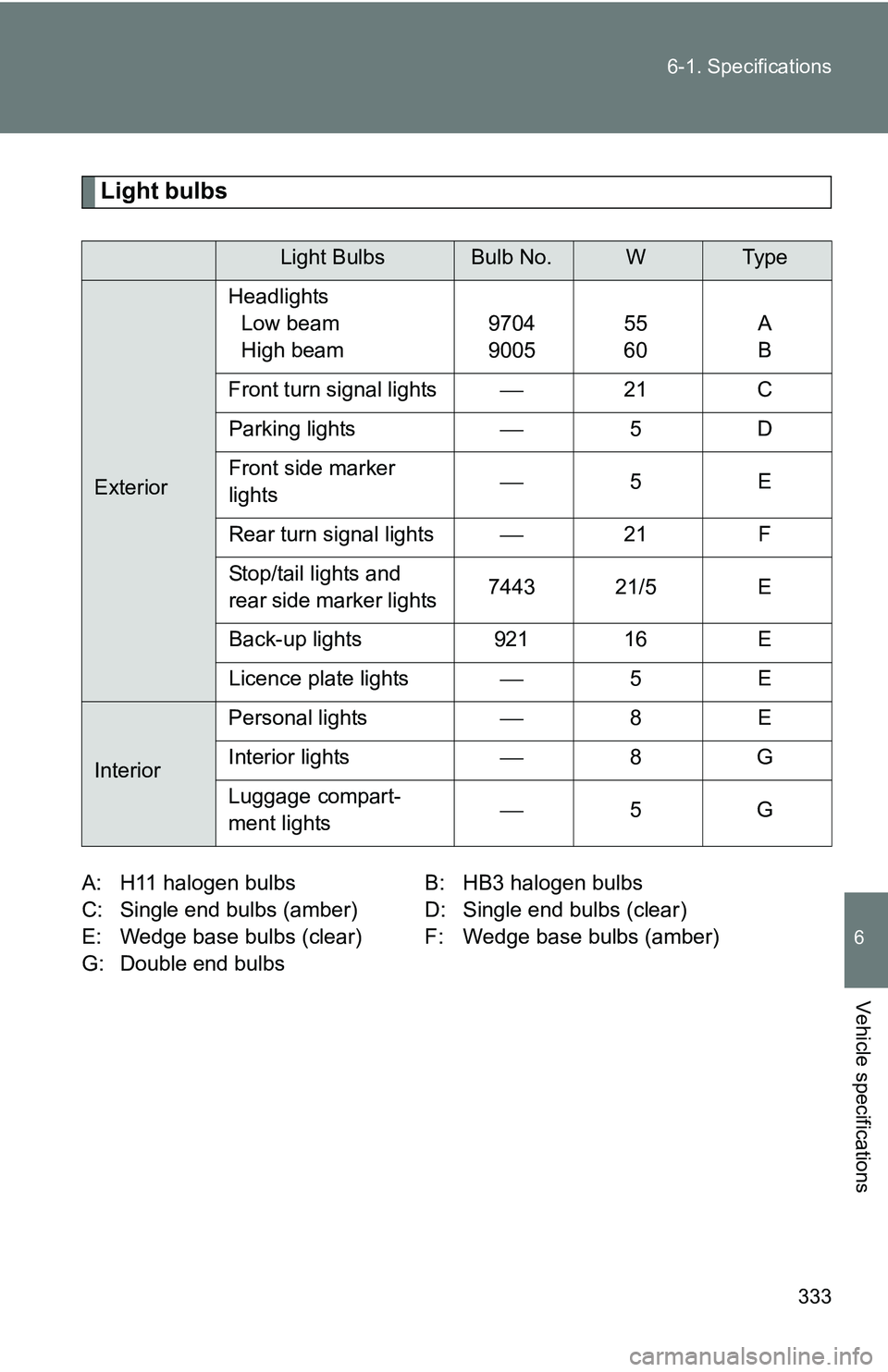

333
6-1. Specifications
6
Vehicle specifications
Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs (amber) D: Single end bulbs (clear)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam
High beam 9704
900555
60A
B
Front turn signal lights 21 C
Parking lights 5D
Front side marker
lights 
5E
Rear turn signal lights 21 F
Stop/tail lights and
rear side marker lights 7443 21/5 E
Back-up lights 921 16 E
Licence plate lights 5E
Interior Personal lights
8E
Interior lights 8G
Luggage compart-
ment lights 
5G

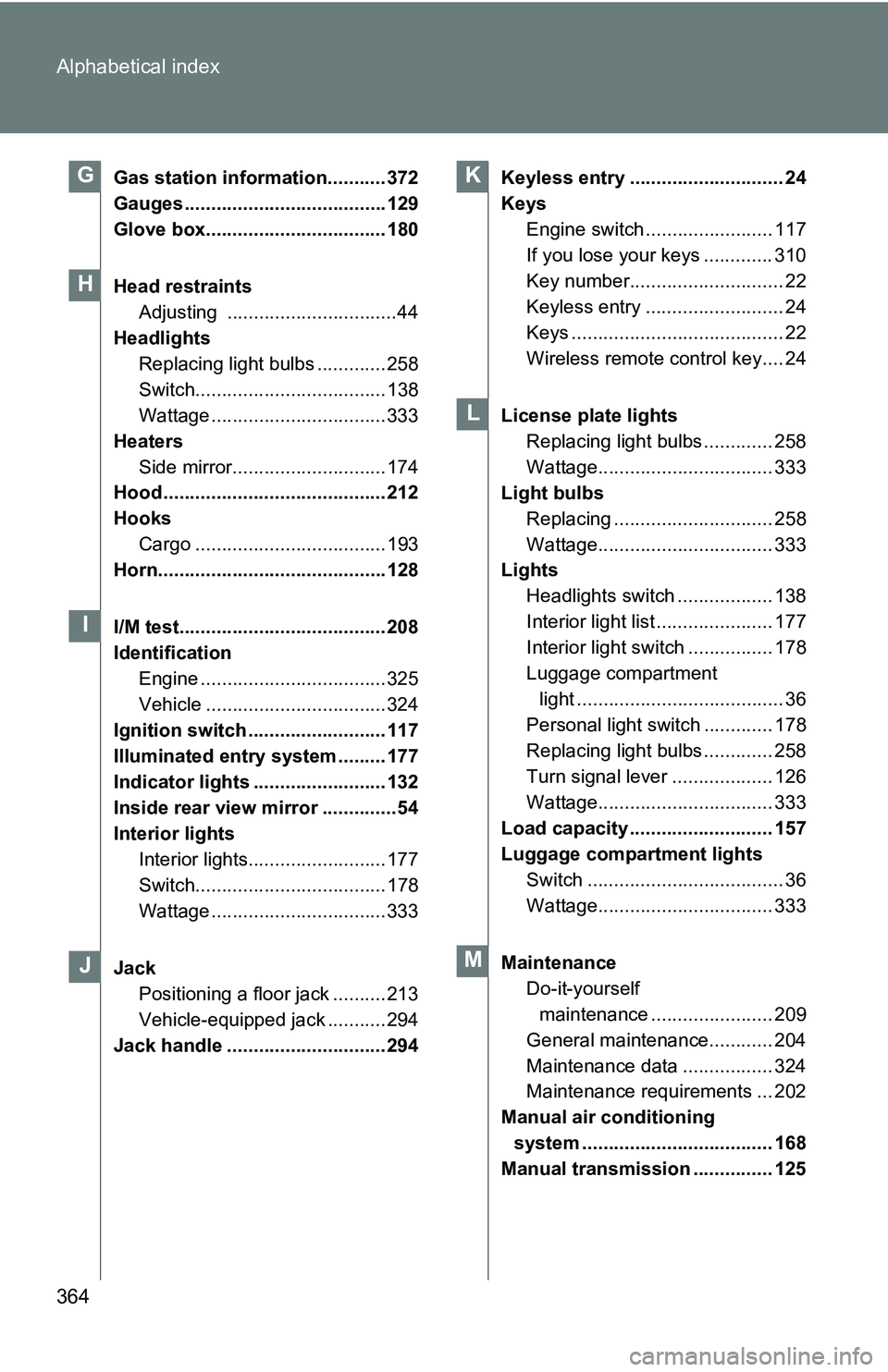

364 Alphabetical index
Gas station information........... 372
Gauges ...................................... 129
Glove box.................................. 180
Head restraintsAdjusting ................................44
Headlights
Replacing light bulbs ............. 258
Switch.................................... 138
Wattage ................................. 333
Heaters Side mirror............................. 174
Hood .......................................... 212
Hooks
Cargo .................................... 193
Horn........................................... 128
I/M test....................................... 208
Identification
Engine ................................... 325
Vehicle .................................. 324
Ignition switch .......................... 117
Illuminated entry system ......... 177
Indicator lights ......................... 132
Inside rear view mirror ..............54
Interior lights Interior lights.......................... 177
Switch.................................... 178
Wattage ................................. 333
Jack Positioning a floor jack .......... 213
Vehicle-equipped jack ........... 294
Jack handle .............................. 294 Keyless entry ............................. 24
Keys
Engine switch ........................ 117
If you lose your keys ............. 310
Key number............................. 22
Keyless entry .......................... 24
Keys ........................................ 22
Wireless remote control key.... 24
License plate lights Replacing light bulbs ............. 258
Wattage................................. 333
Light bulbs
Replacing .............................. 258
Wattage................................. 333
Lights
Headlights switch .................. 138
Interior light list ...................... 177
Interior light switch ................ 178
Luggage compartment light ....................................... 36
Personal light switch ............. 178
Replacing light bulbs ............. 258
Turn signal lever ................... 126
Wattage................................. 333
Load capacity ........................... 157
Luggage compartment lights Switch ..................................... 36
Wattage................................. 333
Maintenance Do-it-yourself maintenance ....................... 209
General maintenance............ 204
Maintenance data ................. 324
Maintenance requirements ... 202
Manual air conditioning system .................................... 168
Manual transmission ............... 125G
