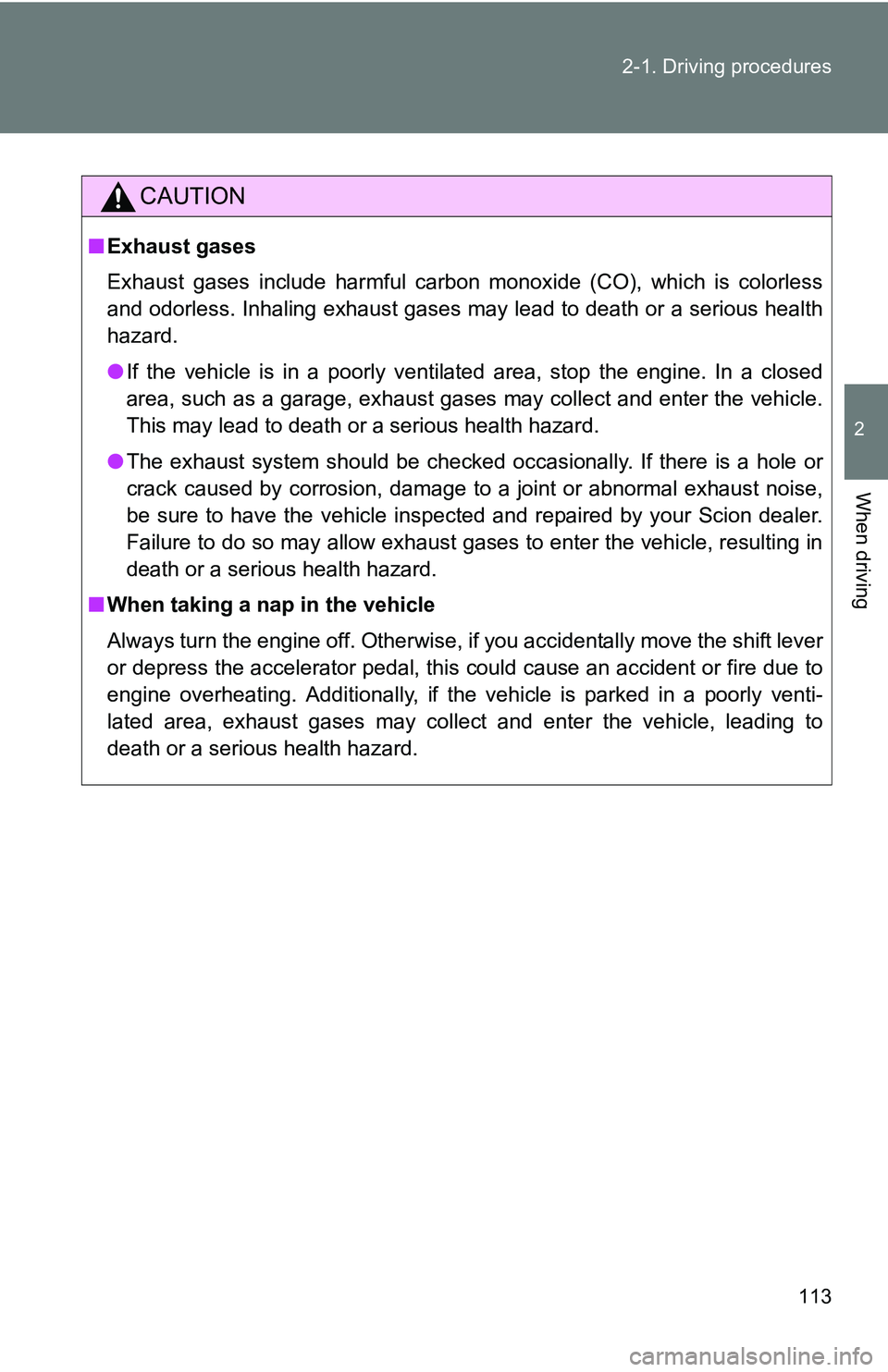

113
2-1. Driving procedures
2
When driving
CAUTION
■
Exhaust gases
Exhaust gases include harmful carbon monoxide (CO), which is colorless
and odorless. Inhaling exhaust gases may lead to death or a serious health
hazard.
●If the vehicle is in a poorly ventilated area, stop the engine. In a closed
area, such as a garage, exhaust gases may collect and enter the vehicle.
This may lead to death or a serious health hazard.
● The exhaust system should be checked occasionally. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise,
be sure to have the vehicle inspected and repaired by your Scion dealer.
Failure to do so may allow exhaust gases to enter the vehicle, resulting in
death or a serious health hazard.
■ When taking a nap in the vehicle
Always turn the engine off. Otherwise, if you accidentally move the shift lever
or depress the accelerator pedal, this could cause an accident or fire due to
engine overheating. Additionally, if the vehicle is parked in a poorly venti-
lated area, exhaust gases may collect and enter the vehicle, leading to
death or a serious health hazard.

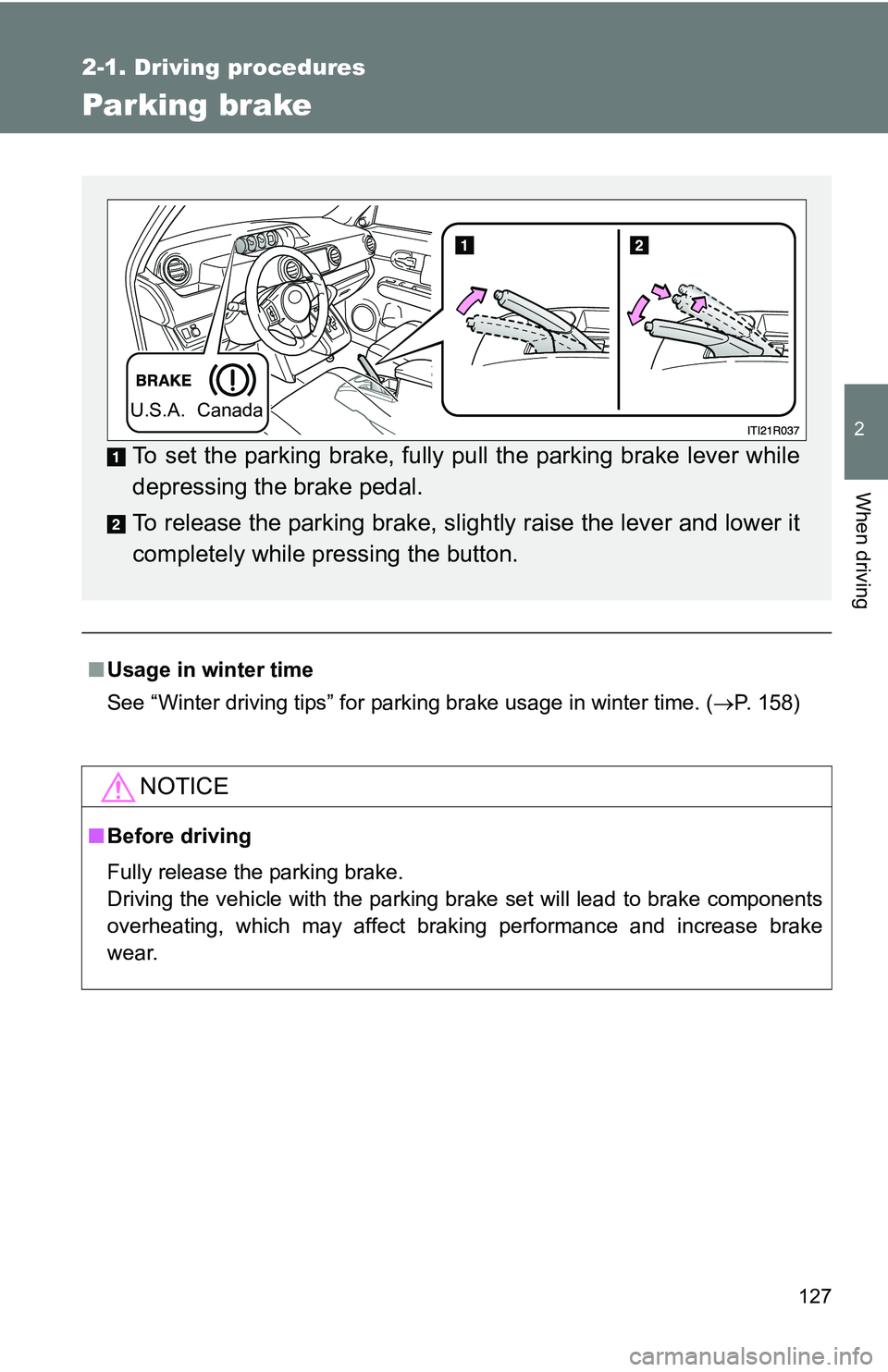

127
2-1. Driving procedures
2
When driving
Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (P. 158)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully pull the parking brake lever while
depressing the brake pedal.
To release the parking brake, slig htly raise the lever and lower it
completely while pressing the button.
U.S.A. Canada

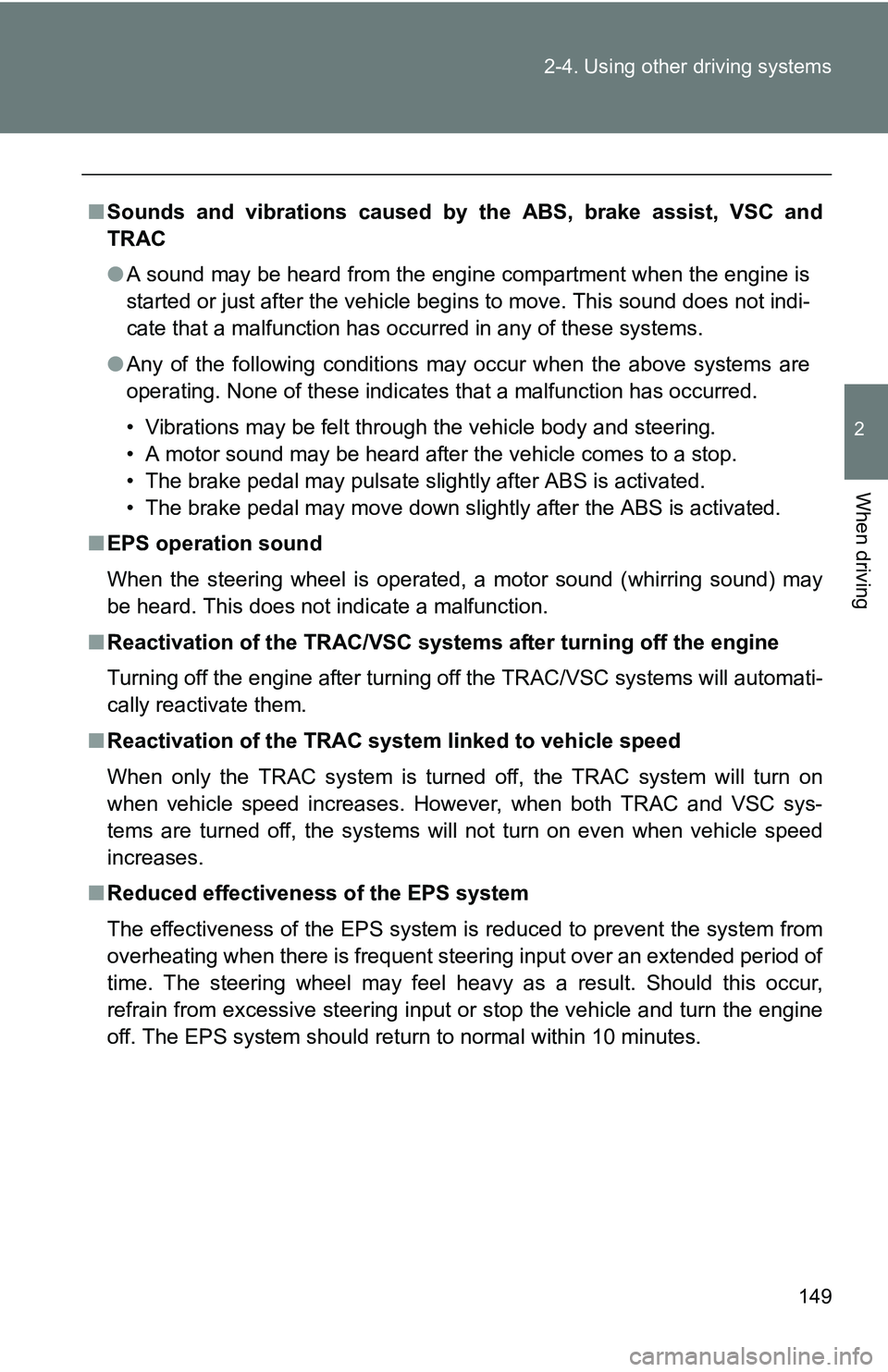

149
2-4. Using other
driving systems
2
When driving
■Sounds and vibrations caused by the ABS, brake assist, VSC and
TRAC
● A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indi-
cate that a malfunction has occurred in any of these systems.
● Any of the following conditions may occur when the above systems are
operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.
■ EPS operation sound
When the steering wheel is operated, a motor sound (whirring sound) may
be heard. This does not indicate a malfunction.
■ Reactivation of the TRAC/VSC systems after turning off the engine
Turning off the engine after turning off the TRAC/VSC systems will automati-
cally reactivate them.
■ Reactivation of the TRAC system linked to vehicle speed
When only the TRAC system is turned off, the TRAC system will turn on
when vehicle speed increases. However, when both TRAC and VSC sys-
tems are turned off, the systems will not turn on even when vehicle speed
increases.
■ Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel may feel heavy as a result. Should this occur,
refrain from excessive steering input or stop the vehicle and turn the engine
off. The EPS system should return to normal within 10 minutes.

5
When trouble arises

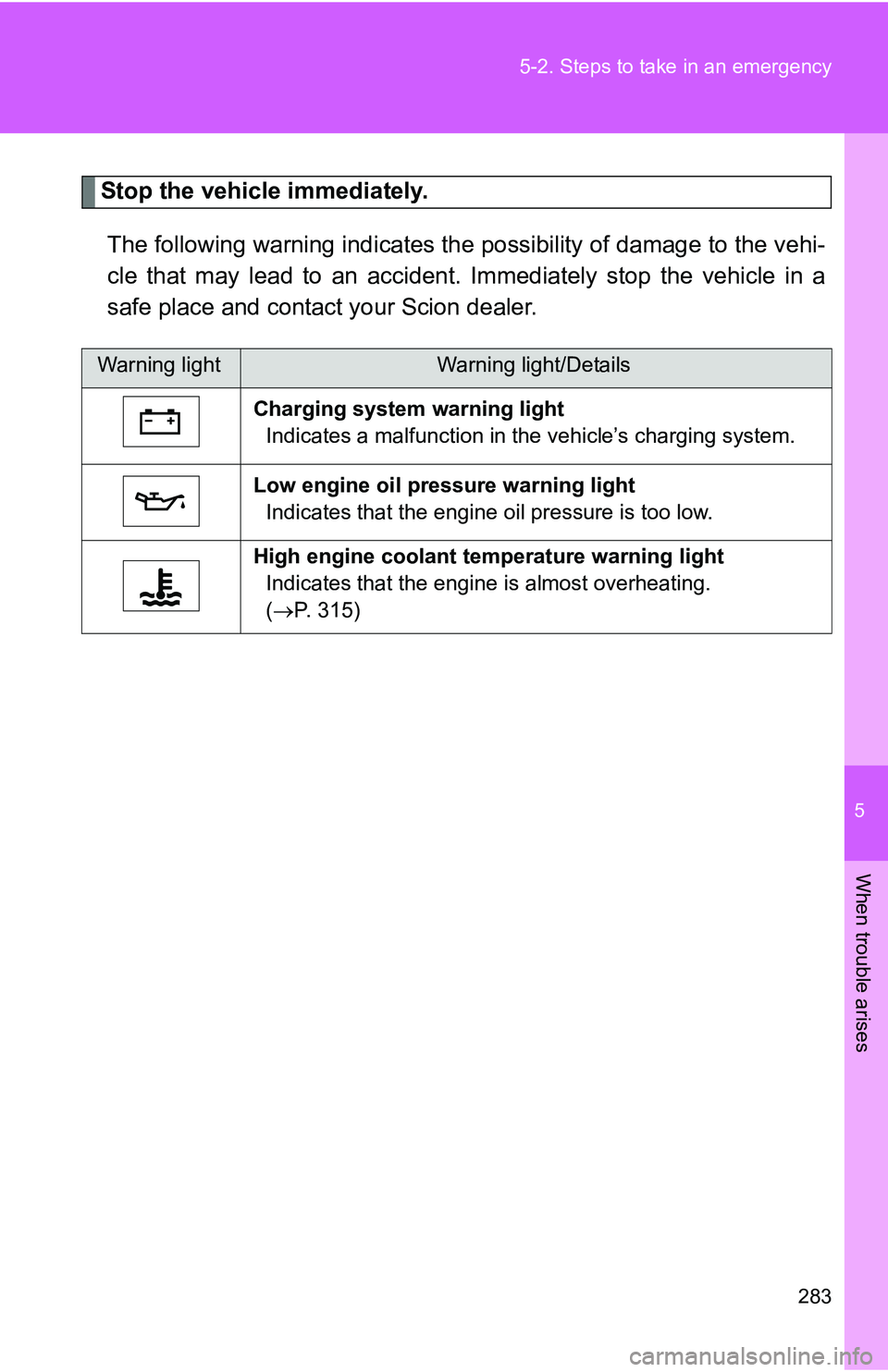

283
5-2. Steps to take in an emergency
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Scion dealer.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system.
Low engine oil pressure warning light Indicates that the engine oil pressure is too low.
High engine coolant temperature warning light Indicates that the engine is almost overheating.
(P. 315)

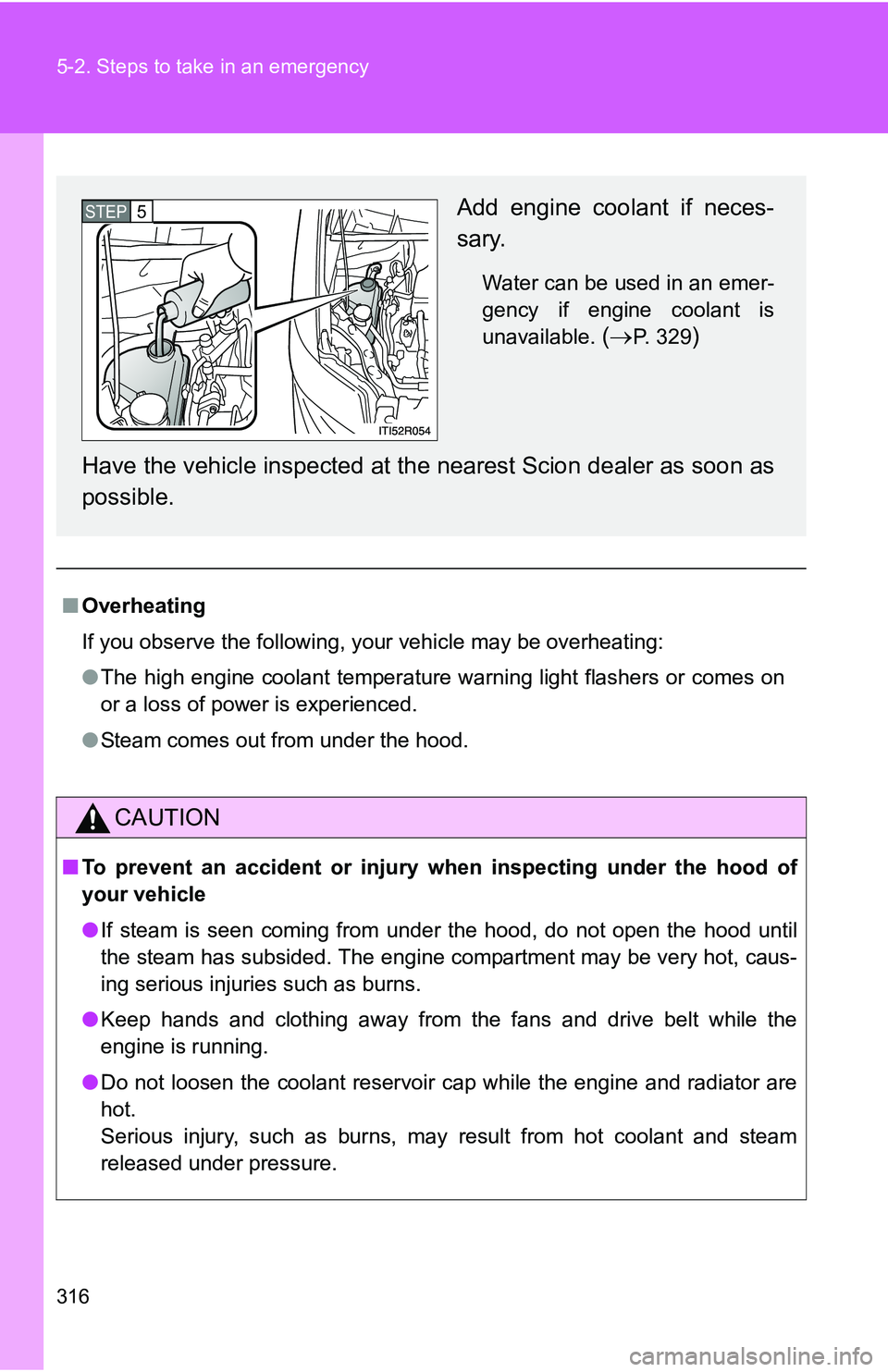

316 5-2. Steps to take in an emergency
■Overheating
If you observe the following, your vehicle may be overheating:
●The high engine coolant temperature warning light flashers or comes on
or a loss of power is experienced.
● Steam comes out from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● Keep hands and clothing away from the fans and drive belt while the
engine is running.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable.
(P. 329)
Have the vehicle inspected at t he nearest Scion dealer as soon as
possible.
STEP 5

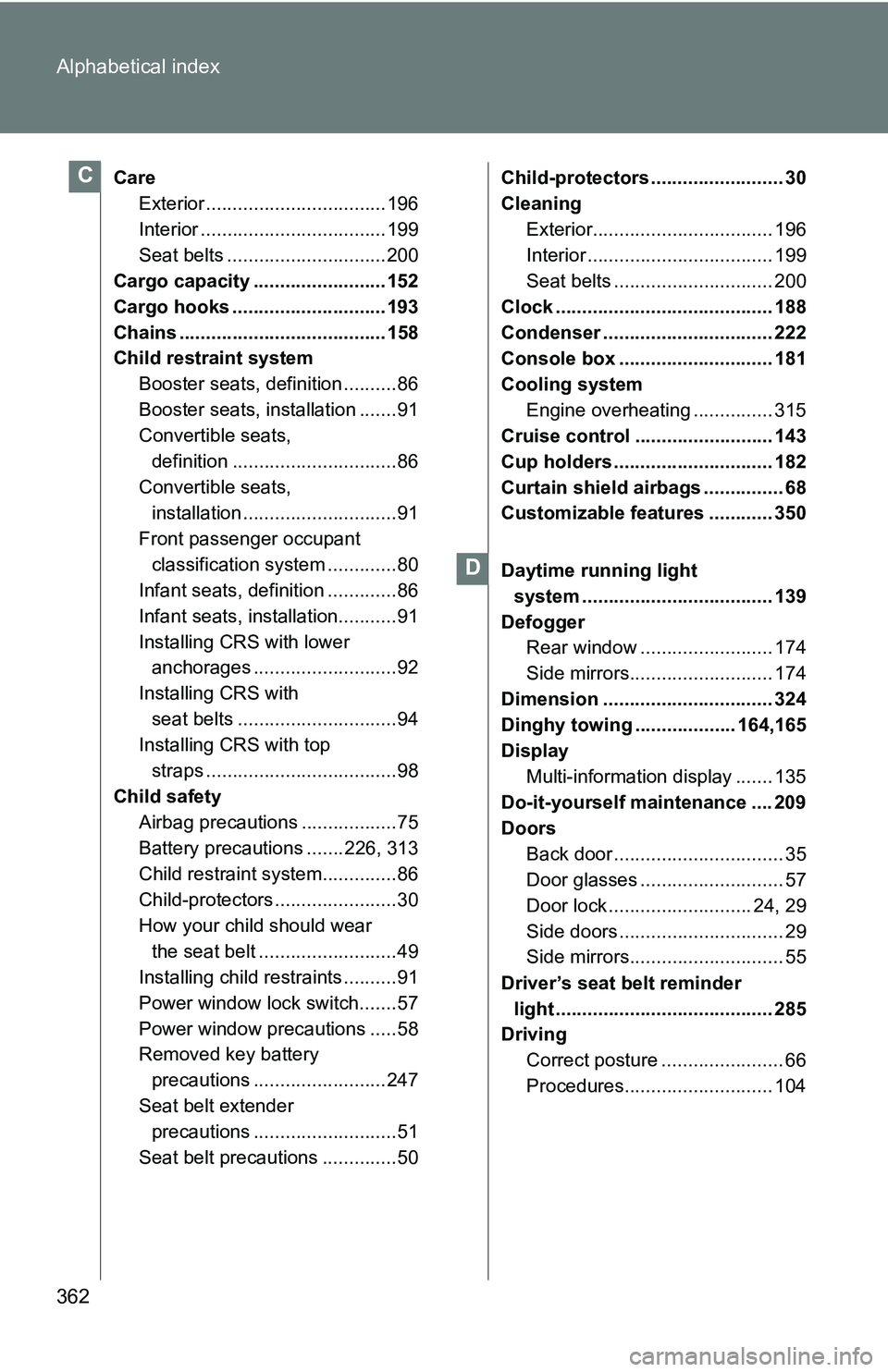

362 Alphabetical index
CareExterior .................................. 196
Interior ................................... 199
Seat belts .............................. 200
Cargo capacity ......................... 152
Cargo hooks ............................. 193
Chains ....................................... 158
Child restraint system
Booster seats, definition ..........86
Booster seats, installation .......91
Convertible seats, definition ...............................86
Convertible seats, installation .............................91
Front passenger occupant classification system .............80
Infant seats, definition .............86
Infant seats, installation...........91
Installing CRS with lower anchorages ...........................92
Installing CRS with seat belts ..............................94
Installing CRS with top
straps ....................................98
Child safety Airbag precautions ..................75
Battery precautions ....... 226, 313
Child restraint syst em..............86
Child-protectors .......................30
How your child should wear
the seat belt ..........................49
Installing child restraints ..........91
Power window lock switch.......57
Power window precautions .....58
Removed key battery
precautions ......................... 247
Seat belt extender precautions ...........................51
Seat belt precautions ..............50 Child-protectors ......................... 30
Cleaning
Exterior.................................. 196
Interior ................................... 199
Seat belts .............................. 200
Clock ......................................... 188
Condenser ................................ 222
Console box ............................. 181
Cooling system Engine overheating ............... 315
Cruise control .......................... 143
Cup holders .............................. 182
Curtain shield airbags ............... 68
Customizable features ............ 350
Daytime running light
system .................................... 139
Defogger Rear window ......................... 174
Side mirrors........................... 174
Dimension ................................ 324
Dinghy towing ................... 164,165
Display Multi-information display ....... 135
Do-it-yourself maintenance .... 209
Doors
Back door ................................ 35
Door glasses ........................... 57
Door lock ........................... 24, 29
Side doors ............................... 29
Side mirrors............................. 55
Driver’s seat belt reminder light ......................................... 285
Driving
Correct posture ....................... 66
Procedures............................ 104C
D

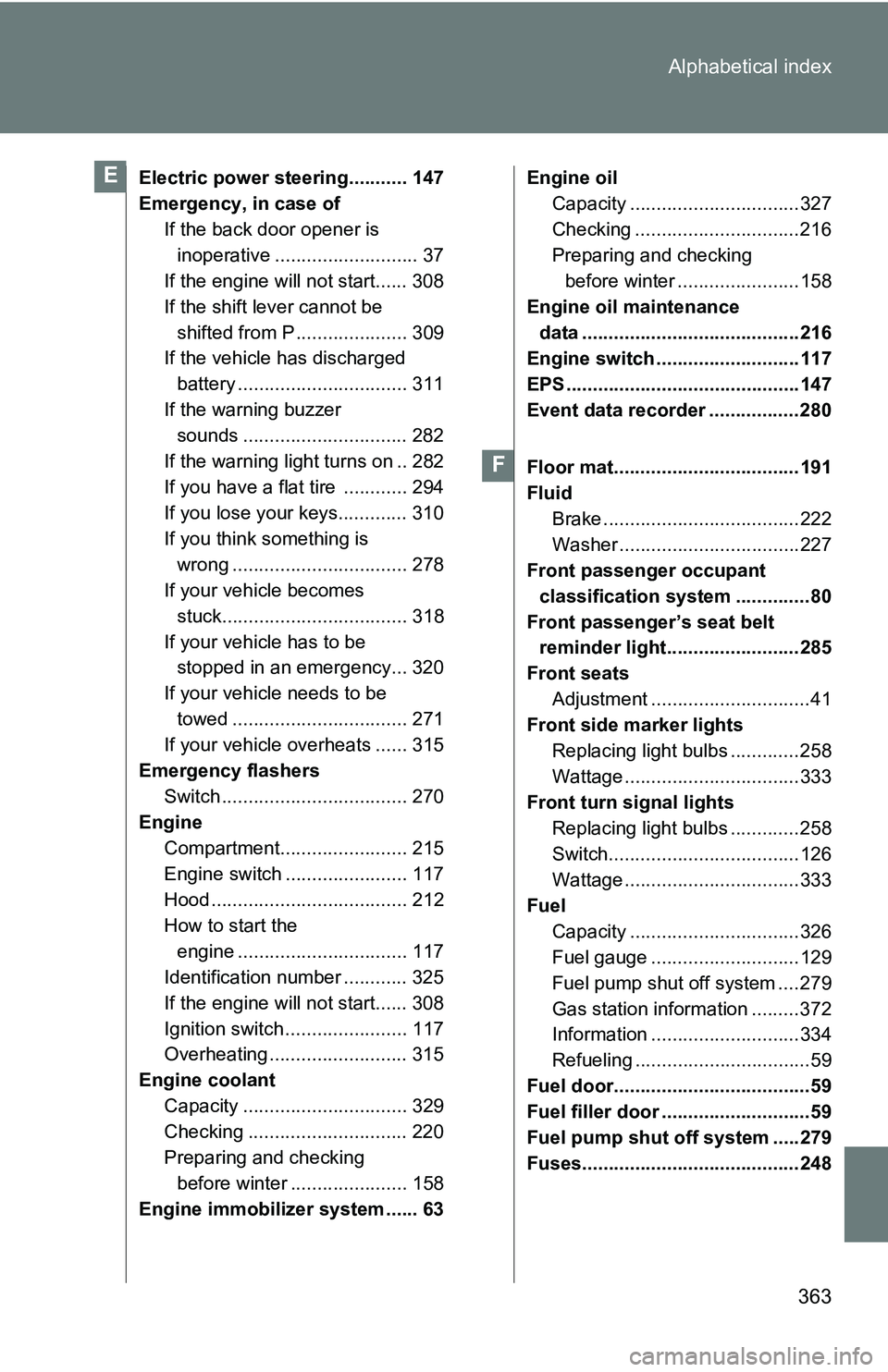

363
Alphabetical index
Electric power steering........... 147
Emergency, in case of
If the back door opener is inoperative ........................... 37
If the engine will not start...... 308
If the shift lever cannot be
shifted from P ..................... 309
If the vehicle has discharged
battery ................................ 311
If the warning buzzer sounds ............................... 282
If the warning light turns on .. 282
If you have a flat tire ............ 294
If you lose your keys............. 310
If you think something is wrong ................................. 278
If your vehicle becomes
stuck................................... 318
If your vehicle has to be stopped in an emergency... 320
If your vehicle needs to be towed ................................. 271
If your vehicle overheats ...... 315
Emergency flashers Switch ................................... 270
Engine
Compartment........................ 215
Engine switch ....................... 117
Hood ..................................... 212
How to start the engine ................................ 117
Identification number ............ 325
If the engine will not start...... 308
Ignition switch ....................... 117
Overheating .......................... 315
Engine coolant Capacity ............................... 329
Checking .............................. 220
Preparing and checking before winter ...................... 158
Engine immobilizer system ...... 63 Engine oil
Capacity ................................327
Checking ...............................216
Preparing and checking before winter .......................158
Engine oil maintenance data .........................................216
Engine switch ...........................117
EPS ............................................147
Event data recorder .................280
Floor mat...................................191
Fluid
Brake .....................................222
Washer ..................................227
Front passenger occupant
classification system ..............80
Front passenger’s seat belt reminder light.........................285
Front seats Adjustment ..............................41
Front side marker lights
Replacing light bulbs .............258
Wattage .................................333
Front turn signal lights
Replacing light bulbs .............258
Switch....................................126
Wattage .................................333
Fuel Capacity ................................326
Fuel gauge ............................129
Fuel pump shut off system ....279
Gas station information .........372
Information ............................334
Refueling .................................59
Fuel door.....................................59
Fuel filler door ............................59
Fuel pump shut off system .....279
Fuses.........................................248E
F

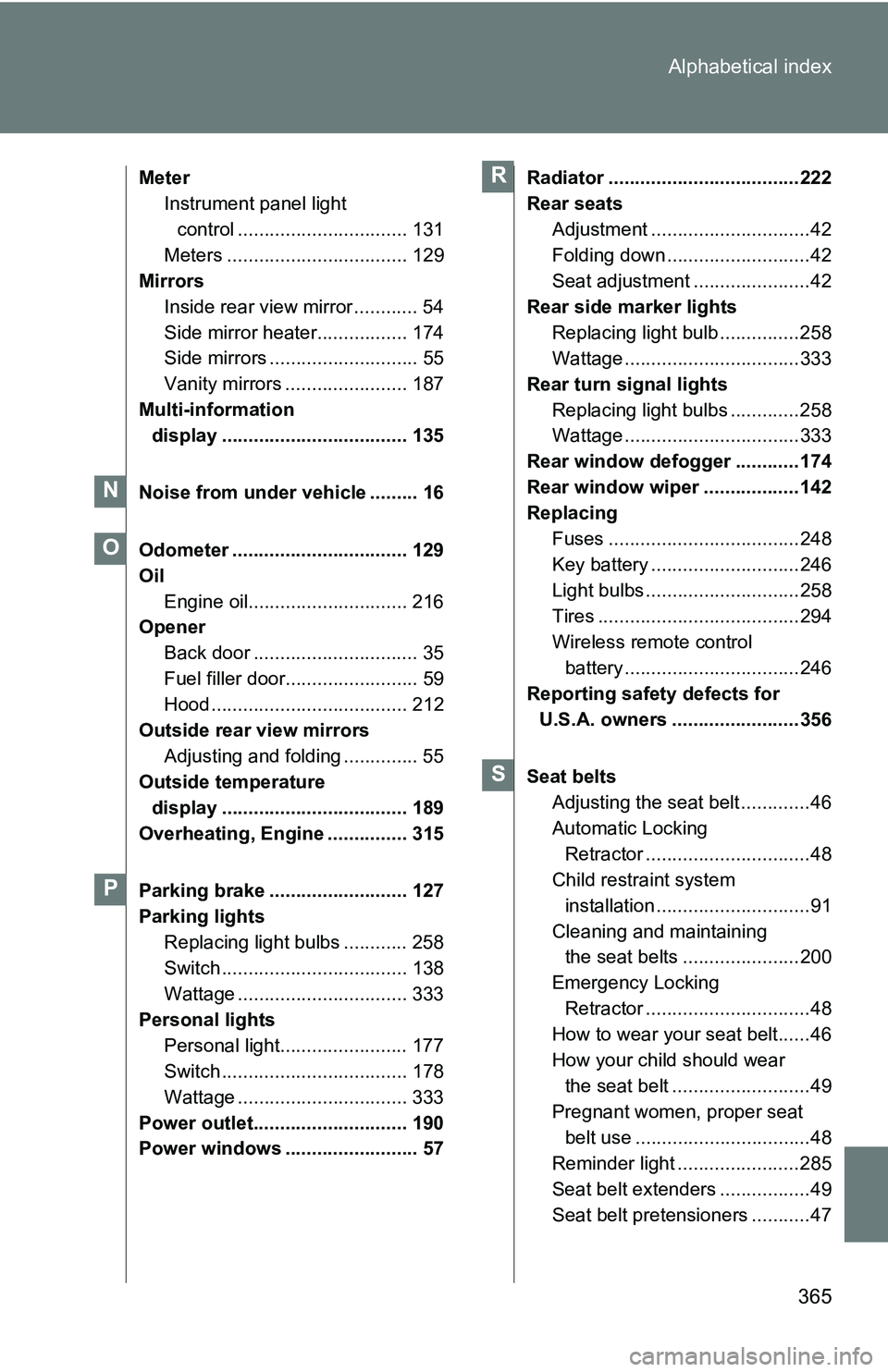

365
Alphabetical index
Meter
Instrument panel light
control ................................ 131
Meters .................................. 129
Mirrors
Inside rear view mirror ............ 54
Side mirror heater................. 174
Side mirrors ............................ 55
Vanity mirrors ....................... 187
Multi-information display ................................... 135
Noise from under vehicle ......... 16
Odometer ................................. 129
Oil Engine oil.............................. 216
Opener
Back door ............................... 35
Fuel filler door......................... 59
Hood ..................................... 212
Outside rear view mirrors Adjusting and folding .............. 55
Outside temperature
display ................................... 189
Overheating, Engine ............... 315
Parking brake .......................... 127
Parking lights Replacing light bulbs ............ 258
Switch ................................... 138
Wattage ................................ 333
Personal lights Personal light........................ 177
Switch ................................... 178
Wattage ................................ 333
Power outlet............................. 190
Power windows ......................... 57 Radiator ....................................222
Rear seats
Adjustment ..............................42
Folding down ...........................42
Seat adjustment ......................42
Rear side marker lights Replacing light bulb ...............258
Wattage .................................333
Rear turn signal lights Replacing light bulbs .............258
Wattage .................................333
Rear window defogger ............174
Rear window wiper ..................142
Replacing Fuses ....................................248
Key battery ............................246
Light bulbs .............................258
Tires ......................................294
Wireless remote control battery .................................246
Reporting safety defects for U.S.A. owners ........................356
Seat belts Adjusting the seat belt .............46
Automatic Locking
Retractor ...............................48
Child restraint system
installation .............................91
Cleaning and maintaining the seat belts ......................200
Emergency Locking Retractor ...............................48
How to wear your seat belt......46
How your child should wear
the seat belt ..........................49
Pregnant women, proper seat
belt use .................................48
Reminder light .......................285
Seat belt extenders .................49
Seat belt pretensioners ...........47
N
O
P
R
S
