mirror TOYOTA xB 2011 Owners Manual (in English)

TABLE OF CONTENTS
1
1Before drivingAdjusting and operating features such as door locks,
mirrors, and steering column.
2When drivingDriving, stopping and safe-driving information.
3Interior fea-
turesAir conditioning as well as other interior features for a
comfortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-
yourself maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident.
6Vehicle
specificationsDetailed vehicle information.
7For ownersReporting safety defects for U.S. owners and seat belt
instructions for Canadian owners.
IndexAlphabetical listing of information contained in this
manual.

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 22
1-2. Opening, closing and locking
the doors
Wireless remote control ....... 24
Side doors ............................ 29
Back door ............................. 35
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ........................... 41
Rear seats ............................ 42
Head restraints ..................... 44
Seat belts ............................. 46
Steering wheel ..................... 53
Anti-glare inside rear view mirror .................. 54
Outside rear view mirrors ..... 55
1-4. Opening and clos ing
the windows
Pow er windows .................... 57
1-5. Refueling Opening the fuel tank cap .... 59 1-6. Theft deterrent system
Engine immobilizer system ................................ 63
Theft prevention labels (for U.S.A.) ......................... 65
1-7. Safety information Correct driving posture ......... 66
SRS airbags ......................... 68
Front passenger occupant classification system ........... 80
Child restraint systems ......... 86
Installing child restraints ....... 91
2-1. Driving procedures Driving the vehicle .............. 104
Engine (ignition) switch....... 117
Automatic transmission ...... 121
Manual transmission........... 125
Turn signal lever ................. 126
Parking brake ..................... 127
Horn .................................... 128
2-2. Instrument cluster Gauges and meters ............ 129
Indicators and warning lights ............ 132
Multi-information display ..... 135
1Before driving
2When driving

1
2
3
4
5
6
7
3
2-3. Operating the lights and Windshield wipers
Headlight switch .................. 138
Windshield wipers and washer ....................... 140
Rear window wiper and washer ....................... 142
2-4. Using other driving systems Cruise control ...................... 143
Driving assist systems ........ 147
2-5. Driving information Cargo and luggage ............. 152
Vehicle load limits ............... 157
Winter driving tips ............... 158
Trailer towing ...................... 163
Dinghy towing (automatic transmission)... 164
Dinghy towing (manual transmission) ...... 165
3-1. Using the air conditioning system and defogger
Air conditioning system ....... 168
Rear window and outside rear view mirror defoggers ....... 174 3-2. Using the audio system
Using the AUX/USB adapter ...... 175
Using the steering wheel audio switches.................. 176
3-3. Using the interior lights Interior lights list ................. 177
• Interior light ...................... 178
• Personal lights.................. 178
3-4. Using the storage features List of storage features ....... 179
• Glove box ......................... 180
• Console box ..................... 181
• Cup holders ...................... 182
• Auxiliary box ..................... 184
• Bottle holder ..................... 185
3-5. Other interior features Sun visors........................... 186
Vanity mirrors ..................... 187
Clock .................................. 188
Outside temperature display .............................. 189
Power outlet ....................... 190
Floor mat ............................ 191
Luggage compartment features ............................ 193
3Interior features

6
Windshield wipers P. 140
Pictorial indexExterior
Outside rear view mirrors
P. 55
Side turn signal lights
P. 126
Front side marker lights
P. 138
Headlights (low beam) P. 138
Parking lights P. 138
Hood P. 212
Front turn signal lights
P. 126
Headlights (high beam) P. 138
Daytime running lights P. 139

9
A
Personal lights P. 177
Interior light P. 177
SRS curtain shield airbags P. 68
Sun visors P. 186
Vanity mirrors P. 187
Anti-glare inside rear view mirror P. 54

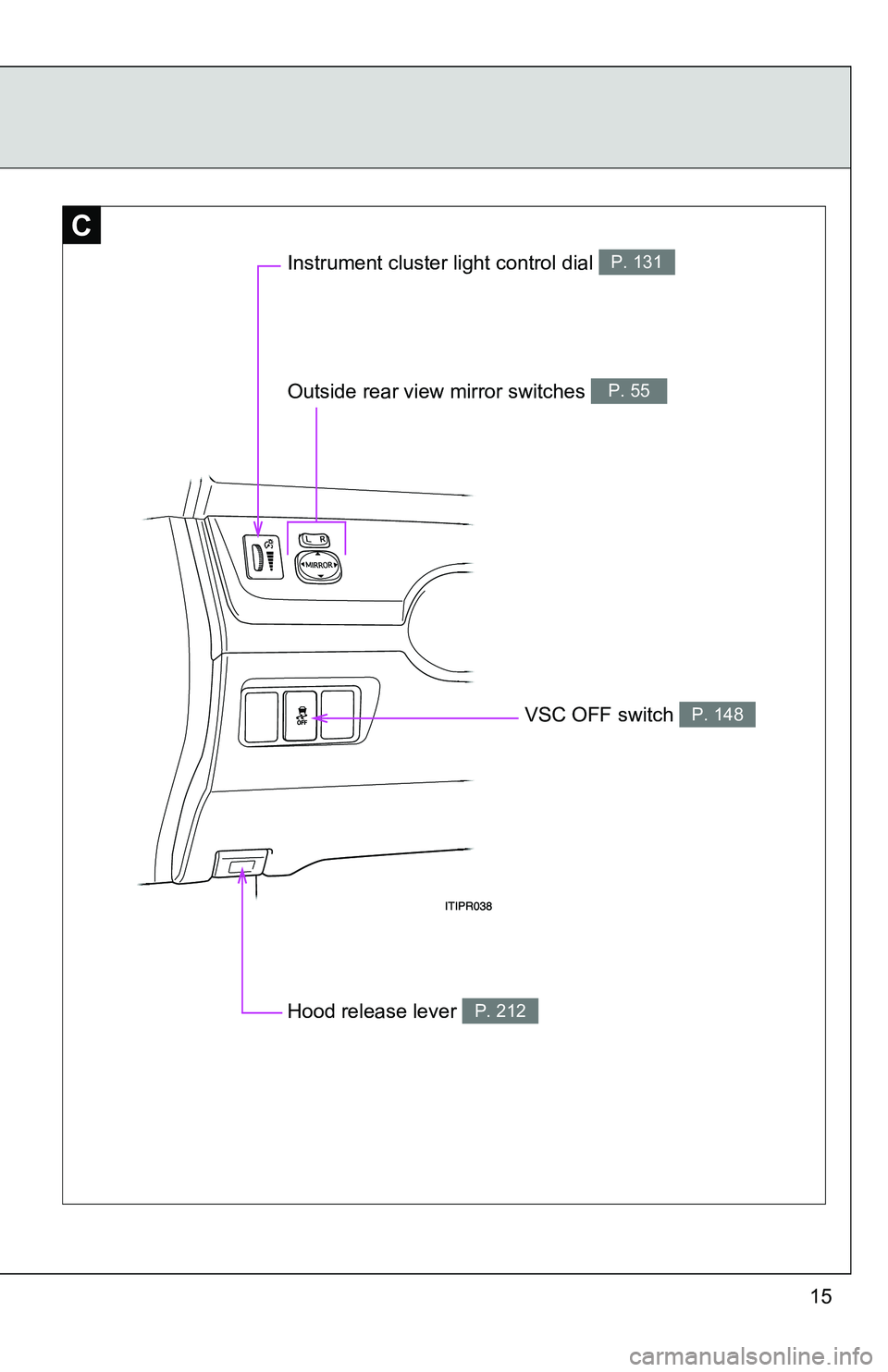

15
C
Instrument cluster light control dial P. 131
Outside rear view mirror switches P. 55
VSC OFF switch P. 148
Hood release lever P. 212

Before driving1
21
1-1. Key informationKeys ................................... 22
1-2. Opening, closing and locking the doors
Wireless remote control ..... 24
Side doors .......................... 29
Back door ........................... 35
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 41
Rear seats.......................... 42
Head restraints................... 44
Seat belts ........................... 46
Steering wheel ................... 53
Anti-glare inside rear view mirror ................ 54
Outside rear view mirrors ... 55 1-4. Opening and closing
the windows
Power windows .................. 57
1-5. Refueling Opening the fuel tank cap .............. 59
1-6. Theft deterrent system Engine immobilizer system ............................. 63
Theft prevention labels (for U.S.A.) ....................... 65
1-7. Safety information Correct driving posture....... 66
SRS airbags ....................... 68
Front passenger occupant classification system ........ 80
Child restraint systems....... 86
Installing child restraints..... 91

41
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
CAUTION
■Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)

42
1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats
The seatbacks of the rear seats can be folded down.
■Before folding down the rear seatbacks
Use the seat belt hangers to
prevent the belts from being
tangled.
■ Folding down the rear seatbacks
Fold the seatback down while
pushing the seatback lock
release button.
Press the button until the lock
is released.

43
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (automatic transmission) or 1 (manual transmission).
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■ Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the shoul-
der belt, increasing the risk of death or serious injury in the event of\
an acci-
dent.
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
■ After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Check that the seat belts are not twisted or caught in the seatback.
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible behind
the seatback lock release button. Make
sure that the red marking is not visible.
