spare wheel TOYOTA xB 2011 Owners Manual (in English)

5
When trouble arises
291
5-2. Steps to take in an emergency

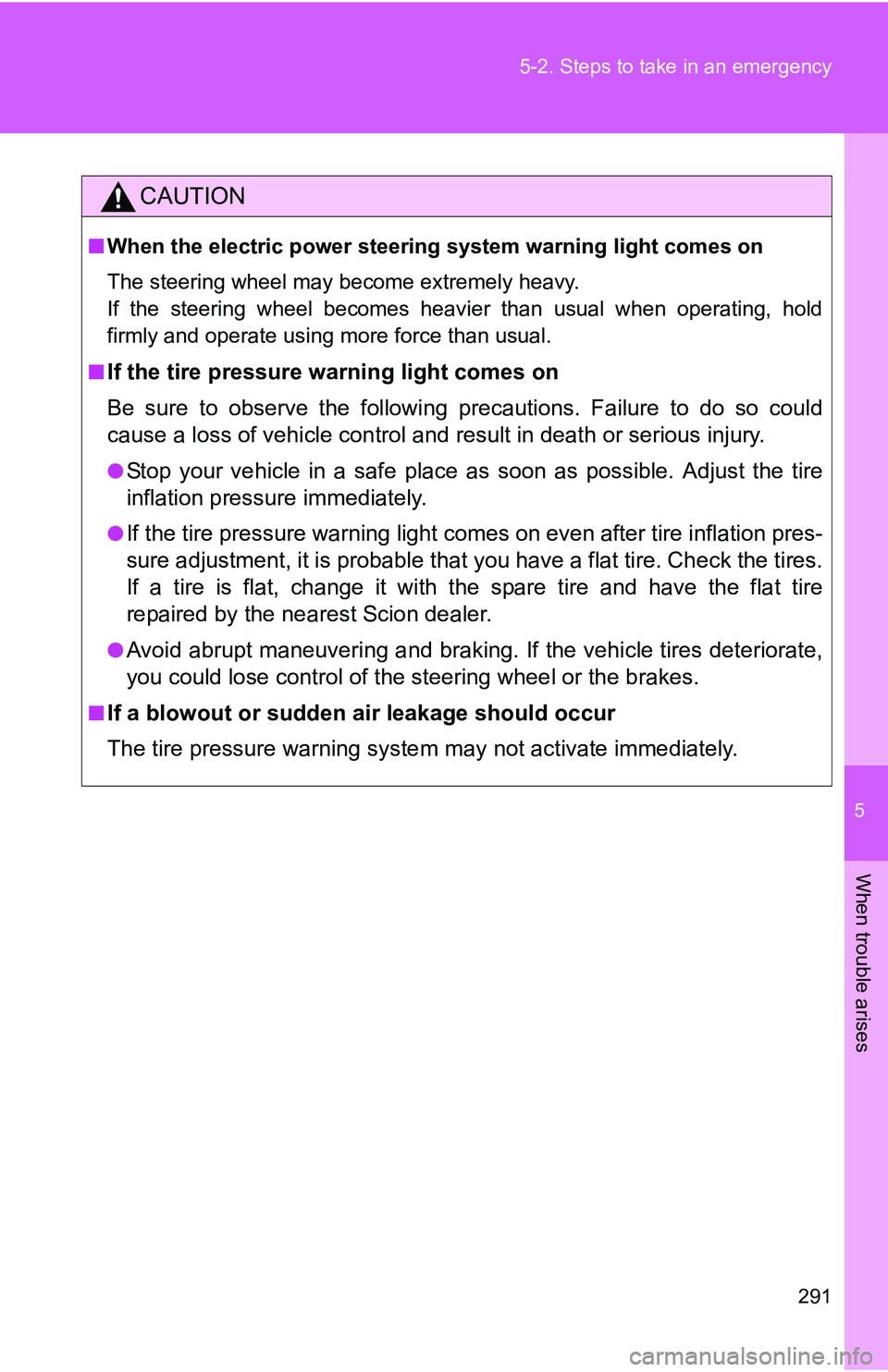

CAUTION
■
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If a tire is flat, change it with th e spare tire and have the flat tire
repaired by the nearest Scion dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning syste m may not activate immediately.

294
5-2. Steps to take in an emergency

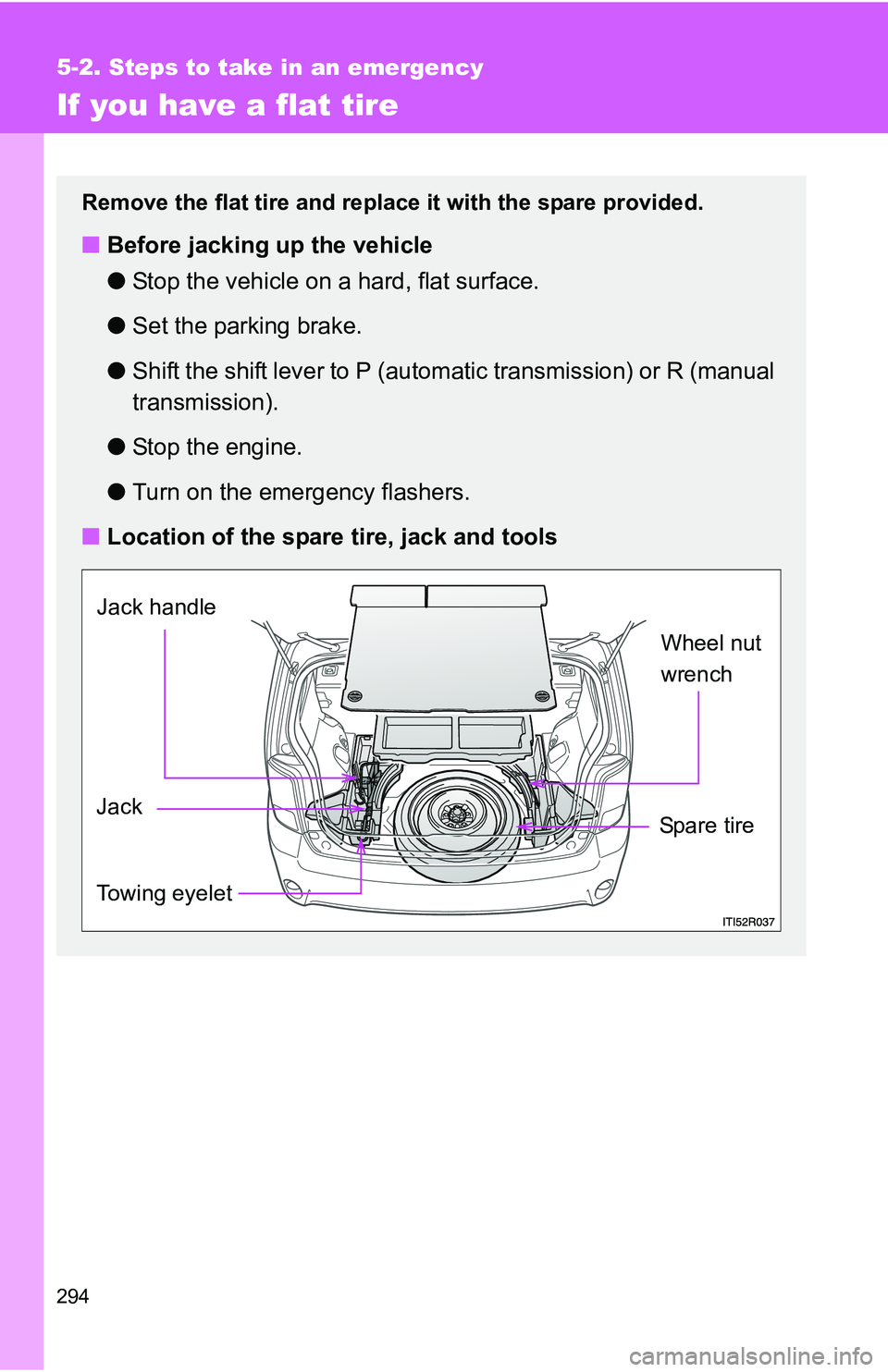

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Towing eyelet
Jack Wheel nut
wrench
Jack handle
Spare tire

300 5-2. Steps to take in an emergency

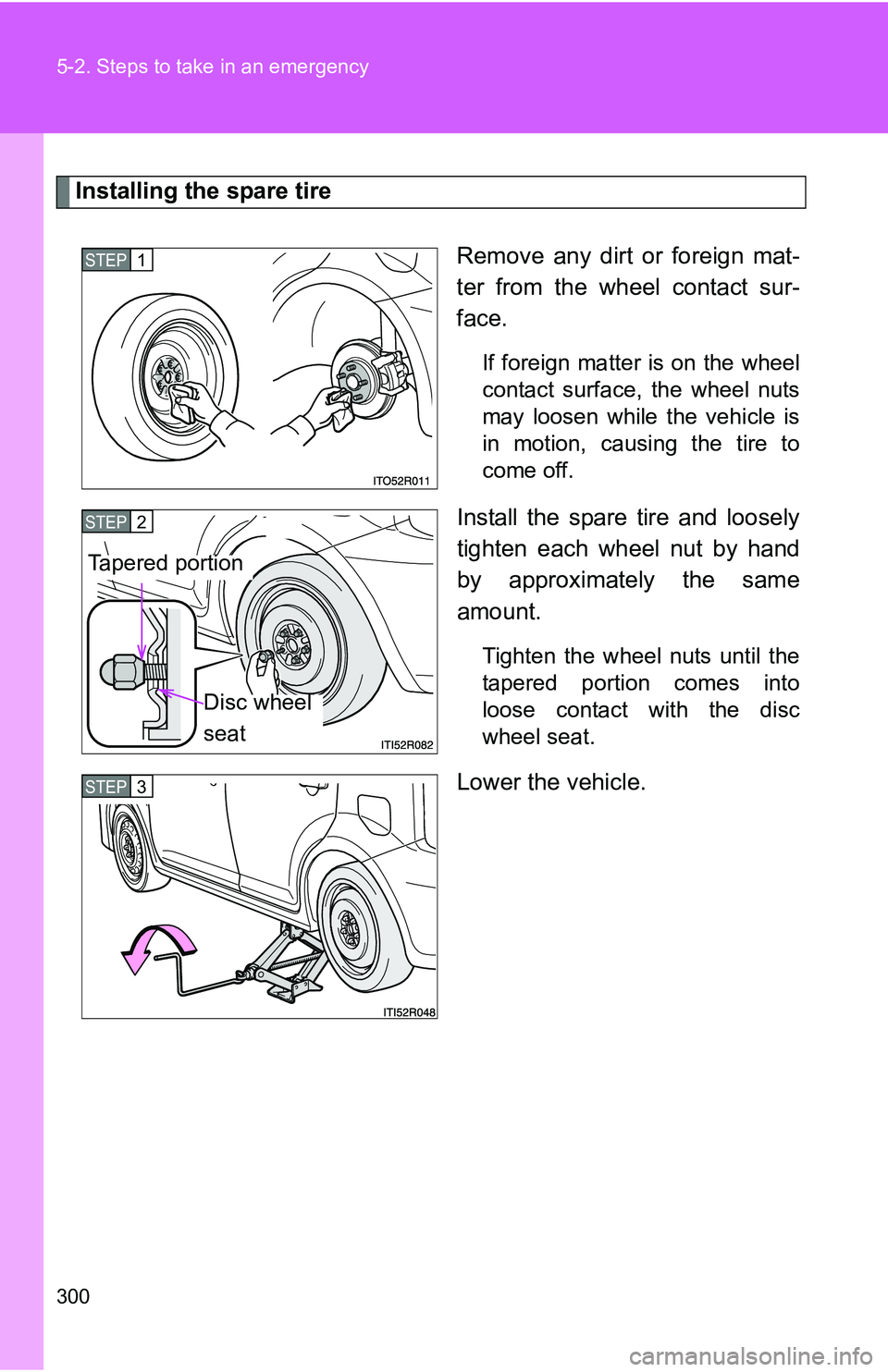

Installing the spare tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP 1
STEP 2
Tapered portion
Disc wheel
seat
STEP 3

5
When trouble arises
303
5-2. Steps to take in an emergency
Make sure the flat tire is stowed
securely by tightening the belt
firmly using the adjuster.STEP 4
■The compact spare tire
●The compact spare tire saves in your luggage compartment.
●Its lighter weight helps to enhance fuel economy.
●It permits easier installation
in case of a flat tire.
●Make sure to check the tire inflation pressure of the compact spare
tire. ( P. 332)
■After completing the tire change
The tire pressure warning system must be reset. (P. 230)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
STEP 1
STEP 2
STEP 3

5
When trouble arises
307
5-2. Steps to take in an emergency

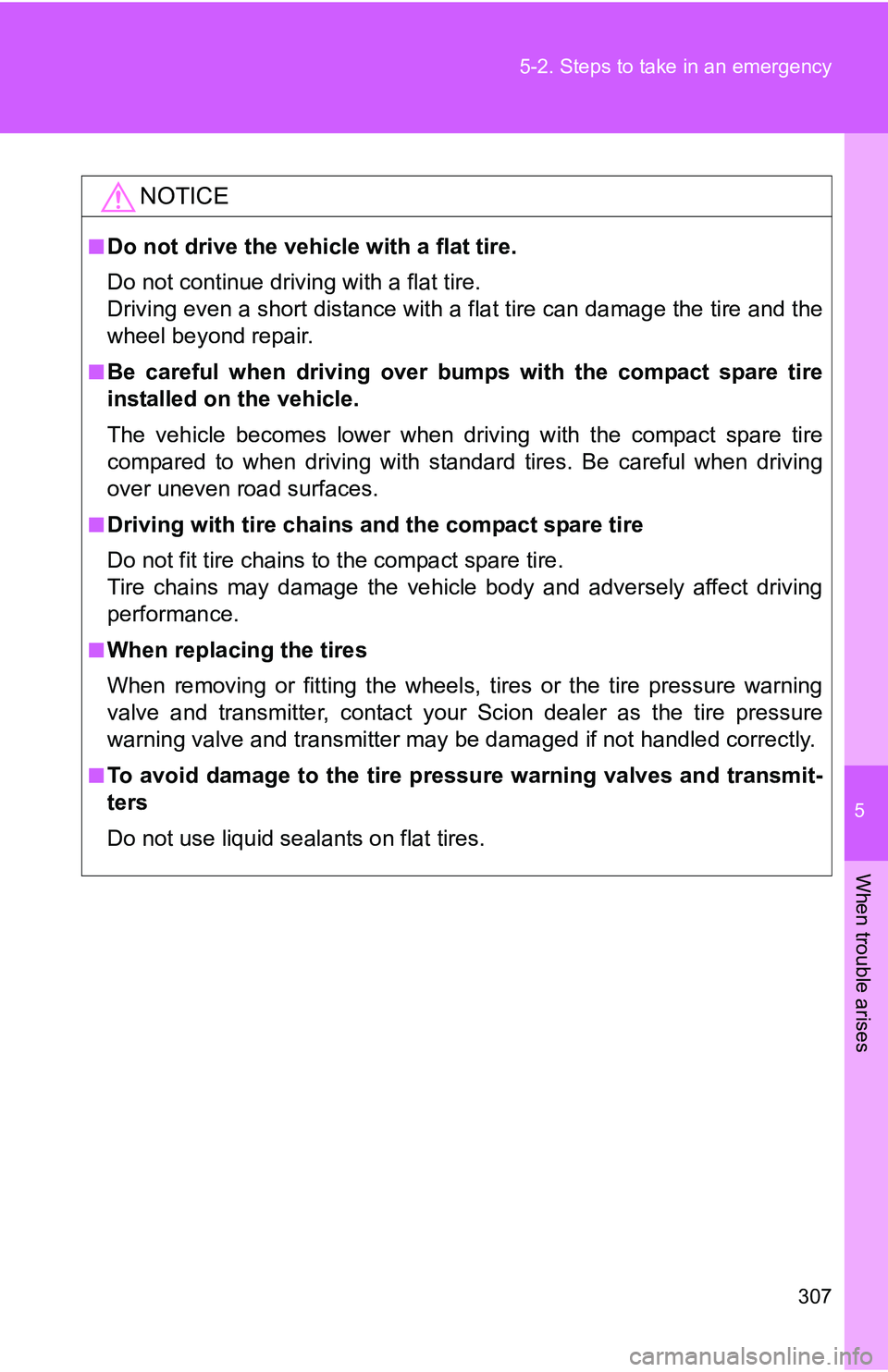

NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when drivin
g with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
Do not use liquid sealants on flat tires.

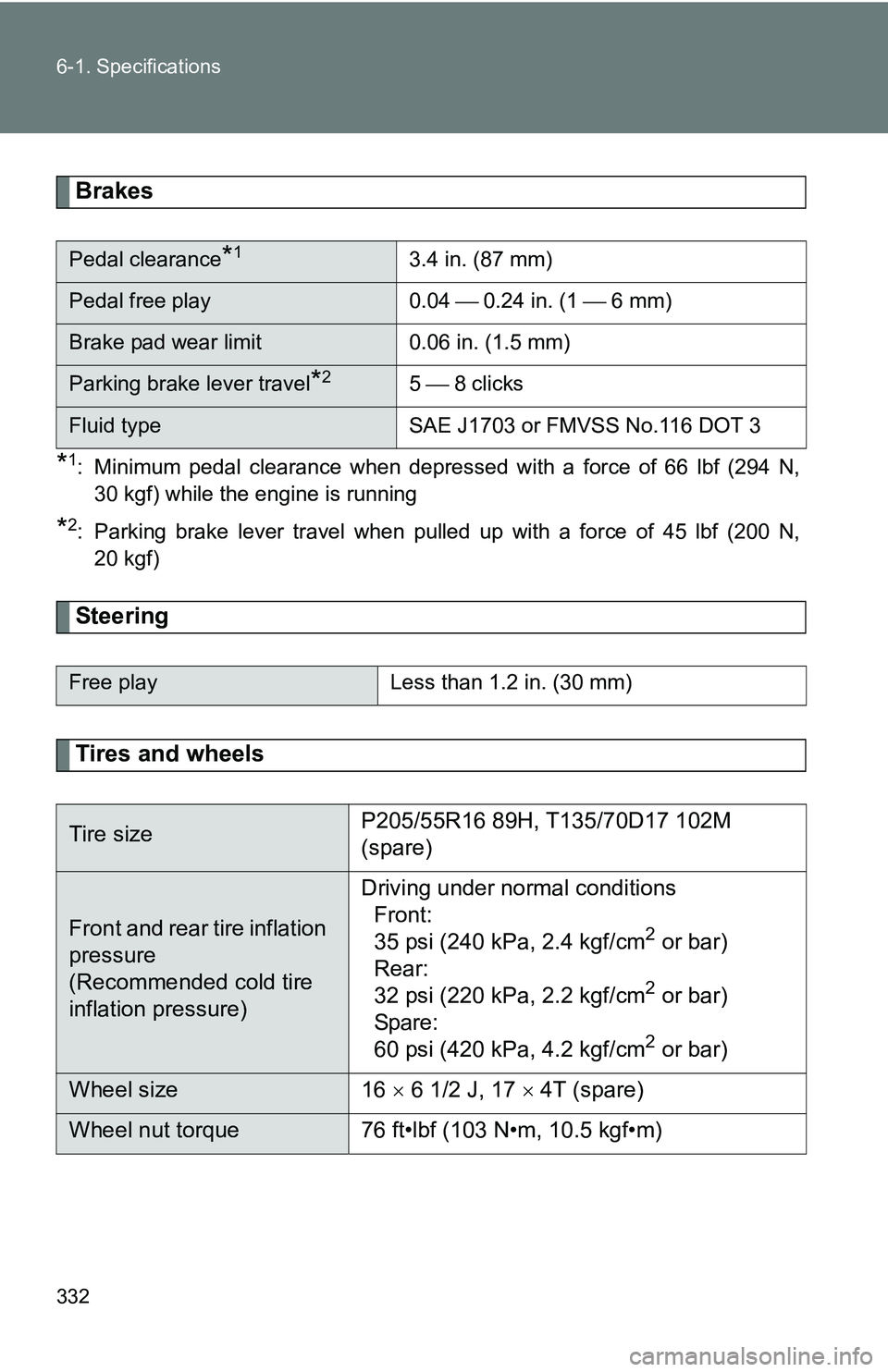

332 6-1. Specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N,30 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Tires and wheels
Pedal clearance*13.4 in. (87 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.06 in. (1.5 mm)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)
Tire sizeP205/55R16 89H, T135/70D17 102M
(spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Driving under normal conditions
Front:
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 16  6 1/2 J, 17  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

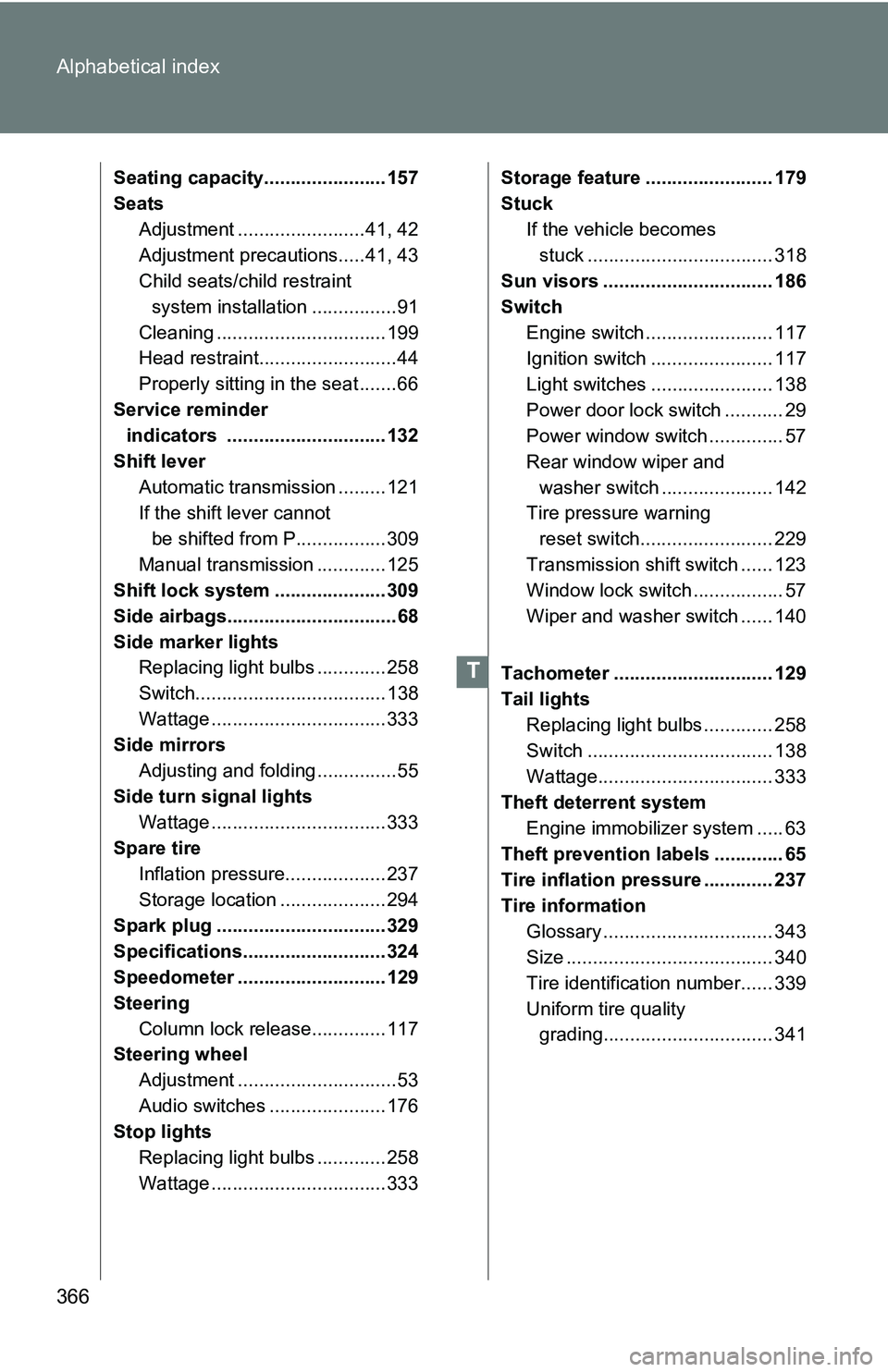

366 Alphabetical index
Seating capacity....................... 157
SeatsAdjustment ........................41, 42
Adjustment precautions.....41, 43
Child seats/child restraint system installation ................91
Cleaning ................................ 199
Head restraint..........................44
Properly sitting in the seat .......66
Service reminder indicators .............................. 132
Shift lever Automatic transmission ......... 121
If the shift lever cannot be shifted from P................. 309
Manual transmission ............. 125
Shift lock system ..................... 309
Side airbags................................68
Side marker lights Replacing light bulbs ............. 258
Switch.................................... 138
Wattage ................................. 333
Side mirrors
Adjusting and folding ...............55
Side turn signal lights Wattage ................................. 333
Spare tire Inflation pressure................... 237
Storage location .................... 294
Spark plug ................................ 329
Specifications........................... 324
Speedometer ............................ 129
Steering Column lock release.............. 117
Steering wheel
Adjustment ..............................53
Audio switches ...................... 176
Stop lights
Replacing light bulbs ............. 258
Wattage ................................. 333 Storage feature ........................ 179
Stuck
If the vehicle becomes stuck ................................... 318
Sun visors ................................ 186
Switch
Engine switch ........................ 117
Ignition switch ....................... 117
Light switches ....................... 138
Power door lock switch ........... 29
Power window switch .............. 57
Rear window wiper and washer switch ..................... 142
Tire pressure warning
reset switch......................... 229
Transmission shift switch ...... 123
Window lock switch ................. 57
Wiper and washer switch ...... 140
Tachometer .............................. 129
Tail lights Replacing light bulbs ............. 258
Switch ................................... 138
Wattage................................. 333
Theft deterrent system
Engine immobilizer system ..... 63
Theft prevention labels ............. 65
Tire inflation pressure ............. 237
Tire information Glossary ................................ 343
Size ....................................... 340
Tire identification number...... 339
Uniform tire quality grading................................ 341
T

367
Alphabetical index
Tires
Chains .................................. 158
Checking .............................. 229
Compact spare tire ............... 295
If you have a flat tire ............. 294
Inflation pressure .................. 237
Inflation pressure sensor ...... 230
Information ........................... 337
Replacing ............................. 294
Rotating tires ........................ 229
Size ...................................... 332
Snow tires............................. 158
Spare tire .............................. 294
Tire pressure warning
system................................ 229
Tools......................................... 294
Total load capacity .................. 157
Towing Dinghy towing ............... 164, 165
Emergency towing ................ 272
Trailer towing ........................ 163
TRAC ........................................ 147
Traction control ....................... 147
Trailer towing........................... 163
Transmission shift switches................................. 123
Turn signal lights Replacing light bulbs ............ 258
Switch ................................... 126
Wattage ................................ 333
Valet key..................................... 22
Vanity mirrors .......................... 187
Vehicle identification number................................... 324
Vehicle stability control .......... 147
VSC ........................................... 147
Warning buzzers Brake system........................ 282
Seat belt reminder ................ 285 Warning lights
Anti-lock brake system ..........284
Brake assist system ..............284
Brake system ........................282
Charging system .... ...............283
Electric power steering system warning light........................284
Electronic engine control
system ................................284
High coolant temperature ......283
Low engine oil pressure ........283
Low fuel level ........................285
Low tire pressure...................286
Low washer fluid ...................285
Malfunction indicator lamp ....284
Open door .............................285
Pretensioners ........................284
Seat belt reminder light .........285
SRS airbags ..........................284
Tire pressure warning light ....286
Washer Checking ...............................227
Preparing and checking before winter .......................158
Switch....................................140
Washing and waxing ...............196
Weight
Cargo capacity ......................152
Load limits .............................157
Weight ...................................324
Wheels ......................................241
Window glasses ........................57
Window lock switch ...................57
Windows Power windows .......................57
Rear window defogger ..........174
Washer ..................................140
Windshield wipers ...................140
Wireless remote control key
Locking/Unlocking ...................24
Replacing the battery ............246
Wireless remote control key ....24
