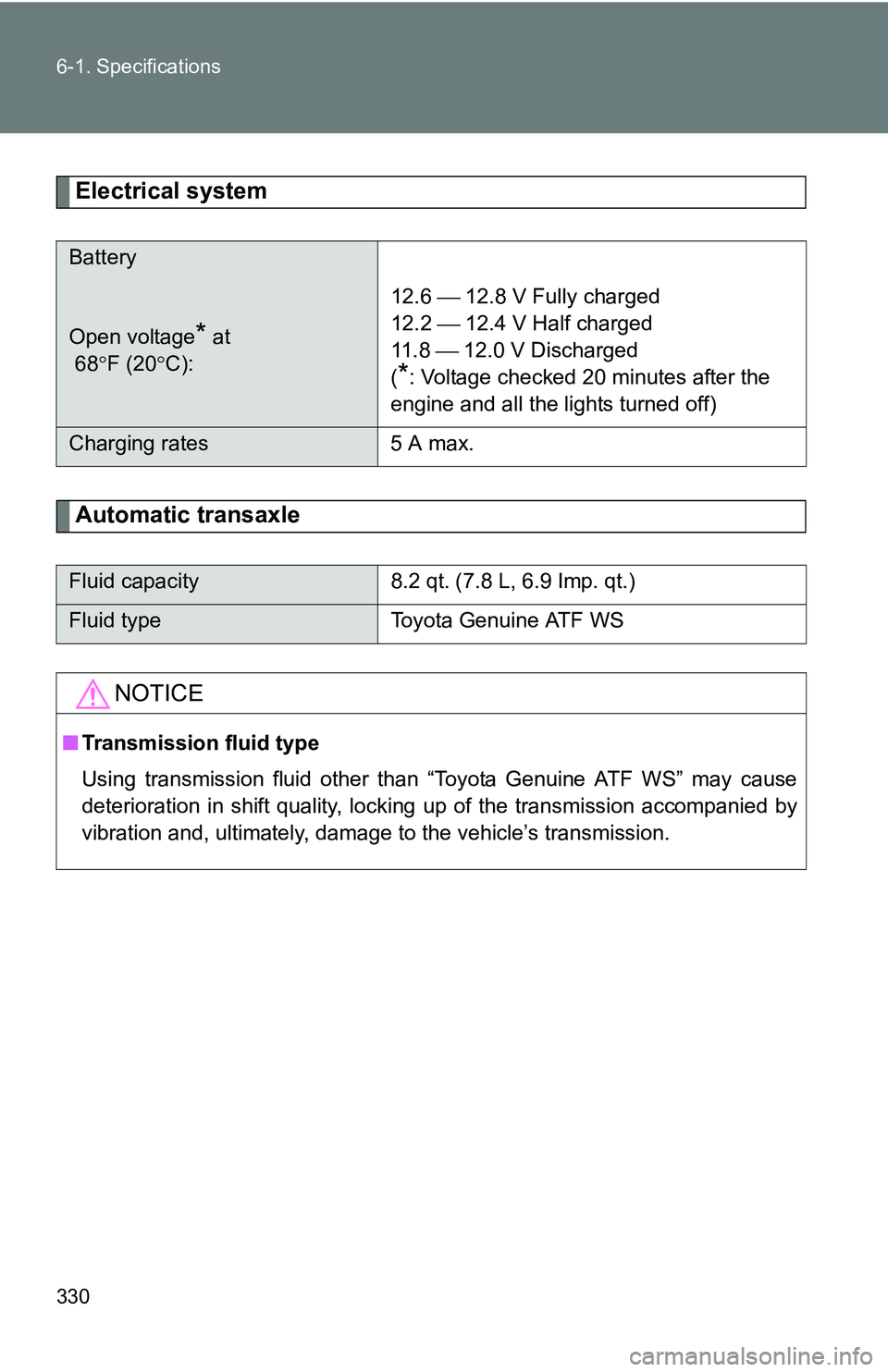

330 6-1. Specifications
Electrical system
Automatic transaxle
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity 8.2 qt. (7.8 L, 6.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

331
6-1. Specifications
6
Vehicle specifications
Manual transaxle
Clutch
Gear oil capacity (reference) 2.6 qt. (2.5 L, 2.2 Imp. qt.)
Gear oil type
API GL-4 or 5
Recommended gear oil
viscosity SAE 75W-90
NOTICE
■
Manual transaxle gear oil
Using a manual transmission gear oil other than “Toyota Genuine Manual
Transmission Gear Oil LV API GL-4 SAE 75W” may cause occurrences of
rattling noises while idling and poor fuel consumption.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

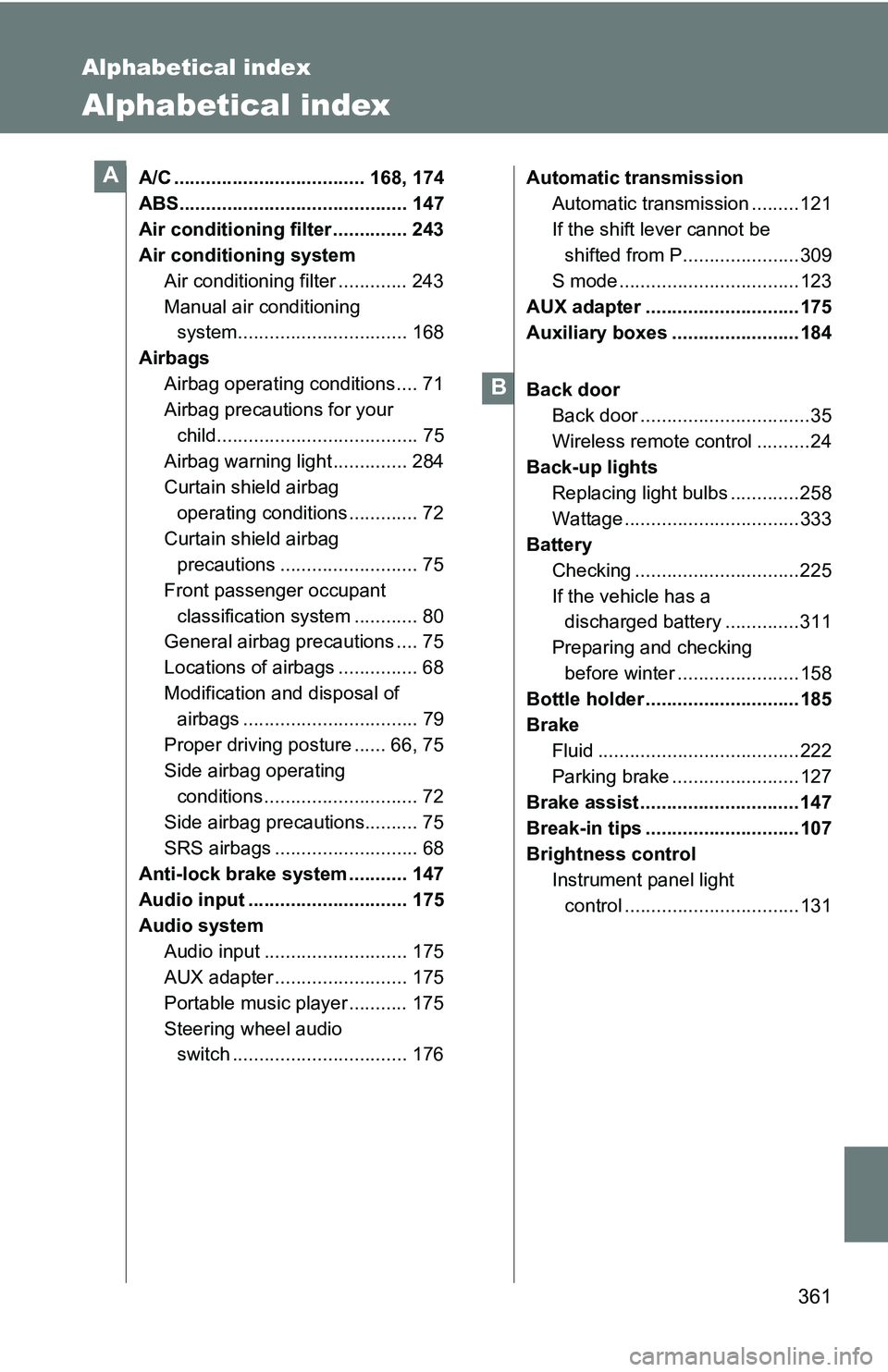

361
Alphabetical index
Alphabetical index
A/C .................................... 168, 174
ABS........................................... 147
Air conditioning filter .............. 243
Air conditioning systemAir conditioning filter ............. 243
Manual air conditioning system................................ 168
Airbags Airbag operating conditions .... 71
Airbag precautions for your child...................................... 75
Airbag warning light .............. 284
Curtain shield airbag operating conditions ............. 72
Curtain shield airbag precautions .......................... 75
Front passenger occupant classification system ............ 80
General airbag precautions .... 75
Locations of airbags ............... 68
Modification and disposal of airbags ................................. 79
Proper driving posture ...... 66, 75
Side airbag operating conditions ............................. 72
Side airbag precautions.......... 75
SRS airbags ........................... 68
Anti-lock brake system ........... 147
Audio input .............................. 175
Audio system Audio input ........................... 175
AUX adapter ......................... 175
Portable music player ........... 175
Steering wheel audio switch ................................. 176 Automatic transmission
Automatic transmission .........121
If the shift lever cannot be shifted from P......................309
S mode ..................................123
AUX adapter .............................175
Auxiliary boxes ........................184
Back door Back door ................................35
Wireless remote control ..........24
Back-up lights
Replacing light bulbs .............258
Wattage .................................333
Battery
Checking ...............................225
If the vehicle has a discharged battery ..............311
Preparing and checking before winter .......................158
Bottle holder .............................185
Brake
Fluid ......................................222
Parking brake ........................127
Brake assist ..............................147
Break-in tips .............................107
Brightness control Instrument panel light control .................................131A
B

367
Alphabetical index
Tires
Chains .................................. 158
Checking .............................. 229
Compact spare tire ............... 295
If you have a flat tire ............. 294
Inflation pressure .................. 237
Inflation pressure sensor ...... 230
Information ........................... 337
Replacing ............................. 294
Rotating tires ........................ 229
Size ...................................... 332
Snow tires............................. 158
Spare tire .............................. 294
Tire pressure warning
system................................ 229
Tools......................................... 294
Total load capacity .................. 157
Towing Dinghy towing ............... 164, 165
Emergency towing ................ 272
Trailer towing ........................ 163
TRAC ........................................ 147
Traction control ....................... 147
Trailer towing........................... 163
Transmission shift switches................................. 123
Turn signal lights Replacing light bulbs ............ 258
Switch ................................... 126
Wattage ................................ 333
Valet key..................................... 22
Vanity mirrors .......................... 187
Vehicle identification number................................... 324
Vehicle stability control .......... 147
VSC ........................................... 147
Warning buzzers Brake system........................ 282
Seat belt reminder ................ 285 Warning lights
Anti-lock brake system ..........284
Brake assist system ..............284
Brake system ........................282
Charging system .... ...............283
Electric power steering system warning light........................284
Electronic engine control
system ................................284
High coolant temperature ......283
Low engine oil pressure ........283
Low fuel level ........................285
Low tire pressure...................286
Low washer fluid ...................285
Malfunction indicator lamp ....284
Open door .............................285
Pretensioners ........................284
Seat belt reminder light .........285
SRS airbags ..........................284
Tire pressure warning light ....286
Washer Checking ...............................227
Preparing and checking before winter .......................158
Switch....................................140
Washing and waxing ...............196
Weight
Cargo capacity ......................152
Load limits .............................157
Weight ...................................324
Wheels ......................................241
Window glasses ........................57
Window lock switch ...................57
Windows Power windows .......................57
Rear window defogger ..........174
Washer ..................................140
Windshield wipers ...................140
Wireless remote control key
Locking/Unlocking ...................24
Replacing the battery ............246
Wireless remote control key ....24
