TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 22
1-2. Opening, closing and locking
the doors
Wireless remote control ....... 24
Side doors ............................ 29
Back door ............................. 35
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ........................... 41
Rear seats ............................ 42
Head restraints ..................... 44
Seat belts ............................. 46
Steering wheel ..................... 53
Anti-glare inside rear view mirror .................. 54
Outside rear view mirrors ..... 55
1-4. Opening and clos ing
the windows
Pow er windows .................... 57
1-5. Refueling Opening the fuel tank cap .... 59 1-6. Theft deterrent system
Engine immobilizer system ................................ 63
Theft prevention labels (for U.S.A.) ......................... 65
1-7. Safety information Correct driving posture ......... 66
SRS airbags ......................... 68
Front passenger occupant classification system ........... 80
Child restraint systems ......... 86
Installing child restraints ....... 91
2-1. Driving procedures Driving the vehicle .............. 104
Engine (ignition) switch....... 117
Automatic transmission ...... 121
Manual transmission........... 125
Turn signal lever ................. 126
Parking brake ..................... 127
Horn .................................... 128
2-2. Instrument cluster Gauges and meters ............ 129
Indicators and warning lights ............ 132
Multi-information display ..... 135
1Before driving
2When driving

TABLE OF CONTENTSIndex
4
4-1. Maintenance and careCleaning and protecting the vehicle exterior ........... 196
Cleaning and protecting the vehicle interior ............ 199
4-2. Maintenance Maintenance requirements .................... 202
General maintenance ......... 204
Emission inspection and maintenance (I/M)
programs .......................... 208
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 209
Hood................................... 212
Positioning a floor jack ....... 213
Engine compartment .......... 215
Tires ................................... 229
Tire inflation pressure......... 237
Wheels ............................... 241
Air conditioning filter ........... 243
Wireless remote control battery .............................. 246
Checking and replacing fuses ................................ 248
Light bulbs .......................... 258 5-1. Essential information
Emergency flashers ............ 270
If your vehicle needs to be towed ....................... 271
If you think something is wrong ................................ 278
Fuel pump shut off system .............................. 279
Event data recorder ............ 280
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds .............................. 282
If you have a flat tire ........... 294
If the engine will not start .... 308
If the shift lever cannot be shifted from P (automatic
transmission) .................... 309
If you lose your keys ........... 310
If the vehicle battery is discharged ........................ 311
If your vehicle overheats..... 315
If the vehicle becomes stuck ................................. 318
If your vehicle has to be stopped
in an emergency ............... 320
4Maintenance and care5When trouble arises

12

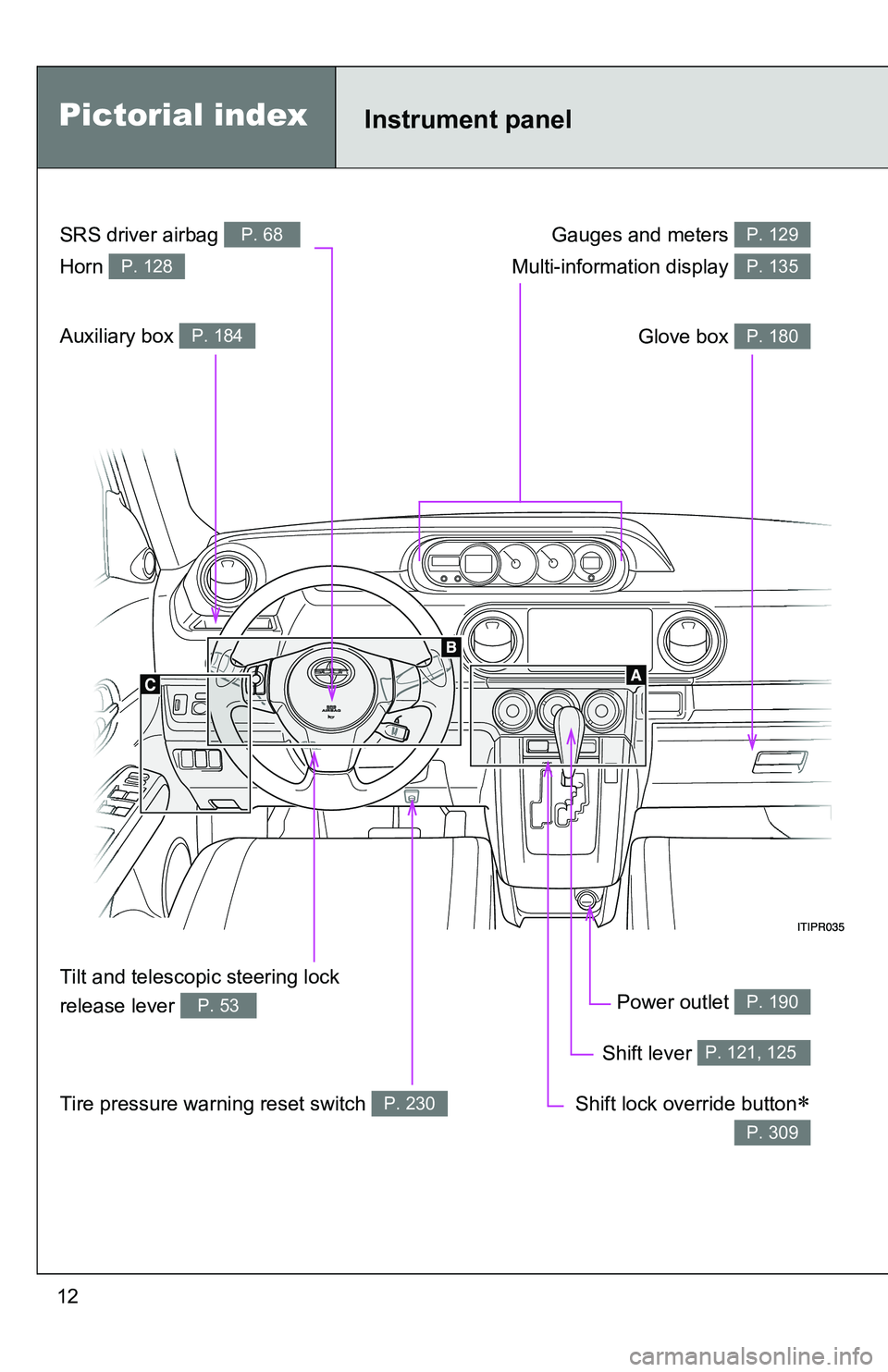

Gauges and meters P. 129
Glove box P. 180
Power outlet P. 190
Shift lever P. 121, 125
Shift lock override button
P. 309
SRS driver airbag P. 68
Horn P. 128
Tilt and telescopic steering lock
release lever
P. 53
Tire pressure warning reset switch P. 230
Auxiliary box P. 184
Multi-information display P. 135
Instrument panelPictorial index

19

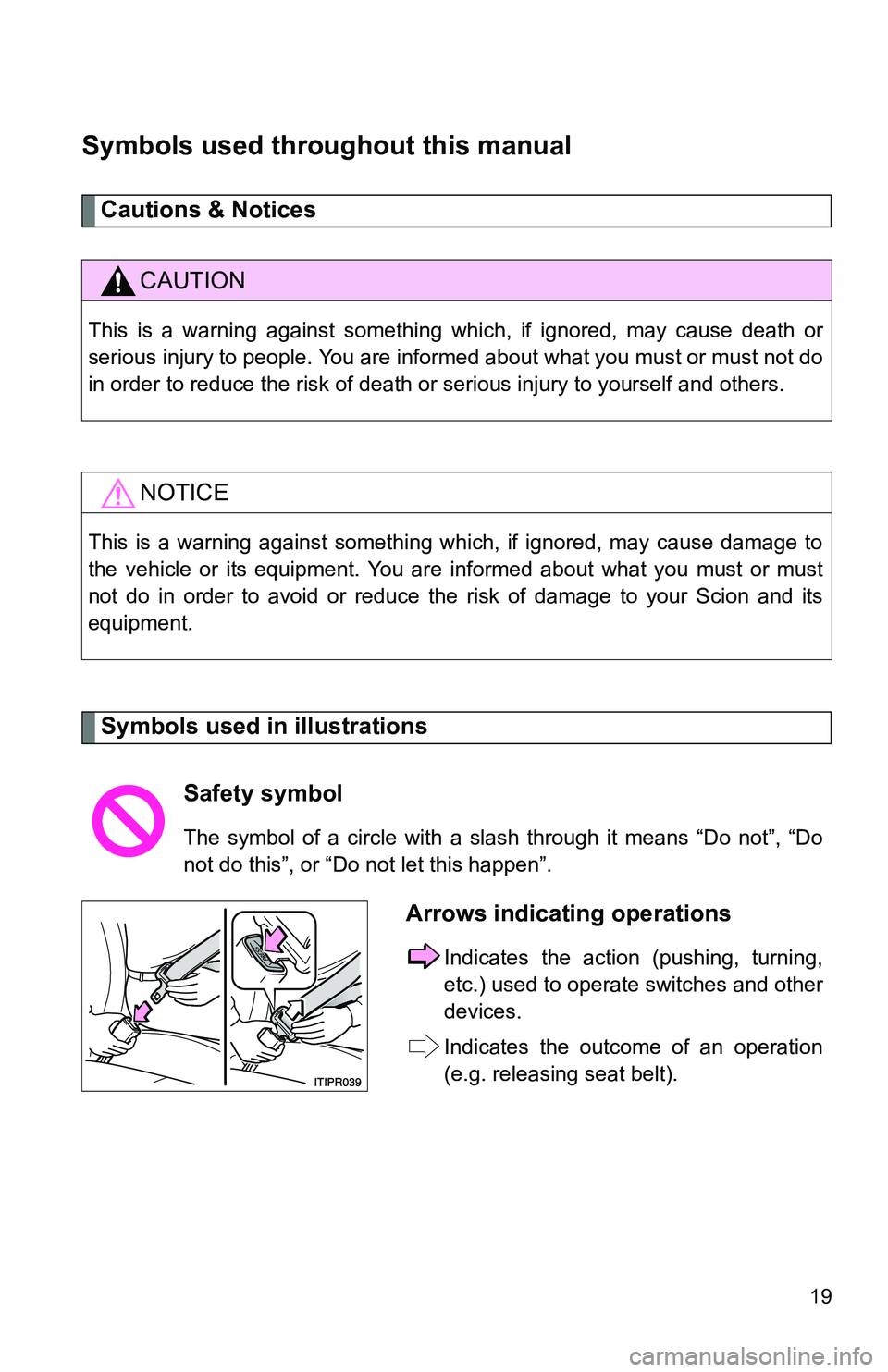

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Scion and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. releasing seat belt).

27
1-2. Opening, closing and locking the doors
1
Before driving
■
Customization that can be configured at Scion dealer
Settings (e.g. door unlocking function) can be changed.
(Customizable features: P. 350)
■ Certification for wireless remote control
U.S.A.
FCC ID: HYQ12BBY
FCC ID: HYQ13BBZ
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

50 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Wearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or severe injury.
●Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Scion recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Scion dealer.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( P. 47)

69
1-7. Safety information
1
Before driving

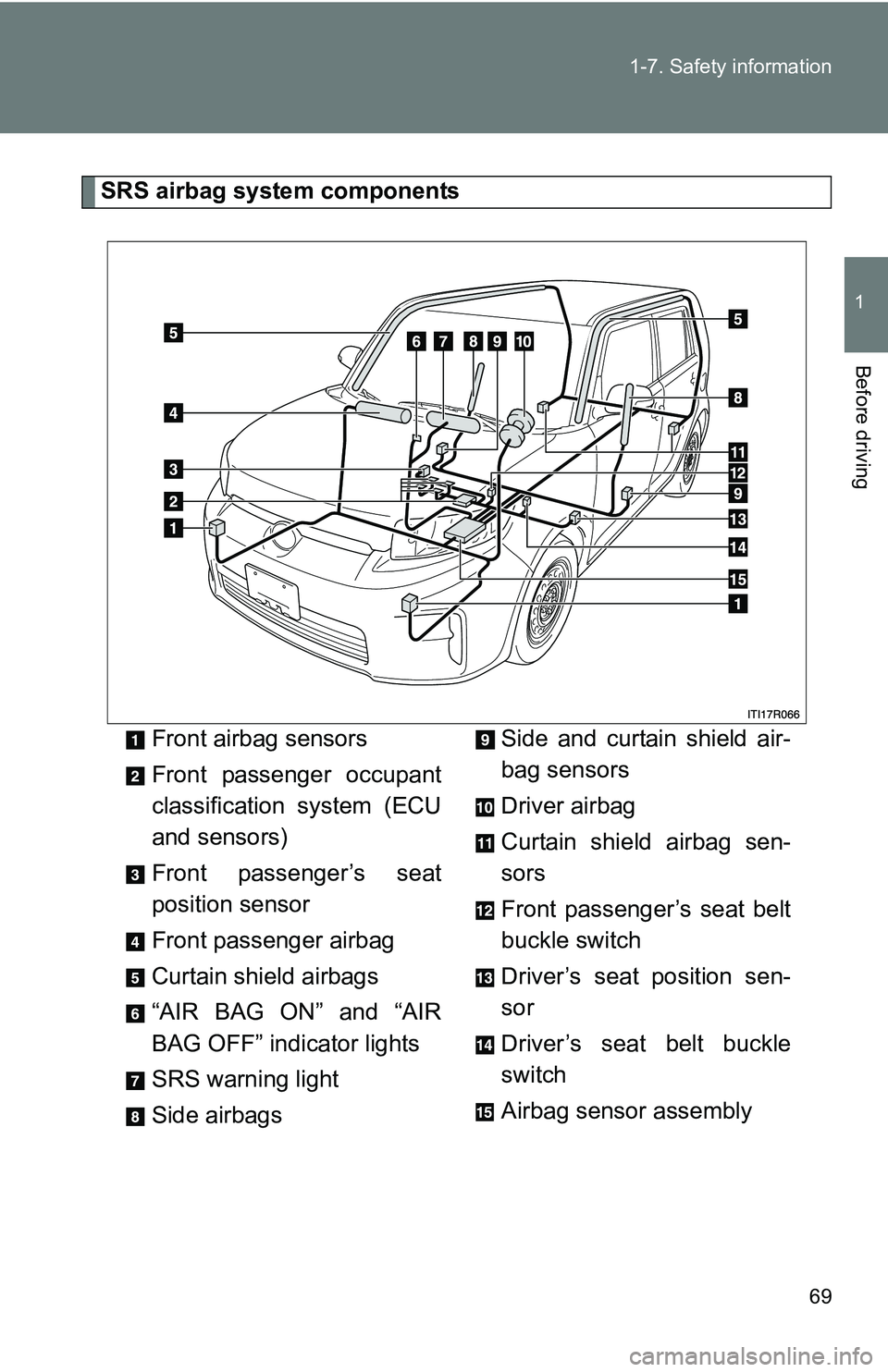

SRS airbag system components
Front airbag sensors
Front passenger occupant
classification system (ECU
and sensors)
Front passenger’s seat
position sensor
Front passenger airbag
Curtain shield airbags
“AIR BAG ON” and “AIR
BAG OFF” indicator lights
SRS warning light
Side airbags Side and curtain shield air-
bag sensors
Driver airbag
Curtain shield airbag sen-
sors
Front passenger’s seat belt
buckle switch
Driver’s seat position sen-
sor
Driver’s seat belt buckle
switch
Airbag sensor assembly

80
1-7. Safety information

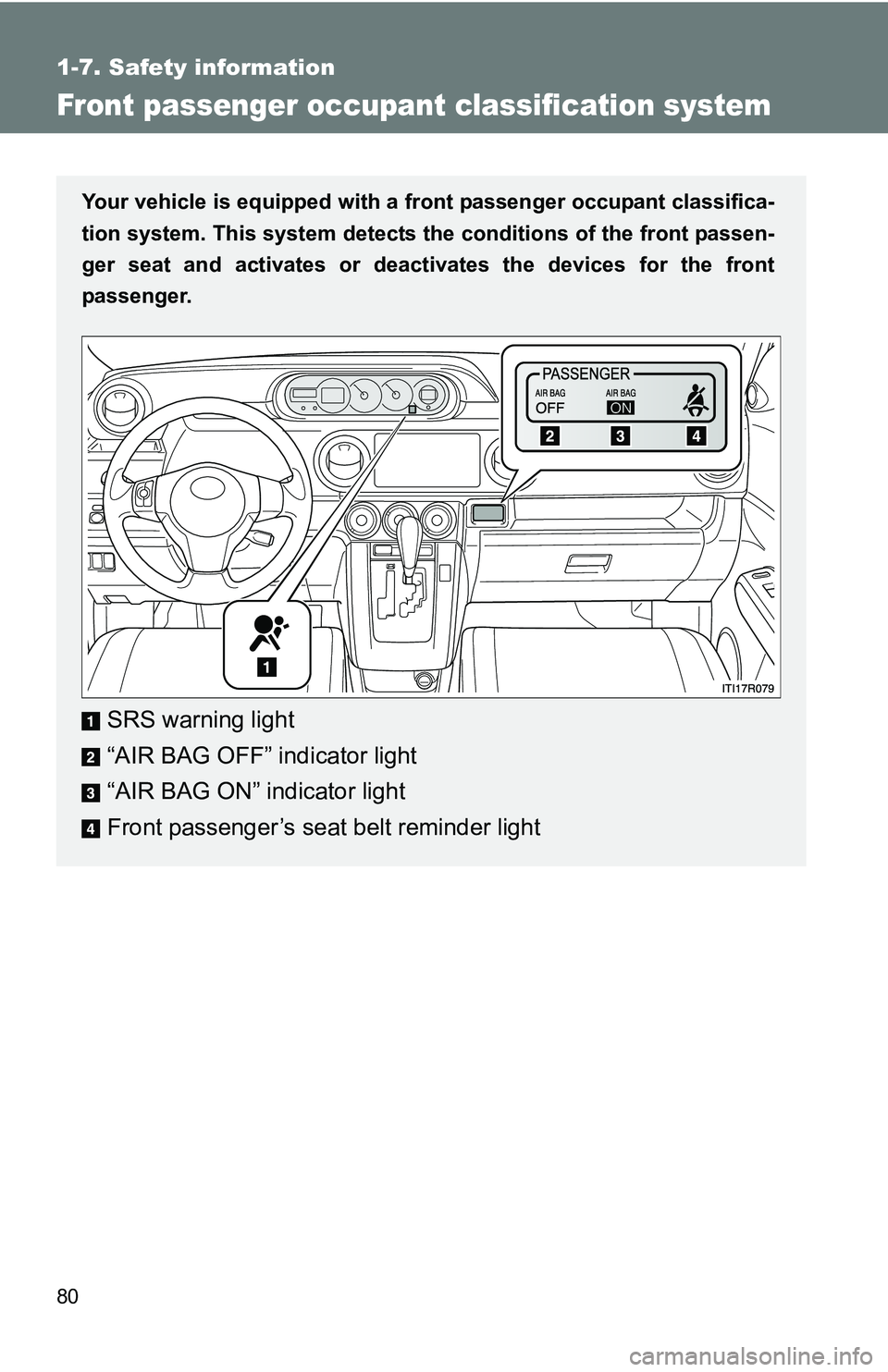

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classifica-
tion system. This system detects the conditions of the front passen-
ger seat and activates or deactiv ates the devices for the front
passenger.
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Front passenger’s seat belt reminder light

81
1-7. Safety information
1
Before driving

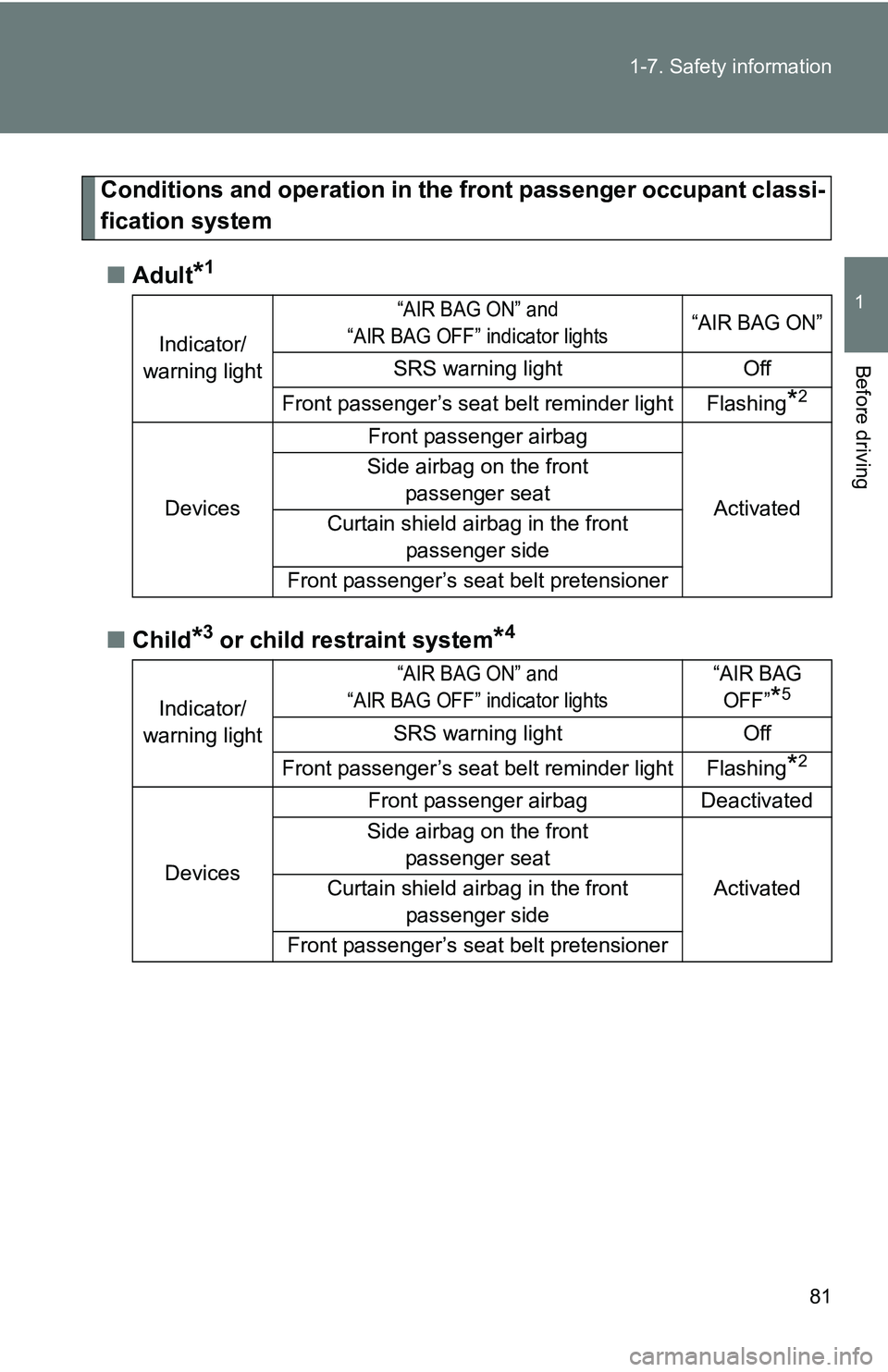

Conditions and operation in the fr
ont passenger occupant classi-
fication system
■ Adult
*1
■Child*3 or child restraint system*4
Indicator/
warning light
“AIR BAG ON” and
“AIR BAG OFF” indicator lights“AIR BAG ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
Devices Front passenger airbag
Activated
Side airbag on the front
passenger seat
Curtain shield airbag in the front passenger side
Front passenger’s seat belt pretensioner
Indicator/
warning light
“AIR BAG ON” and
“AIR BAG OFF” indicator lights“AIR BAG OFF”
*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
Devices Front passenger airbag Deactivated
Side airbag on the front passenger seat
Activated
Curtain shield airbag in the front
passenger side
Front passenger’s seat belt pretensioner

82 1-7. Safety information

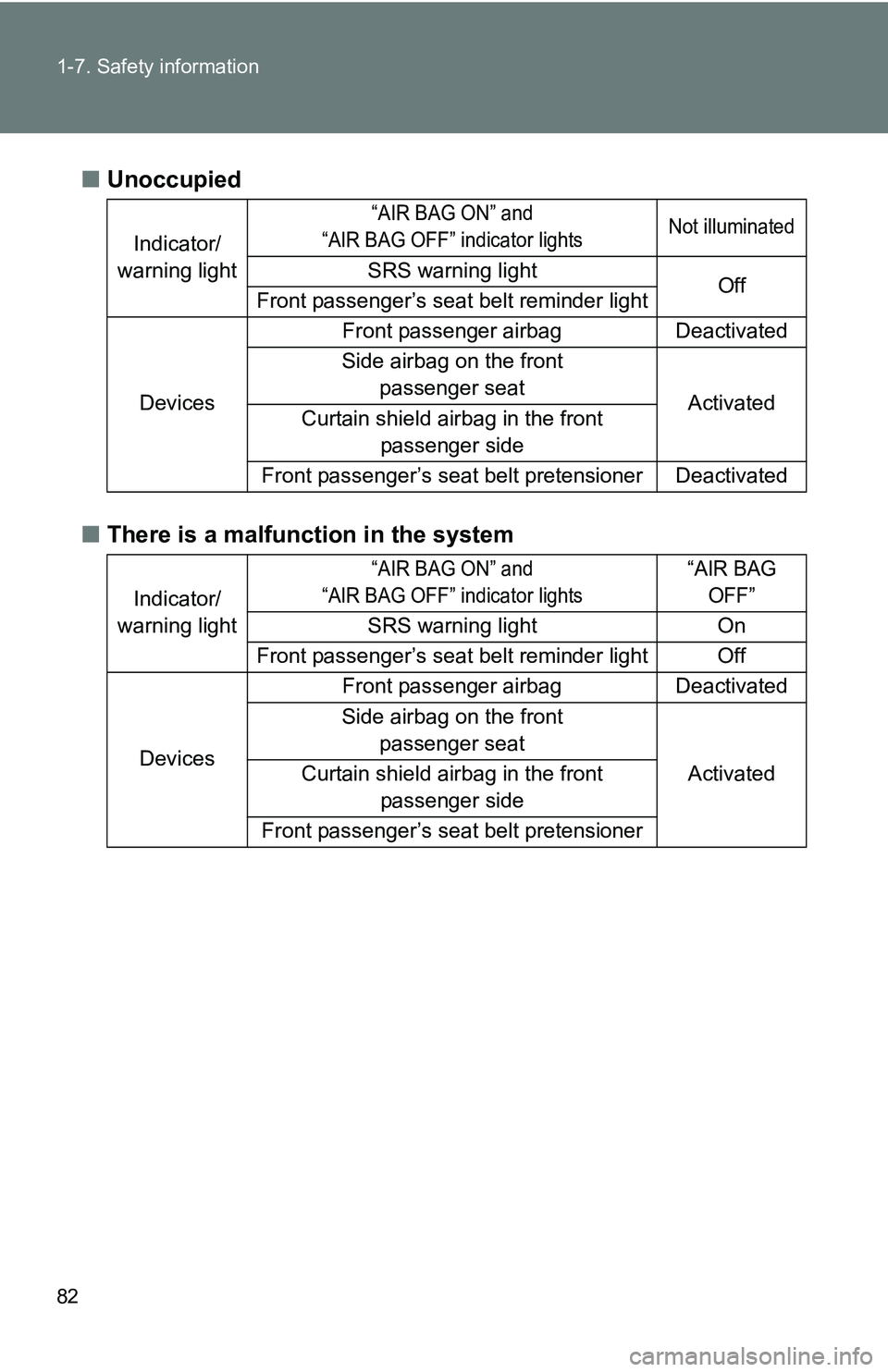

■Unoccupied
■ There is a malfunction in the system
Indicator/
warning light
“AIR BAG ON” and
“AIR BAG OFF” indicator lights Not illuminated
SRS warning light
Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag on the front passenger seat Activated
Curtain shield airbag in the front
passenger side
Front passenger’s seat belt pretensioner Deactivated
Indicator/
warning light
“AIR BAG ON” and
“AIR BAG OFF” indicator lights“AIR BAG OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Activated
Curtain shield airbag in the front
passenger side
Front passenger’s seat belt pretensioner
