2-3. Operating the lights and Windshield wipers
Headlight switch .................. 138
Windshield wipers and washer ....................... 140
Rear window wiper and washer ....................... 142
2-4. Using other driving systems Cruise control ...................... 143
Driving assist systems ........ 147
2-5. Driving information Cargo and luggage ............. 152
Vehicle load limits ............... 157
Winter driving tips ............... 158
Trailer towing ...................... 163
Dinghy towing (automatic transmission)... 164
Dinghy towing (manual transmission) ...... 165
3-1. Using the air conditioning system and defogger
Air conditioning system ....... 168
Rear window and outside rear view mirror defoggers ....... 174 3-2. Using the audio system
Using the AUX/USB adapter ...... 175
Using the steering wheel audio switches.................. 176
3-3. Using the interior lights Interior lights list ................. 177
• Interior light ...................... 178
• Personal lights.................. 178
3-4. Using the storage features List of storage features ....... 179
• Glove box ......................... 180
• Console box ..................... 181
• Cup holders ...................... 182
• Auxiliary box ..................... 184
• Bottle holder ..................... 185
3-5. Other interior features Sun visors........................... 186
Vanity mirrors ..................... 187
Clock .................................. 188
Outside temperature display .............................. 189
Power outlet ....................... 190
Floor mat ............................ 191
Luggage compartment features ............................ 193
3Interior features

6
Windshield wipers P. 140
Pictorial indexExterior
Outside rear view mirrors
P. 55
Side turn signal lights
P. 126
Front side marker lights
P. 138
Headlights (low beam) P. 138
Parking lights P. 138
Hood P. 212
Front turn signal lights
P. 126
Headlights (high beam) P. 138
Daytime running lights P. 139

14
B
Windshield wipers and
washer switch
P. 140
Rear window wiper and washer switch
P. 142
Headlight switch P. 138
Turn signal lever P. 126
Audio remote co ntrol switches P. 176
Engine (ignition) switch P. 117
Cruise control switch P. 143

When driving2
103
2-1. Driving proceduresDriving the vehicle............ 104
Engine (ignition) switch .... 117
Automatic transmission .... 121
Manual transmission ........ 125
Turn signal lever .............. 126
Parking brake ................... 127
Horn ................................. 128
2-2. Instrument cluster Gauges and meters ......... 129
Indicators and warning lights .......... 132
Multi-information display............................ 135 2-3. Operating the lights
and Windshield wipers
Headlight switch ............... 138
Windshield wipers and washer .................... 140
Rear window wiper and washer .................... 142
2-4. Using other driving systems Cruise control ................... 143
Driving assist systems ..... 147
2-5. Driving information Cargo and luggage .......... 152
Vehicle load limits ............ 157
Winter driving tips ............ 158
Trailer towing ................... 163
Dinghy towing (automatic transmission) ................. 164
Dinghy towing (manual transmission) ... 165

138
2-3. Operating the lights and Windshield wipers
Headlight switch
Turning on the high beam headlightsWith the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
The headlights can be operated manually.
Turning the end of the lever turns on the lights as follows:OFF
Vehicles with daytime run-
ning light system:
The daytime running light
turn on.
The side marker, parking,
tail, license plate and instru-
ment panel lights turn on.
The headlights and all lights
listed above turn on.
U.S.A. Canada

139
2-3. Operating the lights and Windshield wipers
2
When driving
■
Daytime running light system (if equipped)
●To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Light reminder buzzer
A buzzer sounds when the driver’s door is opened with the key removed
from the engine switch while the lights are turned on.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

140
2-3. Operating the lights and Windshield wipers
Windshield wipers and washer
■The windshield wipers and washer can be operated when
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
The wiper operation is selected by moving the lever as follows.
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

141
2-3. Operating the lights and Windshield wipers
2
When driving
NOTICE
■
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Scion dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

142
2-3. Operating the lights and Windshield wipers
Rear window wiper and washer
■The rear window wiper and w asher can be operated when
The engine switch is in the “ON” position
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
The wiper operation is selected by moving the lever as follows:
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer operation

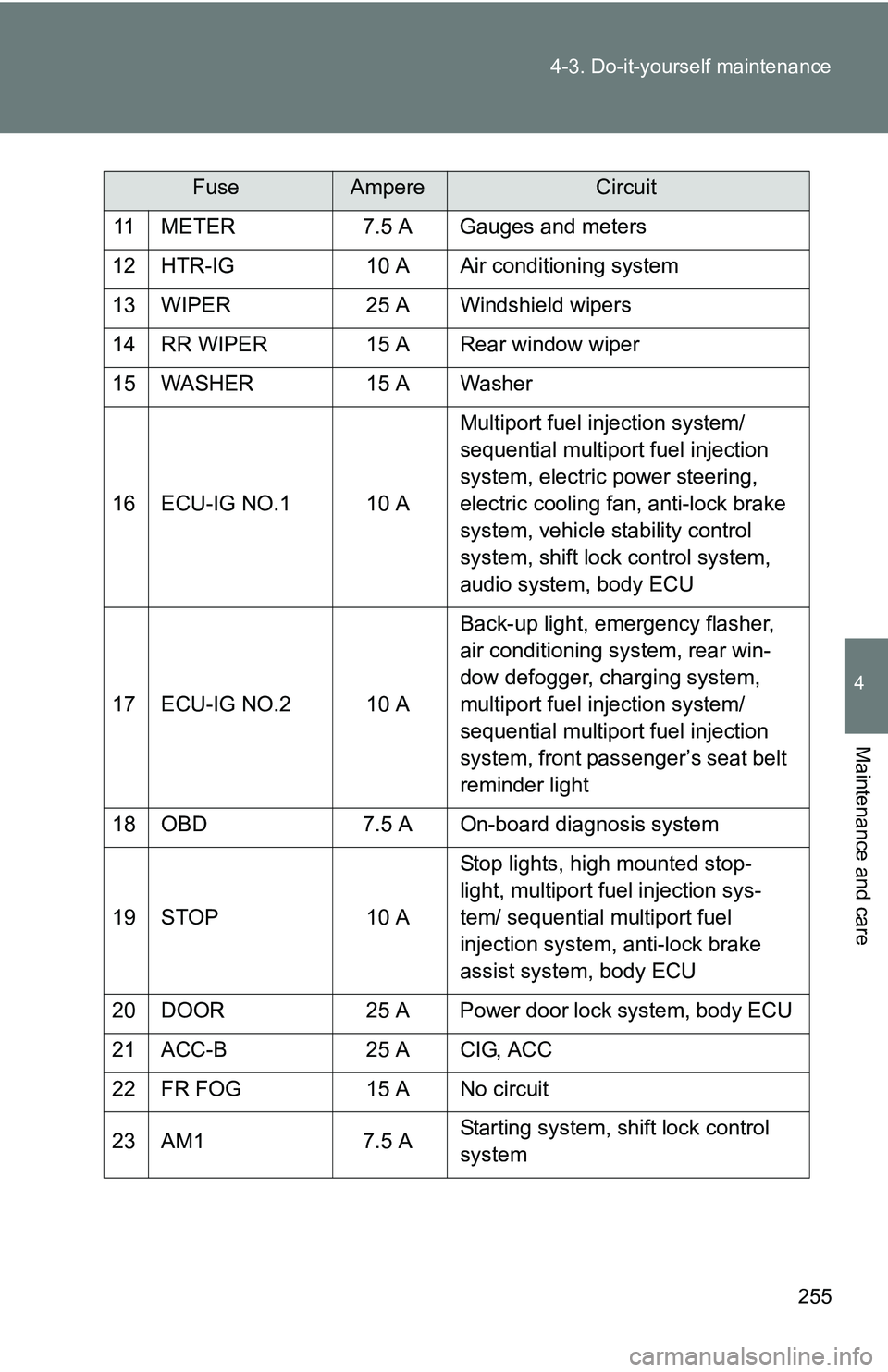

255
4-3. Do-it-yourself maintenance
4
Maintenance and care
11 METER
7.5 A Gauges and meters
12 HTR-IG 10 A Air conditioning system
13 WIPER 25 A Windshield wipers
14 RR WIPER 15 A Rear window wiper
15 WASHER 15 A Washer
16 ECU-IG NO.1 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, electric power steering,
electric cooling fan, anti-lock brake
system, vehicle stability control
system, shift lock control system,
audio system, body ECU
17 ECU-IG NO.2 10 A Back-up light, emergency flasher,
air conditioning system, rear win-
dow defogger, charging system,
multiport fuel injection system/
sequential multiport fuel injection
system, front passenger’s seat belt
reminder light
18 OBD 7.5 A On-board diagnosis system
19 STOP 10 AStop lights, high mounted stop-
light, multiport fuel injection sys-
tem/ sequential multiport fuel
injection system, anti-lock brake
assist system, body ECU
20 DOOR 25 A Power door lock system, body ECU
21 ACC-B 25 A CIG, ACC
22 FR FOG 15 A No circuit
23 AM1 7.5 AStarting system, shift lock control
system
FuseAmpereCircuit
