TOYOTA xB 2011 (in English) Owner's Manual

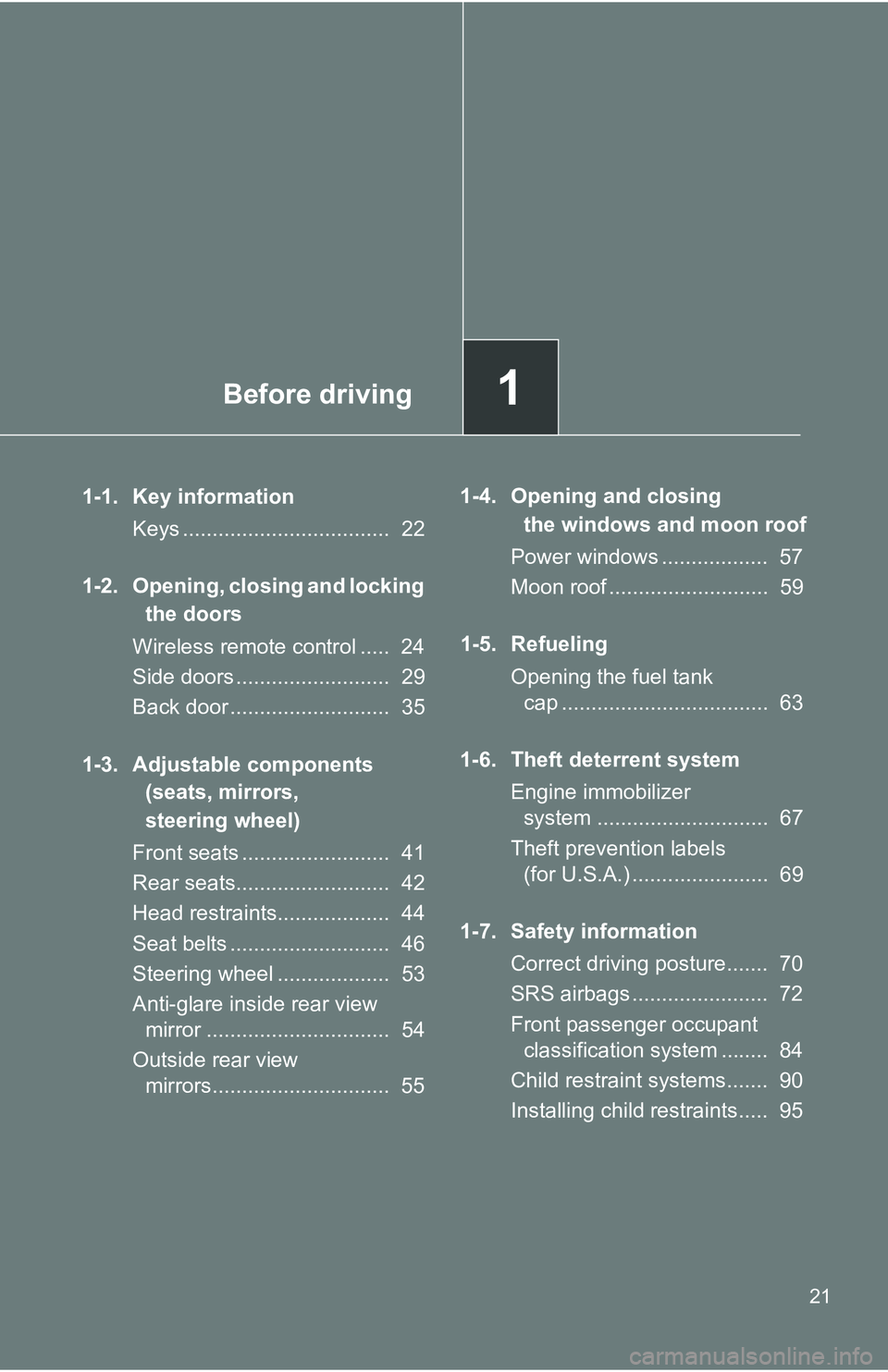

Before driving1
21
1-1. Key informationKeys ................................... 22
1-2. Opening, closing and locking the doors
Wireless remote control ..... 24
Side doors .......................... 29
Back door ........................... 35
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 41
Rear seats.......................... 42
Head restraints................... 44
Seat belts ........................... 46
Steering wheel ................... 53
Anti-glare inside rear view mirror ............................... 54
Outside rear view mirrors.............................. 55 1-4. Opening and closing
the windows and moon roof
Power windows .................. 57
Moon roof ........................... 59
1-5. Refueling Opening the fuel tank cap ................................... 63
1-6. Theft deterrent system Engine immobilizer system ............................. 67
Theft prevention labels (for U.S.A.) ....................... 69
1-7. Safety information Correct driving posture....... 70
SRS airbags ....................... 72
Front passenger occupant classification system ........ 84
Child restraint systems....... 90
Installing child restraints..... 95

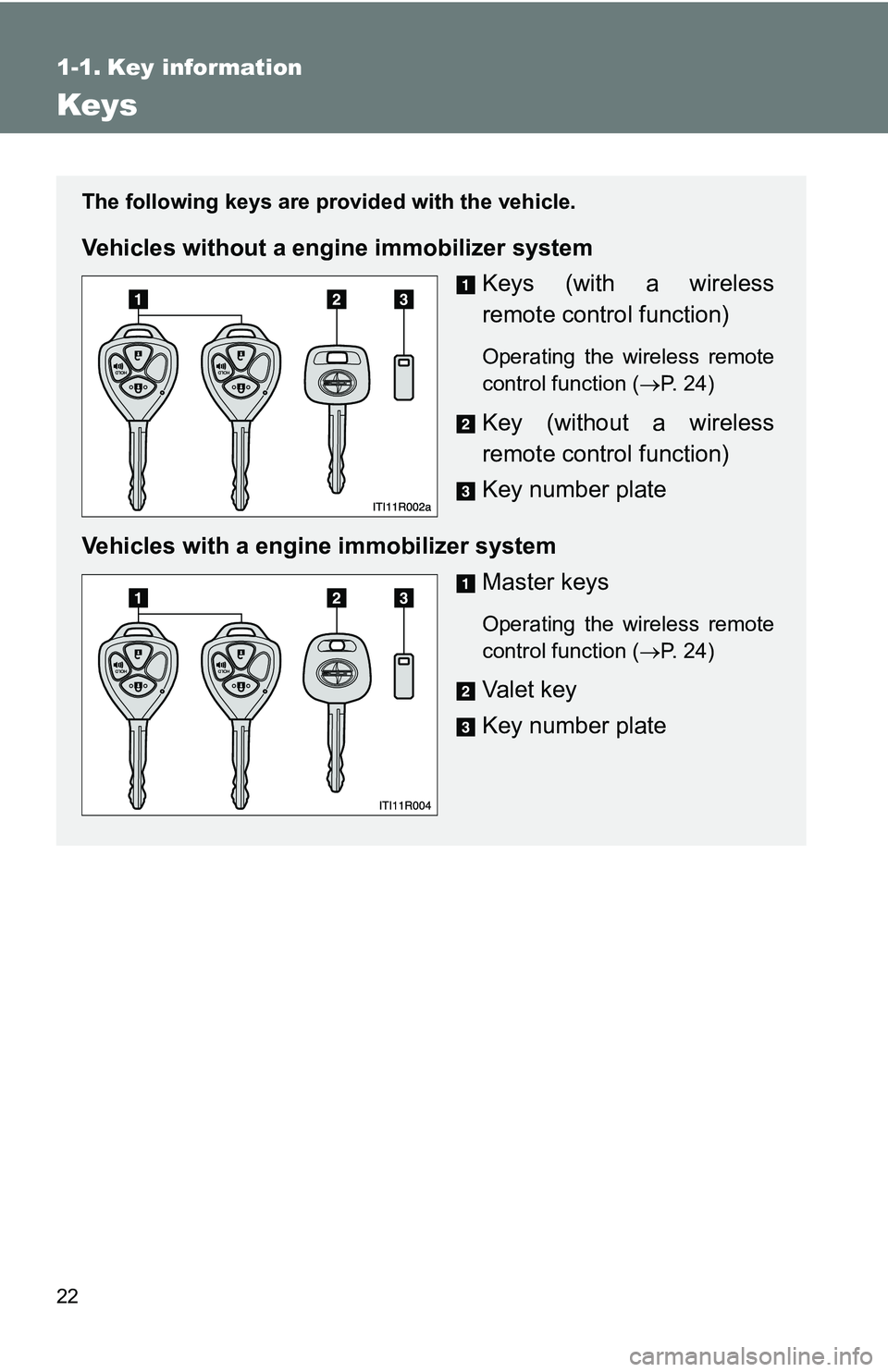

22
1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a engine immobilizer system
Keys (with a wireless
remote control function)
Operating the wireless remote
control function ( P. 24)
Key (without a wireless
remote control function)
Key number plate
Vehicles with a engine immobilizer system Master keys
Operating the wireless remote
control function (P. 24)
Va l e t k e y
Key number plate

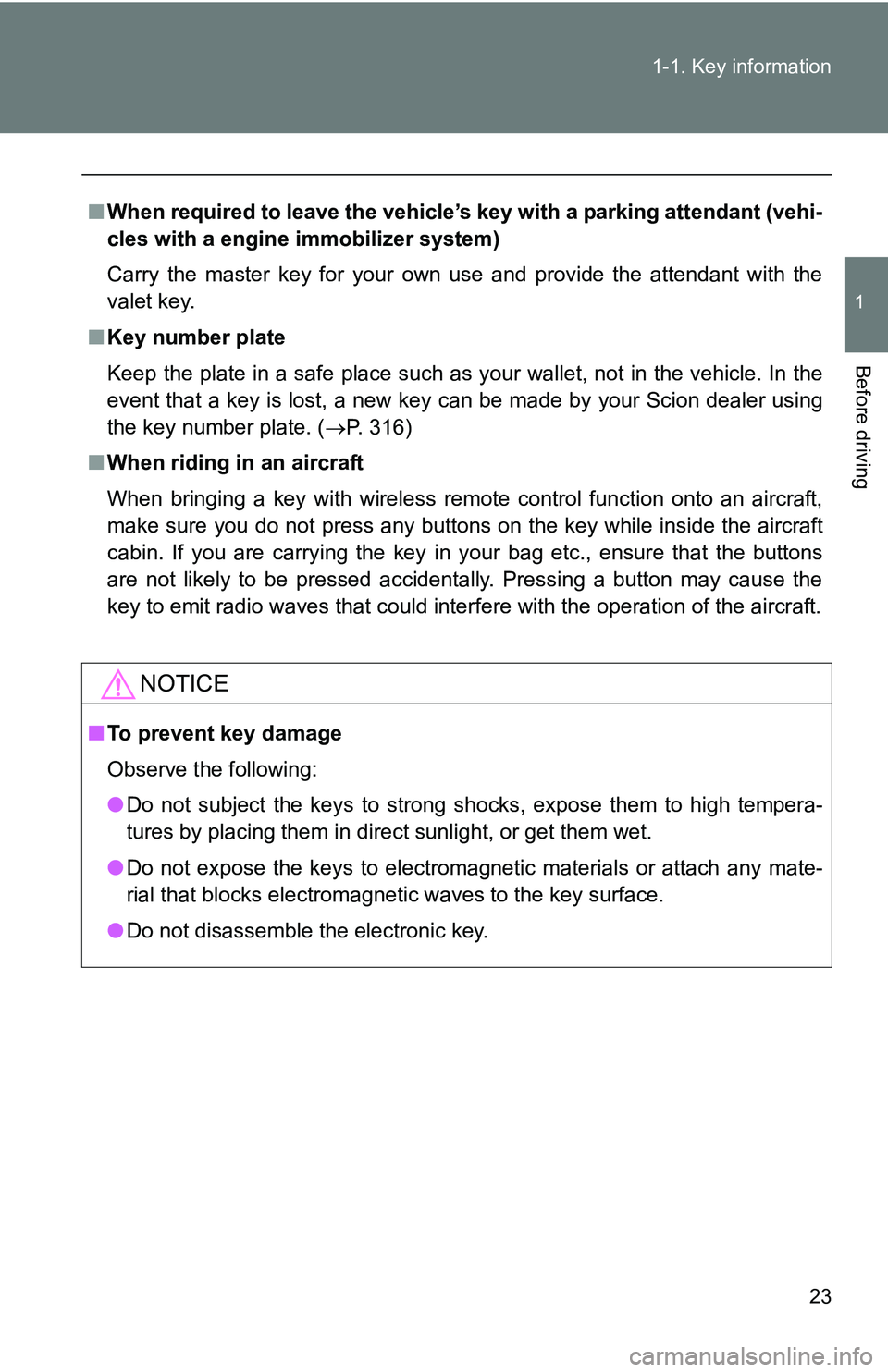

23
1-1. Key information
1
Before driving
■
When required to leave the vehicle’s key with a parking attendant (vehi-
cles with a engine immobilizer system)
Carry the master key for your own use and provide the attendant with the
valet key.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Scion dealer using
the key number plate. ( P. 316)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircra\
ft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the a\
ircraft.
NOTICE
■To prevent key damage
Observe the following:
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the electronic key.

24
1-2. Opening, closing and locking the doors

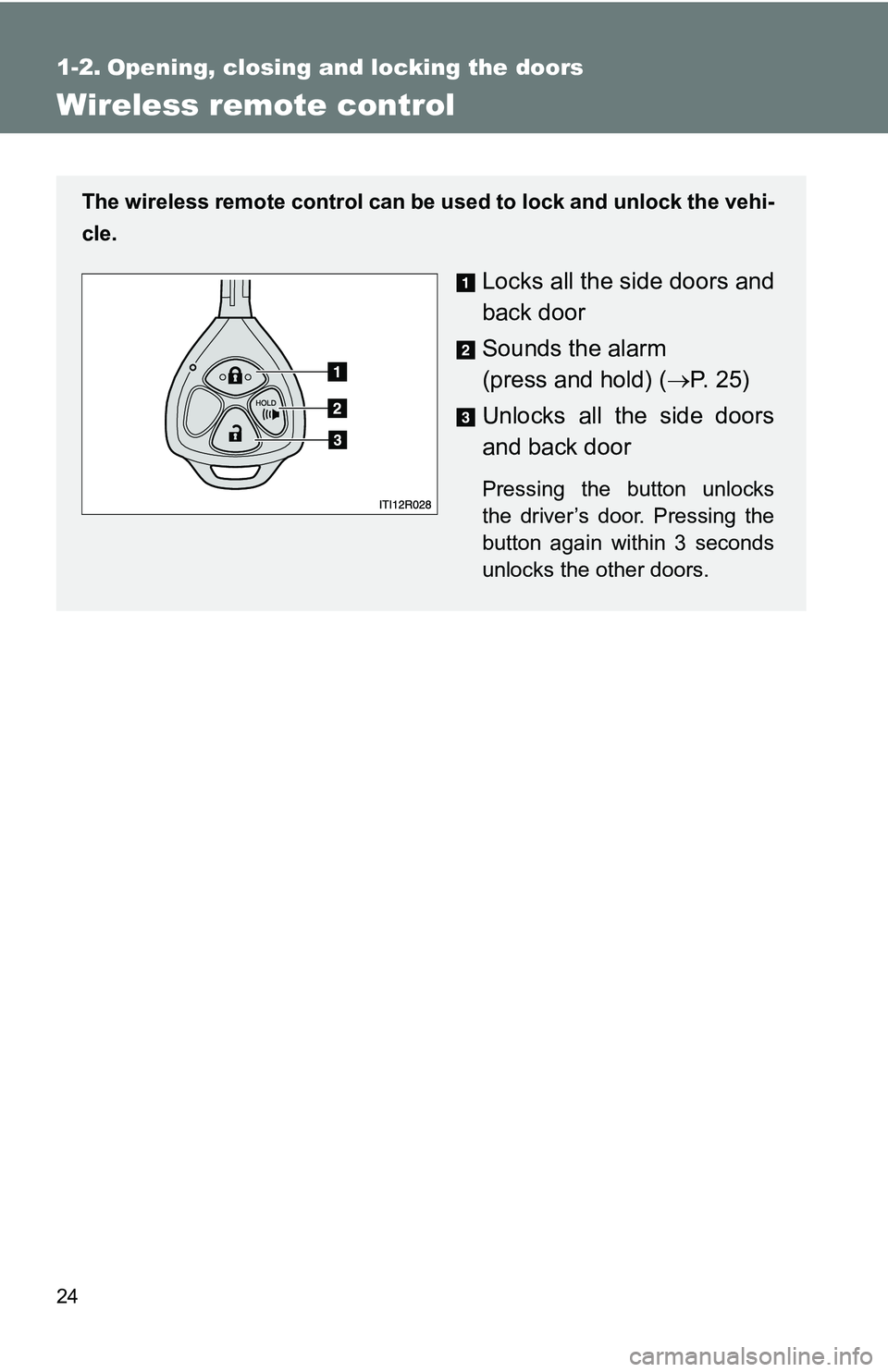

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle.
Locks all the side doors and
back door
Sounds the alarm
(press and hold) ( P. 2 5 )
Unlocks all the side doors
and back door
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.

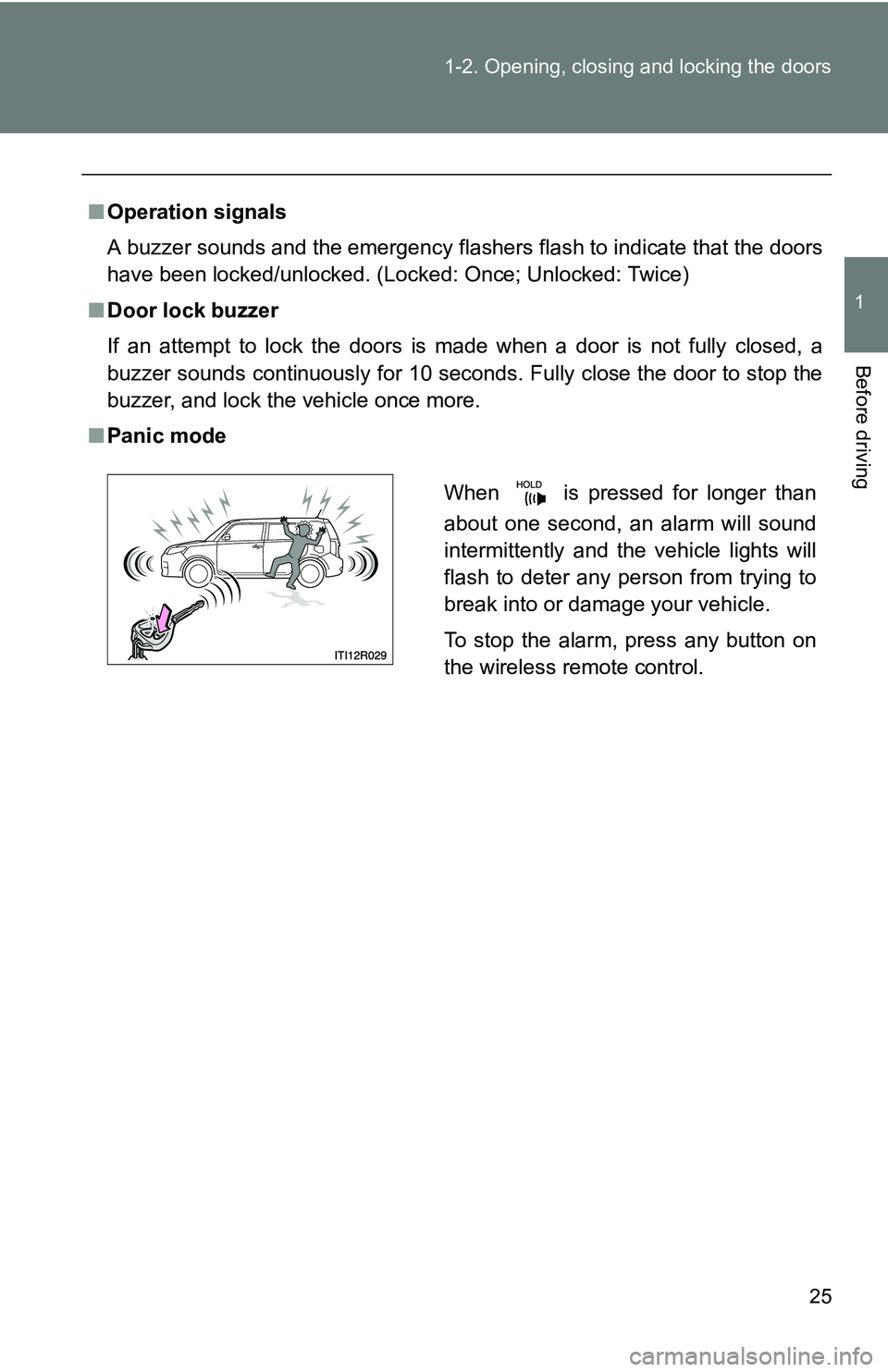

25
1-2. Opening, closing and locking the doors
1
Before driving
■
Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 10 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ Panic mode
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.

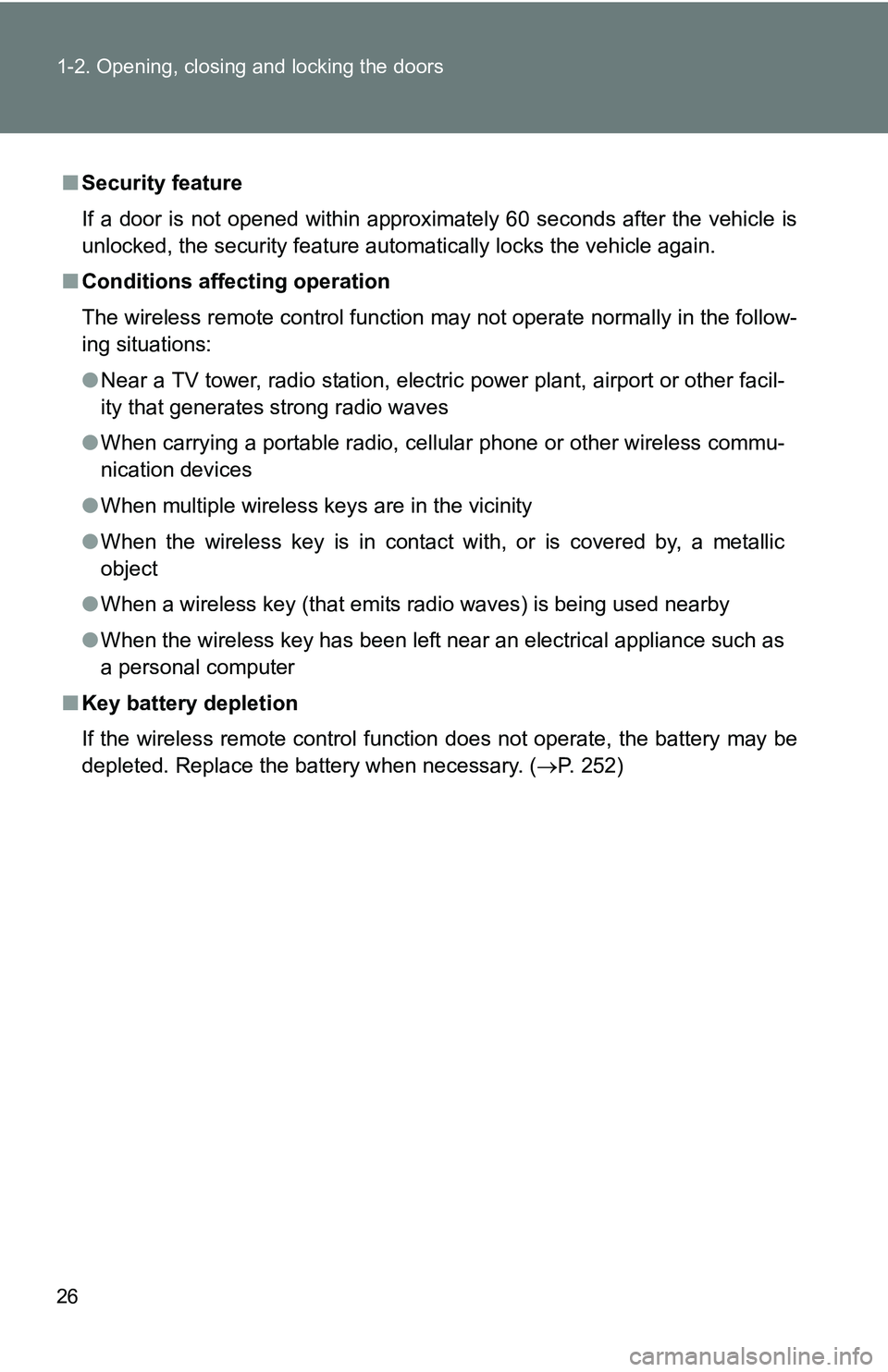

26 1-2. Opening, closing and locking the doors
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations:
●Near a TV tower, radio station, electr ic power plant, airport or other facil-
ity that generates strong radio waves
● When carrying a portable radio, cell ular phone or other wireless commu-
nication devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by, a metallic
object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as
a personal computer
■ Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( P. 252)

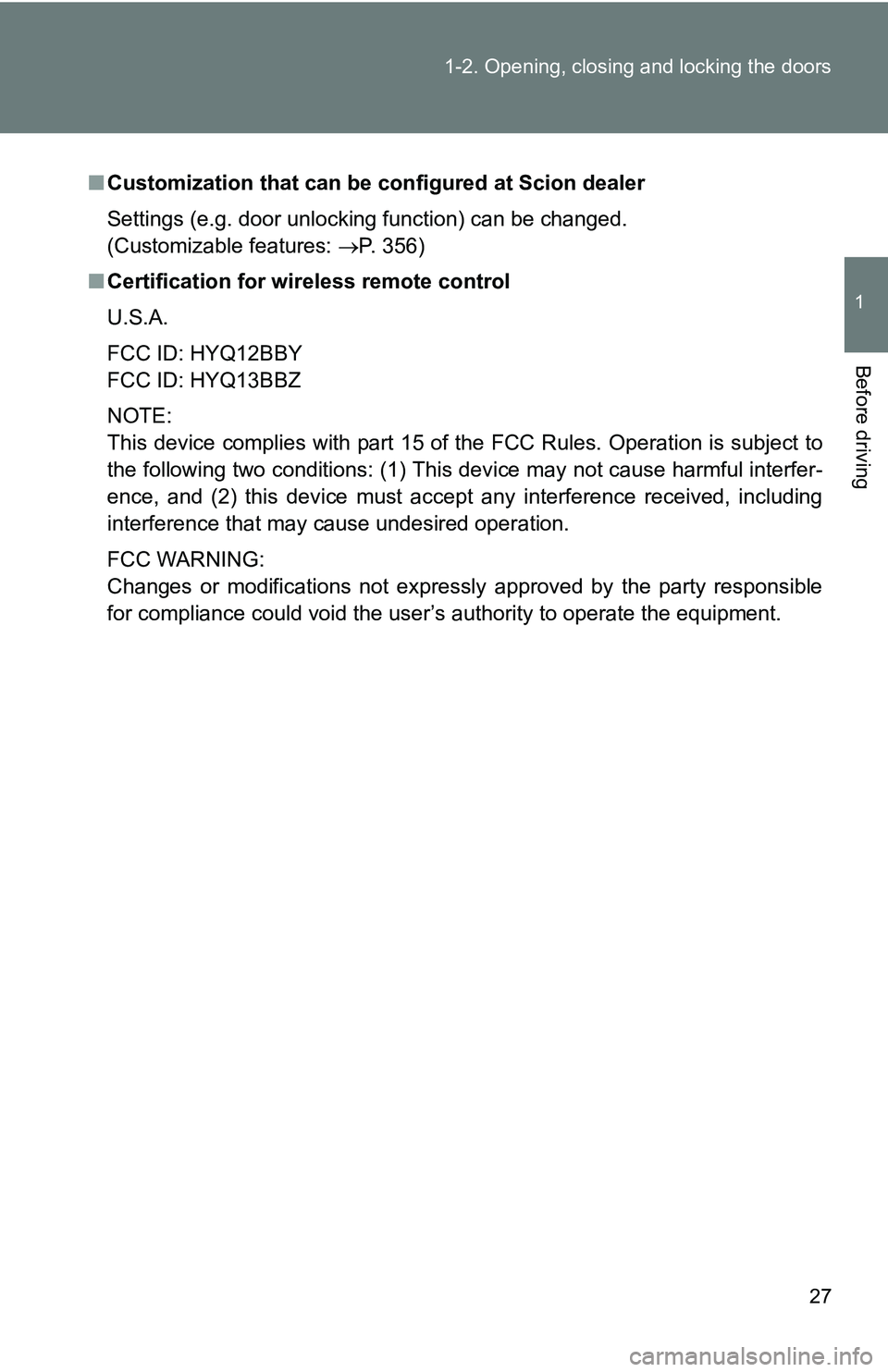

27
1-2. Opening, closing and locking the doors
1
Before driving
■
Customization that can be configured at Scion dealer
Settings (e.g. door unlocking function) can be changed.
(Customizable features: P. 356)
■ Certification for wireless remote control
U.S.A.
FCC ID: HYQ12BBY
FCC ID: HYQ13BBZ
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

28 1-2. Opening, closing and locking the doors

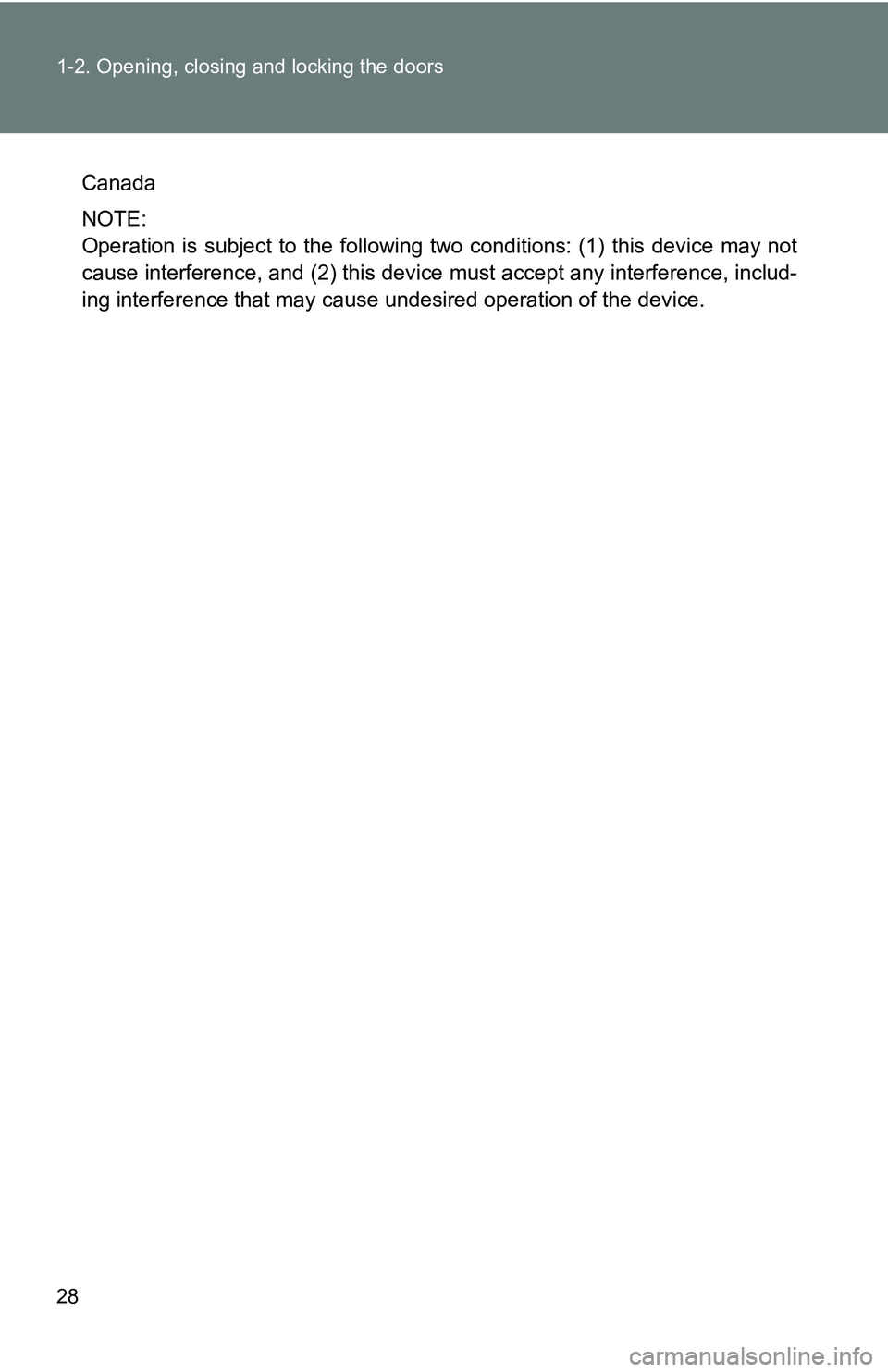

Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

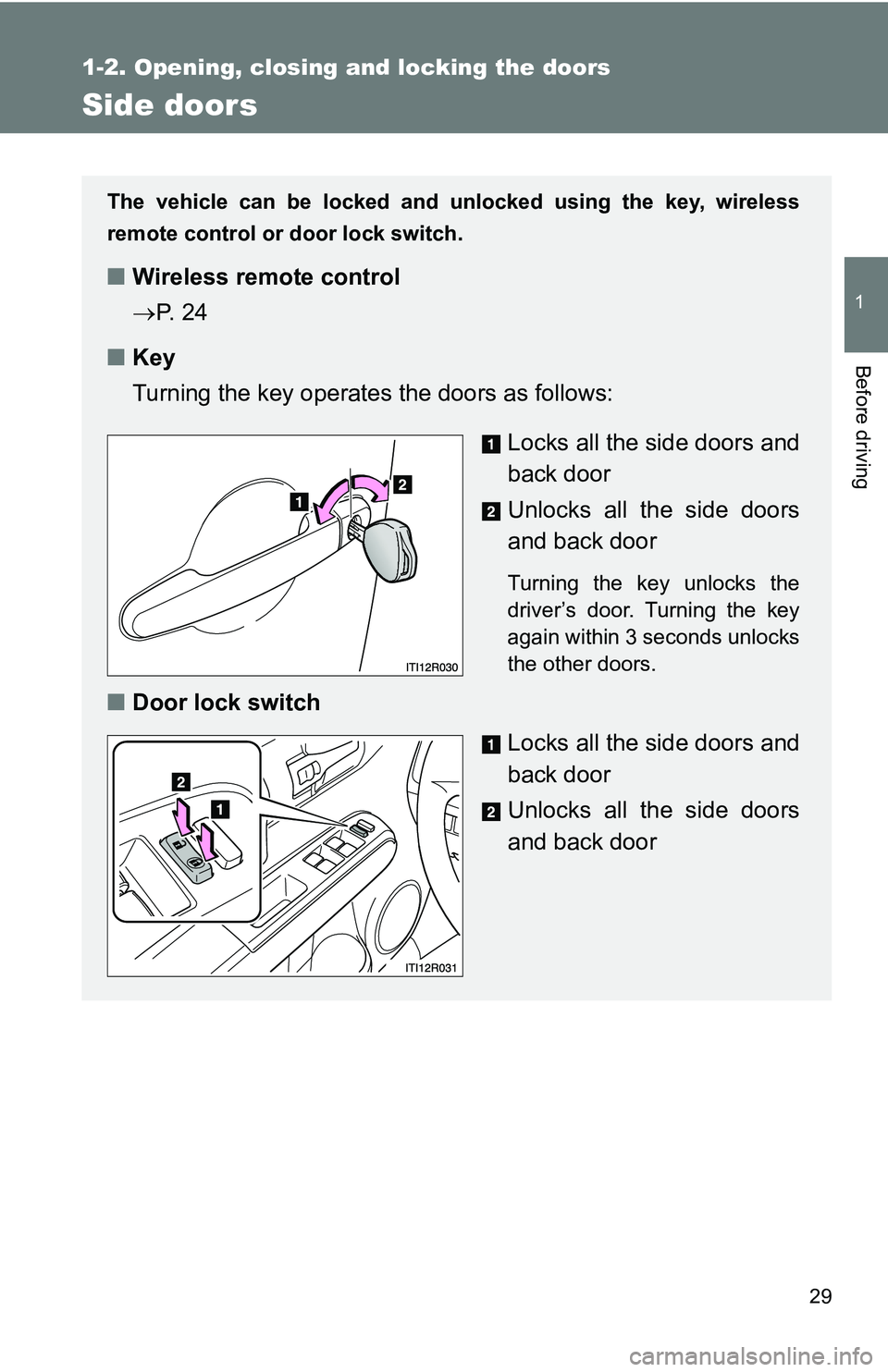

29
1
1-2. Opening, closing and locking the doors
Before driving
Side doors
The vehicle can be locked and unlocked using the key, wireless
remote control or door lock switch.
■Wireless remote control
P. 2 4
■ Key
Turning the key operates the doors as follows:
Locks all the side doors and
back door
Unlocks all the side doors
and back door
Turning the key unlocks the
driver’s door. Turning the key
again within 3 seconds unlocks
the other doors.
■Door lock switch
Locks all the side doors and
back door
Unlocks all the side doors
and back door

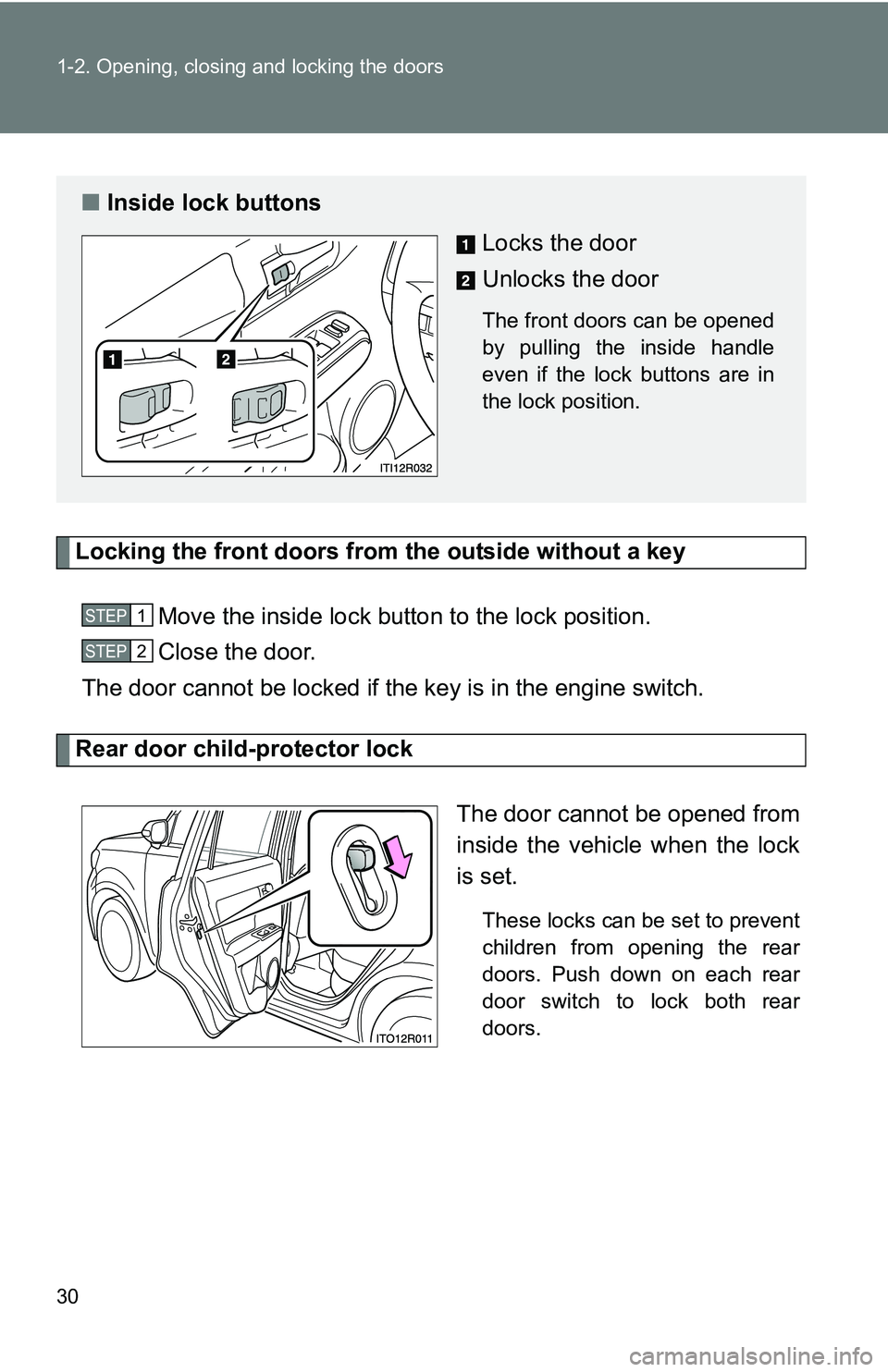

30 1-2. Opening, closing and locking the doors
Locking the front doors from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the key is in the engine switch.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
■Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
STEP 1
STEP 2
