9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

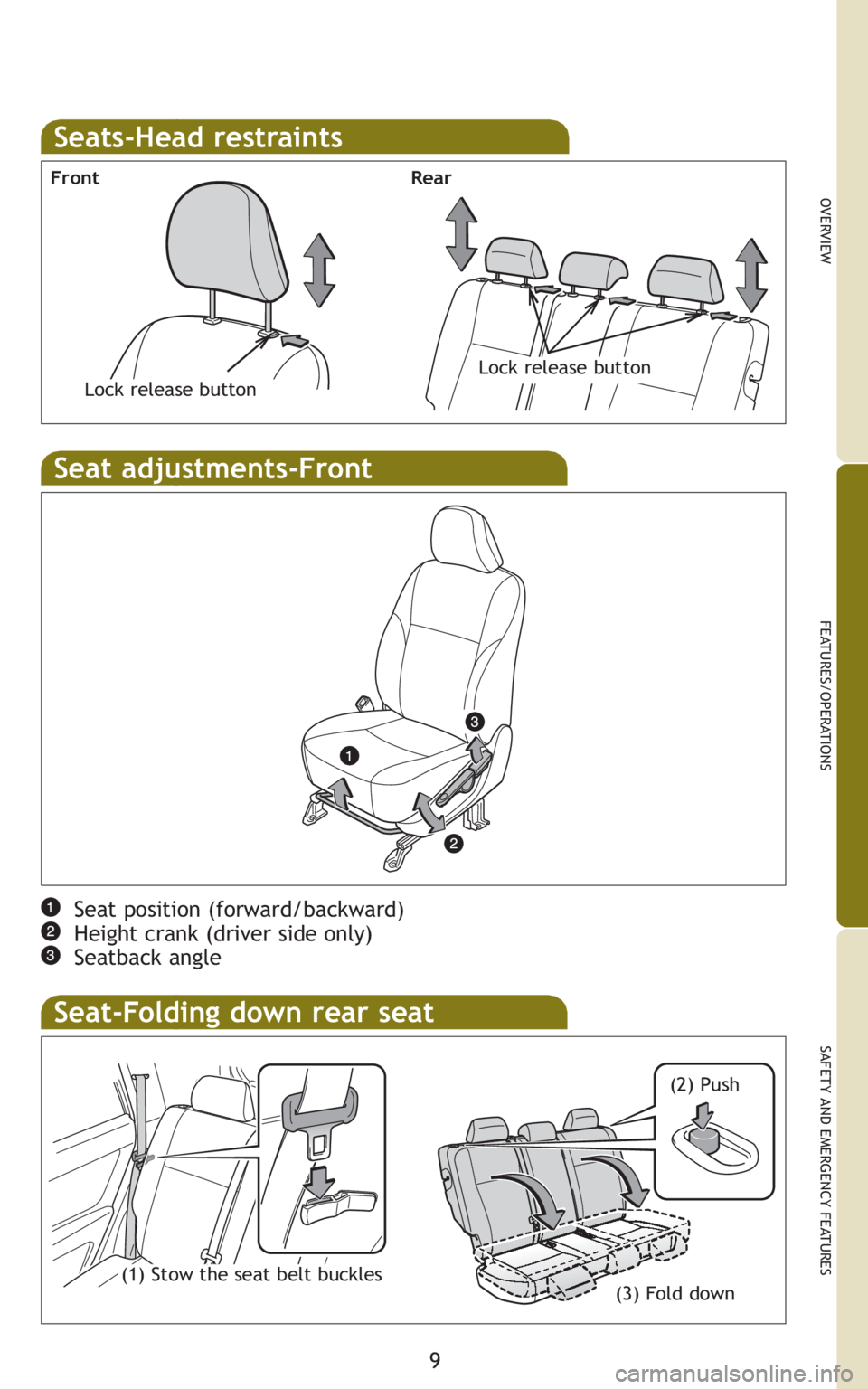

Seats-Head restraints
Lock release buttonLock release button
Front Rear
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat-Folding down rear seat
(1) Stow the seat belt buckles(3) Fold down(2) Push
Page 12 of 20
10
FEATURES/OPERATIONS
Windshield wipers & washers
Interval wipe
Slow
FastPull to wash and wipeSingle wipe
Front
Rear
Wash and wipe
Wipe
Wa s h
Lights & turn signals
Turn signals
Headlights
Headlights
Parking lights
Right turn
Lane change
Lane change
Left turn
High beam flasher
High beam
Page 13 of 20
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windows

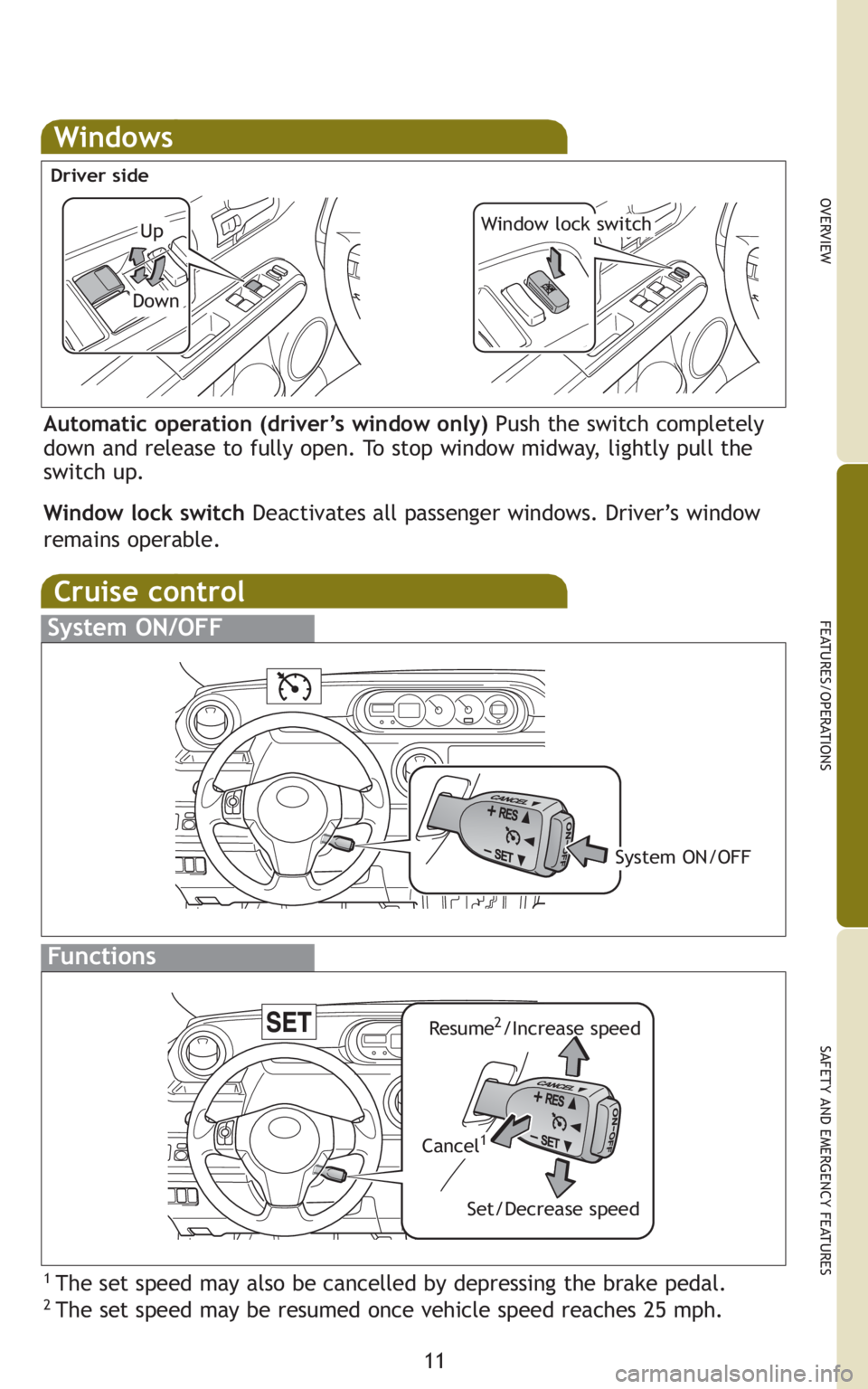

Automatic operation (driver’s window only) Push the switch completely
down and release to fully open. To stop window midway, lightly pull the
switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Driver side
Window lock switch
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
System ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed
Cancel1
Page 14 of 20
12
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
“ ” and “ ” mode use fresh air (“ ” indicator “OFF”) to
reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Rear window defogger
Fresh or recirculated cabin air

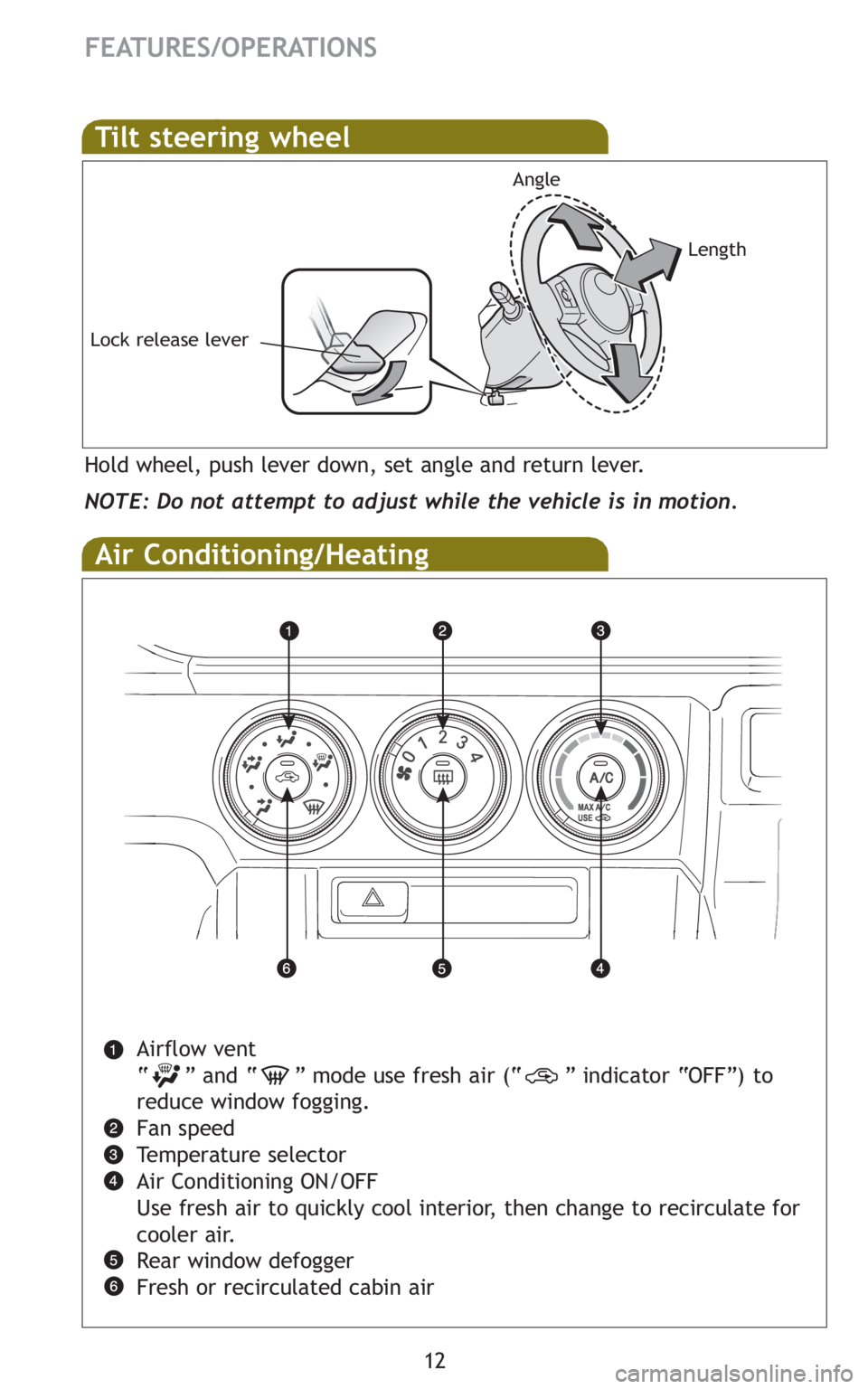

Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
Lock release leverAngle
Length
Page 15 of 20
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Steering wheel switches
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
Refer to the SCION Audio System Owner’s Manualor SCION Navigation
System Owner’s Manual for more details.>>
USB/AUX audio jack
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
If you do not have a SCION genuine audio system, you will not be able to
use the USB adapter or AUX jack.
Refer to the SCION Audio System Owner’s Manualor SCION Navigation
System Owner’s Manual for more details.
Volume control
Bottle holders
Front doorRear door
Page 16 of 20
14
FEATURES/OPERATIONS
Multi-information display

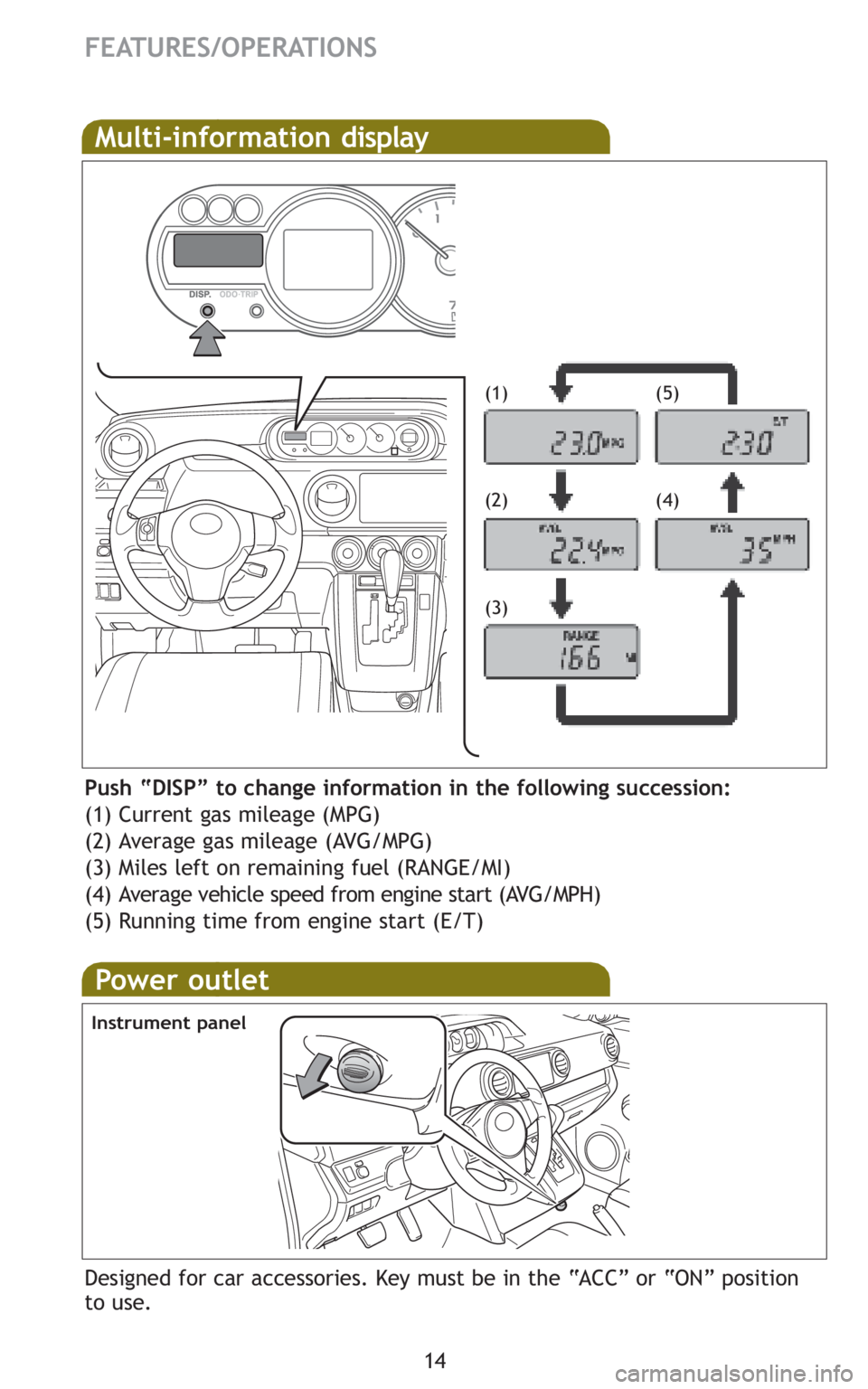

Push “DISP” to change information in the following succession:
(1) Current gas mileage (MPG)
(2) Average gas mileage (AVG/MPG)
(3) Miles left on remaining fuel (RANGE/MI)
(4) Average vehicle speed from engine start (AVG/MPH)
(5) Running time from engine start (E/T)
(1)
(2)
(3)
(5)
(4)
Power outlet
Instrument panel
Designed for car accessories. Key must be in the “ACC” or “ON” position
to use.
Page 17 of 20
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
SAFETY AND EMERGENCY FEATURES

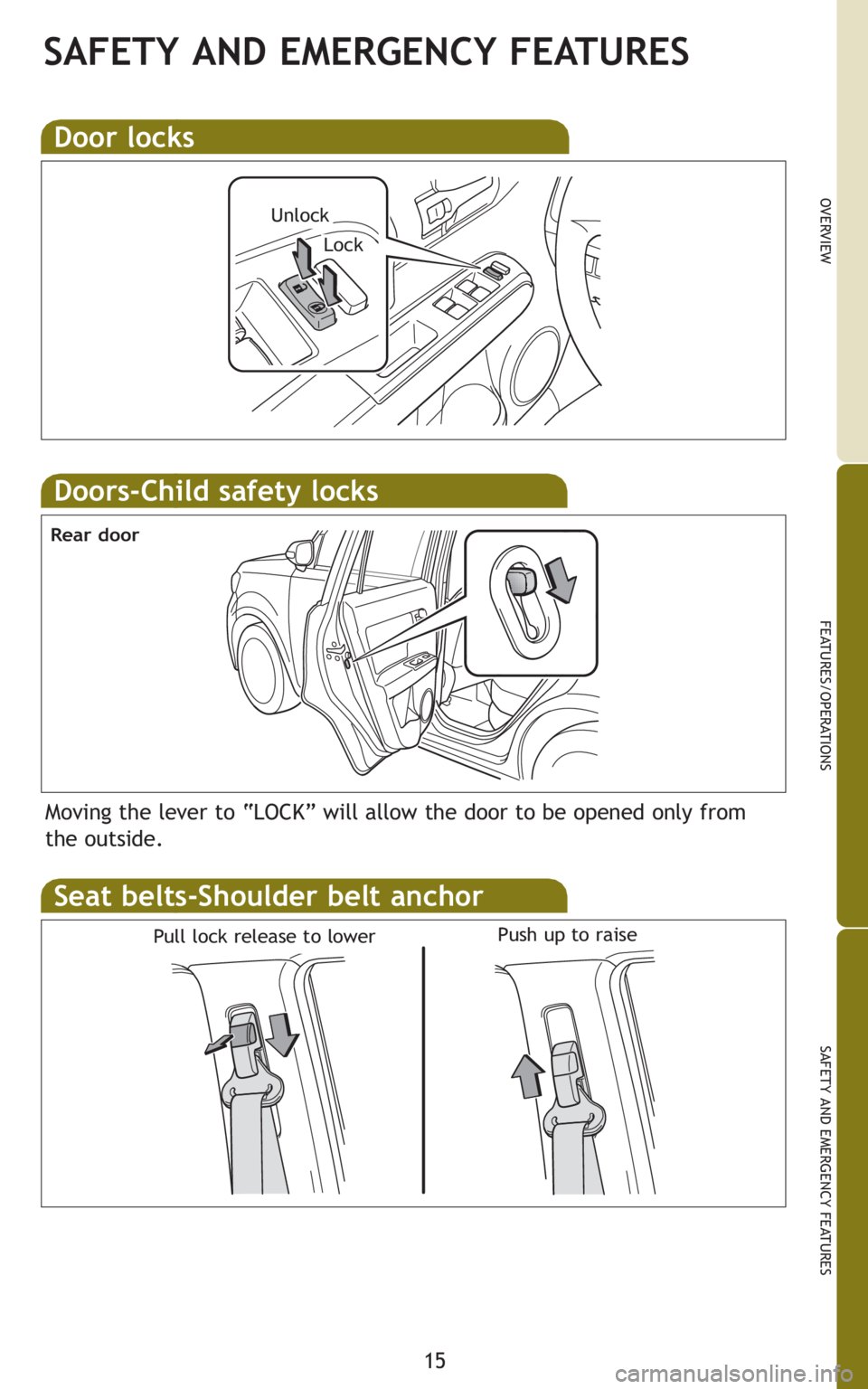

Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Door locks
Unlock
Lock
Seat belts-Shoulder belt anchor
Push up to raisePull lock release to lower
Page 18 of 20
16
SAFETY AND EMERGENCY FEATURES

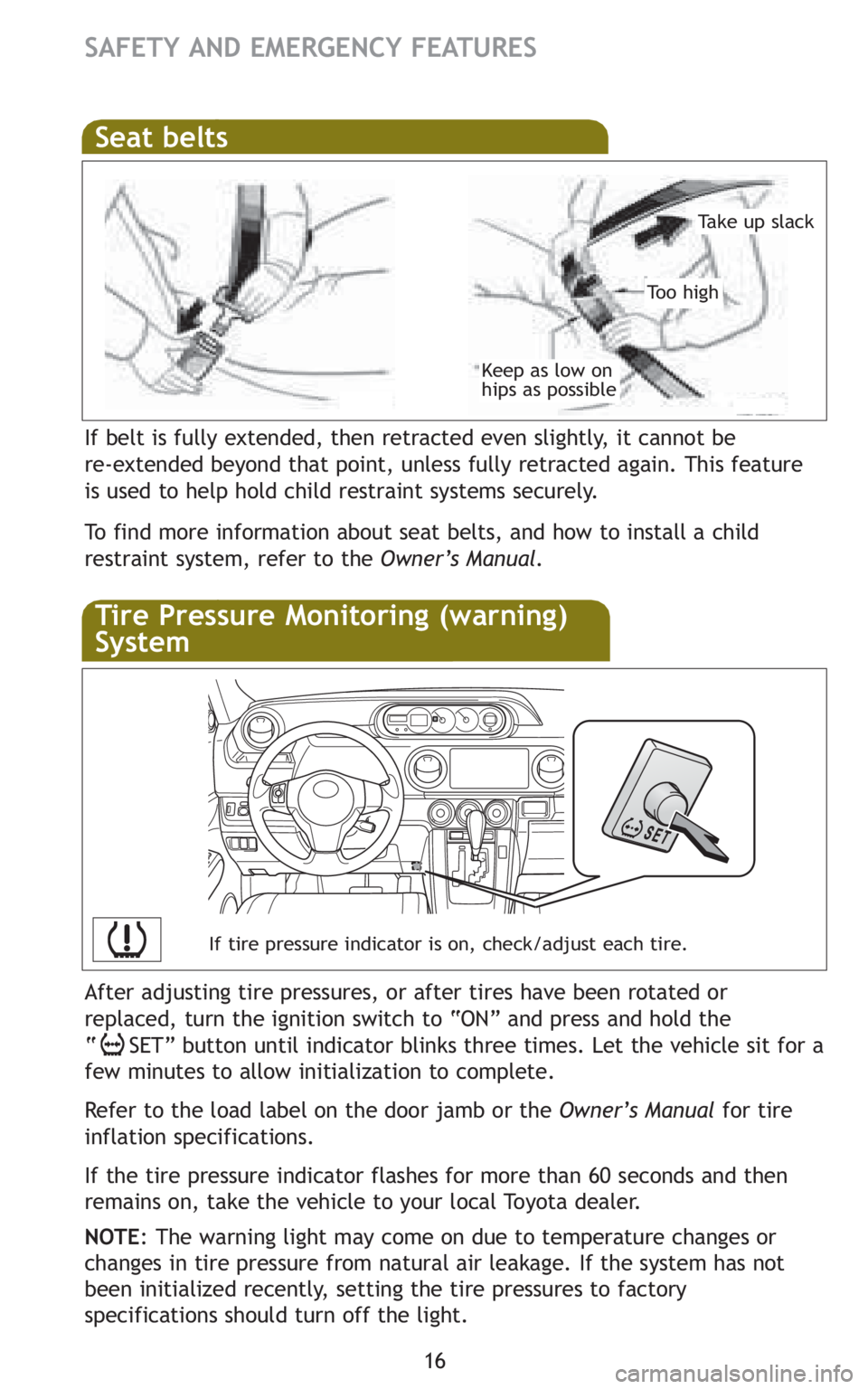

If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
If tire pressure indicator is on, check/adjust each tire.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Page 19 of 20
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools

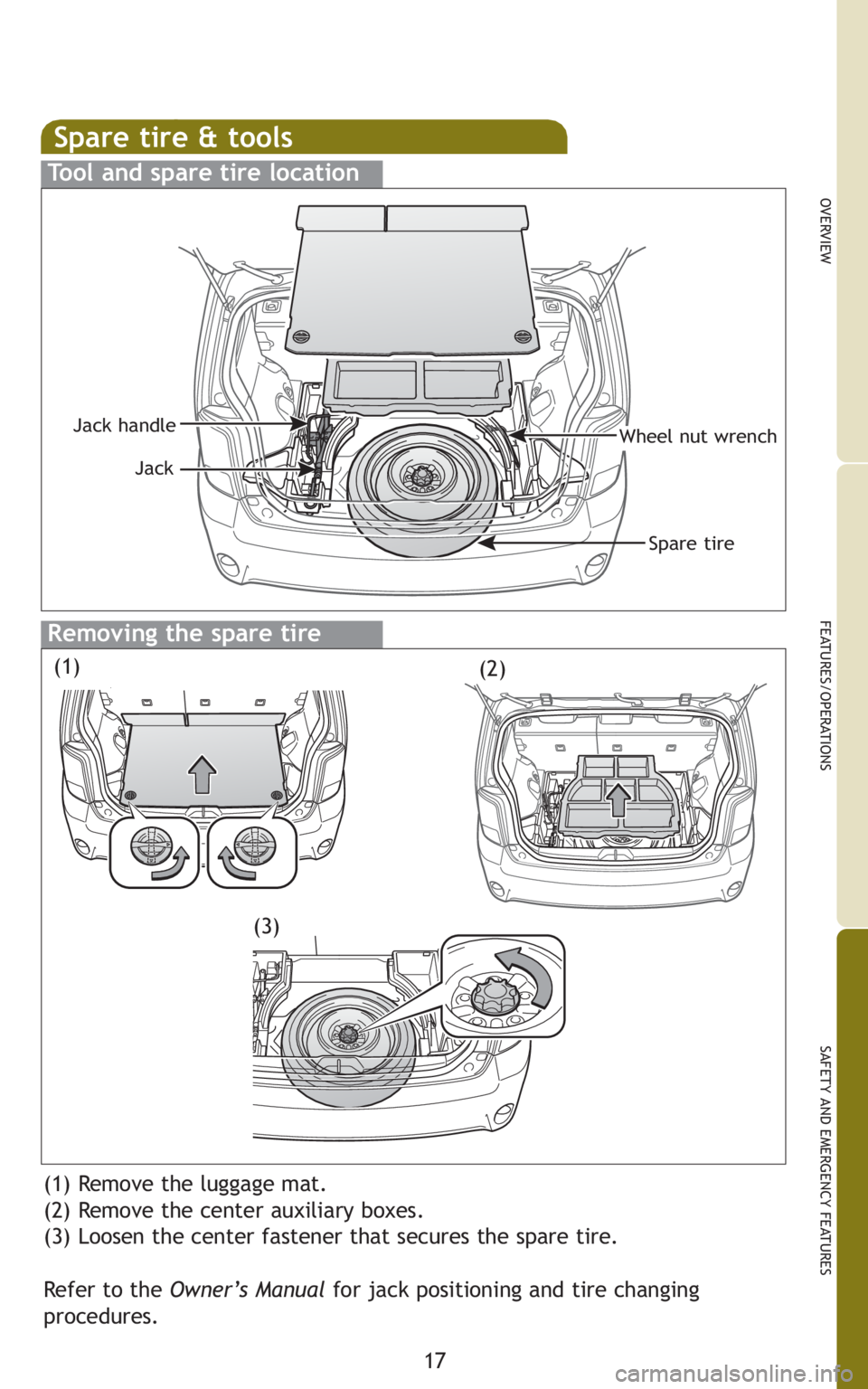

Tool and spare tire location
Removing the spare tire
(1) Remove the luggage mat.
(2) Remove the center auxiliary boxes.
(3) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manualfor jack positioning and tire changing
procedures.
Spare tire Jack handle
Jack
Wheel nut wrench
(1)(2)
(3)
