TOYOTA xB 2012 Owners Manual (in English)

121
2-1. Driving procedures
2
When driving
Scion_xB_U_(OM12F39U)

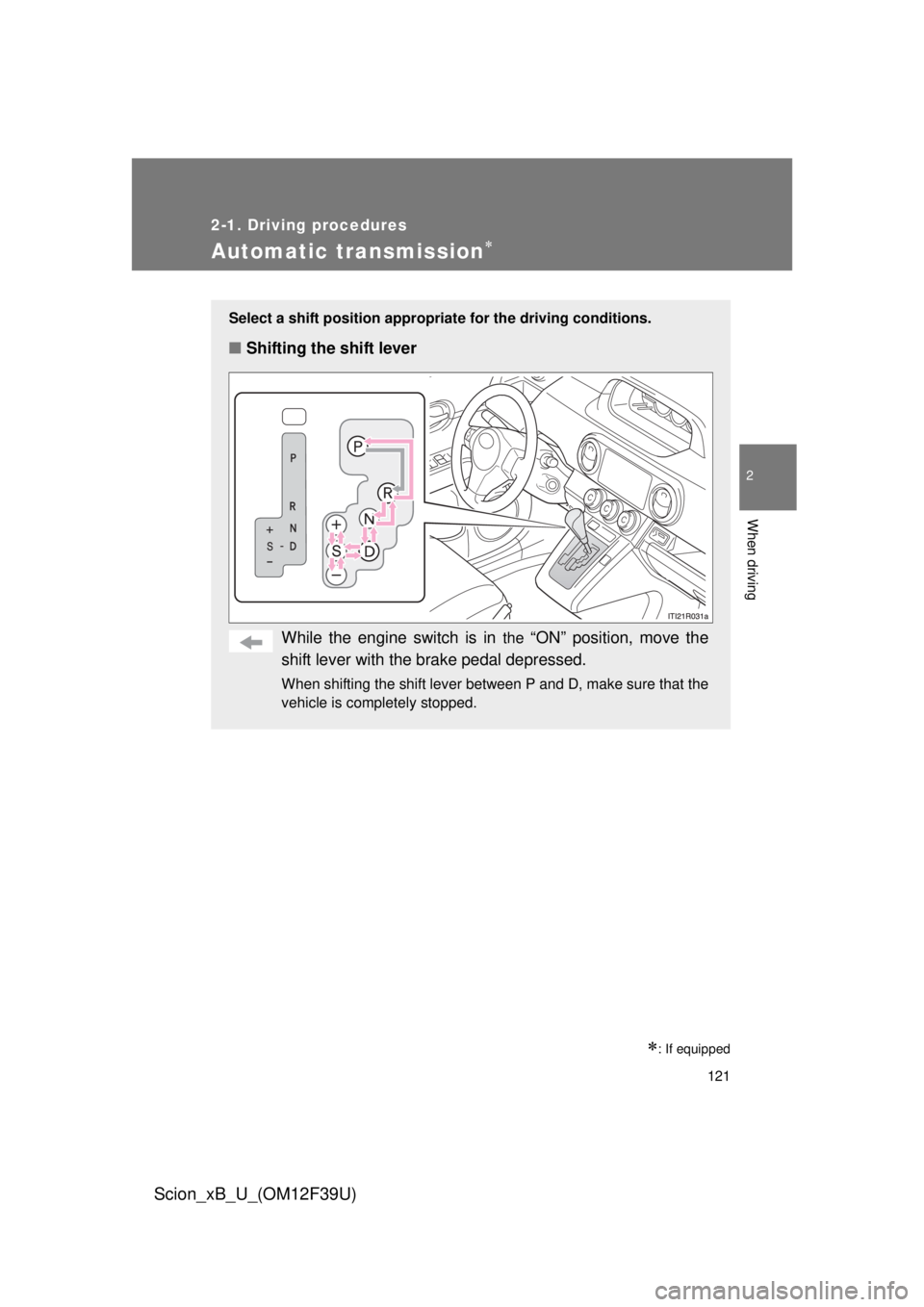

Automatic transmission
: If equipped
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the engine switch is in
the “ON” position, move the
shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.

122 2-1. Driving procedures
Scion_xB_U_(OM12F39U)

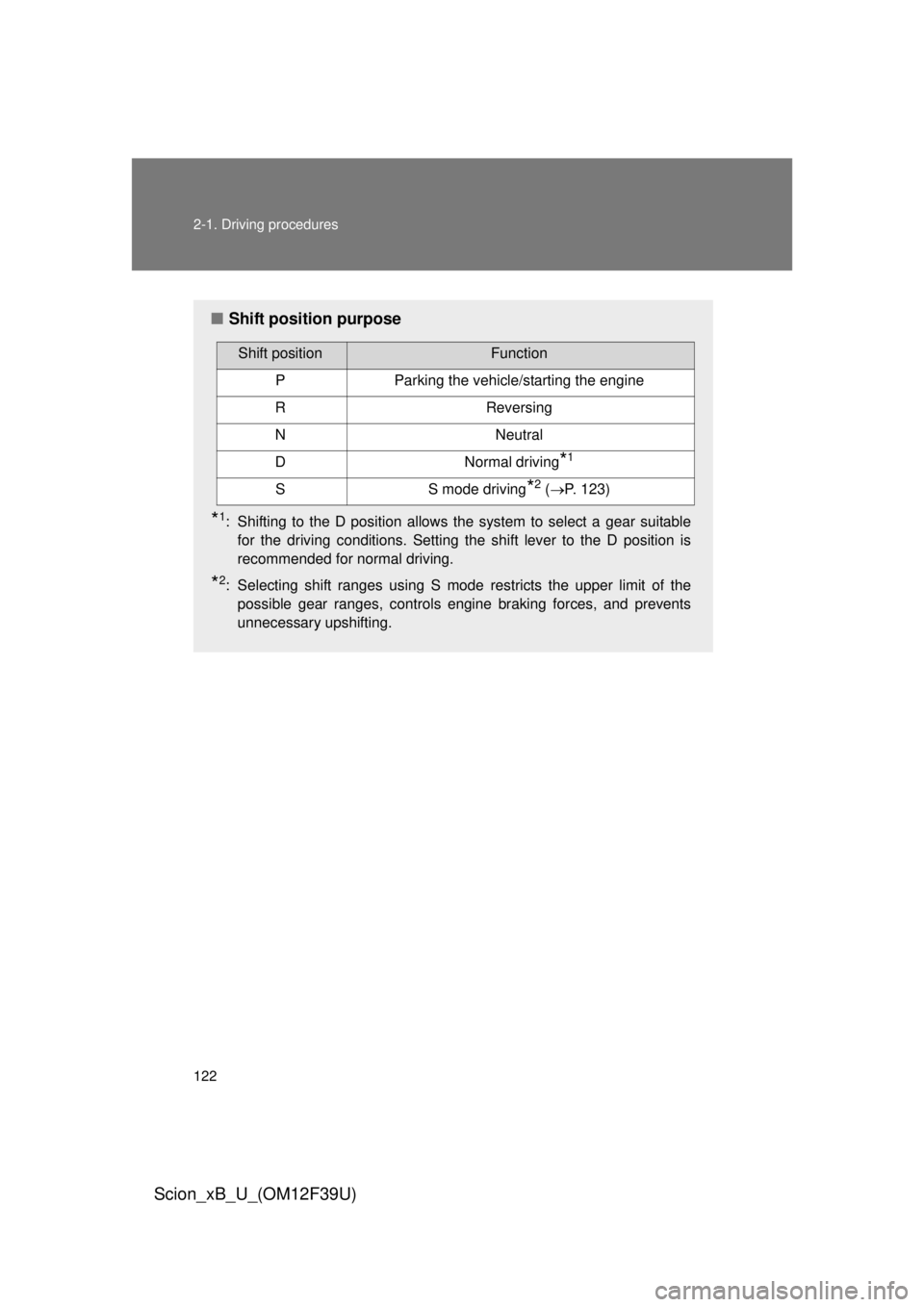

■Shift position purpose
*1: Shifting to the D position allows the system to select a gear suitable
for the driving conditions. Setting the shift lever to the D position is
recommended for normal driving.
*2: Selecting shift ranges using S mode restricts the upper limit of thepossible gear ranges, controls engine braking forces, and prevents
unnecessary upshifting.
Shift positionFunction
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 (P. 123)

123
2-1. Driving procedures
2
When driving
Scion_xB_U_(OM12F39U)
Changing shift ranges in S mode
When the shift lever is in the S position, the shift lever can be oper-
ated as follows: For upshifting
For downshifting
The initial shift range in S mode is set automatically to “3”.
■ Shift ranges and their functions
●You can choose from 4 levels of engine braking force.
● A lower shift range will provide greater engine br aking force than
a higher shift range, and the engine speed will also increase.

124 2-1. Driving procedures
Scion_xB_U_(OM12F39U)
■When driving with the cruise control system
Engine braking will not occur in S mode, even when downshifting to “3”.
(P. 146)
■ If the shift lever cannot be shifted from P
 P. 316
■ If the “S” indicator does not come on even after shifting the shift lever
to S
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Scion dealer immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■ Downshift restriction warning buzzer (S mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
CAUTION
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.

125
2-1. Driving procedures
2
When driving
Scion_xB_U_(OM12F39U)
Manual transmission
: If equipped
■Maximum allowable speeds
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
mph (km/h)
■Shifting the shift lever
Fully depress the clutch pedal
before operating the shift
lever, and then release it
slowly.
Shift positionMaximum speed
1 30 (49)
2 53 (85)
3 81 (130)
4 111 (179)

126
2-1. Driving procedures
Scion_xB_U_(OM12F39U)

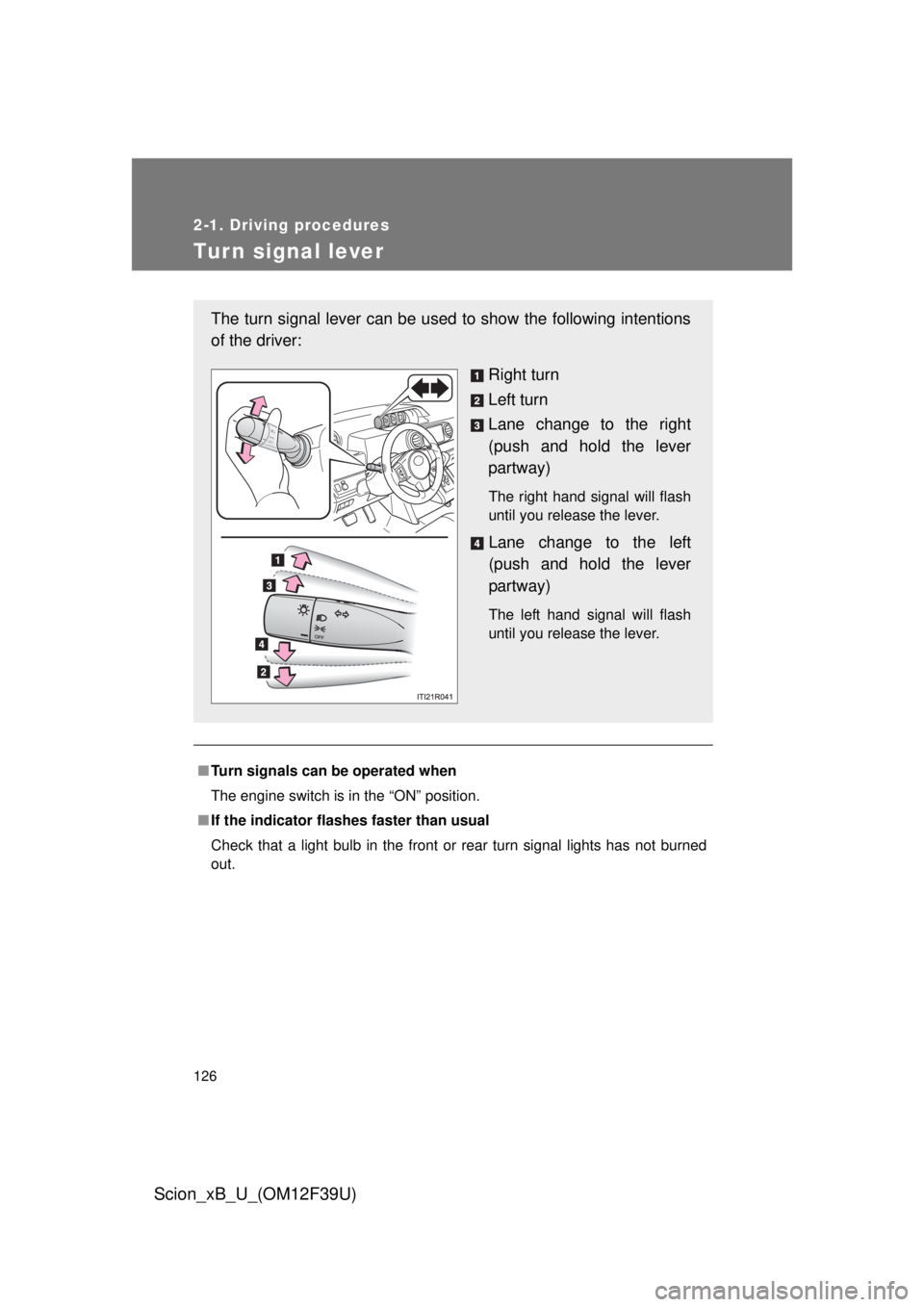

Tur n signal lever
■Turn signals can be operated when
The engine switch is in the
“ON” position.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signal will flash
until you release the lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signal will flash
until you release the lever.

127
2-1. Driving procedures
2
When driving
Scion_xB_U_(OM12F39U)

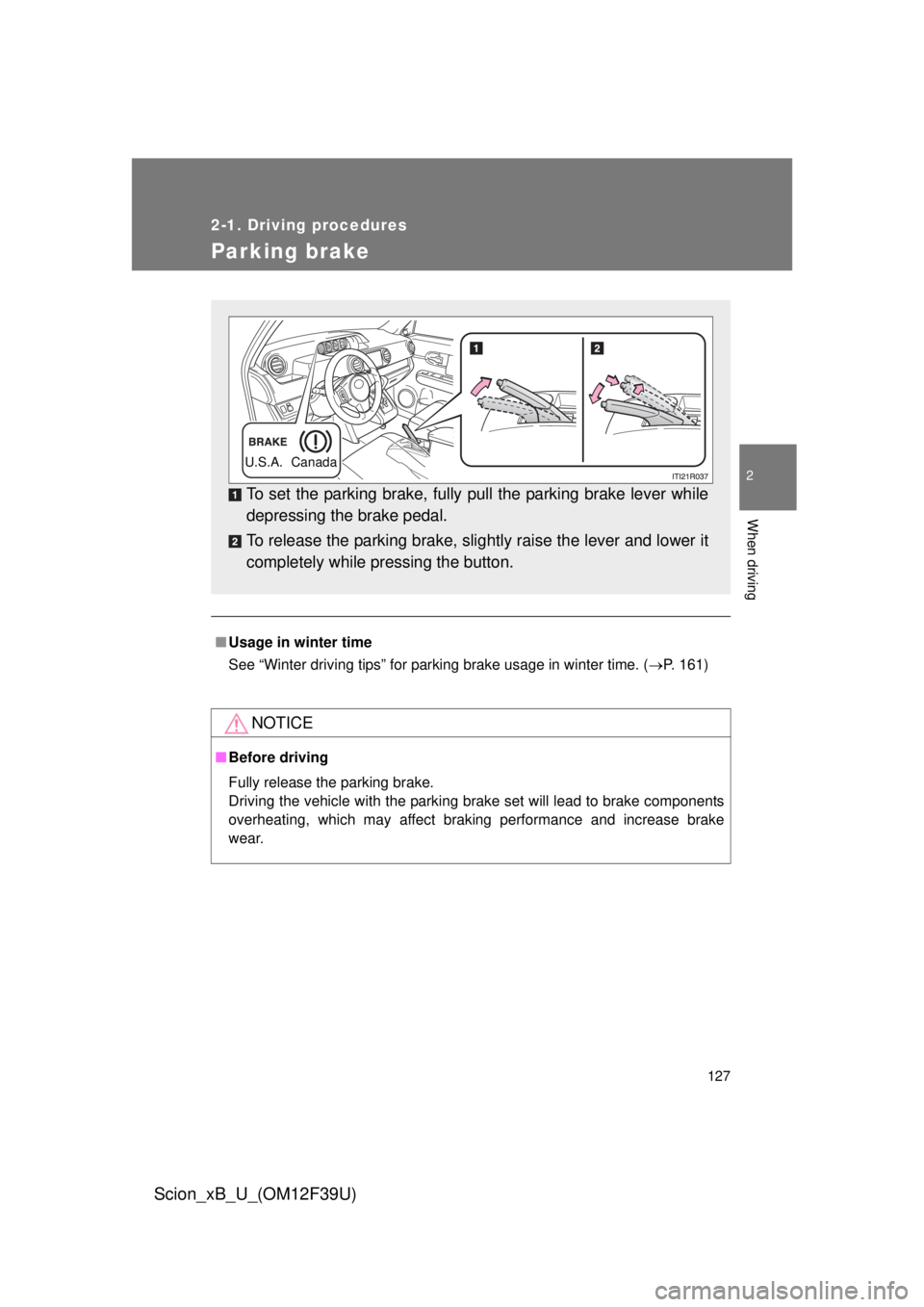

Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 161)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully pull the parking brake lever while
depressing the brake pedal.
To release the parking brake, slig htly raise the lever and lower it
completely while pressing the button.
U.S.A. Canada

128
2-1. Driving procedures
Scion_xB_U_(OM12F39U)

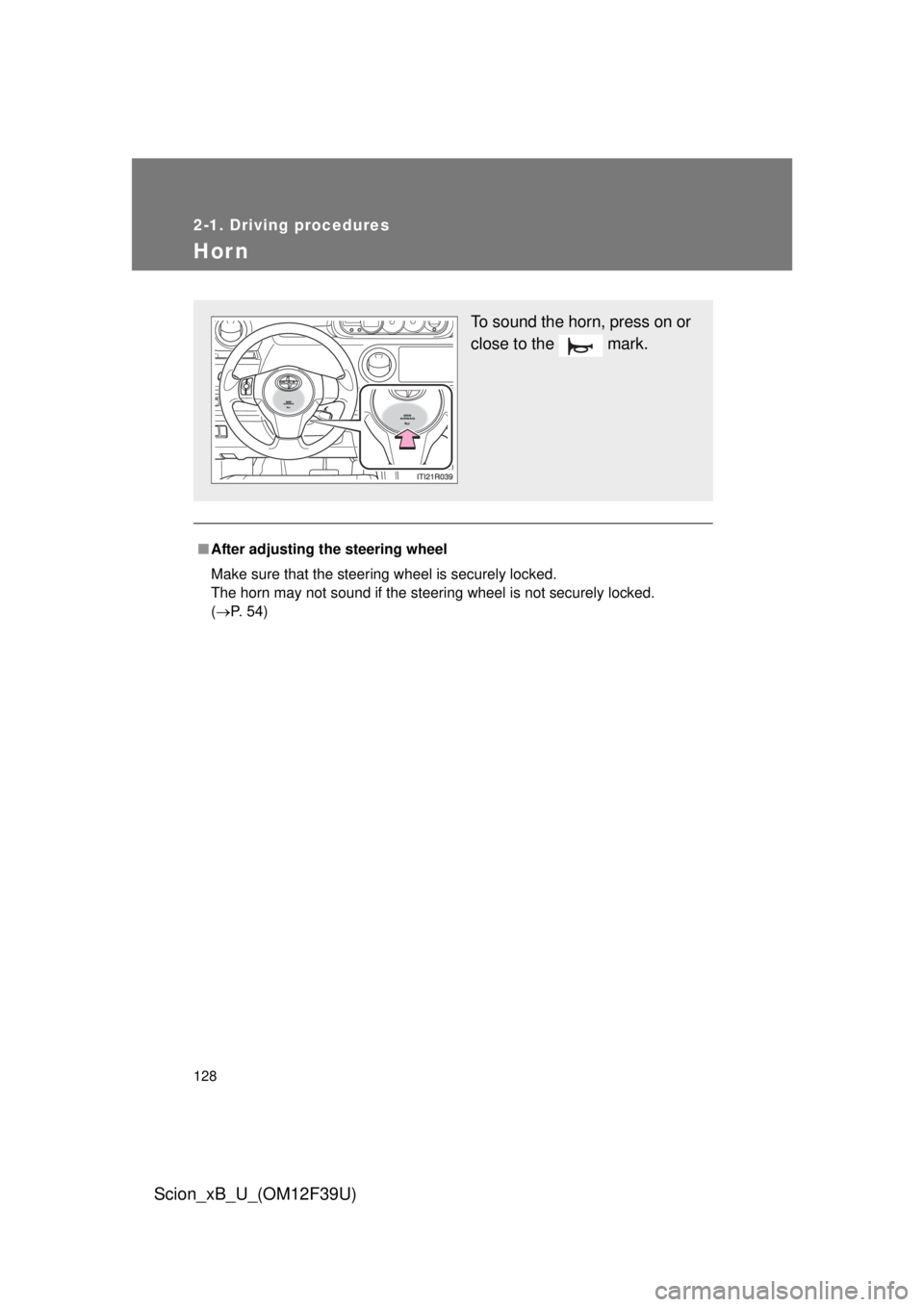

Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 54)
To sound the horn, press on or
close to the mark.

129
2
When driving
Scion_xB_U_(OM12F39U)

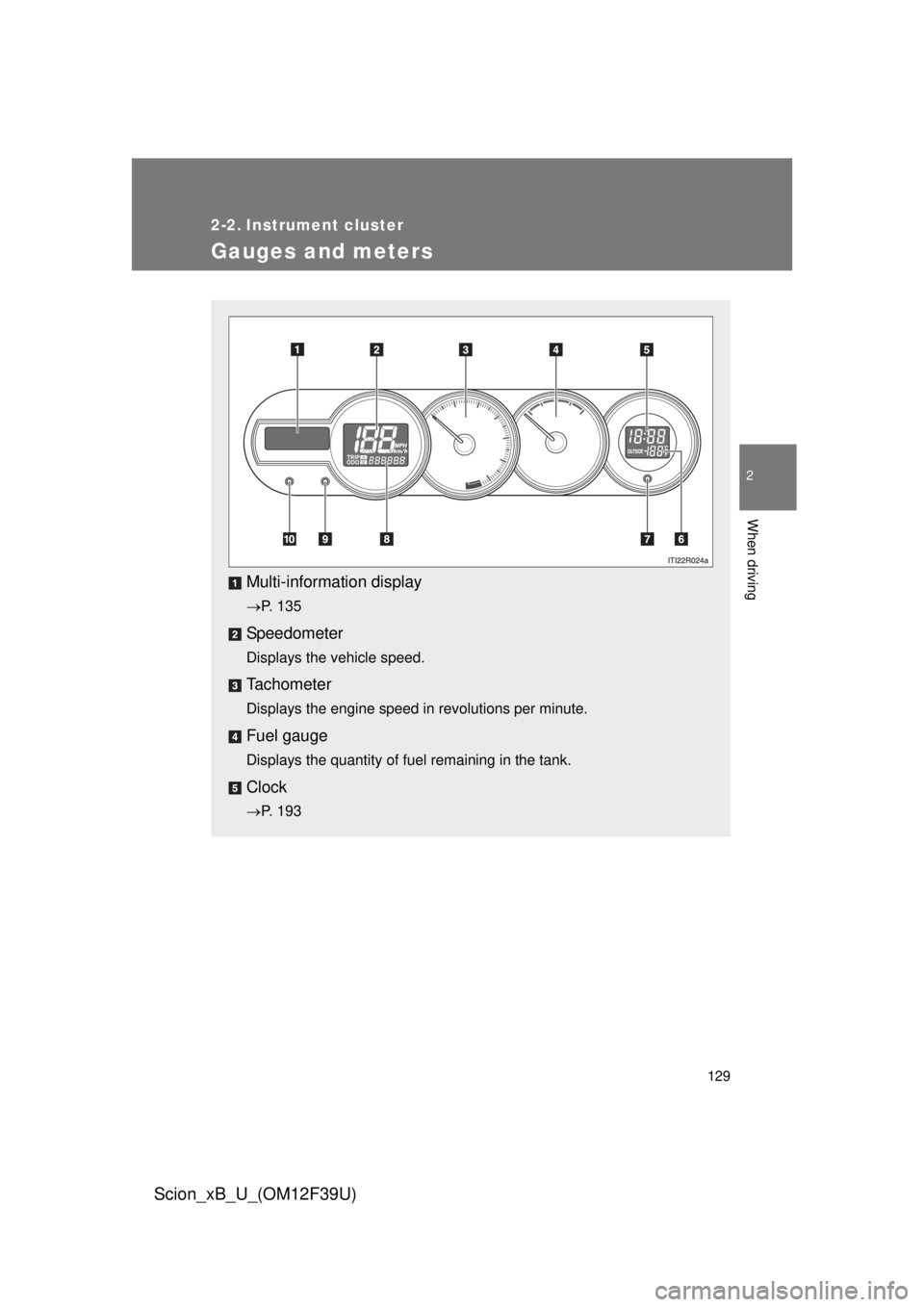

2-2. Instrument cluster
Gauges and meters
Multi-information display
P. 135
Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Clock
P. 193

130 2-2. Instrument cluster
Scion_xB_U_(OM12F39U)

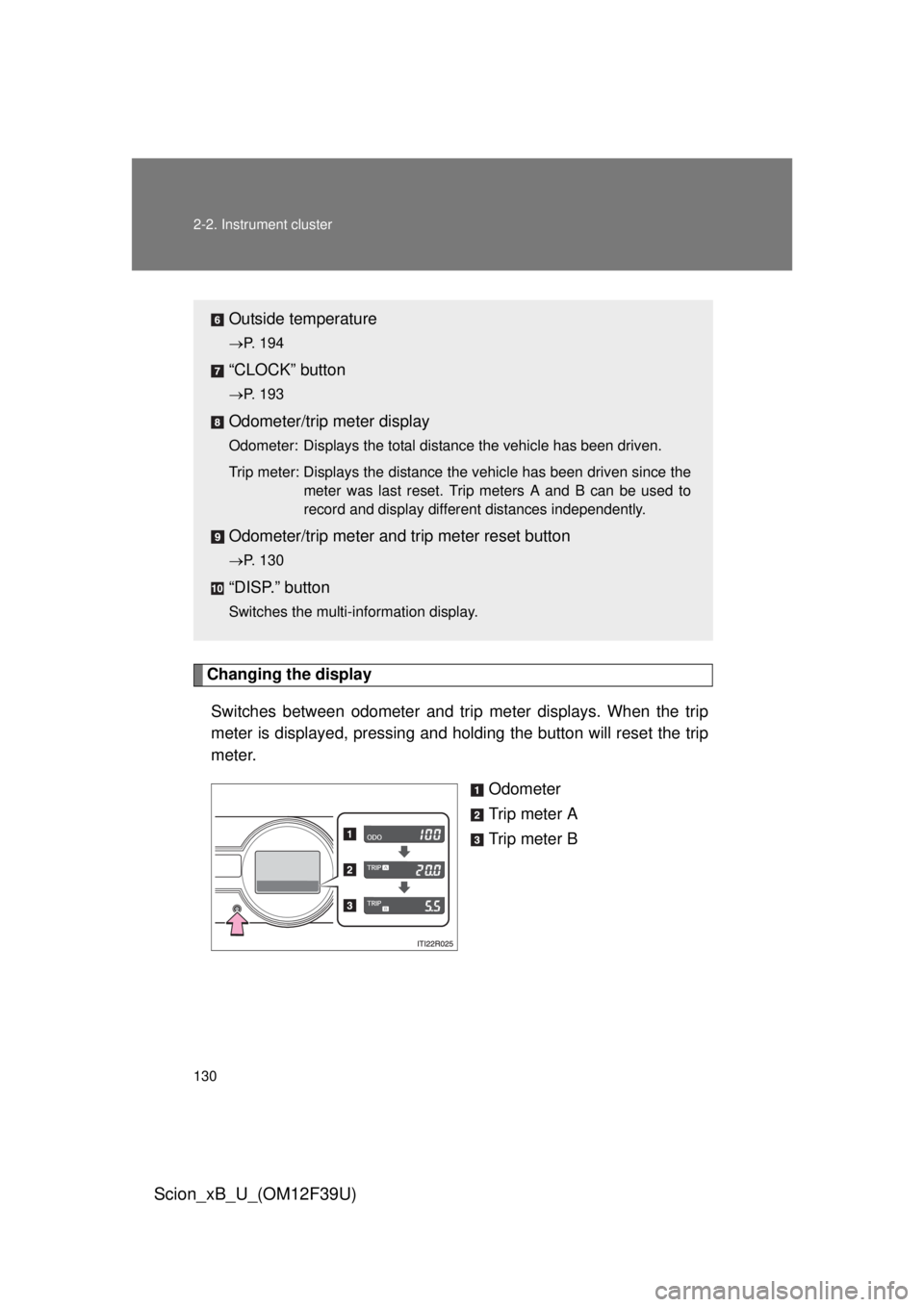

Changing the displaySwitches between odometer and trip meter displays. When the trip
meter is displayed, pressing and holding the button will reset the trip
meter. Odometer
Trip meter A
Trip meter B
Outside temperature
P. 194
“CLOCK” button
P. 193
Odometer/trip meter display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to
record and display different distances independently.
Odometer/trip meter and trip meter reset button
P. 130
“DISP.” button
Switches the multi-information display.
