TOYOTA xB 2014 Owners Manual (in English)

261
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12J62U_(U)

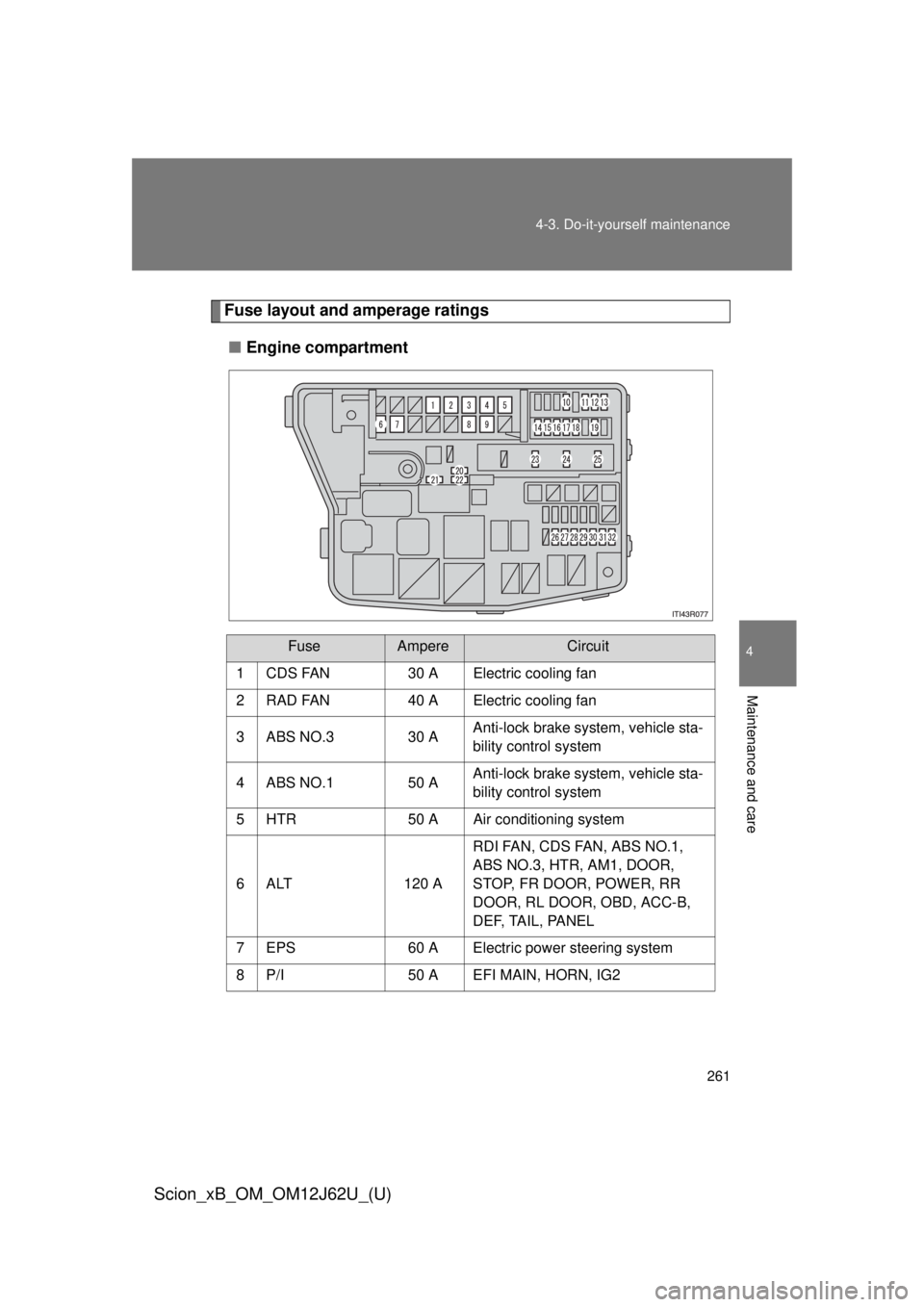

Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1 CDS FAN 30 A Electric cooling fan
2 RAD FAN 40 A Electric cooling fan
3 ABS NO.3 30 A Anti-lock brake system, vehicle sta-
bility control system
4 ABS NO.1 50 A Anti-lock brake system, vehicle sta-
bility control system
5 HTR 50 A Air conditioning system
6 ALT 120 A RDI FAN, CDS FAN, ABS NO.1,
ABS NO.3, HTR, AM1, DOOR,
STOP, FR DOOR, POWER, RR
DOOR, RL DOOR, OBD, ACC-B,
DEF, TAIL, PANEL
7 EPS 60 A Electric power steering system
8 P/I 50 A EFI MAIN, HORN, IG2

262 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12J62U_(U)
9 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
10 ECU-B2 10 A Air conditioning system
11 ECU-B 10 A Gauges and meters, body ECU,
vehicle stability control system
12 RAD NO.1 15 A Audio system
13 DOME 10 A Interior light, personal light, lug-
gage compartment light, wireless
remote control system
14 AM2 NO.2 7.5 A No circuit
15 ALT-S 7.5 A Charging system
16 TURN-HAZ 10 A Turn signal lights, emergency
flashers
17 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
18 AM2 30 A Multiport fuel injection system/
sequential multiport fuel injection
system, starting system
19 STRG LOCK 20 A No circuit
20 SPARE Spare fuse
21 SPARE Spare fuse
22 SPARE Spare fuse
23 EFI MAIN 20 A Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
24 HORN 10 A Horn
FuseAmpereCircuit

263
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12J62U_(U)
25 IG2
15 AIGN, METER, IG2 NO.2
26 IG2 NO.27.5 A Starting system
27 EFI NO.2 10 AAir conditioning system, rear O2
sensor, front air flow sensor
28 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter
29 H-LP RH HI 10 A Right hand headlight (high beam)
30 H-LP LH HI 10 A Left hand headlight (high beam)
31 H-LP RH LO 15 A Right hand headlight (low beam)
32 H-LP LH LO 15 A Left hand headlight (low beam)
FuseAmpereCircuit

264 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12J62U_(U)

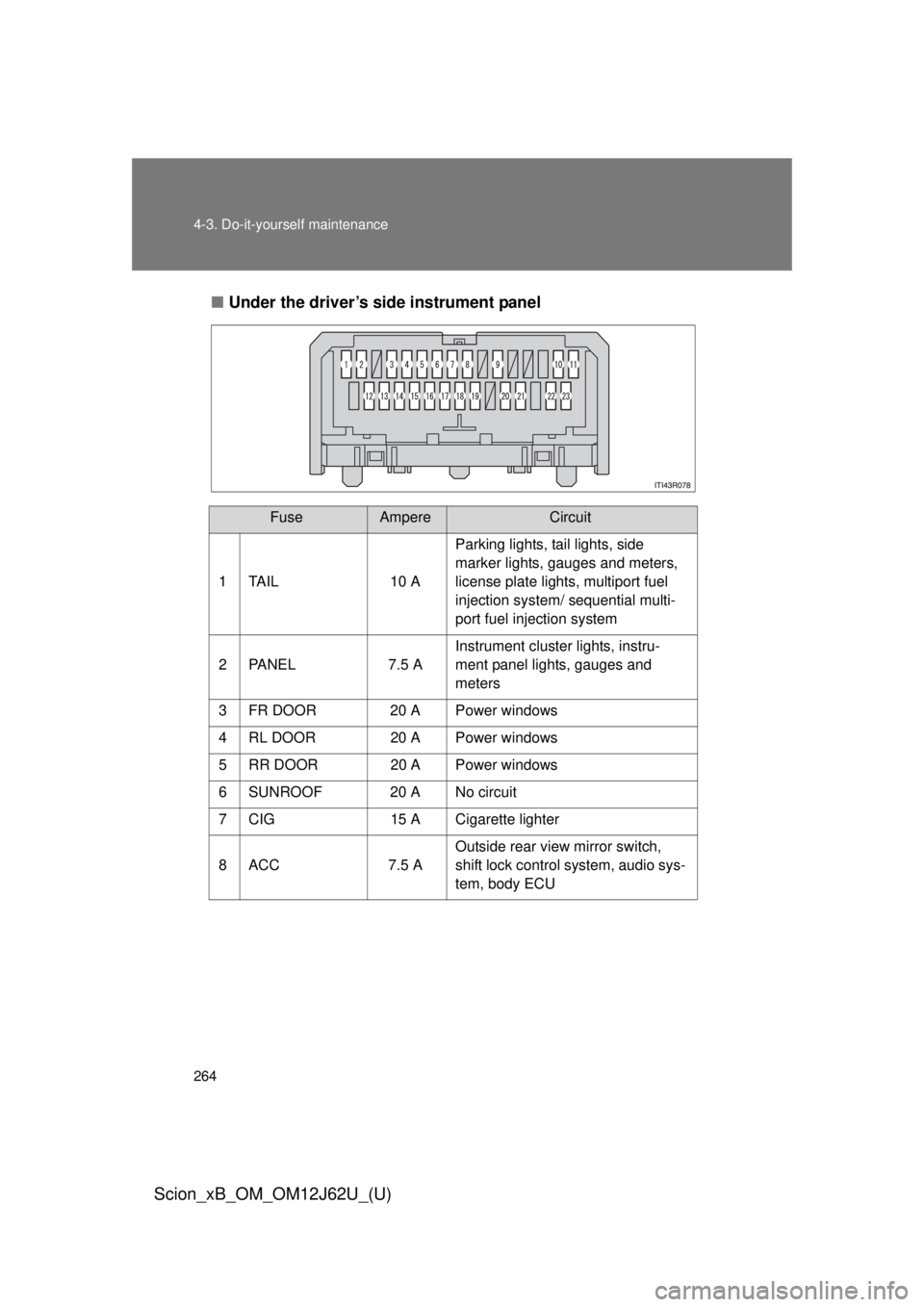

■Under the driver’s side instrument panel
FuseAmpereCircuit
1 TAIL 10 A Parking lights, tail lights, side
marker lights, gauges and meters,
license plate lights, multiport fuel
injection system/ sequential multi-
port fuel injection system
2 PANEL 7.5 A Instrument cluster lights, instru-
ment panel lights, gauges and
meters
3 FR DOOR 20 A Power windows
4 RL DOOR 20 A Power windows
5 RR DOOR 20 A Power windows
6 SUNROOF 20 A No circuit
7 CIG 15 A Cigarette lighter
8 ACC 7.5 A Outside rear view mirror switch,
shift lock control system, audio sys-
tem, body ECU

265
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12J62U_(U)
9 MIR HTR
10 AMultiport fuel injection system/
sequential multiport fuel injection
system, outside rear view mirror
defoggers
10 IGN 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, steer-
ing lock system
11 METER 7.5 A Gauges and meters
12 HTR-IG 10 A Air conditioning system
13 WIPER 25 A Windshield wipers
14 RR WIPER 15 A Rear window wiper
15 WASHER 15 A Washer
16 ECU-IG NO.1 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, electric power steering,
electric cooling fan, anti-lock brake
system, vehicle stability control
system, shift lock control system,
audio system, body ECU
17 ECU-IG NO.2 10 A Back-up light, emergency flasher,
air conditioning system, rear win-
dow defogger, charging system,
multiport fuel injection system/
sequential multiport fuel injection
system, front passenger’s seat belt
reminder light
FuseAmpereCircuit

266 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12J62U_(U)

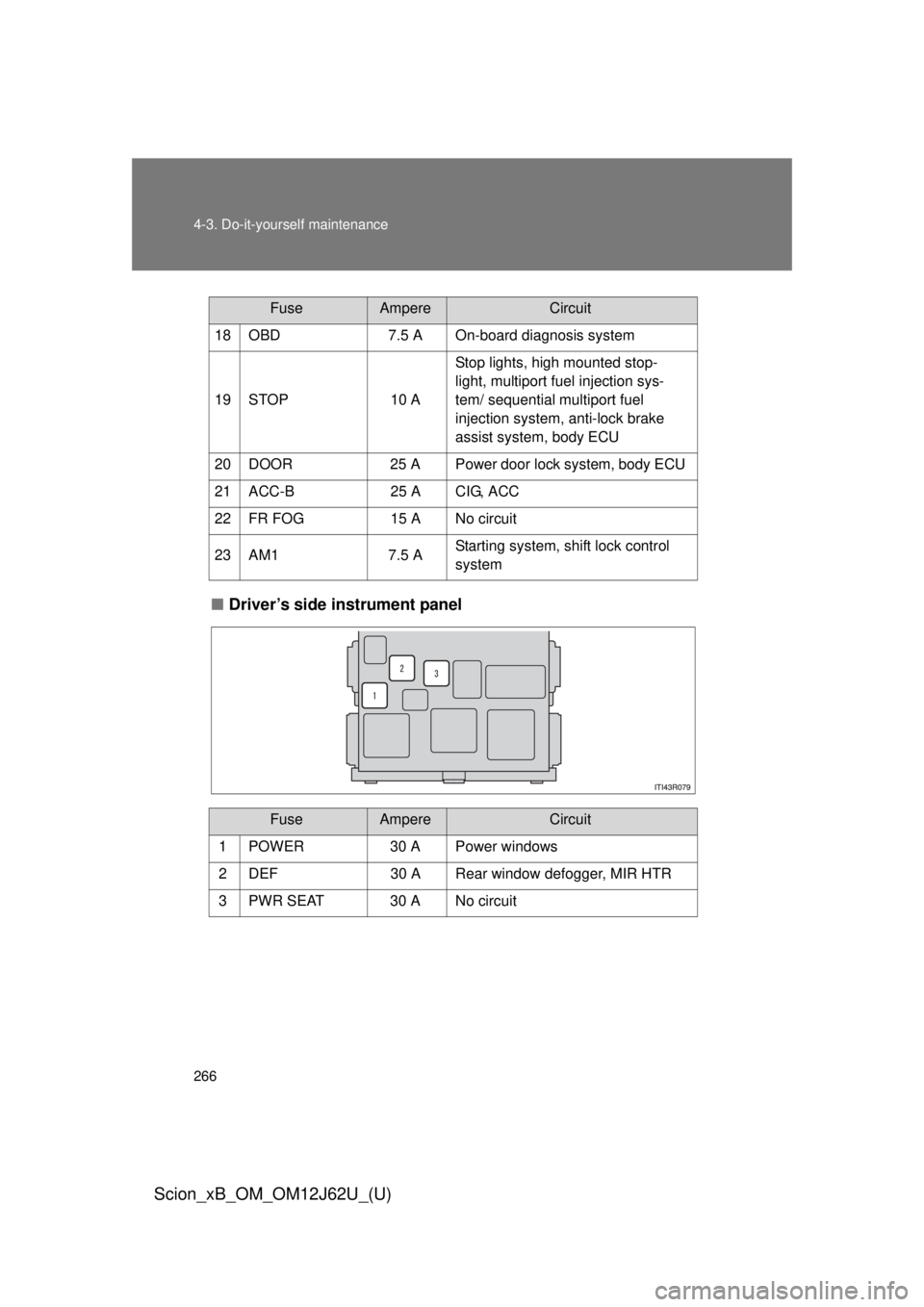

■Driver’s side instrument panel
18 OBD 7.5 A On-board diagnosis system
19 STOP 10 AStop lights, high mounted stop-
light, multiport fuel injection sys-
tem/ sequential multiport fuel
injection system, anti-lock brake
assist system, body ECU
20 DOOR 25 A Power door lock system, body ECU
21 ACC-B 25 A CIG, ACC
22 FR FOG 15 A No circuit
23 AM1 7.5 AStarting system, shift lock control
system
FuseAmpereCircuit
1 POWER 30 A Power windows
2 DEF 30 A Rear window defogger, MIR HTR
3 PWR SEAT 30 A No circuit
FuseAmpereCircuit

267
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12J62U_(U)
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 268)
● If the replaced fuse blows again, have the vehicle inspected by your
Scion dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Scion fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Scion
dealer, as soon as possible.

268
4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12J62U_(U)
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perf orm, contact your Scion dealer.
For more information about replacing other light bulbs, contact your
Scion dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 341)
■ Front bulb locations
Parking light
Daytime running lights
(if equipped) and head- light high beam
Headlight low beam Front side
marker light
Front turn signal light

269
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12J62U_(U)
■

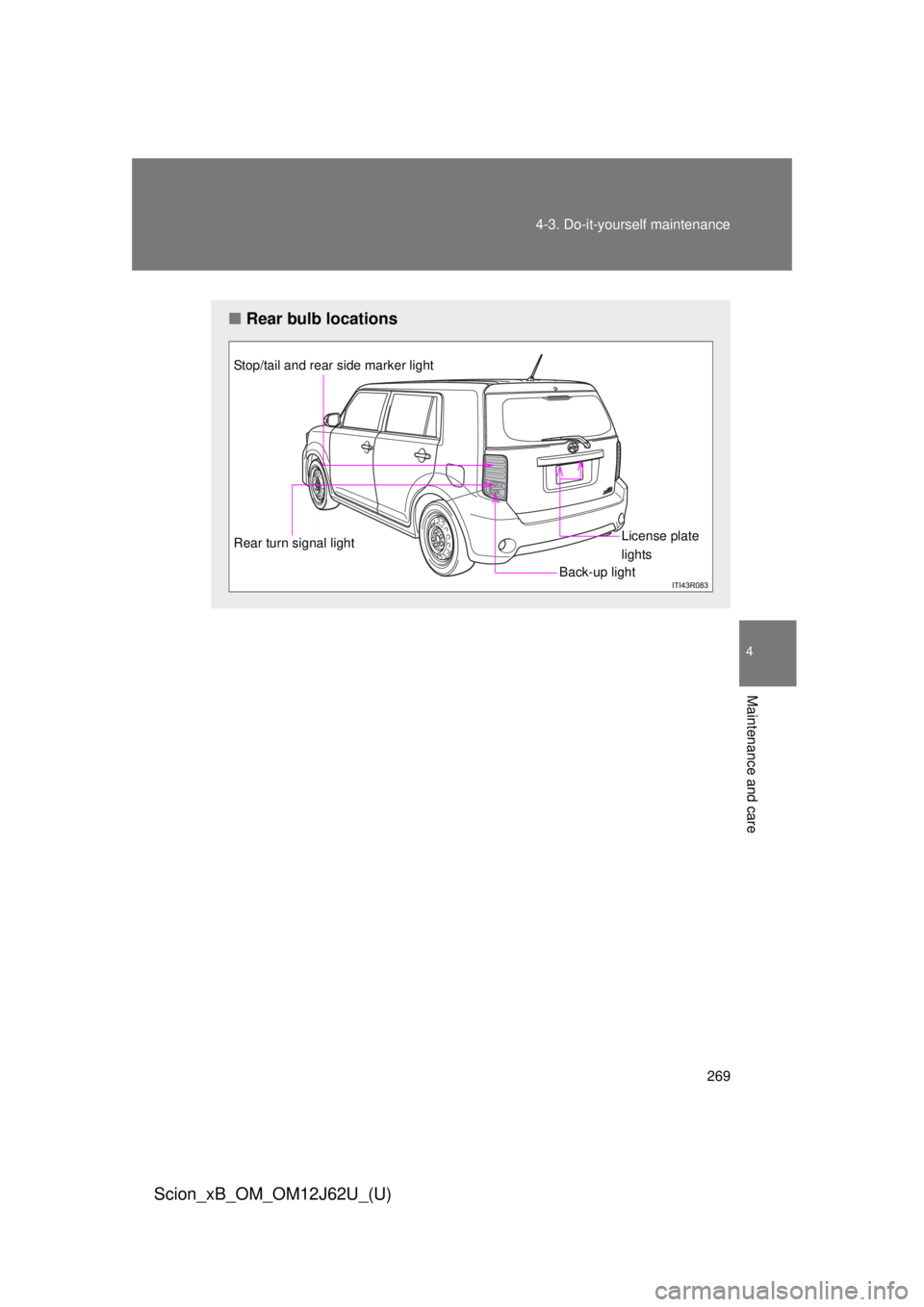

Rear bulb locations
Stop/tail and rear side marker light
License plate
lights
Rear turn signal light
Back-up light

270 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12J62U_(U)
Replacing light bulbs■ Headlight low beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2
