6
Scion_xB_OM_OM12J62U_(U)
Windshield wipers P. 141

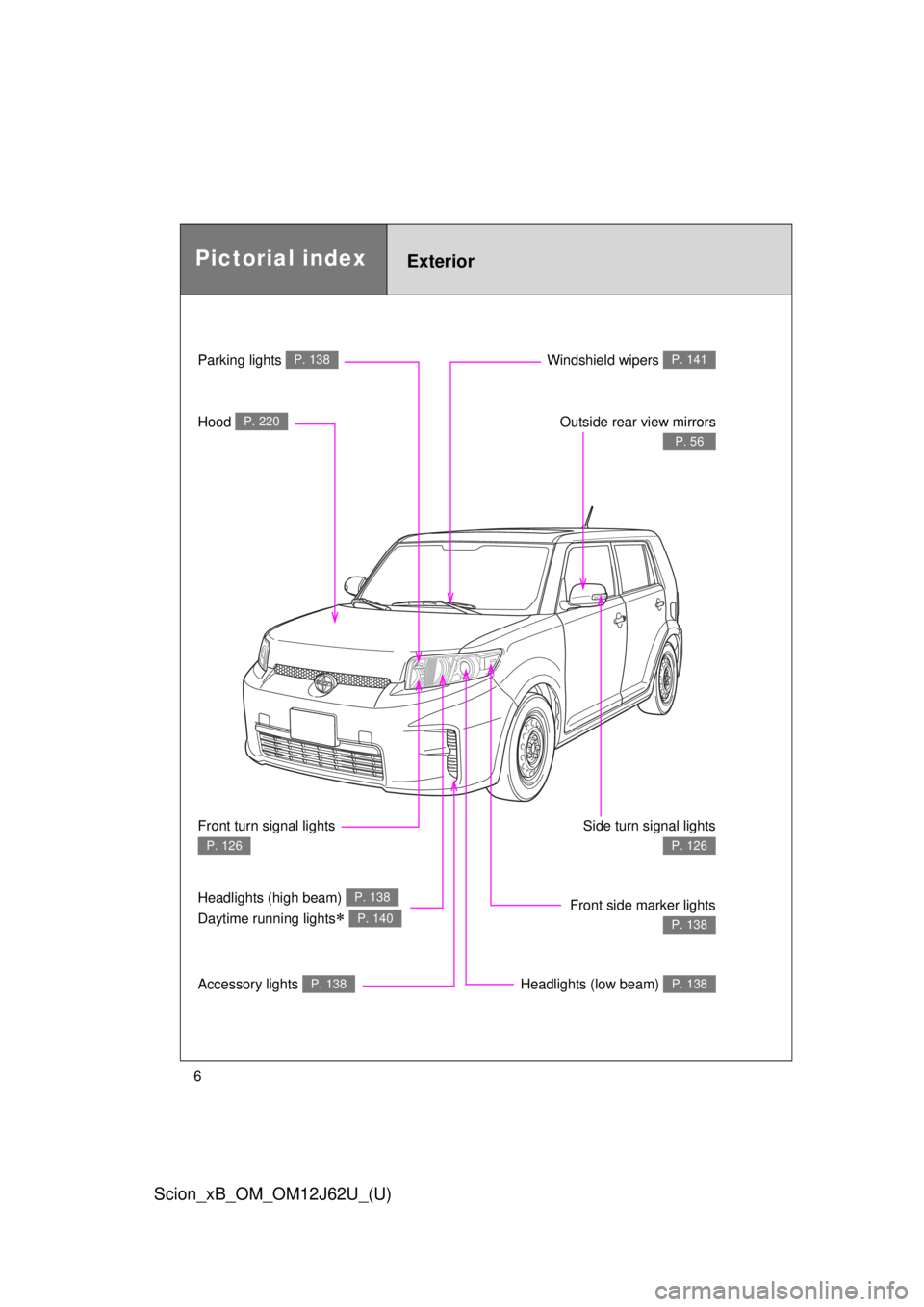

Pictorial indexExterior
Outside rear view mirrors
P. 56
Side turn signal lights
P. 126
Front side marker lights
P. 138
Headlights (low beam) P. 138
Parking lights P. 138
Hood P. 220
Front turn signal lights
P. 126
Headlights (high beam) P. 138
Daytime running lights P. 140
Accessory lights P. 138

133
2-2. Instrument cluster
2
When driving
Scion_xB_OM_OM12J62U_(U)
■

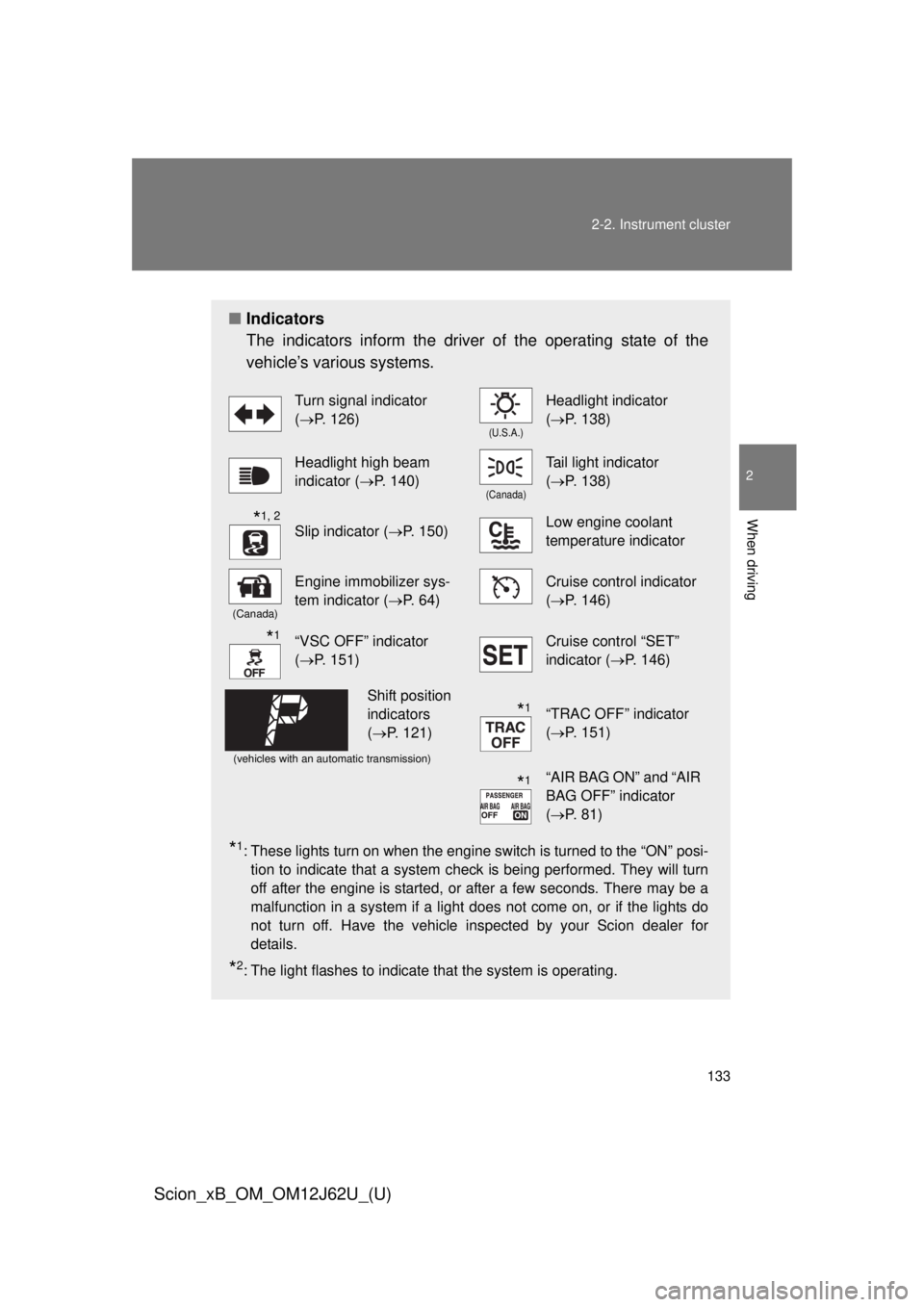

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion to indicate that a system check is being performed. They will turn
off after the engine is started, or after a few seconds. There may be a
malfunction in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by your Scion dealer for
details.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(P. 126)
(U.S.A.)
Headlight indicator
(P. 138)
Headlight high beam
indicator ( P. 140)
(Canada)
Tail light indicator
(P. 138)
Slip indicator ( P. 150)Low engine coolant
temperature indicator
(Canada)
Engine immobilizer sys-
tem indicator (P. 64)Cruise control indicator
(P. 146)
“VSC OFF” indicator
(P. 151)Cruise control “SET”
indicator (P. 146)
(vehicles with an automatic transmission)
“TRAC OFF” indicator
(P. 151)
“AIR BAG ON” and “AIR
BAG OFF” indicator
(P. 81)
*1, 2
*1
Shift position
indicators
( P. 121)
*1
*1

140 2-3. Operating the lights and Windshield wipers
Scion_xB_OM_OM12J62U_(U)

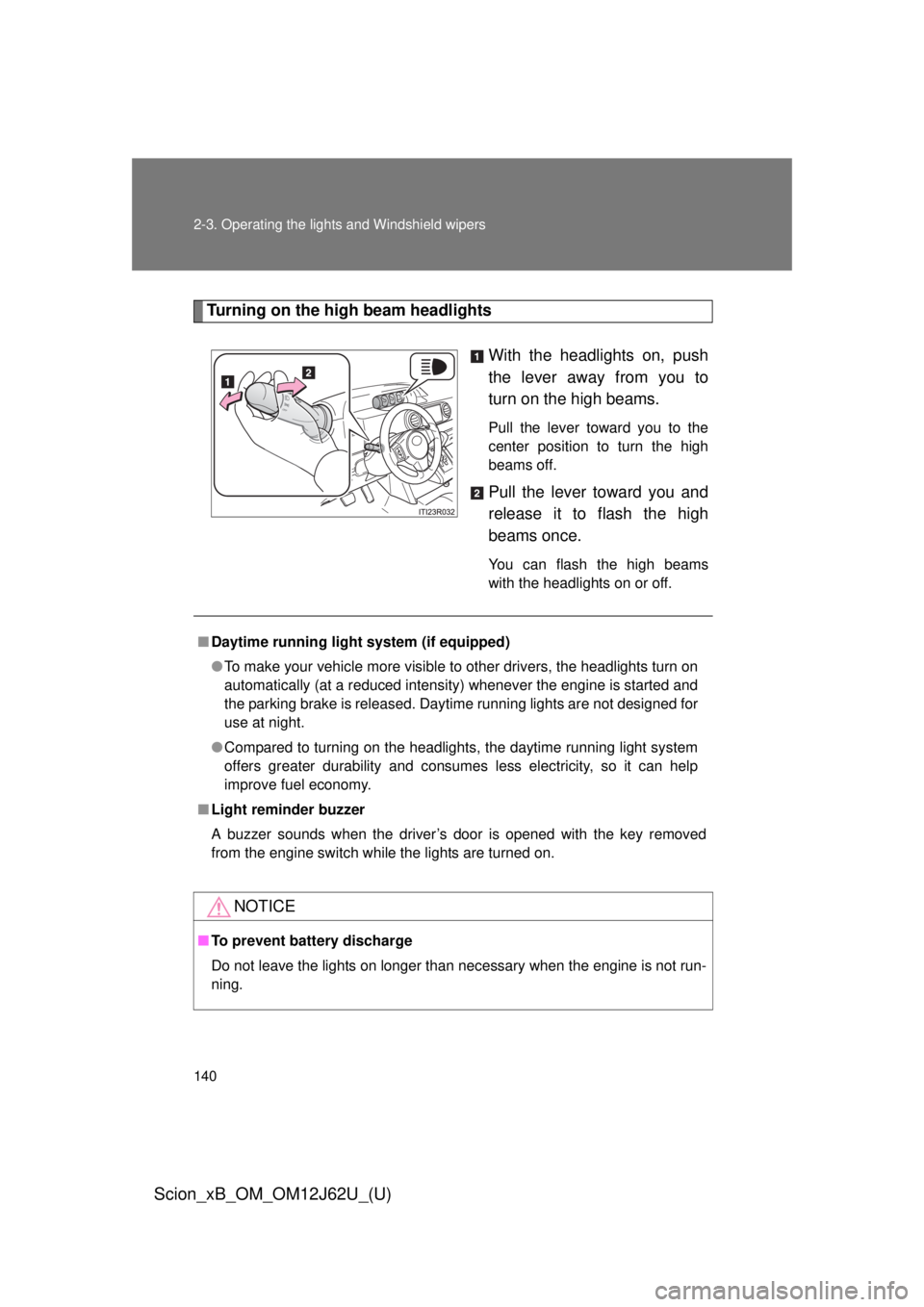

Turning on the high beam headlightsWith the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
●To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Light reminder buzzer
A buzzer sounds when the driver’s door is opened with the key removed
from the engine switch while the lights are turned on.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

263
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12J62U_(U)
25 IG2
15 AIGN, METER, IG2 NO.2
26 IG2 NO.27.5 A Starting system
27 EFI NO.2 10 AAir conditioning system, rear O2
sensor, front air flow sensor
28 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter
29 H-LP RH HI 10 A Right hand headlight (high beam)
30 H-LP LH HI 10 A Left hand headlight (high beam)
31 H-LP RH LO 15 A Right hand headlight (low beam)
32 H-LP LH LO 15 A Left hand headlight (low beam)
FuseAmpereCircuit

268
4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12J62U_(U)

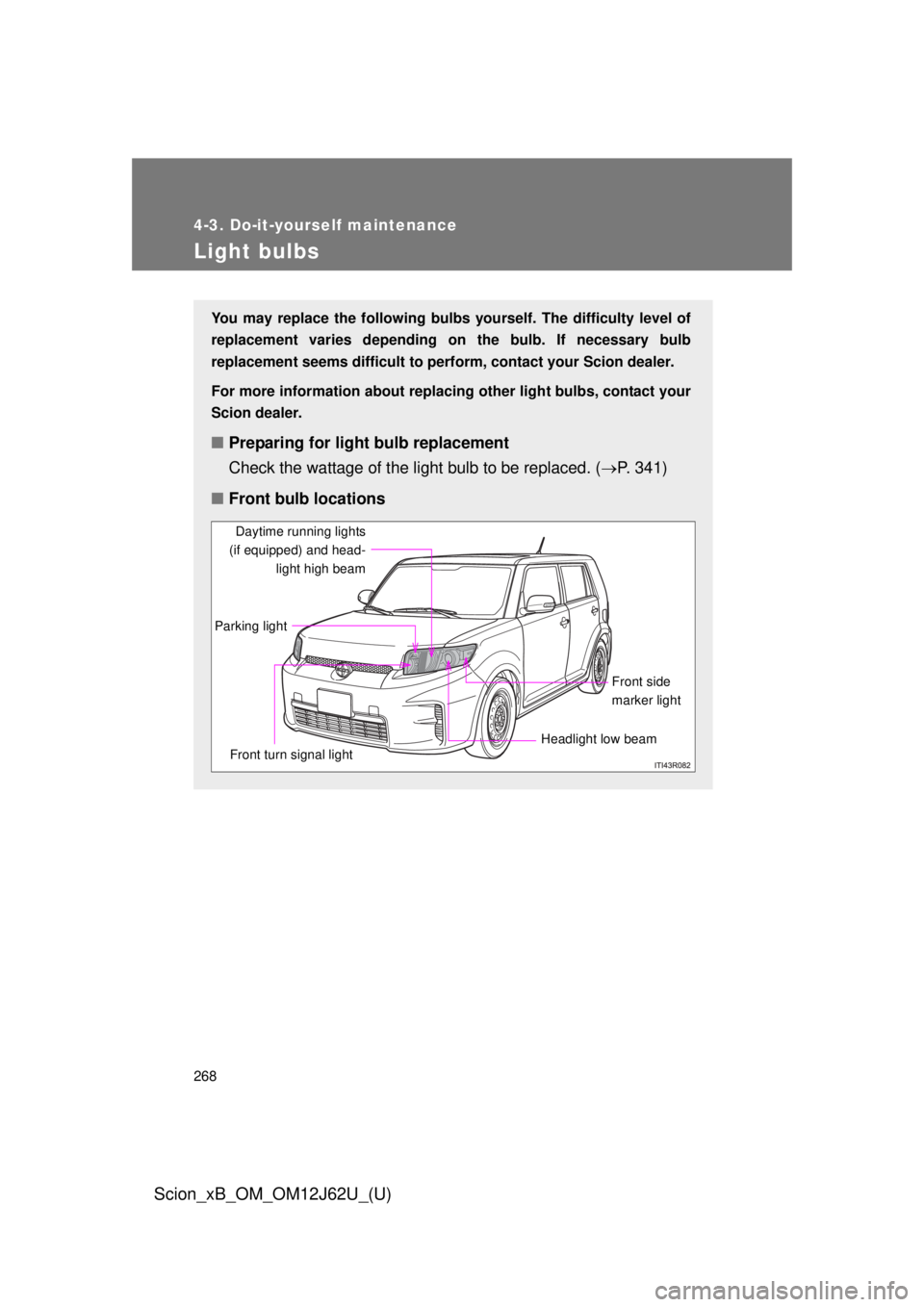

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perf orm, contact your Scion dealer.
For more information about replacing other light bulbs, contact your
Scion dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 341)
■ Front bulb locations
Parking light
Daytime running lights
(if equipped) and head- light high beam
Headlight low beam Front side
marker light
Front turn signal light

271
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12J62U_(U)
■

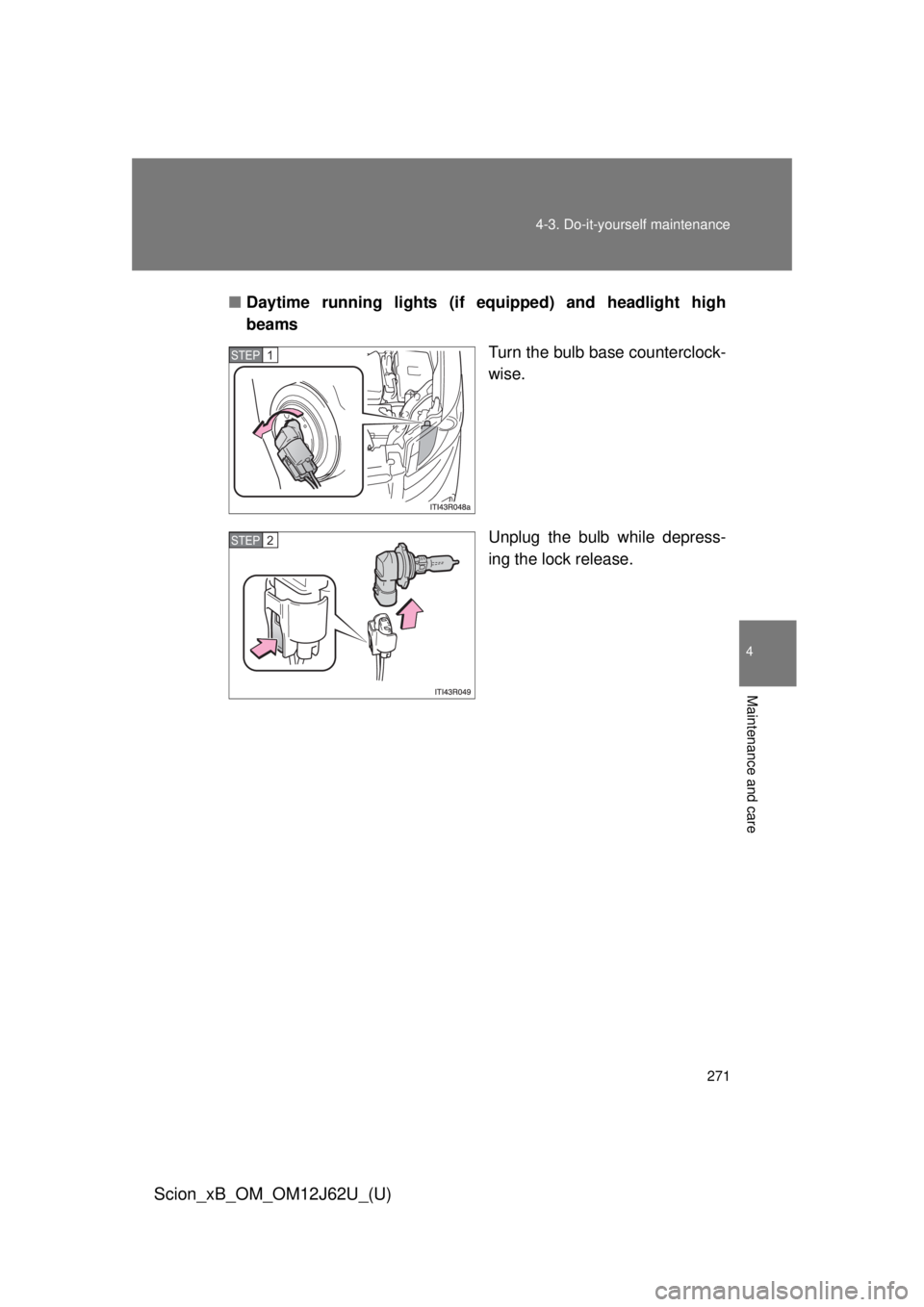

Daytime running lights (if e quipped) and headlight high
beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2

341
6-1. Specifications
6
Vehicle specifications
Scion_xB_OM_OM12J62U_(U)
Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs (amber) D: Single end bulbs (clear)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam
High beam 9704
900555
60A
B
Front turn signal lights 21 C
Parking lights 5D
Front side marker
lights 
5E
Rear turn signal lights 21 F
Stop/tail lights and
rear side marker lights 7443 21/5 E
Back-up lights 921 16 E
Licence plate lights 5E
Interior Personal lights
8E
Interior lights 8G
Luggage compart-
ment lights 
5G
