191
3-1. Using the air conditioning system
and defogger
3
Interior features
Scion_xD_OM_OM52C62U_(U)
Opening and closing the air outlets
Center outlets Open the vent.
Close the vent.
Right and left side outlets Open the vent.
Close the vent.

192 3-1. Using the air conditioning system and defogger
Scion_xD_OM_OM52C62U_(U)
■Using the system in recirculated air mode
The windows will fog up more easily if recirculated air mode is used for an
extended period of time.
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
■ When outside air temperature is below 32°F (0°C)
The cooling and dehumidification function may not operate even when

is pressed.
■ Air conditioning odors
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

193
3-1. Using the air conditioning system and defogger
3
Interior features
Scion_xD_OM_OM52C62U_(U)

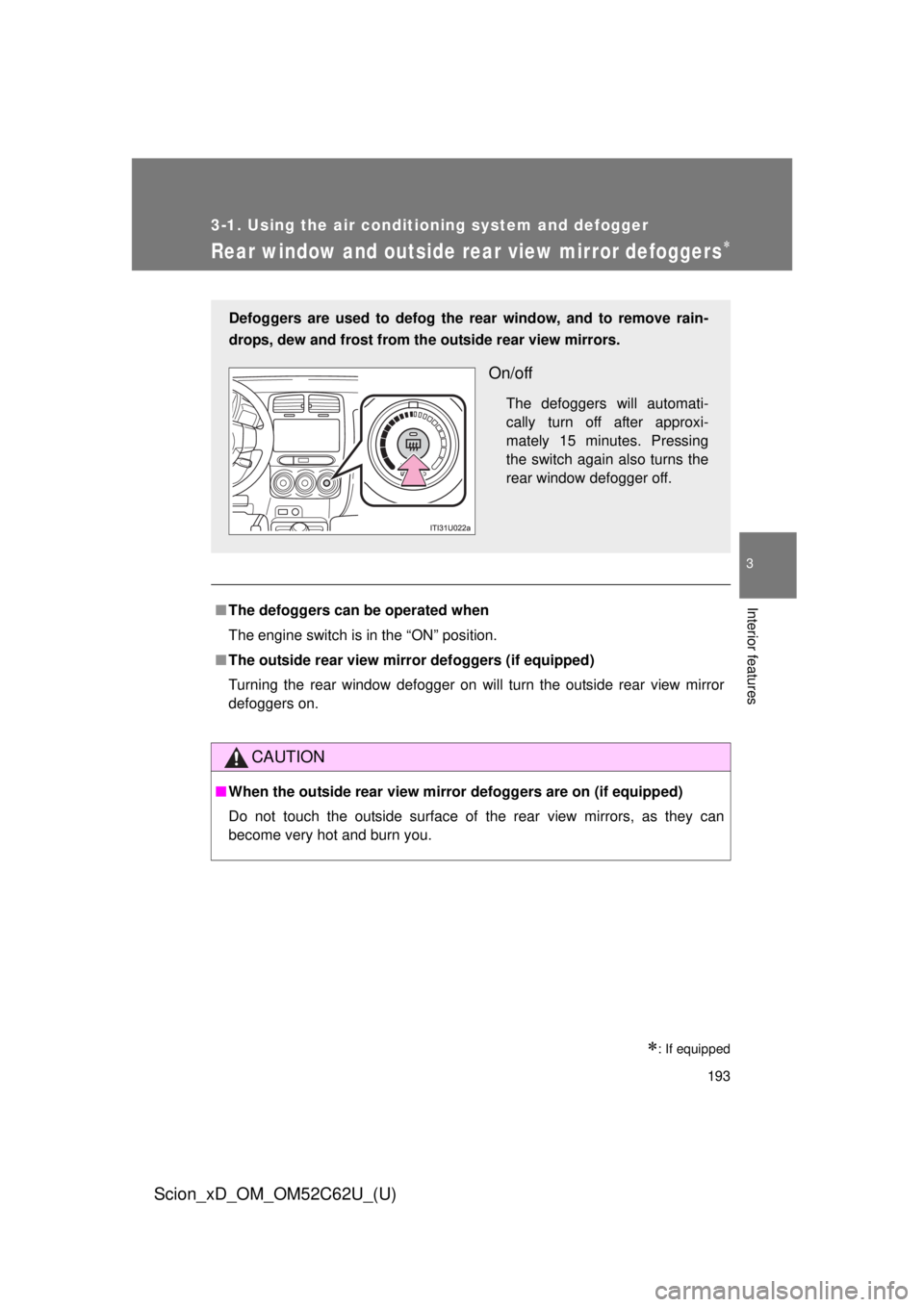

Rear window and outside rear view mirror defoggers
: If equipped
■The defoggers can be operated when
The engine switch is in the “ON” position.
■ The outside rear view mirr or defoggers (if equipped)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■ When the outside rear view mirr or defoggers are on (if equipped)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
On/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes. Pressing
the switch again also turns the
rear window defogger off.

194
Scion_xD_OM_OM52C62U_(U)
3-2. Using the audio system

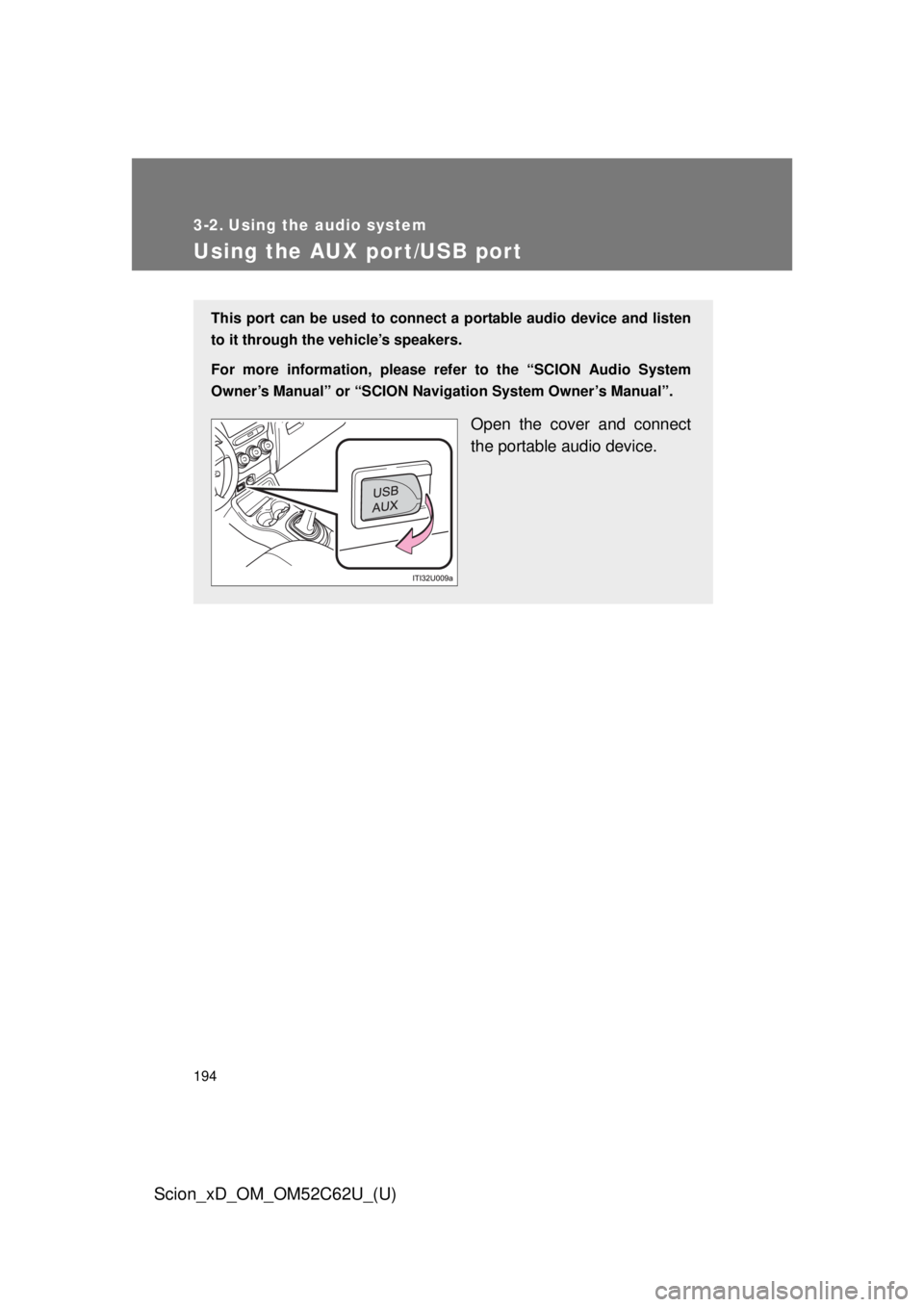

Using the AUX port/USB port
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
For more information, please refer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.
Open the cover and connect
the portable audio device.

195
3-2. Using the audio system
3
Interior features
Scion_xD_OM_OM52C62U_(U)

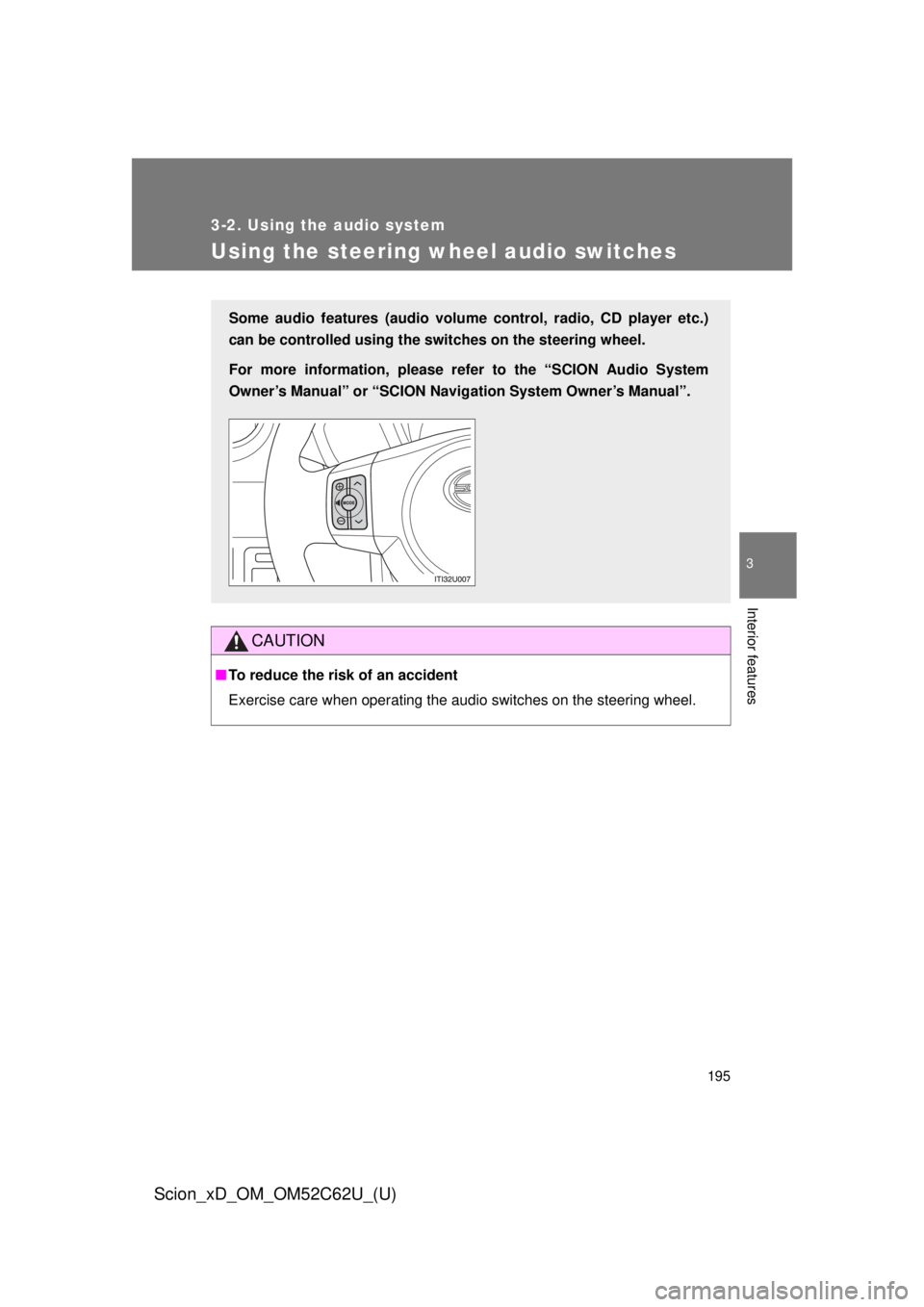

Using the steering wheel audio switches
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
Some audio features (aud io volume control, radio, CD player etc.)
can be controlled using the switches on the steering wheel.
For more information, please re fer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.

196
3-2. Using the audio system
Scion_xD_OM_OM52C62U_(U)

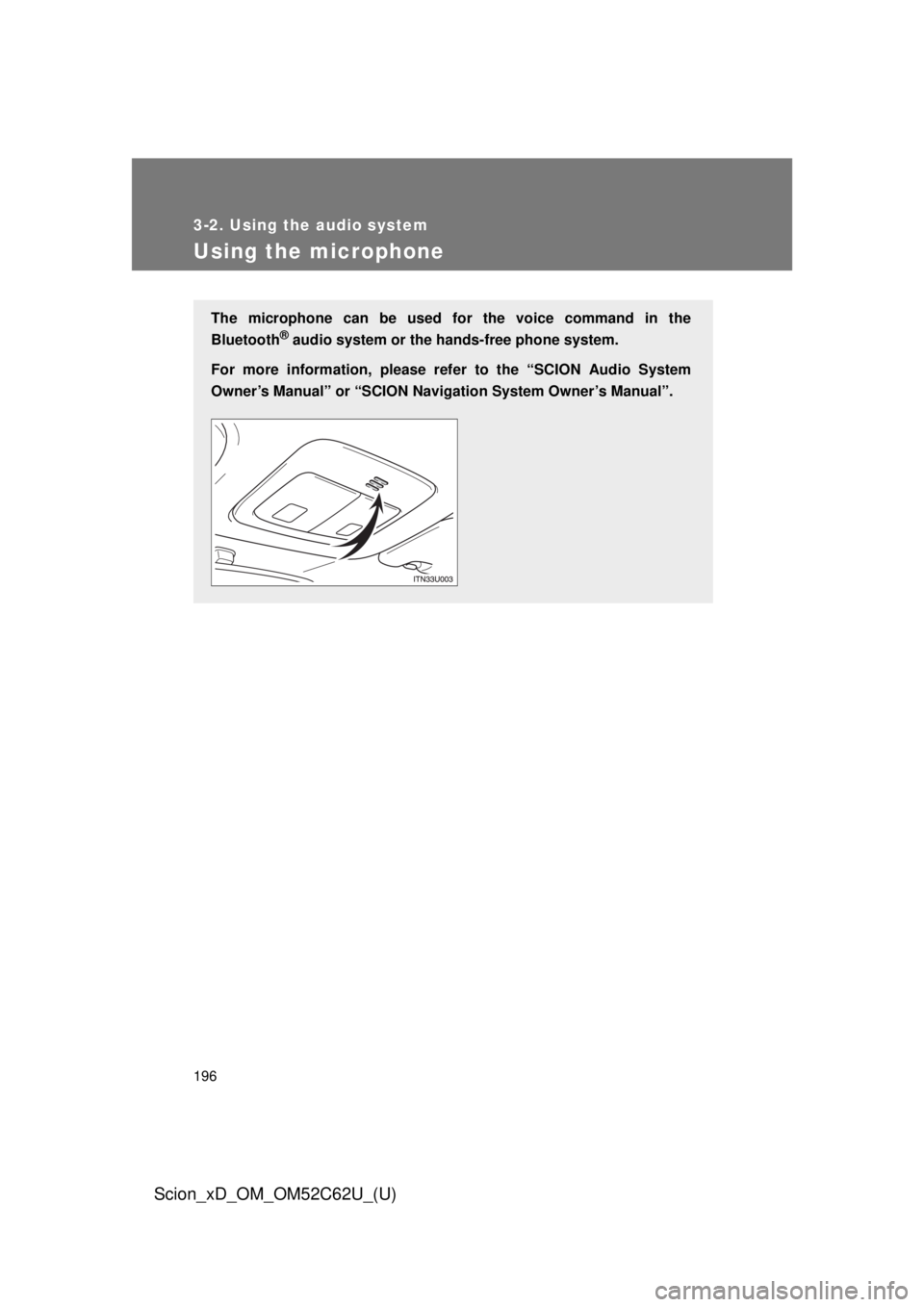

Using the microphone
The microphone can be used for the voice command in the
Bluetooth
® audio system or the hands-free phone system.
For more information, please re fer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.

197
3
Interior features
Scion_xD_OM_OM52C62U_(U)
3-3. Using the interior lights

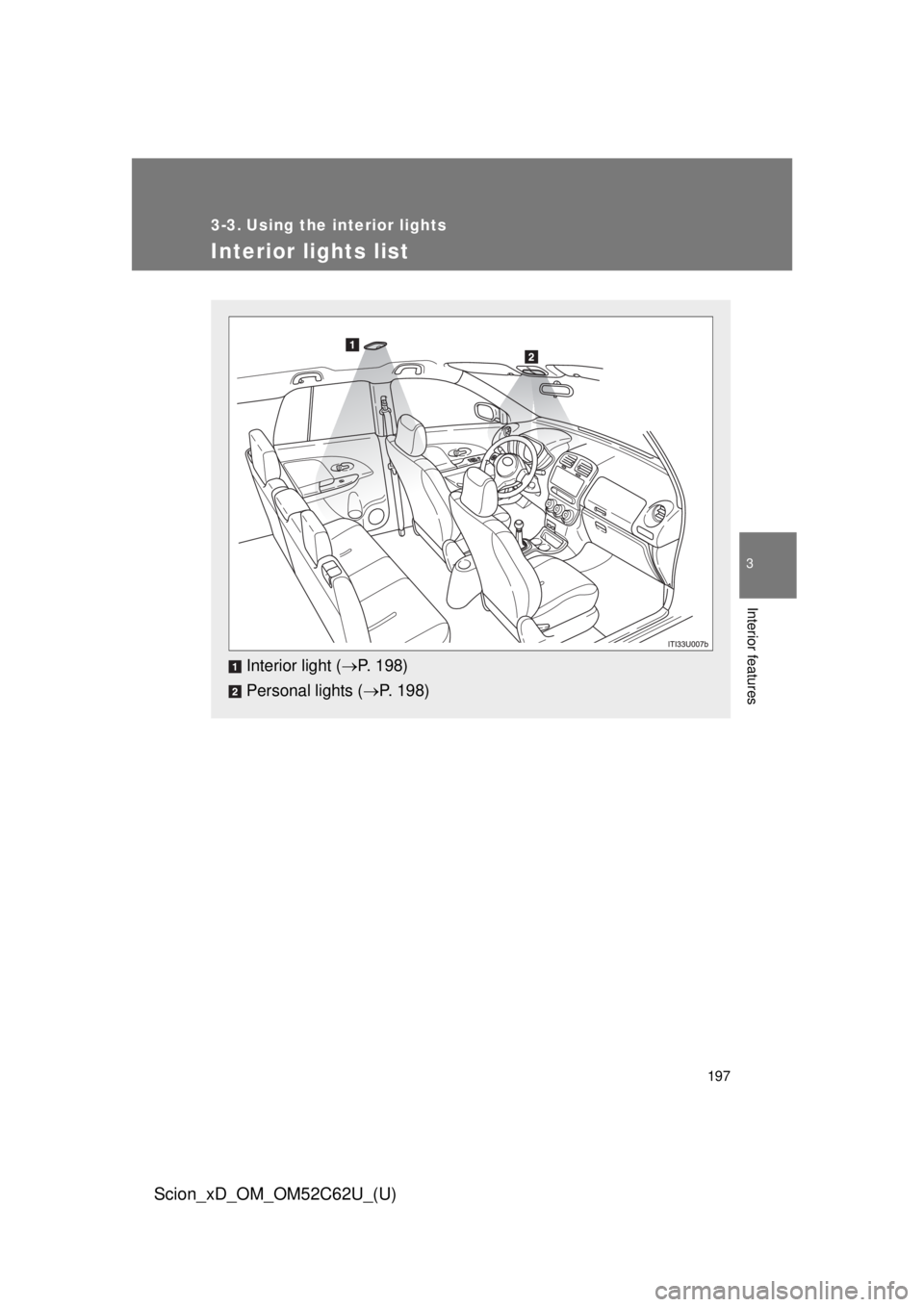

Interior lights list
Interior light (P. 198)
Personal lights ( P. 198)

198 3-3. Using the interior lights
Scion_xD_OM_OM52C62U_(U)
Interior light“DOOR”
The interior light comes on when
any of the side doors is opened.
They turn off when all the side
doors are closed.
“OFF”
“ON”
Personal lights
On/off
■Illuminated entry system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
■ To prevent the battery discharged
If the interior light remain on when the door is not fully closed and the interior
light switch is in the “DOOR” position, the lights will go off automatically after
20 minutes.
■ Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features: P. 378)
Interior light and personal lights

199
3
Interior features
Scion_xD_OM_OM52C62U_(U)

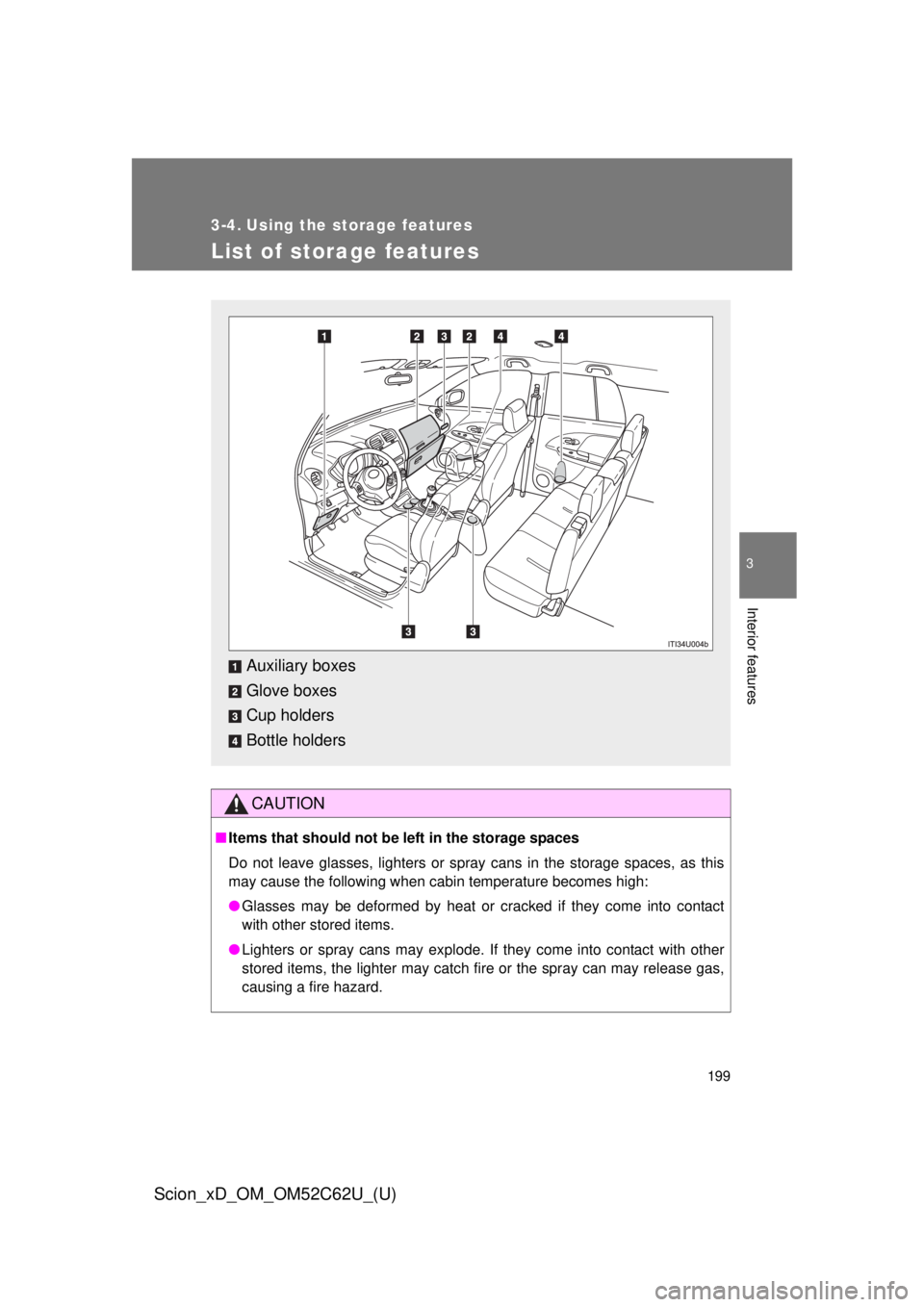

3-4. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Auxiliary boxes
Glove boxes
Cup holders
Bottle holders

200 3-4. Using the storage features
Scion_xD_OM_OM52C62U_(U)
Glove boxesLower glove box Pull up the lever to open the
glove box.
Upper glove box Pull up the lever.
CAUTION
■Caution while driving
Keep the glove boxes closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open glove boxes or the items stored inside.
Glove boxes
