child lock TOYOTA xD 2013 Owners Manual (in English)

TABLE OF CONTENTSIndex
2
Scion_xD_OM_OM52C62U_(U)
1-1. Key informationKeys ..................................... 24
1-2. Opening, closing and locking the doors
Wireless remote control ....... 26
Side doors ............................ 30
Back door ............................. 34
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 39
Rear seats ............................ 41
Head restraints ..................... 46
Seat belts ............................. 48
Steering wheel ..................... 59
Anti-glare inside rear view mirror .................................. 60
Outside rear view mirrors ..... 61
1-4. Opening and closing the windows
Power windows .................... 63
1-5. Refueling Opening the fuel tank cap ..................................... 65 1-6. Theft deterrent system
Engine immobilizer system ................................ 69
Theft prevention labels (for U.S.A.) ......................... 71
1-7. Safety information Correct driving posture ......... 72
SRS airbags ......................... 74
Front passenger occupant classification system ........... 88
Child restraint systems ......... 95
Installing child restraints ..... 100
2-1. Driving procedures Driving the vehicle .............. 116
Engine (ignition) switch....... 130
Automatic transmission ...... 134
Manual transmission........... 137
Turn signal lever ................. 138
Parking brake ..................... 139
Horn .................................... 140
1Before driving
2When driving

Before driving1
23
Scion_xD_OM_OM52C62U_(U)

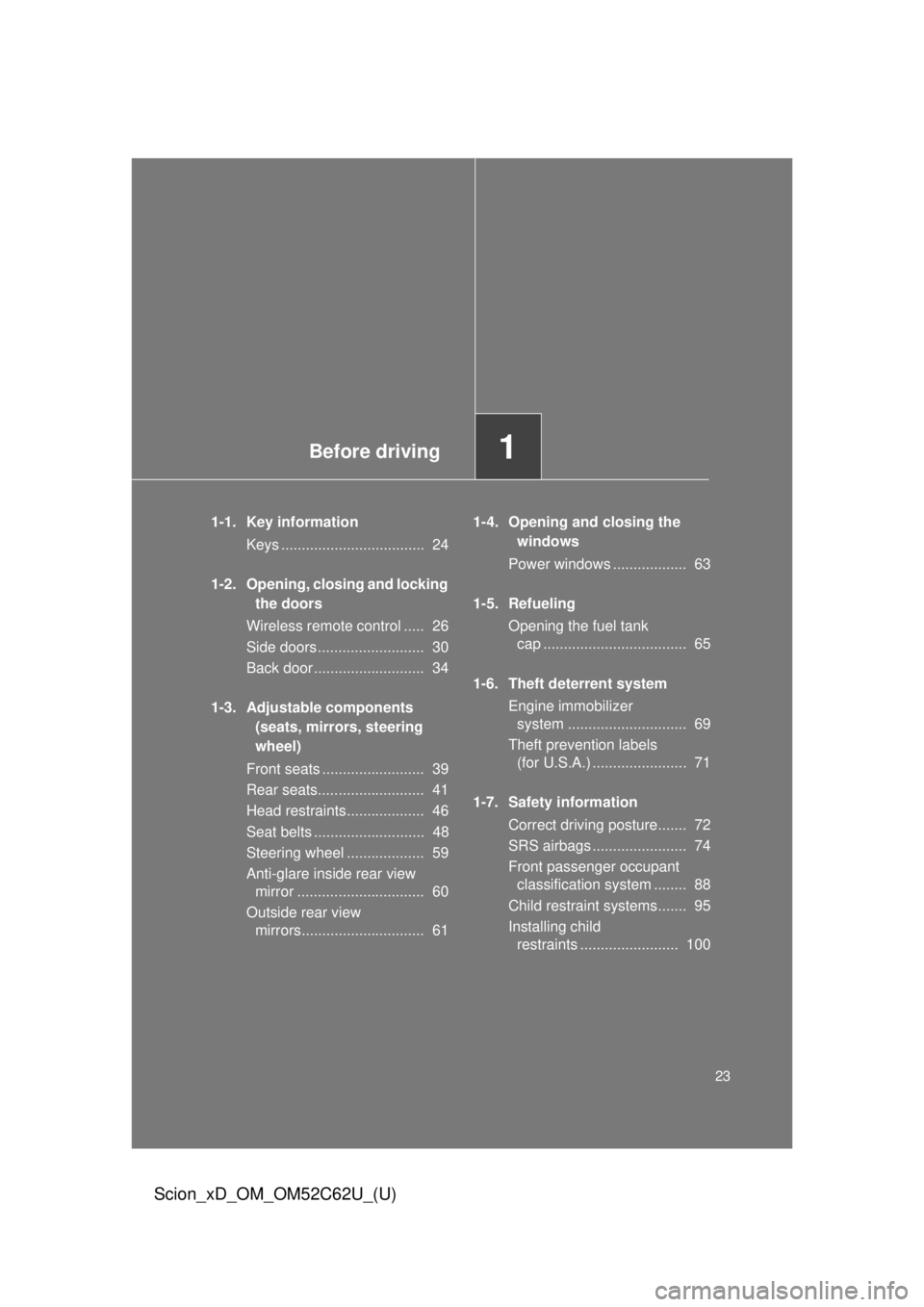

1-1. Key informationKeys ................................... 24
1-2. Opening, closing and locking the doors
Wireless remote control ..... 26
Side doors .......................... 30
Back door ........................... 34
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 39
Rear seats.......................... 41
Head restraints................... 46
Seat belts ........................... 48
Steering wheel ................... 59
Anti-glare inside rear view mirror ............................... 60
Outside rear view mirrors.............................. 61 1-4. Opening and closing the
windows
Power windows .................. 63
1-5. Refueling Opening the fuel tank cap ................................... 65
1-6. Theft deterrent system Engine immobilizer system ............................. 69
Theft prevention labels (for U.S.A.) ....................... 71
1-7. Safety information Correct driving posture....... 72
SRS airbags ....................... 74
Front passenger occupant classification system ........ 88
Child restraint systems....... 95
Installing child restraints ........................ 100

32 1-2. Opening, closing and locking the doors
Scion_xD_OM_OM52C62U_(U)
Rear door child-protector lockThe door cannot be opened from
inside the vehicle when the lock
is set. Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.

33
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xD_OM_OM52C62U_(U)
CAUTION
■
To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seat.

36 1-2. Opening, closing and locking the doors
Scion_xD_OM_OM52C62U_(U)
CAUTION
■Caution while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or an accident, they are susceptible to death or
serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

44 1-3. Adjustable components (seats, mirrors, steering wheel)
Scion_xD_OM_OM52C62U_(U)
Flip over the deck board.
This will enlarge the luggage
compartment as far as the seat-
backs.
STEP 3
CAUTION
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (automatic transmission) or 1 (manual transmission).
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■ Seat adjustment
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt. If the seat is too reclined,
during an accident the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt,
increasing the risk of death or serious injury.
● After adjusting the seat, make sure that the seat is locked in position.

53
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Scion_xD_OM_OM52C62U_(U)
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a side impact, a rear
impact or vehicle rollover.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 100)

64 1-4. Opening and closing the windows
Scion_xD_OM_OM52C62U_(U)
■The power windows can be operated when
The engine switch is in the “ON” position.
■ Operating the power windows af ter turning the engine off
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
CAUTION
■ Closing the windows
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.

100
1-7. Safety information
Scion_xD_OM_OM52C62U_(U)

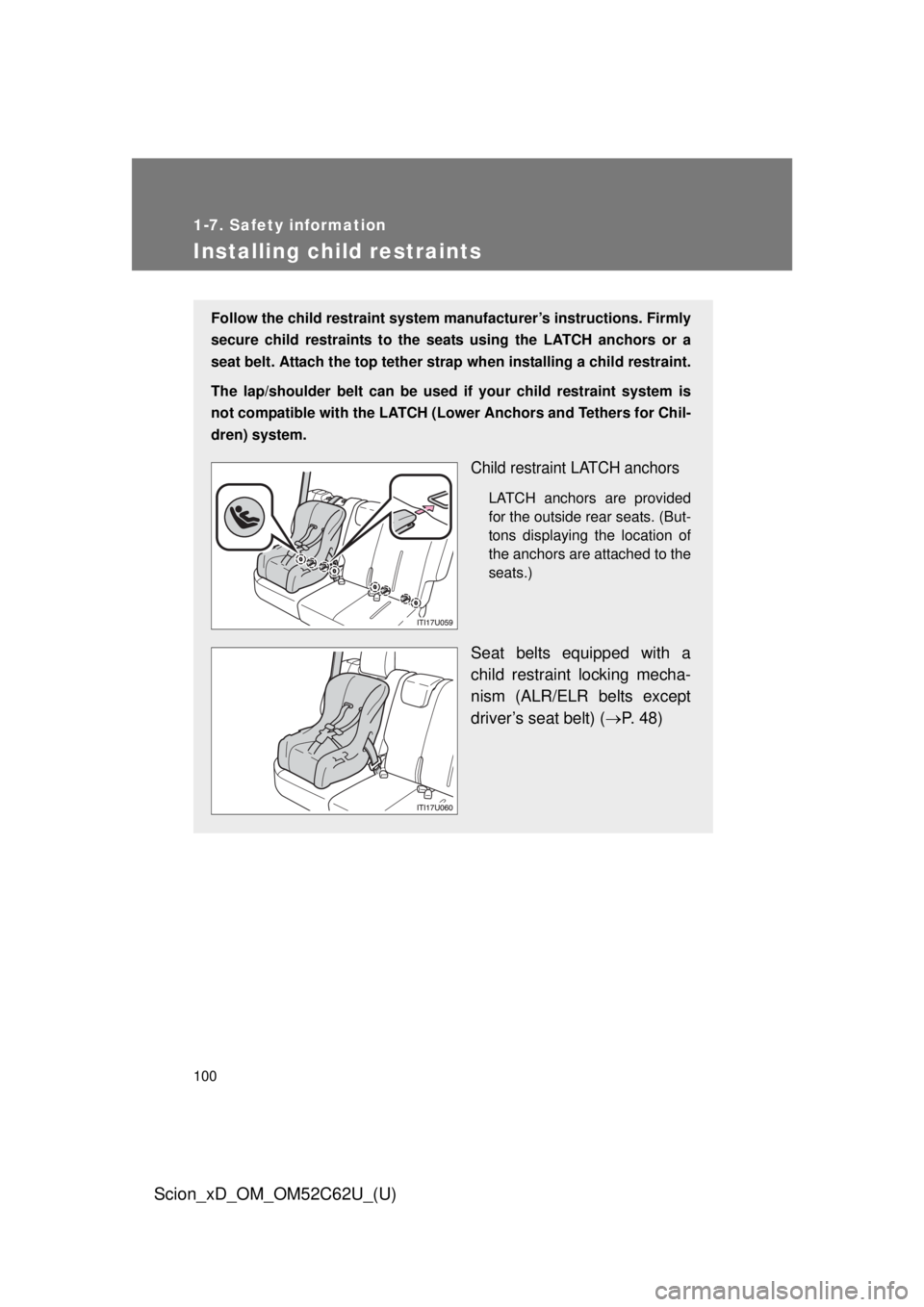

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seat s using the LATCH anchors or a
seat belt. Attach the top tether stra p when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outside rear seats. (But-
tons displaying the location of
the anchors are attached to the
seats.)
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) ( P. 48)

102 1-7. Safety information
Scion_xD_OM_OM52C62U_(U)
Installation with LATCH systemFold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position (most upright position).
( P. 41)
Widen the gap between the seat cushion and seatback
slightly.
Ty p e A Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP 1
STEP 2
Canada only
STEP 3
