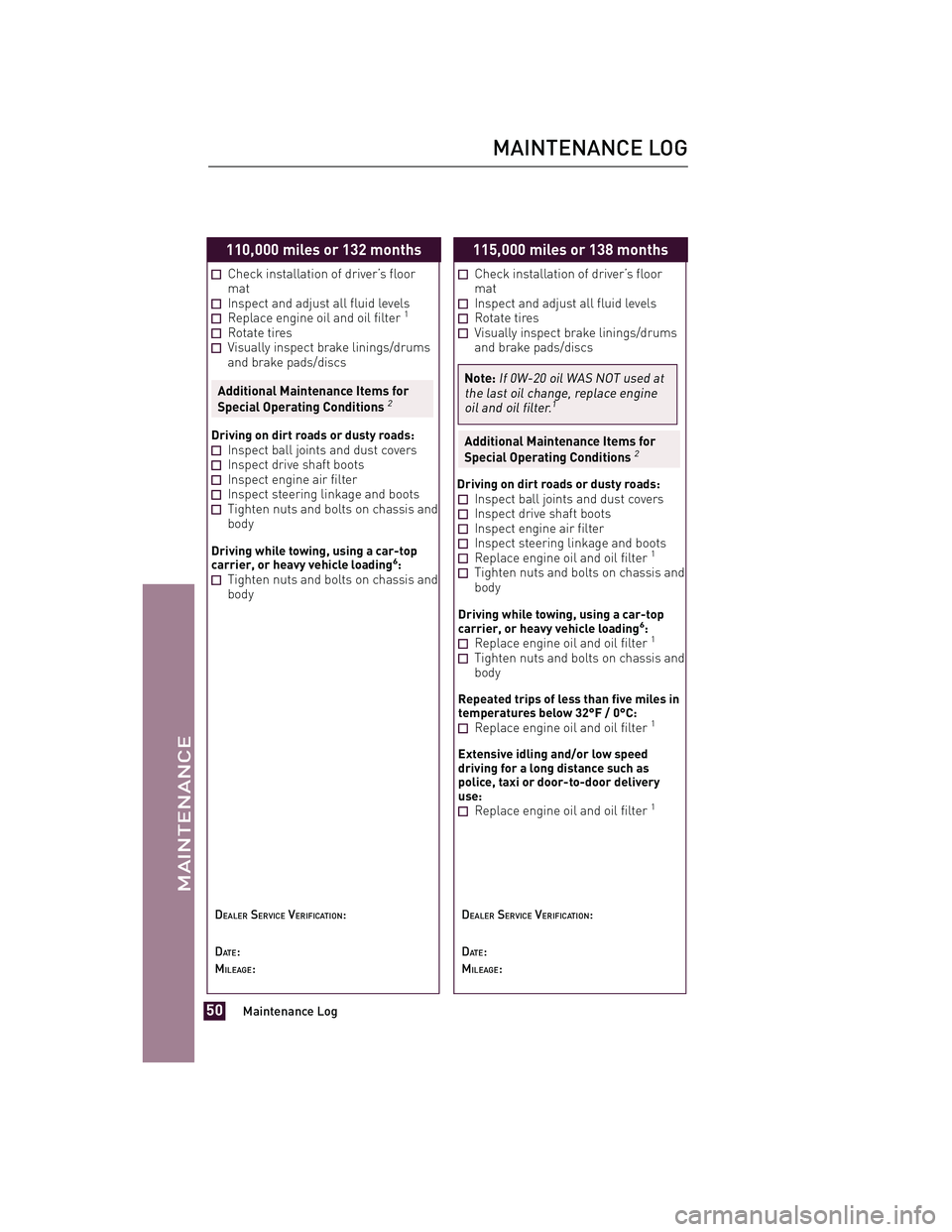

110,000 miles or 132 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
115,000 miles or 138 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Note:
If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed
driving for a long distance such as
police, taxi or door-to-door delivery
use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
MAINTENANCE LOG
MAINTENANCE
Maintenance Log50

JOBNAME: 1139983-2013-sxdWG-E PAGE: 51 SESS: 11 OUTPUT: Tue Jul 31 13:18:48 2012
/tweddle/toyota/sched-maint/1139983-en-sxd/wg

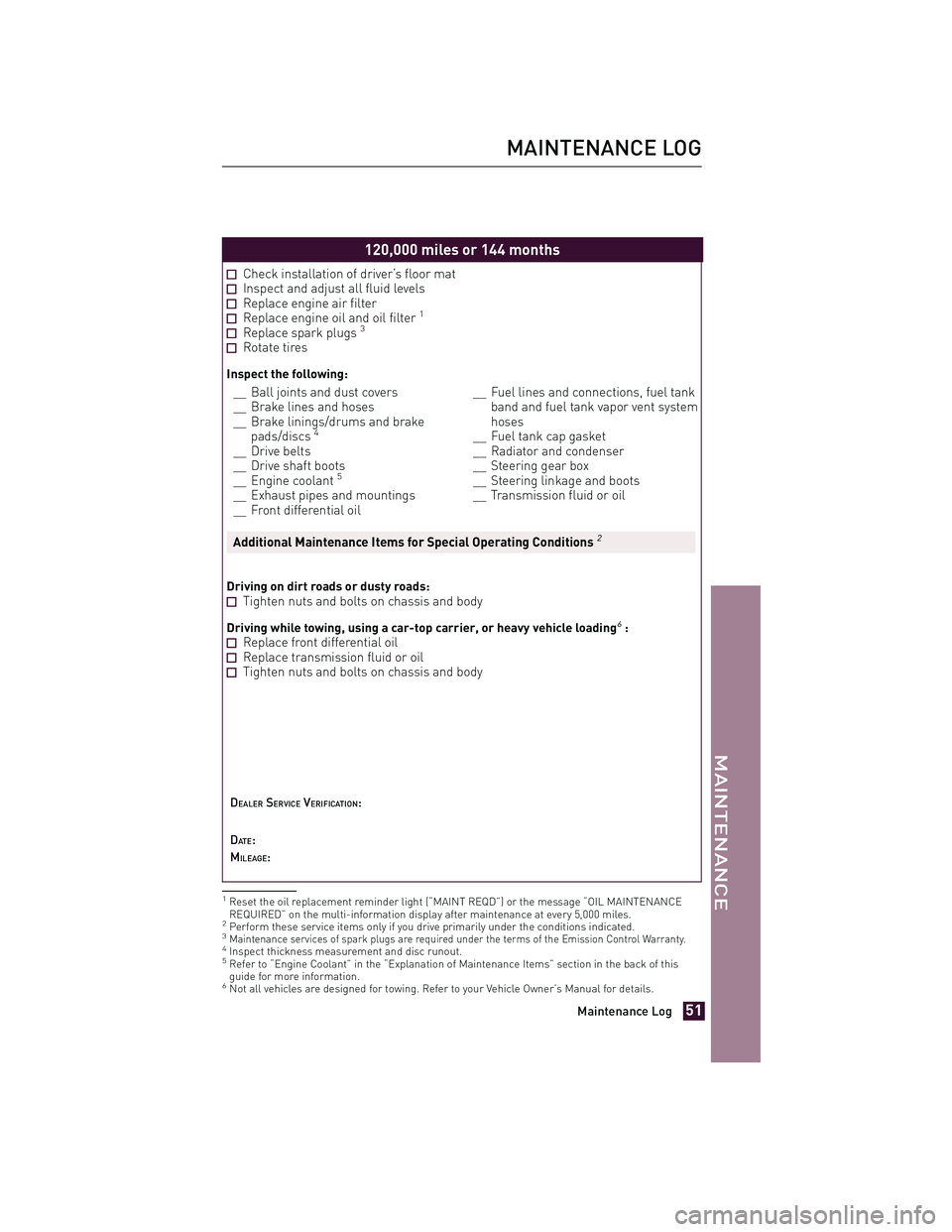

120,000 miles or 144 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs3
Rotate tires
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
5
__ Exhaust pipes and mountings
__ Front differential oil __ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace front differential oilReplace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE
REQUIRED” on the multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Maintenance services of spark plugs are required under the terms of the Emission Control Warranty.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this
guide for more information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log51

JOBNAME: 1139983-2013-sxdWG-E PAGE: 52 SESS: 11 OUTPUT: Tue Jul 31 13:18:48 2012
/tweddle/toyota/sched-maint/1139983-en-sxd/wg

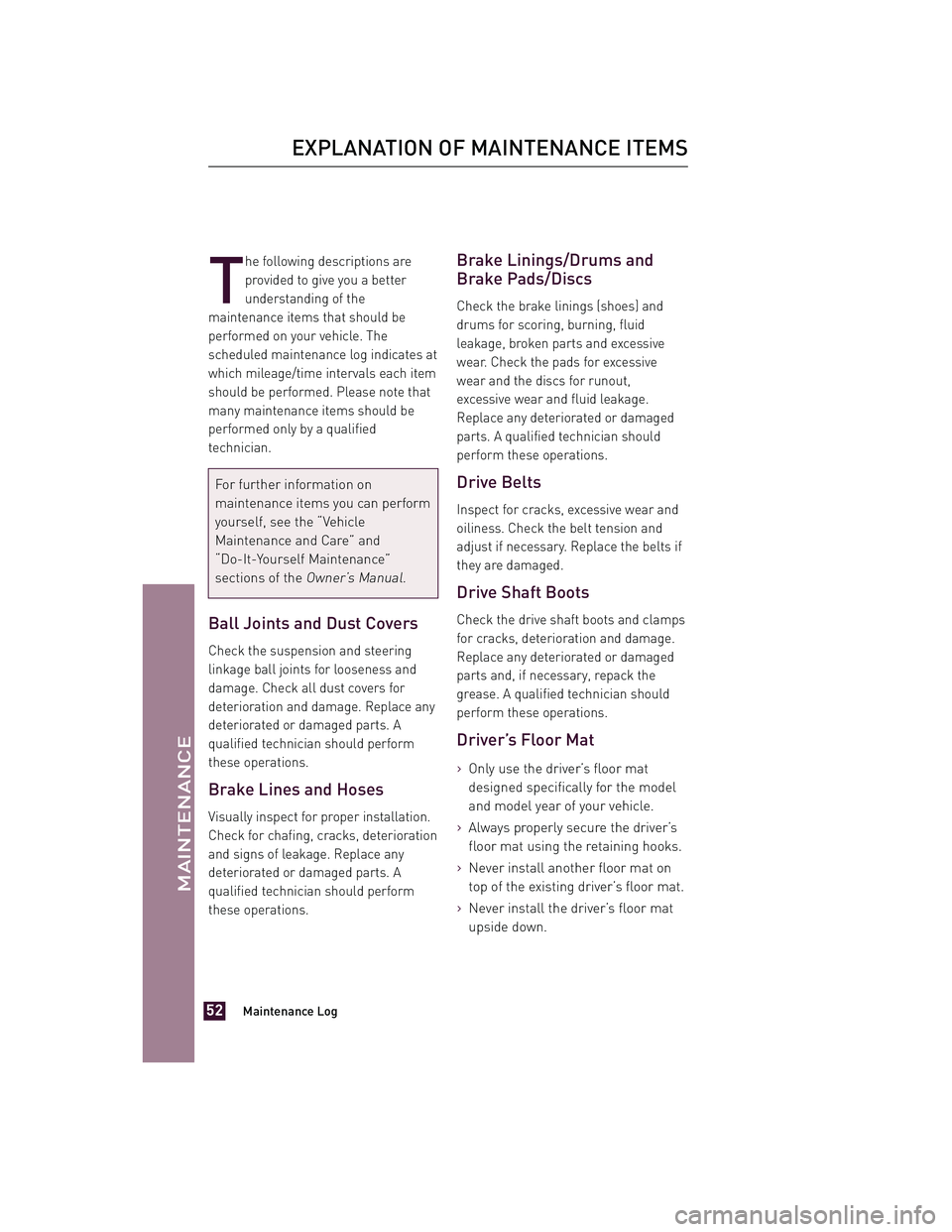

T
he following descriptions are
provided to give you a better
understanding of the
maintenance items that should be
performed on your vehicle. The
scheduled maintenance log indicates at
which mileage/time intervals each item
should be performed. Please note that
many maintenance items should be
performed only by a qualified
technician.
For further information on
maintenance items you can perform
yourself, see the “Vehicle
Maintenance and Care” and
“Do-It-Yourself Maintenance”
sections of the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage. Check all dust covers for
deterioration and damage. Replace any
deteriorated or damaged parts. A
qualified technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A
qualified technician should perform
these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid
leakage, broken parts and excessive
wear. Check the pads for excessive
wear and the discs for runout,
excessive wear and fluid leakage.
Replace any deteriorated or damaged
parts. A qualified technician should
perform these operations.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and
adjust if necessary. Replace the belts if
they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged
parts and, if necessary, repack the
grease. A qualified technician should
perform these operations.
Driver’s Floor Mat
>Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
>Always properly secure the driver’s
floor mat using the retaining hooks.
>Never install another floor mat on
top of the existing driver’s floor mat.
>Never install the driver’s floor mat
upside down.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log52
MAINTENANCE

JOBNAME: 1139983-2013-sxdWG-E PAGE: 53 SESS: 11 OUTPUT: Tue Jul 31 13:18:48 2012
/tweddle/toyota/sched-maint/1139983-en-sxd/wg

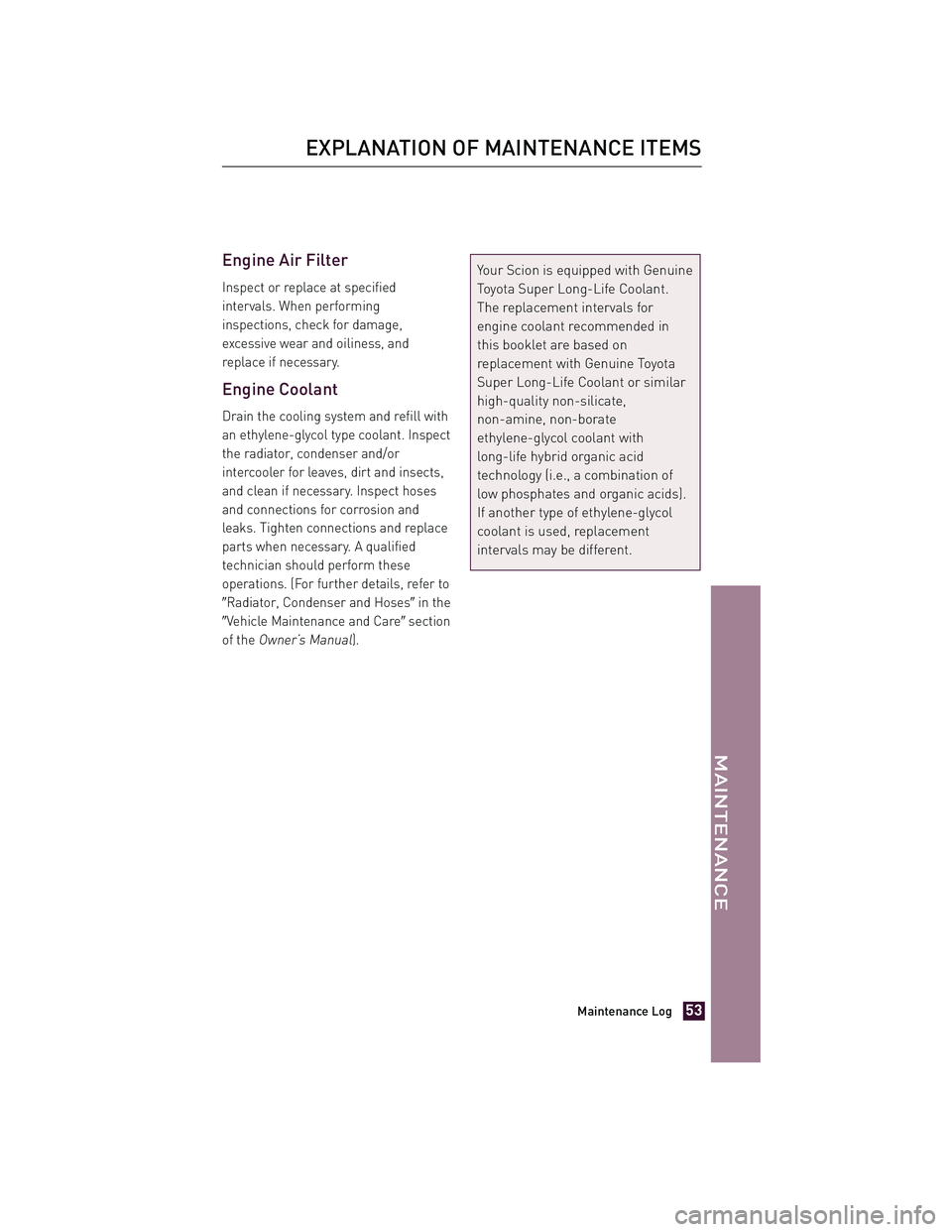

Engine Air Filter
Inspect or replace at specified
intervals. When performing
inspections, check for damage,
excessive wear and oiliness, and
replace if necessary.
Engine Coolant
Drain the cooling system and refill with
an ethylene-glycol type coolant. Inspect
the radiator, condenser and/or
intercooler for leaves, dirt and insects,
and clean if necessary. Inspect hoses
and connections for corrosion and
leaks. Tighten connections and replace
parts when necessary. A qualified
technician should perform these
operations. (For further details, refer to
Radiator, Condenser and Hosesin the
Vehicle Maintenance and Care section
of the
Owner’s Manual).
Your Scion is equipped with Genuine
Toyota Super Long-Life Coolant.
The replacement intervals for
engine coolant recommended in
this booklet are based on
replacement with Genuine Toyota
Super Long-Life Coolant or similar
high-quality non-silicate,
non-amine, non-borate
ethylene-glycol coolant with
long-life hybrid organic acid
technology (i.e., a combination of
low phosphates and organic acids).
If another type of ethylene-glycol
coolant is used, replacement
intervals may be different.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log53
MAINTENANCE

JOBNAME: 1139983-2013-sxdWG-E PAGE: 54 SESS: 12 OUTPUT: Tue Jul 31 13:18:48 2012
/tweddle/toyota/sched-maint/1139983-en-sxd/wg

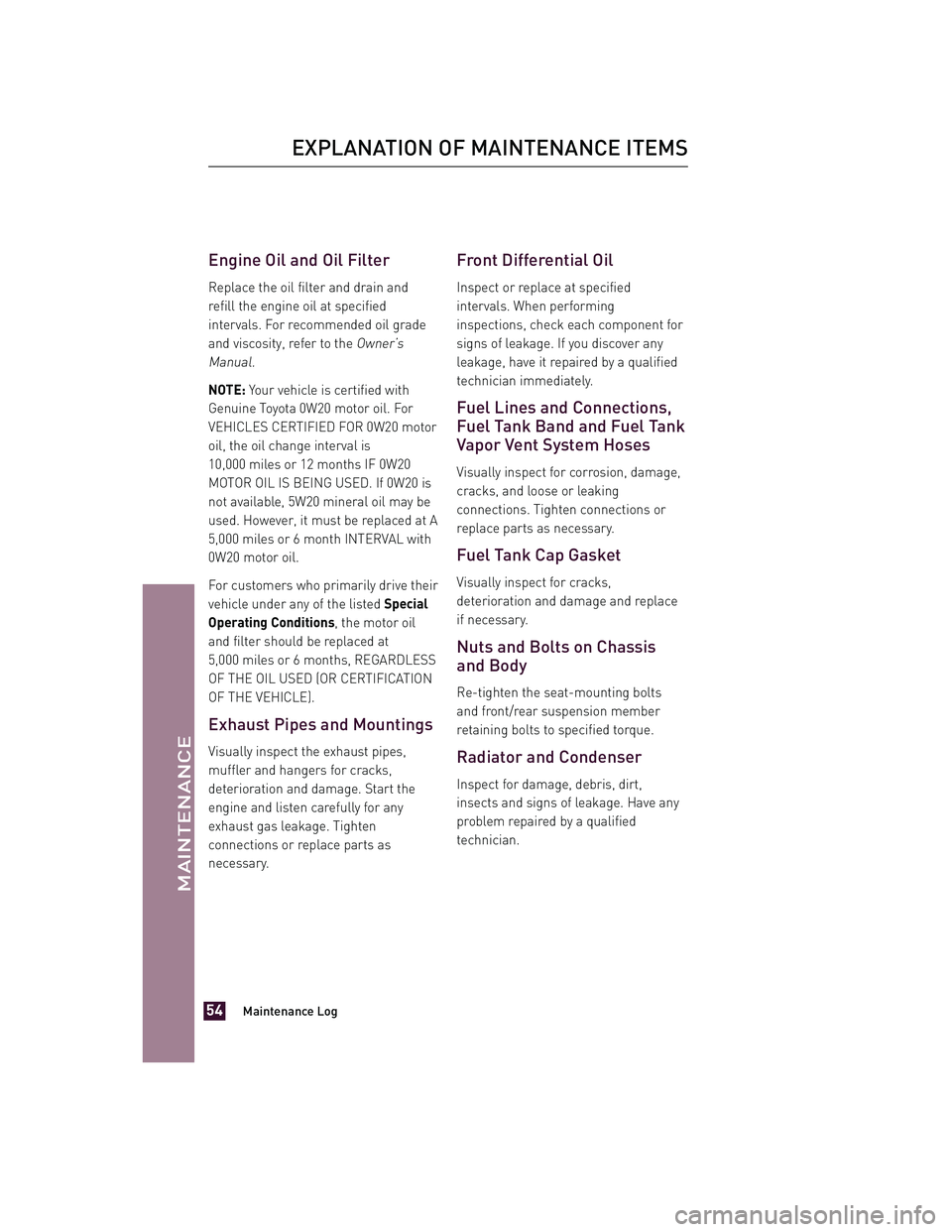

Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified
intervals. For recommended oil grade
and viscosity, refer to the
Owner’s
Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W20 motor oil. For
VEHICLES CERTIFIED FOR 0W20 motor
oil, the oil change interval is
10,000 miles or 12 months IF 0W20
MOTOR OIL IS BEING USED. If 0W20 is
not available, 5W20 mineral oil may be
used. However, it must be replaced at A
5,000 miles or 6 month INTERVAL with
0W20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil
and filter should be replaced at
5,000 miles or 6 months, REGARDLESS
OF THE OIL USED (OR CERTIFICATION
OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration and damage. Start the
engine and listen carefully for any
exhaust gas leakage. Tighten
connections or replace parts as
necessary.
Front Differential Oil
Inspect or replace at specified
intervals. When performing
inspections, check each component for
signs of leakage. If you discover any
leakage, have it repaired by a qualified
technician immediately.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking
connections. Tighten connections or
replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks,
deterioration and damage and replace
if necessary.
Nuts and Bolts on Chassis
and Body
Re-tighten the seat-mounting bolts
and front/rear suspension member
retaining bolts to specified torque.
Radiator and Condenser
Inspect for damage, debris, dirt,
insects and signs of leakage. Have any
problem repaired by a qualified
technician.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log54
MAINTENANCE

JOBNAME: 1139983-2013-sxdWG-E PAGE: 55 SESS: 11 OUTPUT: Tue Jul 31 13:18:48 2012
/tweddle/toyota/sched-maint/1139983-en-sxd/wg

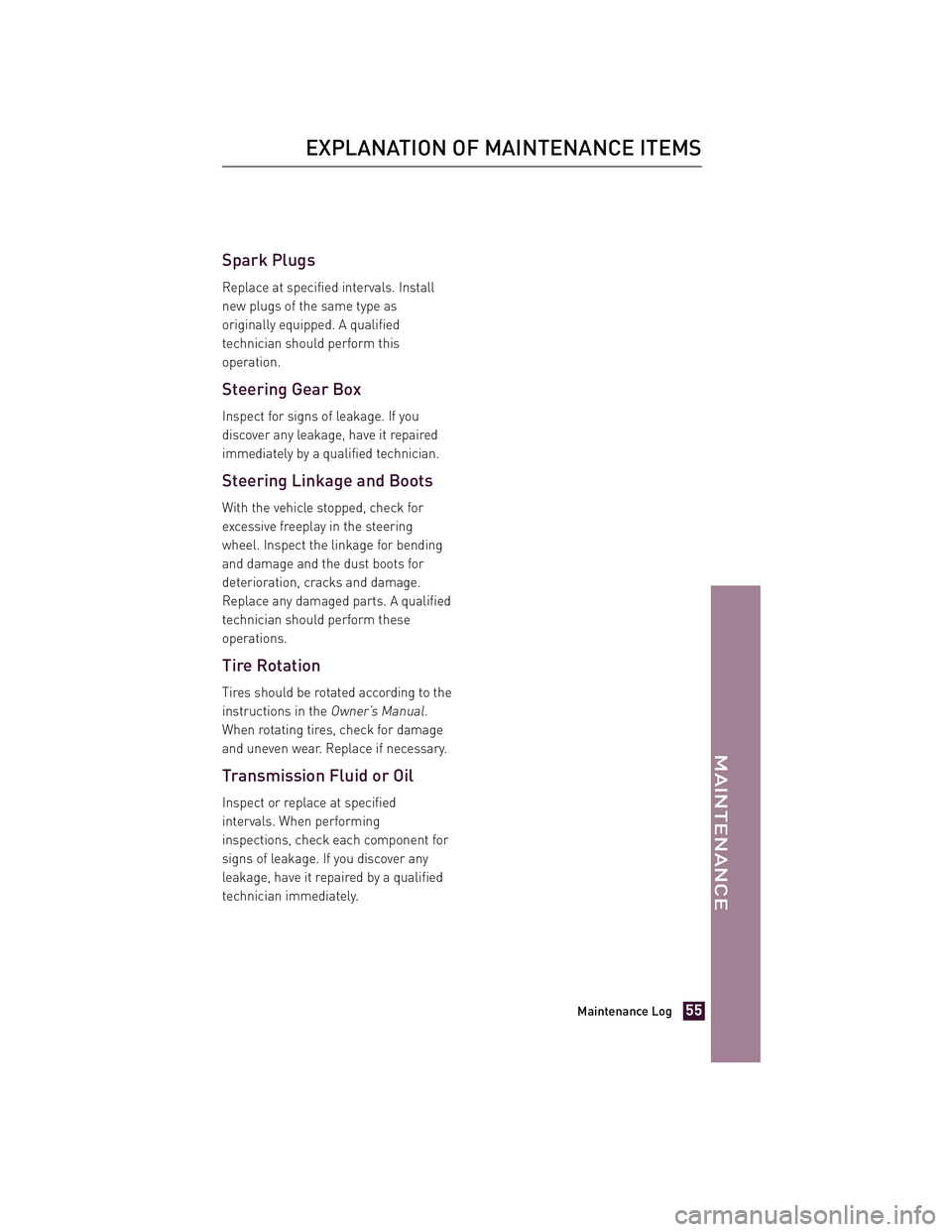

Spark Plugs
Replace at specified intervals. Install
new plugs of the same type as
originally equipped. A qualified
technician should perform this
operation.
Steering Gear Box
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering
wheel. Inspect the linkage for bending
and damage and the dust boots for
deterioration, cracks and damage.
Replace any damaged parts. A qualified
technician should perform these
operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.
When rotating tires, check for damage
and uneven wear. Replace if necessary.
Transmission Fluid or Oil
Inspect or replace at specified
intervals. When performing
inspections, check each component for
signs of leakage. If you discover any
leakage, have it repaired by a qualified
technician immediately.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log55
MAINTENANCE

JOBNAME: 1139983-2013-sxdWG-E PAGE: 56 SESS: 11 OUTPUT: Tue Jul 31 13:18:48 2012
/tweddle/toyota/sched-maint/1139983-en-sxd/wg

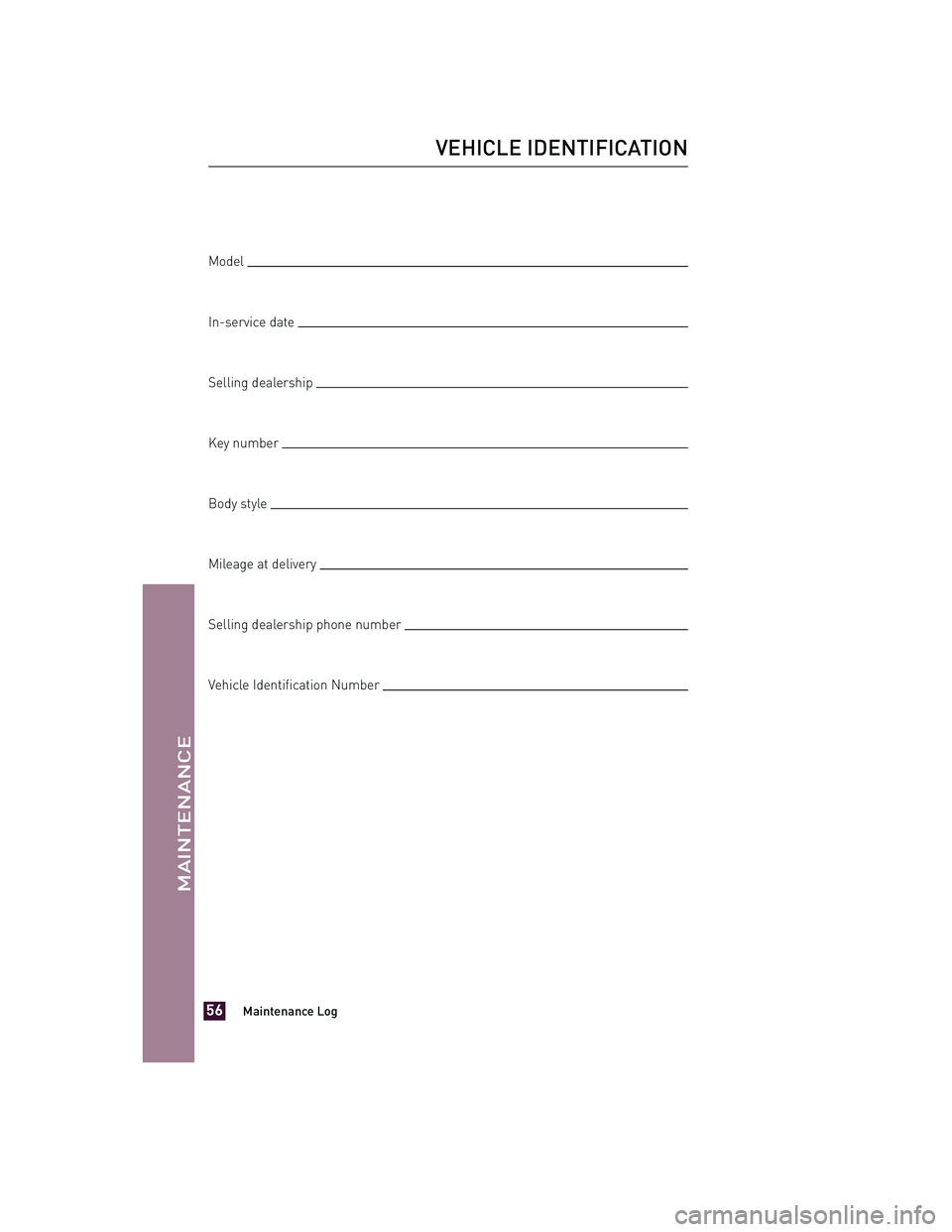

Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
VEHICLE IDENTIFICATION
MAINTENANCE
Maintenance Log56

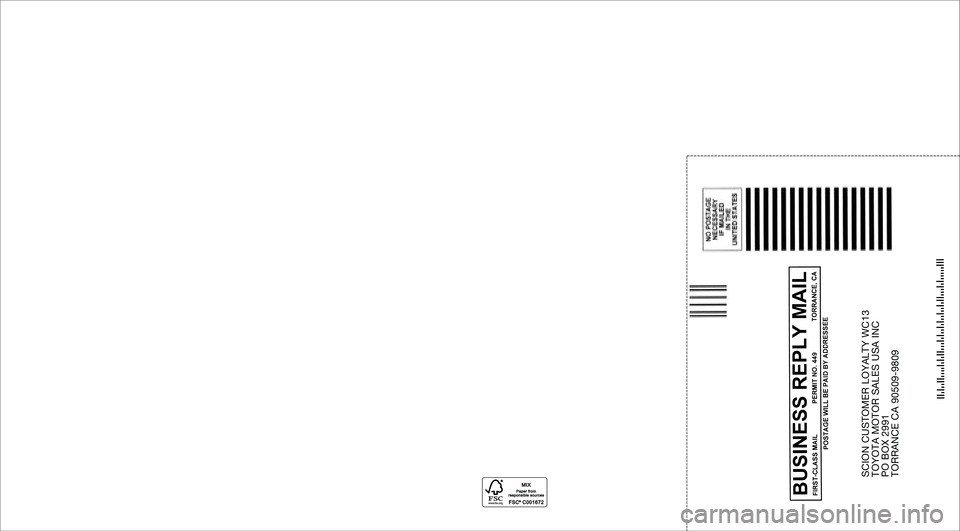

SCION CUSTOMER LOYALTY WC13
TOYOTA MOTOR SALES USA INC
PO BOX 2991
TORRANCE CA 90509-9809
