TOYOTA xD 2014 Owners Manual (in English)

281
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52E36U_(U)
*1: Vehicles sold in Canada
Fuse nameAmpereCircuit
10 IGN 7.5 A Multi-port fuel injection system/
sequential multi-port fuel injection
system
11 MET 7.5 A Gauges and meters
12 WIP 20 A Windshield wipers
13 RR WIP 15 A Rear window wiper
14 WSH 15 A Windshield washers, rear window
washer
15 ECU-IG 10 A ABS, electric cooling fan, EPS
16 GAUGE 10 A Charging system, back-up lights,
air conditioning system, gauges
and meters
17 OBD2 7.5 A On-board diagnosis system
18 STOP 10 A Stop lights, high mounted stop-
light, multi-port fuel injection sys-
tem/sequential multi-port fuel
injection system, ABS, VSC, shift
lock system
19 D/L 25 A Power door lock system
20 FR FOG 15 A No circuit
21 AM1 25 A “ACC”, “CIG” fuses

282 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52E36U_(U)

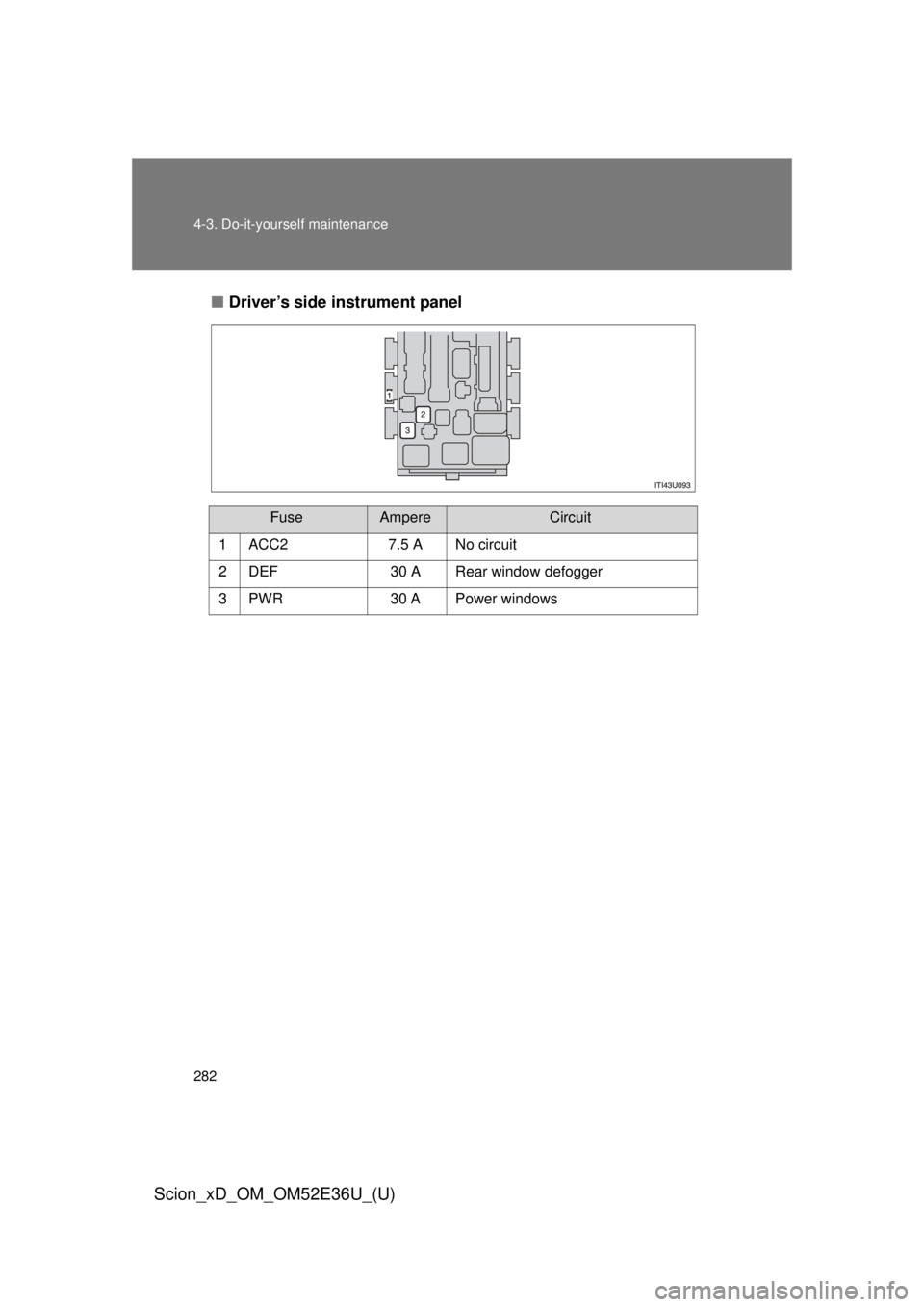

■Driver’s side instrument panel
FuseAmpereCircuit
1 ACC2 7.5 A No circuit
2 DEF 30 A Rear window defogger
3 PWR 30 A Power windows

283
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52E36U_(U)
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 284)
● If the replaced fuse blows again, have the vehicle inspected by your
Scion dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Scion fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Scion
dealer, as soon as possible.

284
4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52E36U_(U)

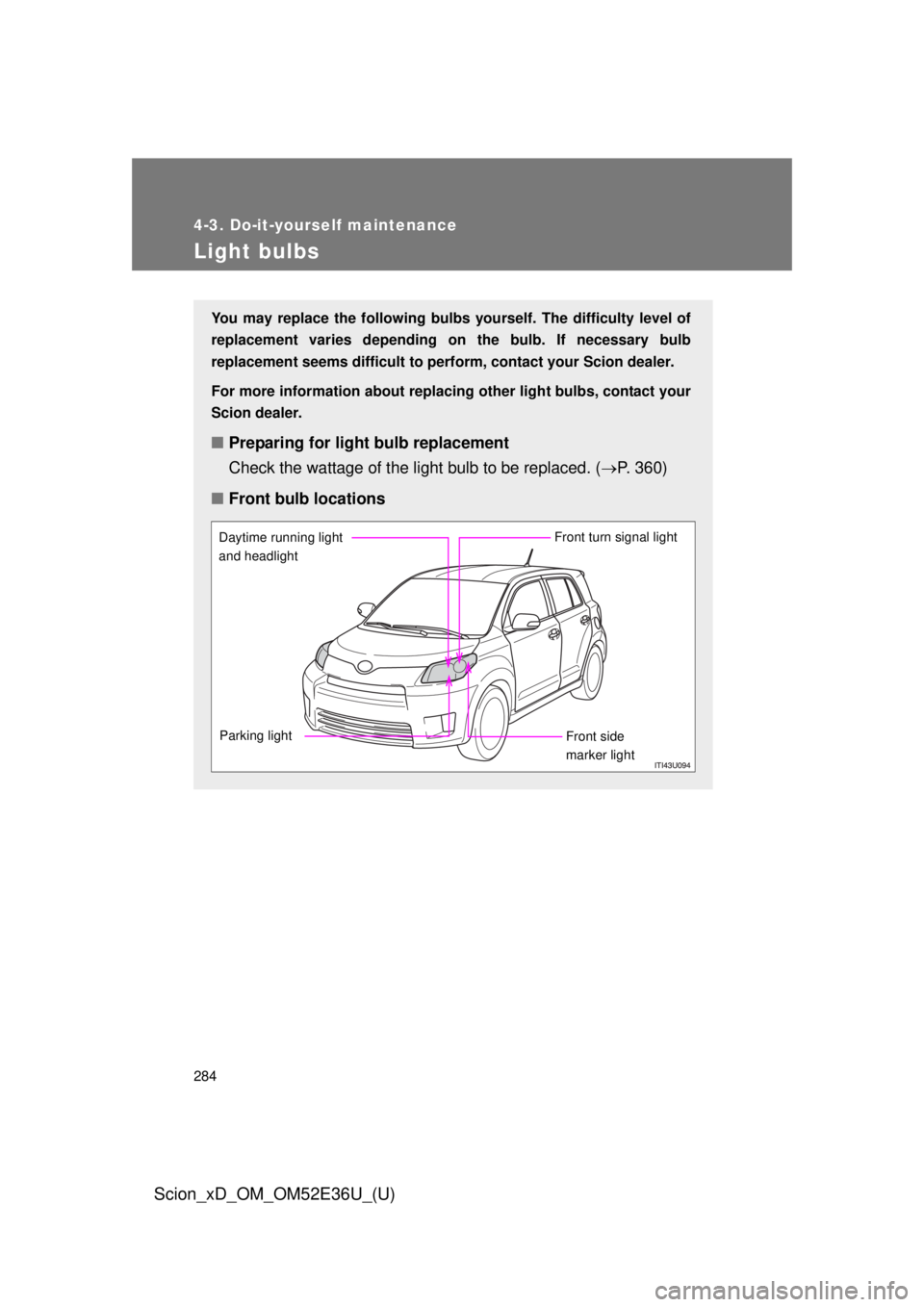

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perf orm, contact your Scion dealer.
For more information about replacing other light bulbs, contact your
Scion dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 360)
■ Front bulb locations
Front turn signal light
Front side
marker light
Daytime running light
and headlight
Parking light

285
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52E36U_(U)
■

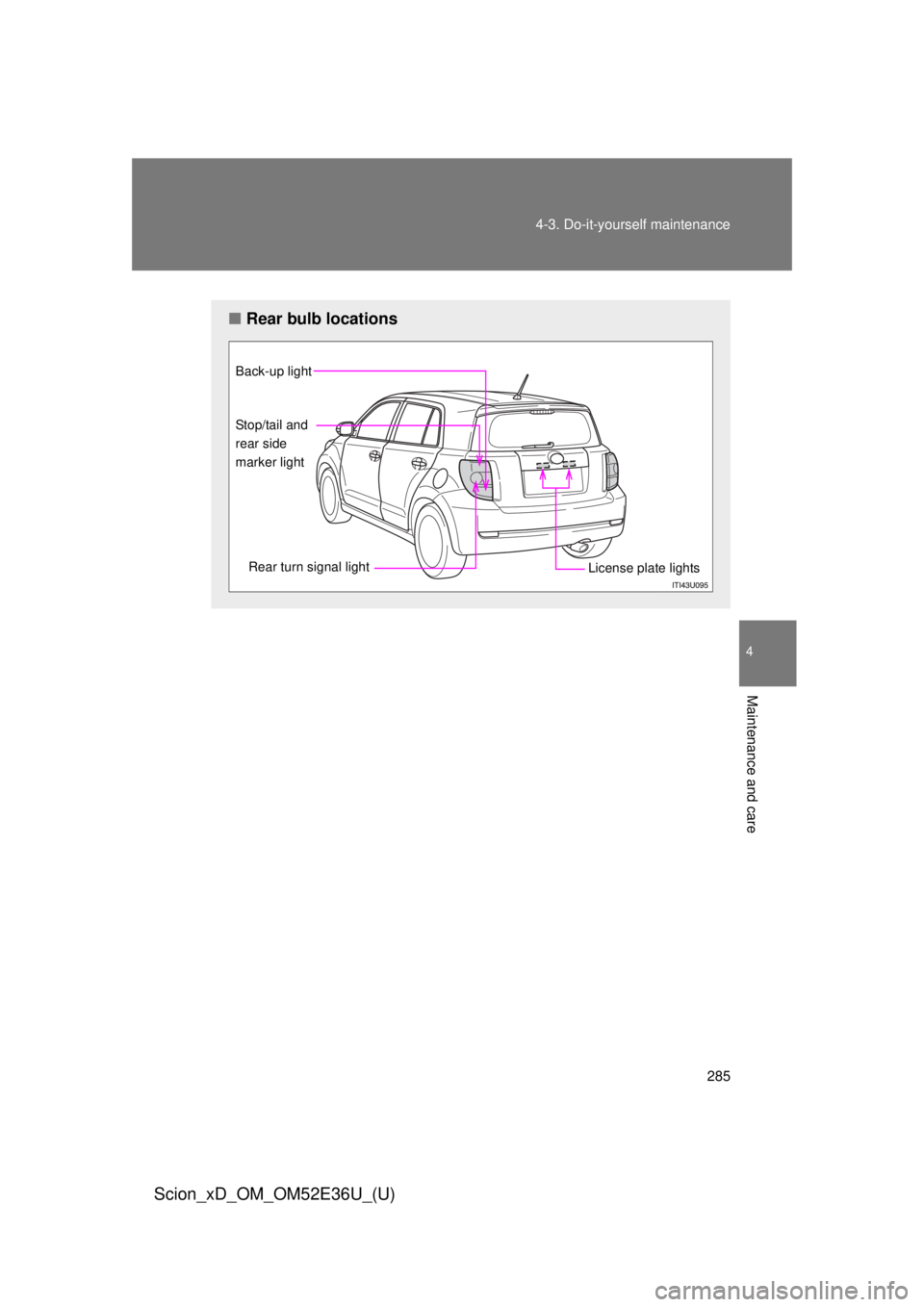

Rear bulb locations
Back-up light
License plate lights
Stop/tail and
rear side
marker light
Rear turn signal light

286 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52E36U_(U)

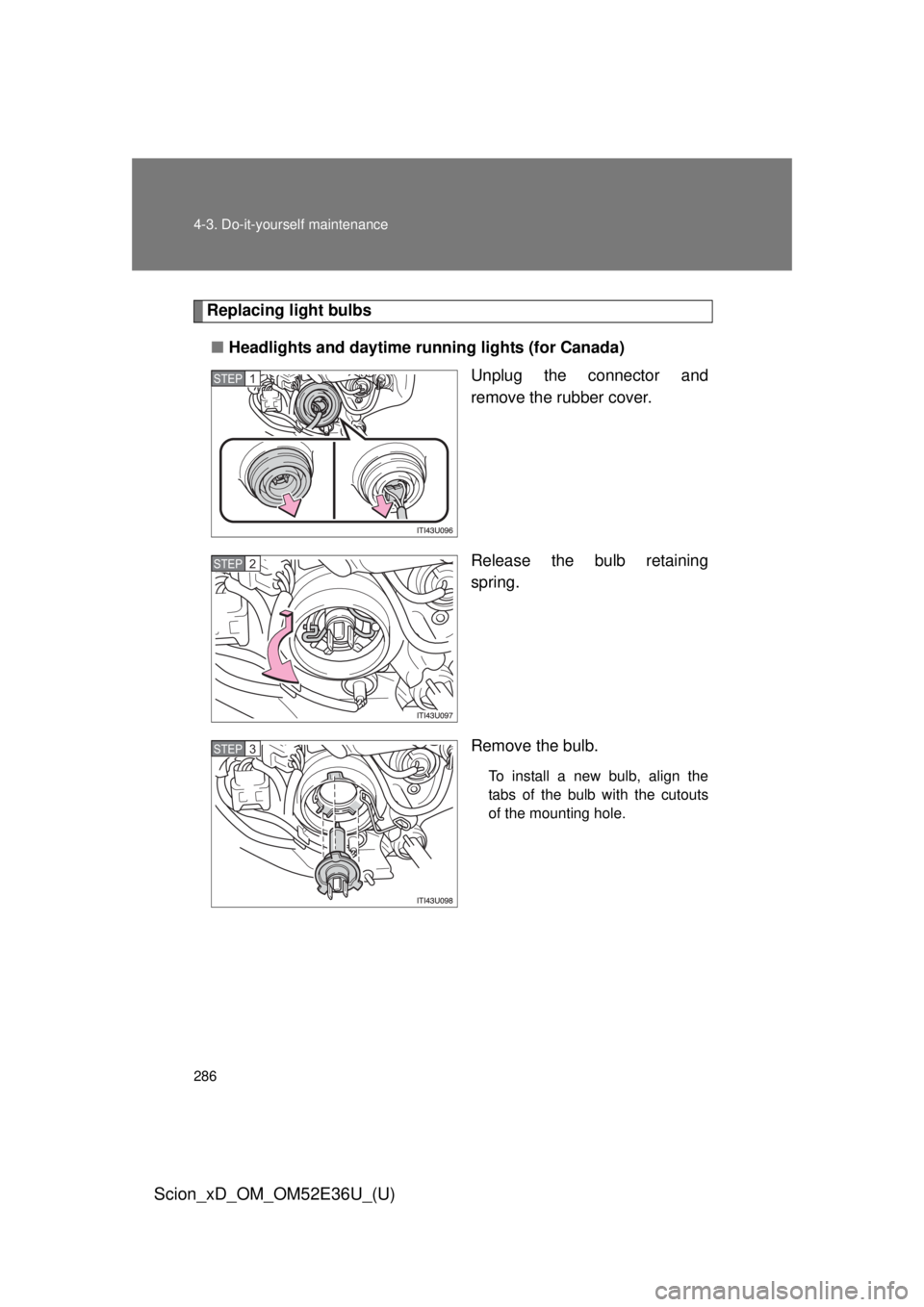

Replacing light bulbs■ Headlights and daytime running lights (for Canada)
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
STEP 1
STEP 2
STEP 3

287
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52E36U_(U)
■
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

288 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52E36U_(U)

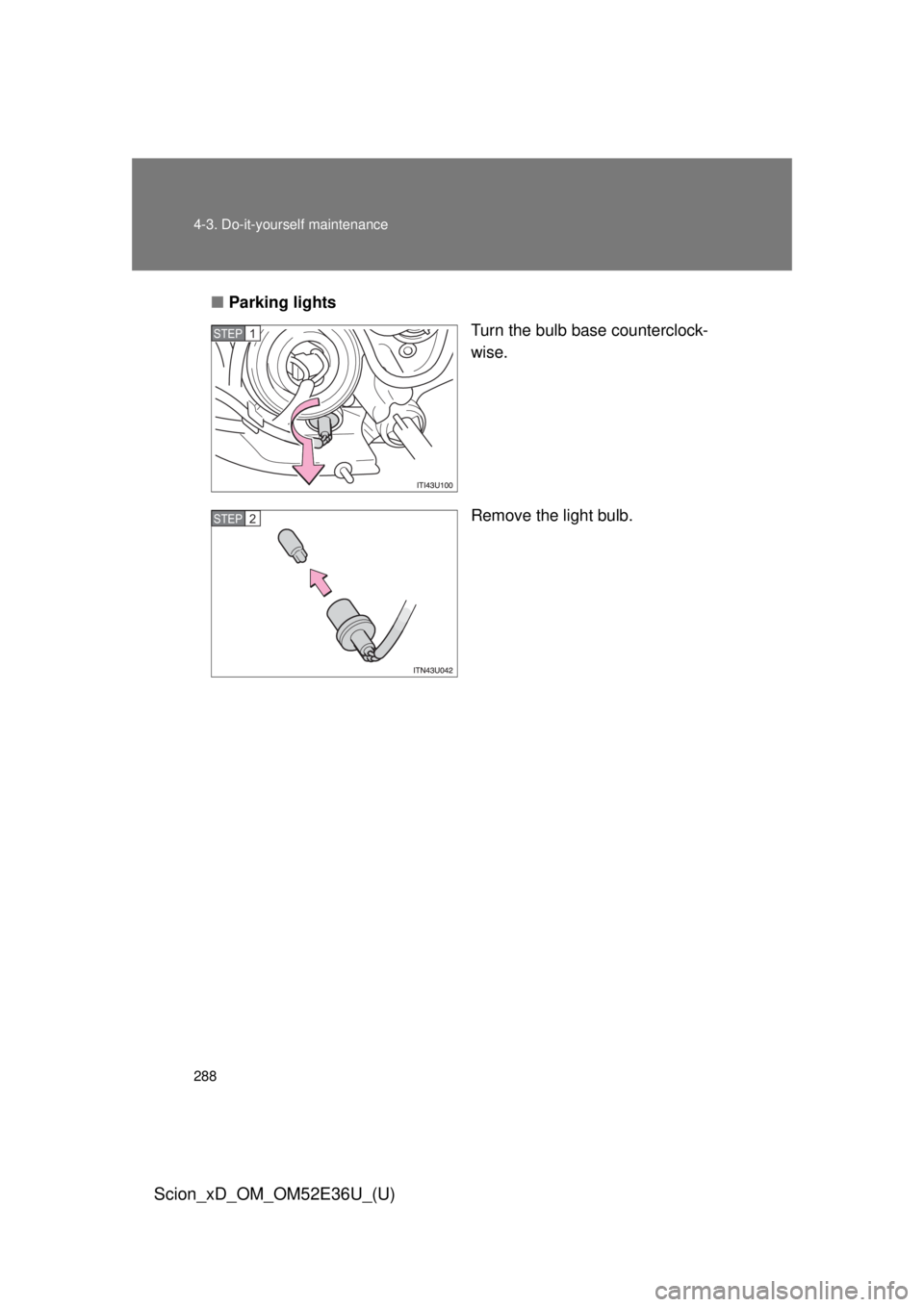

■Parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

289
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52E36U_(U)
■

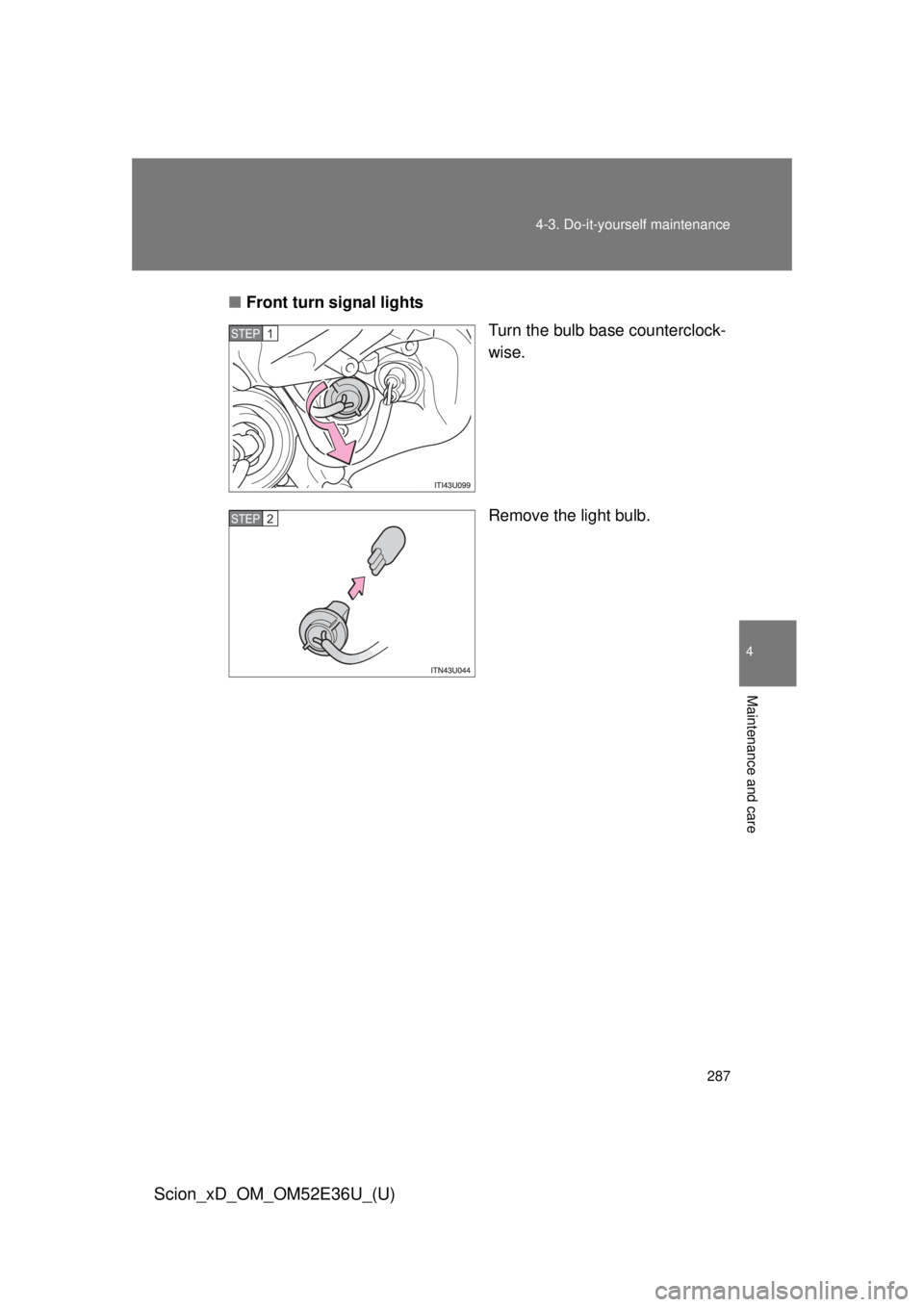

Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

290 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52E36U_(U)
■Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
STEP 1
STEP 2
STEP 3
