airbag disable TOYOTA YARIS 2005 1.G Owners Manual

272005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tion may prevent the seat belt preten-
sioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.

Installation of electronic devices
such as a mobile two −way radio,
cassette tape player or compact
disc player

Repairs on or near the front seat
belt retractor assemblies

Modification of the suspension sys-
tem

Modification of the front end struc-
ture

Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end

Repairs made on or near the front
fenders, front end structure or con-
sole
SP13504
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the seat belt pretensioners are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 69 in Section 1 −6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
04 05.28

332005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

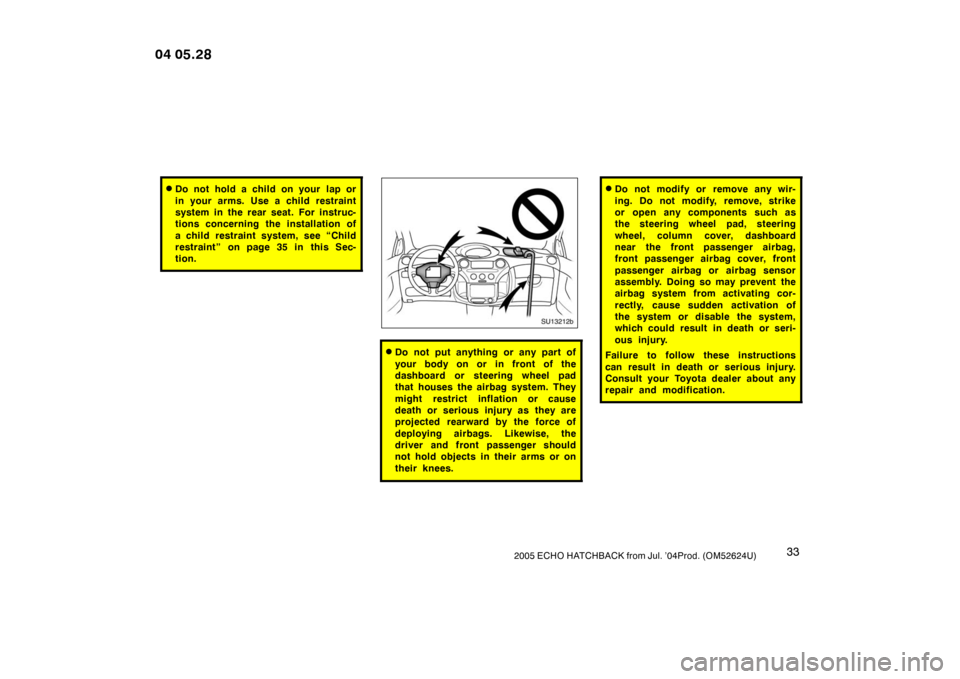

Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” on page 35 in this Sec-
tion.
SU13212b

Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the airbag system. They
might restrict inflation or cause
death or serious injury as they are
projected rearward by the force of
deploying airbags. Likewise, the
driver and front passenger should
not hold objects in their arms or on
their knees.

Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
airbag system from activating cor-
rectly, cause sudden activation of
the system or disable the system,
which could result in death or seri-
ous injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
04 05.28
