lock TOYOTA YARIS 2005 1.G Owners Manual

vi2005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Accessories, spare parts andmodification of your Toyota
A wide variety of non −genuine spare parts and accessories
for Toyota vehicles are currently available in the market. You
should know that Toyota does not warrant these products
and is not responsible for their performance, repair, or re-
placement, or for any damage they may cause to, or ad-
verse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non −genuine
Toyota products. Modification with non −genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
Spark ignition system of your To y o t a
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference −Causing Equip-
ment Standard.
Installation of a mobile two −way radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, anti −lock brake system, SRS airbag
system and seat belt pretensi oner system, be sure to
check with your Toyota dealer for precautionary mea-
sures or special instructions regarding installation.
04 04.06

22005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Personal lights
5. Rear view mirror remote control levers
6. Auxiliary box
7. Glove box
8. Automatic transmission selector lever ormanual transmission gear shift lever
9. Parking brake lever
10. Power door lock switch 11. Hood lock release lever
04 05.18
SU11011c

32005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

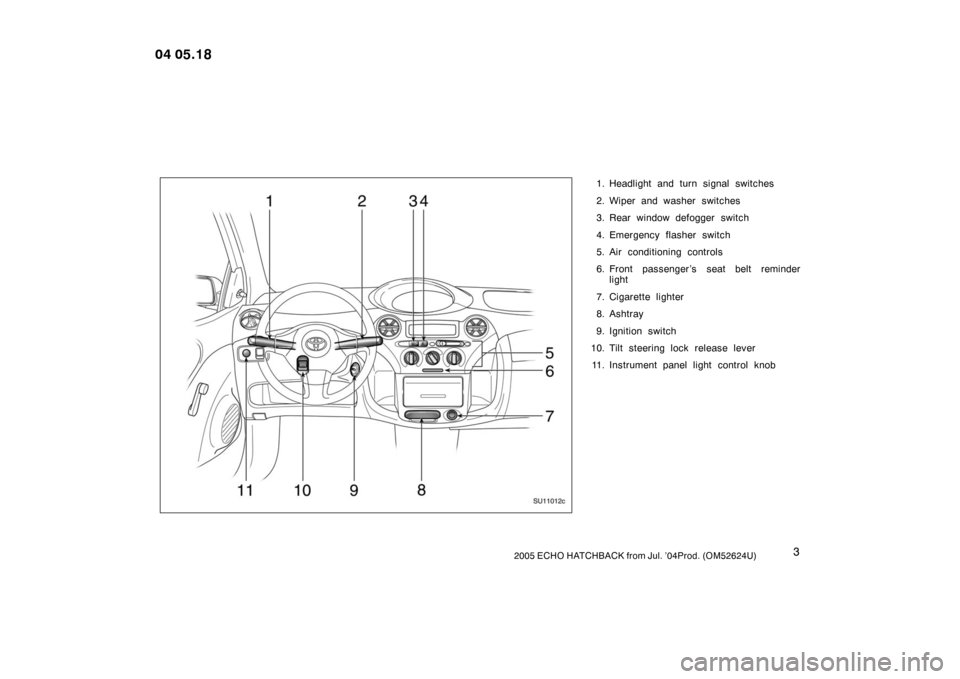

1. Headlight and turn signal switches
2. Wiper and washer switches
3. Rear window defogger switch
4. Emergency flasher switch
5. Air conditioning controls
6. Front passenger ’s seat belt reminderlight
7. Cigarette lighter
8. Ashtray
9. Ignition switch
10. Tilt steering lock release lever 11. Instrument panel light control knob
04 05.18
SU11012c

52005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Indicator symbols on the instrument panel
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti-lock brake system warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Low fuel level indicator light∗1
Turn signal indicator lights
Headlight high beam indicator light
Overdrive −off indicator light
Low engine coolant temperature indicator light
(in blue)∗
2
High engine coolant temperature warning light
(in red)∗1
Front passenger ’s seat belt reminder light∗1
Open door warning light∗1 ∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 1 −6.
∗
2: For details, see “Engine coolant temperature indicator and
warning light” in Section 1 −6.
04 05.18

82005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

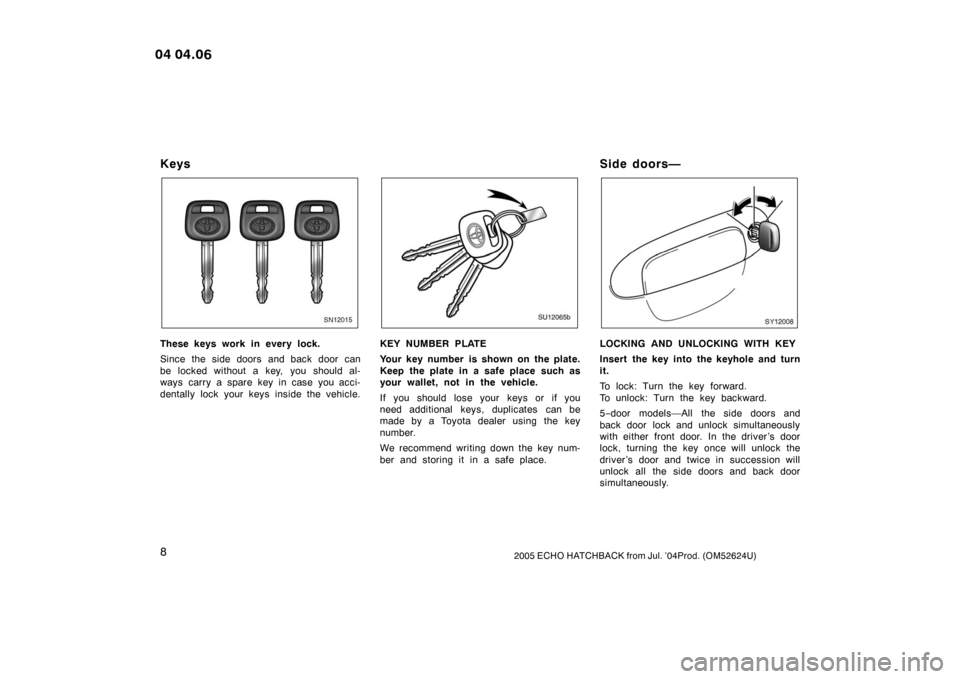

Keys
SN12015
These keys work in every lock.
Since the side doors and back door can
be locked without a key, you should al-
ways carry a spare key in case you acci-
dentally lock your keys inside the vehicle.
SU12065b
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Side doors—
SY12008
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
5−door models—All the side doors and
back door lock and unlock simultaneously
with either front door. In the driver ’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the side doors and back door
simultaneously.
04 04.06

92005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
SY12009

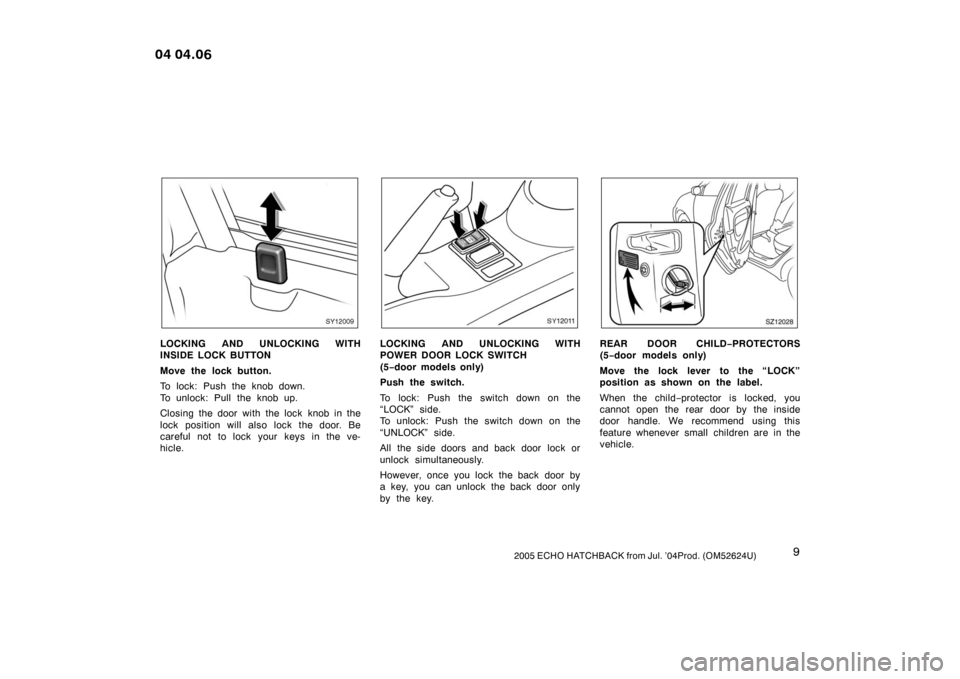

LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the knob down.
To unlock: Pull the knob up.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
SY12011
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
(5−door models only)
Push the switch.
To lock: Push the switch down on the
“LOCK” side.
To unlock: Push the switch down on the
“UNLOCK” side.
All the side doors and back door lock or
unlock simultaneously.
However, once you lock the back door by
a key, you can unlock the back door only
by the key.
SZ12028
REAR DOOR CHILD− PROTECTORS
(5 −door models only)
Move the lock lever to the “LOCK”
position as shown on the label.
When the child −protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
04 04.06

102005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Back door
SY12017
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
5−door models—
Operating the power door lock switch si-
multaneously locks or unlocks the back
door (see “Side doors” on page 8).
However, once you lock it by a key, you
can unlock it only by the key.
See “Cargo and luggage” on page 120 in
Section 2 for precautions to observe when
loading luggage.
SU12071
When closing the back door, the inside
handle can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
04 04.06

112005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

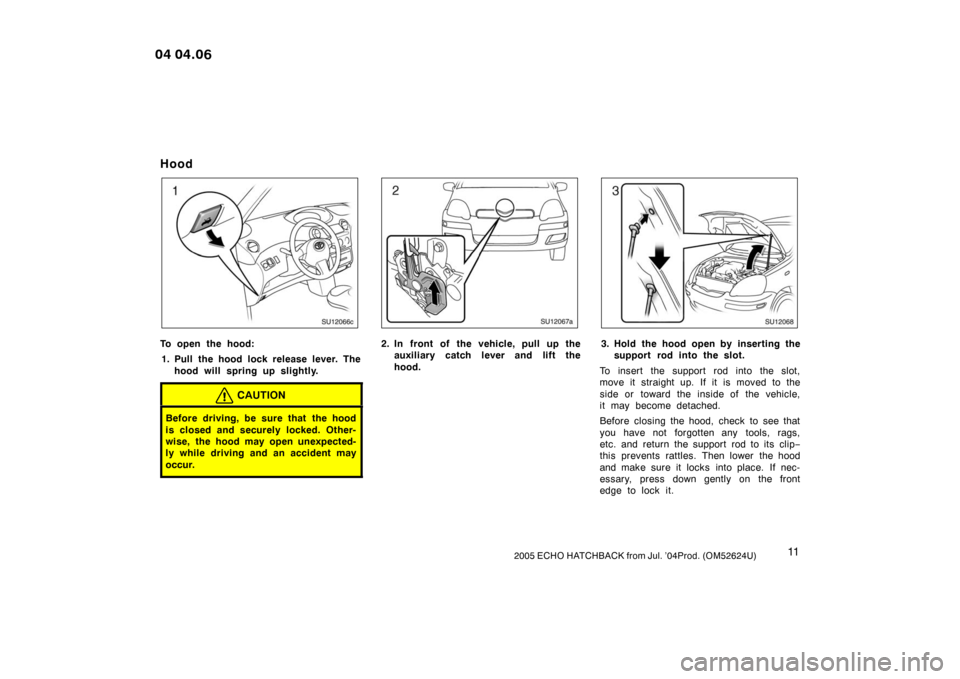

Hood
SU12066c
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
SU12067a
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
SU12068
3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip−
this prevents rattles. Then lower the hood
and make sure it locks into place. If nec-
essary, press down gently on the front
edge to lock it.
04 04.06

132005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
SU12070

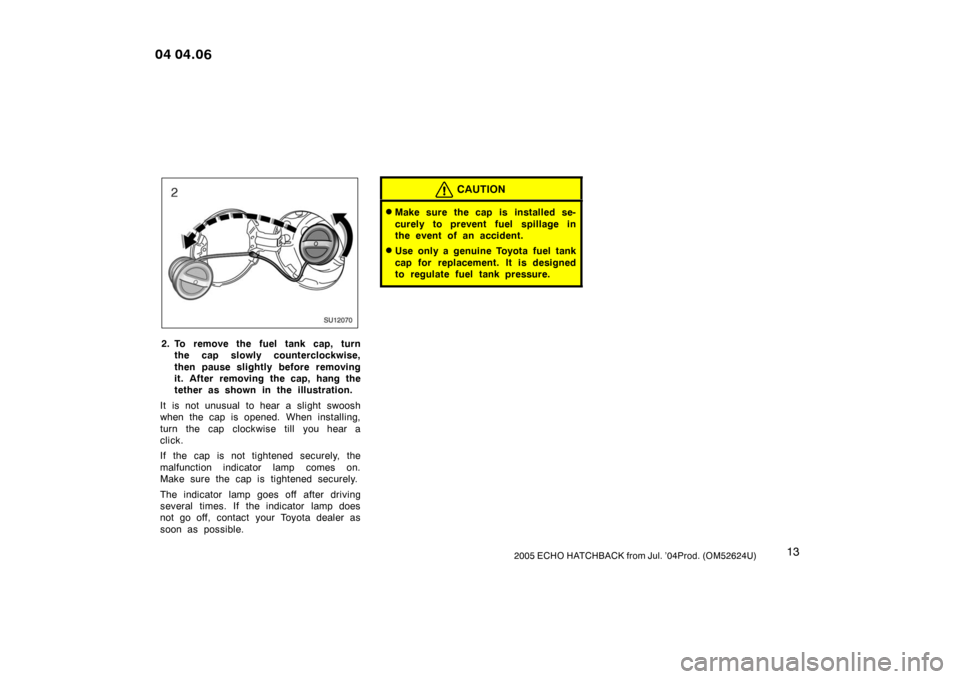

2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION

Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.

Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
04 04.06

172005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Front passenger seat

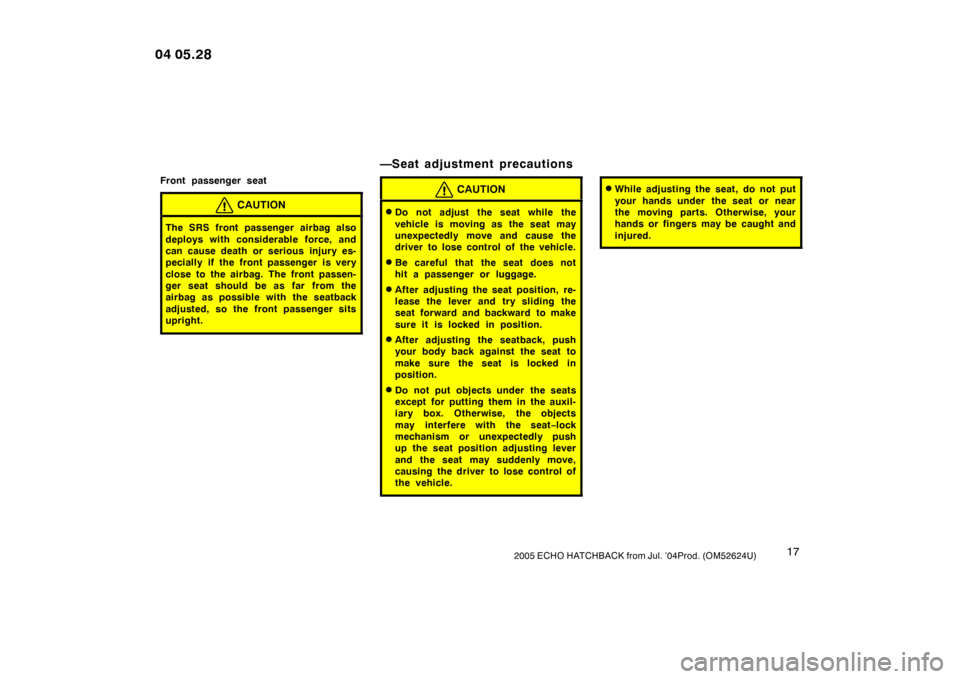

CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
—Seat adjustment precautions
CAUTION

Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.

Be careful that the seat does not
hit a passenger or luggage.

After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.

After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.

Do not put objects under the seats
except for putting them in the auxil-
iary box. Otherwise, the objects
may interfere with the seat−lock
mechanism or unexpectedly push
up the seat position adjusting lever
and the seat may suddenly move,
causing the driver to lose control of
the vehicle.

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
04 05.28
