TOYOTA YARIS 2006 2.G Owners Manual

1542006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
TERMS
Packet write—
This is a general term for a method of
writing on CD−R, etc. at the time required
for a file, just as is done with files on
floppy or hard di scs.
Bit rate—
This expresses data volume per second,
or bps units (bits per second). The higher
the rate, the more information is available
to reproduce the sound. Using the same
encoding methods (such as MP3/WMA),
the higher the rate, the better the sound.
Multisession—
Multi −session is a recording method that
allows additional data to be recorded later.
When recording data on a CD −ROM,
CD− R or CD −RW, etc., all data from be-
ginning to end is treated as a single unit
or session. Multi −session is a method of
recording more than 2 sessions in one
disc.
CDDA—
CD− DA is an abbreviation of Compact
Disc Digital Audio. It refers to the uncom-
pressed format of regular CDs. ID3/WMA Tag—
This is a method of embedding track
−re-
lated information in a MP3/WMA file. This
embedded information can include the
track title, the artist’s name, the album
title, the music genre, the year of produc-
tion, comments and other data. The con-
tents can be freely edited using software
with ID3/WMA tag editing functions. Al-
though the tags are restricted to the num-
ber of characters, the information can be
viewed when the track is played back.
ISO 9660 format—
This is the international standard for the
format logic of CD −ROM folders and files.
For the ISO 9660 format, there are regula-
tions for the following two levels.
Level 1:
The file name is in 8.3 format (the name
consists of up to 8 characters, half −byte
English capital letters and half −byte nu-
merals and the “ −” sign, with a file exten-
sion of three characters.) Level 2:
The file name can have up to 31 (MP3
files)/15 (WMA files) characters (including
the separation mark “.” and a file exten-
sion). Each folder contains less than 8
hierarchies.
Extended formats
Joliet:
File name can have up to 64 characters.
Romeo:
File names can have up to 128 charac-
ters.
m3u—
Playlists created using the “WINAMP” soft-
ware have a playlist file extension (.m3u).
MP3—
MP3 is short for MPEG 1 & 2 Audio Layer
3. It is an audio compression standard set
by a working group (MPEG) of the ISO
(International Standards Organization).
MP3 is able to compress audio data to
about 1/10 the level of a conventional
disc.

1552006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
WMA—
WMA is short for Windows Media
TM Audio.
It is the audio file format developed by
Microsoft Corporation. WMA is able to
compress audio data to about 1/2 the lev-
el of MP3.
Windows Media
TM and Windows are reg-
istered trademarks of Microsoft Corpora-
tion in the United States and other coun-
tries.

1562006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

1572006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Controls158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Air flow selector settings 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Operating tips 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Instrument panel vents 163
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Air conditioning filter 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 1 9

1582006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

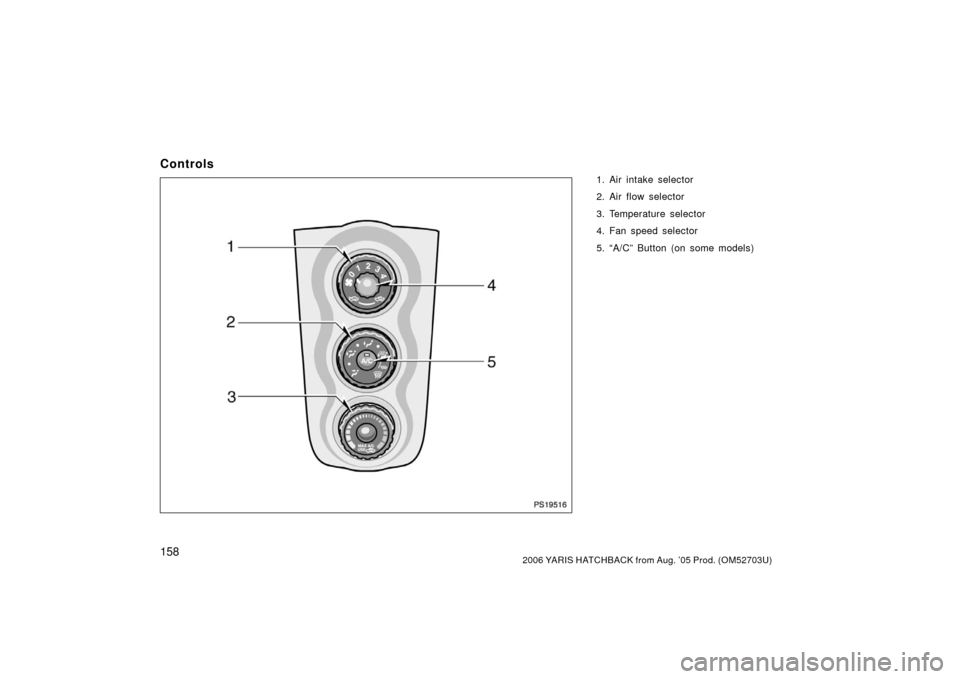

Controls
1. Air intake selector
2. Air flow selector
3. Temperature selector
4. Fan speed selector
5. “A/C” Button (on some models)
PS19516

1592006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.
Air flow selector
Turn the knob to select the vents used for
air flow.1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH. 5. Windshield—
Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
Use with the air intake selector posi-
tioned in FRESH.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
For details about air flow selector settings,
see “Air flow selector settings” described
below.

1602006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS19502
Air intake selector
Turn the knob to select the air source.1. Fresh— Draws outside air into the sys-
tem.
2. Recirculate— Recirculates the air inside
the vehicle. “A/C” button (on some models)
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.

1612006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

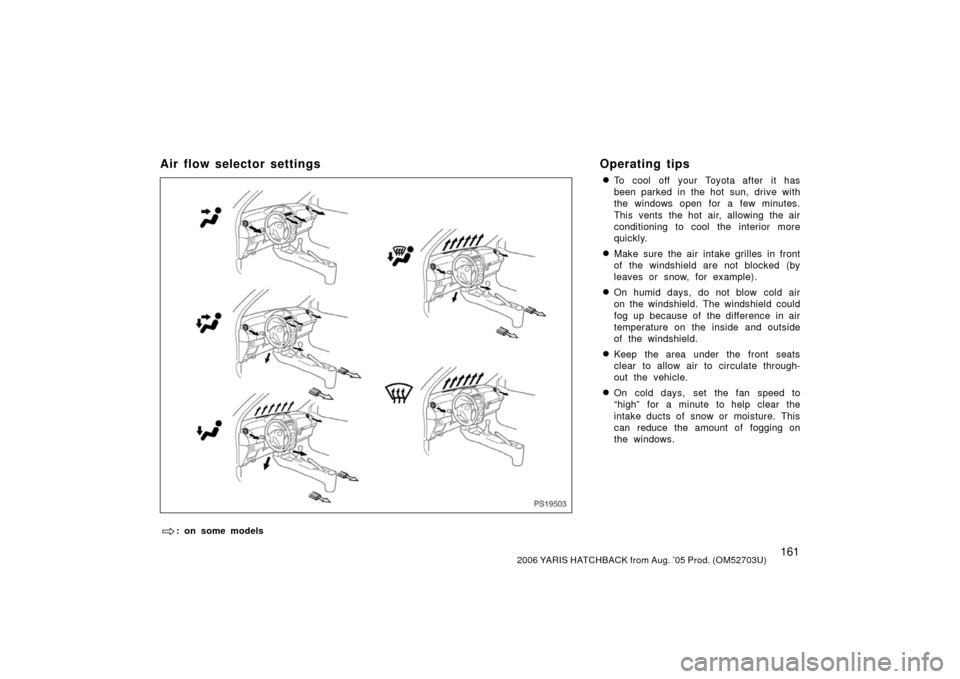

Air flow selector settings
: on some models
Operating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
“high” for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
PS19503

1622006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “0”.
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.
PS19504a
Air conditioning
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, turn the temperature
selector knob fully towards COLD and
change the air intake selector mode
RECIRCULATE.

1632006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Ventilation
For best results, set controls to:Fan speed— Any setting except “0”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to windshield
position turns on the defogging function
with the purpose of clearing the front
view.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to windshield
position turns on the defogging function
with the purpose of clearing the front
view.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

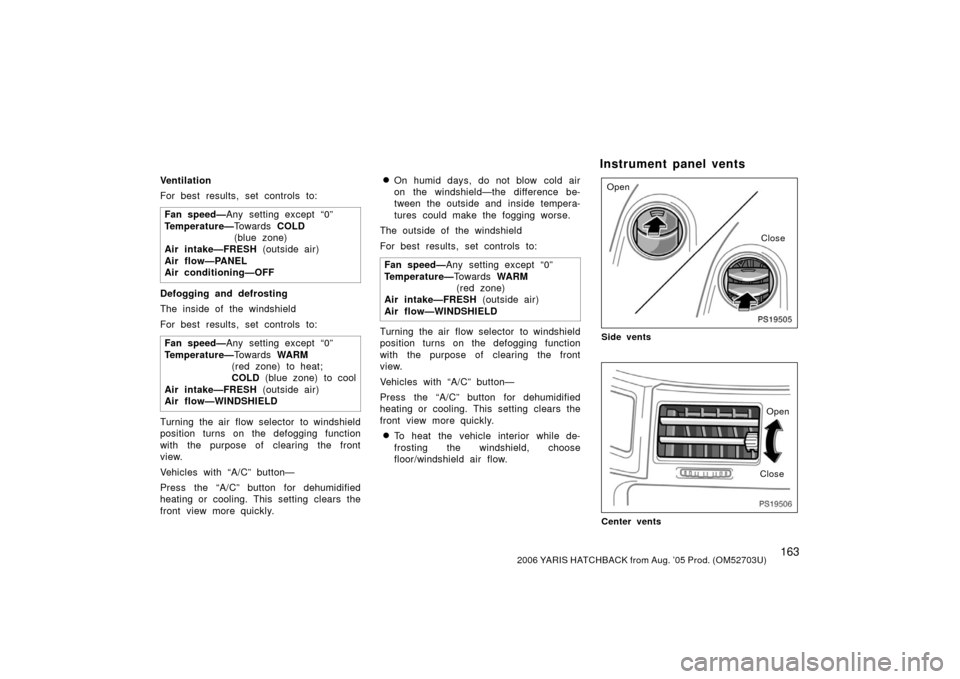

Instrument panel vents
PS19505
Open
Close
Side vents
PS19506
Open
Close
Center vents
