Page 11 of 312
42006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

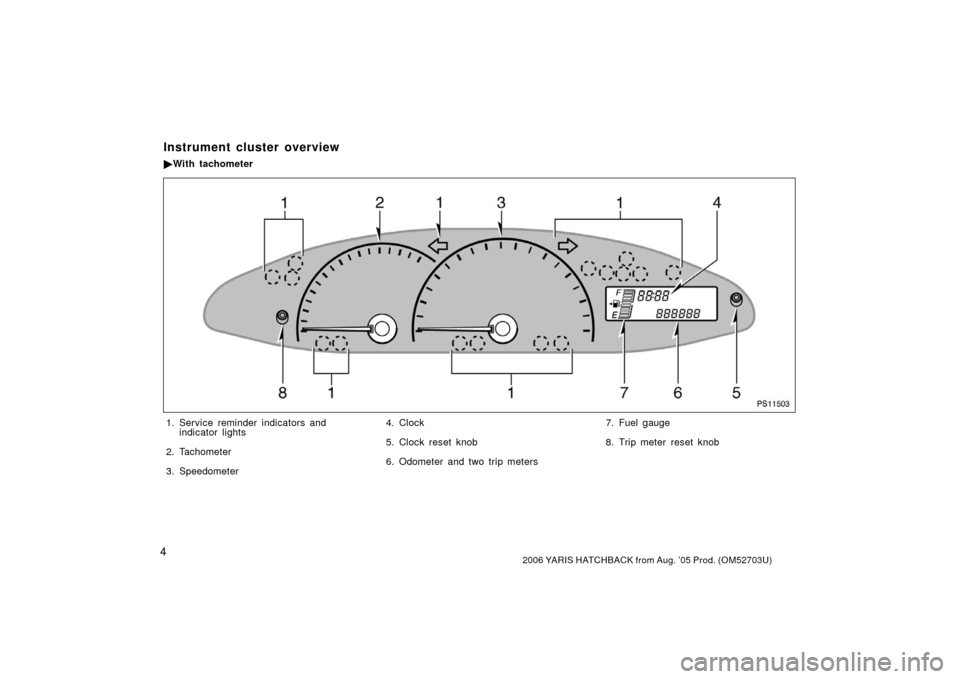

PS11503
1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Clock
5. Clock reset knob
6. Odometer and two trip meters
7. Fuel gauge
8. Trip meter reset knob
Instrument cluster overview
With tachometer
Page 12 of 312
52006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

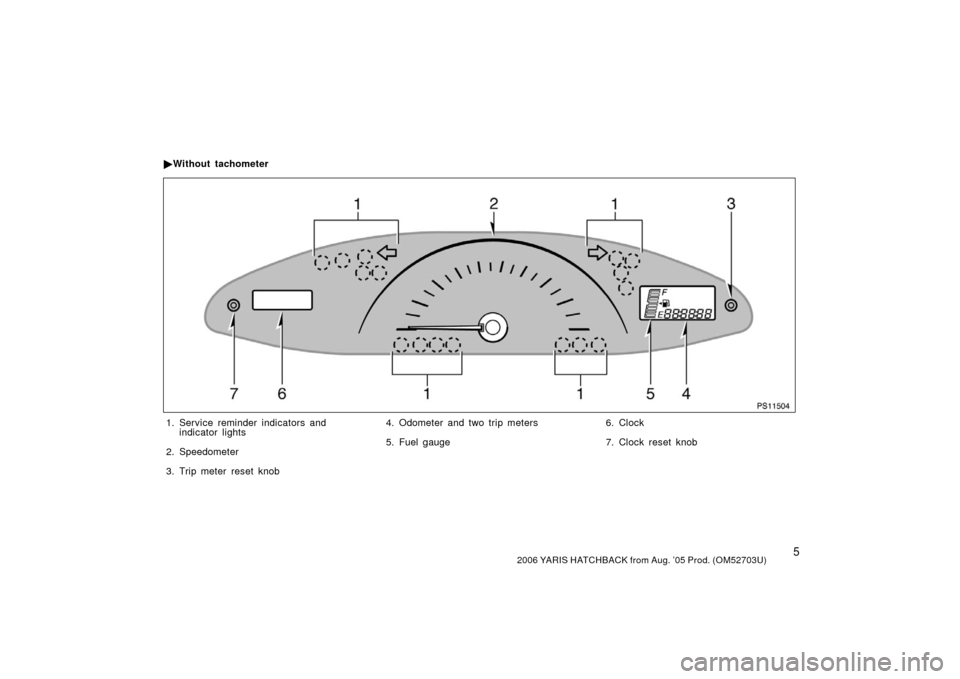

PS11504
1. Service reminder indicators andindicator lights
2. Speedometer
3. Trip meter reset knob 4. Odometer and two trip meters
5. Fuel gauge
6. Clock
7. Clock reset knob
Without tachometer
Page 140 of 312
1332006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1·2”, “FM1”, “FM2”,
“DISC·AUX” or “AUX” if the system is
already on but you want to switch from
one function to another.
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with different mixes
of treble and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is retracted before driv-
ing your Toyota through an automatic
car wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Never try to disassemble or oil any
part of the cassette player do not in-
sert anything other than cassette
tapes into the slot.
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
Page 177 of 312
1702006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

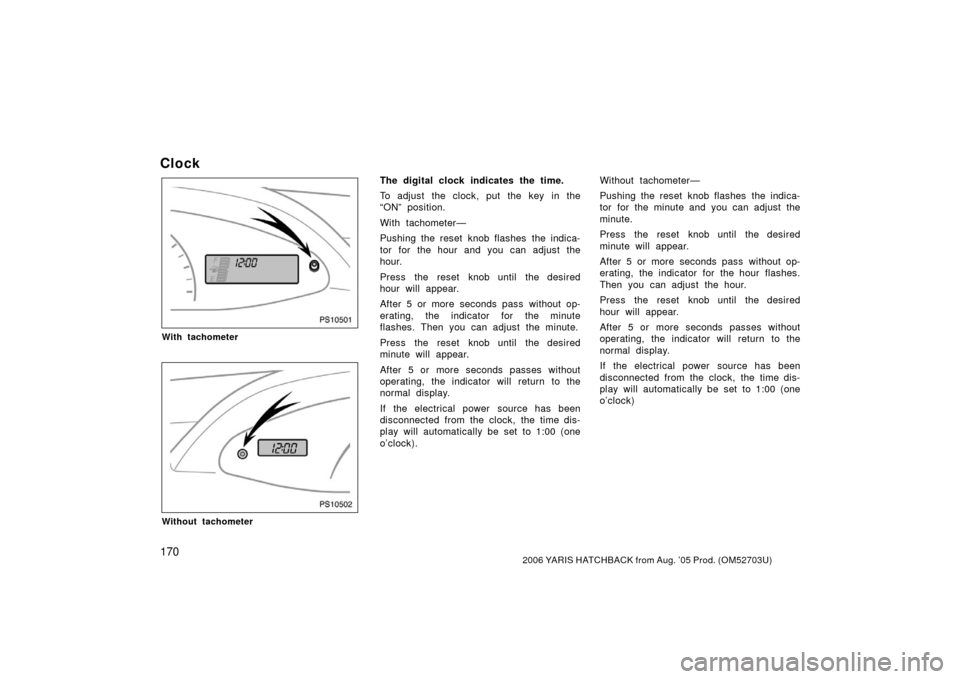

Clock
PS10501
With tachometer
PS10502
Without tachometer
The digital clock indicates the time.
To adjust the clock, put the key in the
“ON” position.
With tachometer—
Pushing the reset knob flashes the indica-
tor for the hour and you can adjust the
hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds pass without op-
erating, the indicator for the minute
flashes. Then you can adjust the minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).Without tachometer—
Pushing the reset knob flashes the indica-
tor for the minute and you can adjust the
minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds pass without op-
erating, the indicator for the hour flashes.
Then you can adjust the hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock)
