Ventilation
For best results, set controls to:Fan speed— Any setting except “0”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to windshield
position turns on the defogging function
with the purpose of clearing the front
view.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to windshield
position turns on the defogging function
with the purpose of clearing the front
view.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Instrument panel vents
PS19505
Open
Close
Side vents
PS19506
Open
Close
Center vents

1642007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
PS19507
Side vents
PS19508
Center vents
You can change air flow direction by turn-
ing the instrument panel vents.

1652007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS19509
The air conditioning filter information
label is placed inside of the glove box
as shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
PS19510
The air conditioning filter is behind the
glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily in
FRESH mode.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance
schedule. In dusty areas or areas with
heavy traffic flow, such as inner city or
desert areas, early replacement may be
required. (For scheduled maintenance
information, please refer to the “Scheduled
Maintenance Guide” or “Owner ’s Manual
Supplement.”)
Air conditioning filter
(on some models)—
—Checking and replacing the
air conditioning filter

1662007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS19511
1. Push in each side of the glove boxto disconnect the claws.
PS19512
2. Pinch the knobs located on eachside and remove the filter cover.
PS19513
3. Pull out the filter and rotate it asshown in the illustration to remove.
Inspect the filter on the surface.
If it is dirty, it should be replaced.

1672007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS19514
When inserting the filter in the filter
outlet, keep the arrow pointing up and
insert the filter as shown in the illustra-
tion above.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

1682007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

1692007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Power outlet 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove boxes 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Auxiliary boxes 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Luggage storage box 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Luggage cover 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

1702007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Clock

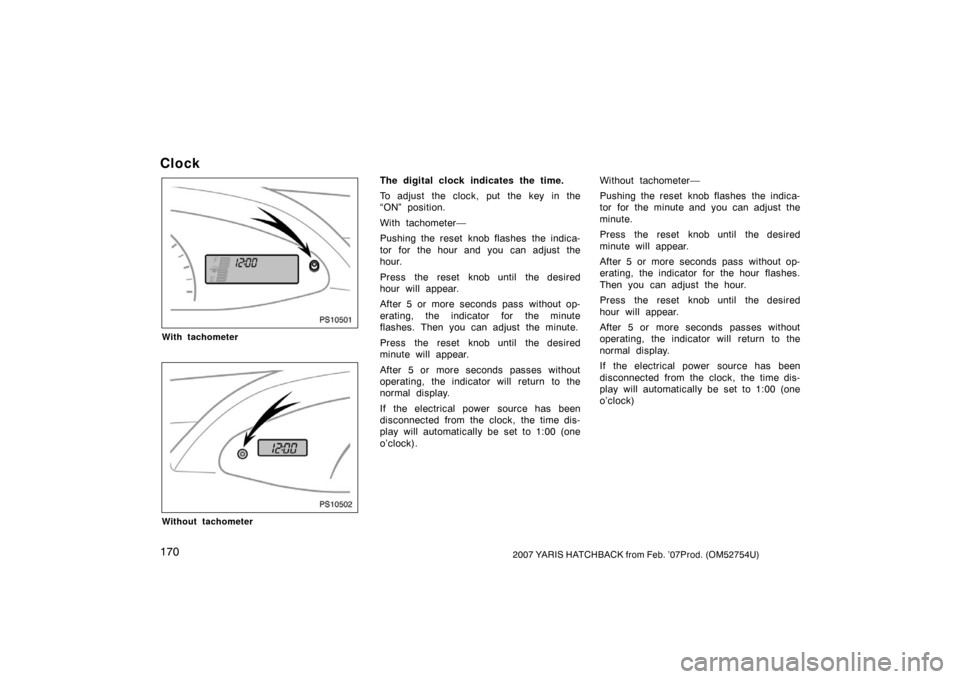

PS10501
With tachometer
PS10502
Without tachometer
The digital clock indicates the time.
To adjust the clock, put the key in the
“ON” position.
With tachometer—
Pushing the reset knob flashes the indica-
tor for the hour and you can adjust the
hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds pass without op-
erating, the indicator for the minute
flashes. Then you can adjust the minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).Without tachometer—
Pushing the reset knob flashes the indica-
tor for the minute and you can adjust the
minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds pass without op-
erating, the indicator for the hour flashes.
Then you can adjust the hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock)

1712007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Power outlet
PS10503
The power outlet is designed for power
supply for car accessories. To use the
power outlet, open as shown in the il-
lustration.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
Glove boxes
PS10504
Upper glove box
PS10505
Lower glove box

1722007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
To open the glove boxes, pull the lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
NOTICE
Upper glove box: During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Auxiliary boxes
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Type A: During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
PS10506
Ty p e A
PS10507
Ty p e B
