—License plate lights
PS73519
Use a flathead screwdriver.
PS73520
PS73521

2942007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

2952007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
SPECIFICATIONS
Specifications
Dimensions and weights296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

2962007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Dimensions and weights
Overall length mm (in.) 3825 (150.6)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1530 (60.2)
Wheelbase mm (in.) 2460 (96.9)
Front tread mm (in.) 1480 (58.3)
∗1
1470 (57.9)∗2
Rear tread mm (in.) 1470 (57.9)∗1
1460 (57.5)∗2
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 383 (845)
Towing capacity
∗ 3
(trailer + cargo weight) kg (lb.) 318 (700)
∗1: With P175/65R14 81S tires∗2: With P185/60R15 84T tires∗3: For Canada only
Engine
Model:
1.5 L 4 −cylinder (1NZ− FE)
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1496 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 42 (11.1, 9.2)

2972007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm(in.): 1.1 (0.043)
Drive belt tension measured with Boroughs
drive belt tension gauge No. BT −33− 73F
(used belt), lbf:
Generator belt 100 20
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.): With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and viscos-
ity. Oil grade:
ILSAC multigrade engine oil
Please contact your Toyota dealer for fur-
ther details.
Recommended oil viscosity:
SAE 5W −30

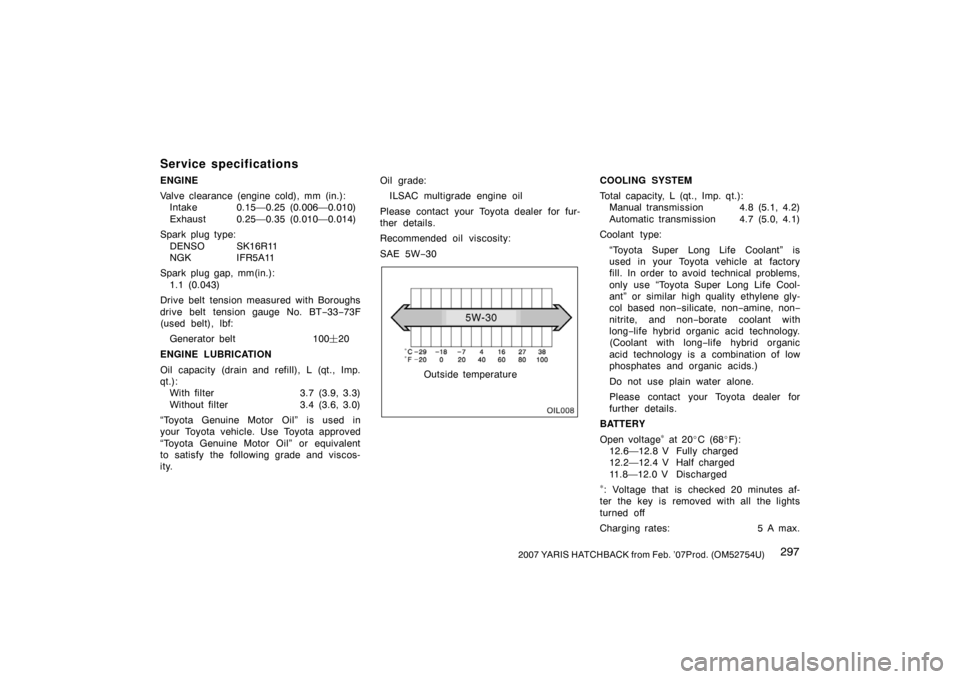

OIL008
Outside temperature
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission 4.8 (5.1, 4.2)
Automatic transmission 4.7 (5.0, 4.1)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non −silicate, non− amine, non−
nitrite, and non −borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

2982007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
CLUTCH
Pedal free play, mm (in.):5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1.9 (2.0, 1.7)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.): 2.5 (2.6, 2.2)
Fluid type: Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638) to aid in assuring
maximum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
Please contact your Toyota dealer for fur-
ther details.
BRAKES
Minimum pedal clearance when depressed
with the pressure of 300 N (31 kgf, 67.4
lbf) with the engine running, mm (in.):
With anti −lock brake system 73 (2.9)
Without anti −lock brake system 70 (2.8)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 200 N (20 kgf, 45 lbf): 6—9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)

2992007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Tires
Tire size and cold tire inflation pressure:
Front and rearkPa (kgf/cm
2 or bar, psi)
Ti r e siz e
FrontRearWheel size
P175/65R14 81S220 (2.2, 32)220 (2.2, 32)14 x 5J
P185/60R15 84T220 (2.2, 32)220 (2.2, 32)15 x 5 1/ 2J
For sustained high speeds above 160 km/h (100 mph), in countries where such speeds are permitted by law, add
20 kPa (0.2 kgf/cm2 or bar, 3 psi) to the front tires and rear tires, but never exceed the maximum cold tire inflation
pressure molded on the tire sidewall.
Spare
Ti r e siz e
Tire inflation pressure kPa (kgf/cm2 or bar, psi)Wheel size
T125/70D15 95M420 (4.2, 60)15 x 4T
Wheel nut torque, N·m (kgf·m, ft·Ibf):103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum wheel precautions”, page 274 through 281 in Section 7 −2.

3002007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Fuses

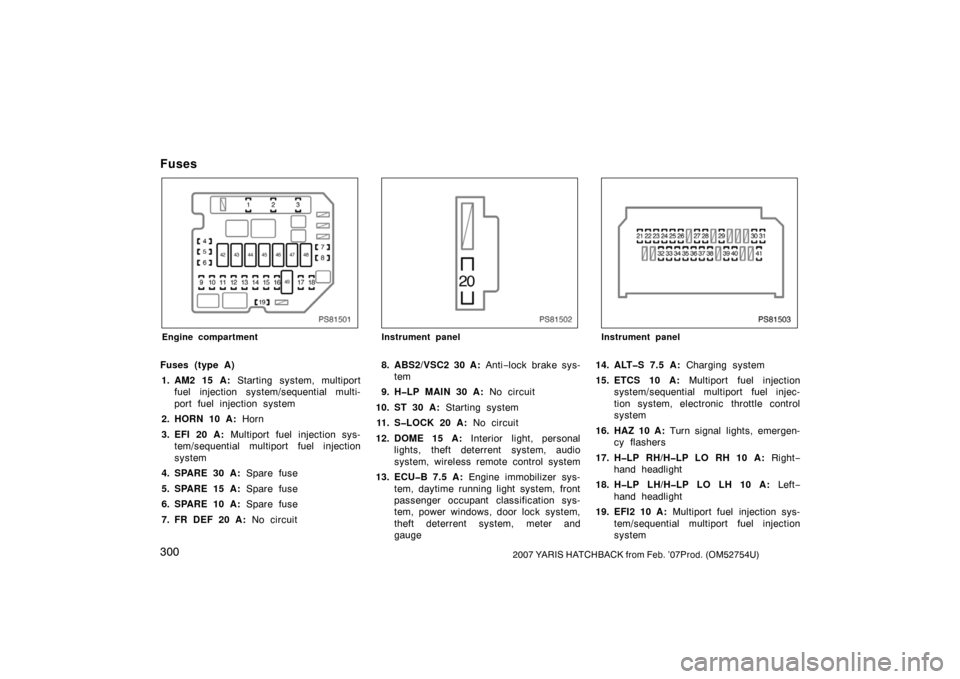

PS81501
Engine compartment
Fuses (type A)1. AM2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
2. HORN 10 A: Horn
3. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. FR DEF 20 A: No circuit
PS81502
Instrument panel
8. ABS2/VSC2 30 A: Anti−lock brake sys-
tem
9. HLP MAIN 30 A: No circuit
10. ST 30 A: Starting system
11. SLOCK 20 A: No circuit
12. DOME 15 A: Interior light, personal
lights, theft deterrent system, audio
system, wireless remote control system
13. ECUB 7.5 A: Engine immobilizer sys-
tem, daytime running light system, front
passenger occupant classification sys-
tem, power windows, door lock system,
theft deterrent system, meter and
gauge
PS81503
Instrument panel
14. ALTS 7.5 A: Charging system
15. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
16. HAZ 10 A: Turn signal lights, emergen-
cy flashers
17. HLP RH/HLP LO RH 10 A: Right−
hand headlight
18. HLP LH/HLP LO LH 10 A: Left−
hand headlight
19. EFI2 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system

3012007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS81504
Instrument panel
20. ACC2 7.5 A: Shift lock system
21. TAIL 10 A: Side marker lights, parking
lights, tail lights, license plate lights,
multiport fuel injection system/sequen-
tial multiport fuel injection system
22. PANEL1 7.5 A: Illuminations, instru-
ment panel light control, meter and
gauge
23. A/C 7.5 A: Rear window defogger, air
conditioning system
24. D DOOR 20 A: No circuit
25. RL DOOR 20 A: Rear passenger ’s
power window (left side)
PS81505
Engine compartment
26. RR DOOR 20 A: Rear passenger ’s
power window (right side)
27. CIG 15 A: Power outlet
28. ACC 7.5 A: Door lock system, outside
rear view mirrors, audio system
29. ID/UP/MIR HTR 10 A: Multiport fuel
injection system/sequential multiport
fuel injection system
30. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, engine immobilizer system,
SRS airbag system, front passenger
occupant classification system 31. MET 7.5 A:
Meter and gauge
32. WIP 25 A: Windshield wiper
33. RR WIP 15 A: Rear wiper
34. WSH 15 A: Windshield wiper and rear
wiper
35. ECUIG 10 A: Daytime running light
system, anti −lock brake system, elec-
tric power steering system, power win-
dows, door lock system, theft deterrent
system, electric cooling fan
36. GAUGE 10 A: Charging system, turn
signal lights, emergency flashers,
buck −up lights, instrument panel light
control, shift lock system, rear window
defogger, air conditioning system, auto-
matic transmission system
37. OBD2 7.5 A: On−board diagnosis sys-
tem
38. STOP 10 A: Stop lights, high mounted
stop light, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, shift lock system, anti −lock
brake system
39. D/L 25 A: Door lock system
40. FR FOG 15 A: Front fog lights
41. AM1 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system

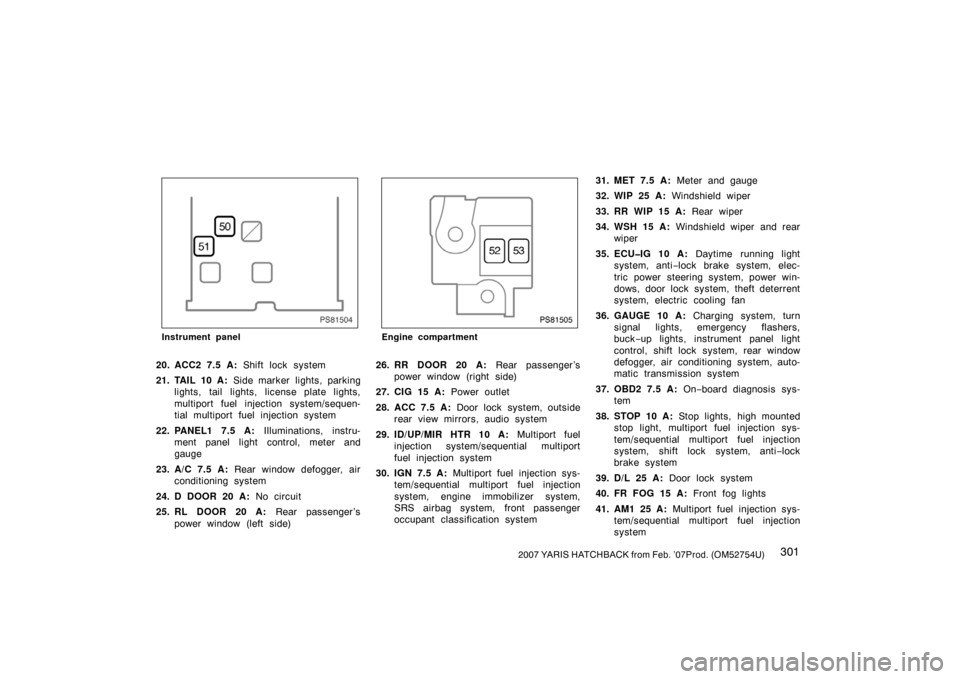

3022007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Fuses (type B)
42. HTR SUB2 40 A: Air conditioning sys-
tem
43. EPS 50 A: Electric power steering sys-
tem
44. ABS1/VSC1 50 A: Anti−lock brake sys-
tem
45. HTR 40 A: Air conditioning system
46. RDI 30 A: Electric cooling fan
47. HTR SUB1 30 A: Air conditioning sys-
tem
48. HLP CLN/PWR HTR 30 A: No circuit
49. AMT 50 A: No circuit
50. DEF 30 A: Rear window defogger
51. PWR 30 A: Power windows
Fuses (type C)
52. ALT 120 A: Charging system, “HTR
SUB2”, “EPS”, “ABS1/VSC1”, “HTR”,
“ABS2/VSC2”, “HTR SUB1”, “RDI”,
“DEF”, “FR FOG”, “OBD2”, “D/L”,
“STOP” and “AM1” fuses
53. MAIN 60 A: “EFI”, “HORN”, “AM2”,
“ALT −S”, “DOME”, “ST”, “ECU −B”,
“ETCS”, “HAZ”, “H −LP LH/H −LP LO
LH” and “H −LP RH/H −LP LO RH” fuses
