TOYOTA YARIS 2008 2.G Owners Manual

281
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlights
Unplug the connector.
Remove the rubber cover.
■Rear bulb locations
Back-up lights
Rear turn signal lights Stop/tail and rear
side marker lights
License
plate light

282 4-3. Do-it-yourself maintenance
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
■Front fog lights (if equipped)
Remove the bolts and clips.
Partly remove the fender liner.

283
4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the connector while
depressing the lock release.
Turn the bulb counterclockwise.
Reinstall the bolts and clips.
■ Front side marker lights
Turn the bulb base counterclock-
wise.

284 4-3. Do-it-yourself maintenance
Remove the light bulb.
■ Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.

285
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Parking lights
Left side: Turn the bulb base
counterclockwise.
Right side: Turn the bulb base
clockwise.
Remove the light bulb.
■ Back-up lights, stop/tail and rear side marker lights and rear
turn signal lights
Open the back door and remove
the cover.
Use a flathead screwdriver which
is wrapped with a cloth.

286 4-3. Do-it-yourself maintenance
Turn the bulb base counter-
clockwise.
Disengage the claws and
remove the bulb base.
Remove the light bulb. Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light
■ License plate light
Disengage the claws and
remove the license plate light.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb base counterclock-
wise.

287
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.
■ Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
• Side turn signal lights
• High mounted stoplight
■ Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
CAUTION
■Replacing light bulbs
Turn off the headlights. Do not attempt to replace the bulb immediately after
turning off the headlights.
The bulbs become very hot and may cause burns.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

288 4-3. Do-it-yourself maintenance
NOTICE
●Halogen bulbs have pressurized gas inside and require special handling. \
Do
not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

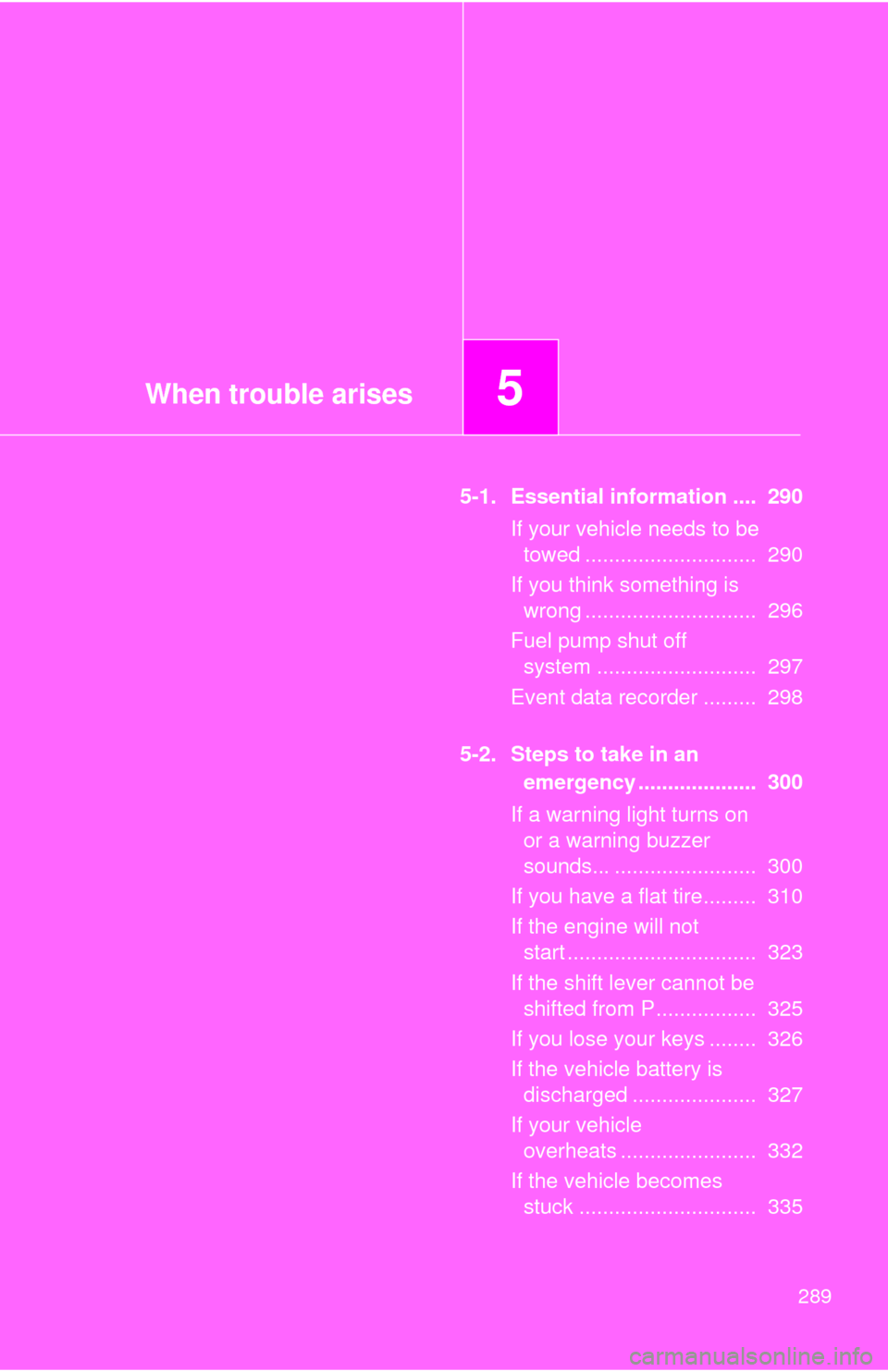

When trouble arises5
289
5-1. Essential information .... 290If your vehicle needs to be towed ............................. 290
If you think something is wrong ............................. 296
Fuel pump shut off system ........................... 297
Event data recorder ......... 298
5-2. Steps to take in an emergency .................... 300
If a warning light turns on or a warning buzzer
sounds... ........................ 300
If you have a flat tire......... 310
If the engine will not start ................................ 323
If the shift lever cannot be shifted from P................. 325
If you lose your keys ........ 326
If the vehicle battery is discharged ..................... 327
If your vehicle overheats ....................... 332
If the vehicle becomes stuck .............................. 335

290
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only attempted on hard, surfaced roads for
short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing eyelet
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehic le's rear wheels and axles must be
in good condition. (P. 293)
If they are damaged, use a towing dolly or flat bed truck.
