TOYOTA YARIS 2009 2.G User Guide

11

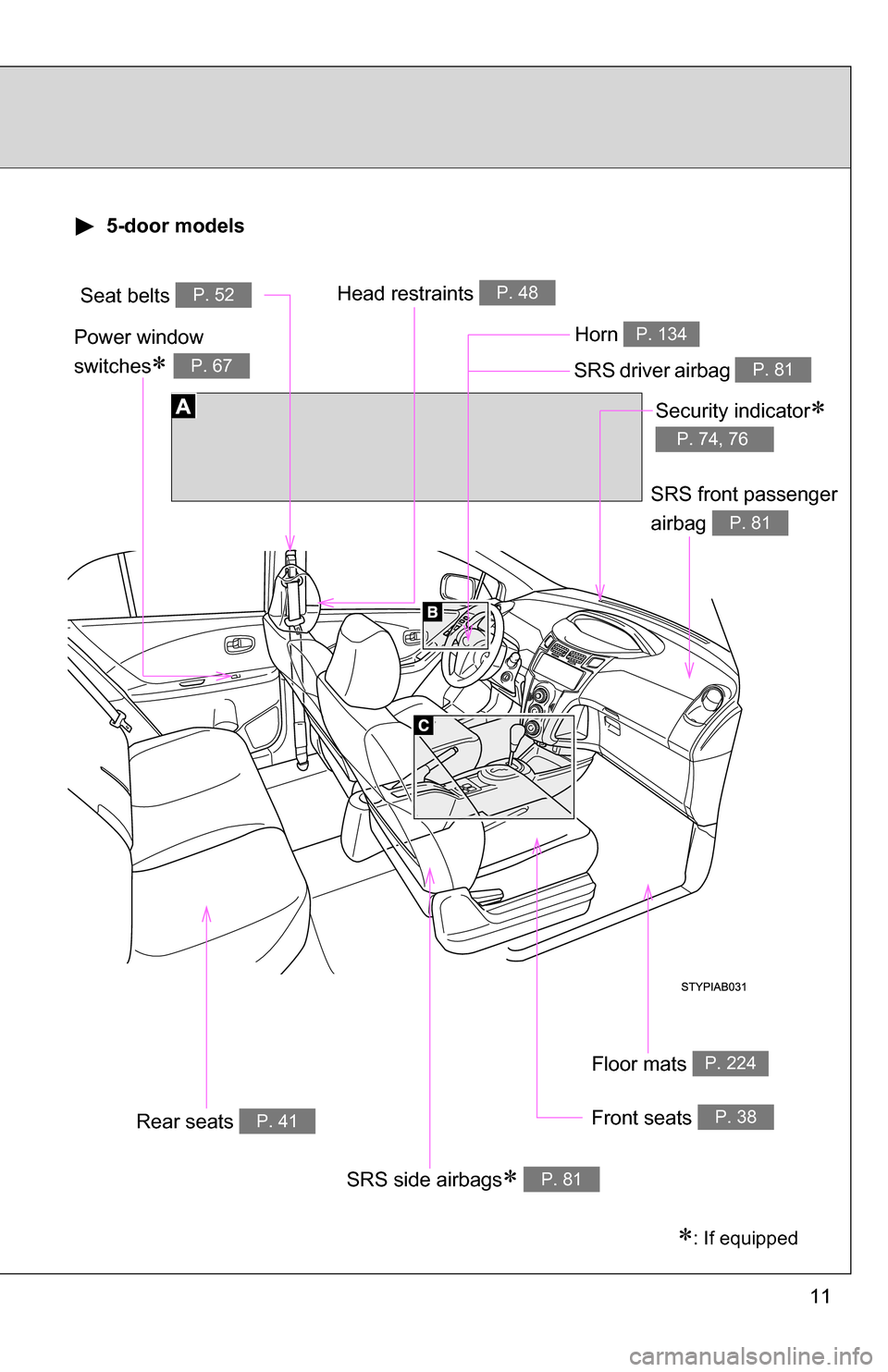

Seat belts P. 52
SRS driver airbag P. 81
Head restraints P. 48
Front seats P. 38
SRS side airbags P. 81
Floor mats P. 224
SRS front passenger
airbag
P. 81
Security indicator
P. 74, 76
Power window
switches
P. 67
5-door models
Rear seats P. 41
: If equipped
Horn P. 134

12
Pictorial indexInterior
Anti-glare inside
rear view mirror
P. 63
Interior light P. 211
Vanity mirrors P. 220
Personal lights P. 211
Sun visors P. 219
SRS curtain shield airbags P. 81

13

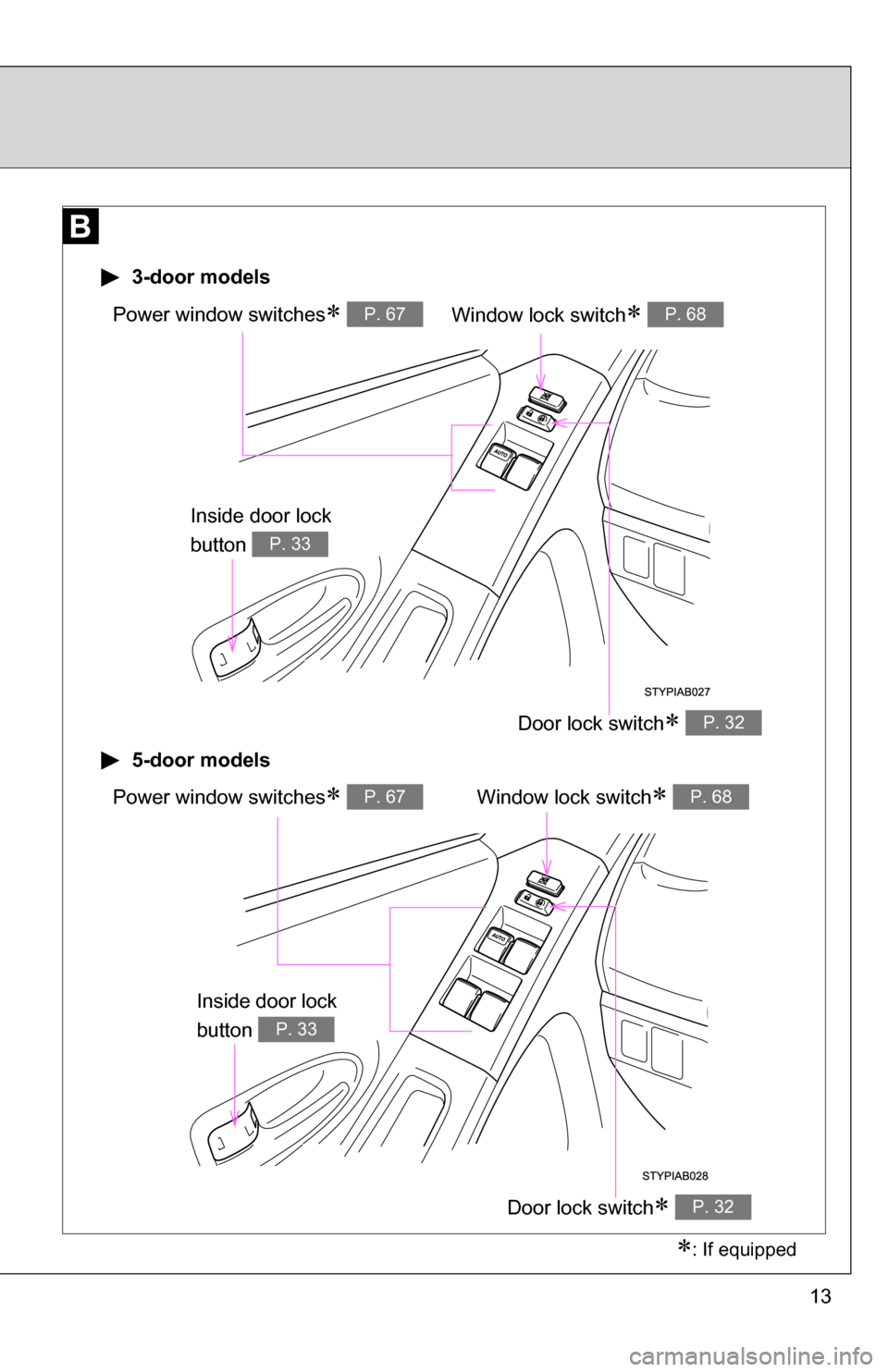

Window lock switch P. 68Power window switches P. 67
Door lock switch P. 32
3-door models
5-door models
Window lock switch P. 68Power window switches P. 67
Door lock switch P. 32
: If equipped
Inside door lock
button
P. 33
Inside door lock
button
P. 33

14

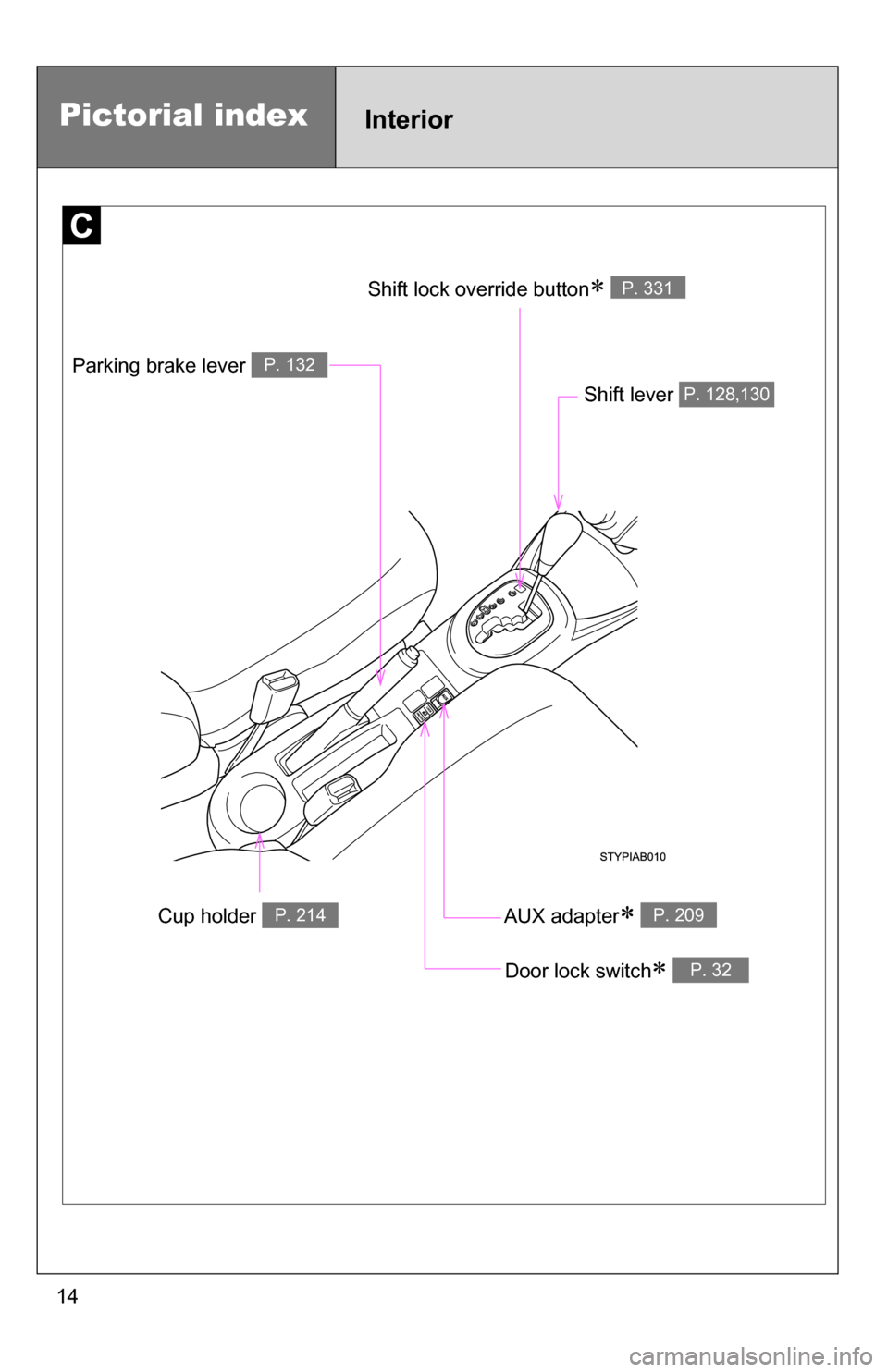

Cup holder P. 214
Parking brake lever P. 132
Shift lever P. 128,130
Door lock switch P. 32
AUX adapter P. 209
Shift lock override button P. 331
Pictorial indexInterior

15

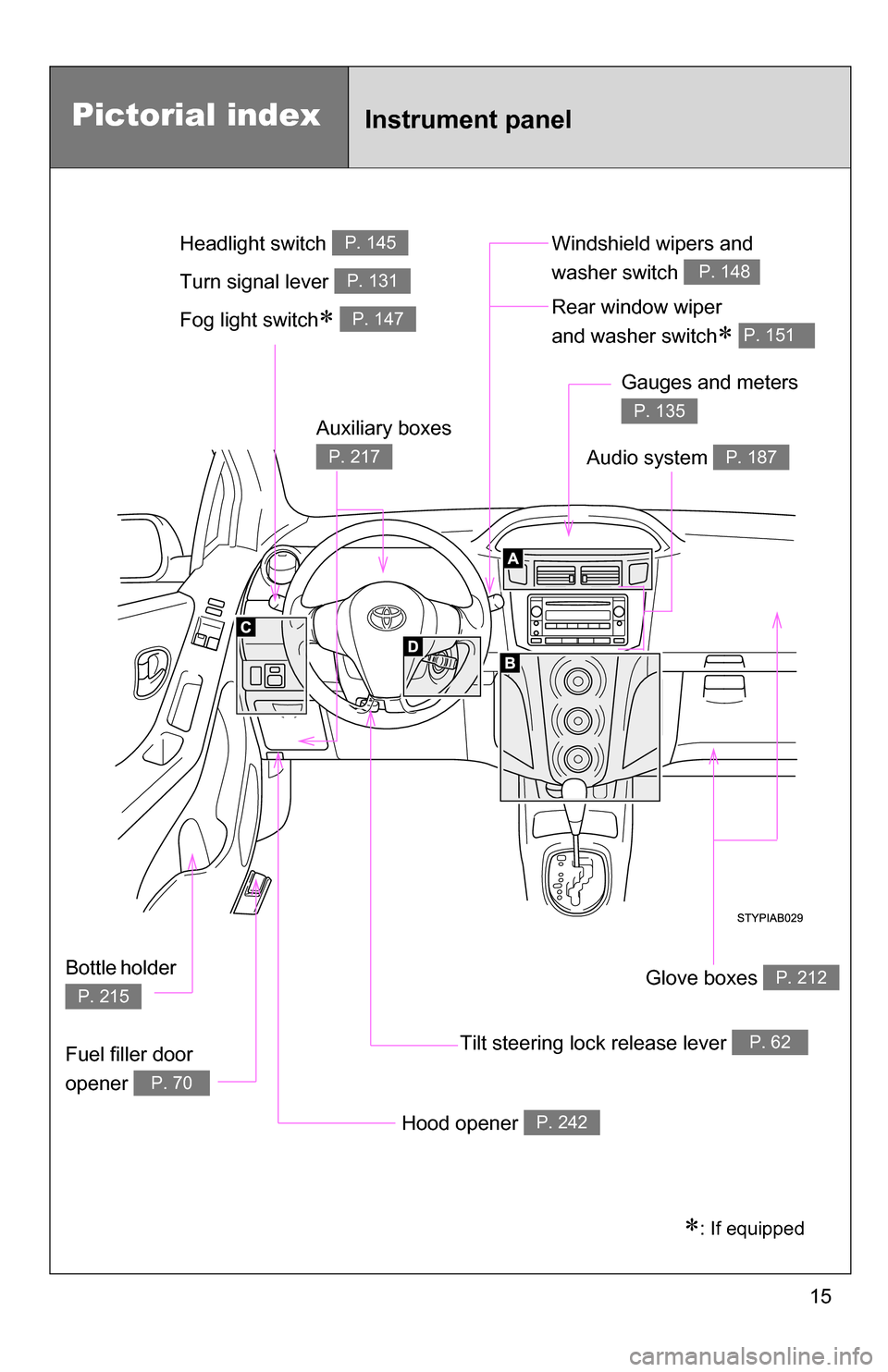

Pictorial indexInstrument panel
Fog light switch P. 147Rear window wiper
and washer switch
 P. 151
Tilt steering lock release lever P. 62
Hood opener P. 242
Gauges and meters
P. 135
Audio system P. 187
Glove boxes P. 212
Fuel filler door
opener
P. 70
Auxiliary boxes
P. 217
Bottle holder
P. 215
Windshield wipers and
washer switch
P. 148Turn signal lever P. 131
Headlight switch P. 145
: If equipped

16

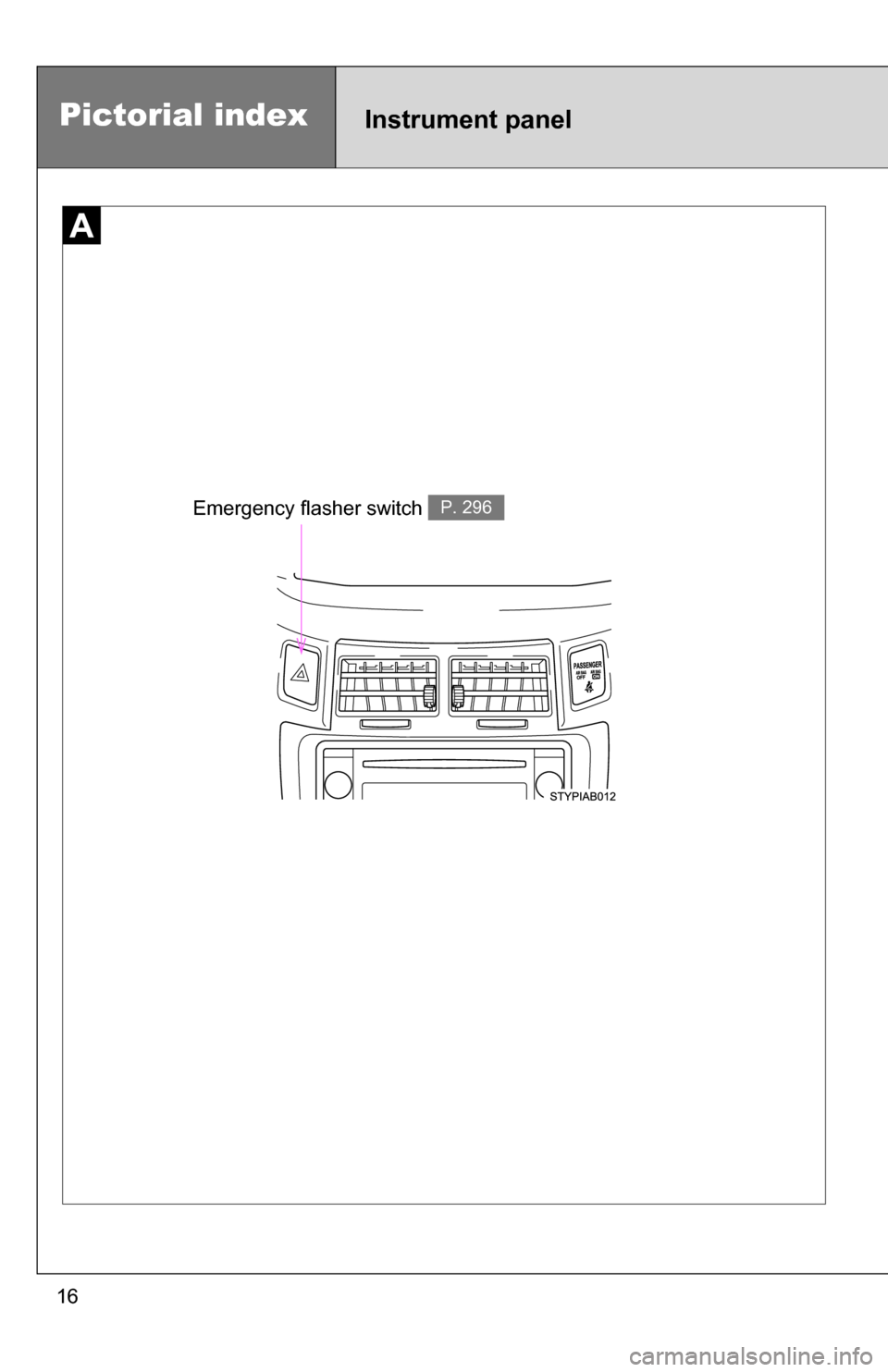

Emergency flasher switch P. 296
Pictorial indexInstrument panel

17
Rear window defogger switch/rear window
defogger and outside rear view mirror defogger
switch
 P. 185
Air conditioning system P. 178
Power outletP. 223

: If equipped

18
: If equipped
Cup holders P. 214Outside rear view mirror
switches
 P. 64
Instrument panel light
control dial
P. 139
Pictorial indexInstrument panel
Cruise control switch P. 152
Engine (ignition) switch P. 125

19

20

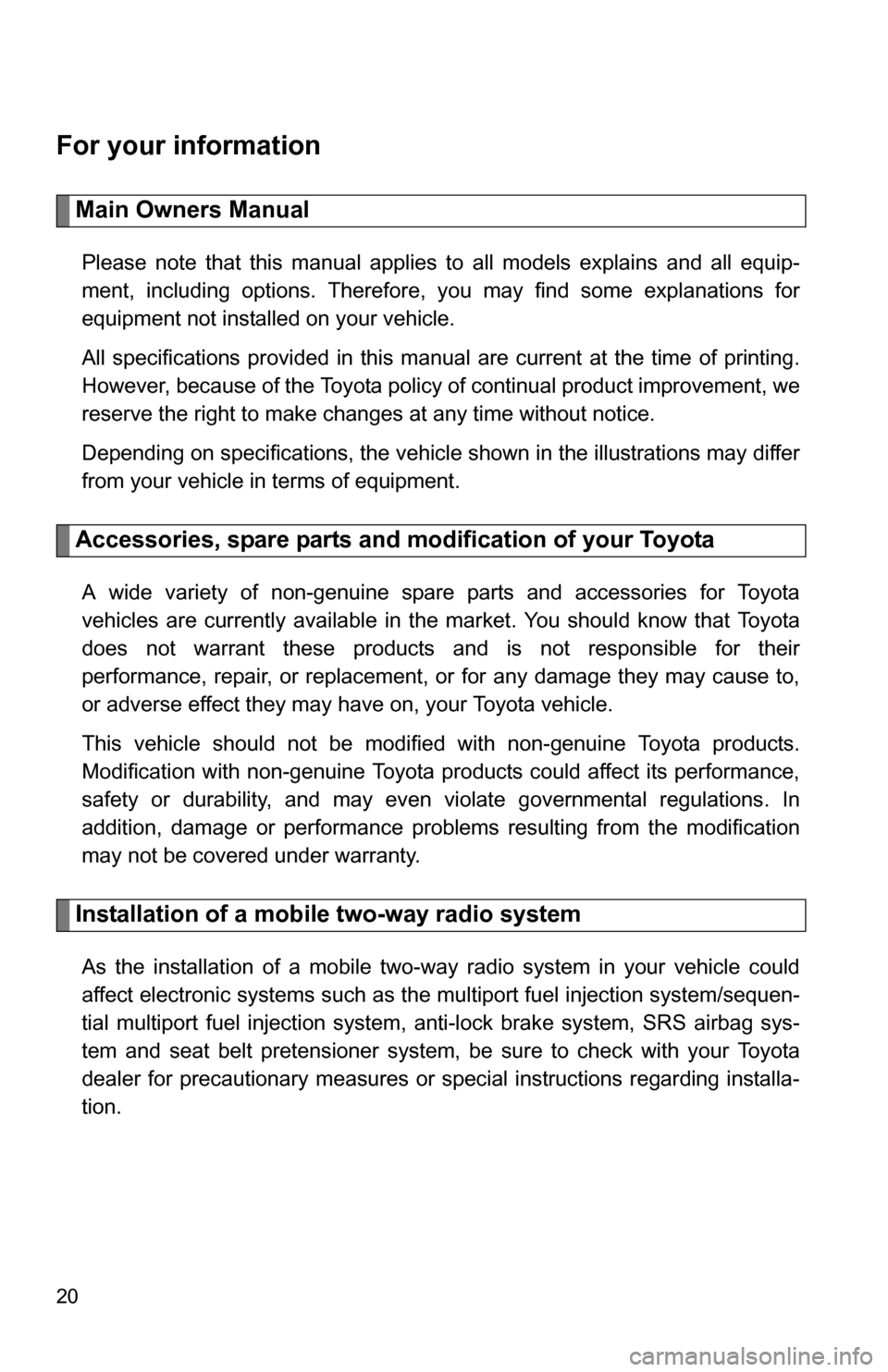

For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could
affect electronic systems such as the multiport fuel injection system/sequen-
tial multiport fuel injection system, anti-lock brake system, SRS airbag sys-
tem and seat belt pretensioner system, be sure to check with your Toyota
dealer for precautionary measures or special instructions regarding installa-
tion.
