oil pressure TOYOTA YARIS 2011 3.G Owners Manual

TABLE OF CONTENTSIndex
4
4-3. Do-it-yourself maintenanceDo-it-yourself service precautions ...................... 250
Hood................................... 253
Positioning a floor jack ....... 254
Engine compartment .......... 256
Tires ................................... 269
Tire inflation pressure......... 275
Wheels ............................... 279
Air conditioning filter ........... 281
Key battery ......................... 284
Checking and replacing fuses ................................ 286
Light bulbs .......................... 297
5-1. Essential information Emergency flashers ........... 308
If your vehicle needs to be towed ............................... 309
If you think something is wrong ............................... 315
Fuel pump shut off system .............................. 316
Event data recorder............ 317 5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds... ........................... 319
If you have a flat tire ........... 329
If the engine will not start .... 341
If the shift lever cannot be shifted from P (vehicles
with an automatic
transmission) .................... 343
If you lose your keys ........... 344
If the vehicle battery is discharged ........................ 345
If your vehicle overheats..... 349
If the vehicle becomes stuck ................................. 352
If your vehicle has to be stopped in an
emergency........................ 354
6-1. Specifications Maintenance data (fuel, oil level, etc.) ........... 358
Fuel information .................. 367
Tire information................... 370
6-2. Customization Customizable features ........ 383
Items to initialize ................. 385
5When trouble arises
6Vehicle specifications

251
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury observe the following precautions.
■
When working on the engine compartment
●Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.

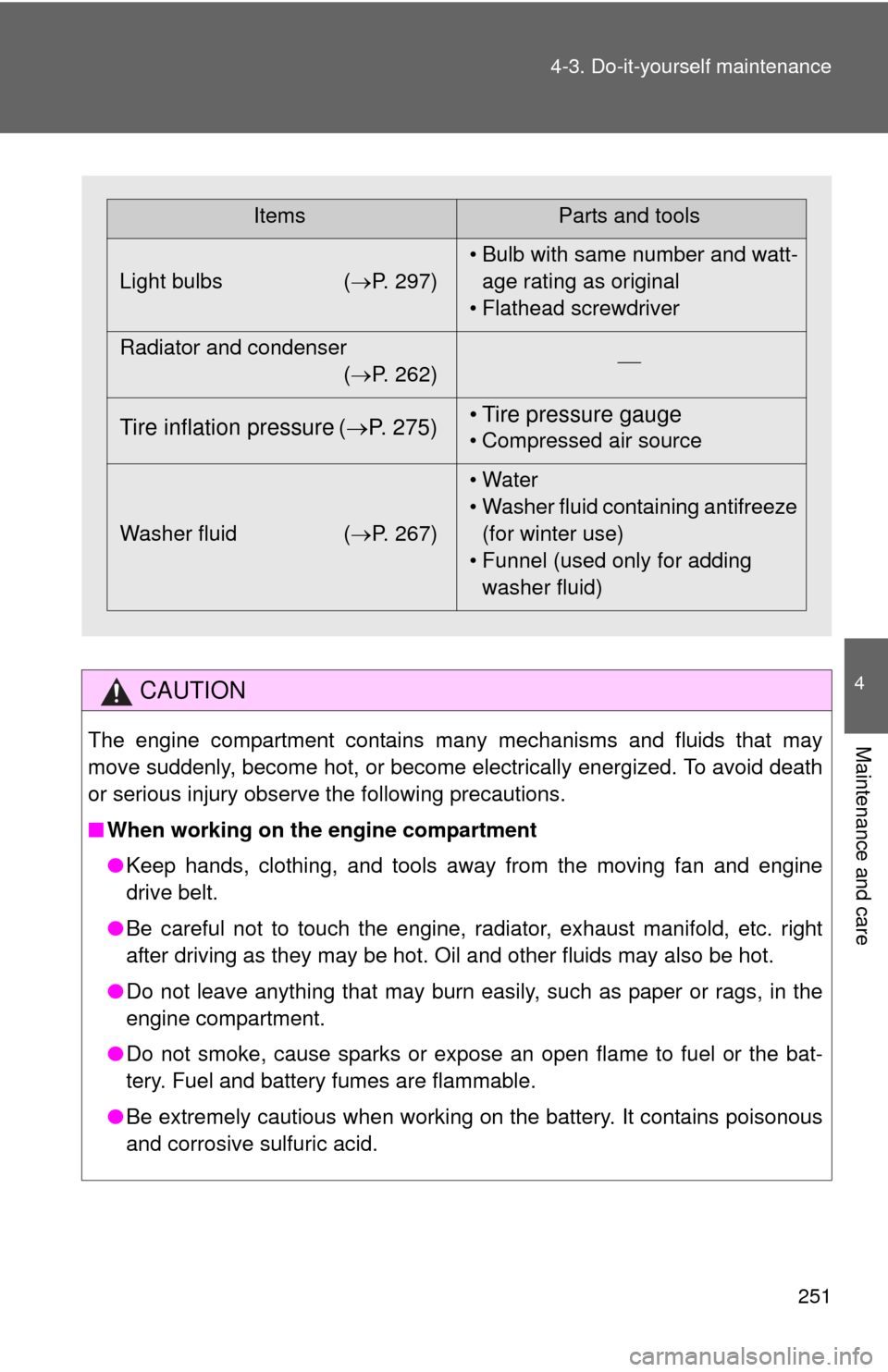

ItemsParts and tools
Light bulbs ( P. 297)• Bulb with same number and watt-
age rating as original
• Flathead screwdriver
Radiator and condenser (P. 262) 
Tire inflation pressure (
P. 275) • Tire pressure gauge• Compressed air source
Washer fluid ( P. 267)• Water
• Washer fluid containing antifreeze
(for winter use)
• Funnel (used only for adding washer fluid)

320 5-2. Steps to take in an emergency
Stop the vehicle immediately.The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
*: The light may come on when the oil level is extremely low. It is not designed to indicate low oil level, and the oil level must be checked using the engine
oil level dipstick.
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.

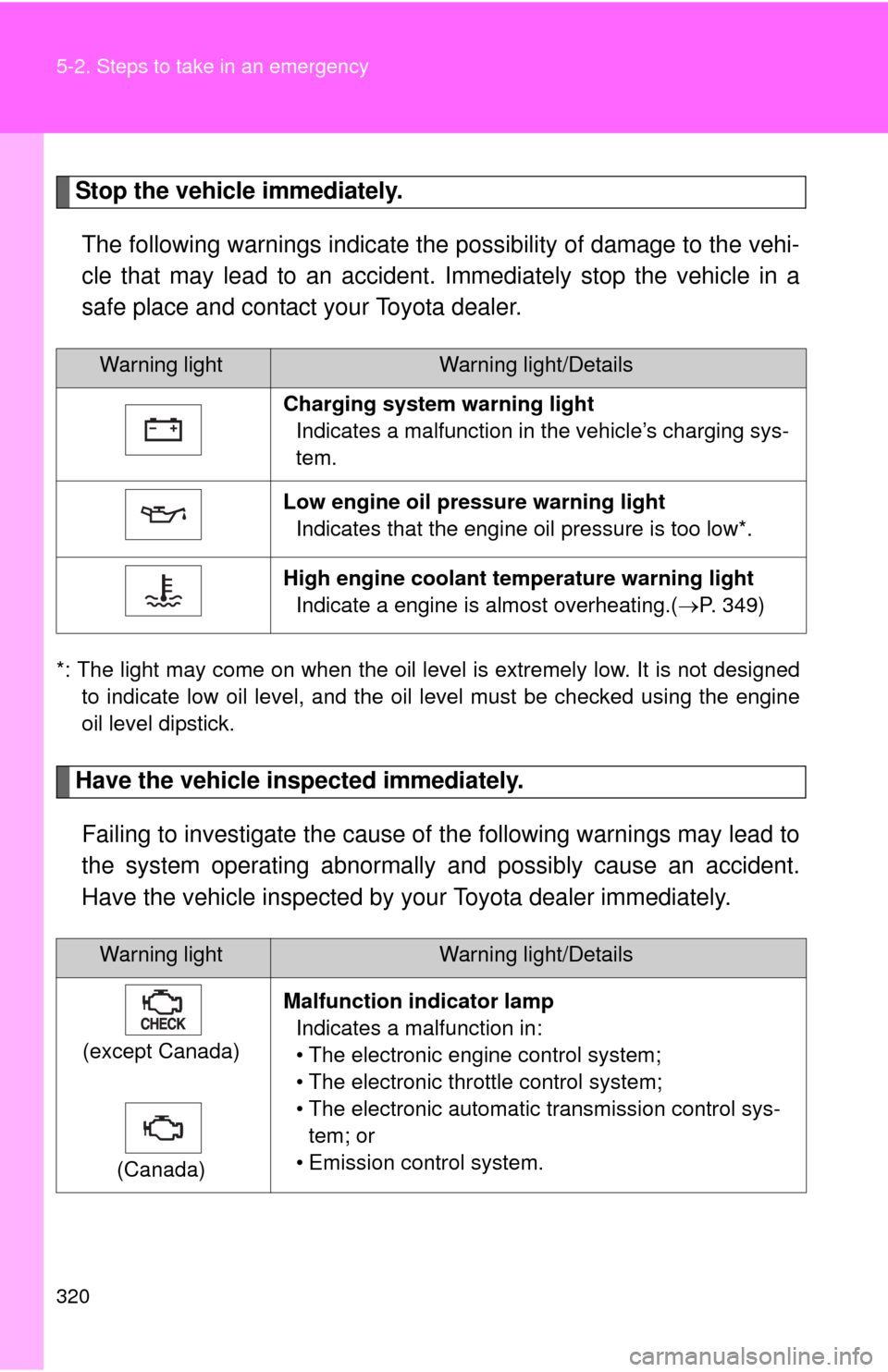

Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging sys-
tem.
Low engine oil pressure warning light Indicates that the engine oil pressure is too low*.
High engine coolant temperature warning light Indicate a engine is almost overheating.( P. 349)
Warning lightWarning light/Details
(except Canada)
(Canada) Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• The electronic automatic transmission control sys-tem; or
• Emission control system.

5
When trouble arises
325
5-2. Steps to take in an emergency
■If the tire pressure warning system is inoperative
The tire pressure warning system will be disabled in the following condi-
tions:
(When the condition be
comes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmit-
ters are used.
●If the ID code on the tire pressure warning valves and transmitters is
not registered in the tire pressure warning computer.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or
higher.
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition be comes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies
are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the
wheels or wheel housings.
●If non-genuine Toyota wheels are used. (Even if you use Toyota
wheels, the tire pressu re warning system may not work properly with
some types of tires.)
●If tire chains are used.
■If the tire pressure warning light comes on after blinking for 1
minute frequently
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the ON position, have it
checked by your Toyota dealer.
■ After changing the engine oil (except Canada)
Make sure to reset the oil maintenance data. ( P. 259)

364 6-1. Specifications

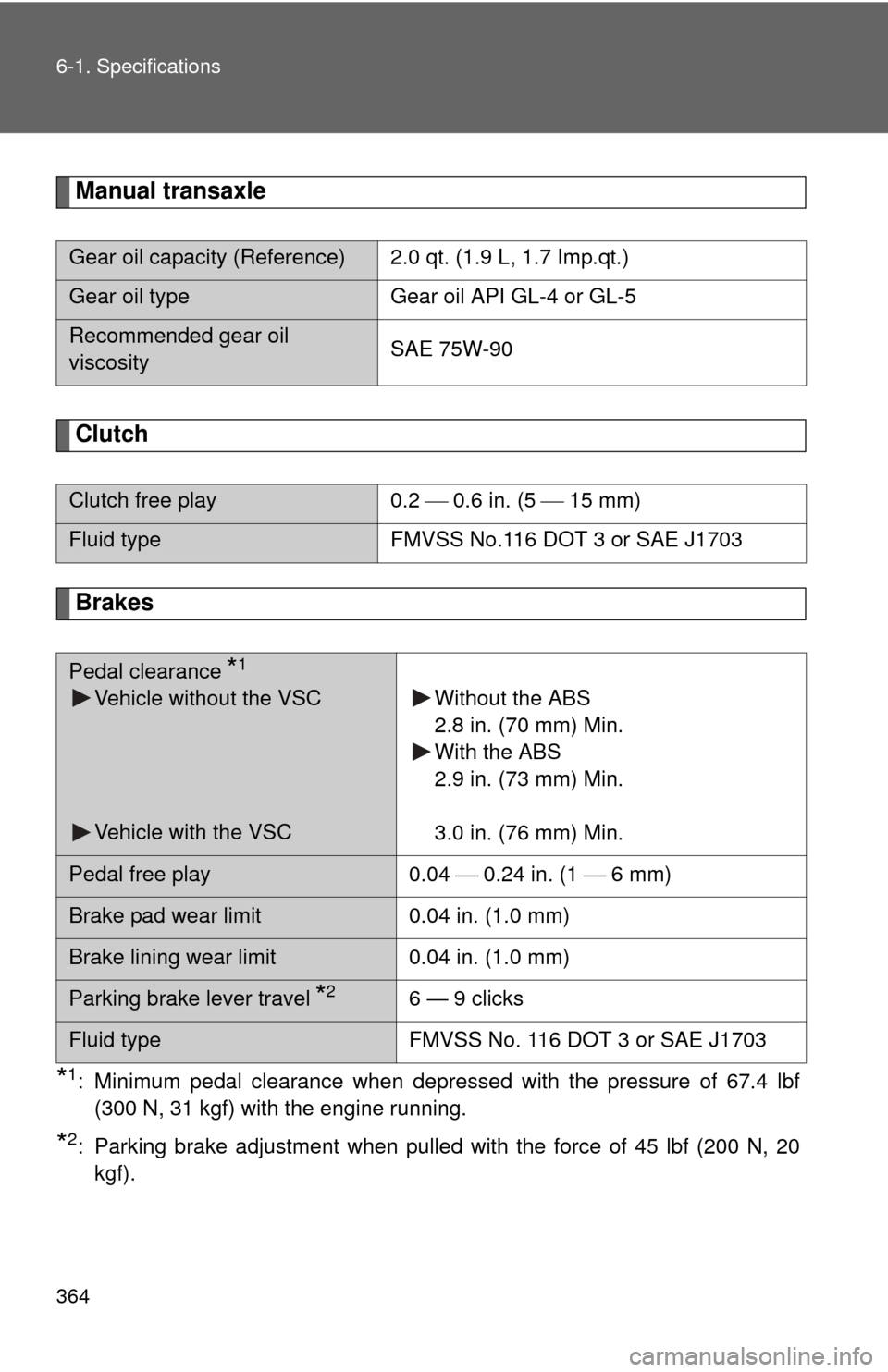

Manual transaxle
Clutch
Brakes
*1: Minimum pedal clearance when depressed with the pressure of 67.4 lbf(300 N, 31 kgf) with the engine running.
*2: Parking brake adjustment when pulled with the force of 45 lbf (200 N, 20kgf).
Gear oil capacity (Reference) 2.0 qt. (1.9 L, 1.7 Imp.qt.)
Gear oil type Gear oil API GL-4 or GL-5
Recommended gear oil
viscosity SAE 75W-90
Clutch free play
0.2  0.6 in. (5  15 mm)
Fluid type FMVSS No.116 DOT 3 or SAE J1703
Pedal clearance *1
Vehicle without the VSC
Vehicle with the VSC Without the ABS
2.8 in. (70 mm) Min.
With the ABS
2.9 in. (73 mm) Min.
3.0 in. (76 mm) Min.
Pedal free play
0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel *26 — 9 clicks
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703

377
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a tire
that is properly inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can caus e heat buildup and possible tire fail-
ure.

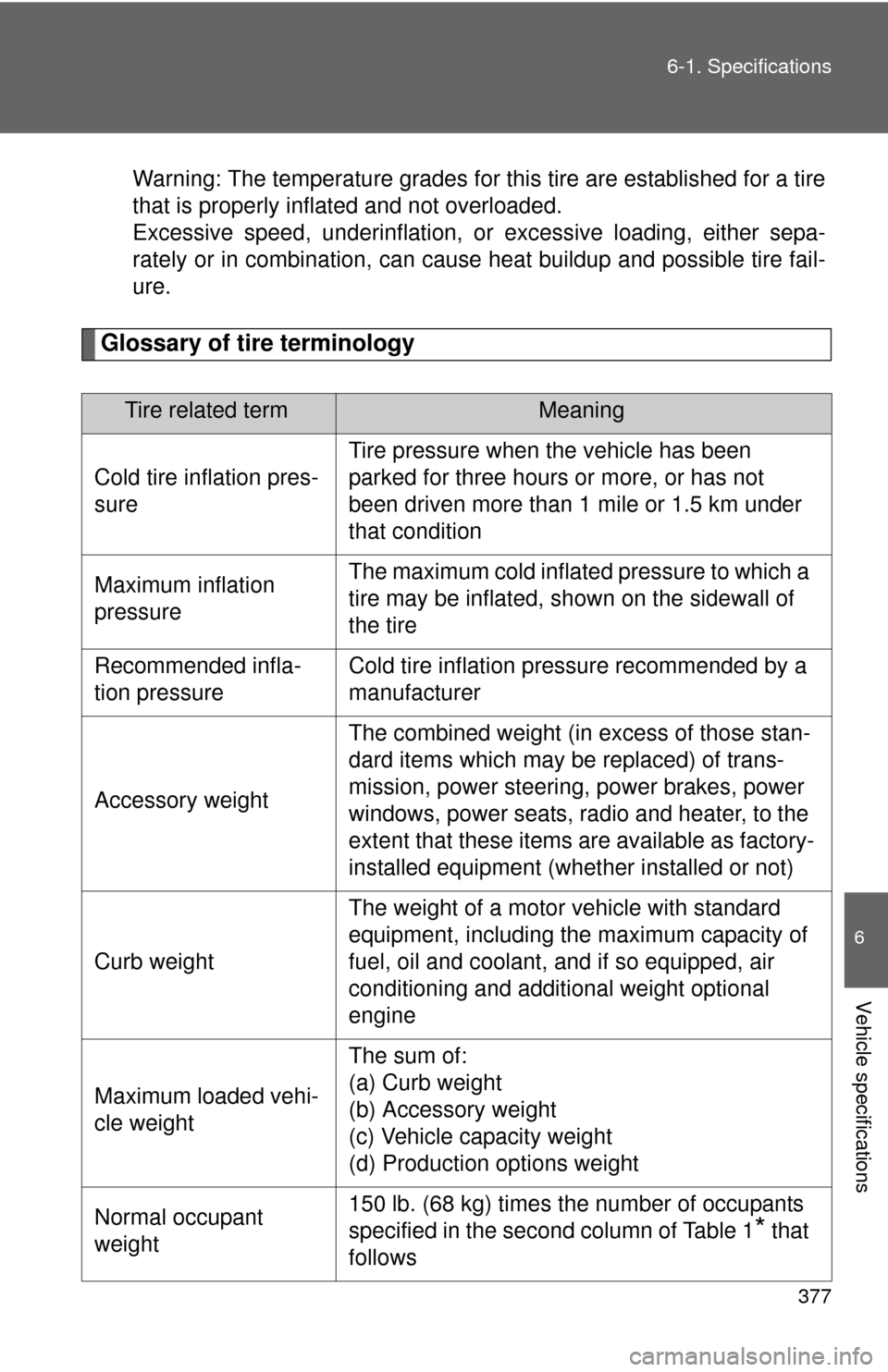

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of trans-
mission, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that
follows

410 Alphabetical index
Tachometer............................... 140
Tail lightsIndicator ................................ 150
Replacing light bulbs ............. 297
Switch.................................... 150
Wattage ................................. 366
Theft deterrent system Alarm .......................................80
Engine immobilizer system .....78
Theft prevention labels ............83
Theft prevention labels..............83
Tire inflation pressure ............. 275
Tire information Glossary ................................ 377
Size ....................................... 374
Tire identification number ...... 373
Uniform tire quality
grading ................................ 375
Tires Chains ................................... 169
Checking ............................... 269
If you have a flat tire .............. 329
Identification number ............. 370
Inflation pressure........... 275, 365
Inflation pressure sensor ....... 270
Information ............................ 370
Replacing ...................... 269, 329
Rotating tires ......................... 269
Size ....................................... 365
Snow tires ............................. 169
Spare tire............................... 329
Tire pressure warning
system ........................ 269, 322
Warning light ......................... 322
Tools ......................................... 329
Total load capacity................... 168
Towing Dinghy towing................ 181, 182
Emergency towing................. 309
Trailer towing................. 172, 173 Trip meter ................................. 143
Turn signal lights
Indicator ................................ 136
Lever ..................................... 136
Replacing light bulbs ............. 297
Switch ................................... 136
Wattage................................. 366
Vanity mirrors .......................... 228
Vehicle identification number ................................... 359
Vehicle stability control .......... 160
VSC ........................................... 160
Warning buzzers Brake system ........................ 319
Seat belt reminder................. 322
Warning lights
ABS ....................................... 320
Airbag system ....................... 320
Anti-lock brake system .......... 320
Brake system ........................ 320
Charging system .... ............... 320
Driver’s seat belt ................... 322
Electric power steering
system ................................ 320
Electronic engine control
system ................................ 320
Engine oil replacement ......... 322
EPS system .......................... 320
Front passenger occupant classification system ........... 320
Front passenger’s seat belt... 322
High engine coolant
temperature ........................ 320
Low brake fluid ...................... 319
Low engine oil pressure ........ 320
Low tire inflation pressure ..... 322
Low washer fluid ................... 322
Malfunction............................ 320
Open door ............................. 322
Seat belt ................................ 322T
V
W

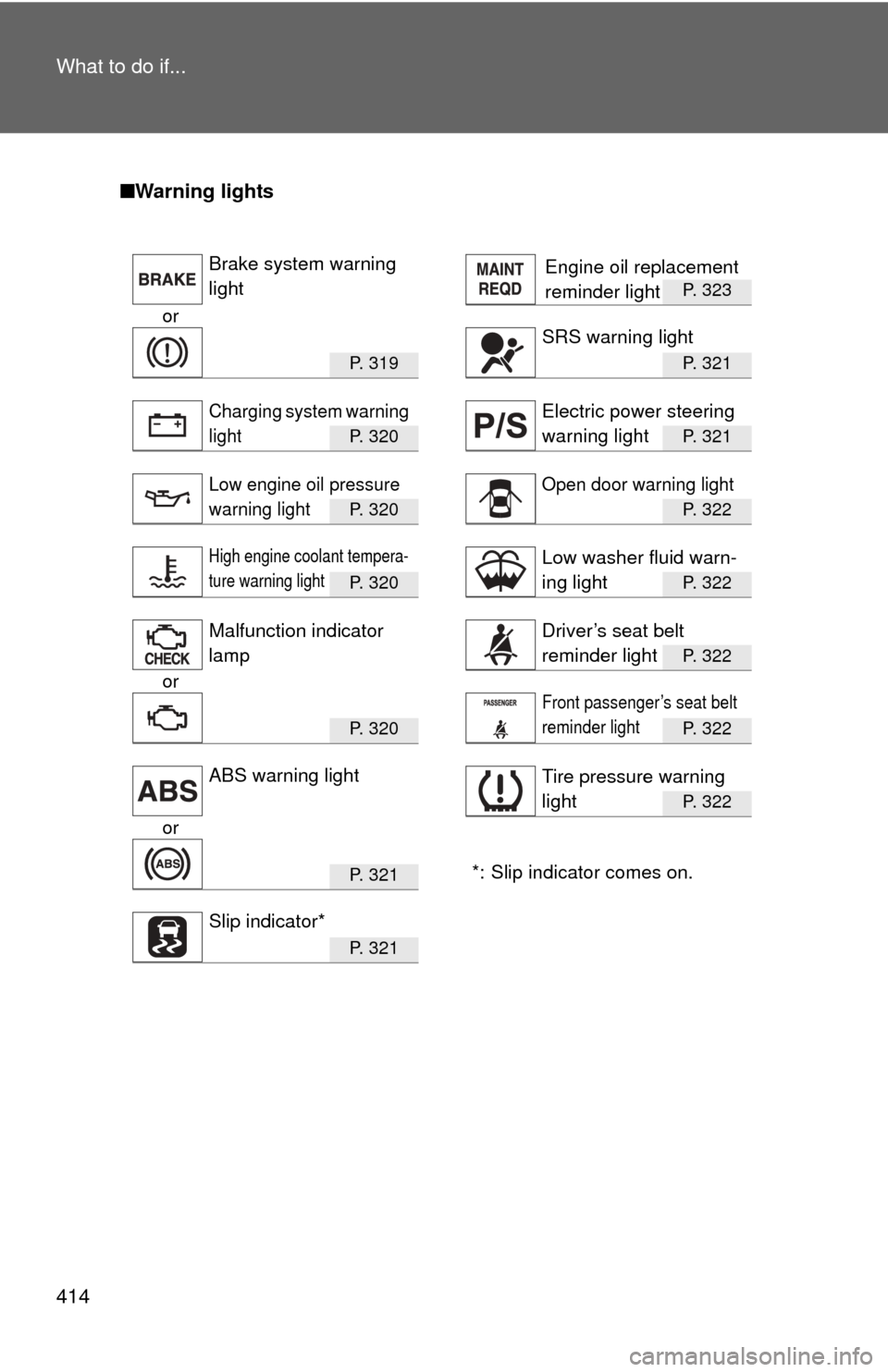

414 What to do if...
■Warning lights
P. 323
or
P. 3 1 9P. 321
P. 3 2 0P. 321
P. 3 2 0P. 322
P. 3 2 0P. 322
P. 322
or
P. 3 2 0P. 322
P. 322
or
*: Slip indicator comes on.
P. 3 2 1
P. 3 2 1
Brake system warning
light
SRS warning light
Charging system warning
lightElectric power steering
warning light
Low engine oil pressure
warning lightOpen door warning light
High engine coolant tempera-
ture warning lightLow washer fluid warn-
ing light
Malfunction indicator
lampDriver’s seat belt
reminder light
Front passenger’s seat belt
reminder light
ABS warning lightTire pressure warning
light
Slip indicator*
Engine oil replacement
reminder light

416

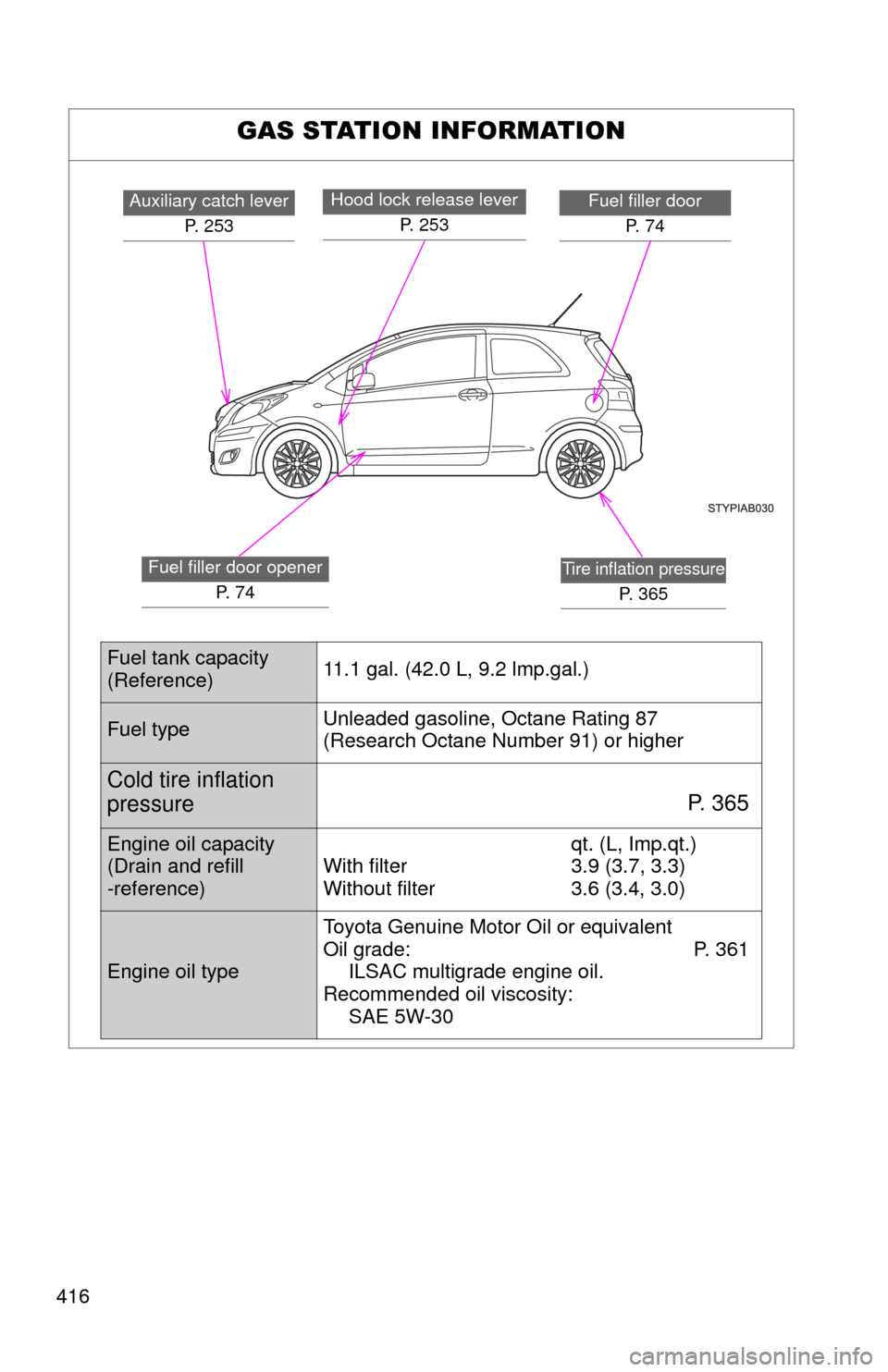

GAS STATION INFORMATION
Auxiliary catch leverP. 253Fuel filler doorP. 7 4Hood lock release lever P. 2 5 3
Fuel filler door openerP. 7 4Tire inflation pressure
P. 365
Fuel tank capacity
(Reference) 11.1 gal. (42.0 L, 9.2 lmp.gal.)
Fuel type
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 3 6 5
Engine oil capacity
(Drain and refill
-reference)qt. (L, Imp.qt.)
With filter 3.9 (3.7, 3.3)
Without filter 3.6 (3.4, 3.0)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: P. 361
ILSAC multigrade engine oil.
Recommended oil viscosity: SAE 5W-30
