TOYOTA YARIS 2012 Owners Manual

451
4-1. Maintenance and care
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

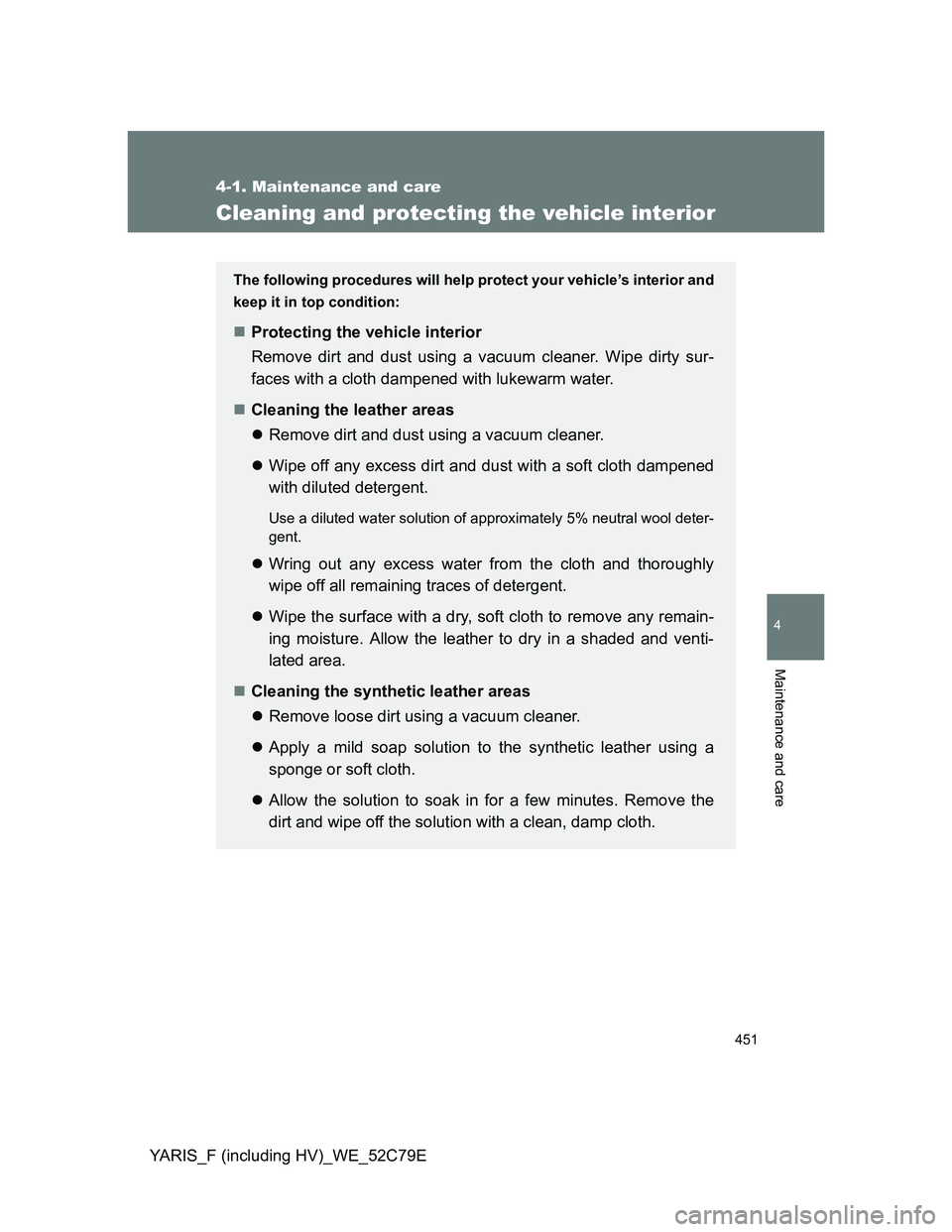

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.
Cleaning the leather areas
Remove dirt and dust using a vacuum cleaner.
Wipe off any excess dirt and dust with a soft cloth dampened
with diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter-
gent.
Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remain-
ing moisture. Allow the leather to dry in a shaded and venti-
lated area.
Cleaning the synthetic leather areas
Remove loose dirt using a vacuum cleaner.
Apply a mild soap solution to the synthetic leather using a
sponge or soft cloth.
Allow the solution to soak in for a few minutes. Remove the
dirt and wipe off the solution with a clean, damp cloth.

452 4-1. Maintenance and care
YARIS_F (including HV)_WE_52C79E
Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year
to maintain the quality of the vehicle’s interior.
Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a
sponge or brush to apply the foam. Rub in overlapping circles. Do not use
water. Wipe dirty surfaces and let them dry. Excellent results are obtained by
keeping the carpet as dry as possible.
Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
CAUTION
Water in the vehicle
Except hybrid vehicle: Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch
fire.
Hybrid vehicle: Do not splash or spill liquid in the vehicle, such as on the
floor, in the hybrid battery (traction battery) air vents, and in the rear seat.
Doing so may cause the hybrid battery, electrical components, etc. to mal-
function or catch fire.
Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 167)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

453 4-1. Maintenance and care
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

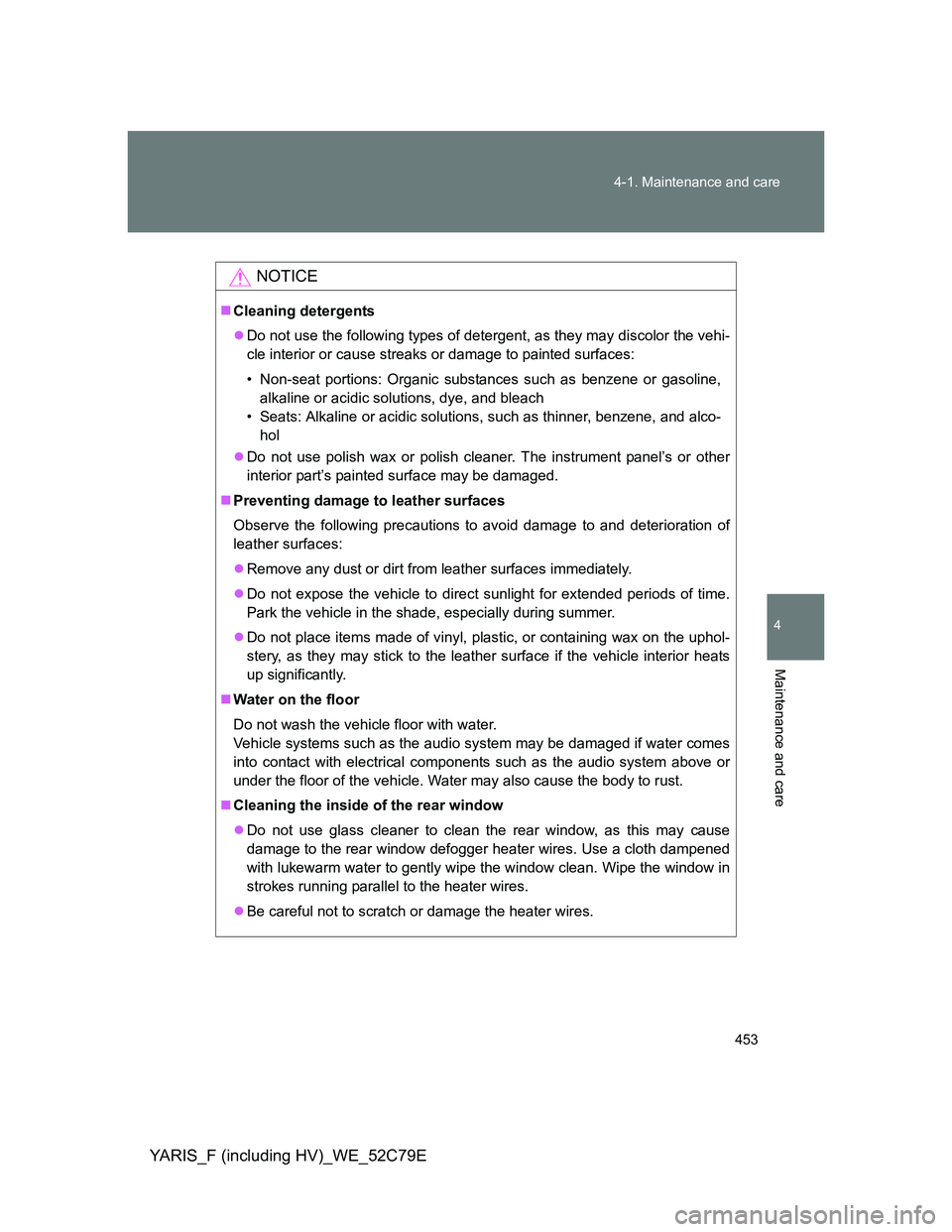

NOTICE
Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
Remove any dust or dirt from leather surfaces immediately.
Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
Be careful not to scratch or damage the heater wires.

454
YARIS_F (including HV)_WE_52C79E

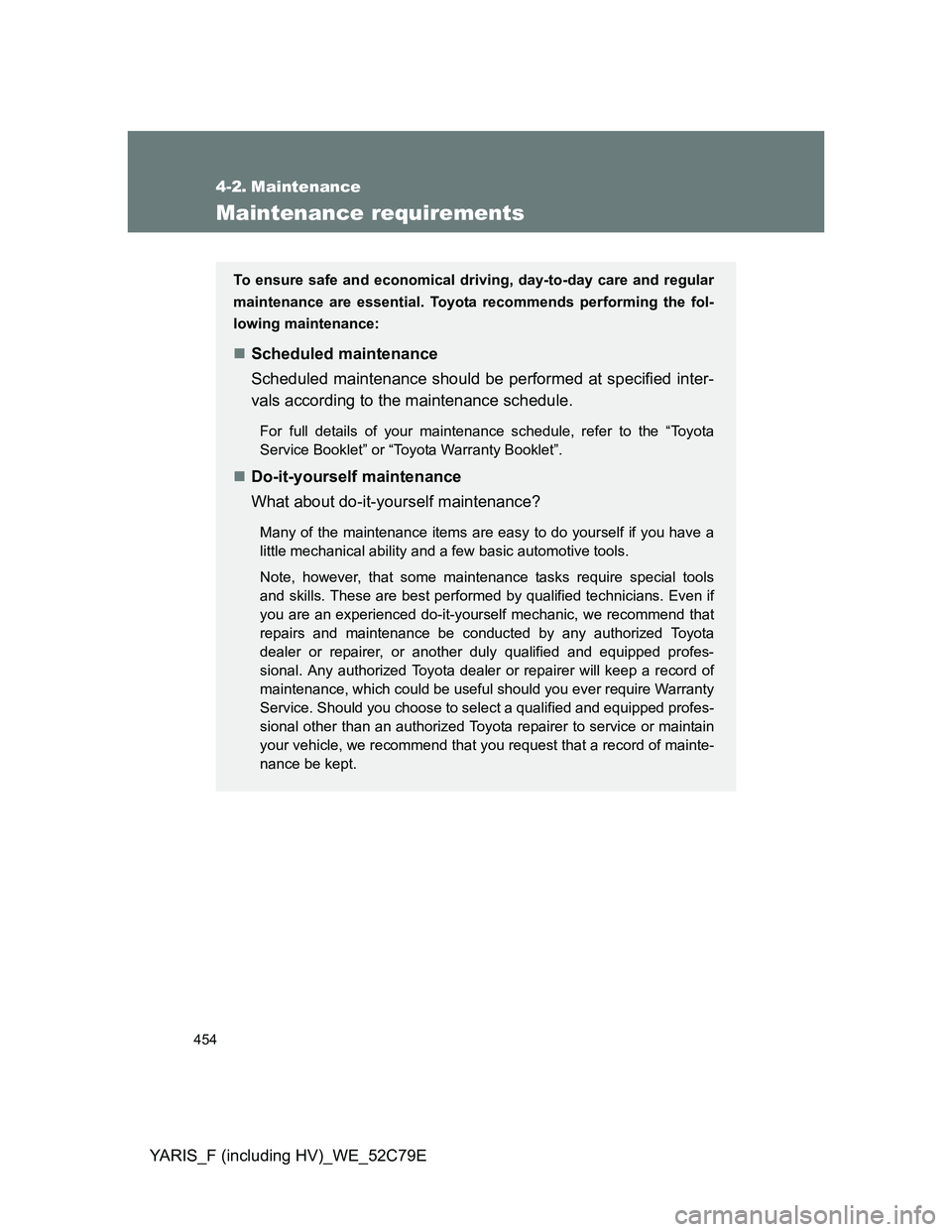

4-2. Maintenance
Maintenance requirements
To ensure safe and economical driving, day-to-day care and regular
maintenance are essential. Toyota recommends performing the fol-
lowing maintenance:
Scheduled maintenance
Scheduled maintenance should be performed at specified inter-
vals according to the maintenance schedule.
For full details of your maintenance schedule, refer to the “Toyota
Service Booklet” or “Toyota Warranty Booklet”.
Do-it-yourself maintenance
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a
little mechanical ability and a few basic automotive tools.
Note, however, that some maintenance tasks require special tools
and skills. These are best performed by qualified technicians. Even if
you are an experienced do-it-yourself mechanic, we recommend that
repairs and maintenance be conducted by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional. Any authorized Toyota dealer or repairer will keep a record of
maintenance, which could be useful should you ever require Warranty
Service. Should you choose to select a qualified and equipped profes-
sional other than an authorized Toyota repairer to service or maintain
your vehicle, we recommend that you request that a record of mainte-
nance be kept.

455 4-2. Maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

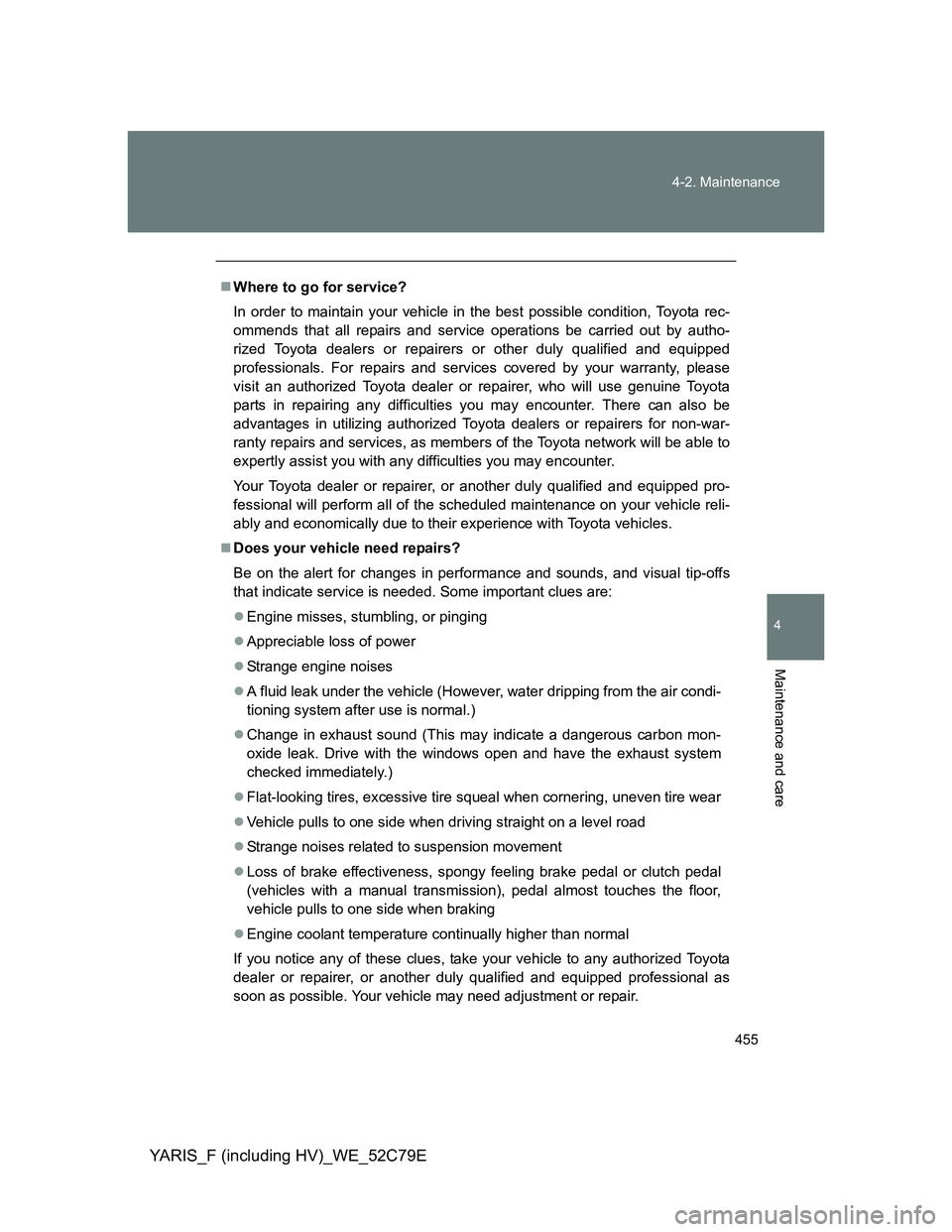

Where to go for service?
In order to maintain your vehicle in the best possible condition, Toyota rec-
ommends that all repairs and service operations be carried out by autho-
rized Toyota dealers or repairers or other duly qualified and equipped
professionals. For repairs and services covered by your warranty, please
visit an authorized Toyota dealer or repairer, who will use genuine Toyota
parts in repairing any difficulties you may encounter. There can also be
advantages in utilizing authorized Toyota dealers or repairers for non-war-
ranty repairs and services, as members of the Toyota network will be able to
expertly assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional will perform all of the scheduled maintenance on your vehicle reli-
ably and economically due to their experience with Toyota vehicles.
Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine misses, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air condi-
tioning system after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon mon-
oxide leak. Drive with the windows open and have the exhaust system
checked immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal
(vehicles with a manual transmission), pedal almost touches the floor,
vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional as
soon as possible. Your vehicle may need adjustment or repair.

456 4-2. Maintenance
YARIS_F (including HV)_WE_52C79E

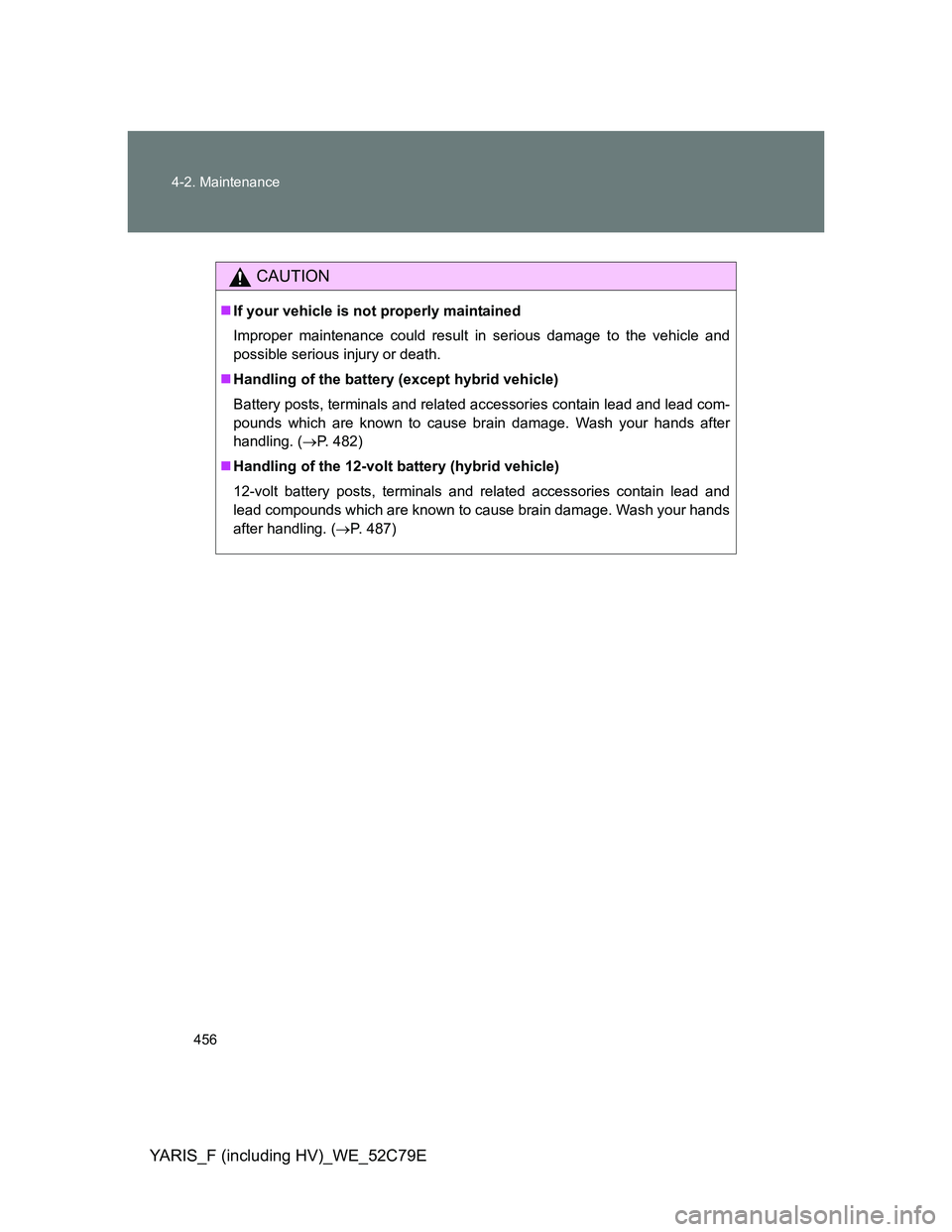

CAUTION
If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
Handling of the battery (except hybrid vehicle)
Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after
handling. (P. 482)
Handling of the 12-volt battery (hybrid vehicle)
12-volt battery posts, terminals and related accessories contain lead and
lead compounds which are known to cause brain damage. Wash your hands
after handling. (P. 487)

457
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

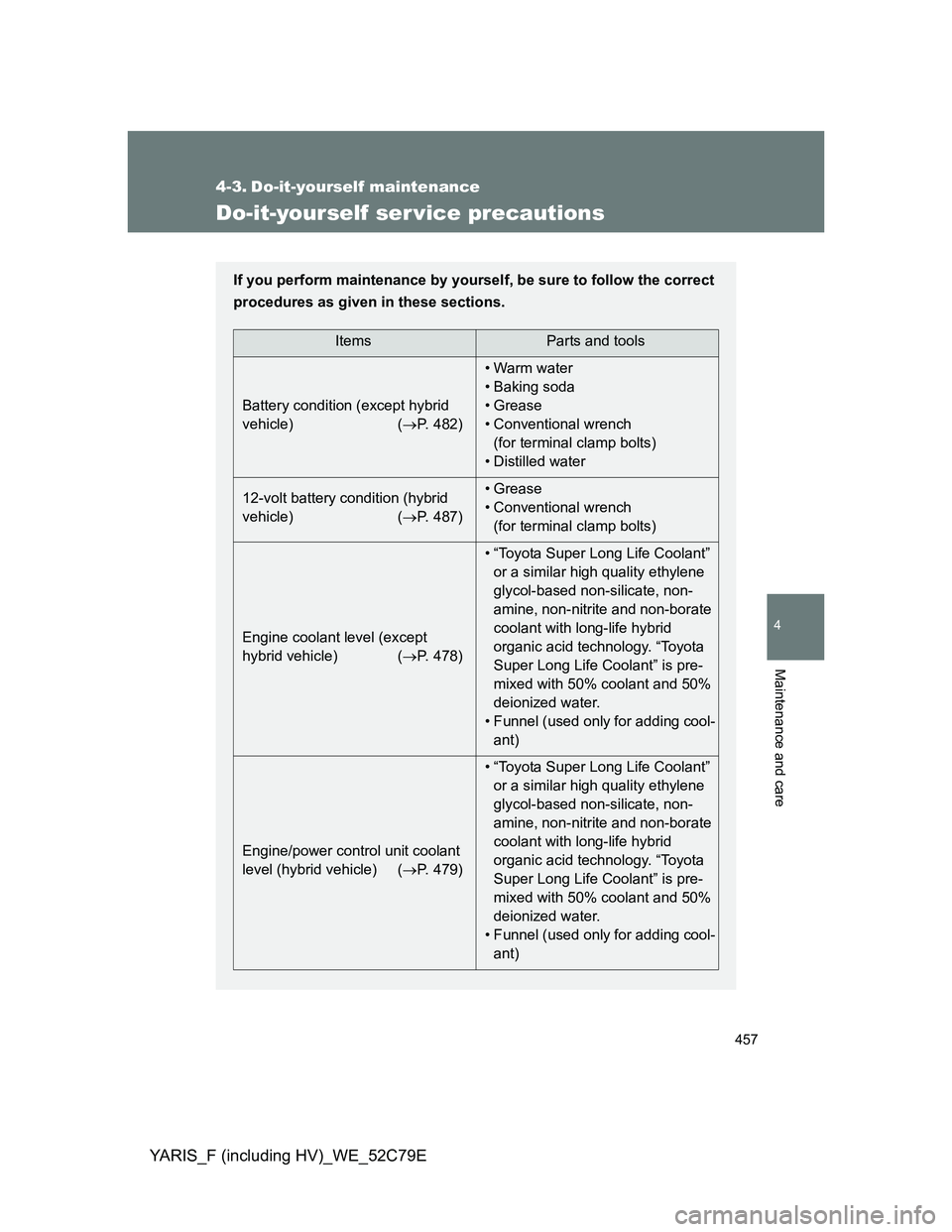

4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition (except hybrid
vehicle) (P. 482)•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
• Distilled water
12-volt battery condition (hybrid
vehicle) (P. 487)• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine coolant level (except
hybrid vehicle) (P. 478)• “Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. “Toyota
Super Long Life Coolant” is pre-
mixed with 50% coolant and 50%
deionized water.
• Funnel (used only for adding cool-
ant)
Engine/power control unit coolant
level (hybrid vehicle) (P. 479)• “Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. “Toyota
Super Long Life Coolant” is pre-
mixed with 50% coolant and 50%
deionized water.
• Funnel (used only for adding cool-
ant)

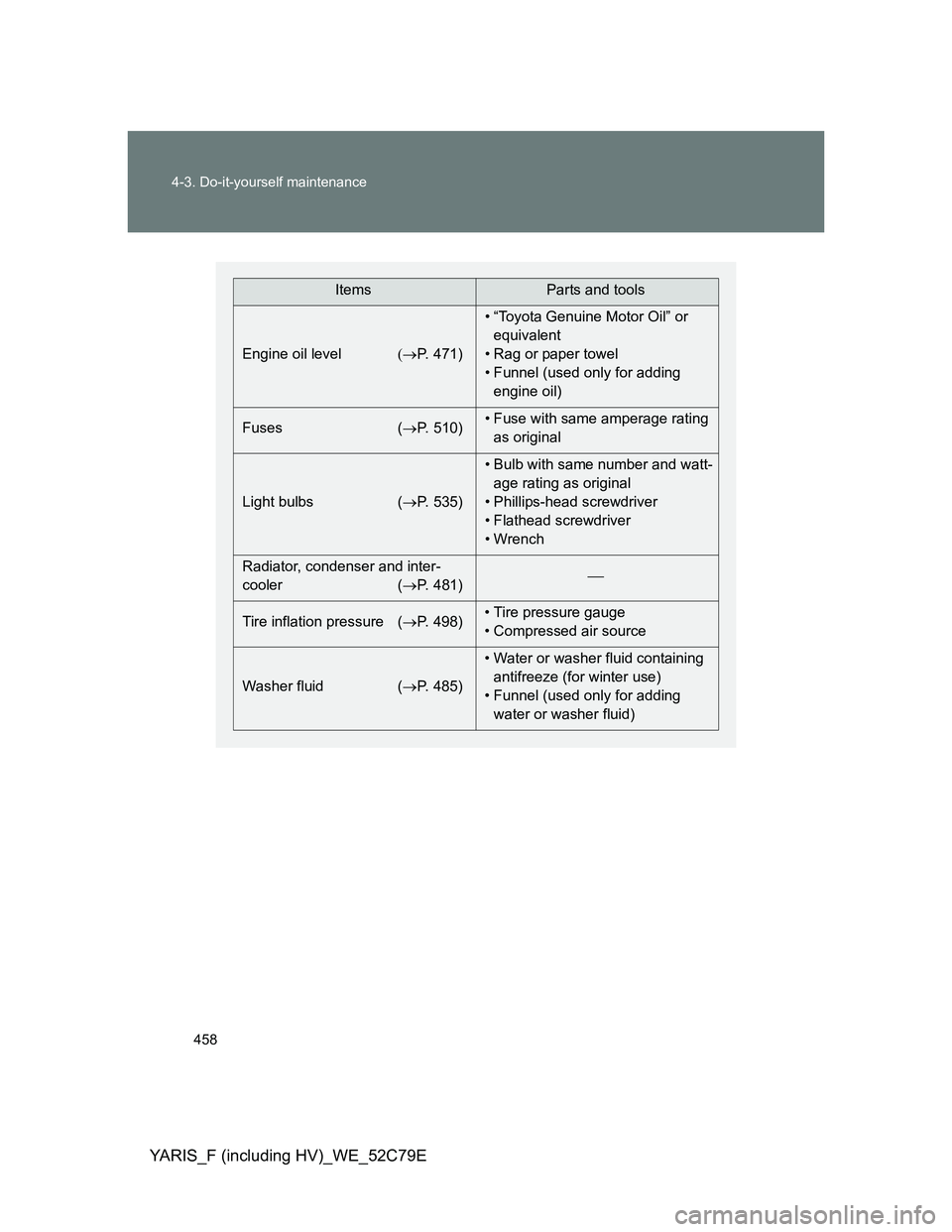

458 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E
ItemsParts and tools
Engine oil levelP. 471)• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 510)• Fuse with same amperage rating
as original
Light bulbs (P. 535)• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
• Wrench
Radiator, condenser and inter-
cooler (P. 481)
Tire inflation pressure (P. 498)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 485)• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)

459 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

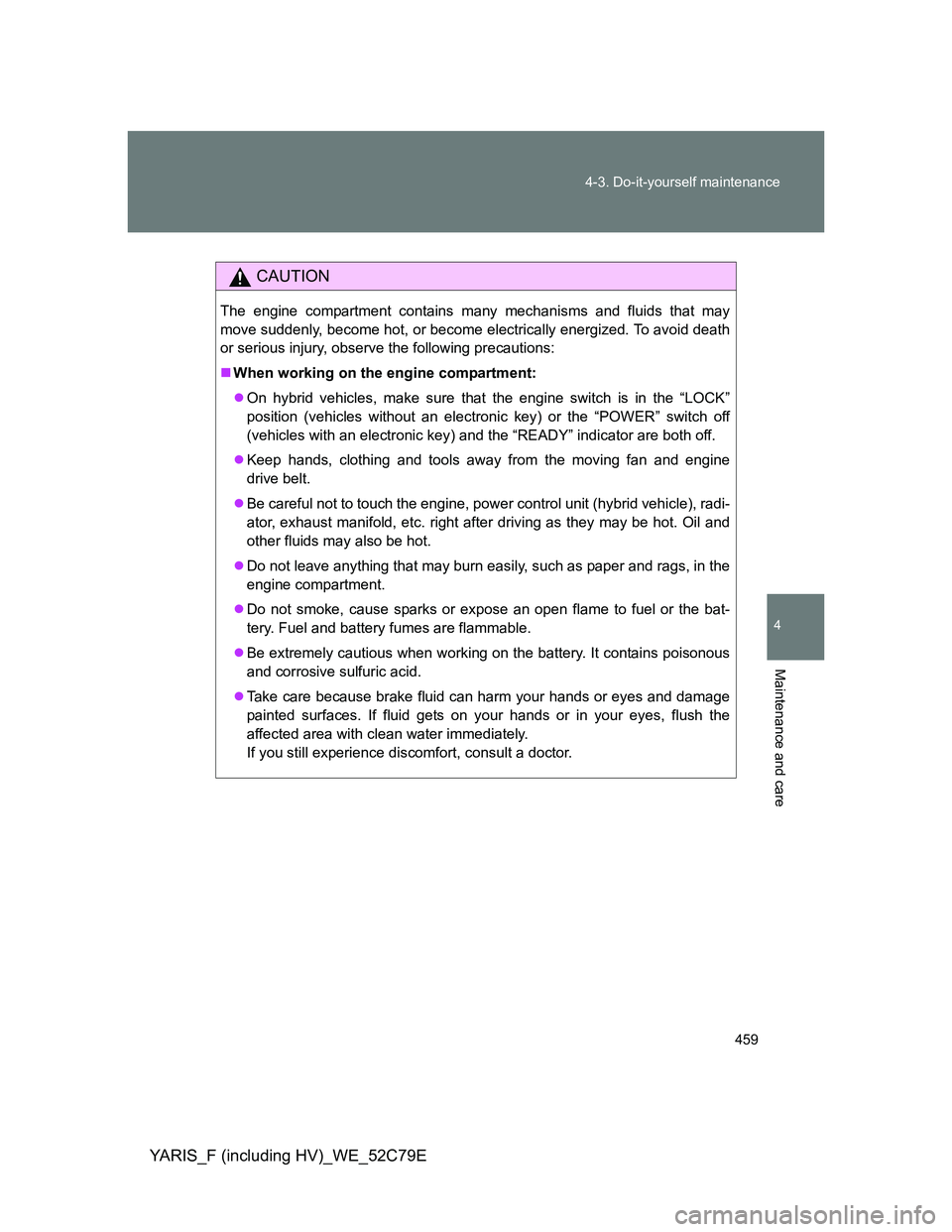

CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions:
When working on the engine compartment:
On hybrid vehicles, make sure that the engine switch is in the “LOCK”
position (vehicles without an electronic key) or the “POWER” switch off
(vehicles with an electronic key) and the “READY” indicator are both off.
Keep hands, clothing and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, power control unit (hybrid vehicle), radi-
ator, exhaust manifold, etc. right after driving as they may be hot. Oil and
other fluids may also be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.

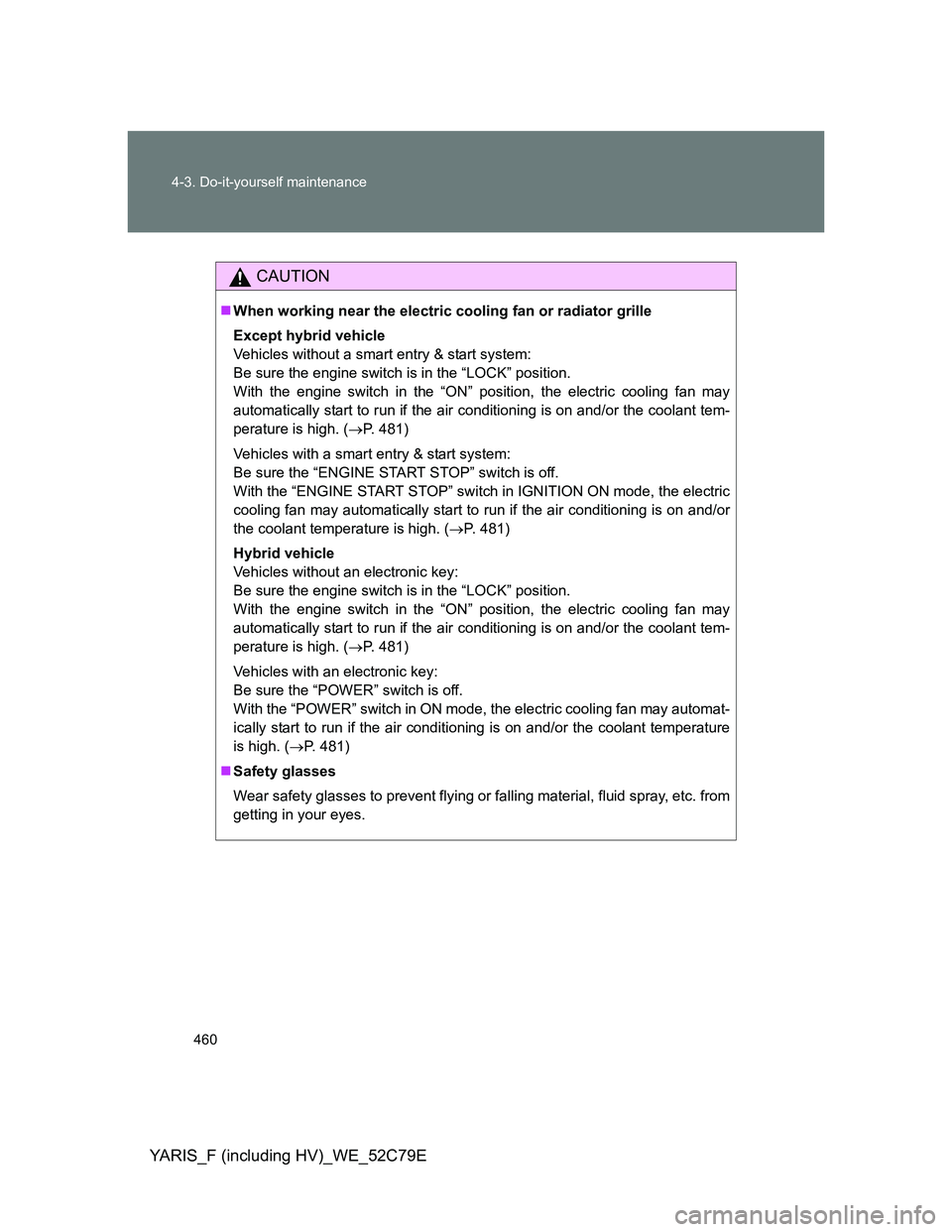

460 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E
CAUTION
When working near the electric cooling fan or radiator grille
Except hybrid vehicle
Vehicles without a smart entry & start system:
Be sure the engine switch is in the “LOCK” position.
With the engine switch in the “ON” position, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. (P. 481)
Vehicles with a smart entry & start system:
Be sure the “ENGINE START STOP” switch is off.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or
the coolant temperature is high. (P. 481)
Hybrid vehicle
Vehicles without an electronic key:
Be sure the engine switch is in the “LOCK” position.
With the engine switch in the “ON” position, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. (P. 481)
Vehicles with an electronic key:
Be sure the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fan may automat-
ically start to run if the air conditioning is on and/or the coolant temperature
is high. (P. 481)
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
