heater TOYOTA YARIS 2012 Owners Manual

TABLE OF CONTENTSIndex
YARIS_F (including HV)_WE_52C79E
4
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................. 356
Automatic air conditioning
system .............................. 363
Power heater ...................... 372
Rear window and outside
rear view mirror
defoggers.......................... 374
3-2. Using the audio system
Audio system types............. 376
Using the radio.................... 381
Using the CD player............ 385
Playing back MP3 and
WMA discs........................ 390
Operating an iPod ............... 396
Operating a USB
memory............................. 404
Optimal use of the audio
system .............................. 411
Using the AUX port ............. 413
Using the steering wheel
audio switches .................. 4143-3. Using the interior lights
Interior lights list ................. 417
• Personal lights ................. 418
• Interior light ...................... 418
3-4. Using the storage features
List of storage features....... 420
• Glove box ......................... 421
• Cup holders...................... 422
• Bottle holders ................... 423
3-5. Other interior features
Sun visors .......................... 425
Vanity mirrors ..................... 426
Clock .................................. 428
Outside temperature
display .............................. 429
Portable ashtray ................. 430
Cigarette lighter .................. 431
Power outlet ....................... 432
Seat heaters ....................... 434
Armrest............................... 436
Panoramic roof shade ........ 437
Assist grips ......................... 438
Floor mat ............................ 439
Luggage compartment
features ............................ 441
3Interior features

YARIS_F (including HV)_WE_52C79E
18

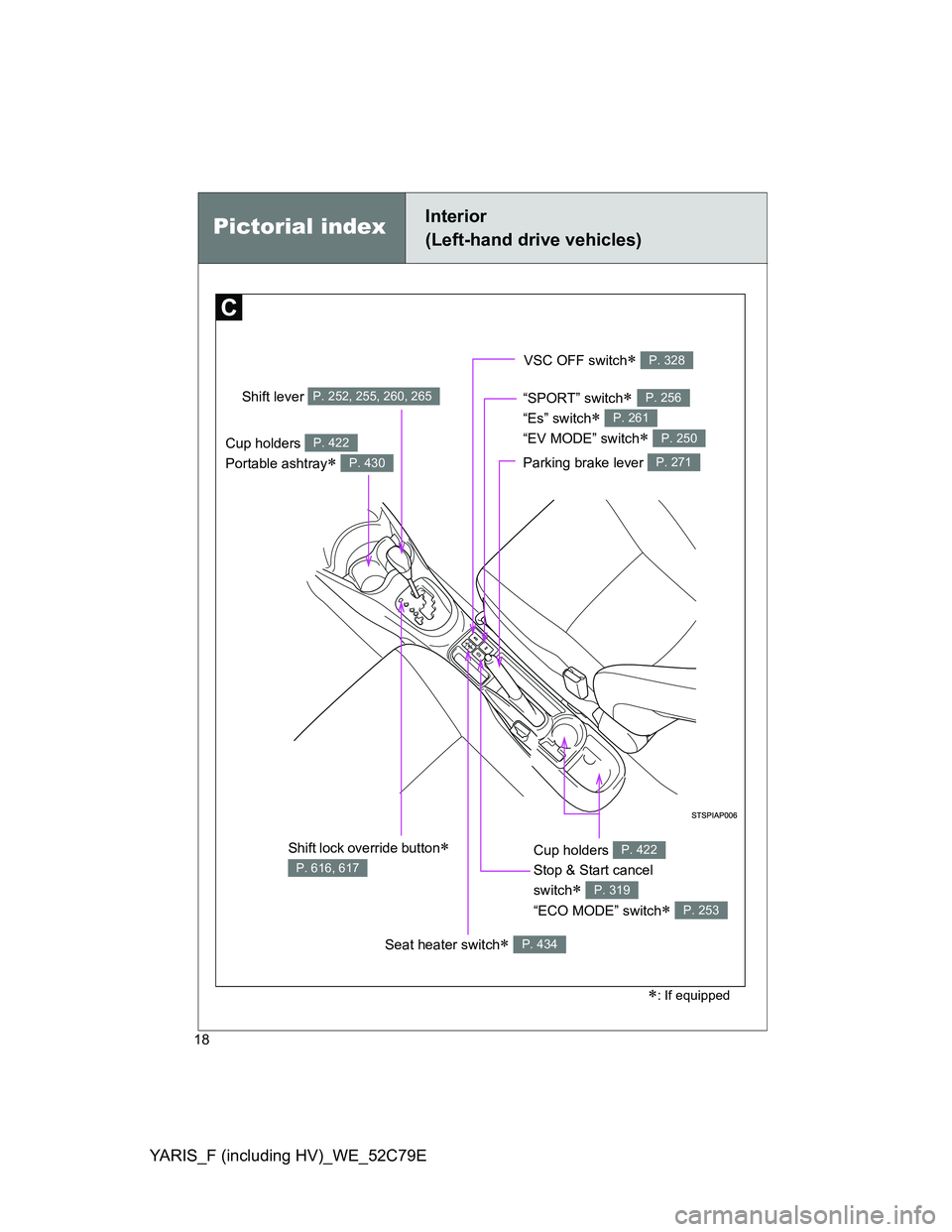

VSC OFF switch P. 328
“SPORT” switch
“Es” switch
“EV MODE” switch

P. 256
P. 261
P. 250Cup holders
Portable ashtray

P. 422
P. 430
Shift lever P. 252, 255, 260, 265
Parking brake lever P. 271
Cup holders P. 422
Stop & Start cancel
switch

“ECO MODE” switch

P. 319
P. 253
Seat heater switch P. 434
Shift lock override button
P. 616, 617
: If equipped
Pictorial indexInterior
(Left-hand drive vehicles)

YARIS_F (including HV)_WE_52C79E
24
Power heater switch P. 372
Manual headlight leveling dial P. 295
Tilt and telescopic steering
lock release lever
P. 140
Outside rear view mirror switches P. 144
Turn signal lever P. 269
Front fog light switch/
Rear fog light switch
P. 302
Headlight switch P. 293
Pictorial indexInstrument panel
(Left-hand drive vehicles)

50 1-1. Hybrid system (hybrid vehicle)
YARIS_F (including HV)_WE_52C79E

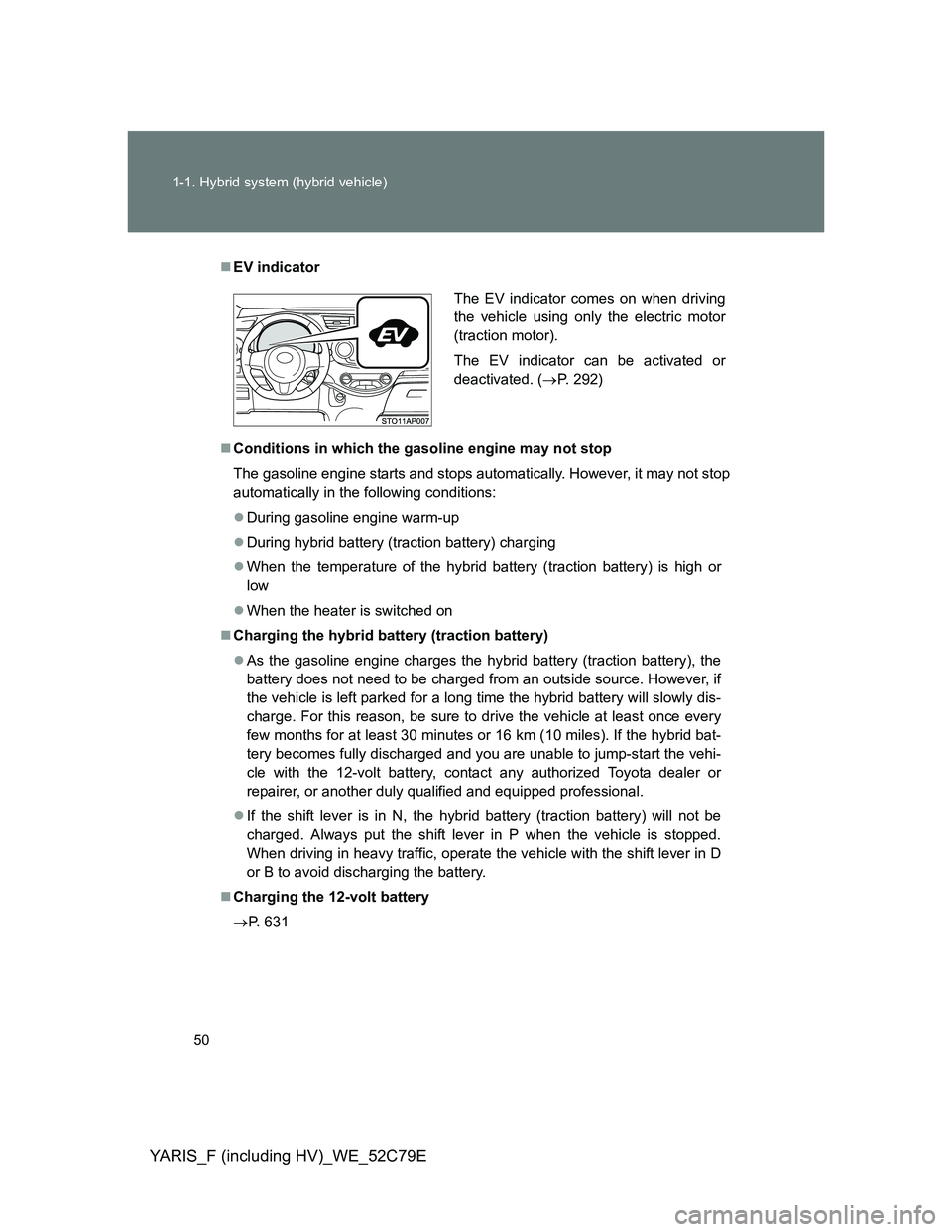

EV indicator
Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
During gasoline engine warm-up
During hybrid battery (traction battery) charging
When the temperature of the hybrid battery (traction battery) is high or
low
When the heater is switched on
Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the
battery does not need to be charged from an outside source. However, if
the vehicle is left parked for a long time the hybrid battery will slowly dis-
charge. For this reason, be sure to drive the vehicle at least once every
few months for at least 30 minutes or 16 km (10 miles). If the hybrid bat-
tery becomes fully discharged and you are unable to jump-start the vehi-
cle with the 12-volt battery, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If the shift lever is in N, the hybrid battery (traction battery) will not be
charged. Always put the shift lever in P when the vehicle is stopped.
When driving in heavy traffic, operate the vehicle with the shift lever in D
or B to avoid discharging the battery.
Charging the 12-volt battery
P. 631
The EV indicator comes on when driving
the vehicle using only the electric motor
(traction motor).
The EV indicator can be activated or
deactivated. (P. 292)

62
1-1. Hybrid system (hybrid vehicle)
YARIS_F (including HV)_WE_52C79E

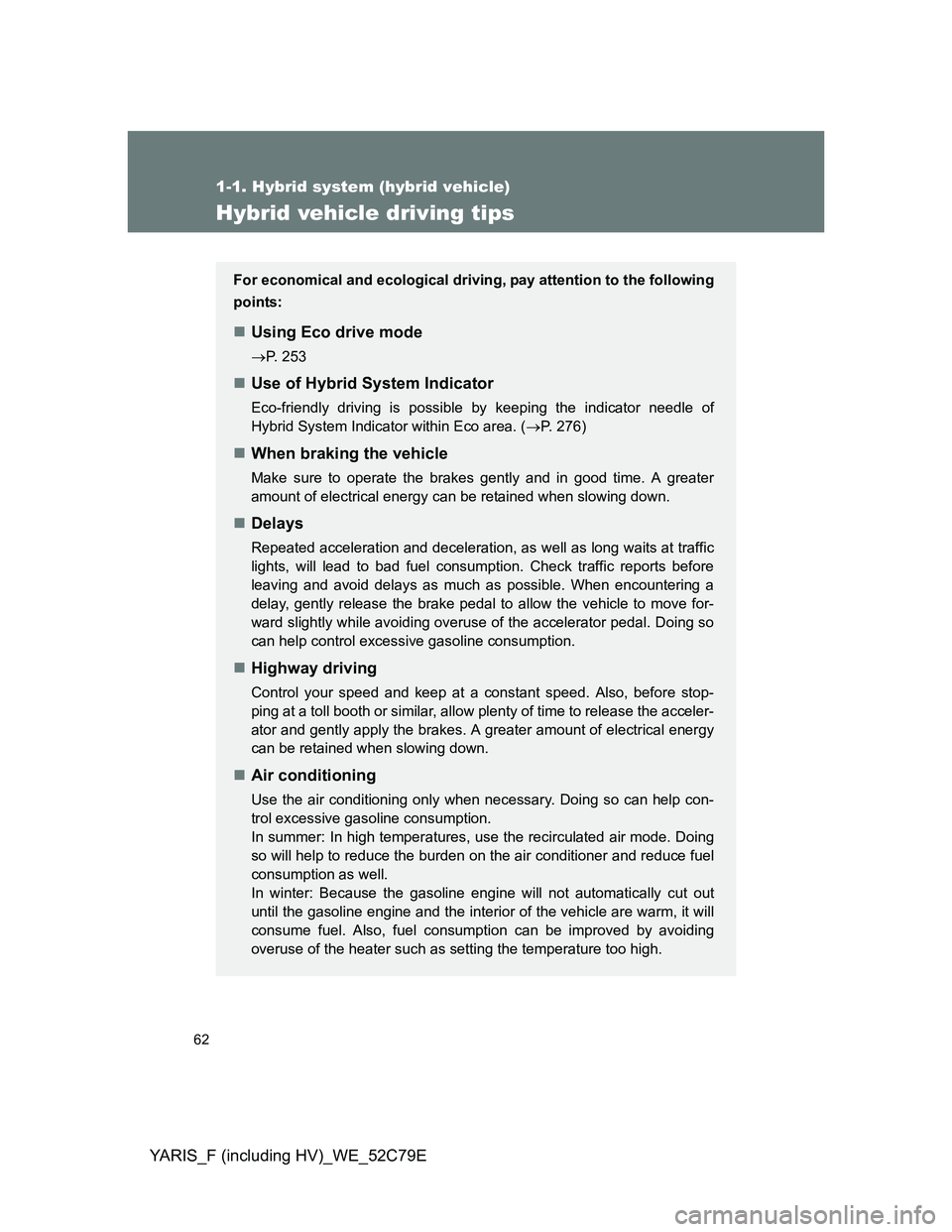

Hybrid vehicle driving tips
For economical and ecological driving, pay attention to the following
points:
Using Eco drive mode
P. 253
Use of Hybrid System Indicator
Eco-friendly driving is possible by keeping the indicator needle of
Hybrid System Indicator within Eco area. (P. 276)
When braking the vehicle
Make sure to operate the brakes gently and in good time. A greater
amount of electrical energy can be retained when slowing down.
Delays
Repeated acceleration and deceleration, as well as long waits at traffic
lights, will lead to bad fuel consumption. Check traffic reports before
leaving and avoid delays as much as possible. When encountering a
delay, gently release the brake pedal to allow the vehicle to move for-
ward slightly while avoiding overuse of the accelerator pedal. Doing so
can help control excessive gasoline consumption.
Highway driving
Control your speed and keep at a constant speed. Also, before stop-
ping at a toll booth or similar, allow plenty of time to release the acceler-
ator and gently apply the brakes. A greater amount of electrical energy
can be retained when slowing down.
Air conditioning
Use the air conditioning only when necessary. Doing so can help con-
trol excessive gasoline consumption.
In summer: In high temperatures, use the recirculated air mode. Doing
so will help to reduce the burden on the air conditioner and reduce fuel
consumption as well.
In winter: Because the gasoline engine will not automatically cut out
until the gasoline engine and the interior of the vehicle are warm, it will
consume fuel. Also, fuel consumption can be improved by avoiding
overuse of the heater such as setting the temperature too high.

3Interior features
355
YARIS_F (including HV)_WE_52C79E

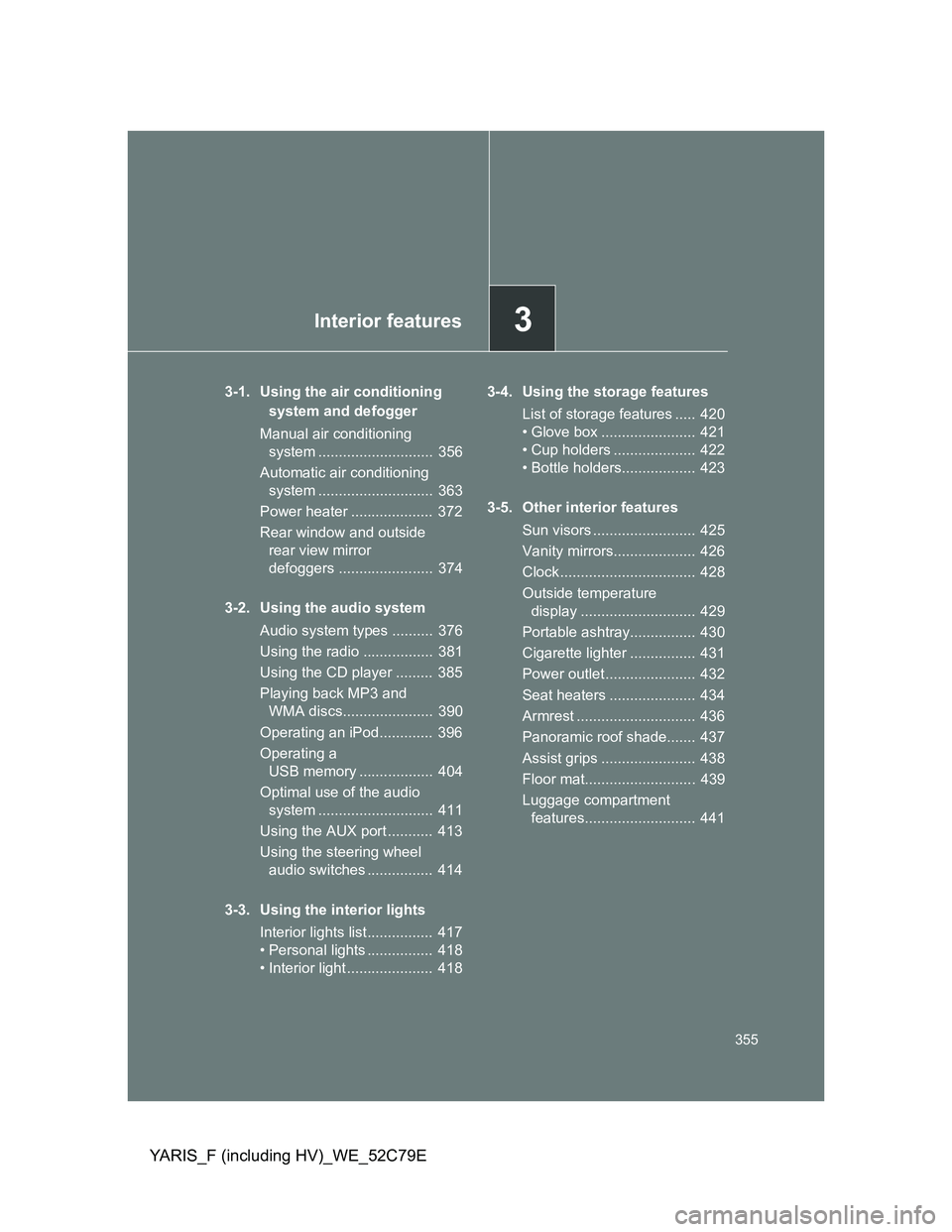

3-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................ 356
Automatic air conditioning
system ............................ 363
Power heater .................... 372
Rear window and outside
rear view mirror
defoggers ....................... 374
3-2. Using the audio system
Audio system types .......... 376
Using the radio ................. 381
Using the CD player ......... 385
Playing back MP3 and
WMA discs...................... 390
Operating an iPod............. 396
Operating a
USB memory .................. 404
Optimal use of the audio
system ............................ 411
Using the AUX port ........... 413
Using the steering wheel
audio switches ................ 414
3-3. Using the interior lights
Interior lights list................ 417
• Personal lights ................ 418
• Interior light ..................... 4183-4. Using the storage features
List of storage features ..... 420
• Glove box ....................... 421
• Cup holders .................... 422
• Bottle holders.................. 423
3-5. Other interior features
Sun visors ......................... 425
Vanity mirrors.................... 426
Clock ................................. 428
Outside temperature
display ............................ 429
Portable ashtray................ 430
Cigarette lighter ................ 431
Power outlet ...................... 432
Seat heaters ..................... 434
Armrest ............................. 436
Panoramic roof shade....... 437
Assist grips ....................... 438
Floor mat........................... 439
Luggage compartment
features........................... 441

372
3-1. Using the air conditioning system and defogger
YARIS_F (including HV)_WE_52C79E

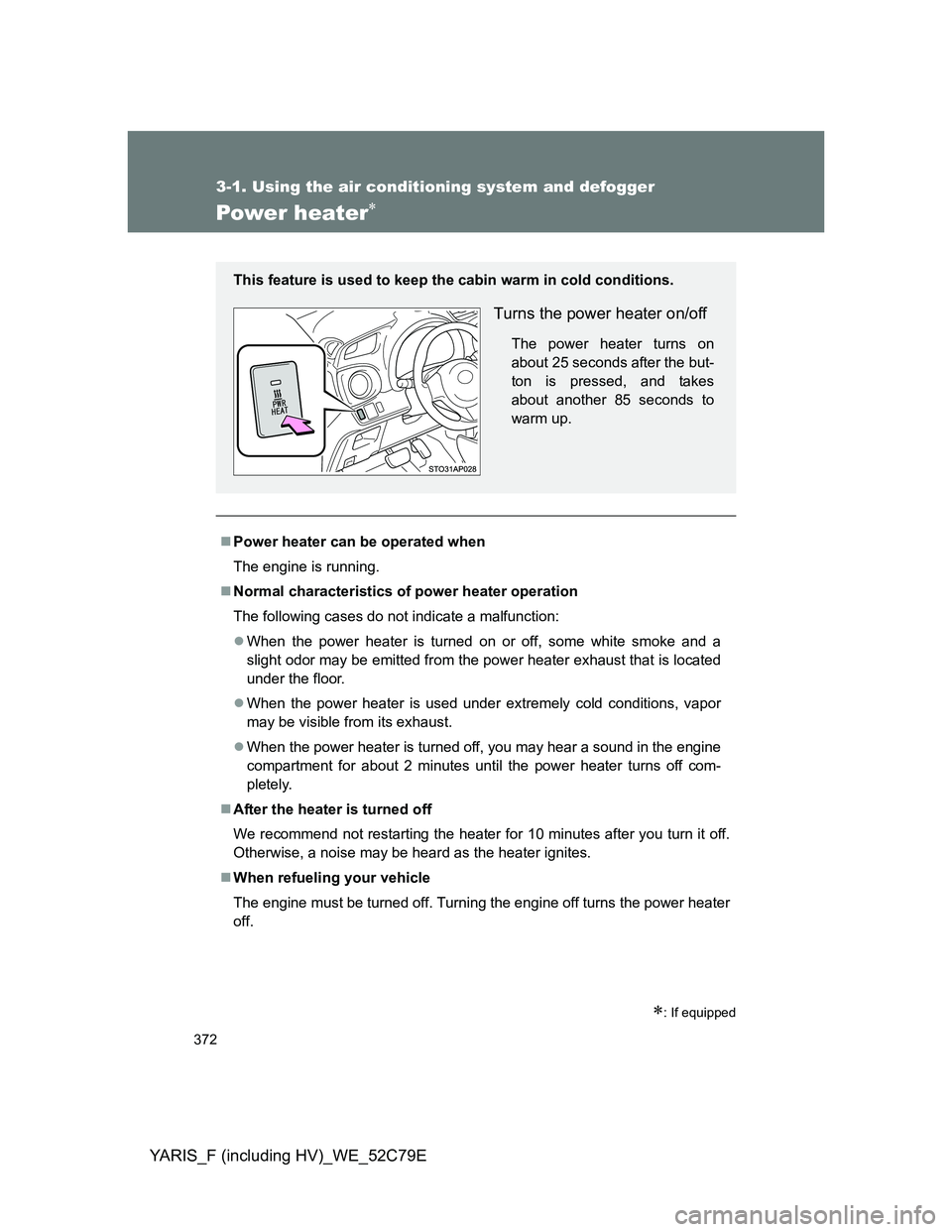

Power heater
: If equipped
Power heater can be operated when
The engine is running.
Normal characteristics of power heater operation
The following cases do not indicate a malfunction:
When the power heater is turned on or off, some white smoke and a
slight odor may be emitted from the power heater exhaust that is located
under the floor.
When the power heater is used under extremely cold conditions, vapor
may be visible from its exhaust.
When the power heater is turned off, you may hear a sound in the engine
compartment for about 2 minutes until the power heater turns off com-
pletely.
After the heater is turned off
We recommend not restarting the heater for 10 minutes after you turn it off.
Otherwise, a noise may be heard as the heater ignites.
When refueling your vehicle
The engine must be turned off. Turning the engine off turns the power heater
off.
This feature is used to keep the cabin warm in cold conditions.
Turns the power heater on/off
The power heater turns on
about 25 seconds after the but-
ton is pressed, and takes
about another 85 seconds to
warm up.

373 3-1. Using the air conditioning system and defogger
3
Interior features
YARIS_F (including HV)_WE_52C79E

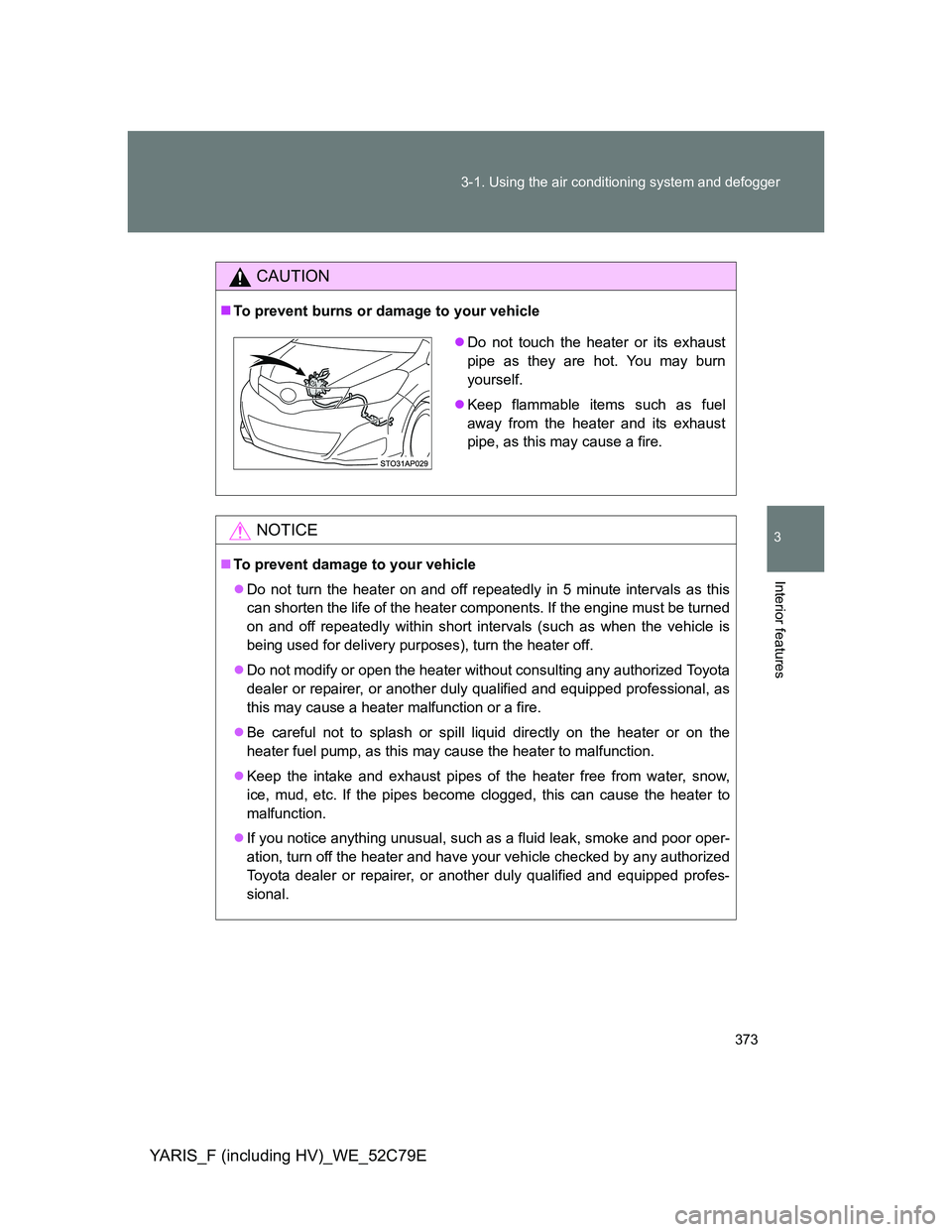

CAUTION
To prevent burns or damage to your vehicle
NOTICE
To prevent damage to your vehicle
Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
this may cause a heater malfunction or a fire.
Be careful not to splash or spill liquid directly on the heater or on the
heater fuel pump, as this may cause the heater to malfunction.
Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
If you notice anything unusual, such as a fluid leak, smoke and poor oper-
ation, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
Keep flammable items such as fuel
away from the heater and its exhaust
pipe, as this may cause a fire.

434
3-5. Other interior features
YARIS_F (including HV)_WE_52C79E

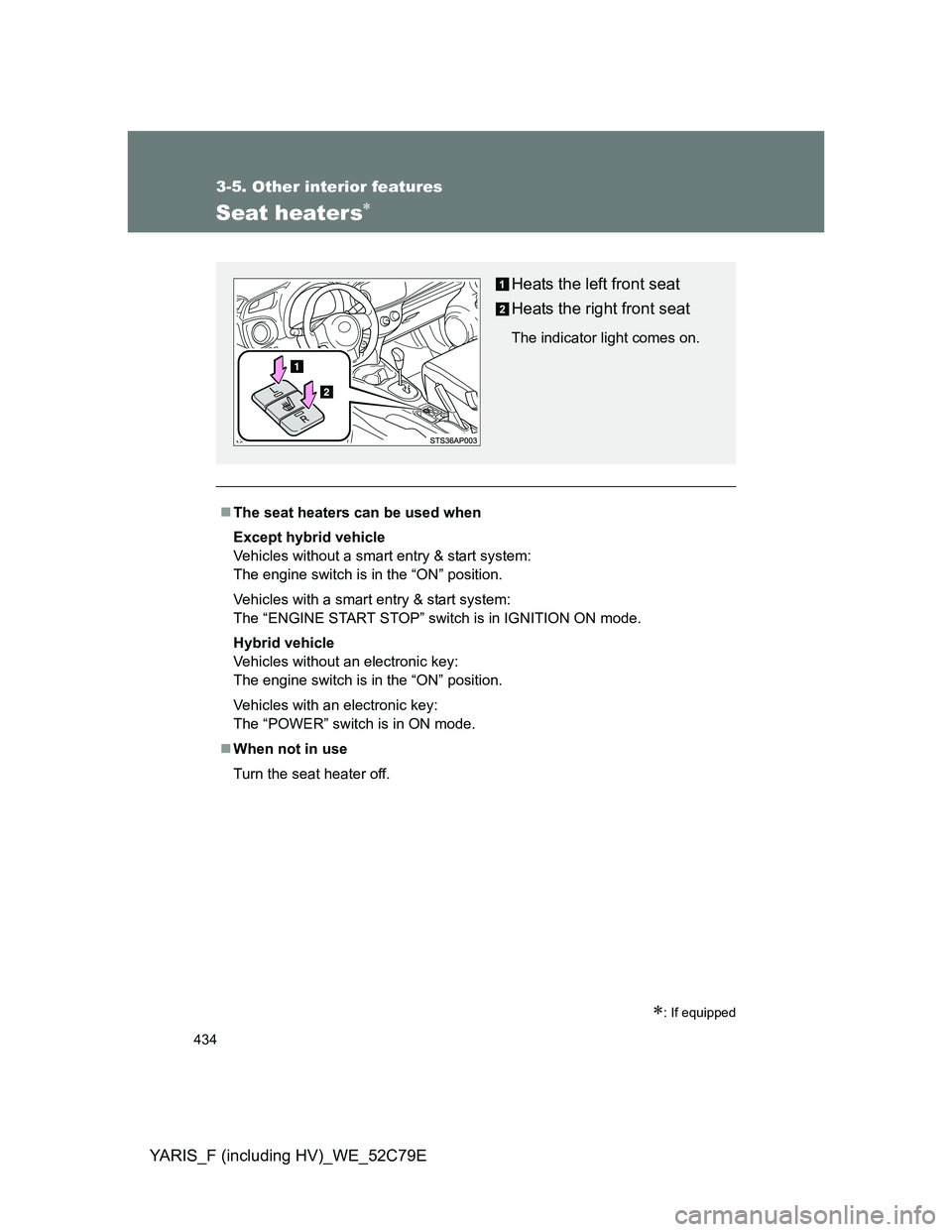

Seat heaters
: If equipped
The seat heaters can be used when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ON mode.
When not in use
Turn the seat heater off.
Heats the left front seat
Heats the right front seat
The indicator light comes on.

435 3-5. Other interior features
3
Interior features
YARIS_F (including HV)_WE_52C79E

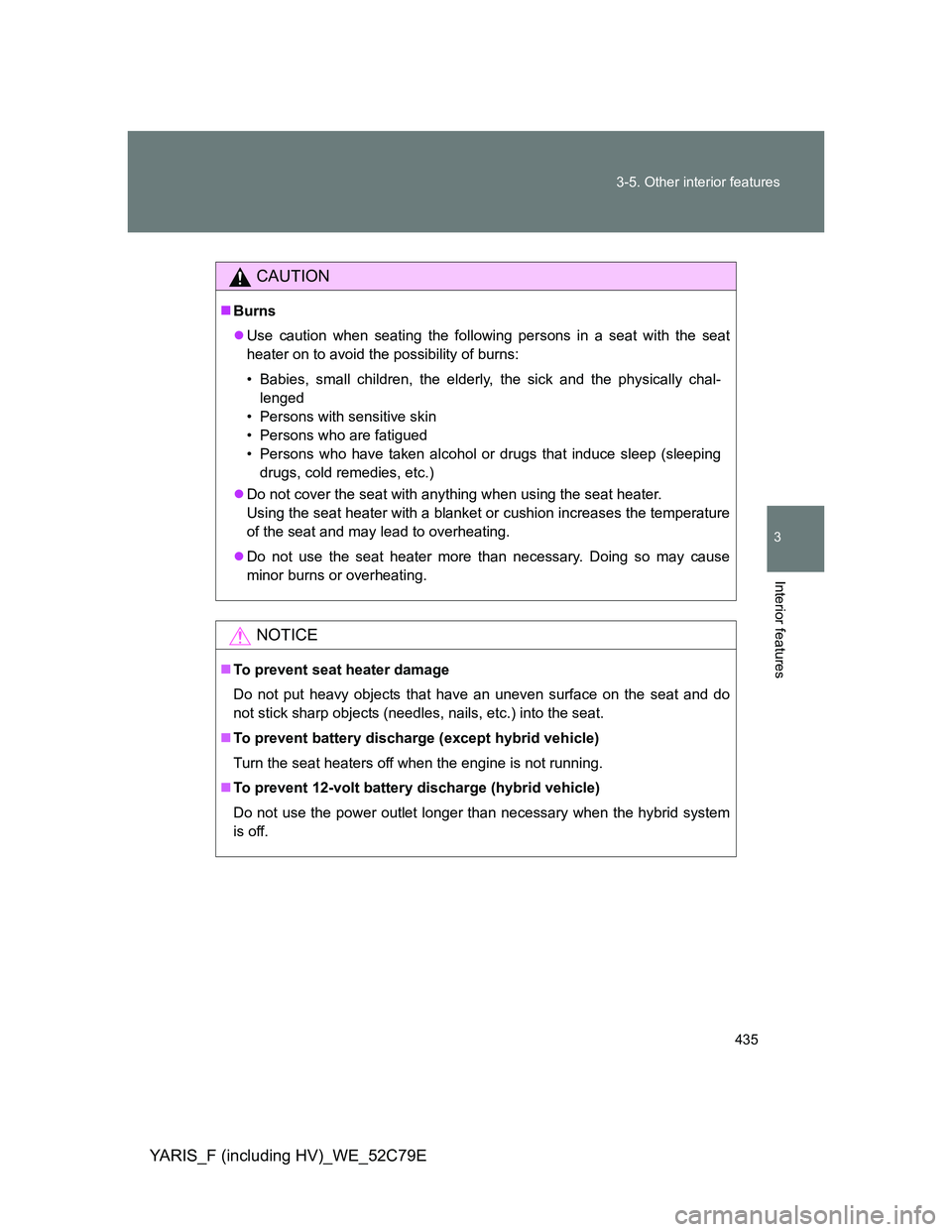

CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge (except hybrid vehicle)
Turn the seat heaters off when the engine is not running.
To prevent 12-volt battery discharge (hybrid vehicle)
Do not use the power outlet longer than necessary when the hybrid system
is off.
