TOYOTA YARIS 2013 Owners Manual

531
4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F(including HV)_WE_52E26E

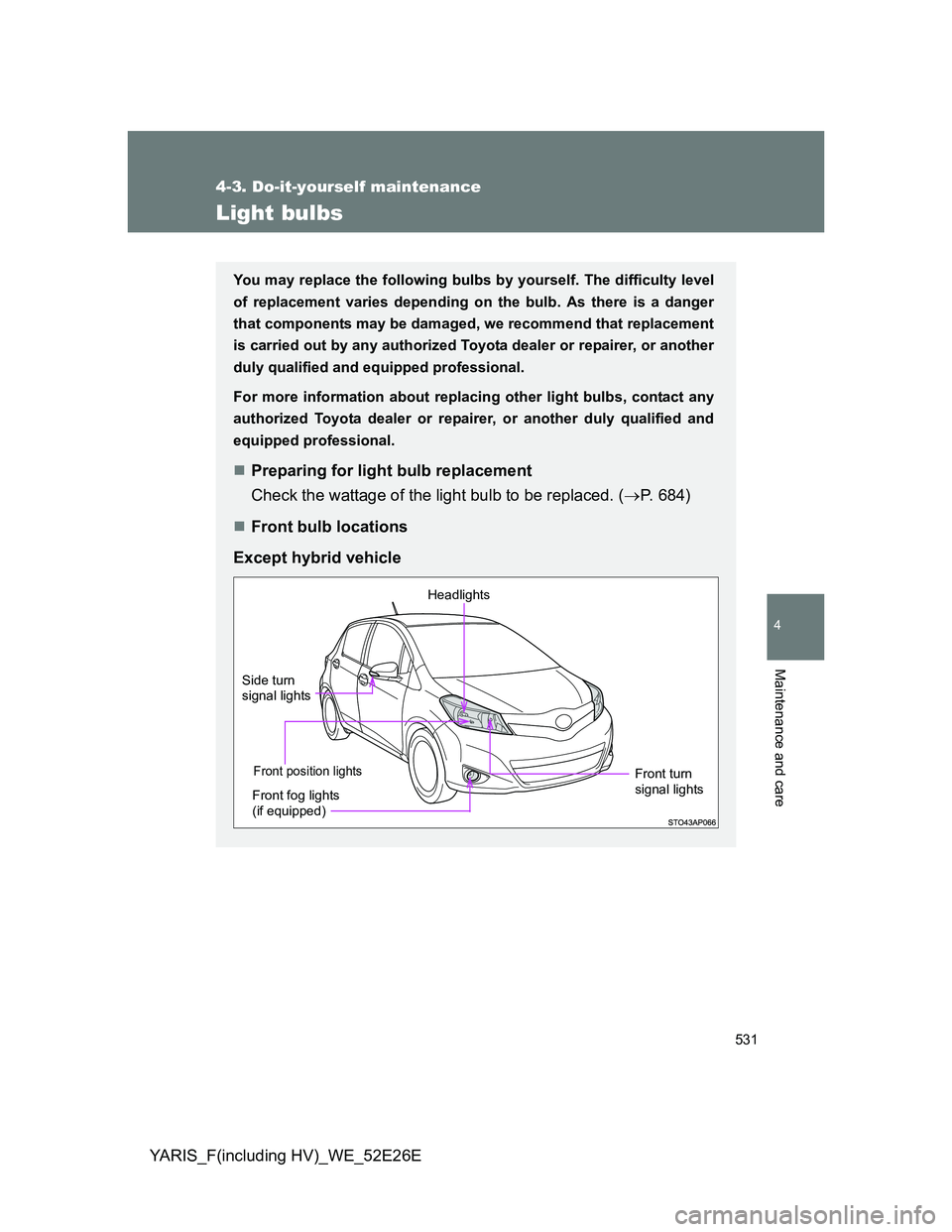

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 684)
Front bulb locations
Except hybrid vehicle
Front position lights
Front fog lights
(if equipped)
Headlights
Front turn
signal lights
Side turn
signal lights

532 4-3. Do-it-yourself maintenance
YARIS_F(including HV)_WE_52E26E

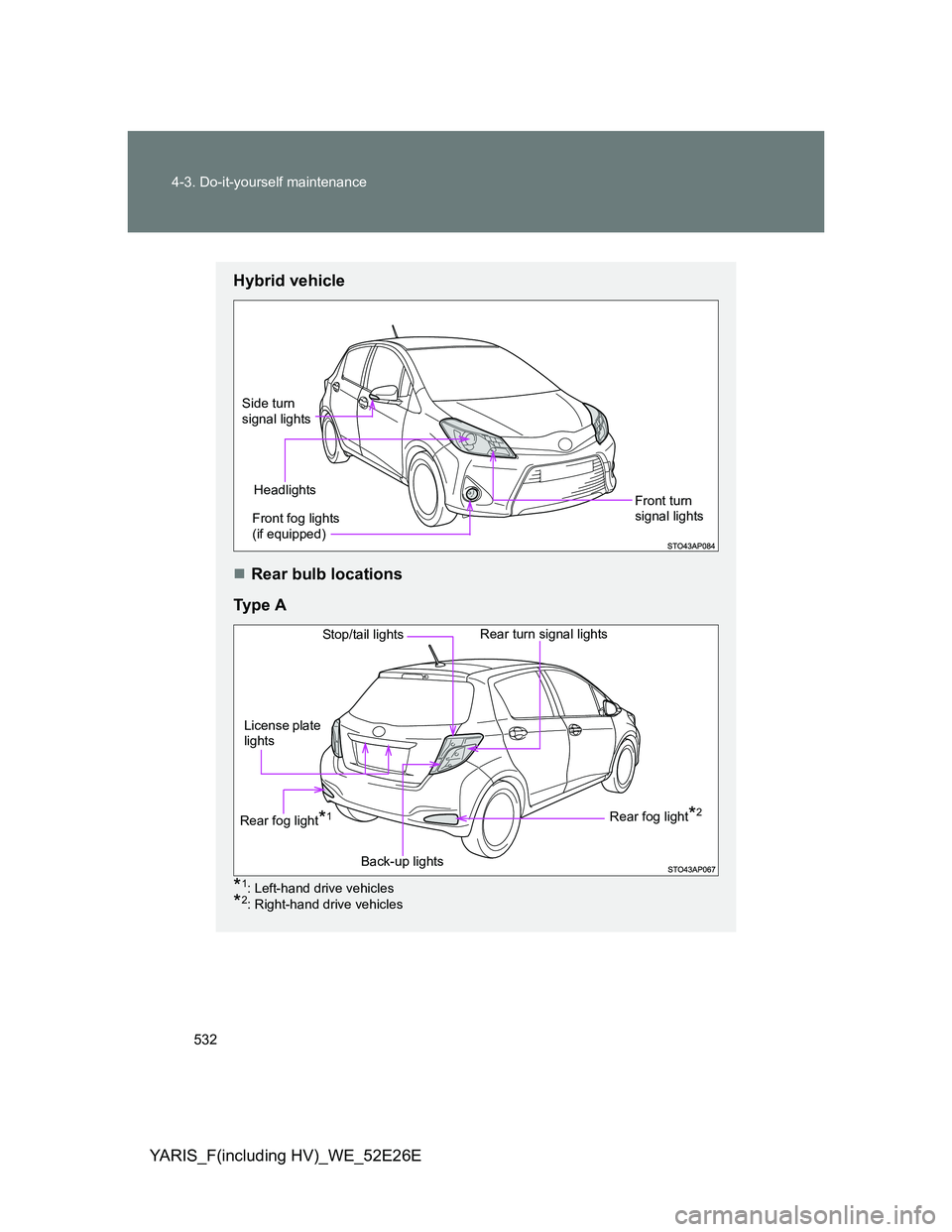

Hybrid vehicle
Rear bulb locations
Ty p e A
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Front fog lights
(if equipped)
HeadlightsFront turn
signal lights
Side turn
signal lights
Rear fog light*2Rear fog light*1
Stop/tail lights
License plate
lights
Rear turn signal lights
Back-up lights

533 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F(including HV)_WE_52E26E

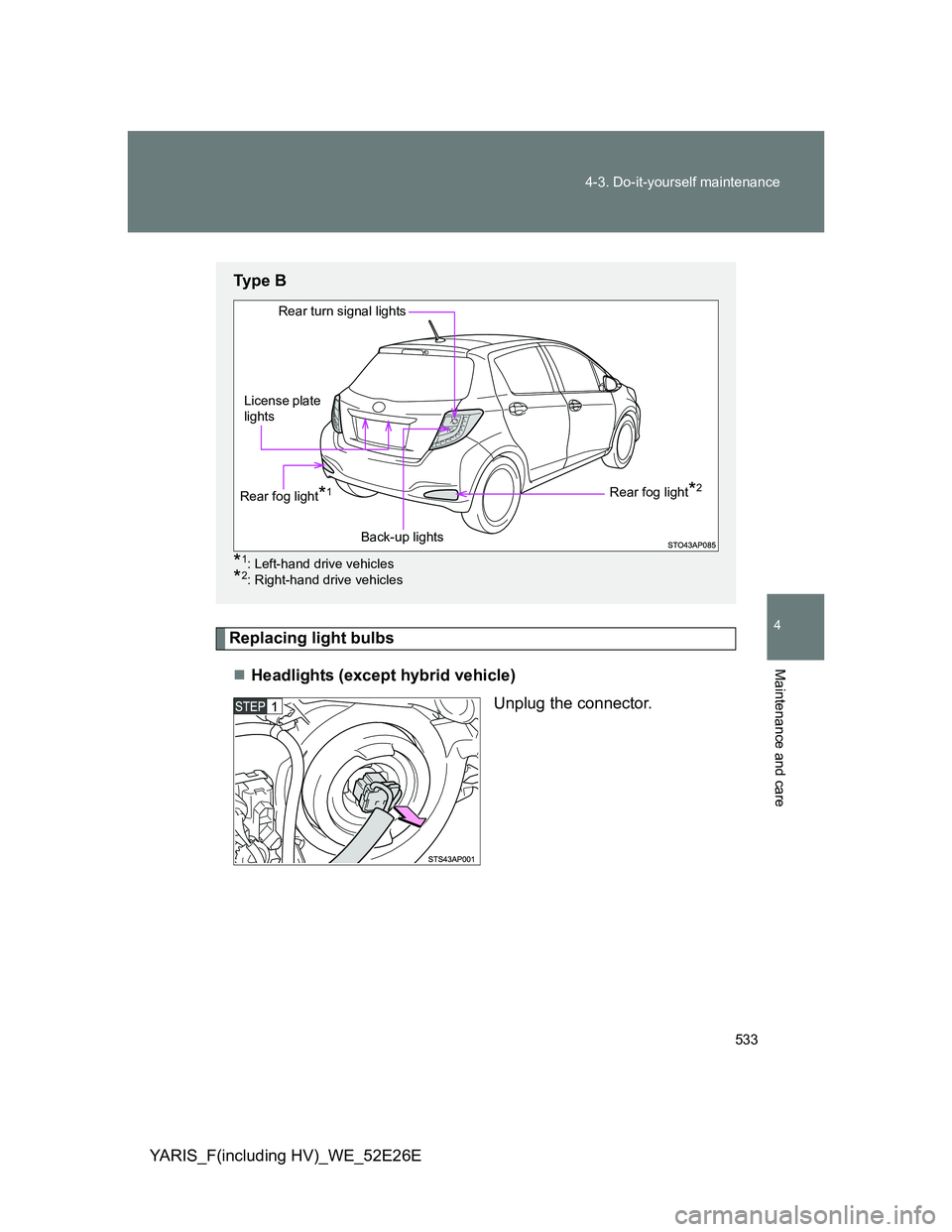

Replacing light bulbs
Headlights (except hybrid vehicle)
Unplug the connector.
Ty p e B
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Rear fog light*2Rear fog light*1
License plate
lights
Rear turn signal lights
Back-up lights

534 4-3. Do-it-yourself maintenance

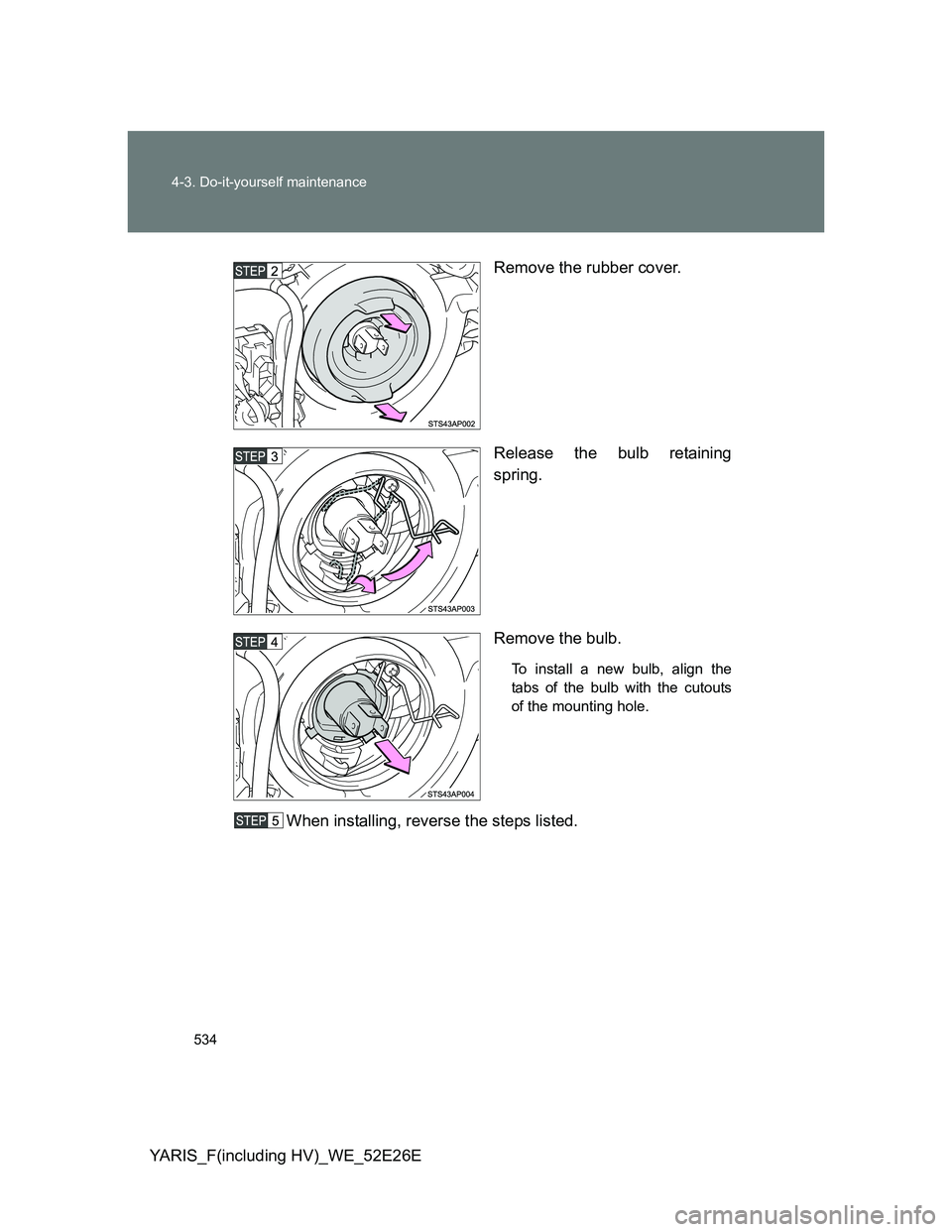

YARIS_F(including HV)_WE_52E26ERemove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
When installing, reverse the steps listed.

535 4-3. Do-it-yourself maintenance
4
Maintenance and care

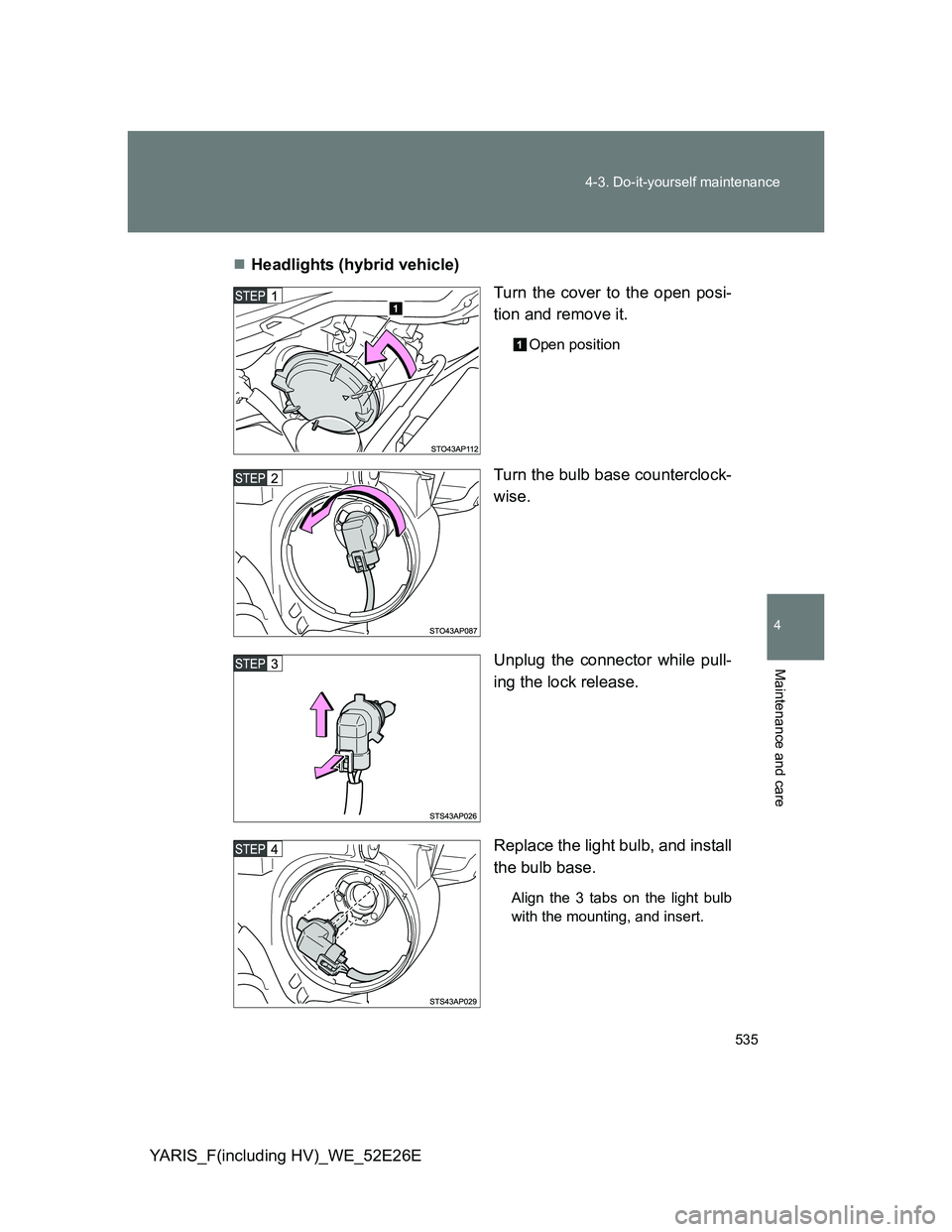

YARIS_F(including HV)_WE_52E26EHeadlights (hybrid vehicle)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.

536 4-3. Do-it-yourself maintenance

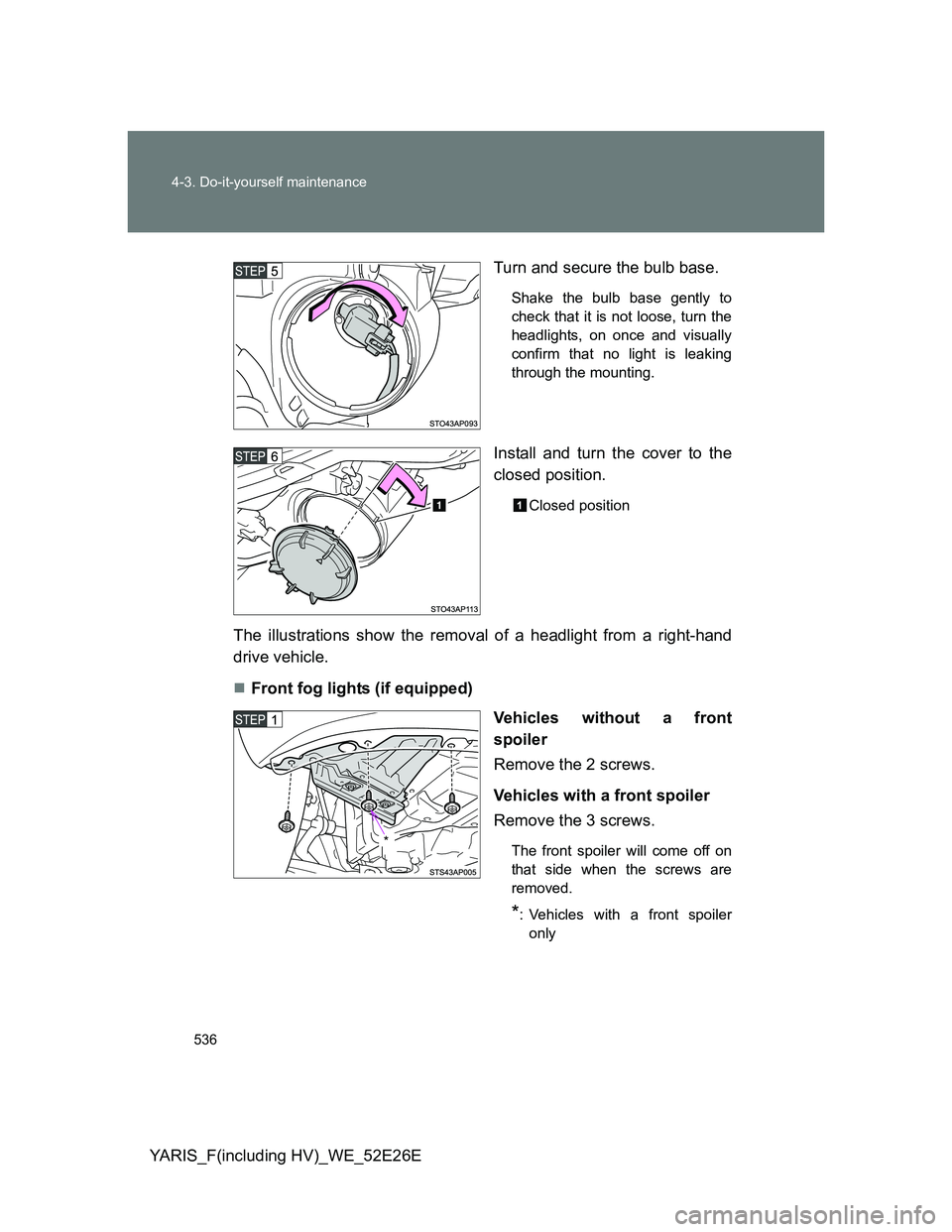

YARIS_F(including HV)_WE_52E26ETurn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights, on once and visually
confirm that no light is leaking
through the mounting.
Install and turn the cover to the
closed position.
Closed position
The illustrations show the removal of a headlight from a right-hand
drive vehicle.
Front fog lights (if equipped)
Vehicles without a front
spoiler
Remove the 2 screws.
Vehicles with a front spoiler
Remove the 3 screws.
The front spoiler will come off on
that side when the screws are
removed.
*: Vehicles with a front spoiler
only
*

537 4-3. Do-it-yourself maintenance
4
Maintenance and care

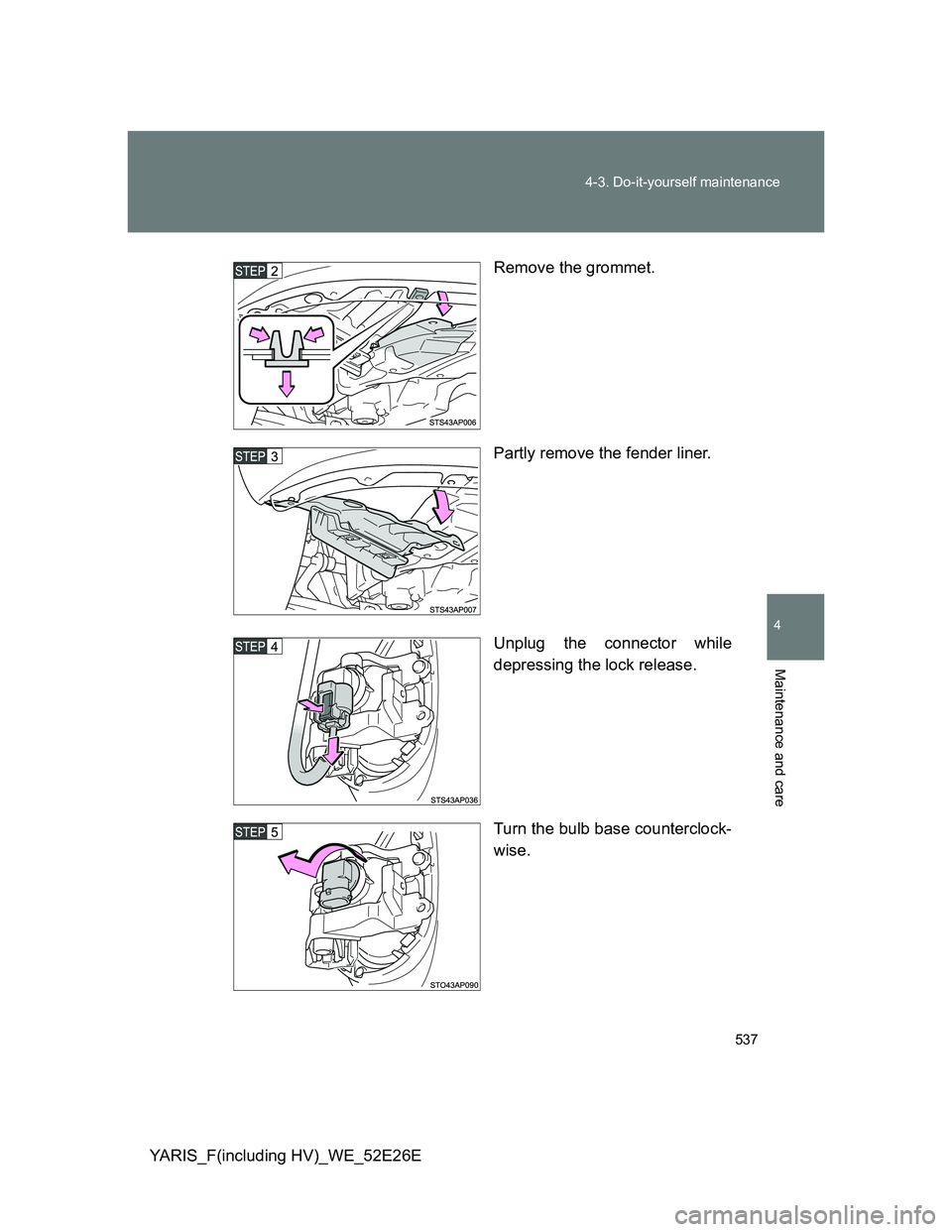

YARIS_F(including HV)_WE_52E26ERemove the grommet.
Partly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

538 4-3. Do-it-yourself maintenance

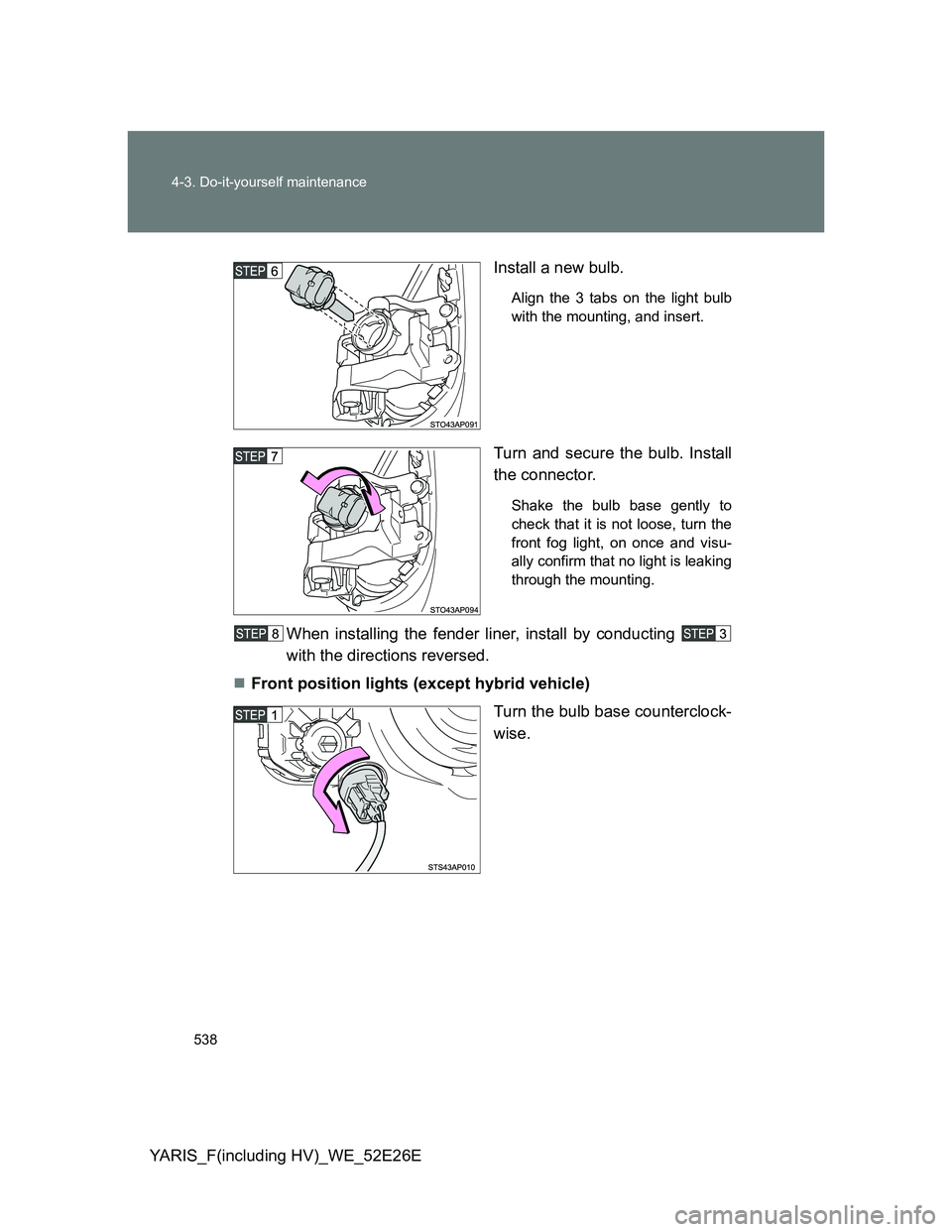

YARIS_F(including HV)_WE_52E26EInstall a new bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light, on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
with the directions reversed.
Front position lights (except hybrid vehicle)
Turn the bulb base counterclock-
wise.

539 4-3. Do-it-yourself maintenance
4
Maintenance and care

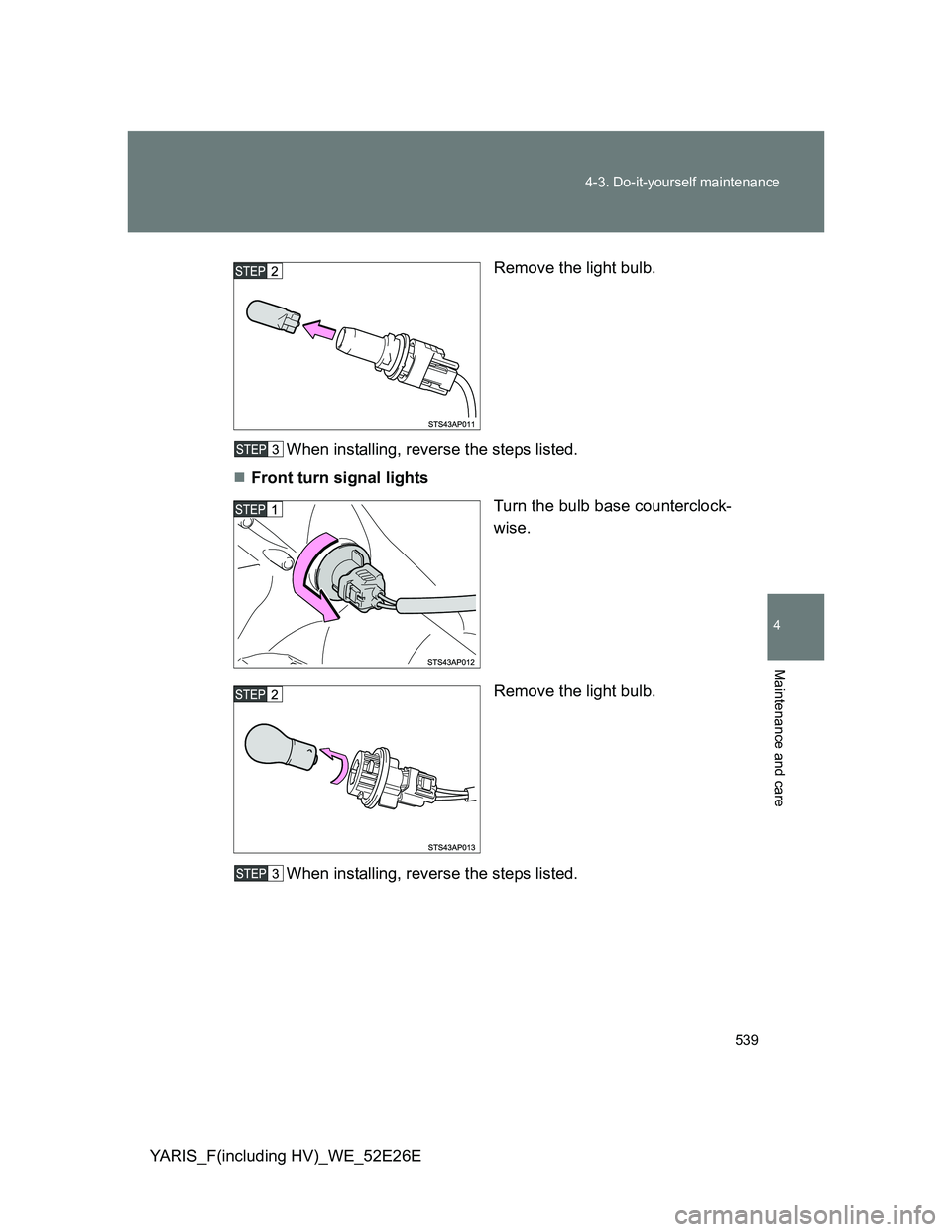

YARIS_F(including HV)_WE_52E26ERemove the light bulb.
When installing, reverse the steps listed.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.

540 4-3. Do-it-yourself maintenance

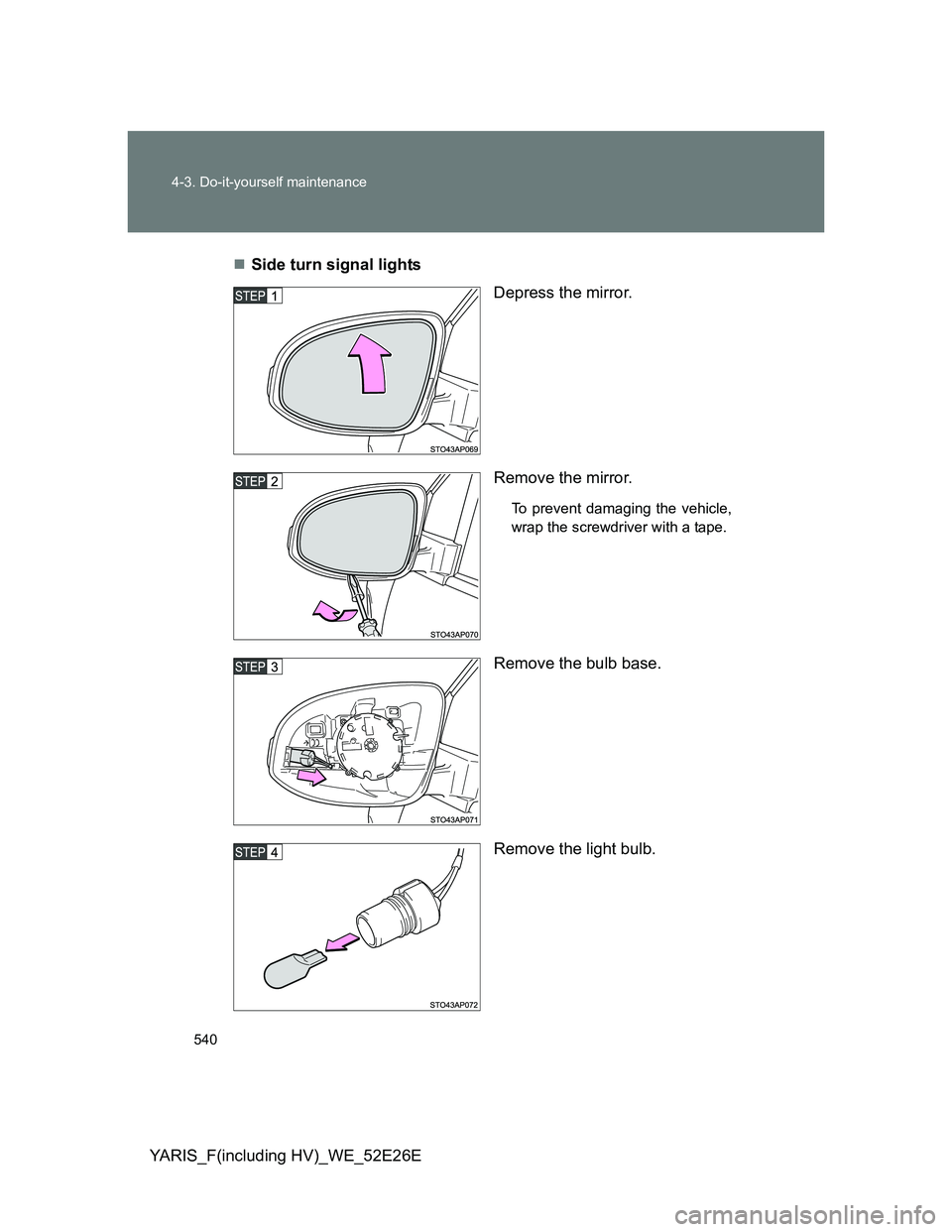

YARIS_F(including HV)_WE_52E26ESide turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the bulb base.
Remove the light bulb.
