TABLE OF CONTENTSIndex
YARIS_F(including HV)_WE_52E26E
4
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................. 354
Automatic air conditioning
system .............................. 361
Power heater ...................... 370
Rear window and outside
rear view mirror
defoggers.......................... 372
3-2. Using the audio system
Audio system types............. 374
Using the radio.................... 379
Using the CD player............ 383
Playing back MP3 and
WMA discs........................ 388
Operating an iPod ............... 394
Operating a USB memory... 402
Optimal use of the audio
system .............................. 409
Using the AUX port ............. 411
Using the steering wheel
audio switches .................. 4123-3. Using the interior lights
Interior lights list ................. 415
• Personal lights ................. 416
• Interior light ...................... 416
3-4. Using the storage features
List of storage features....... 418
• Glove box ......................... 419
• Cup holders...................... 420
• Bottle holders ................... 422
3-5. Other interior features
Sun visors .......................... 423
Vanity mirrors ..................... 424
Clock .................................. 426
Outside temperature
display .............................. 427
Portable ashtray ................. 428
Cigarette lighter .................. 429
Power outlet ....................... 430
Seat heaters ....................... 432
Armrest............................... 434
Panoramic roof shade ........ 435
Assist grips ......................... 436
Floor mat ............................ 437
Luggage compartment
features ............................ 439
3Interior features

YARIS_F(including HV)_WE_52E26E
8
Headlights (low and high beam) P. 291
Pictorial indexExterior
Front fog lights P. 300
Hood P. 460
Windshield wiper P. 302
Outside rear view mirrors P. 144
Front position lights P. 291
Front turn signal lights P. 267
3-door models (except hybrid vehicle)
Panoramic roof shade
 P. 435
Side turn signal lights P. 267

YARIS_F(including HV)_WE_52E26E
10
Front position lights P. 291
Pictorial indexExterior
Front fog lights P. 300
Side turn signal lights P. 267
Outside rear view mirrors P. 144
Windshield wiper P. 302
Hood P. 460
5-door models (except hybrid vehicle)
Panoramic roof shade P. 435
Headlights (low and high beam) P. 291
Front turn signal lights P. 267

YARIS_F(including HV)_WE_52E26E
12
Front position lights P. 291
Pictorial indexExterior
Front fog lights P. 300
Side turn signal lights P. 267
Outside rear view mirrors P. 144
Windshield wiper P. 302
Hood P. 460
5-door models (hybrid vehicle)
Panoramic roof shade P. 435
Headlights (low and high beam) P. 291
Front turn signal lights P. 267

YARIS_F(including HV)_WE_52E26E
43

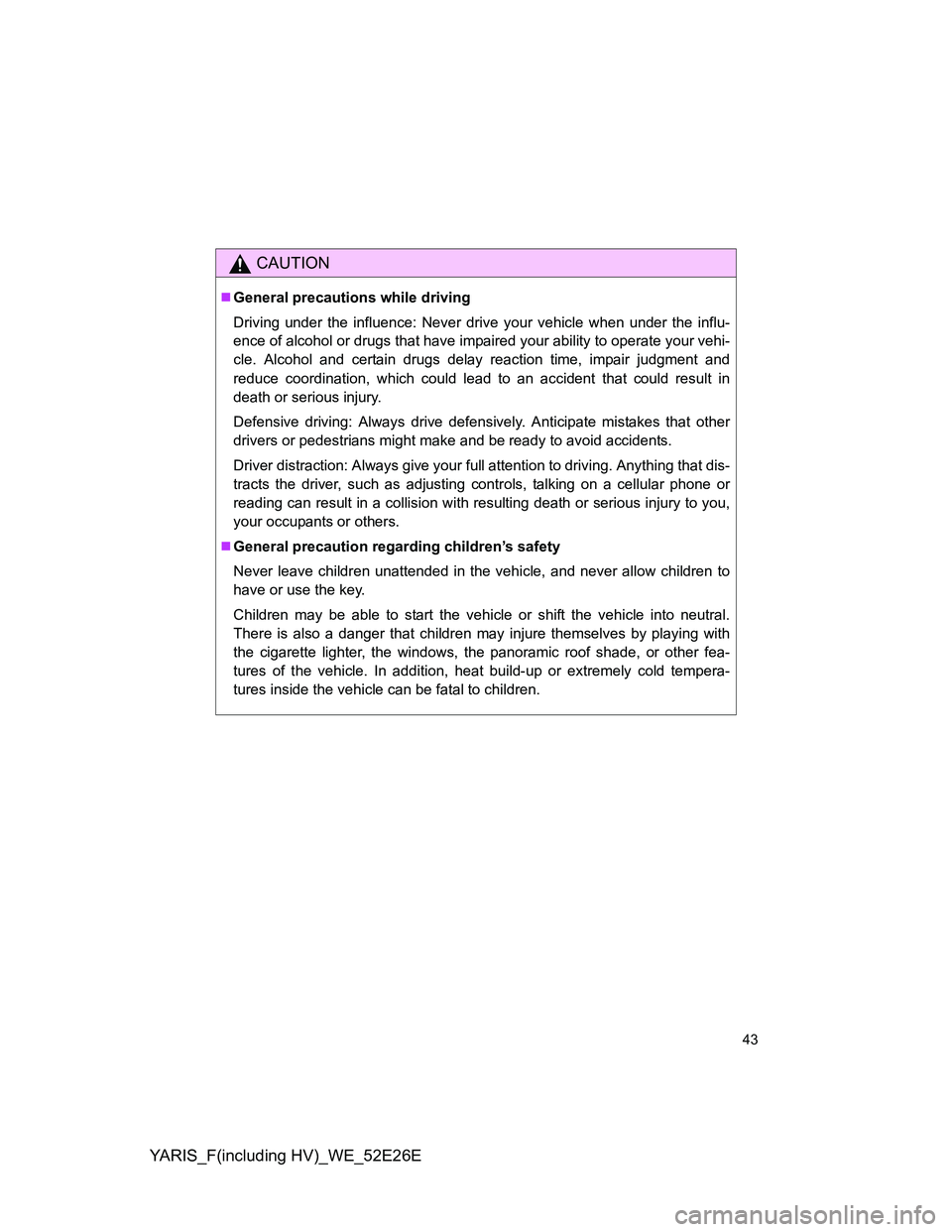

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, the panoramic roof shade, or other fea-
tures of the vehicle. In addition, heat build-up or extremely cold tempera-
tures inside the vehicle can be fatal to children.

63 1-1. Hybrid system (hybrid vehicle)
1
Before driving
YARIS_F(including HV)_WE_52E26E
Checking tire inflation pressure
Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fuel consumption.
Also, as snow tires can cause large amounts of friction, their use on dry
roads can lead to poor fuel consumption. Use a tire that is appropriate
for the season.
Luggage
Carrying heavy luggage can lead to poor fuel consumption. Avoid car-
rying unnecessary luggage. Installing a large roof rack can also cause
poor fuel consumption.
Warming up before driving
Since the gasoline engine starts up and cuts out automatically when
cold, warming up the engine is unnecessary. Moreover, frequently driv-
ing short distances will cause the engine to repeatedly warm up, which
can lead to poor fuel consumption.

135 1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
YARIS_F(including HV)_WE_52E26E
.Stow the seat belt tabs in the
cover set in the roof as shown.
Extracting the belt
Remove the tabs from the cover.

169 1-8. Safety information
1
Before driving
YARIS_F(including HV)_WE_52E26E
If the SRS airbags deploy (inflate)
Bruising and slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
A loud noise and white powder will be emitted.
Vehicles without SRS curtain shield airbags: Parts of the airbag module
(steering wheel hub, airbag cover and inflator) as well as the front seats
may be hot for several minutes. The airbag itself may also be hot.
Vehicles with SRS curtain shield airbags: Parts of the airbag module
(steering wheel hub, airbag cover and inflator) as well as the front seats,
parts of the front and rear pillars, and roof side rails, may be hot for sev-
eral minutes. The airbag itself may also be hot.
The windshield may crack.
SRS airbag deployment conditions (SRS front airbags)
The SRS front airbags will deploy in the event of an impact that exceeds
the set threshold level (the level of force corresponding to an approxi-
mately 20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that
does not move or deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
Depending on the type of collision, it is possible that only the seat belt
pretensioners will activate.
SRS airbag deployment conditions (SRS side airbags and SRS curtain
shield airbags [if equipped])
The SRS side and curtain shield airbags will deploy in the event of an impact
that exceeds the set threshold level (the level of force corresponding to the
impact force produced by an approximately 1500 kg [3300 lb.] vehicle collid-
ing with the vehicle cabin from a direction perpendicular to the vehicle orien-
tation at an approximate speed of 20 - 30 km/h [12 - 18 mph]).

172 1-8. Safety information
YARIS_F(including HV)_WE_52E26E
A portion of a door is damaged or
deformed, or the vehicle was involved
in an accident that was not severe
enough to cause the SRS side airbags
and SRS curtain shield airbags (if
equipped) to inflate.
Vehicles without a SRS driver knee air-
bag: The pad section of the steering
wheel or dashboard near the front pas-
senger airbag is scratched, cracked, or
otherwise damaged.
Vehicles with a SRS driver knee airbag:
The pad section of the steering wheel,
dashboard near the front passenger air-
bag or lower portion of the instrument
panel is scratched, cracked, or other-
wise damaged.
The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.
Vehicles with SRS curtain shield air-
bags: The portion of the front pillars,
rear pillars or roof side rail garnishes
(padding) containing the curtain shield
airbags is inside scratched, cracked, or
otherwise damaged.

174 1-8. Safety information
YARIS_F(including HV)_WE_52E26E
CAUTION
SRS airbag precautions
Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (P. 182)
Do not sit on the edge of the seat or
lean against the dashboard.
Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
Do not allow the front seat occupants to
hold items on their knees.
Vehicles without SRS curtain shield air-
bags: Do not lean against the front
door.
Vehicles with SRS curtain shield air-
bags: Do not lean against the door, the
roof side rail or the front, side and rear
pillars.
