5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E

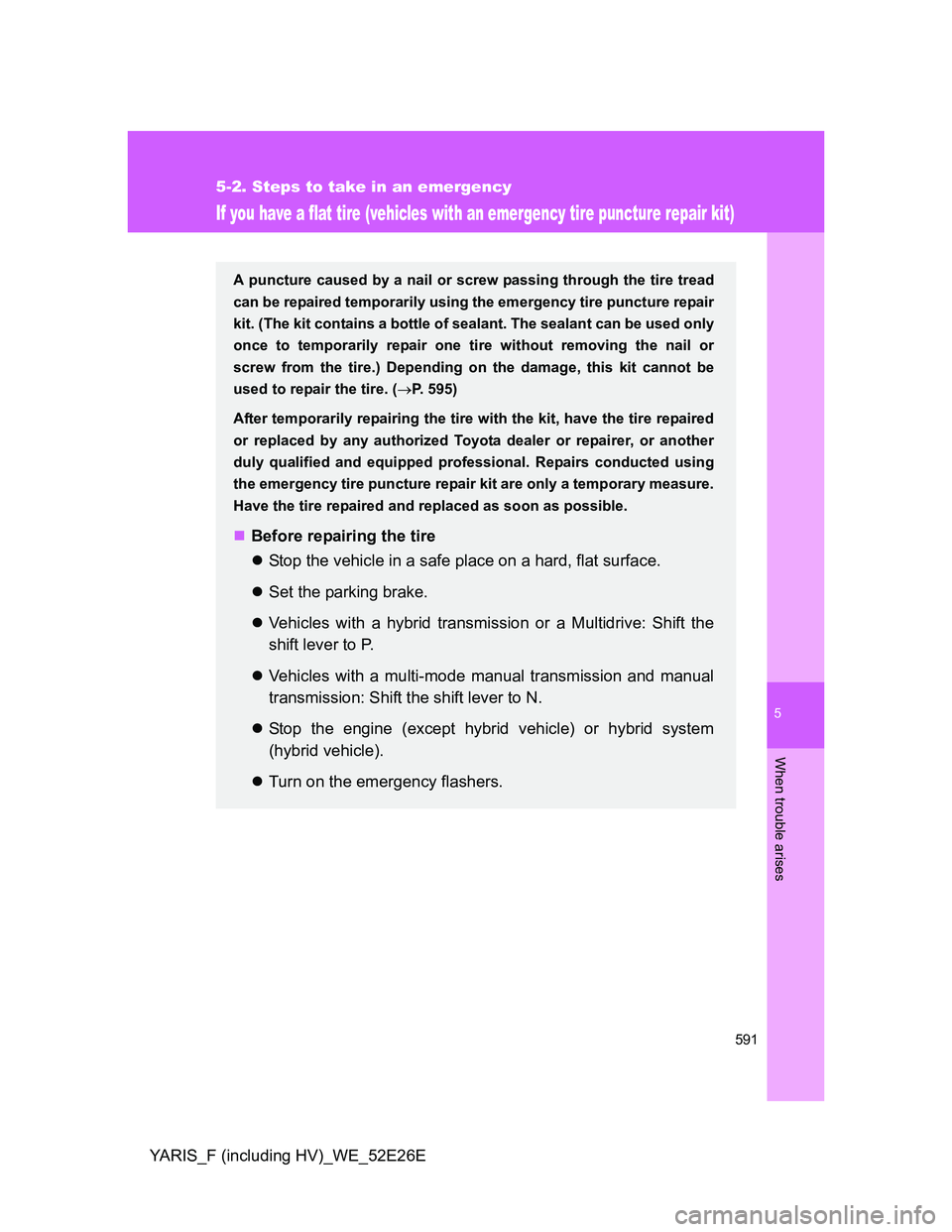

If you have a flat tire (vehicles with an emergency tire puncture repair kit)
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily using the emergency tire puncture repair
kit. (The kit contains a bottle of sealant. The sealant can be used only
once to temporarily repair one tire without removing the nail or
screw from the tire.) Depending on the damage, this kit cannot be
used to repair the tire. (P. 595)
After temporarily repairing the tire with the kit, have the tire repaired
or replaced by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. Repairs conducted using
the emergency tire puncture repair kit are only a temporary measure.
Have the tire repaired and replaced as soon as possible.
Before repairing the tire
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Vehicles with a hybrid transmission or a Multidrive: Shift the
shift lever to P.
Vehicles with a multi-mode manual transmission and manual
transmission: Shift the shift lever to N.
Stop the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle).
Turn on the emergency flashers.

592 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E

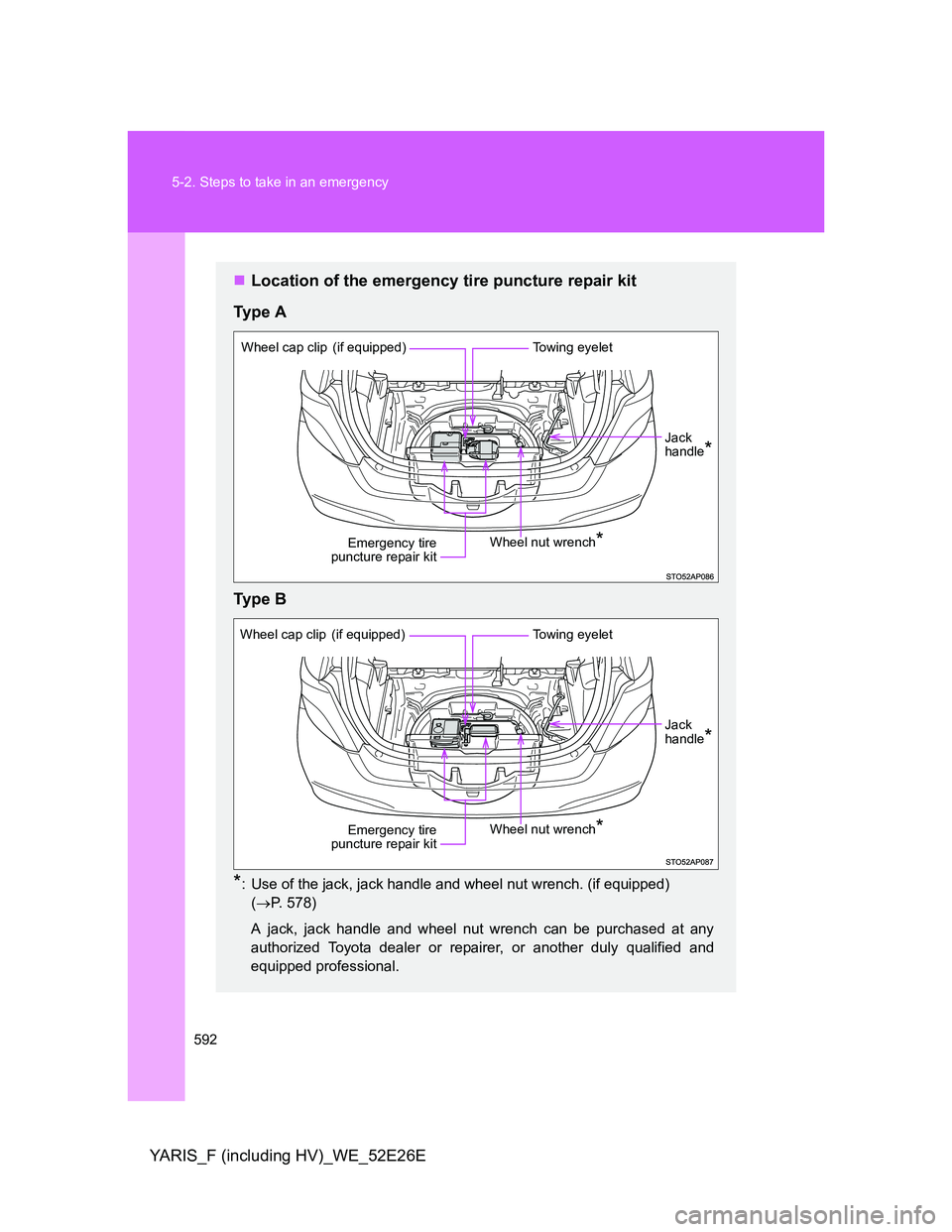

Location of the emergency tire puncture repair kit
Ty p e A
Ty p e B
*: Use of the jack, jack handle and wheel nut wrench. (if equipped)
(P. 5 7 8 )
A jack, jack handle and wheel nut wrench can be purchased at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Emergency tire
puncture repair kit
Towing eyelet
Jack
handle*
Wheel nut wrench*
Wheel cap clip(if equipped)
Emergency tire
puncture repair kit
Jack
handle*
Wheel nut wrench*
Towing eyeletWheel cap clip(if equipped)

5
593 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E

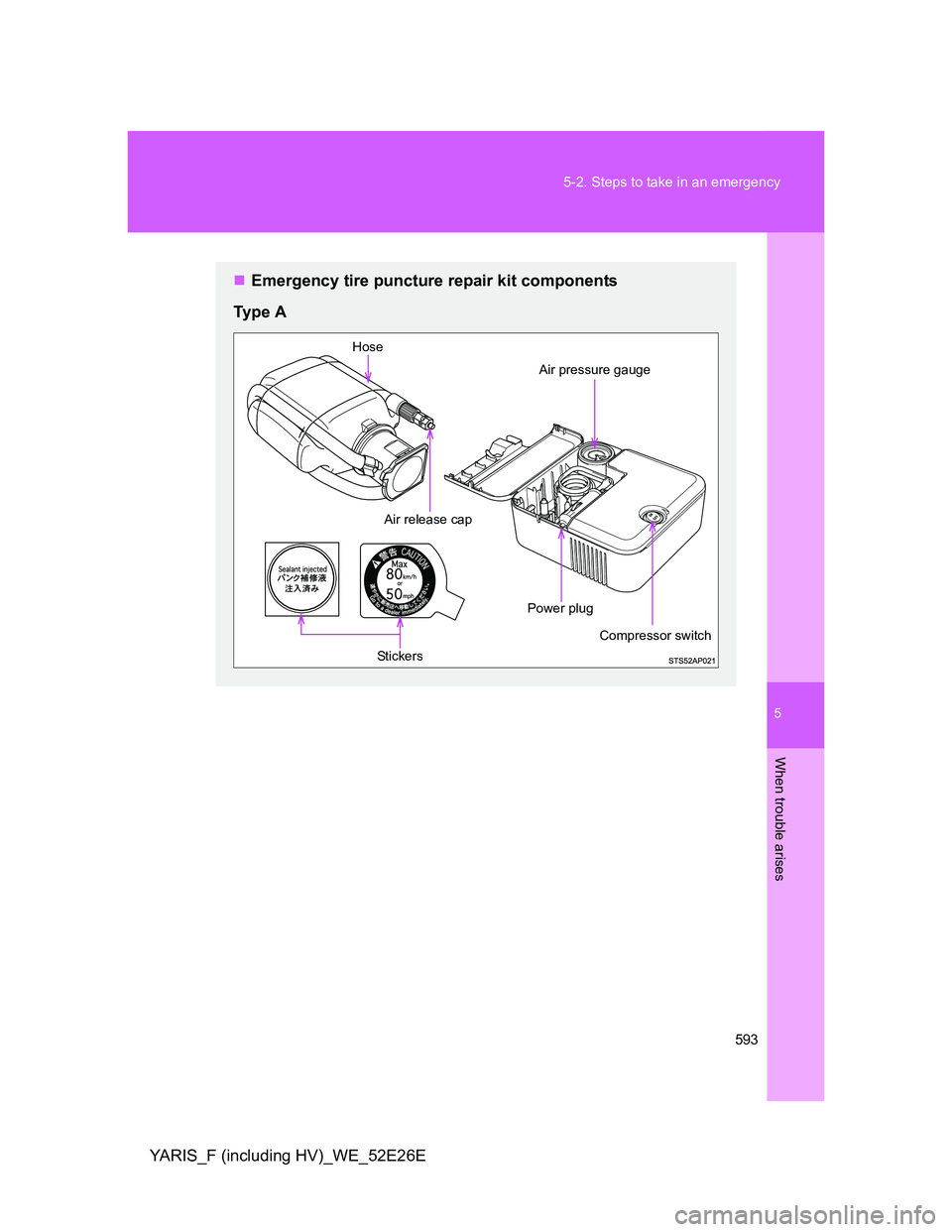

Emergency tire puncture repair kit components
Ty p e A
Air pressure gauge
Stickers
Hose
Air release cap
Power plug
Compressor switch

594 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E

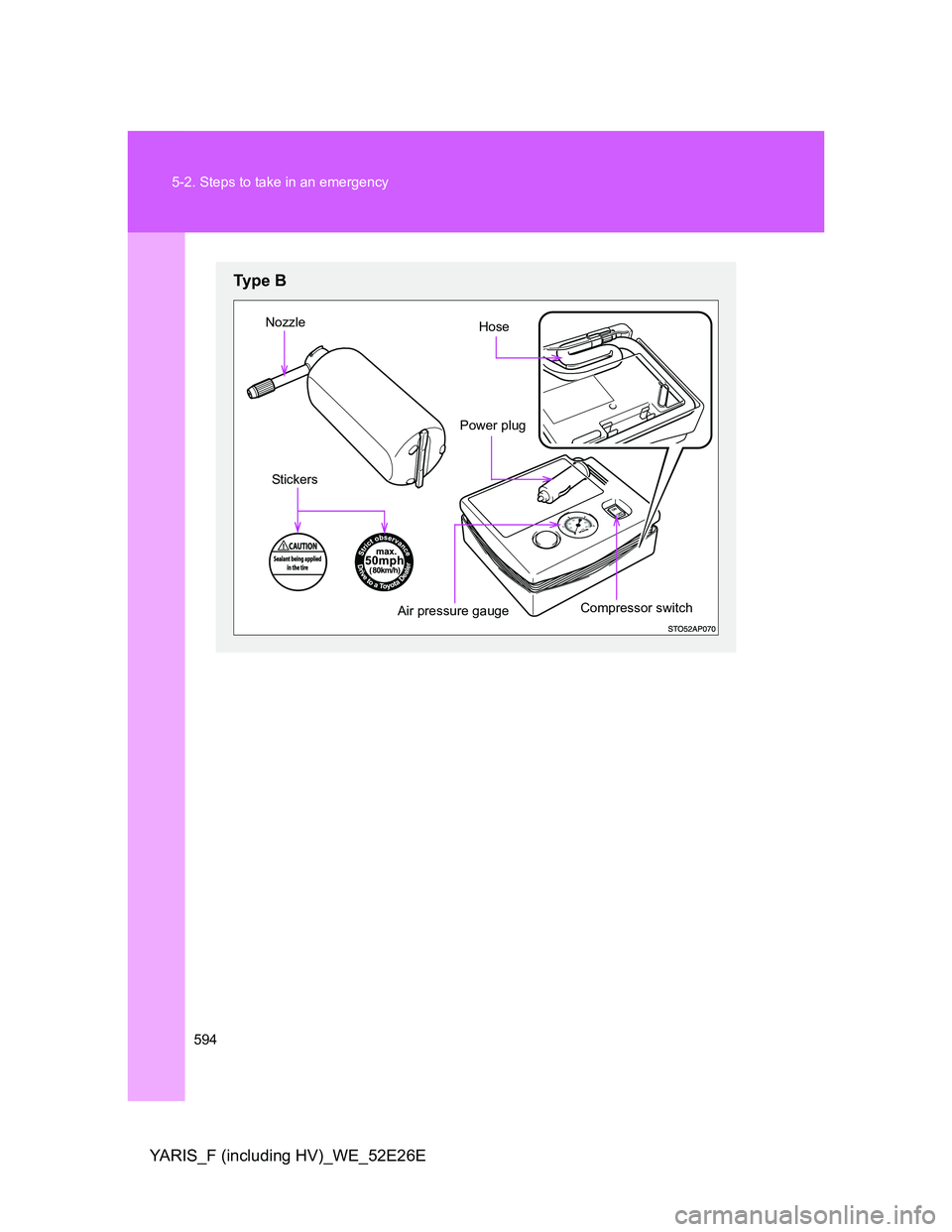

Ty p e B

Power plug
Compressor switchAir pressure gauge
HoseNozzle
Stickers

5
595 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26E

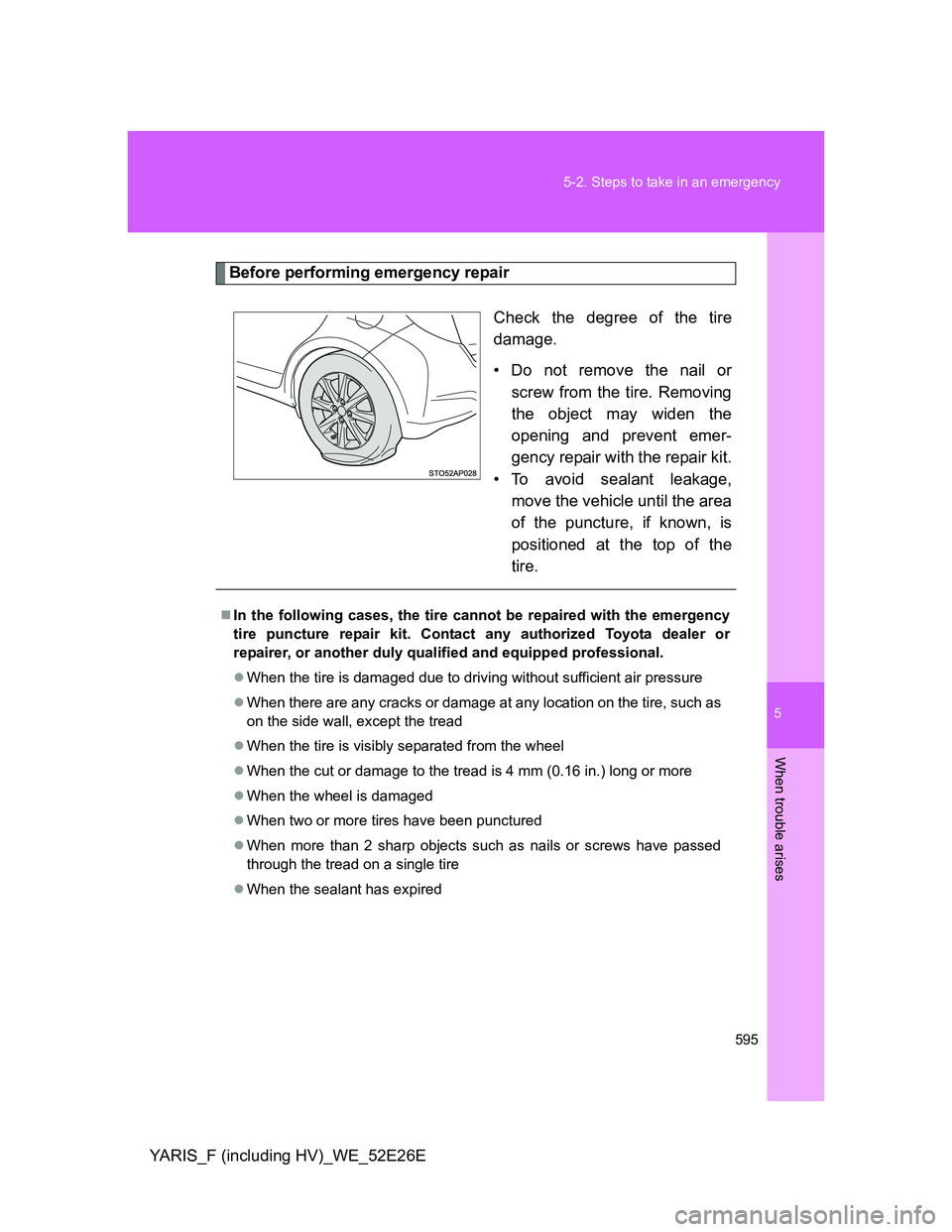

Before performing emergency repair
Check the degree of the tire
damage.
• Do not remove the nail or
screw from the tire. Removing
the object may widen the
opening and prevent emer-
gency repair with the repair kit.
• To avoid sealant leakage,
move the vehicle until the area
of the puncture, if known, is
positioned at the top of the
tire.
In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When there are any cracks or damage at any location on the tire, such as
on the side wall, except the tread
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
When the sealant has expired

596 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52E26E

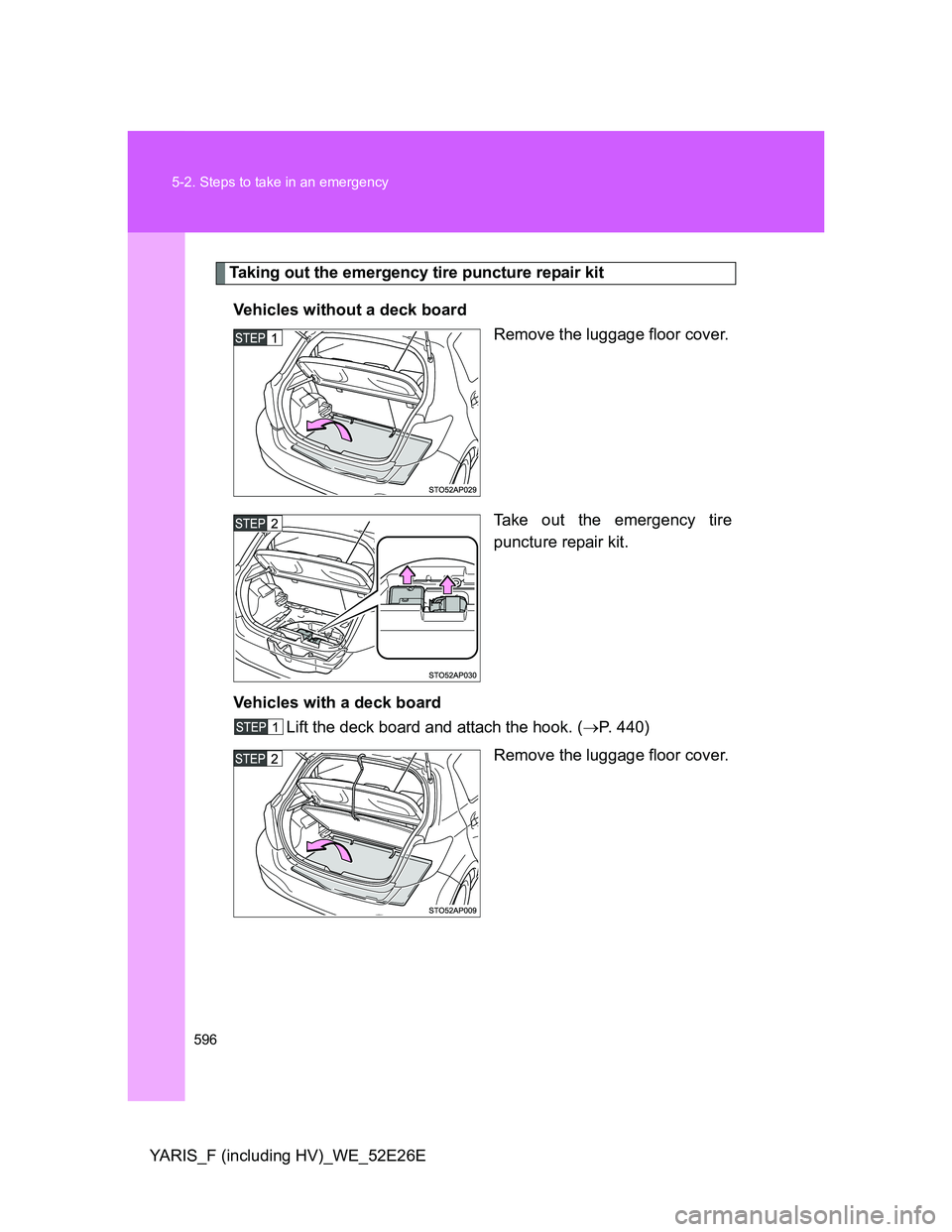

Taking out the emergency tire puncture repair kit
Vehicles without a deck board
Remove the luggage floor cover.
Take out the emergency tire
puncture repair kit.
Vehicles with a deck board
Lift the deck board and attach the hook. (P. 440)
Remove the luggage floor cover.

5
597 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52E26ETake out the emergency tire
puncture repair kit.

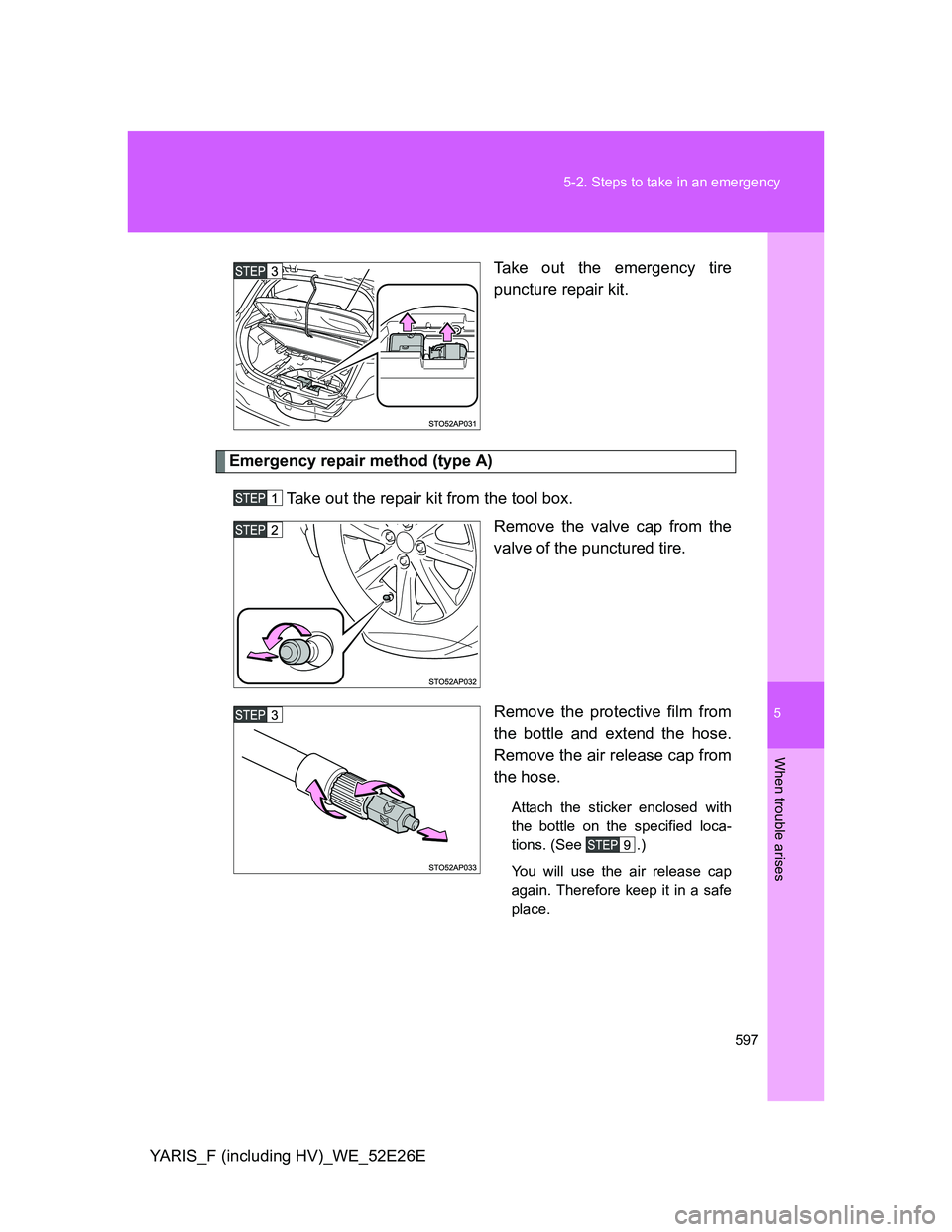

Emergency repair method (type A)
Take out the repair kit from the tool box.
Remove the valve cap from the
valve of the punctured tire.
Remove the protective film from
the bottle and extend the hose.
Remove the air release cap from
the hose.
Attach the sticker enclosed with
the bottle on the specified loca-
tions. (See .)
You will use the air release cap
again. Therefore keep it in a safe
place.

598 5-2. Steps to take in an emergency

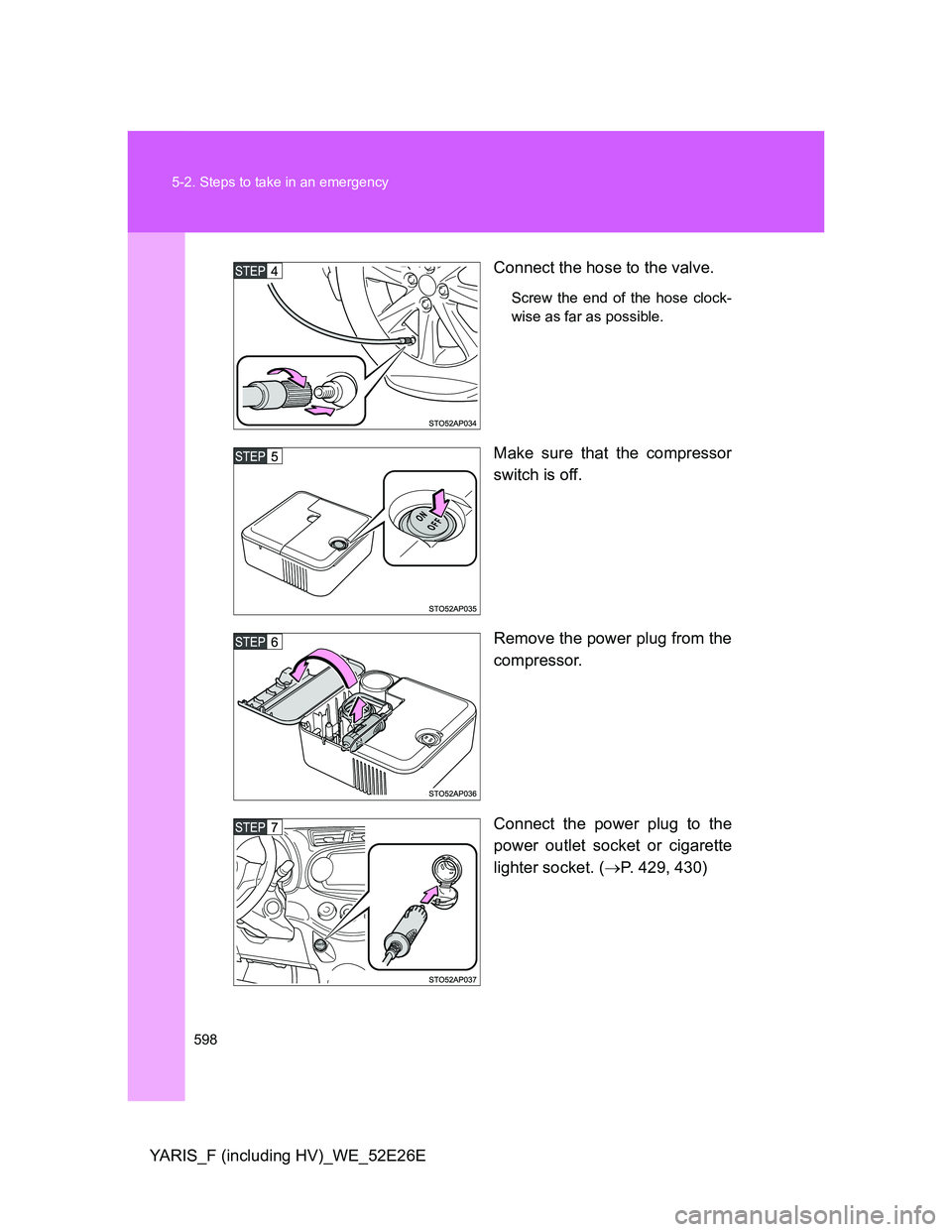

YARIS_F (including HV)_WE_52E26EConnect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Make sure that the compressor
switch is off.
Remove the power plug from the
compressor.
Connect the power plug to the
power outlet socket or cigarette
lighter socket. (P. 429, 430)

5
599 5-2. Steps to take in an emergency
When trouble arises

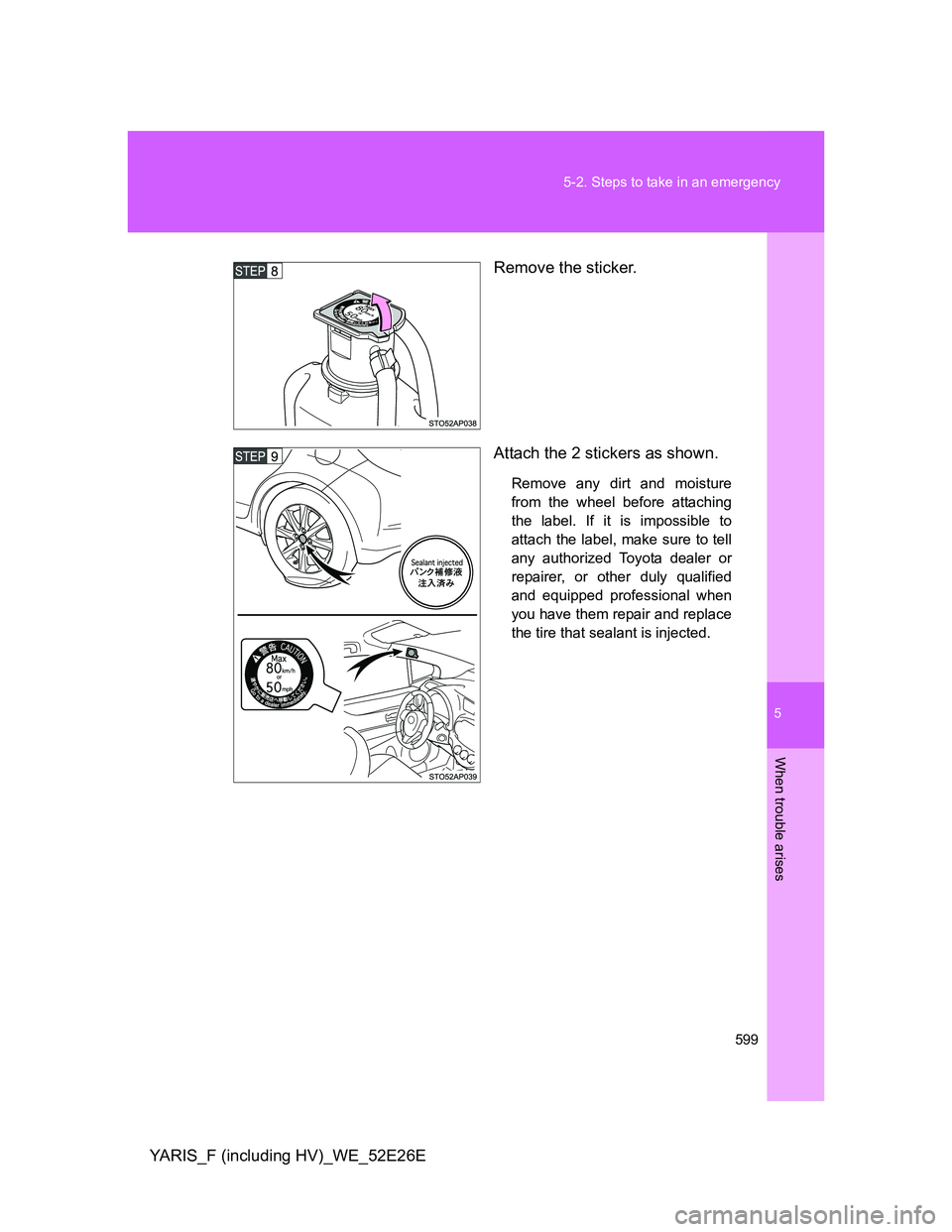

YARIS_F (including HV)_WE_52E26ERemove the sticker.
Attach the 2 stickers as shown.
Remove any dirt and moisture
from the wheel before attaching
the label. If it is impossible to
attach the label, make sure to tell
any authorized Toyota dealer or
repairer, or other duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.

600 5-2. Steps to take in an emergency

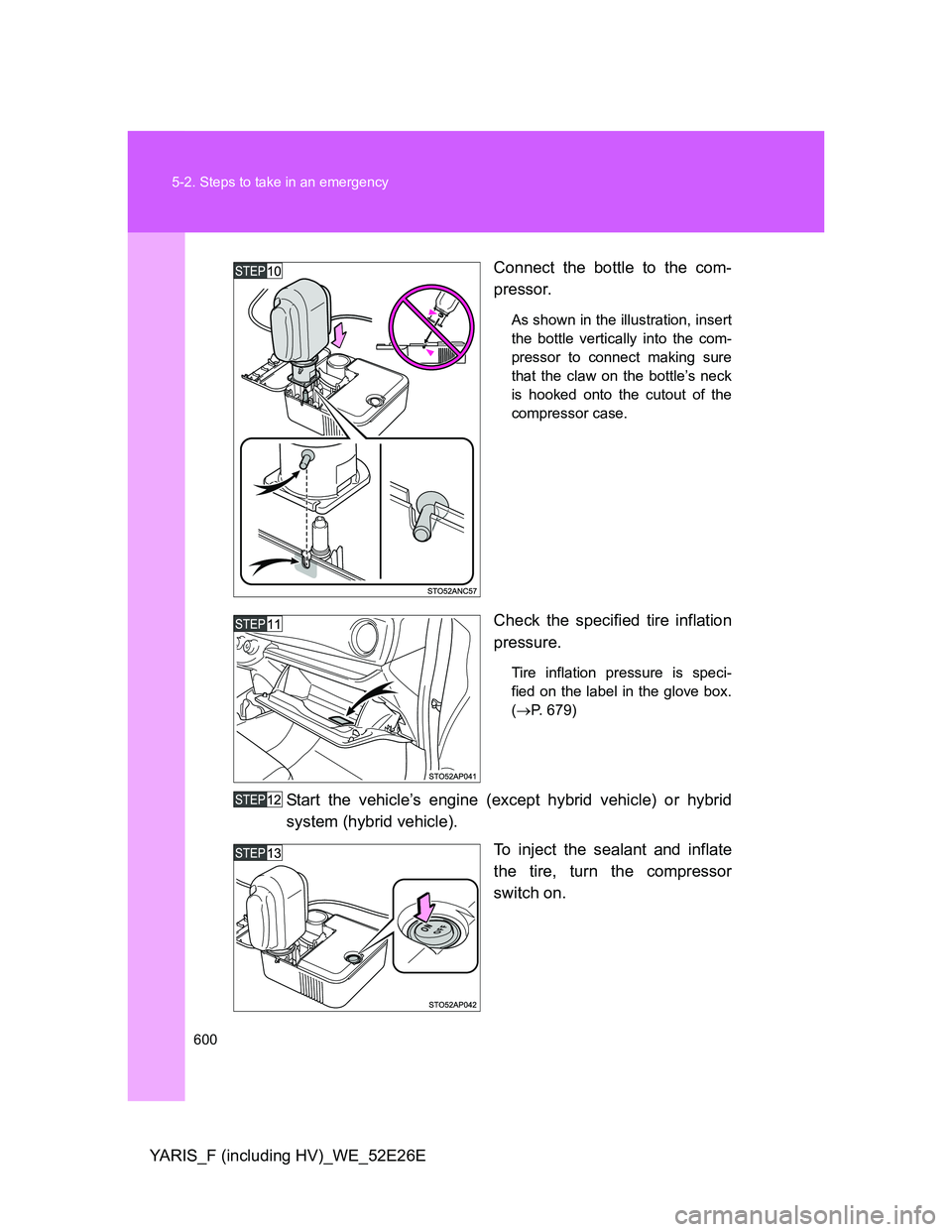

YARIS_F (including HV)_WE_52E26EConnect the bottle to the com-
pressor.
As shown in the illustration, insert
the bottle vertically into the com-
pressor to connect making sure
that the claw on the bottle’s neck
is hooked onto the cutout of the
compressor case.
Check the specified tire inflation
pressure.
Tire inflation pressure is speci-
fied on the label in the glove box.
(P. 679)
Start the vehicle’s engine (except hybrid vehicle) or hybrid
system (hybrid vehicle).
To inject the sealant and inflate
the tire, turn the compressor
switch on.
