2574-2. Audio System
4
Interior Features
■Operating Tips for USB device
●Playback may not be possible depending on the type and condition of the
USB flash memory even if the audio file complies with the standard above.
● A copyright protected WMA/AAC file cannot be played in this unit.
● The order of the music data stored in the device may differ from the play-
back order.
● To prevent loss or damage of stored data, we recommend that you always
back up your data.
● If a device exceeds the maximum electric current value of 1,000 mA, it may
not operate or recharge when connected.
● Do not pull out the USB device while in the USB mode (only pull it out while
in FM/AM radio or CD mode).
● The device will not operate if the data is password protected.
● MP3/WMA/AAC/OGG
*1 files written under specifications other than the
indicated specification may not play normally or files/folder names may not
display correctly.
*1Type B
This unit supports playback of music files recorded to an iPod.
● iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.
The iPod may not be compatible depending on the model or OS ver-
sion. In this case, an error message is displayed.
The audio unit cannot display images or videos stored in an iPod. NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension.
Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for iPod
YARIS_SEDAN_OM_OM99M18z_(U).book Page 257 Monday, June 1, 2015 9:22 PM

258
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System
NOTICE
●Remove the iPod when it is not in use. Because the iPod is not designed
to withstand excessive changes in temperature inside the cabin, it could
be damaged or the battery may deteriorate due to the excessive tempera-
ture or humidity inside the cabin if it is left in the vehicle.
● If data in the iPod is lost while it is connected to the unit, Toyota cannot
guarantee recovery of any lost data.
● If the iPod battery is deteriorated, the iPod may not recharge and playback
may not be possible when it is connected to the unit.
● For details on using the iPod, refer to the iPod instruction manual.
● When connecting the iPod to a USB port, all commands are made from
the audio unit. iPod control is not possible.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 258 Monday, June 1, 2015 9:22 PM

259
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System
4
Interior Features
Audio Set (Type A)∗
●Power/Volume/Sound Controls ( →P. 260)
● Clock ( →P. 263)
● Operating the Radio ( →P. 264)
● Operating the Compact Disc (CD) Player ( →P. 267)
● How to use Auxiliary jack/USB port ( →P. 274)
● Error Indications ( →P. 274)
∗: If equipped
YARIS_SEDAN_OM_OM99M18z_(U).book Page 259 Monday, June 1, 2015 9:22 PM

274
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System
Audio can be heard from the vehicle’s speakers by connecting a com-
mercially- available portable audio unit to the auxiliary jack.
Use a commercially-available, non- impedance (3.5∅) stereo mini
plug cable. Contact your Toyota dealer for details.
In addition, audio can be played from the vehicle audio device by con-
necting a USB device or an iPod to the USB port.
Refer to AUX/USB/iPod mode on P. 302.
If you see an error indication on the audio display, find the cause in
the chart. If you cannot clear the error indication, take the vehicle to
your Toyota dealer.
How to use Auxiliary jack/USB port
Error Indications
IndicationCauseSolution
CHECK CD
CD is inserted
upside downInsert the CD properly. If the error
indication continues to display,
consult your Toyota dealer.
CD is defective
Insert another CD properly. If the
error indication continues to dis-
play, consult your Toyota dealer.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 274 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
2954-2. Audio System
4
Interior Features
●Example of use (When searching for a song from the top level of
an MP3/ WMA/AAC CD)
Select the icon and
display the folder/file list at
the top level.
When the folder is selected, folders/file lists in the folder are
displayed.
Select the desired song.
■Operating the Compact Disc (CD) Player (if equipped)
●If a disc has both music data (CD-DA) and MP3/WMA/AAC files, playback of
the two or three file types differs depending on how the disc was recorded.
● There will be a short lapse before play begins while the player reads the dig-
ital signals on the CD.
● Select to move to a folder one level higher.
● The appearance of the repeat and shuffle icons changes depending on the
type of operation in which the function is used.
Audio can be heard from the vehicle’s speakers by connecting a com-
mercially- available portable audio unit to the auxiliary jack.
Use a commercially-available, non- impedance (3.5 ∅) stereo mini
plug cable. In addition, audio can be played from the vehicle audio
device by connecting a USB device or an iPod to the USB port.
Refer to AUX/USB/iPod mode on P. 302.
Depending on the grade and specification, the screen display may dif-
fer.
Select the icon on the home screen and display the Settings
screen. Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
1
How to use Auxiliary jack/USB port
Settings
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 295 Monday, June 1, 2015 9:22 PM

302
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

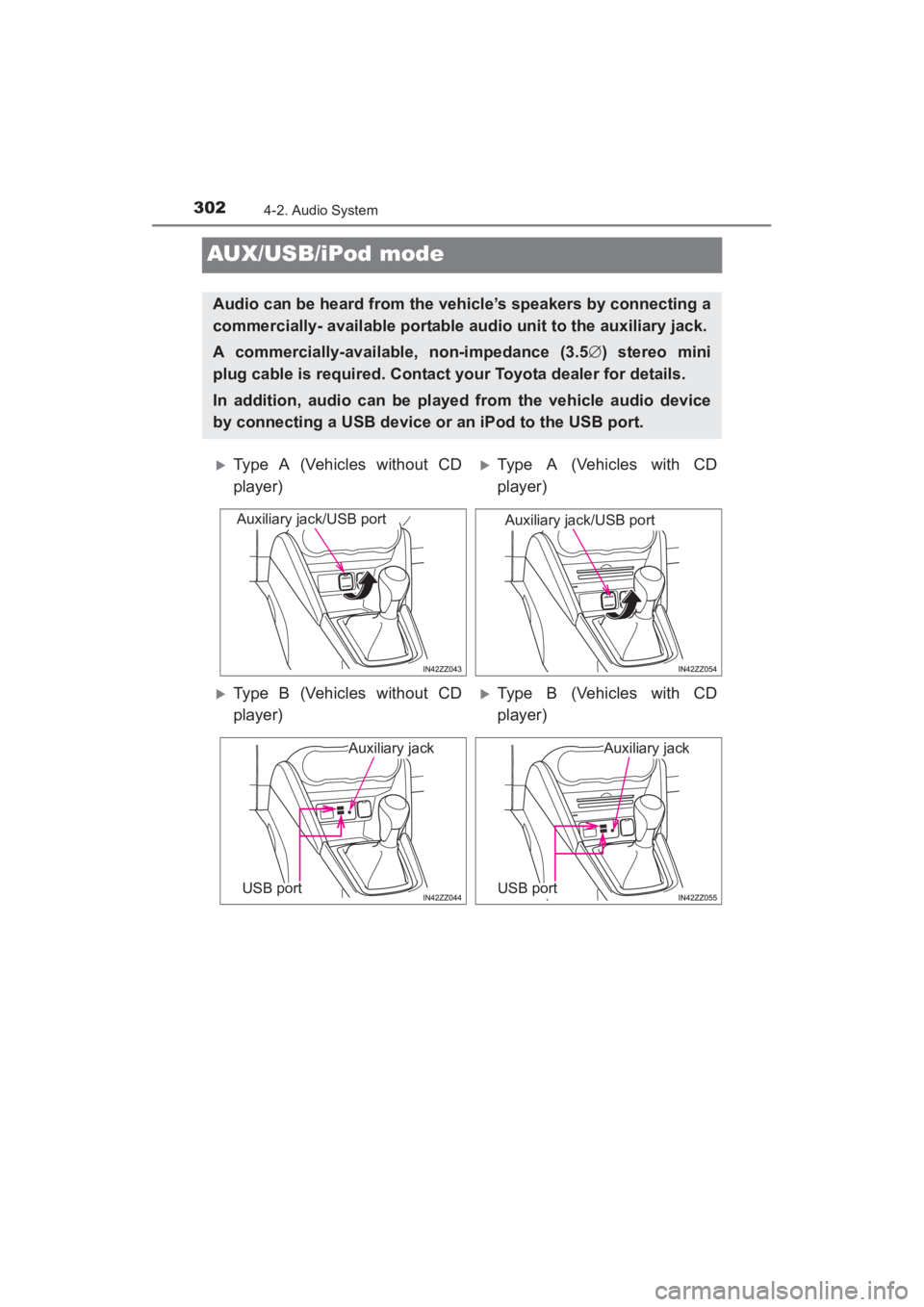

AUX/USB/iPod mode
Audio can be heard from the vehicle’s speakers by connecting a
commercially- available portable audio unit to the auxiliary jack.
A commercially-available, non-impedance (3.5∅) stereo mini
plug cable is required. Contact your Toyota dealer for details.
In addition, audio can be played from the vehicle audio device
by connecting a USB device or an iPod to the USB port.
XType A (Vehicles without CD
player)XType A (Vehicles with CD
player)
XType B (Vehicles without CD
player)XType B (Vehicles with CD
player)
Auxiliary jack/USB portAuxiliary jack/USB port
Auxiliary jack
USB port
Auxiliary jack
USB port
YARIS_SEDAN_OM_OM99M18z_(U).book Page 302 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
3034-2. Audio System
4
Interior Features
How to use AUX mode (Type A) (→P. 305)
How to use USB mode (Type A) ( →P. 306)
How to use iPod mode (Type A) ( →P. 3 1 1 )
How to use AUX mode (Type B) ( →P. 316)
How to use USB mode (Type B) ( →P. 316)

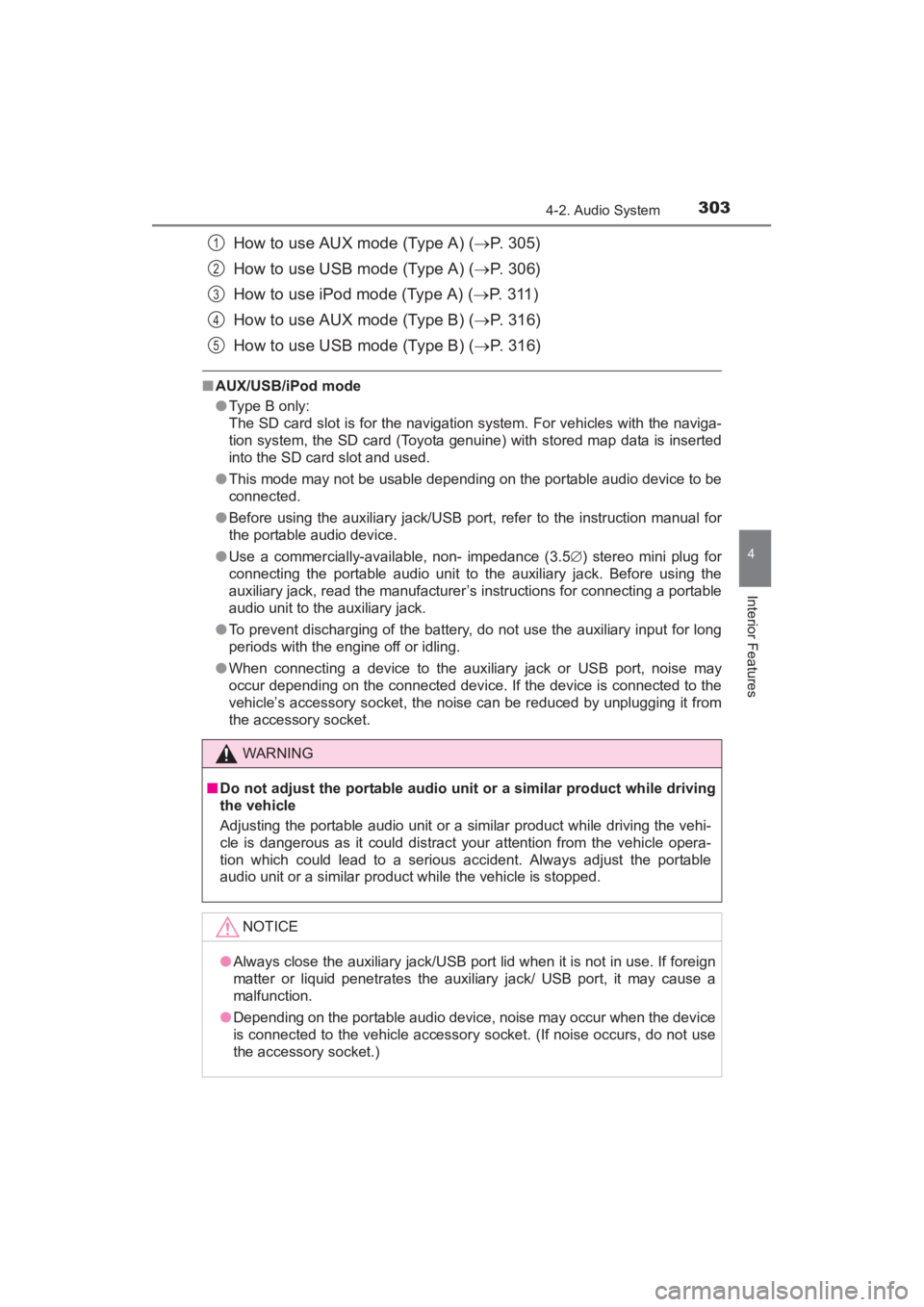

■AUX/USB/iPod mode
●Type B only:
The SD card slot is for the navigation system. For vehicles with the naviga-
tion system, the SD card (Toyota genuine) with stored map data is inserted
into the SD card slot and used.
● This mode may not be usable depending on the portable audio device to be
connected.
● Before using the auxiliary jack/USB port, refer to the instruction manual for
the portable audio device.
● Use a commercially-available, non- impedance (3.5 ∅) stereo mini plug for
connecting the portable audio unit to the auxiliary jack. Before using the
auxiliary jack, read the manufacturer’s instructions for connecting a portable
audio unit to the auxiliary jack.
● To prevent discharging of the battery, do not use the auxiliary input for long
periods with the engine off or idling.
● When connecting a device to the auxiliary jack or USB port, noise may
occur depending on the connected device. If the device is connected to the
vehicle’s accessory socket, the noise can be reduced by unplugging it from
the accessory socket.
WARNING
■Do not adjust the portable audio unit or a similar product while driving
the vehicle
Adjusting the portable audio unit or a similar product while driving the vehi-
cle is dangerous as it could distract your attention from the vehicle opera-
tion which could lead to a serious accident. Always adjust the portable
audio unit or a similar product while the vehicle is stopped.
NOTICE
●Always close the auxiliary jack/USB port lid when it is not in use. If foreign
matter or liquid penetrates the auxiliary jack/ USB port, it may cause a
malfunction.
● Depending on the portable audio device, noise may occur when the device
is connected to the vehicle accessory socket. (If noise occurs, do not use
the accessory socket.)
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 303 Monday, June 1, 2015 9:22 PM

304
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System
■Connecting a deviceIf there is a cover on the AUX jack or USB port, remove the
cover.
Connect the connector on the device to the USB port.
■Connecting with a connector cableIf there is a cover on the AUX jack or USB port, remove the
cover.
Connect the device plug/connector cable to the auxiliary jack/
USB port.

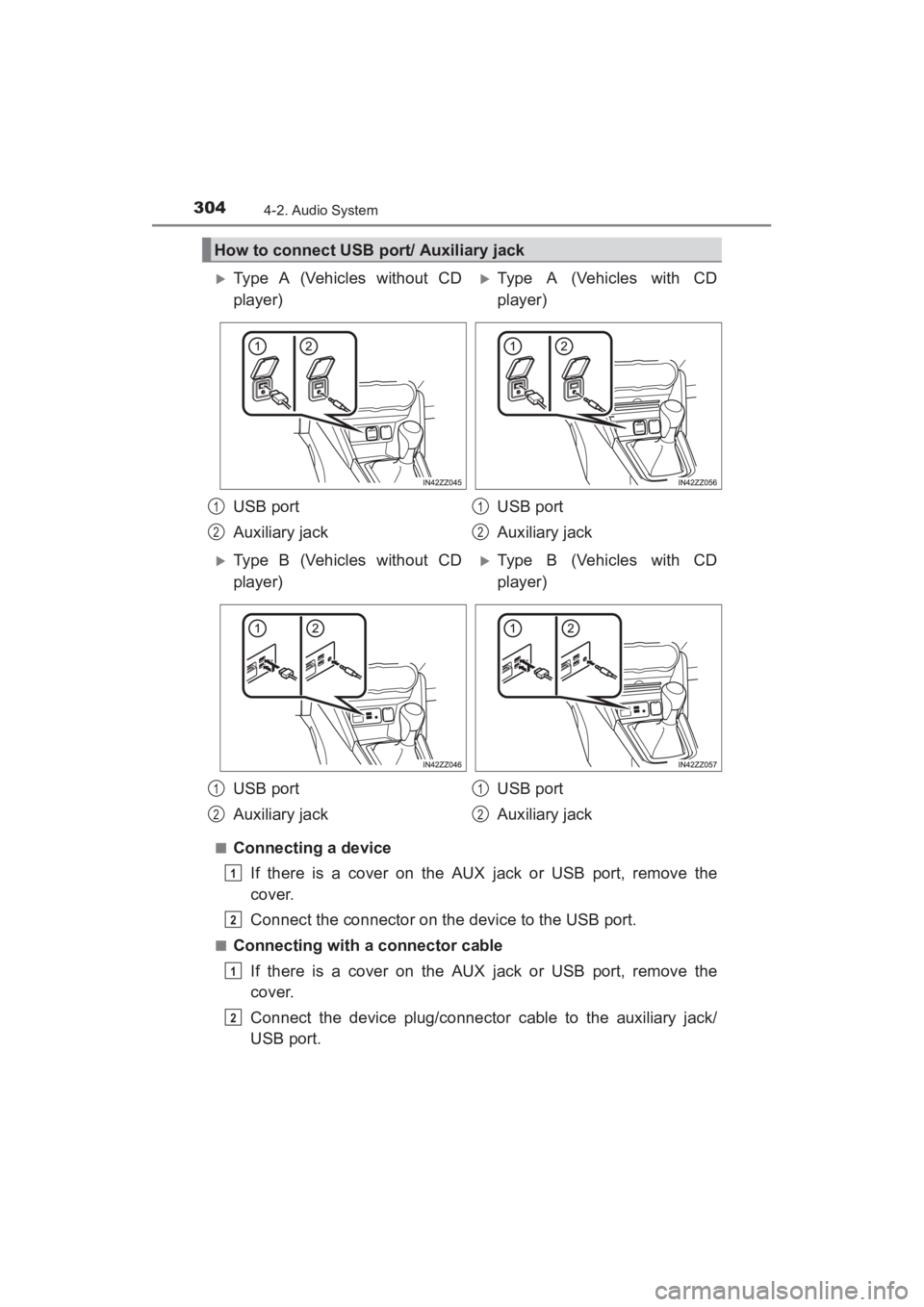

How to connect USB port/ Auxiliary jack
XType A (Vehicles without CD
player)XType A (Vehicles with CD
player)
USB port
Auxiliary jack USB port
Auxiliary jack
XType B (Vehicles without CD
player)XType B (Vehicles with CD
player)
USB port
Auxiliary jack USB port
Auxiliary jack
1
2
1
2
1
2
1
2
1
2
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 304 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
3054-2. Audio System
4
Interior Features

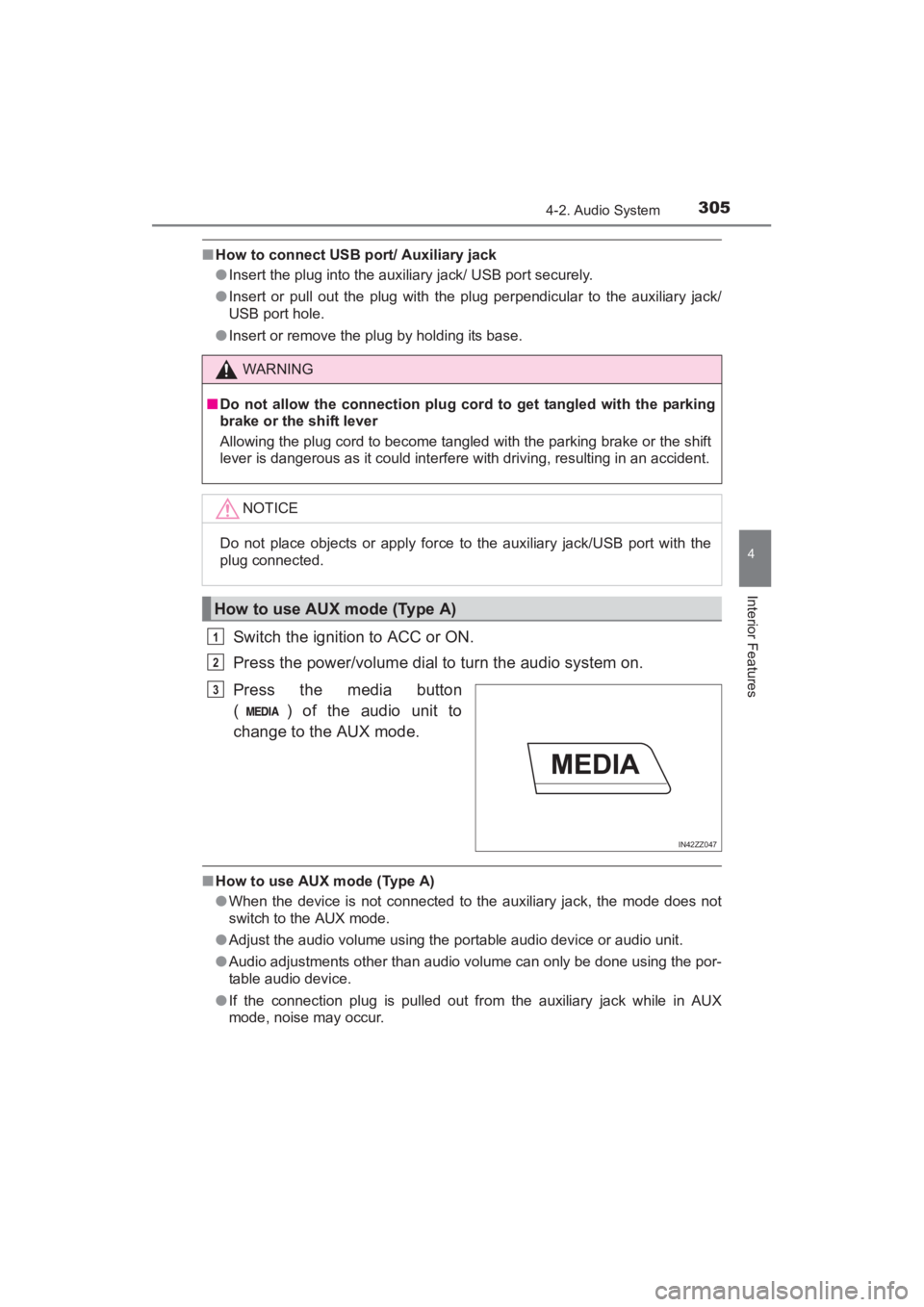

■How to connect USB port/ Auxiliary jack
●Insert the plug into the auxiliary jack/ USB port securely.
● Insert or pull out the plug with the plug perpendicular to the auxiliary jack/
USB port hole.
● Insert or remove the plug by holding its base.
Switch the ignition to ACC or ON.
Press the power/volume dial to turn the audio system on.
Press the media button
( ) of the audio unit to
change to the AUX mode.
■How to use AUX mode (Type A)
●When the device is not connected to the auxiliary jack, the mode does not
switch to the AUX mode.
● Adjust the audio volume using the portable audio device or audio unit.
● Audio adjustments other than audio volume can only be done using the por-
table audio device.
● If the connection plug is pulled out from the auxiliary jack while in AUX
mode, noise may occur.
WARNING
■Do not allow the connection plug cord to get tangled with the parking
brake or the shift lever
Allowing the plug cord to become tangled with the parking brake or the shift
lever is dangerous as it could interfere with driving, resulting in an accident.
NOTICE
Do not place objects or apply force to the auxiliary jack/USB port with the
plug connected.
How to use AUX mode (Type A)
1
2
IN42ZZ047
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 305 Monday, June 1, 2015 9:22 PM
