TOYOTA YARIS 2016 Owners Manual

4918-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_WE_52G04E

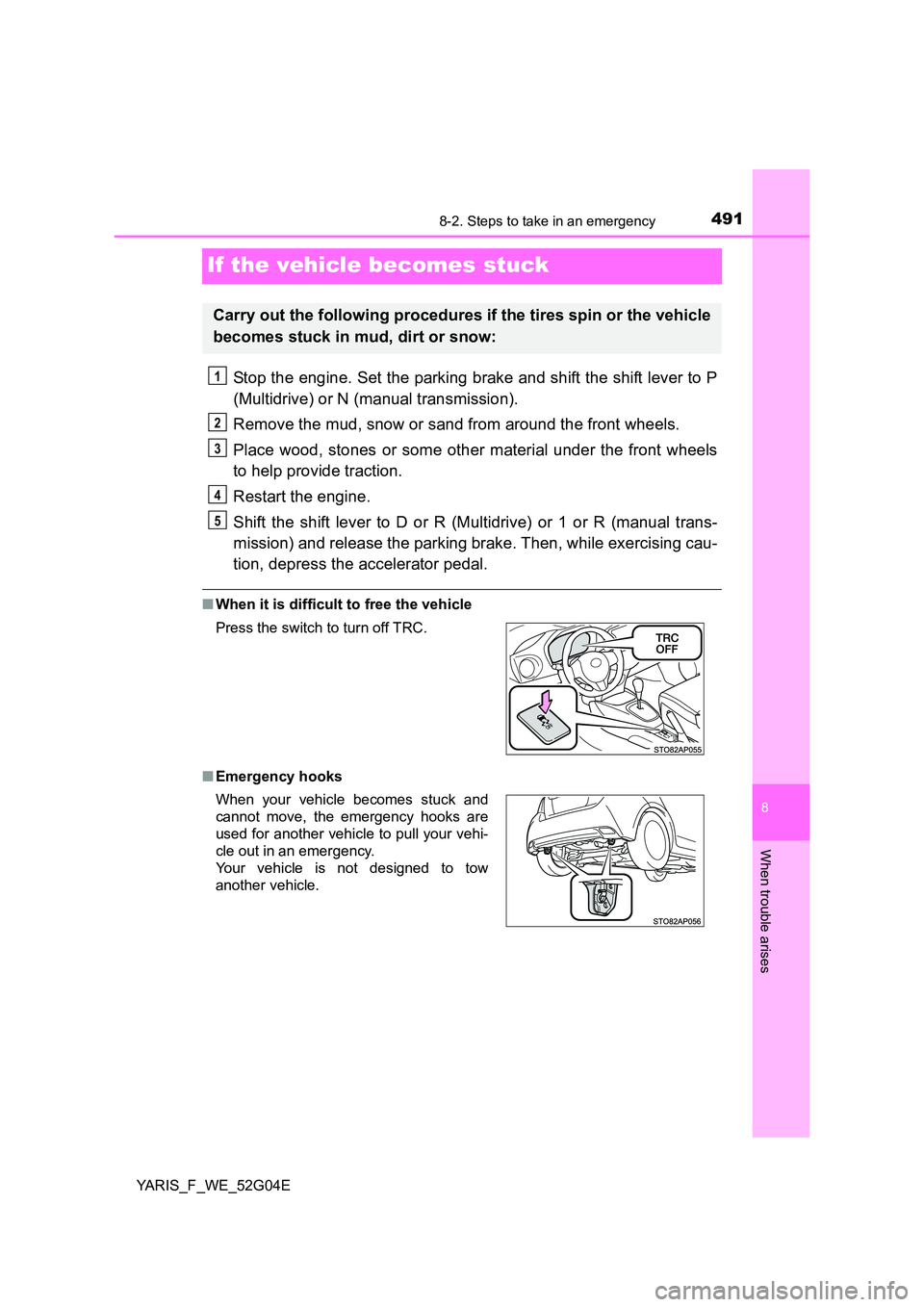

If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(Multidrive) or N (manual transmission).
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
■ When it is difficult to free the vehicle
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press the switch to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
1
2
3
4
5

4928-2. Steps to take in an emergency
YARIS_F_WE_52G04E

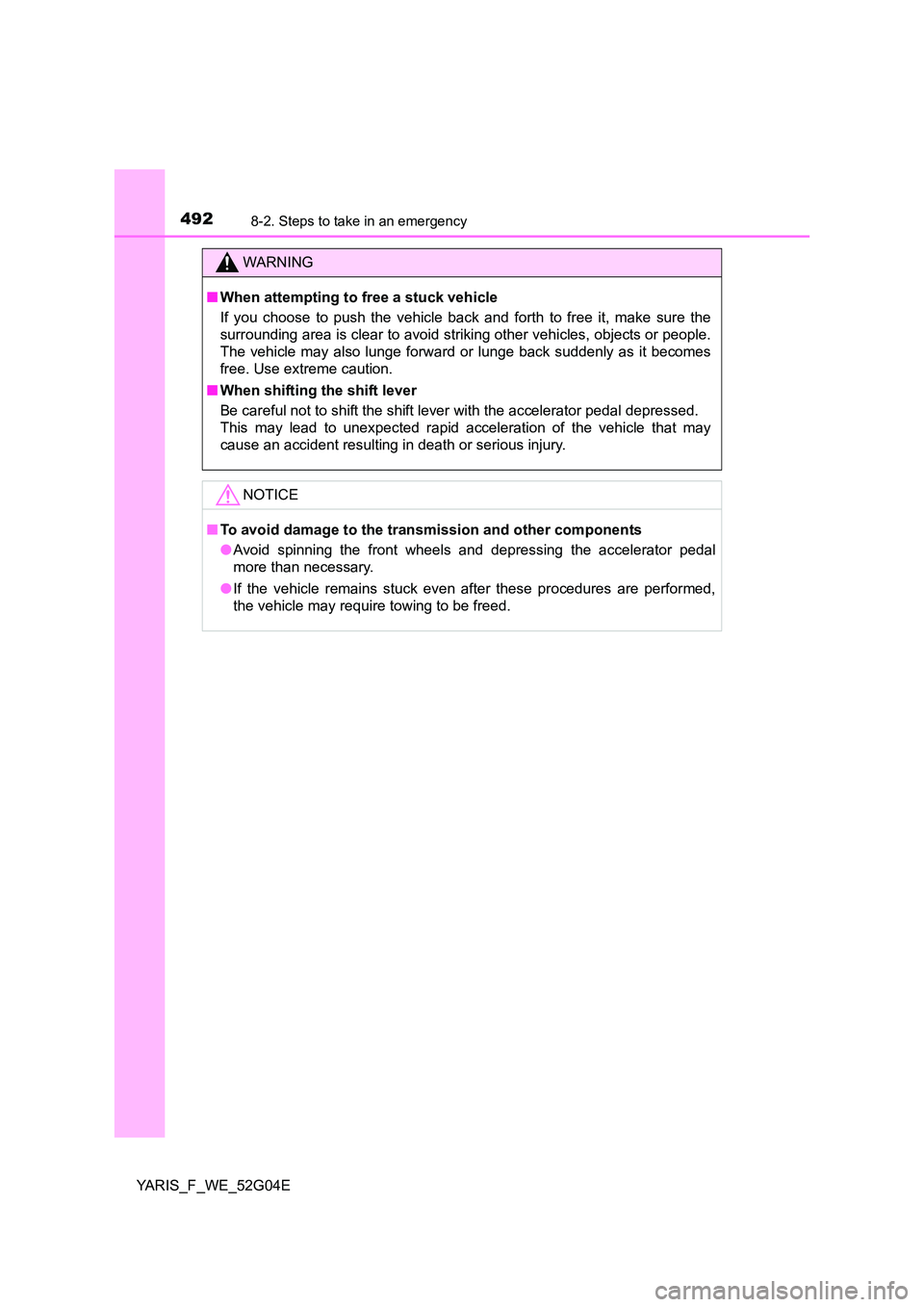

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

493

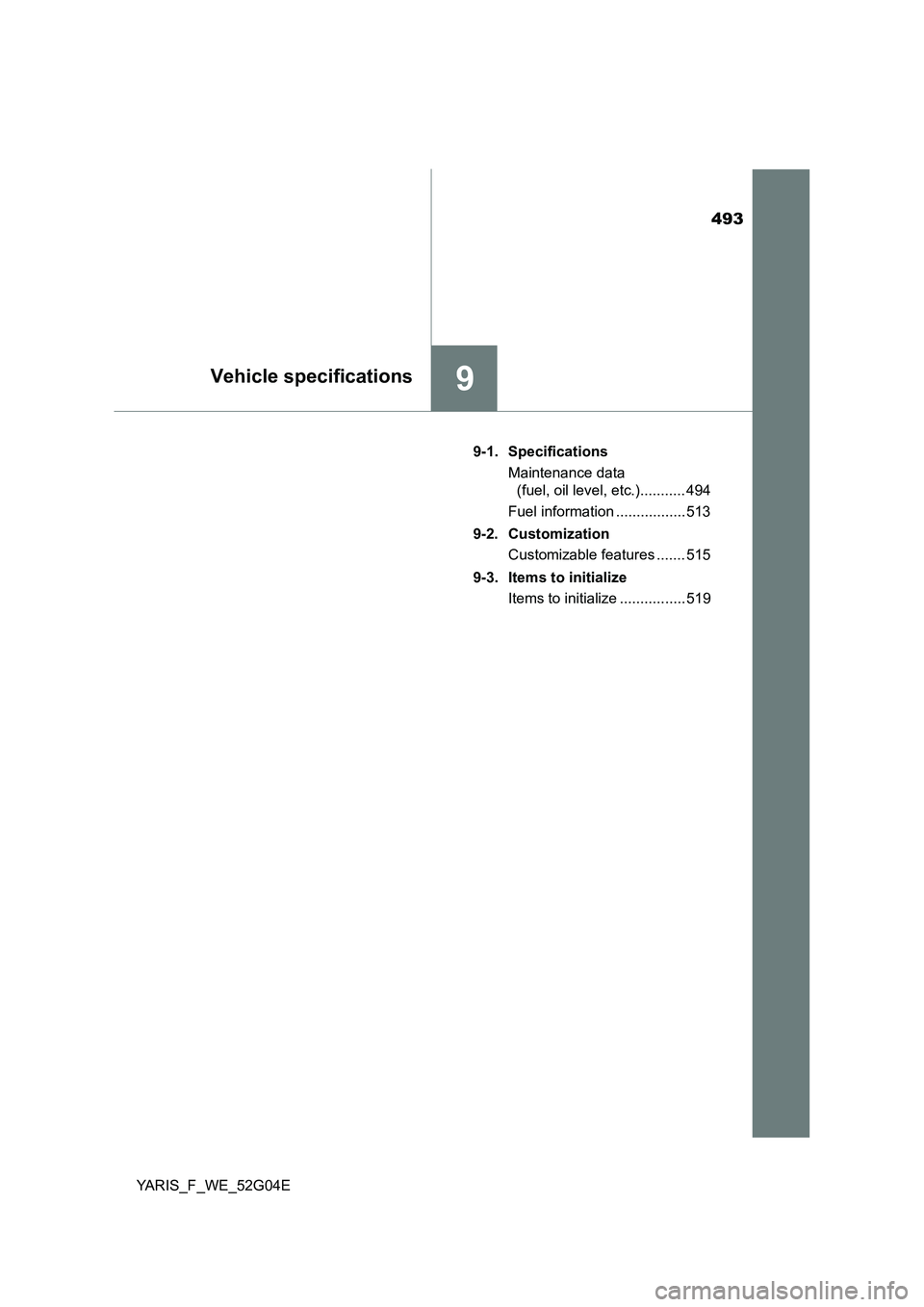

9Vehicle specifications
YARIS_F_WE_52G04E
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 494
Fuel information ................. 513
9-2. Customization
Customizable features ....... 515
9-3. Items to initialize
Items to initialize ................ 519

4949-1. Specifications
YARIS_F_WE_52G04E

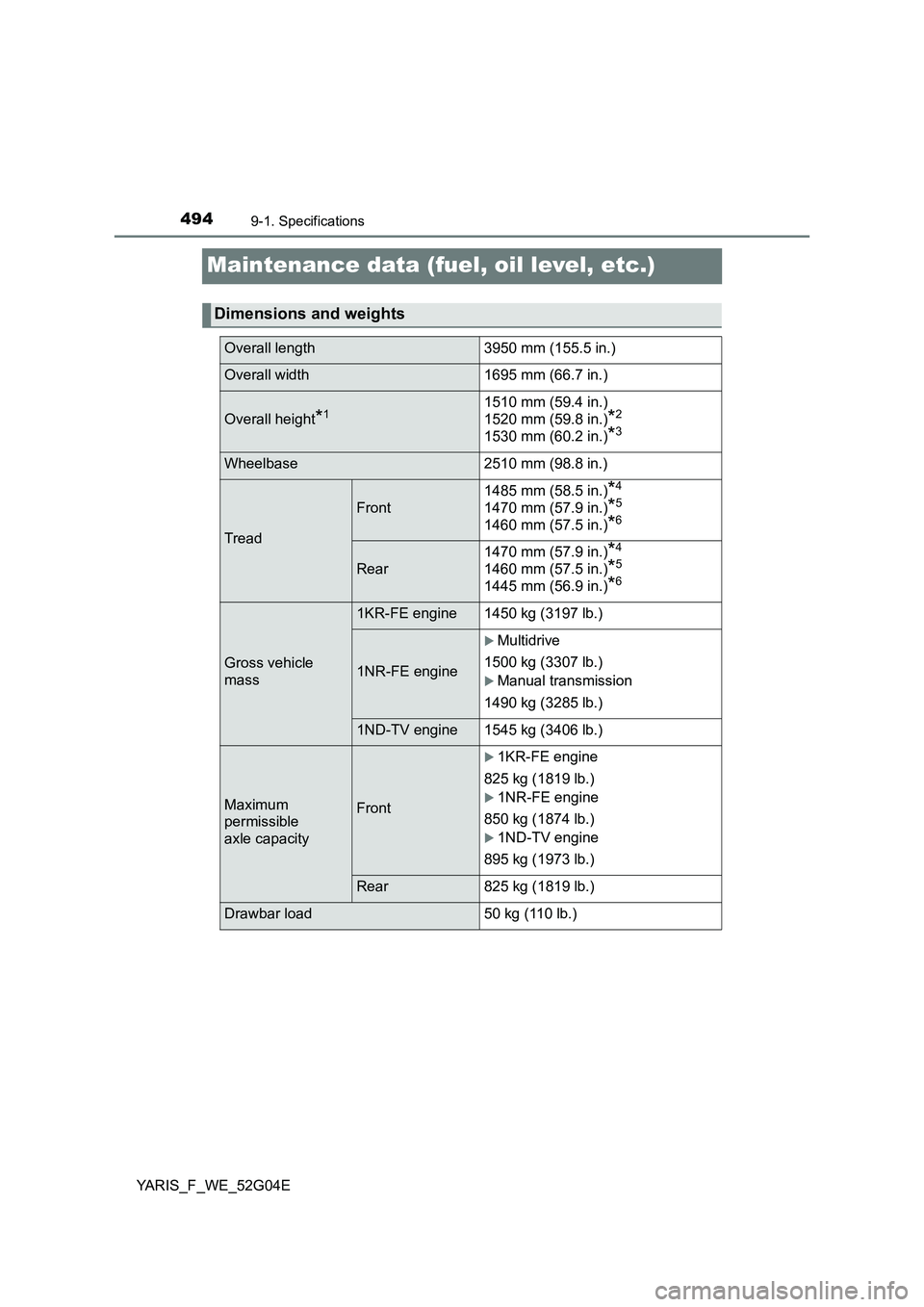

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 3950 mm (155.5 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Wheelbase 2510 mm (98.8 in.)
Tread
Front
1485 mm (58.5 in.)*4
1470 mm (57.9 in.)*5
1460 mm (57.5 in.)*6
Rear
1470 mm (57.9 in.)*4
1460 mm (57.5 in.)*5
1445 mm (56.9 in.)*6
Gross vehicle
mass
1KR-FE engine 1450 kg (3197 lb.)
1NR-FE engine
Multidrive
1500 kg (3307 lb.)
Manual transmission
1490 kg (3285 lb.)
1ND-TV engine 1545 kg (3406 lb.)
Maximum
permissible
axle capacity
Front
1KR-FE engine
825 kg (1819 lb.)
1NR-FE engine
850 kg (1874 lb.)
1ND-TV engine
895 kg (1973 lb.)
Rear 825 kg (1819 lb.)
Drawbar load 50 kg (110 lb.)

4959-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E

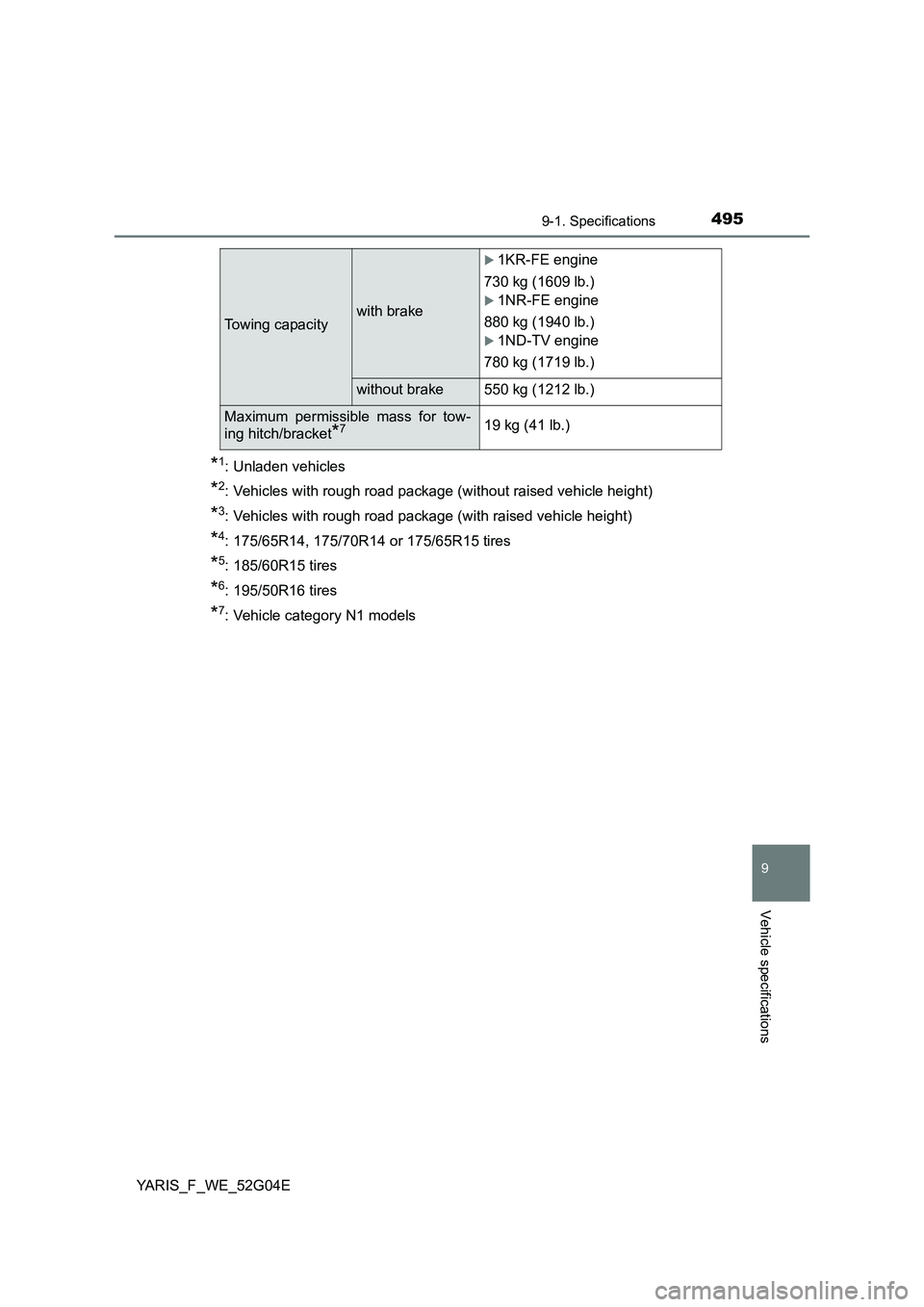

*1: Unladen vehicles
*2: Vehicles with rough road package (without raised vehicle height)
*3: Vehicles with rough road package (with raised vehicle height)
*4: 175/65R14, 175/70R14 or 175/65R15 tires
*5: 185/60R15 tires
*6: 195/50R16 tires
*7: Vehicle category N1 models
Towing capacity with brake
1KR-FE engine
730 kg (1609 lb.)
1NR-FE engine
880 kg (1940 lb.)
1ND-TV engine
780 kg (1719 lb.)
without brake 550 kg (1212 lb.)
Maximum permissible mass for tow-
ing hitch/bracket*719 kg (41 lb.)

4969-1. Specifications
YARIS_F_WE_52G04E

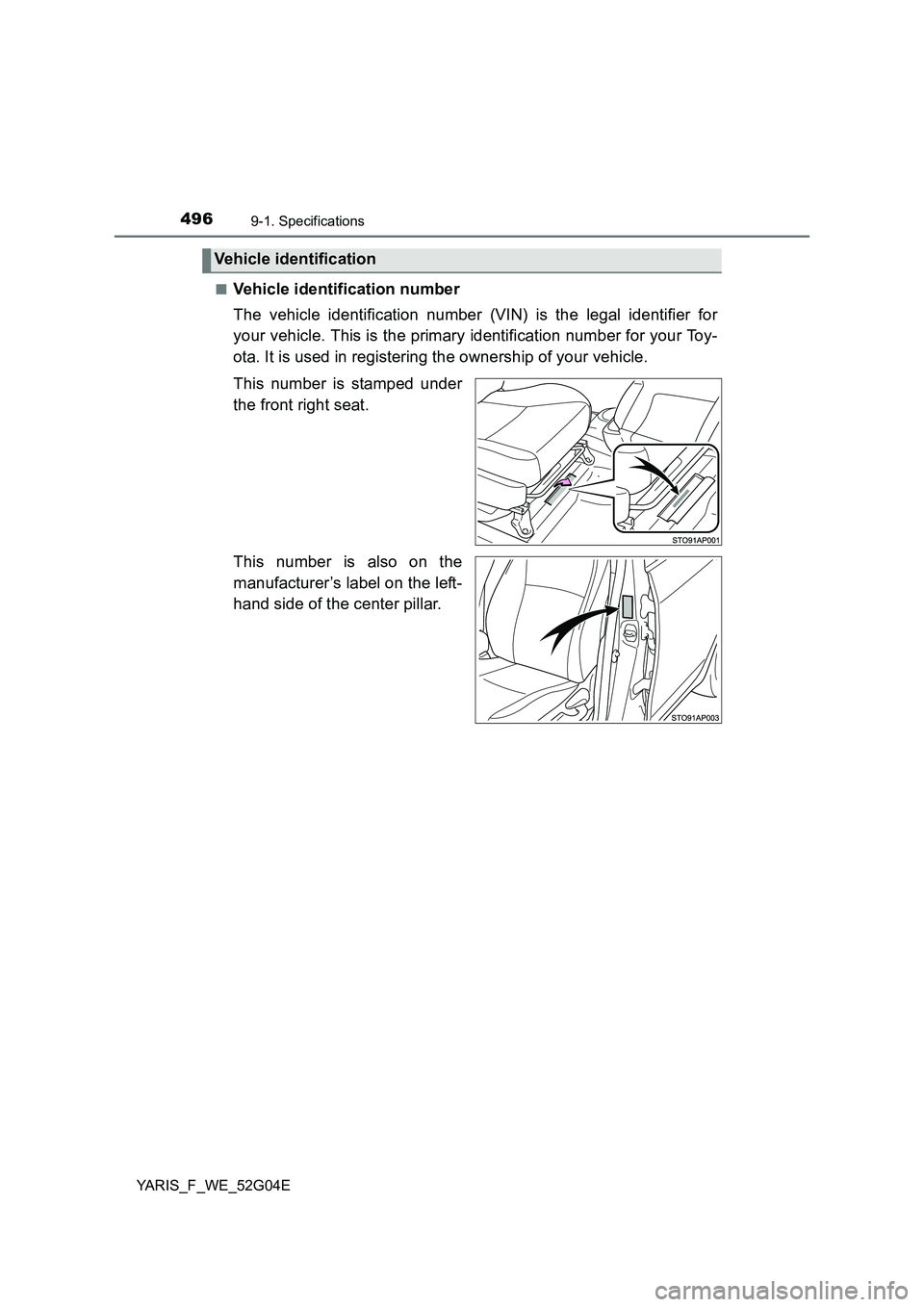

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
This number is also on the
manufacturer’s label on the left-
hand side of the center pillar.
Vehicle identification

4979-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E

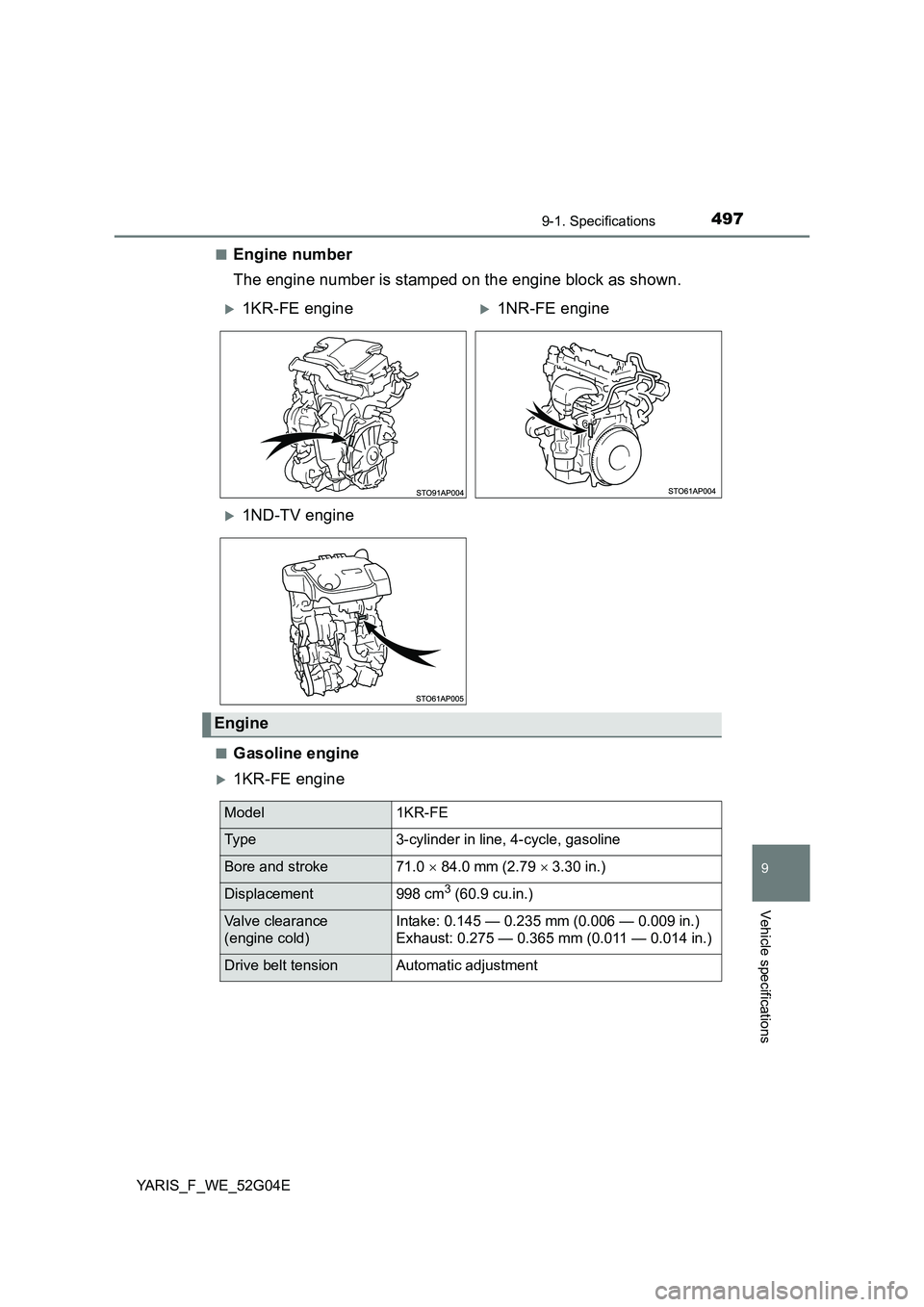

■Engine number
The engine number is stamped on the engine block as shown.
■Gasoline engine
1KR-FE engine
1KR-FE engine1NR-FE engine
1ND-TV engine
Engine
Model1KR-FE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke71.0  84.0 mm (2.79  3.30 in.)
Displacement998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)
Intake: 0.145 — 0.235 mm (0.006 — 0.009 in.)
Exhaust: 0.275 — 0.365 mm (0.011 — 0.014 in.)
Drive belt tensionAutomatic adjustment

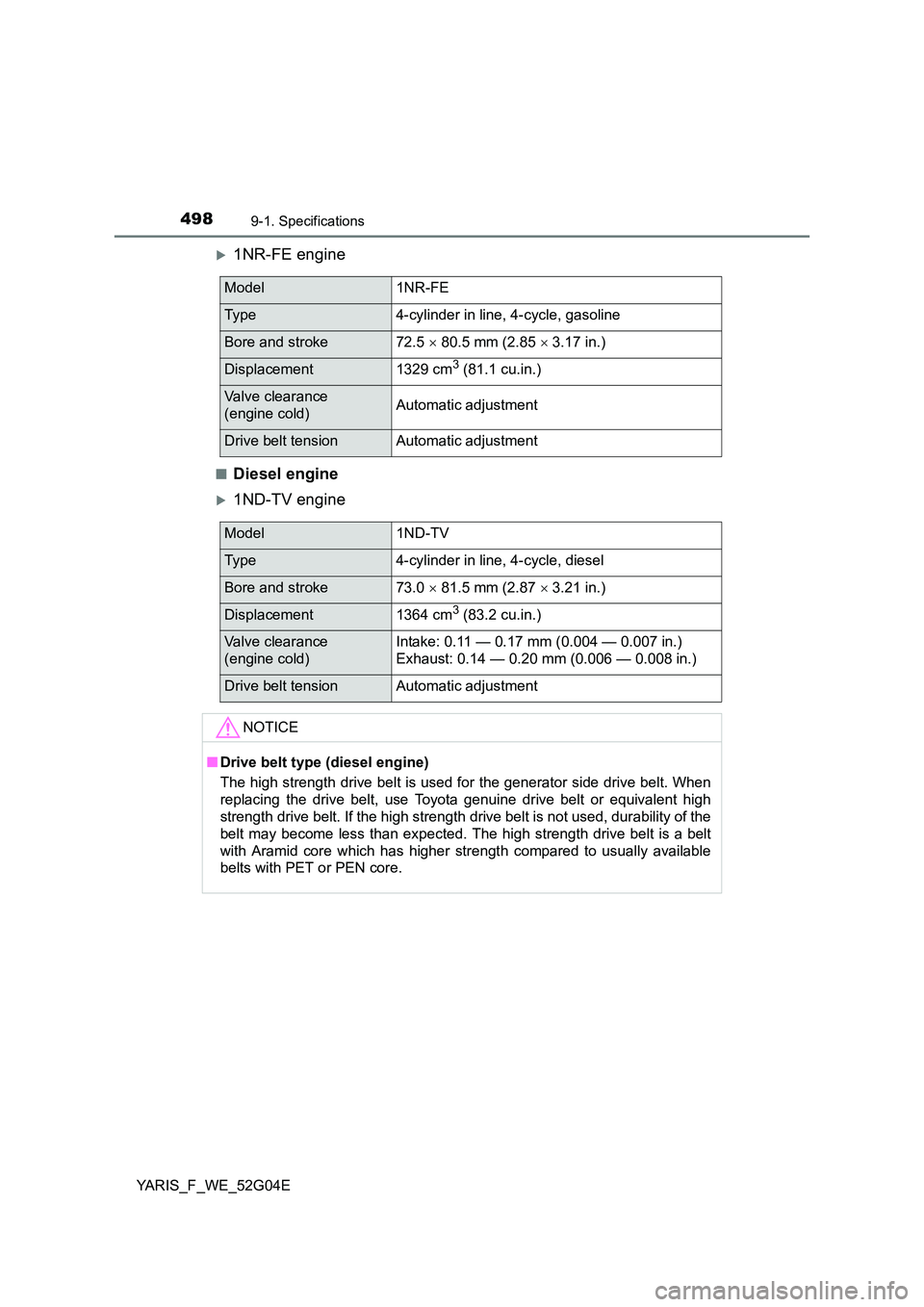

4989-1. Specifications
YARIS_F_WE_52G04E
1NR-FE engine
■Diesel engine
1ND-TV engine
Model1NR-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke72.5  80.5 mm (2.85  3.17 in.)
Displacement1329 cm3 (81.1 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model1ND-TV
Ty p e4-cylinder in line, 4-cycle, diesel
Bore and stroke73.0  81.5 mm (2.87  3.21 in.)
Displacement1364 cm3 (83.2 cu.in.)
Valve clearance
(engine cold)
Intake: 0.11 — 0.17 mm (0.004 — 0.007 in.)
Exhaust: 0.14 — 0.20 mm (0.006 — 0.008 in.)
Drive belt tensionAutomatic adjustment
NOTICE
■ Drive belt type (diesel engine)
The high strength drive belt is used fo r the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength dr ive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

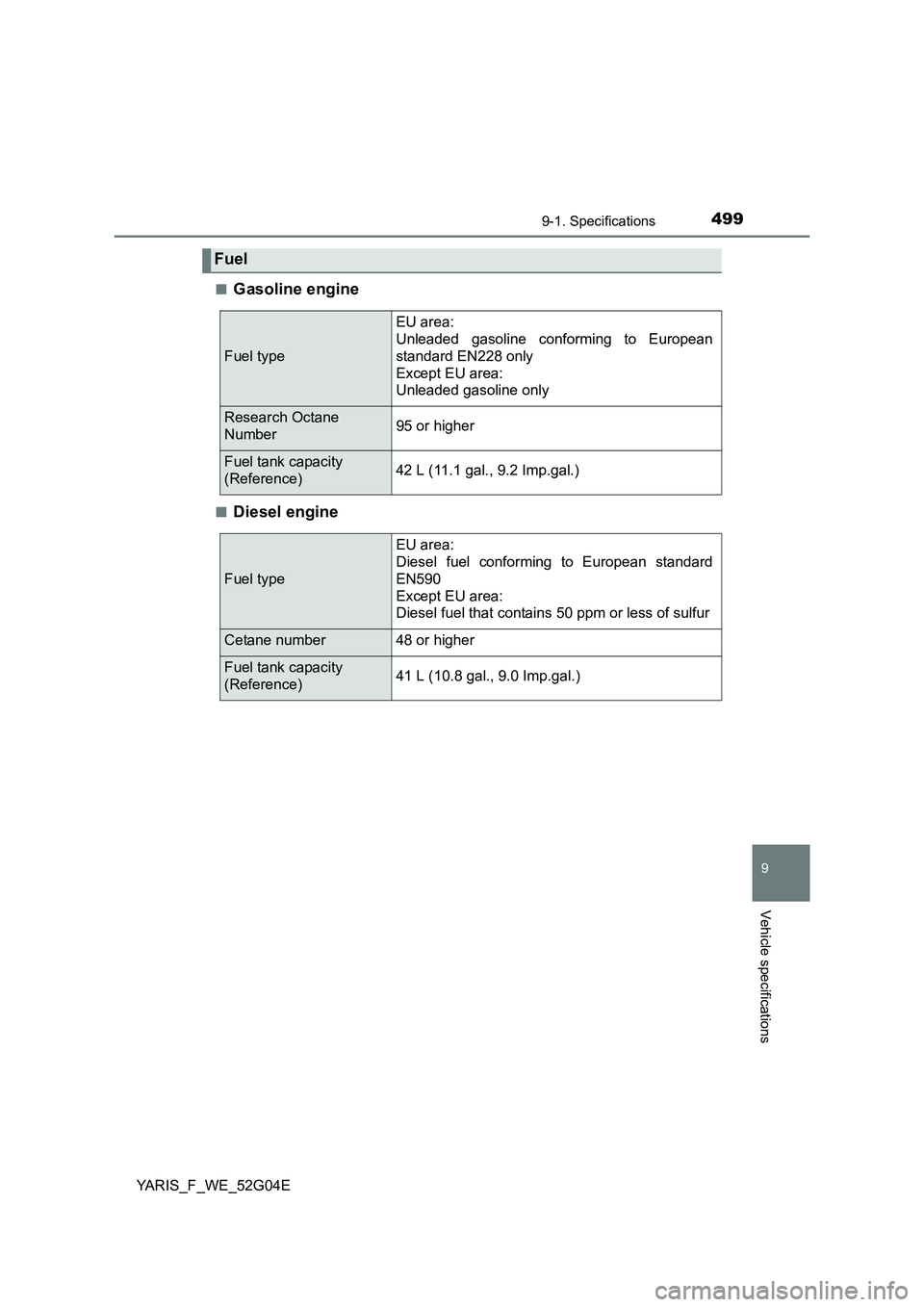

4999-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
■Gasoline engine
■Diesel engine
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)42 L (11.1 gal., 9.2 Imp.gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)41 L (10.8 gal., 9.0 Imp.gal.)

5009-1. Specifications
YARIS_F_WE_52G04E

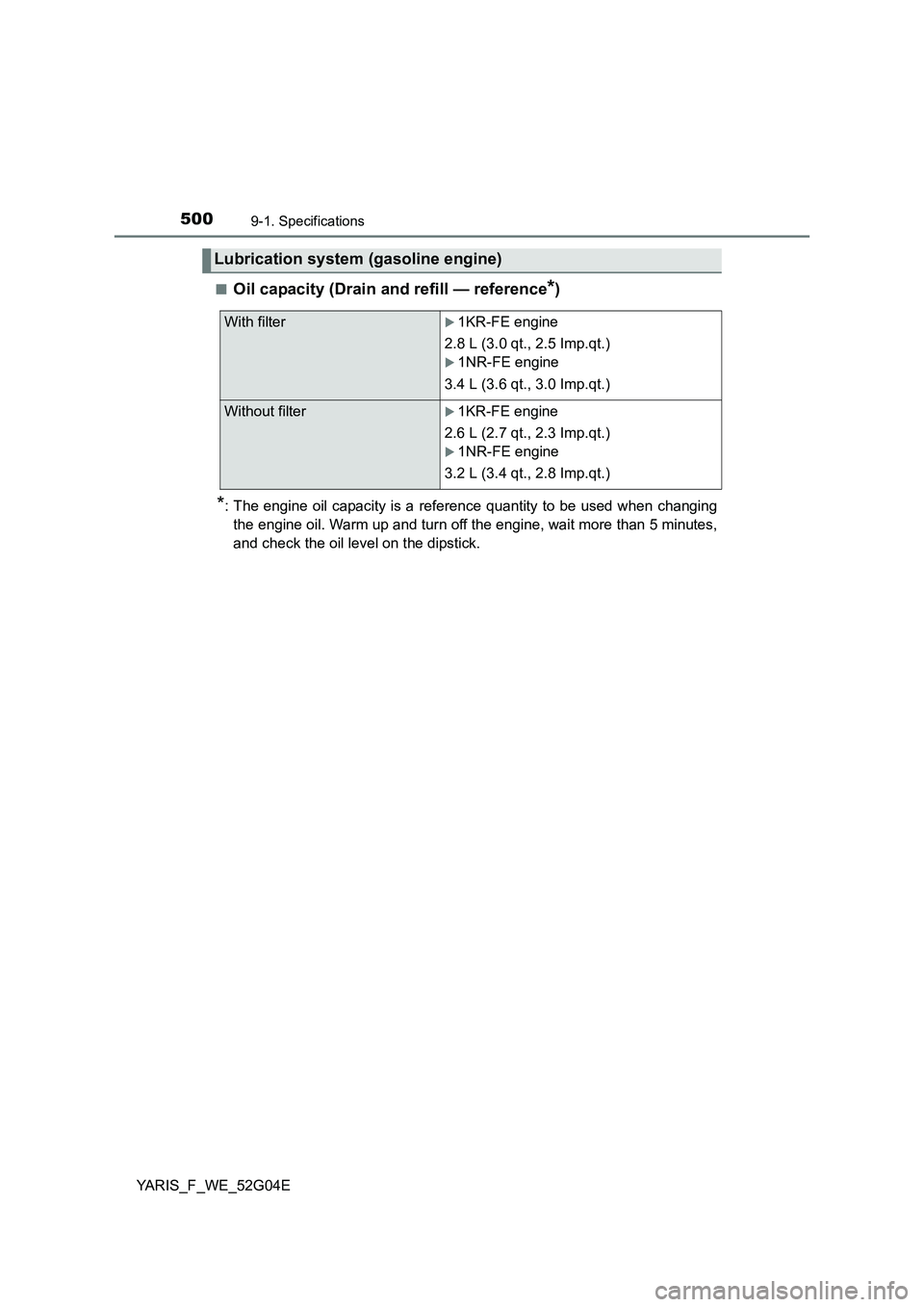

■Oil capacity (Drain and refill — reference*)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Lubrication system (gasoline engine)
With filter1KR-FE engine
2.8 L (3.0 qt., 2.5 Imp.qt.)
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp.qt.)
Without filter1KR-FE engine
2.6 L (2.7 qt., 2.3 Imp.qt.)
1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp.qt.)
