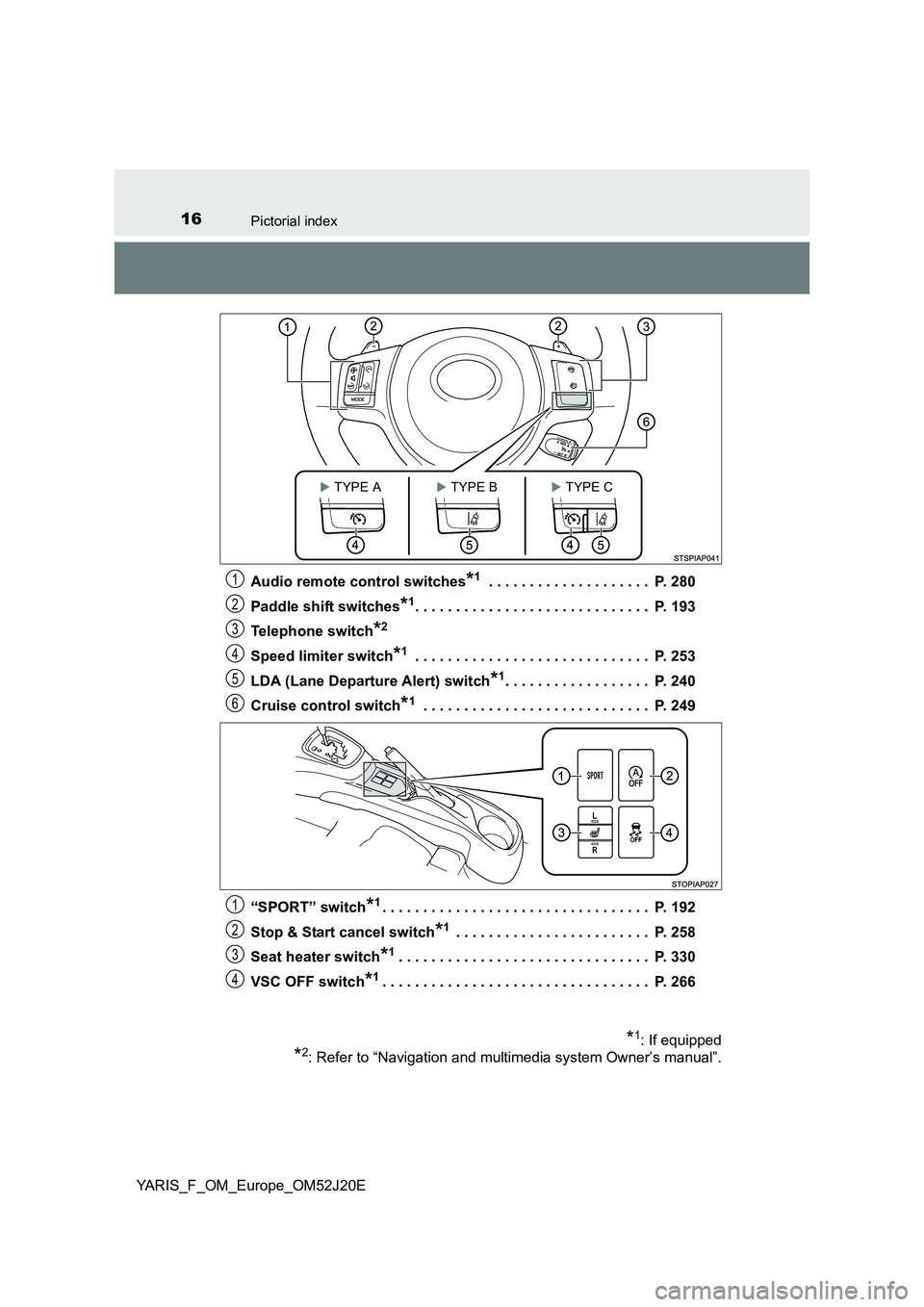

16Pictorial index
YARIS_F_OM_Europe_OM52J20E
Audio remote control switches*1 . . . . . . . . . . . . . . . . . . . . P. 280
Paddle shift switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Telephone switch*2
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
LDA (Lane Departure Alert) switch*1. . . . . . . . . . . . . . . . . . P. 240
Cruise control switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
“SPORT” switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Stop & Start cancel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Seat heater switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
VSC OFF switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
 TYPE A TYPE B TYPE C
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4
5
6
1
2
3
4

23Pictorial index
YARIS_F_OM_Europe_OM52J20E

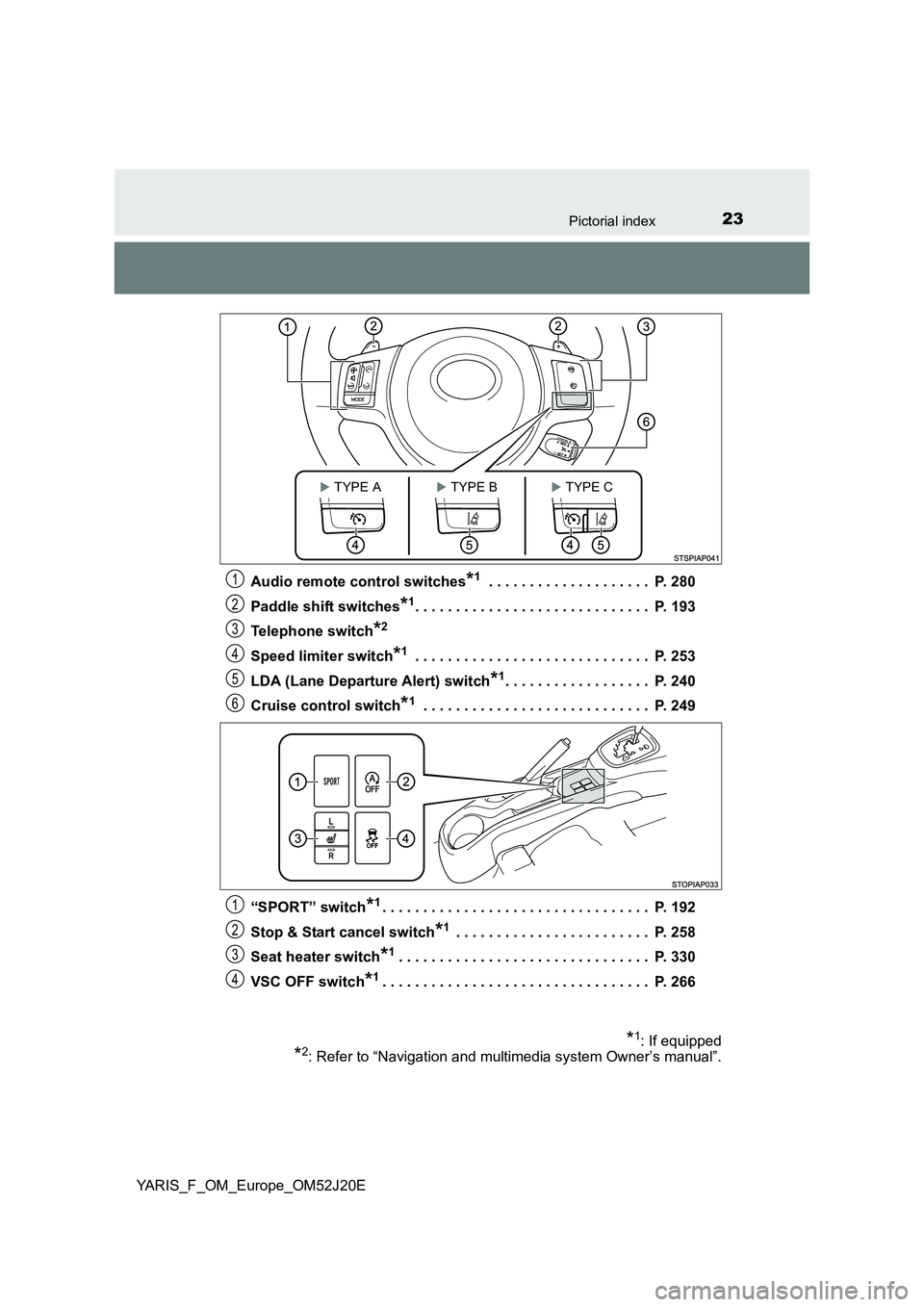

Audio remote control switches*1 . . . . . . . . . . . . . . . . . . . . P. 280
Paddle shift switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Telephone switch*2
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
LDA (Lane Departure Alert) switch*1. . . . . . . . . . . . . . . . . . P. 240
Cruise control switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
“SPORT” switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Stop & Start cancel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Seat heater switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
VSC OFF switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
 TYPE A TYPE B TYPE C
1
2
3
4
5
6
*1: If equipped*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4

81
1
1-2. Theft deterrent system
For safety and security
YARIS_F_OM_Europe_OM52J20E

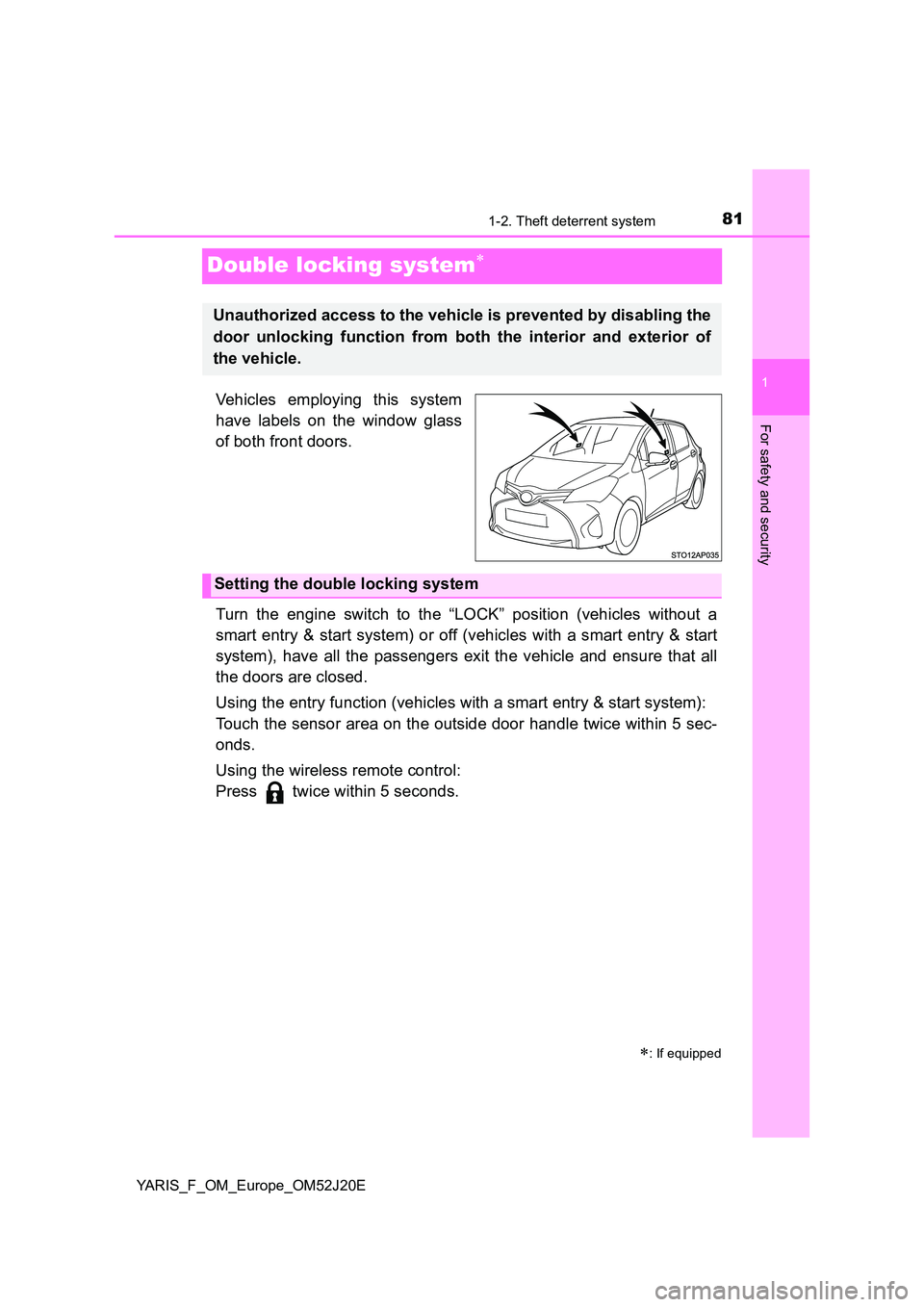

Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system), have all the passengers exit the vehicle and ensure that all
the doors are closed.
Using the entry function (vehicles with a smart entry & start system):
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

821-2. Theft deterrent system
YARIS_F_OM_Europe_OM52J20E
Using the entry function (vehicles with a smart entry & start system):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press .

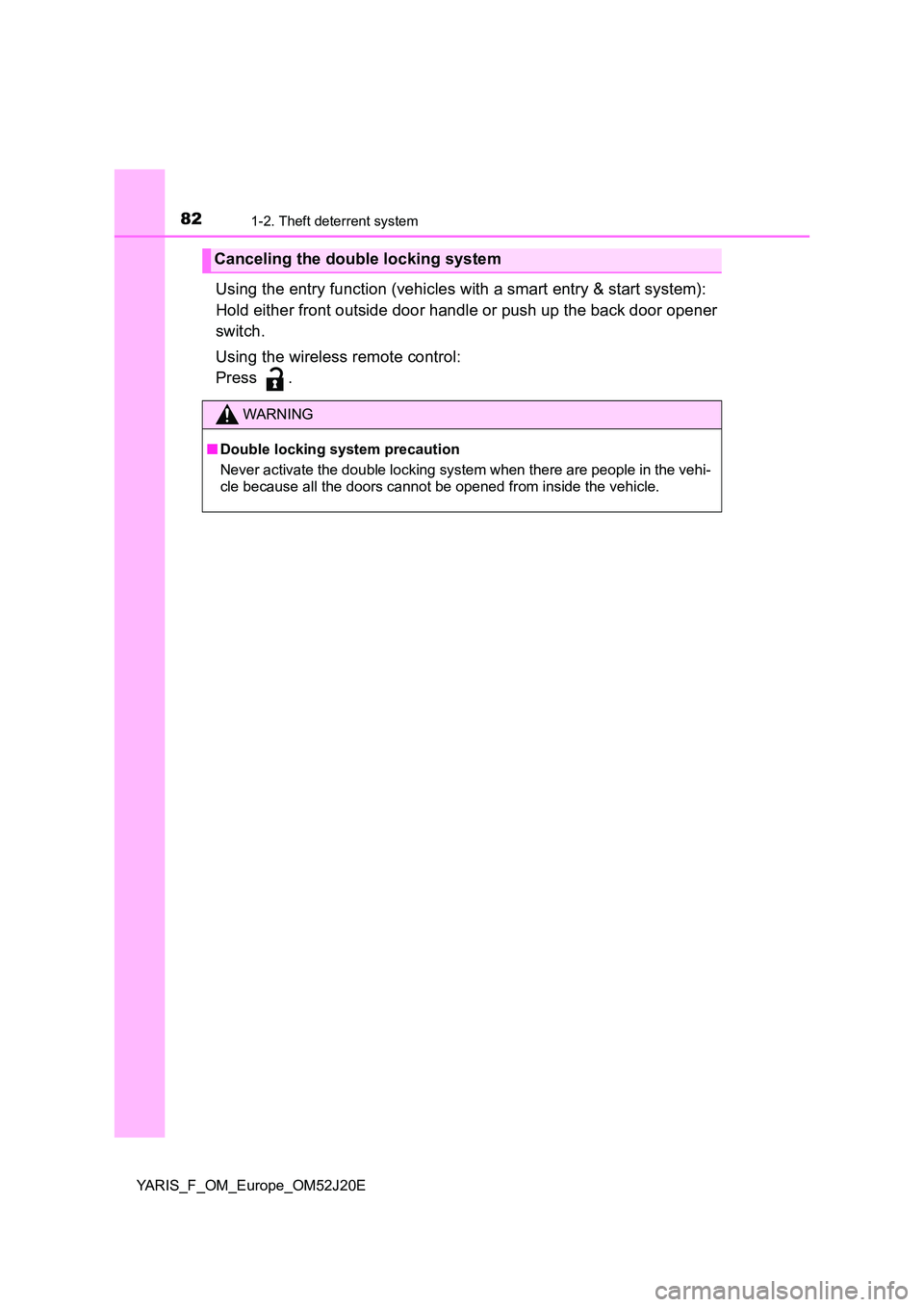

Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

1023-1. Key information
YARIS_F_OM_Europe_OM52J20E

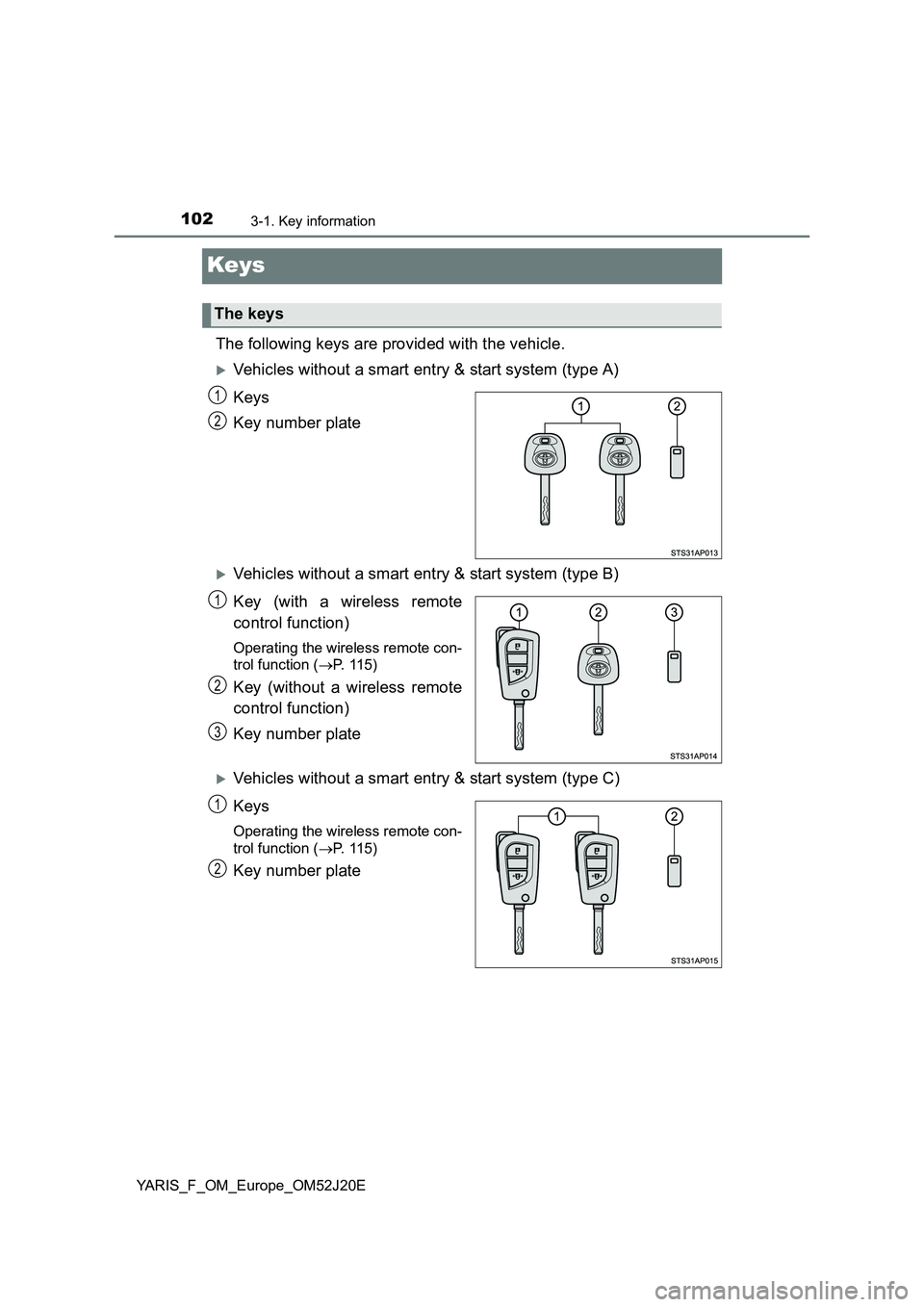

Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Keys
Key number plate
Vehicles without a smart entry & start system (type B)
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function ( P. 115)
Key (without a wireless remote
control function)
Key number plate
Vehicles without a smart entry & start system (type C)
Keys
Operating the wireless remote con-
trol function ( P. 115)
Key number plate
The keys
1
2
1
2
3
1
2

1033-1. Key information
3
Operation of each component
YARIS_F_OM_Europe_OM52J20E

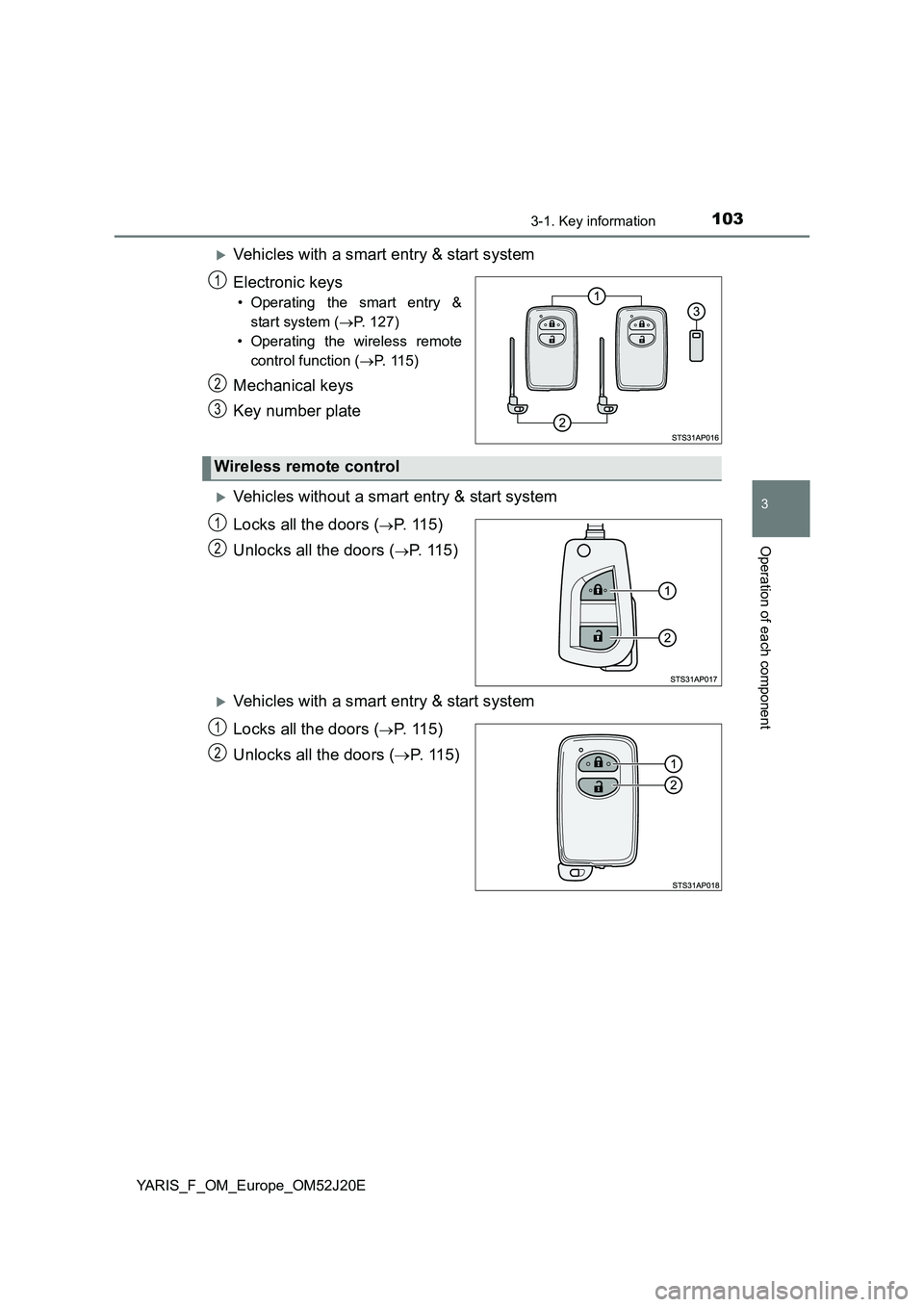

Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system ( P. 127)
• Operating the wireless remote
control function ( P. 115)
Mechanical keys
Key number plate
Vehicles without a smart entry & start system
Locks all the doors (P. 115)
Unlocks all the doors (P. 1 1 5 )
Vehicles with a smart entry & start system
Locks all the doors (P. 115)
Unlocks all the doors ( P. 1 1 5 )
1
2
3
Wireless remote control
1
2
1
2

1063-1. Key information
YARIS_F_OM_Europe_OM52J20E

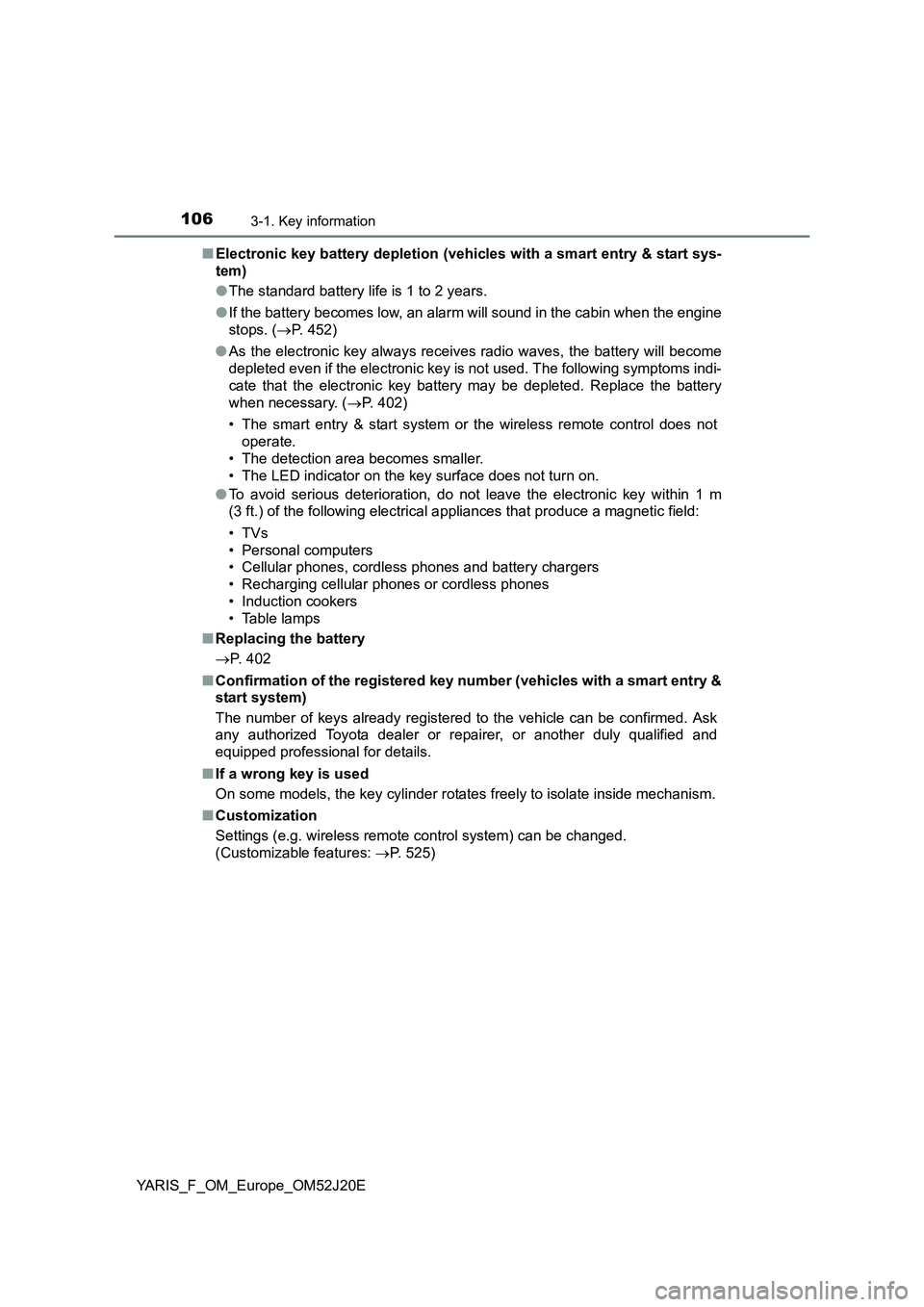

■ Electronic key battery depletion (vehicles with a smart entry & start sys-
tem)
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops. ( P. 452)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 402)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■ Replacing the battery
 P. 402
■ Confirmation of the registered key number (vehicles with a smart entry &
start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional for details.
■ If a wrong key is used
On some models, the key cylinder rotates freely to isolate inside mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 525)

1073-1. Key information
3
Operation of each component
YARIS_F_OM_Europe_OM52J20E

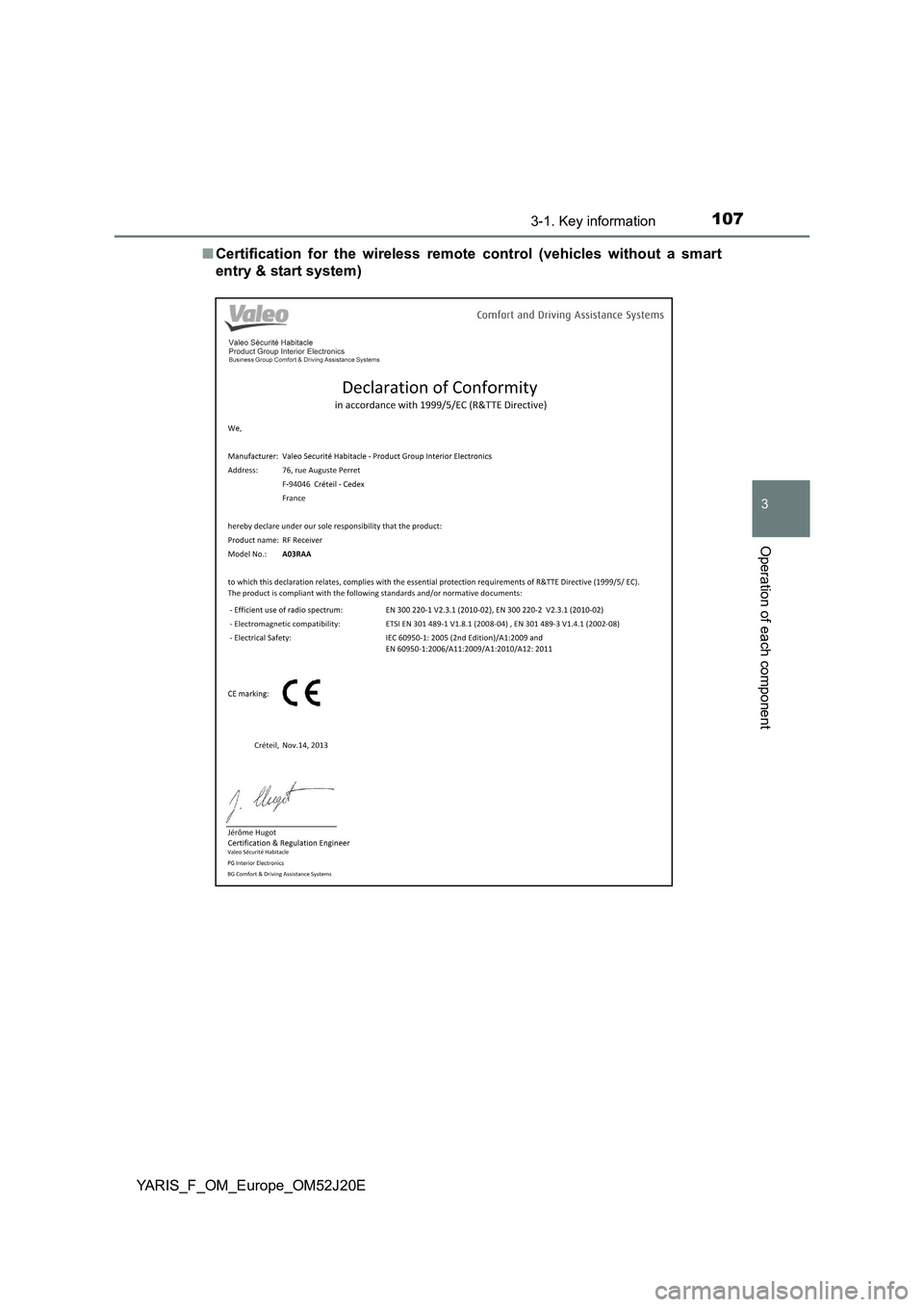

■ Certification for the wireless remote control (vehicles without a smart
entry & start system)

1143-2. Opening, closing and locking the doors
YARIS_F_OM_Europe_OM52J20E

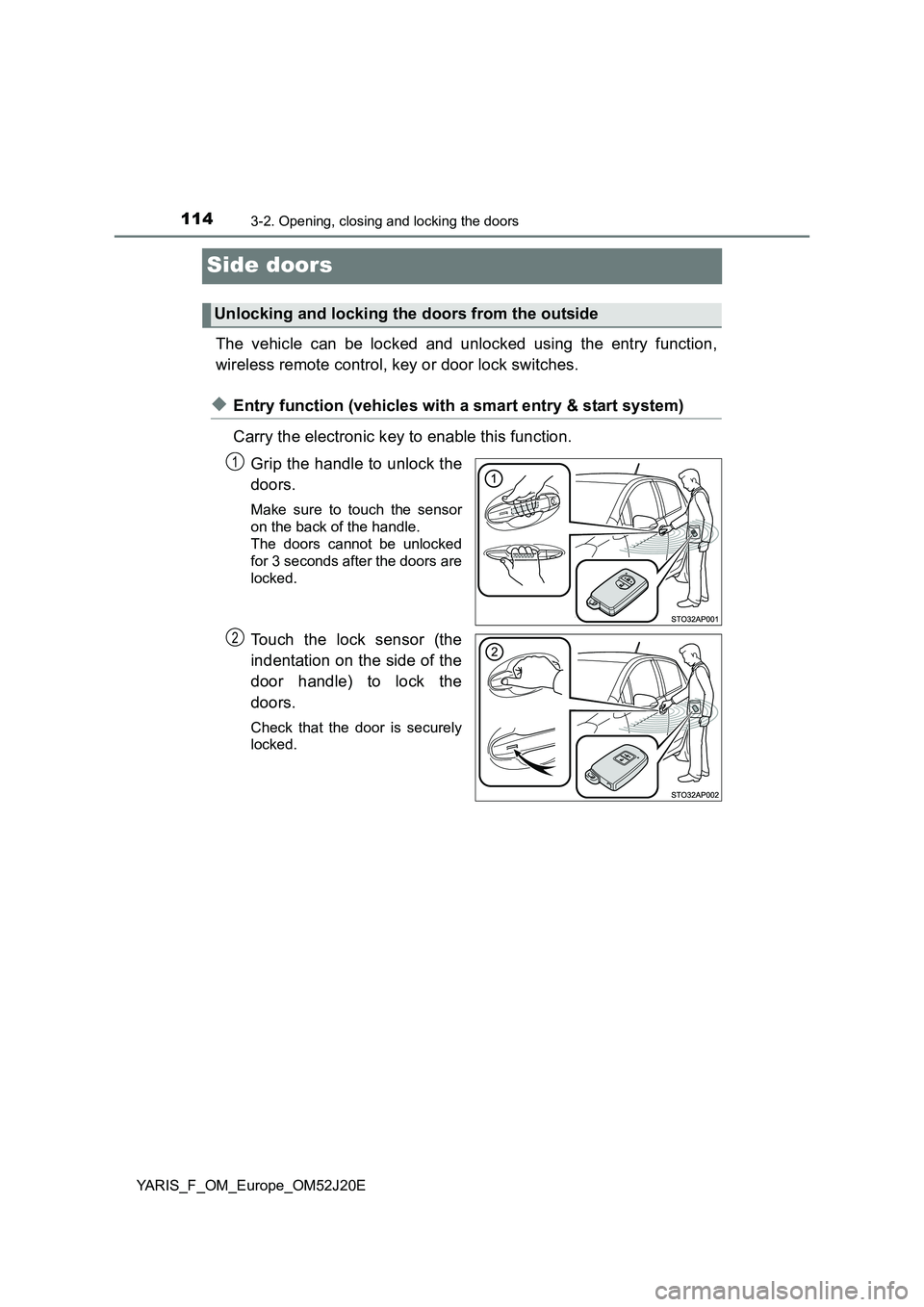

Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switches.
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Grip the handle to unlock the
doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the
doors.
Check that the door is securely
locked.
Unlocking and locking the doors from the outside
1
2

1153-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_F_OM_Europe_OM52J20E

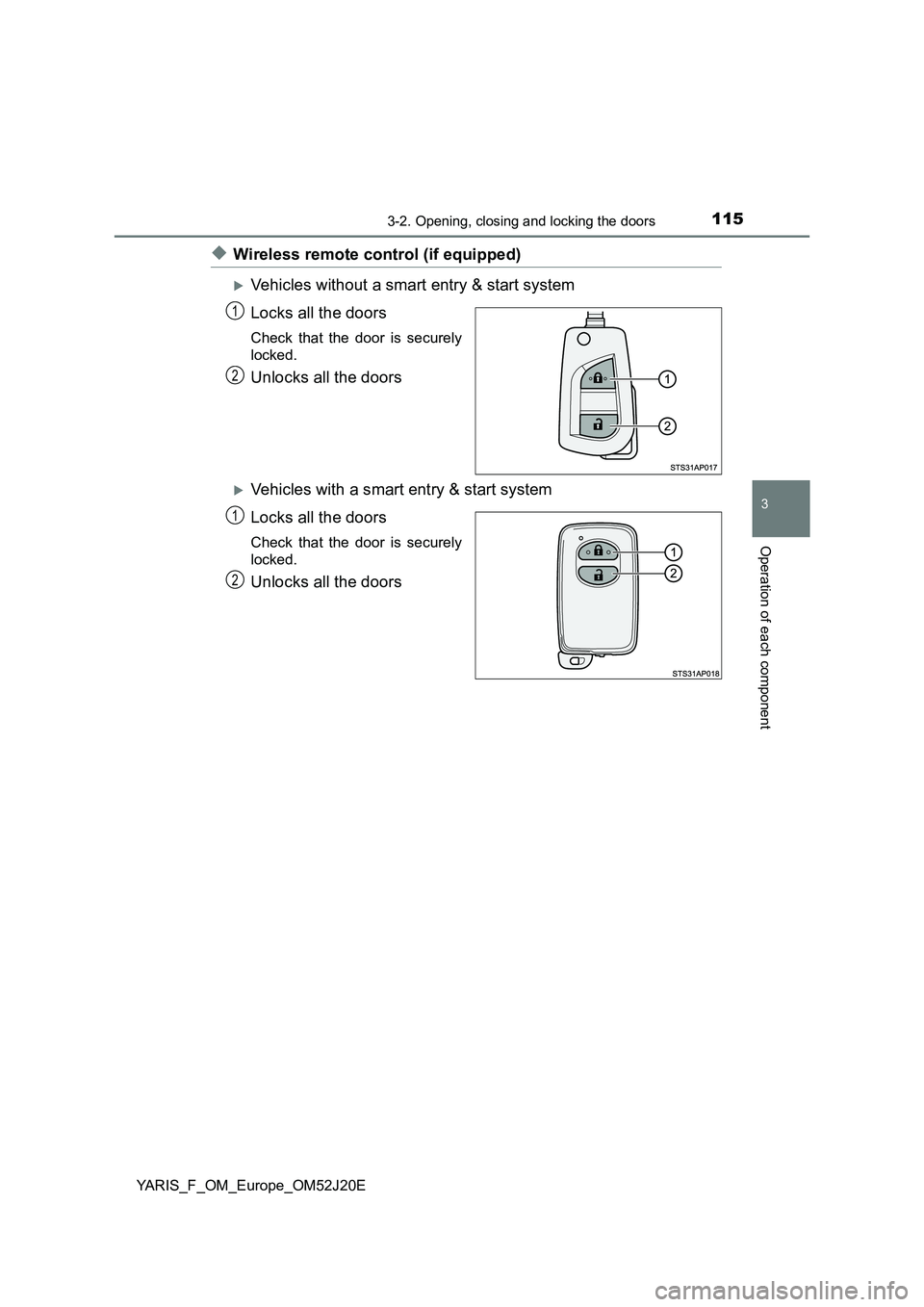

◆Wireless remote control (if equipped)
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
1
2
1
2
