1813-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_OM_Europe_OM52J66E

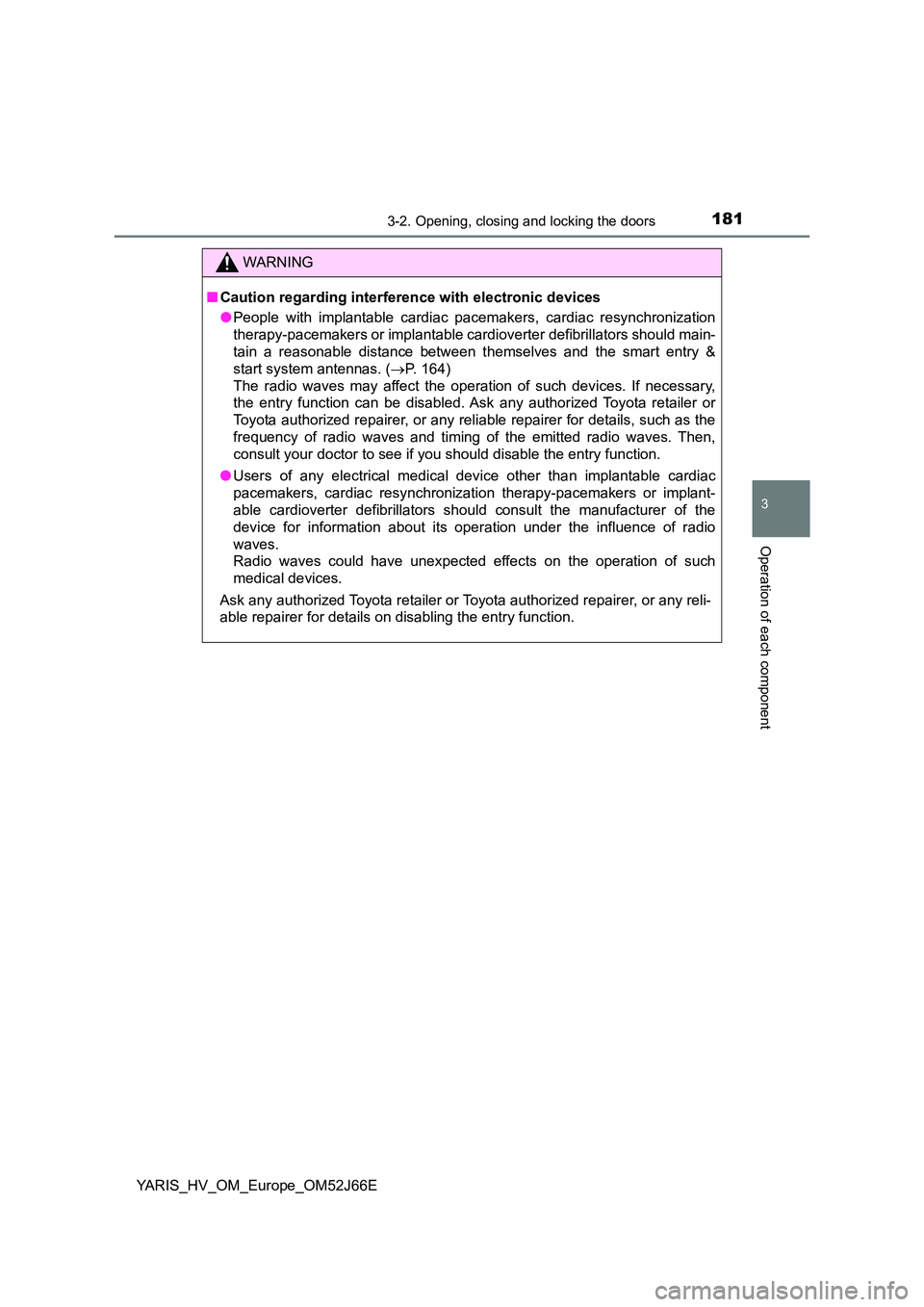

WARNING
■Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable card ioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. ( P. 164)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details, such as the
frequency of radio waves and timing of the emitted radio waves. Then,
consult your doctor to see if you should disable the entry function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota retailer or To yota authorized repairer, or any reli-
able repairer for details on disabling the entry function.

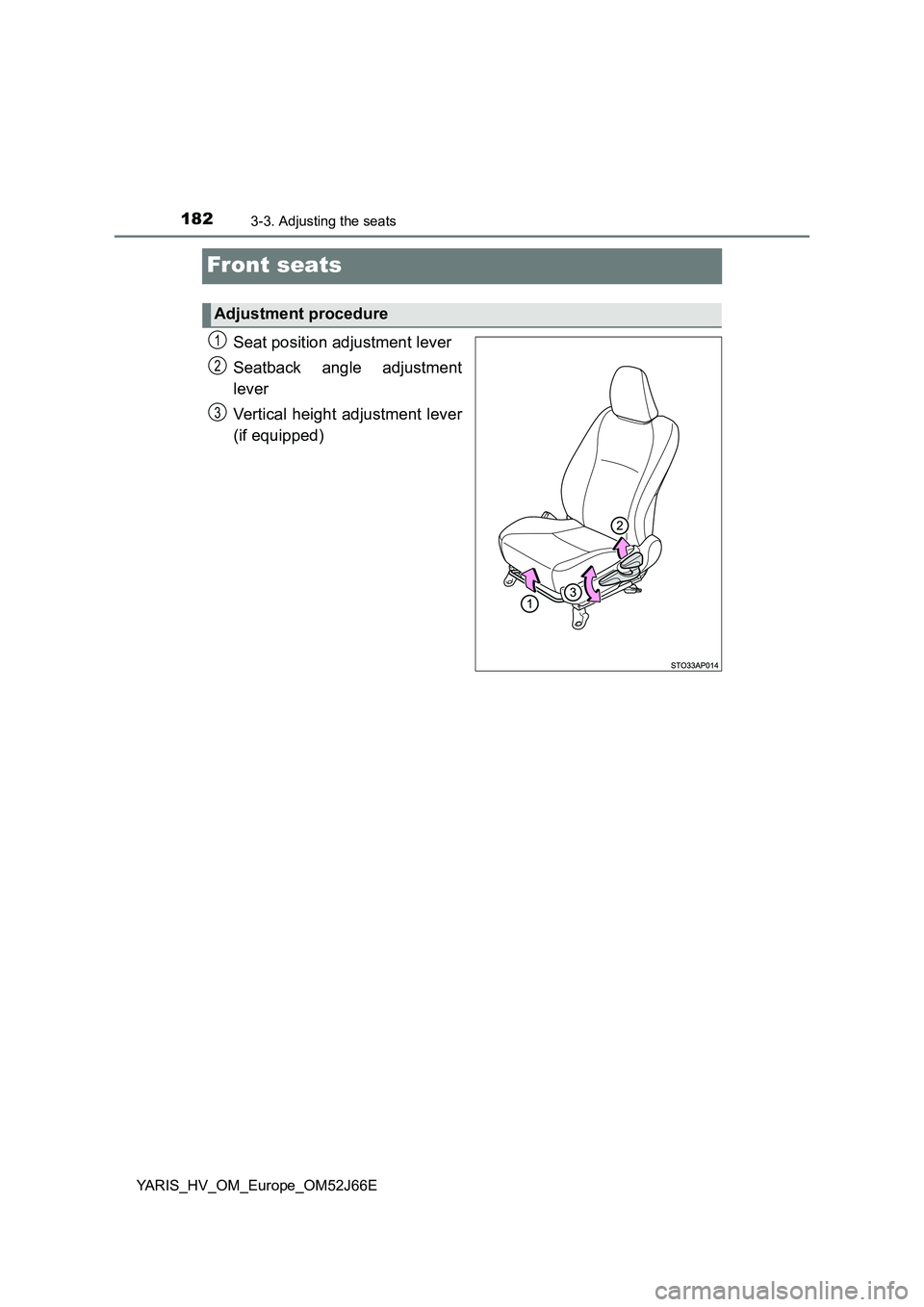

1823-3. Adjusting the seats
YARIS_HV_OM_Europe_OM52J66E
Front seats
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(if equipped)
Adjustment procedure
1
2
3

1833-3. Adjusting the seats
3
Operation of each component
YARIS_HV_OM_Europe_OM52J66E

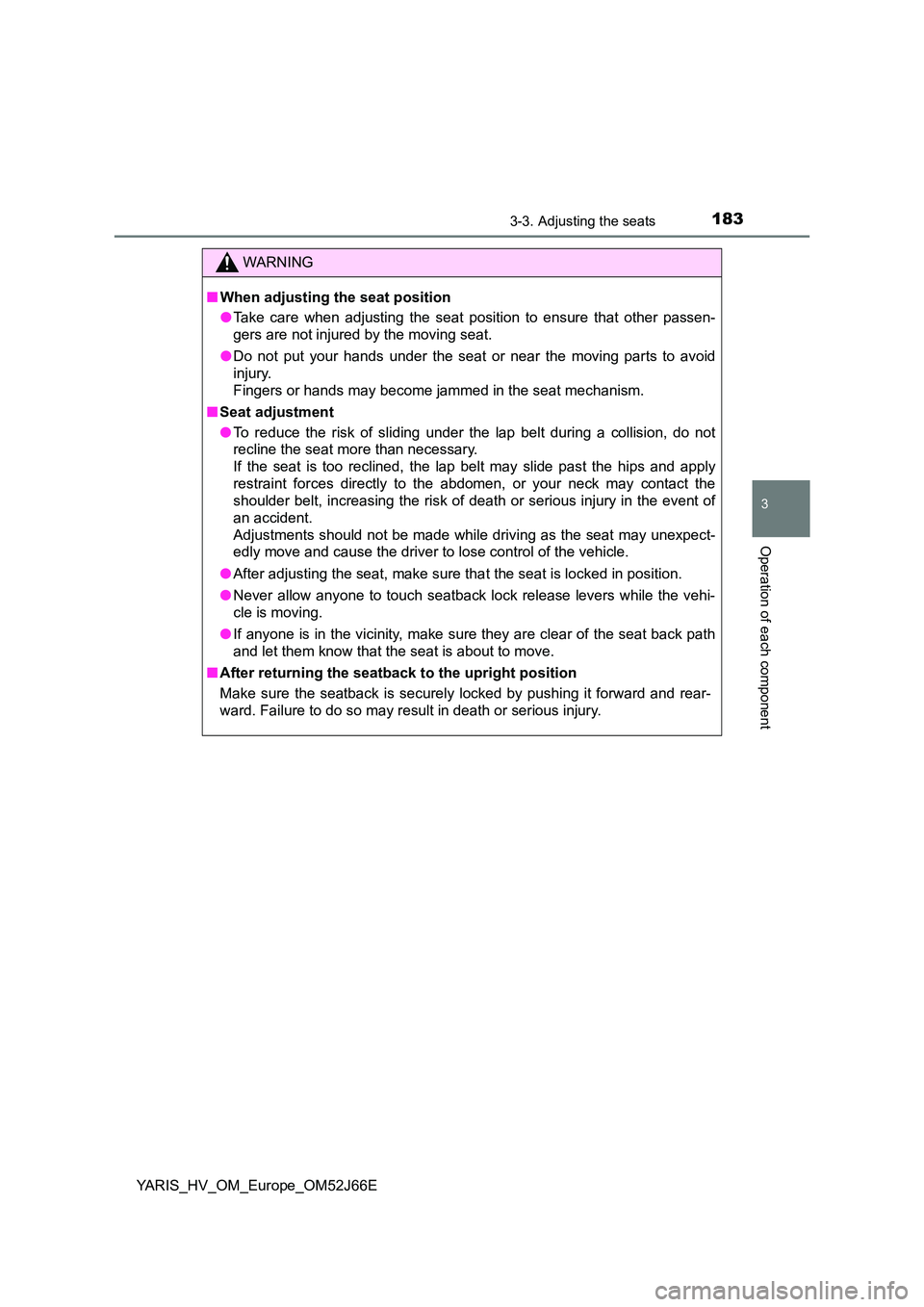

WARNING
■When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
● Never allow anyone to touch seatback lock release levers while the vehi-
cle is moving.
● If anyone is in the vicinity, make sure they are clear of the seat back path
and let them know that the seat is about to move.
■ After returning the seatback to the upright position
Make sure the seatback is securely locked by pushing it forward and rear-
ward. Failure to do so may result in death or serious injury.

1843-3. Adjusting the seats
YARIS_HV_OM_Europe_OM52J66E

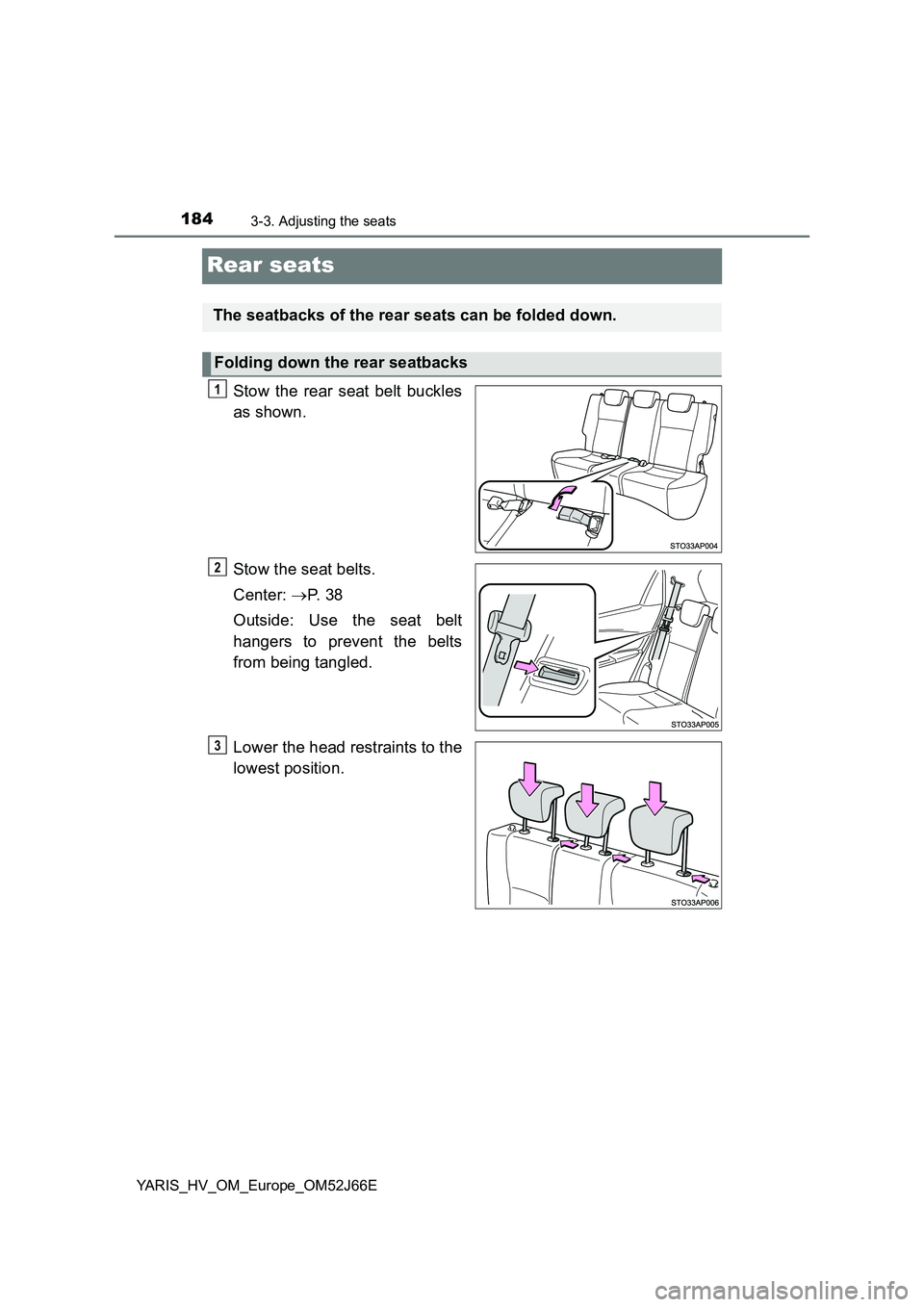

Rear seats
Stow the rear seat belt buckles
as shown.
Stow the seat belts.
Center: P. 3 8
Outside: Use the seat belt
hangers to prevent the belts
from being tangled.
Lower the head restraints to the
lowest position.
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
2
3

1853-3. Adjusting the seats
3
Operation of each component
YARIS_HV_OM_Europe_OM52J66E

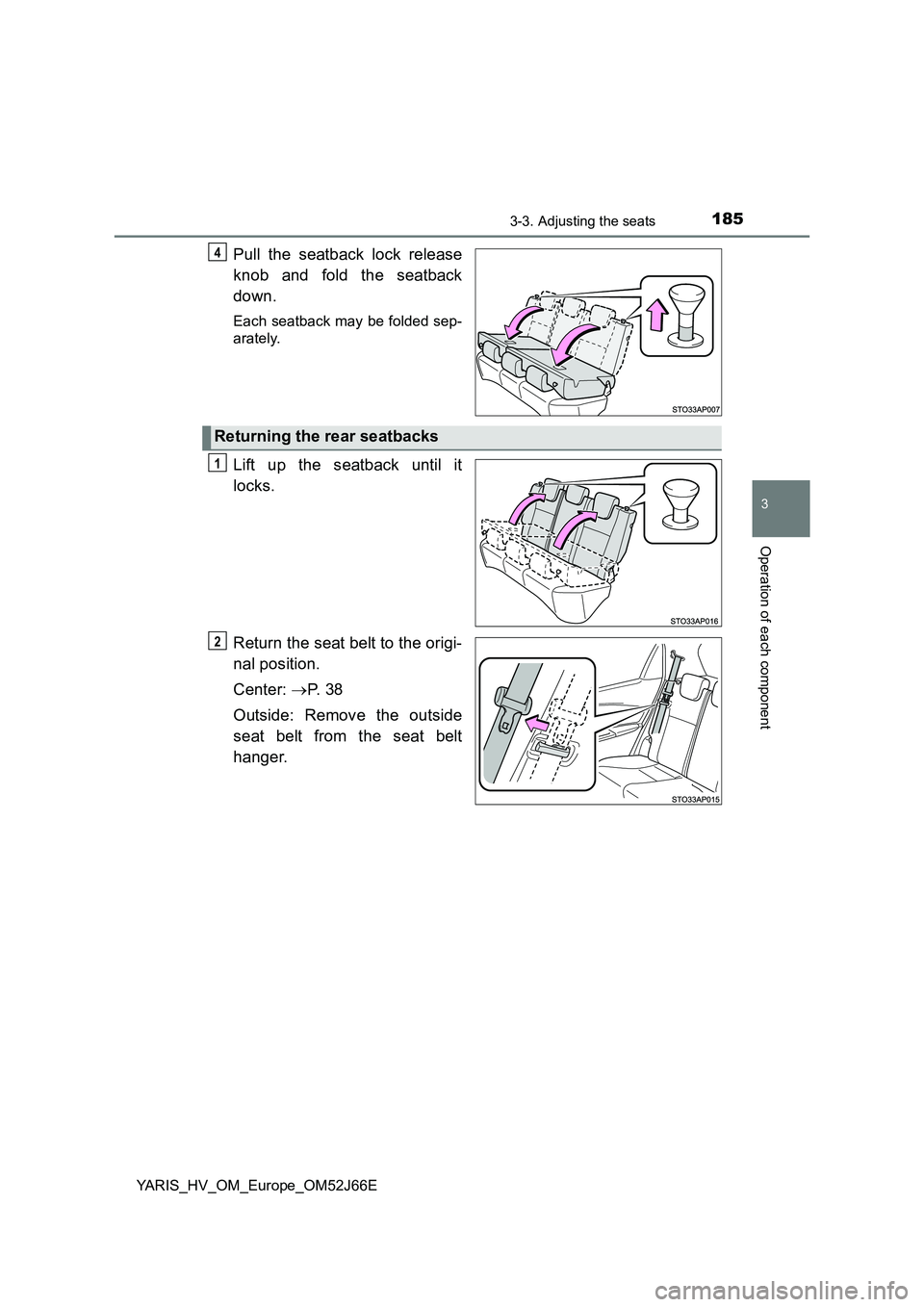

Pull the seatback lock release
knob and fold the seatback
down.
Each seatback may be folded sep-
arately.
Lift up the seatback until it
locks.
Return the seat belt to the origi-
nal position.
Center: P. 3 8
Outside: Remove the outside
seat belt from the seat belt
hanger.
4
Returning the rear seatbacks
1
2

1863-3. Adjusting the seats
YARIS_HV_OM_Europe_OM52J66E
WARNING
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
● Be careful not to catch your hand when folding the rear seatbacks.
● Depending on the position of the front seat, it may interfere when trying to
fold down the rear seatbacks. If this happens, adjust the position of the
front seat.
■ After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Check that the seat belts are not twisted or caught in the seatback.
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release knob. Make sure
that the red marking is not visible.

1873-3. Adjusting the seats
3
Operation of each component
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.

1883-3. Adjusting the seats
YARIS_HV_OM_Europe_OM52J66E

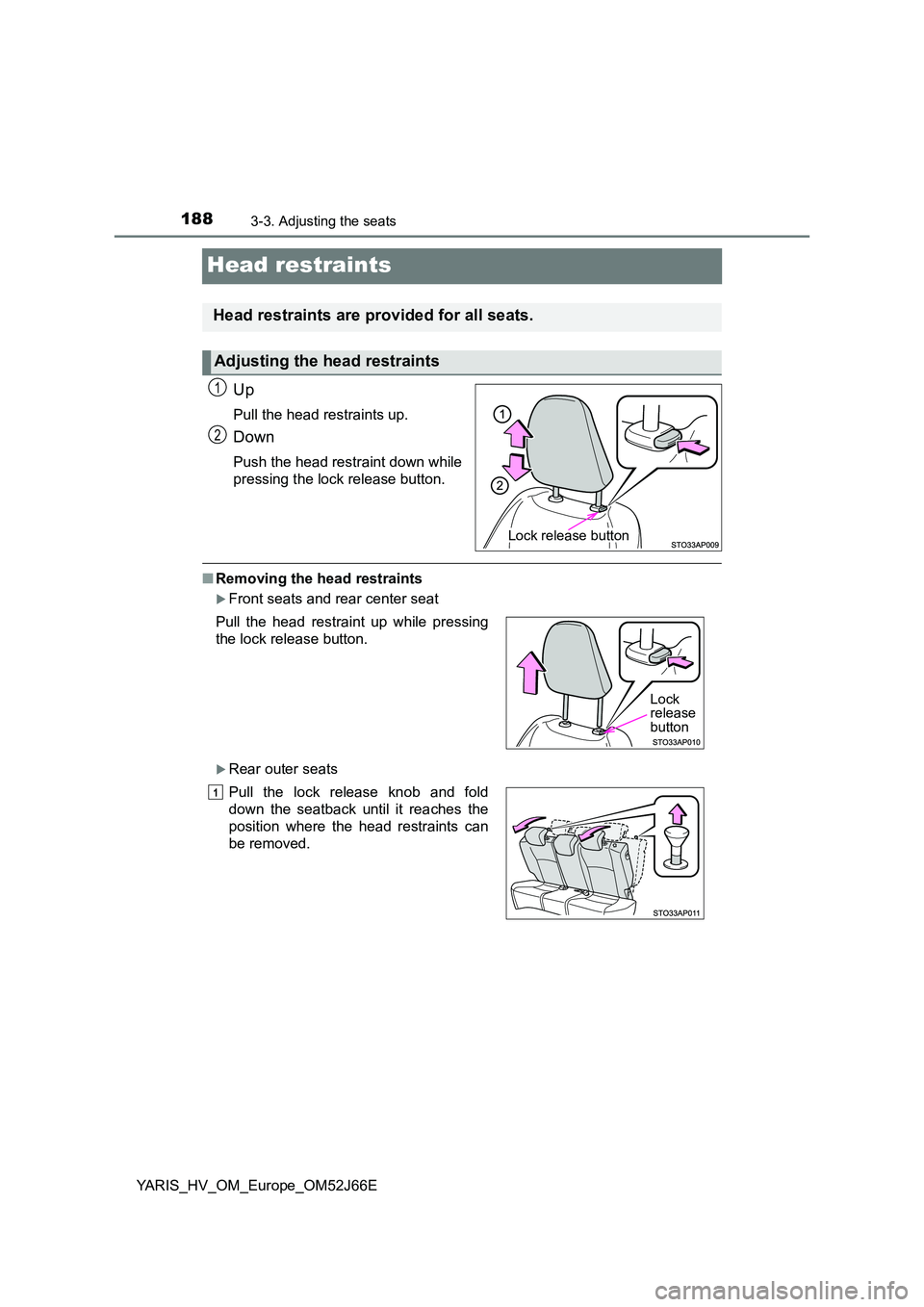

Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■ Removing the head restraints
Front seats and rear center seat
Rear outer seats
Head restraints are provided for all seats.
Adjusting the head restraints
Lock release button
1
2
Pull the head restraint up while pressing
the lock release button.
Pull the lock release knob and fold
down the seatback until it reaches the
position where the head restraints can
be removed.
Lock release button
1

1893-3. Adjusting the seats
3
Operation of each component
YARIS_HV_OM_Europe_OM52J66E

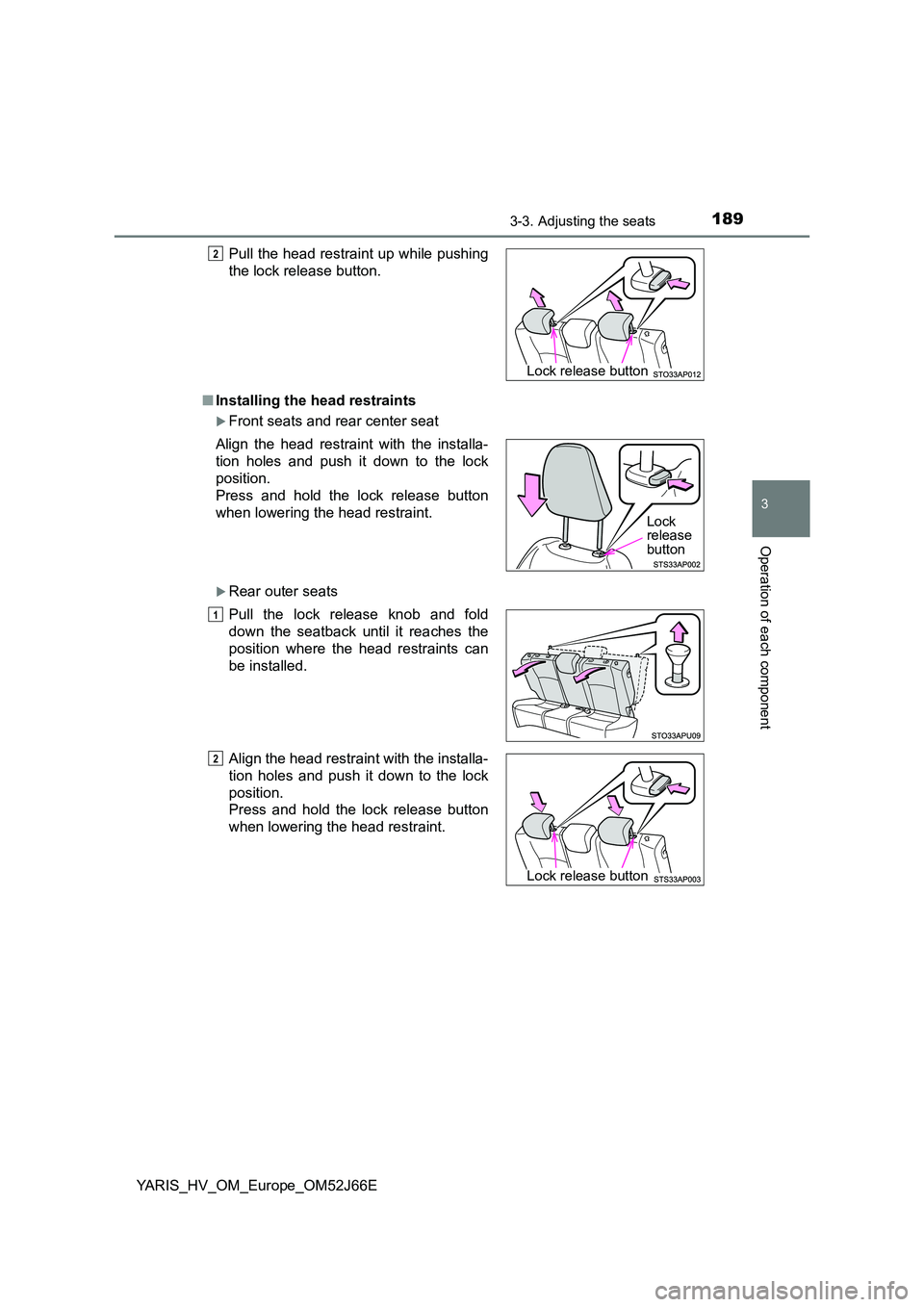

■ Installing the head restraints
Front seats and rear center seat
Rear outer seats
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Pull the lock release knob and fold
down the seatback until it reaches the
position where the head restraints can
be installed.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
2
Lock release button
Lock release button
1
2
Lock release button

1903-3. Adjusting the seats
YARIS_HV_OM_Europe_OM52J66E

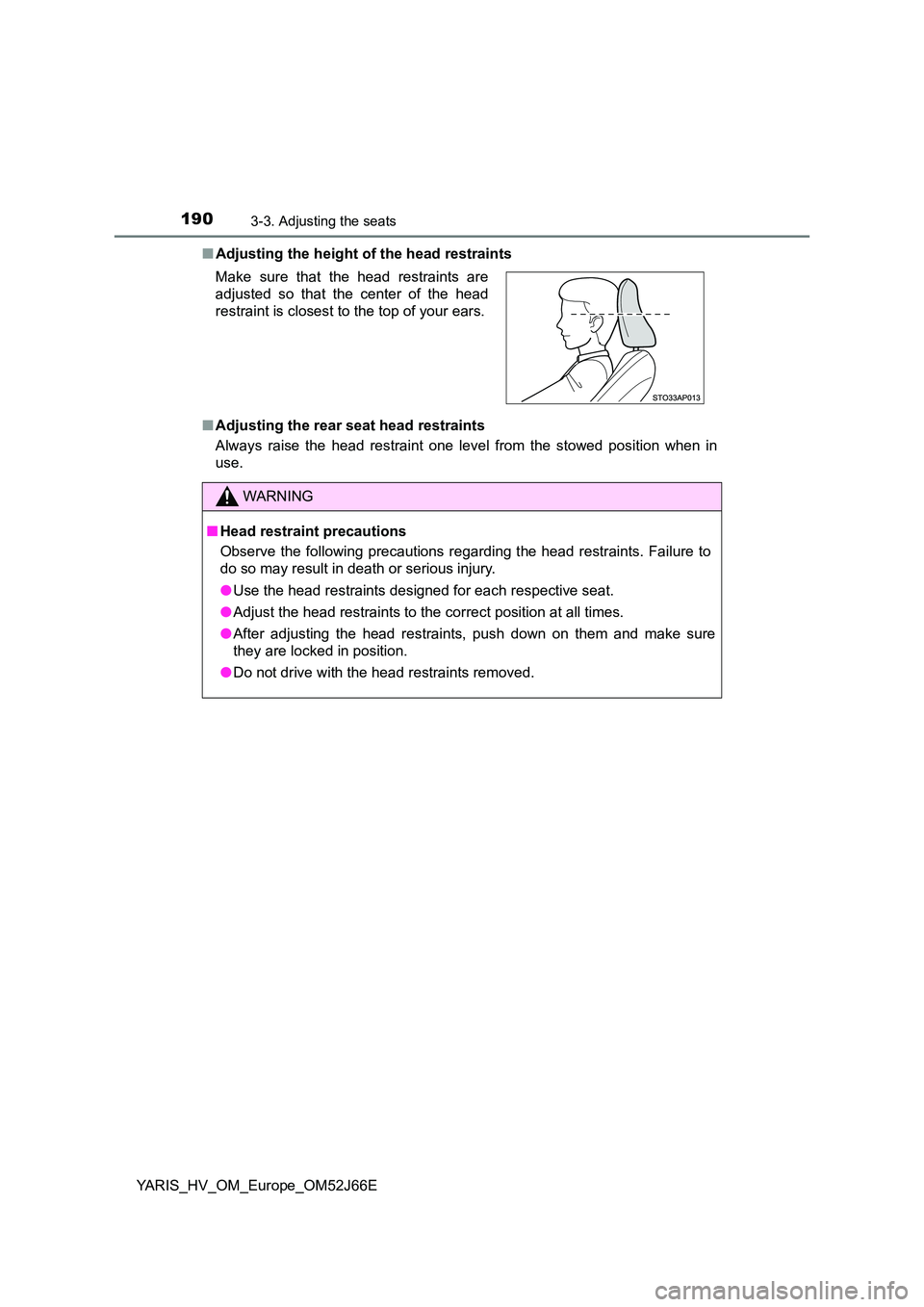

■ Adjusting the height of the head restraints
■ Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when in
use.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
