TOYOTA YARIS 2019 Owners Manual

3314-6. Using the driving support systems
4
Driving
YARIS_F_OM_Europe_OM52K19E

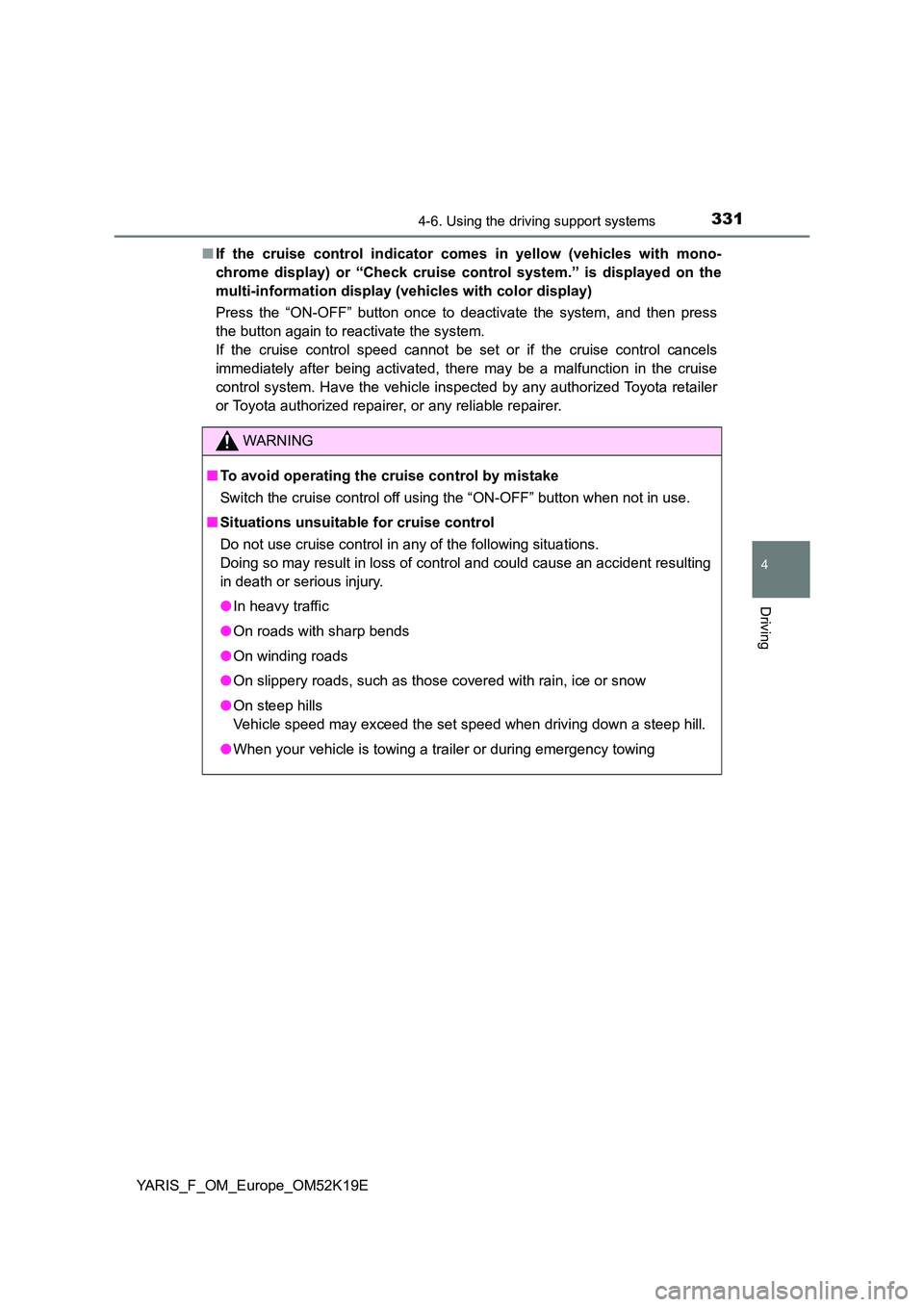

■ If the cruise control indicator comes in yellow (vehicles with mono-
chrome display) or “Check cruise control system.” is displayed on the
multi-information display ( vehicles with color display)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer or during emergency towing

3324-6. Using the driving support systems
YARIS_F_OM_Europe_OM52K19E

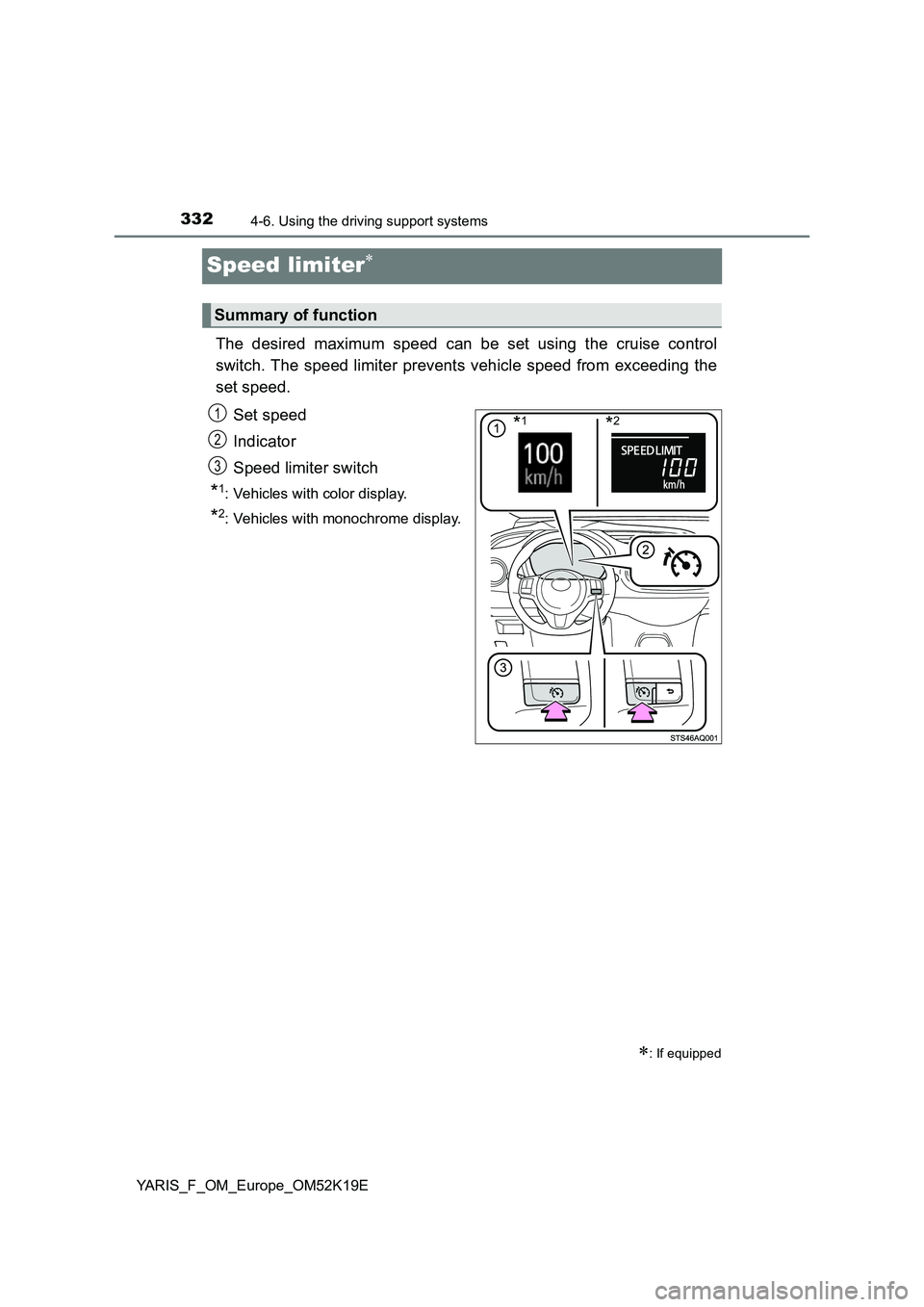

Speed limiter
The desired maximum speed can be set using the cruise control
switch. The speed limiter prevents vehicle speed from exceeding the
set speed.
Set speed
Indicator
Speed limiter switch
*1: Vehicles with color display.
*2: Vehicles with monochrome display.
Summary of function
: If equipped
*1*2 1
2
13

3334-6. Using the driving support systems
4
Driving
YARIS_F_OM_Europe_OM52K19E
Press the speed limiter switch
to activate the speed limiter.
Press the switch again to deacti-
vate the speed limiter.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
The vehicle speed at the moment
the lever is released becomes the
set speed.
*1: Vehicles with color display.
*2: Vehicles with monochrome dis-
play.
Setting the vehicle speed
1
*1*22

3344-6. Using the driving support systems
YARIS_F_OM_Europe_OM52K19E

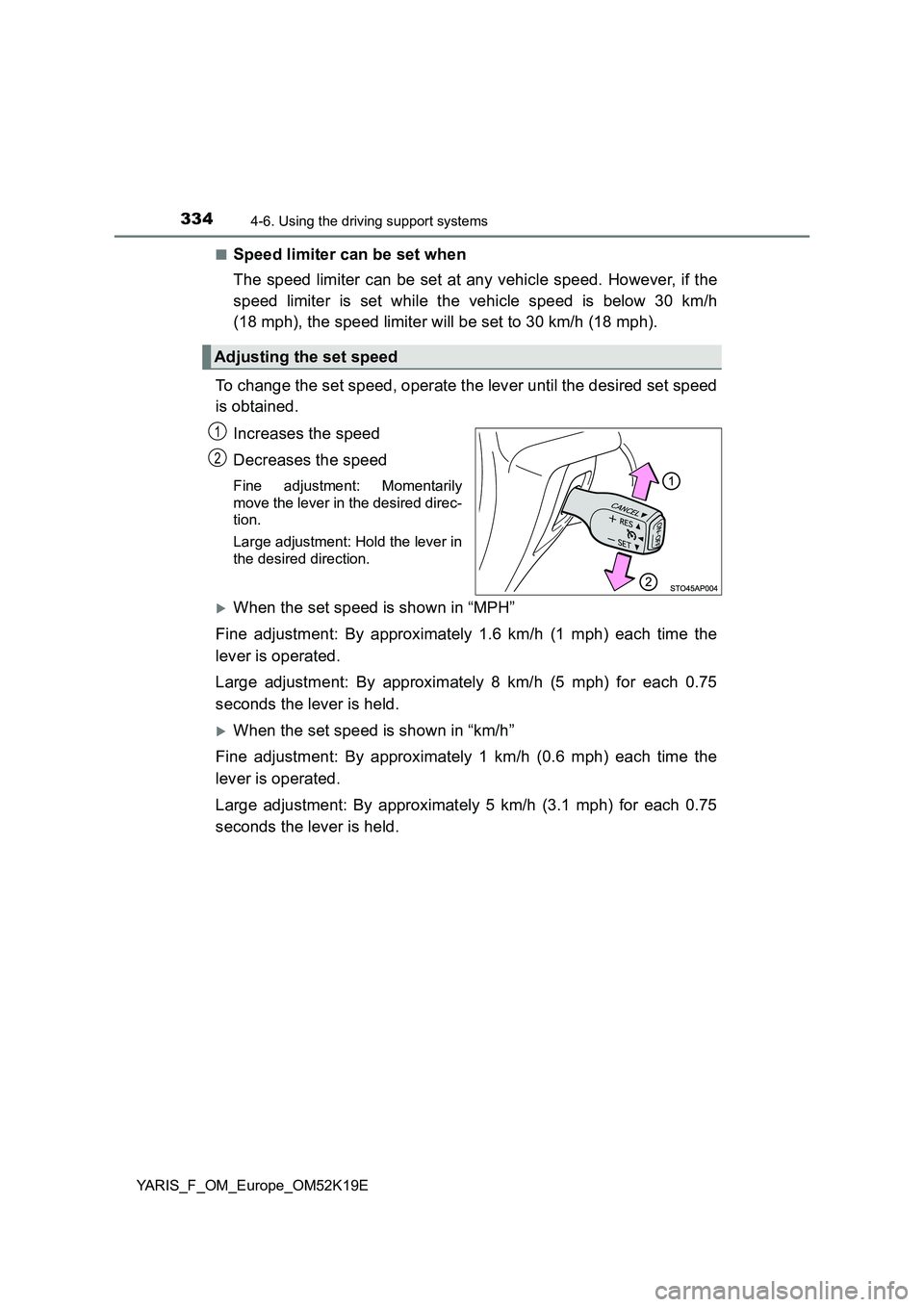

■Speed limiter can be set when
The speed limiter can be set at any vehicle speed. However, if the
speed limiter is set while the vehicle speed is below 30 km/h
(18 mph), the speed limiter will be set to 30 km/h (18 mph).
To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired direc-
tion.
Large adjustment: Hold the lever in
the desired direction.
When the set speed is shown in “MPH”
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the
lever is operated.
Large adjustment: By approximately 8 km/h (5 mph) for each 0.75
seconds the lever is held.
When the set speed is shown in “km/h”
Fine adjustment: By approximately 1 km/h (0.6 mph) each time the
lever is operated.
Large adjustment: By approximately 5 km/h (3.1 mph) for each 0.75
seconds the lever is held.
Adjusting the set speed
1
2

3354-6. Using the driving support systems
4
Driving
YARIS_F_OM_Europe_OM52K19E

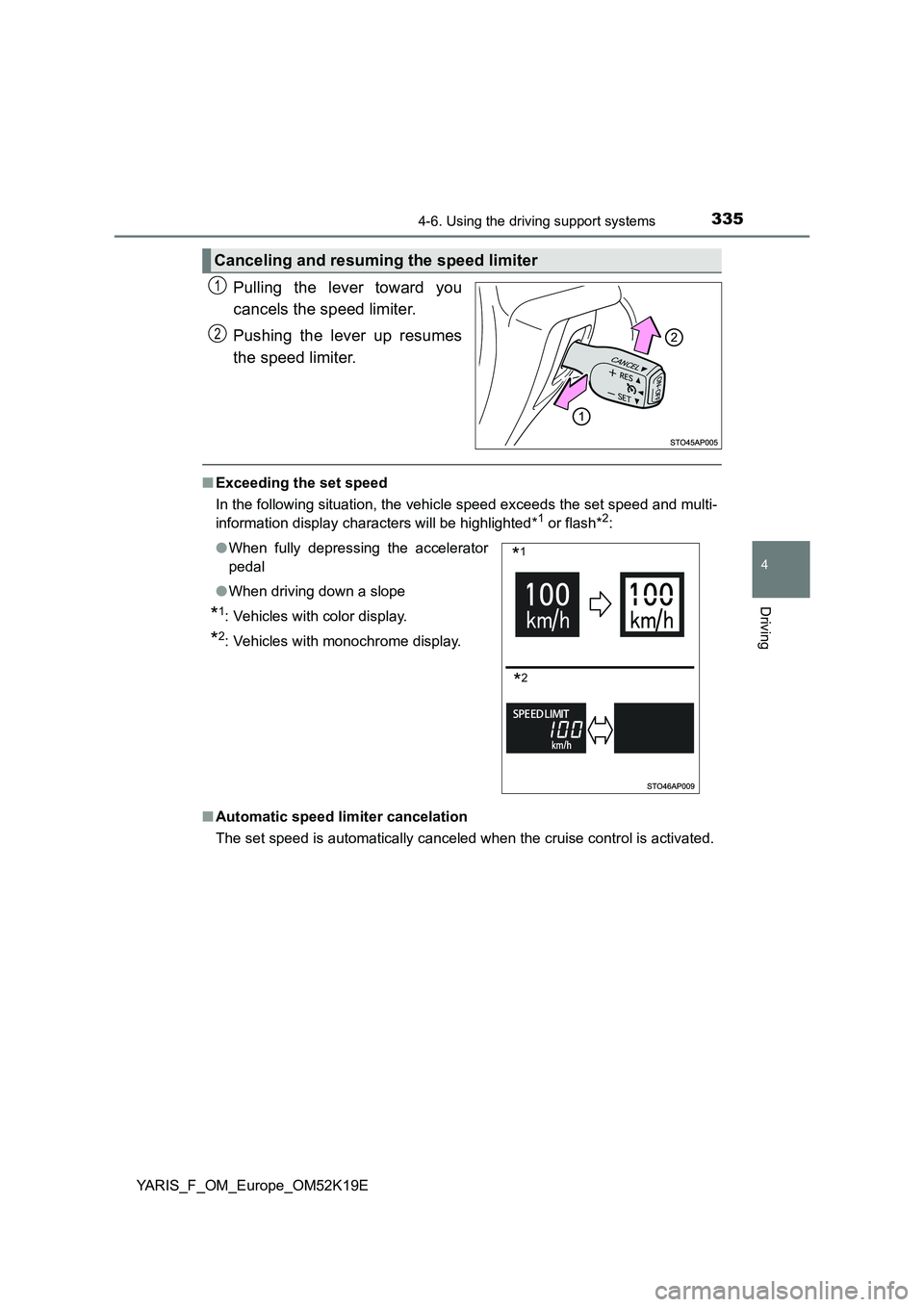

Pulling the lever toward you
cancels the speed limiter.
Pushing the lever up resumes
the speed limiter.
■ Exceeding the set speed
In the following situation, the vehicle speed exceeds the set speed and multi-
information display characters will be highlighted*1 or flash*2:
■ Automatic speed limiter cancelation
The set speed is automatically canceled when the cruise control is activated.
Canceling and resuming the speed limiter
1
2
● When fully depressing the accelerator
pedal
● When driving down a slope
*1: Vehicles with color display.
*2: Vehicles with monochrome display.
*1
*2

3364-6. Using the driving support systems
YARIS_F_OM_Europe_OM52K19E

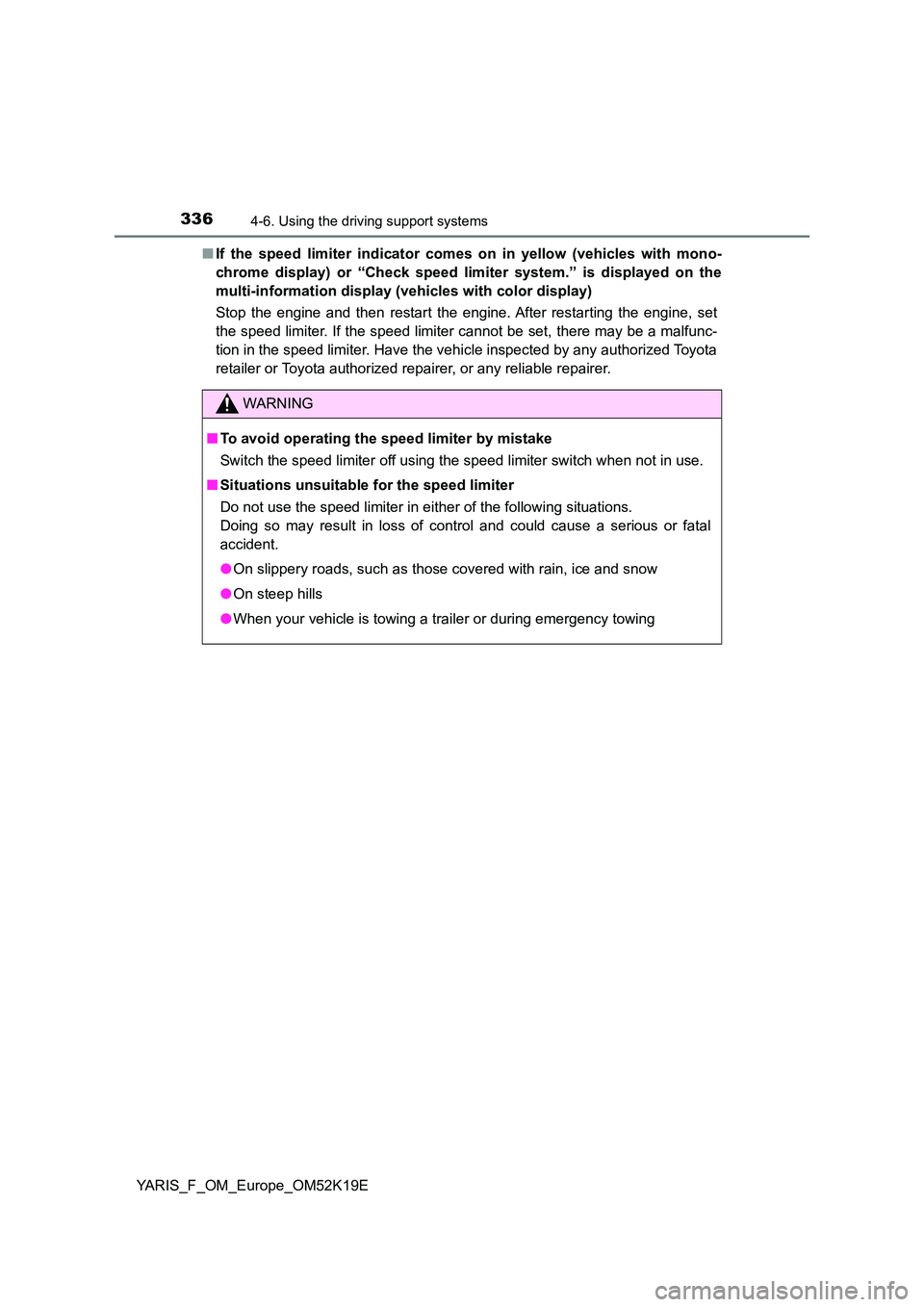

■ If the speed limiter indicator comes on in yellow (vehicles with mono-
chrome display) or “Check speed li miter system.” is displayed on the
multi-information display ( vehicles with color display)
Stop the engine and then restart the engine. After restarting the engine, set
the speed limiter. If the speed limiter cannot be set, there may be a malfunc-
tion in the speed limiter. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■ To avoid operating the speed limiter by mistake
Switch the speed limiter off using the speed limiter switch when not in use.
■ Situations unsuitable for the speed limiter
Do not use the speed limiter in either of the following situations.
Doing so may result in loss of control and could cause a serious or fatal
accident.
● On slippery roads, such as those covered with rain, ice and snow
● On steep hills
● When your vehicle is towing a trailer or during emergency towing

337
4
4-6. Using the driving support systems
Driving
YARIS_F_OM_Europe_OM52K19E
Stop & start system
Vehicles with a Multidrive
While driving in D or M, depress the brake pedal fully, and stop the
vehicle.
The engine will stop and the
Stop & Start indicator will come
on.
When the shift lever is in N or P,
the engine will remain stopped
without depressing the brake
pedal.
Vehicles with a manual transmission
With the clutch pedal fully depressed, stop the vehicle.
Then shift the shift lever to N.
Release the clutch pedal.
The engine will stop and the Stop &
Start indicator will come on.
: If equipped
The stop & start system stops and restarts the engine according
to the brake pedal and shift lever operation (Multidrive) or clutch
pedal operation (manual transmission) for stopping and starting
the vehicle.
Stopping the engine
1
2
1
2

3384-6. Using the driving support systems
YARIS_F_OM_Europe_OM52K19E

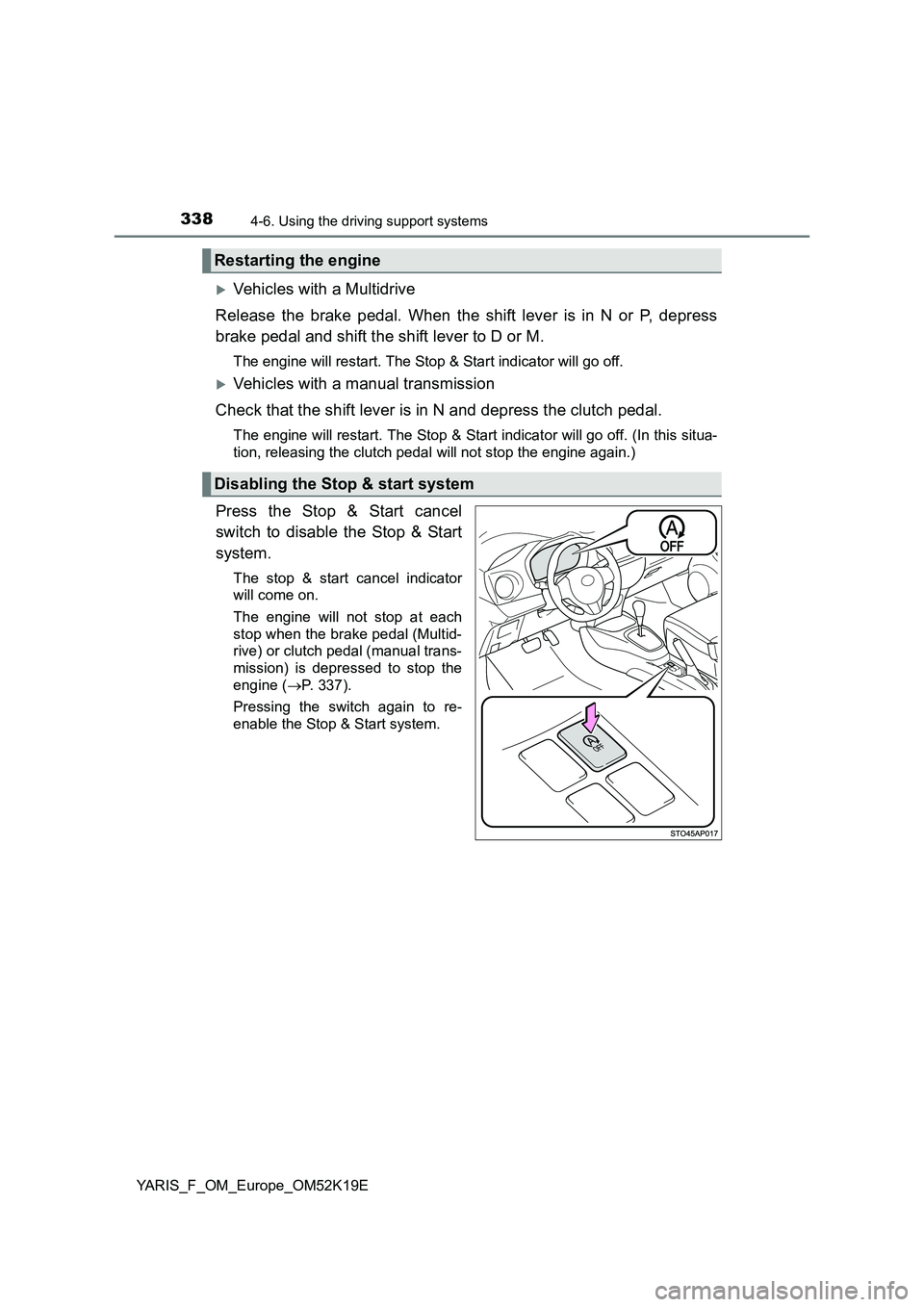

Vehicles with a Multidrive
Release the brake pedal. When the shift lever is in N or P, depress
brake pedal and shift the shift lever to D or M.
The engine will restart. The Stop & Start indicator will go off.
Vehicles with a manual transmission
Check that the shift lever is in N and depress the clutch pedal.
The engine will restart. The Stop & Start indicator will go off. (In this situa-
tion, releasing the clutch pedal will not stop the engine again.)
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The stop & start cancel indicator
will come on.
The engine will not stop at each
stop when the brake pedal (Multid-
rive) or clutch pedal (manual trans-
mission) is depressed to stop the
engine ( P. 337).
Pressing the switch again to re-
enable the Stop & Start system.
Restarting the engine
Disabling the Stop & start system

3394-6. Using the driving support systems
4
Driving
YARIS_F_OM_Europe_OM52K19E

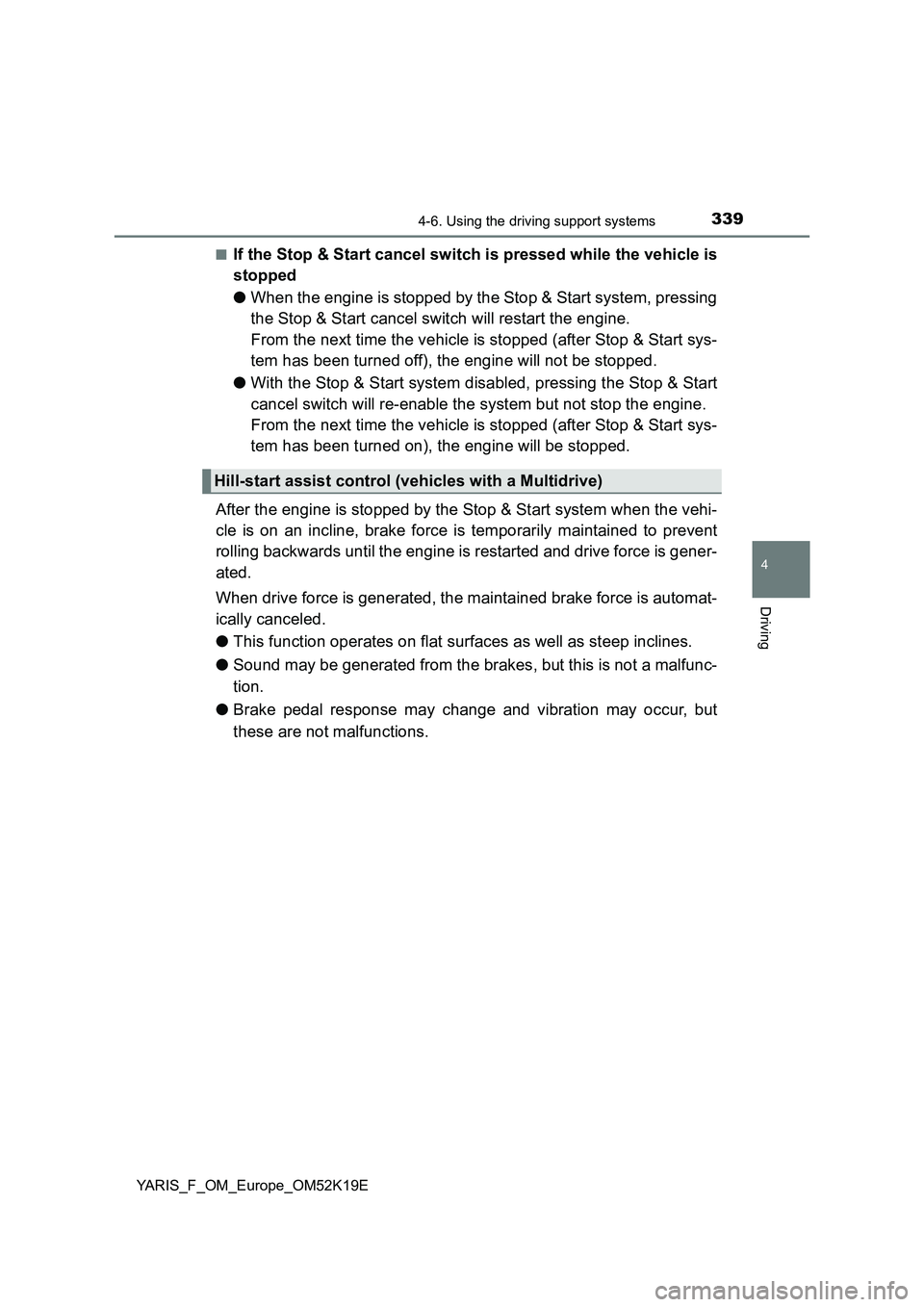

■If the Stop & Start cancel switch is pressed while the vehicle is
stopped
● When the engine is stopped by the Stop & Start system, pressing
the Stop & Start cancel switch will restart the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
● With the Stop & Start system disabled, pressing the Stop & Start
cancel switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.
After the engine is stopped by the Stop & Start system when the vehi-
cle is on an incline, brake force is temporarily maintained to prevent
rolling backwards until the engine is restarted and drive force is gener-
ated.
When drive force is generated, the maintained brake force is automat-
ically canceled.
● This function operates on flat surfaces as well as steep inclines.
● Sound may be generated from the brakes, but this is not a malfunc-
tion.
● Brake pedal response may change and vibration may occur, but
these are not malfunctions.
Hill-start assist control (vehicles with a Multidrive)

3404-6. Using the driving support systems
YARIS_F_OM_Europe_OM52K19E

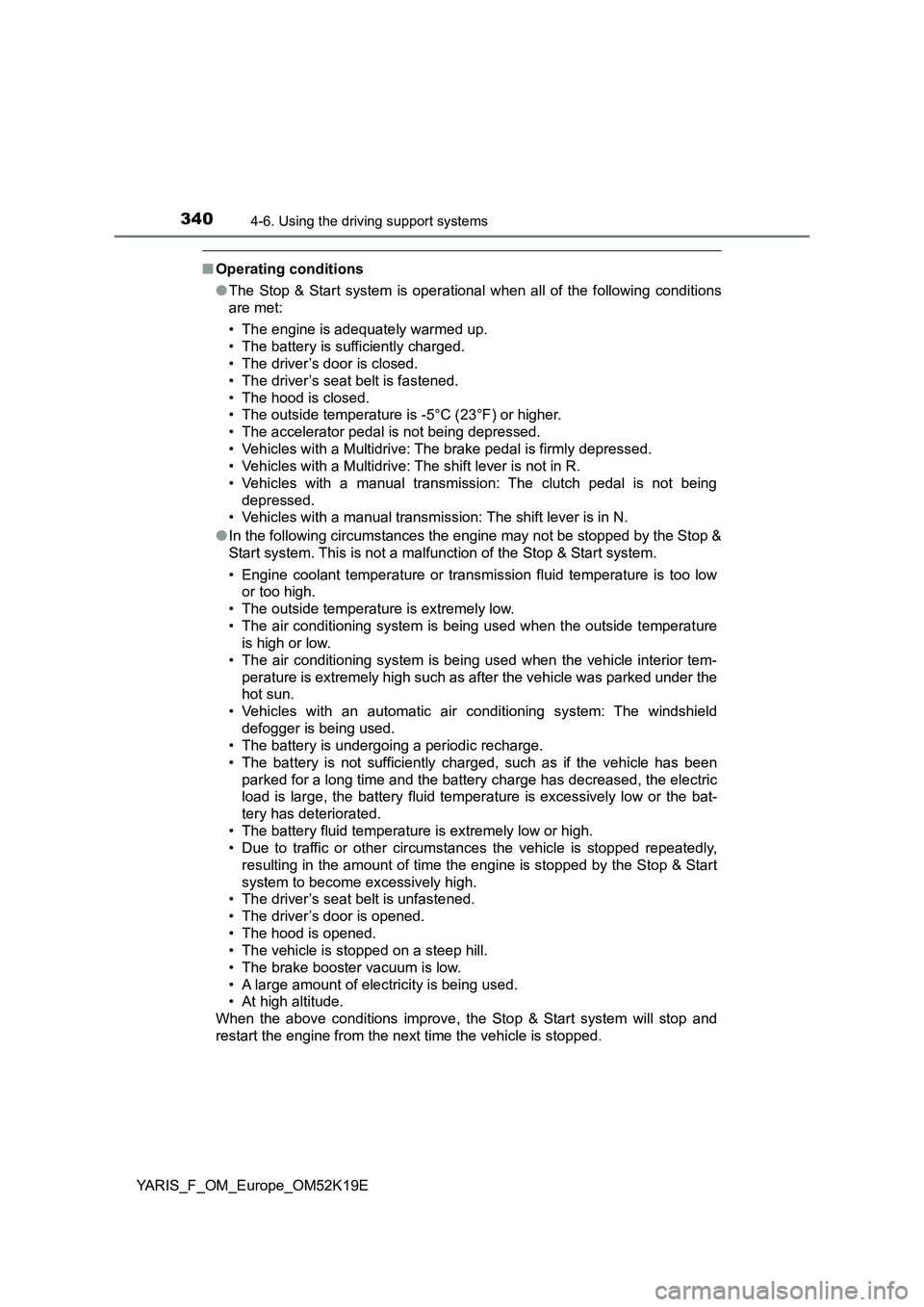

■Operating conditions
● The Stop & Start system is operational when all of the following conditions
are met:
• The engine is adequately warmed up.
• The battery is sufficiently charged.
• The driver’s door is closed.
• The driver’s seat belt is fastened.
• The hood is closed.
• The outside temperature is -5°C (23°F) or higher.
• The accelerator pedal is not being depressed.
• Vehicles with a Multidrive: The brake pedal is firmly depressed.
• Vehicles with a Multidrive: The shift lever is not in R.
• Vehicles with a manual transmission: The clutch pedal is not being
depressed.
• Vehicles with a manual transmission: The shift lever is in N.
● In the following circumstances the engine may not be stopped by the Stop &
Start system. This is not a malfunction of the Stop & Start system.
• Engine coolant temperature or transmi ssion fluid temperature is too low
or too high.
• The outside temperature is extremely low.
• The air conditioning system is being used when the outside temperature
is high or low.
• The air conditioning system is being used when the vehicle interior tem-
perature is extremely high such as after the vehicle was parked under the
hot sun.
• Vehicles with an automatic air conditioning system: The windshield
defogger is being used.
• The battery is undergoing a periodic recharge.
• The battery is not sufficiently charged, such as if the vehicle has been
parked for a long time and the battery charge has decreased, the electric
load is large, the battery fluid temperature is excessively low or the bat-
tery has deteriorated.
• The battery fluid temperature is extremely low or high.
• Due to traffic or other circumstances the vehicle is stopped repeatedly,
resulting in the amount of time the engine is stopped by the Stop & Start
system to become excessively high.
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• The hood is opened.
• The vehicle is stopped on a steep hill.
• The brake booster vacuum is low.
• A large amount of electricity is being used.
• At high altitude.
When the above conditions improve, the Stop & Start system will stop and
restart the engine from the next time the vehicle is stopped.
