TOYOTA YARIS 2019 Owners Manual

4817-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
.

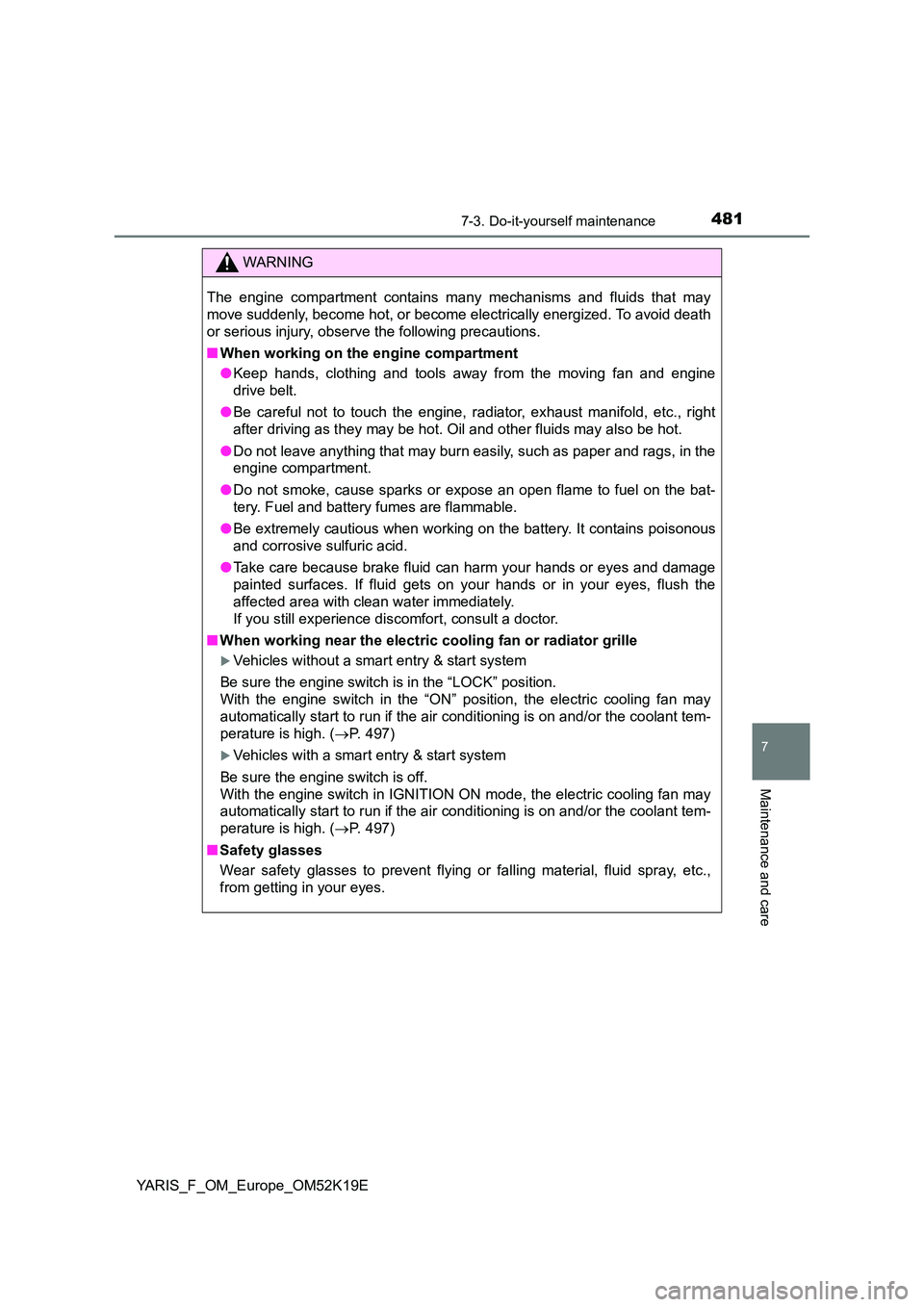

WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become el ectrically energized. To avoid death
or serious injury, observe the following precautions.
■ When working on the engine compartment
● Keep hands, clothing and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel on the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
● Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
■ When working near the electric cooling fan or radiator grille
Vehicles without a smart entry & start system
Be sure the engine switch is in the “LOCK” position.
With the engine switch in the “ON” position, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. ( P. 497)
Vehicles with a smart entry & start system
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. ( P. 497)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.,
from getting in your eyes.

4827-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

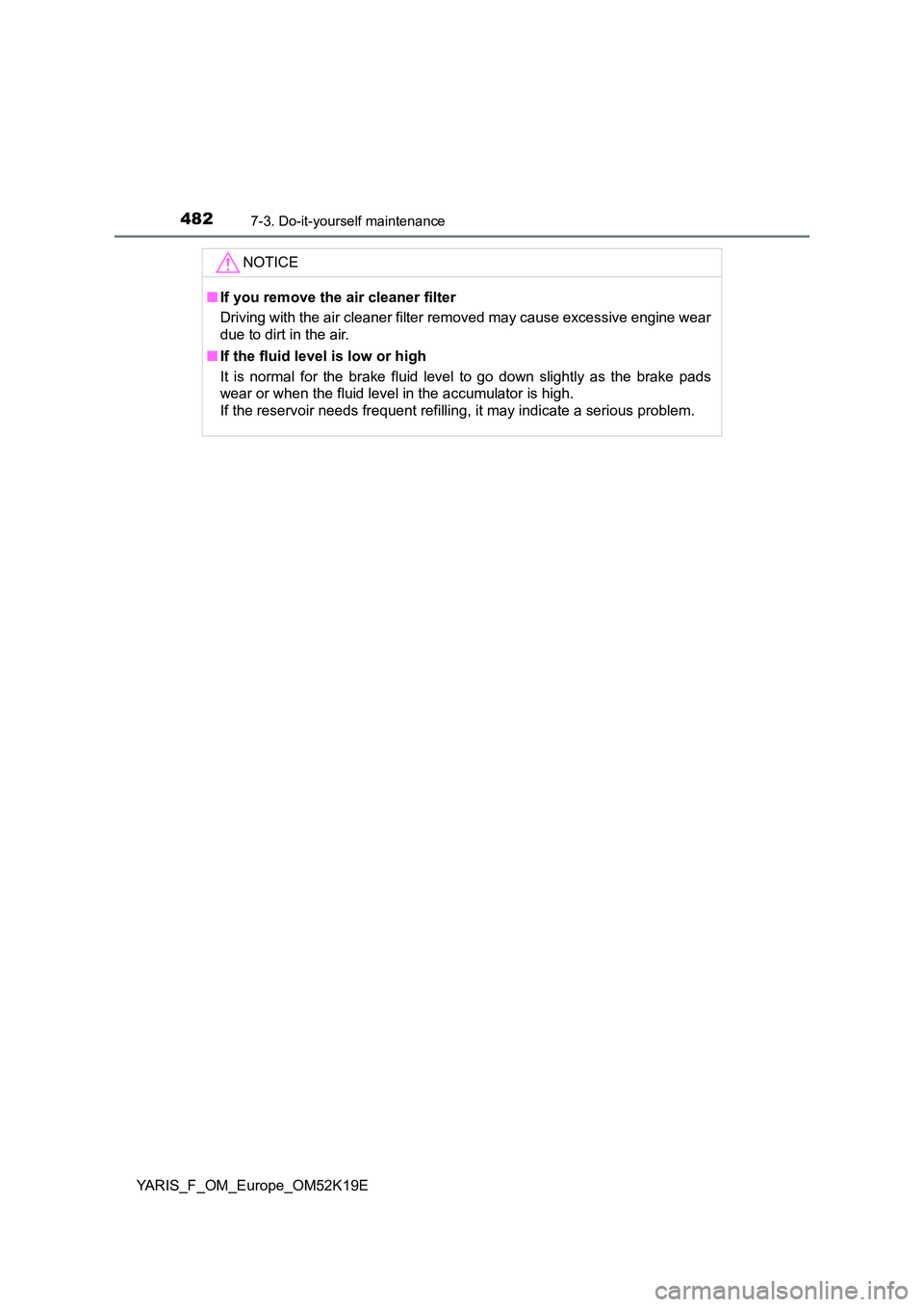

NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

4837-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

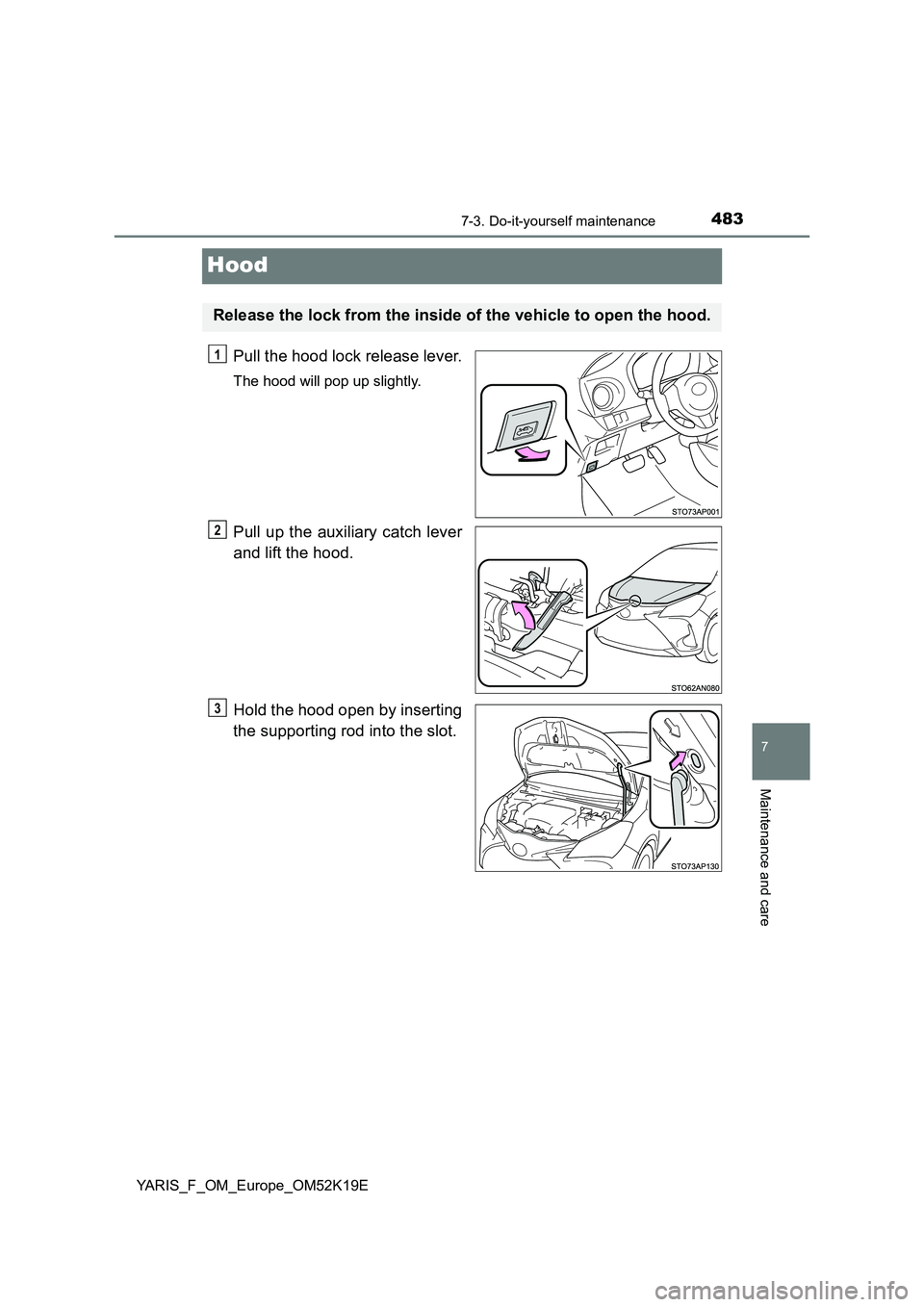

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the supporting rod into the slot.
Release the lock from the inside of the vehicle to open the hood.
1
2
3

4847-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

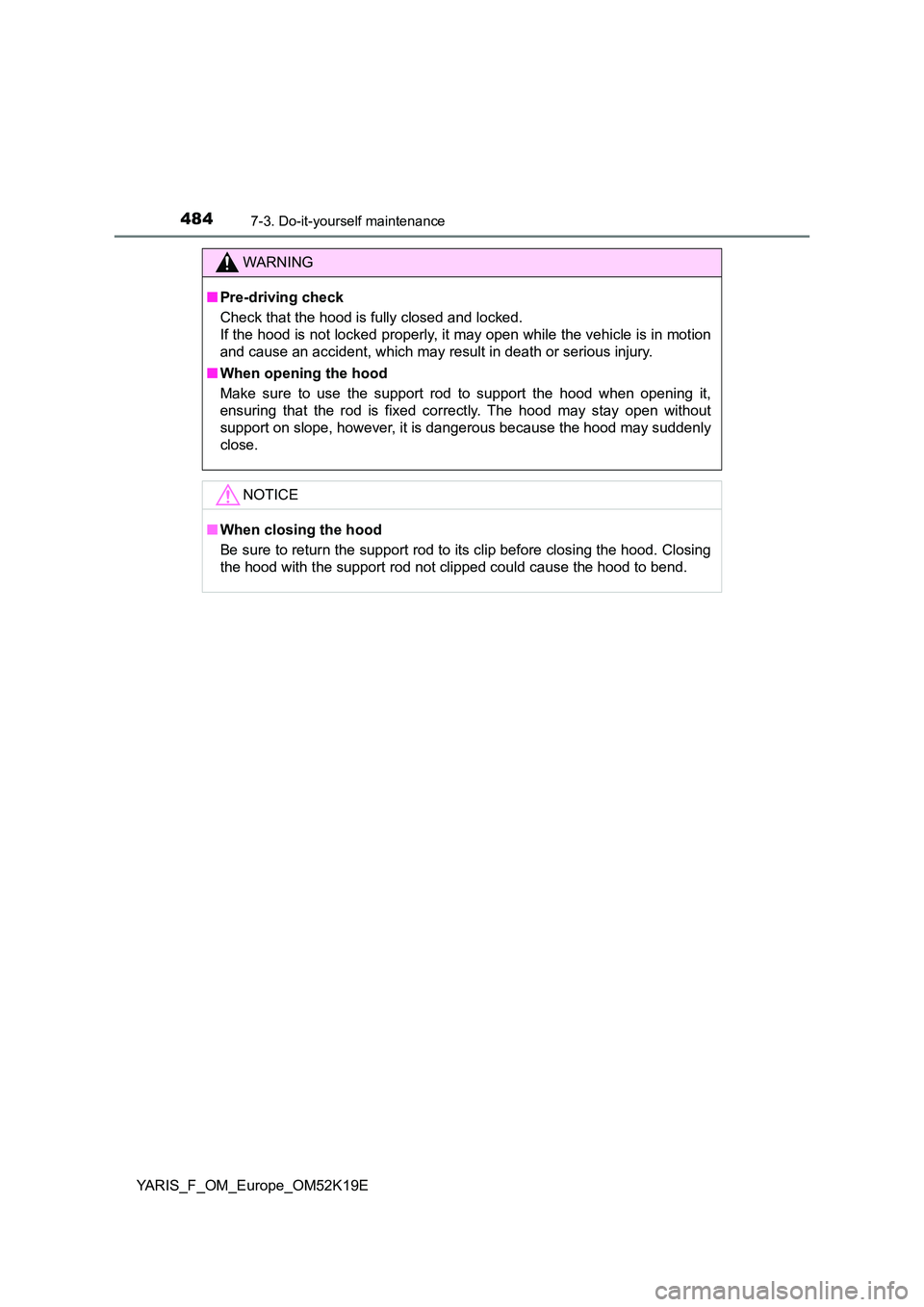

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ When opening the hood
Make sure to use the support rod to support the hood when opening it,
ensuring that the rod is fixed correctly. The hood may stay open without
support on slope, however, it is dangerous because the hood may suddenly
close.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod not clipped could cause the hood to bend.

4857-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

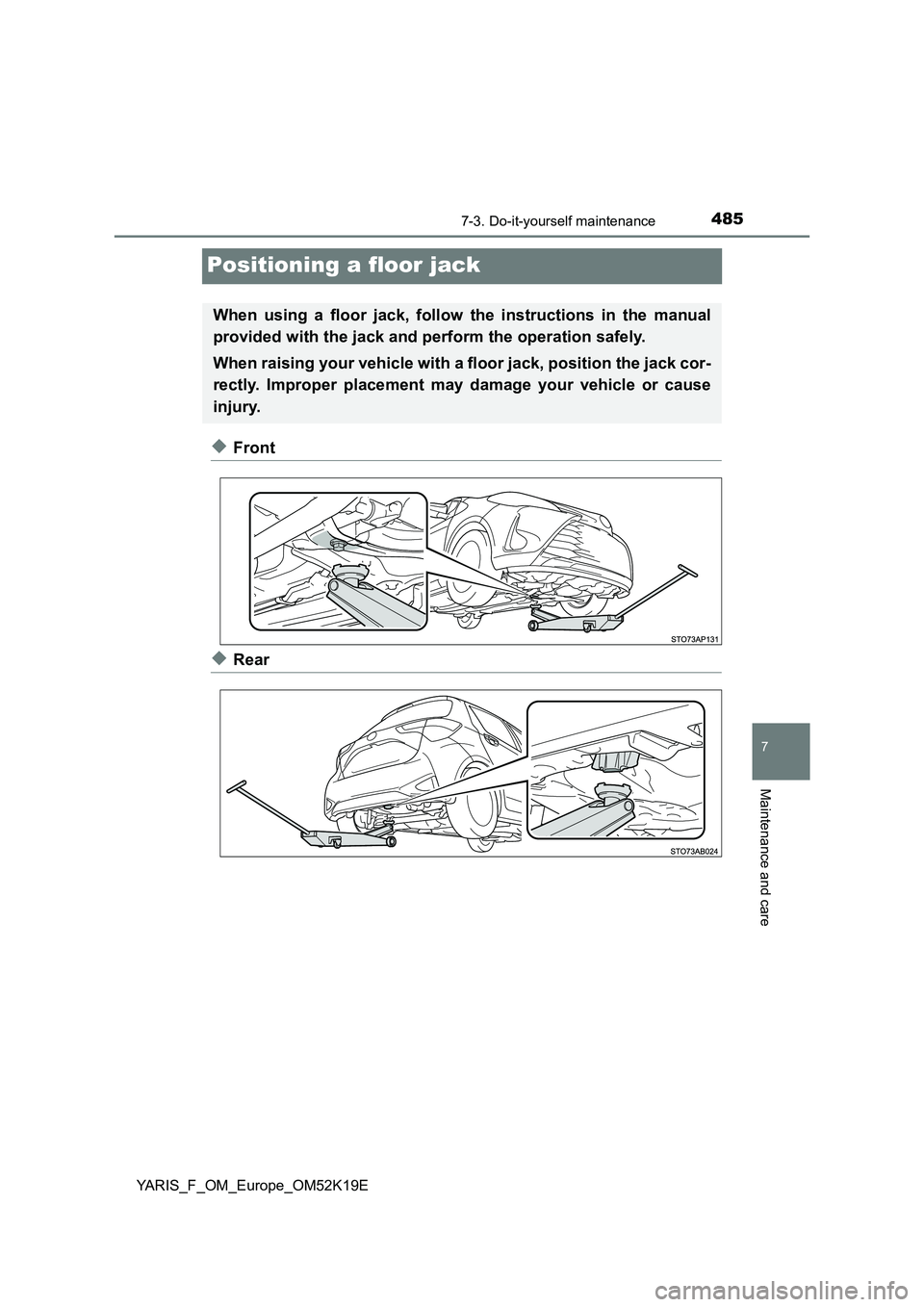

Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

4867-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

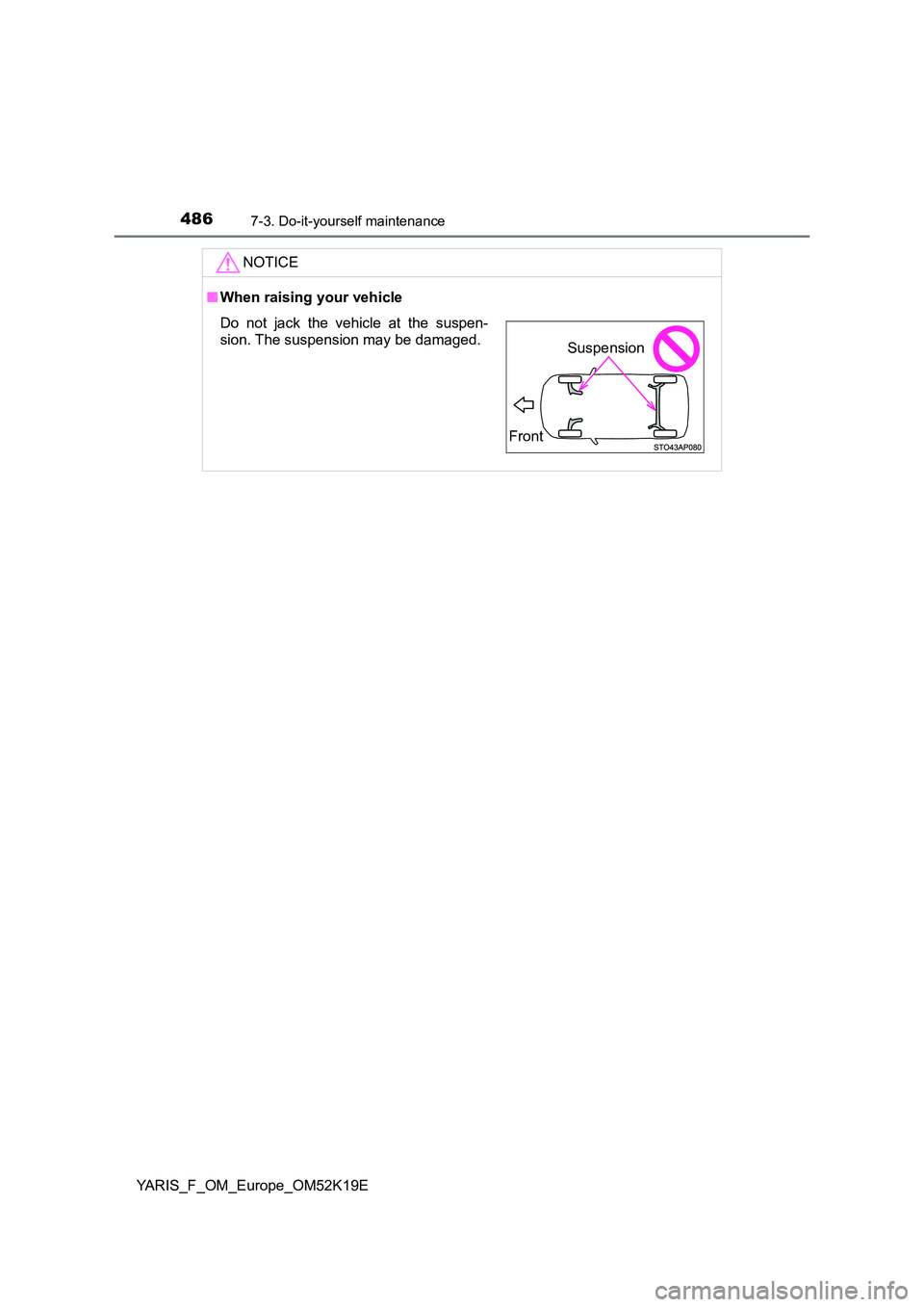

NOTICE
■When raising your vehicle
Do not jack the vehicle at the suspen-
sion. The suspension may be damaged.
Front
Suspension

4877-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

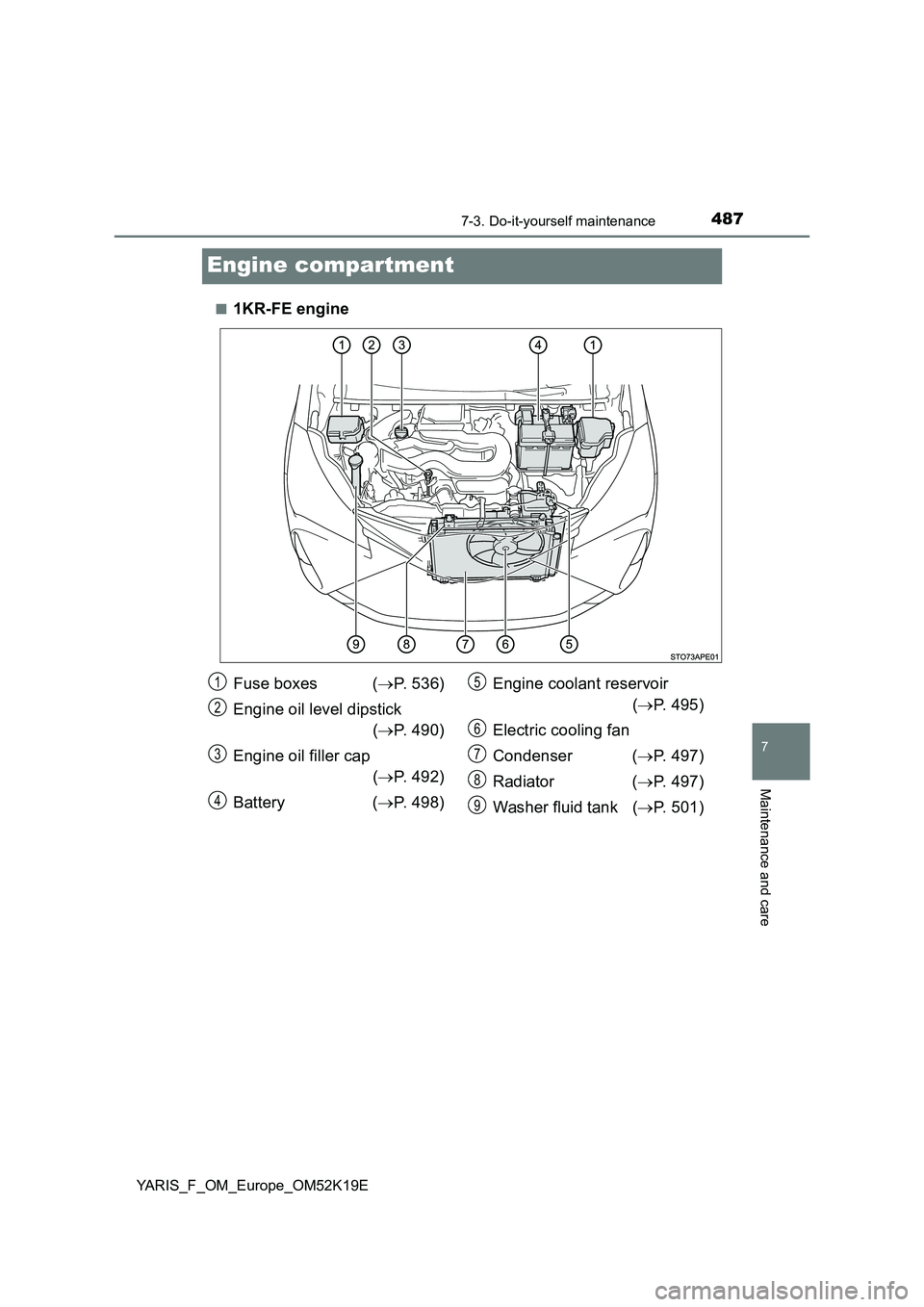

Engine compartment
■1KR-FE engine
Fuse boxes (P. 536)
Engine oil level dipstick
( P. 490)
Engine oil filler cap
( P. 492)
Battery ( P. 498)
Engine coolant reservoir
( P. 495)
Electric cooling fan
Condenser ( P. 497)
Radiator ( P. 497)
Washer fluid tank ( P. 501)
1
2
3
4
5
6
7
8
9

4887-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

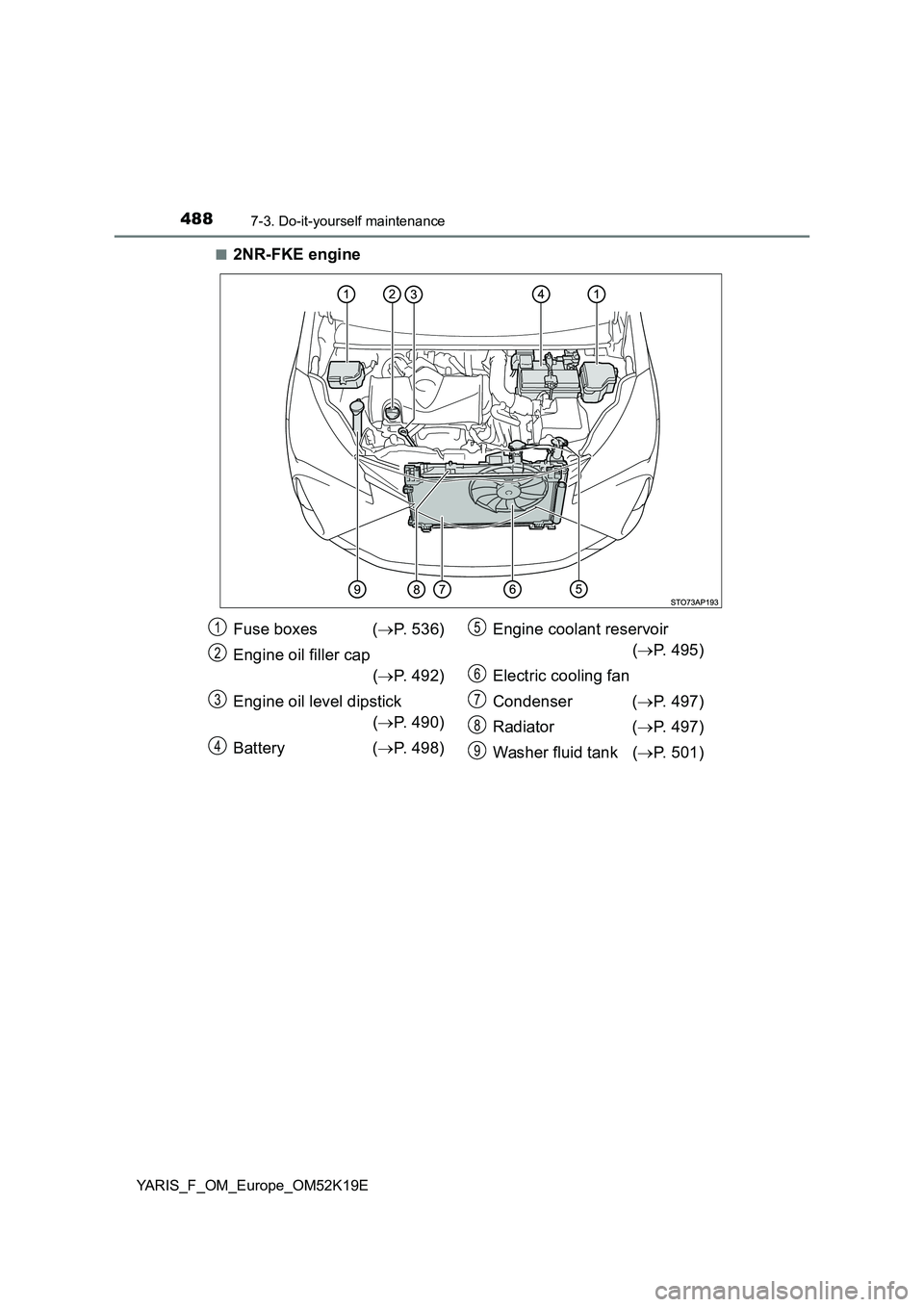

■2NR-FKE engine
Fuse boxes ( P. 536)
Engine oil filler cap
( P. 492)
Engine oil level dipstick
( P. 490)
Battery ( P. 498)
Engine coolant reservoir
( P. 495)
Electric cooling fan
Condenser ( P. 497)
Radiator ( P. 497)
Washer fluid tank ( P. 501)
1
2
3
4
5
6
7
8
9

4897-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

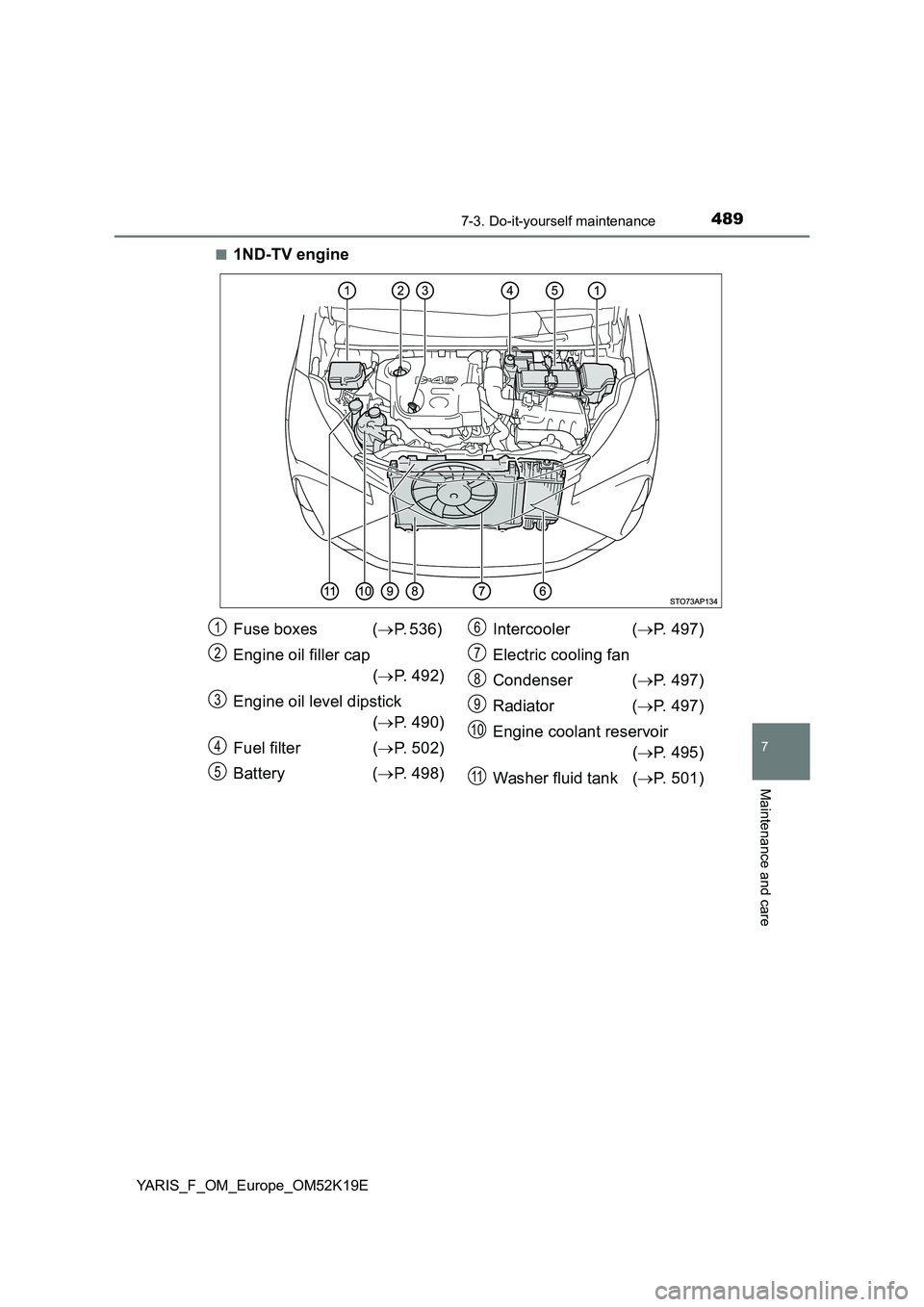

■1ND-TV engine
Fuse boxes ( P. 536)
Engine oil filler cap
( P. 492)
Engine oil level dipstick
( P. 490)
Fuel filter ( P. 502)
Battery ( P. 498)
Intercooler ( P. 497)
Electric cooling fan
Condenser ( P. 497)
Radiator ( P. 497)
Engine coolant reservoir
( P. 495)
Washer fluid tank ( P. 501)
1
2
3
4
5
6
7
8
9
10
11

4907-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

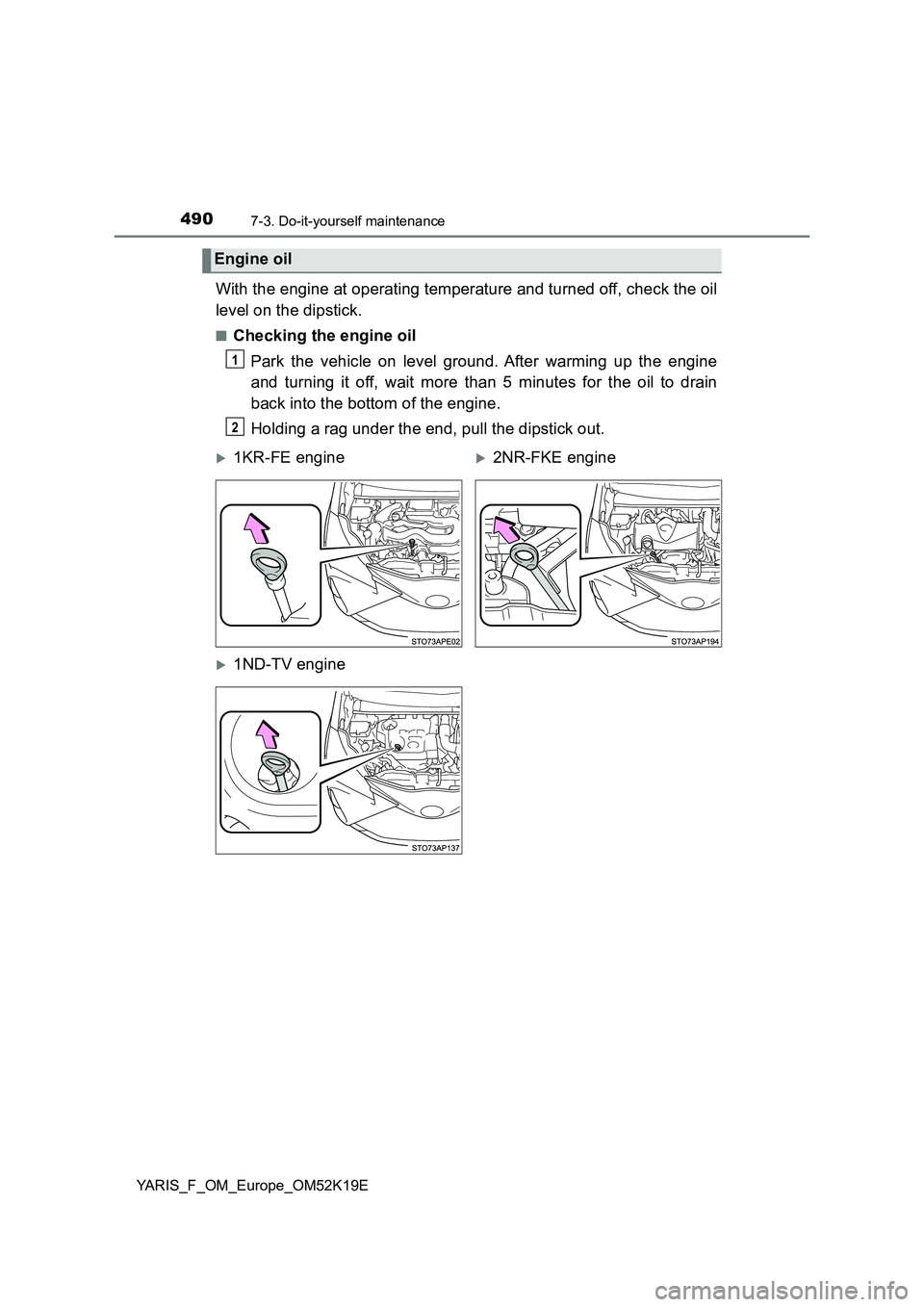

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2
1KR-FE engine2NR-FKE engine
1ND-TV engine
