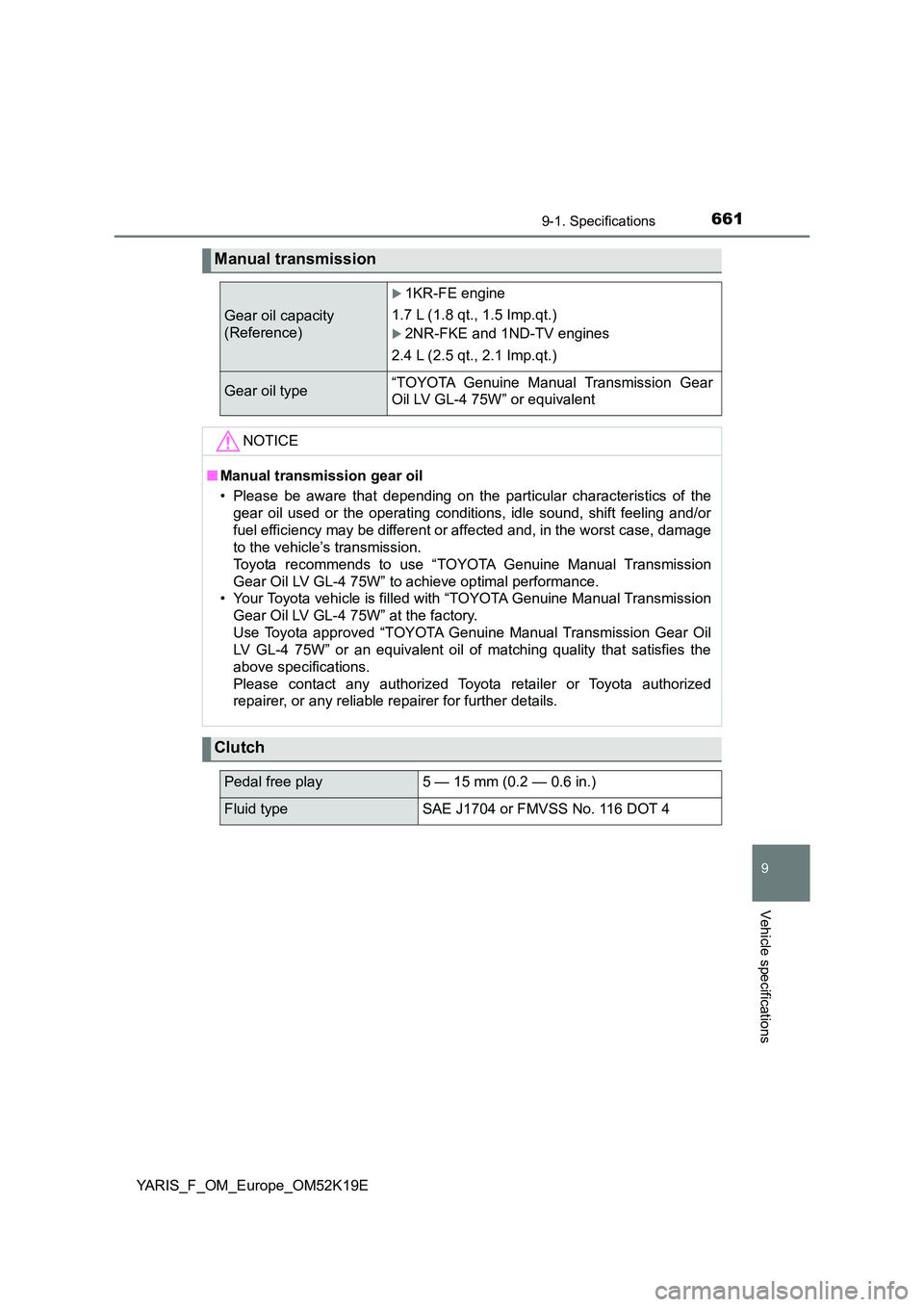

Page 661 of 700

6619-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E
Manual transmission
Gear oil capacity
(Reference)
1KR-FE engine
1.7 L (1.8 qt., 1.5 Imp.qt.)
2NR-FKE and 1ND-TV engines
2.4 L (2.5 qt., 2.1 Imp.qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■ Manual transmission gear oil
• Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift feeling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle’s transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” to achieve optimal performance.
• Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil
LV GL-4 75W” or an equivalent oil of matching quality that satisfies the
above specifications.
Please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details.
Clutch
Pedal free play5 — 15 mm (0.2 — 0.6 in.)
Fluid typeSAE J1704 or FMVSS No. 116 DOT 4

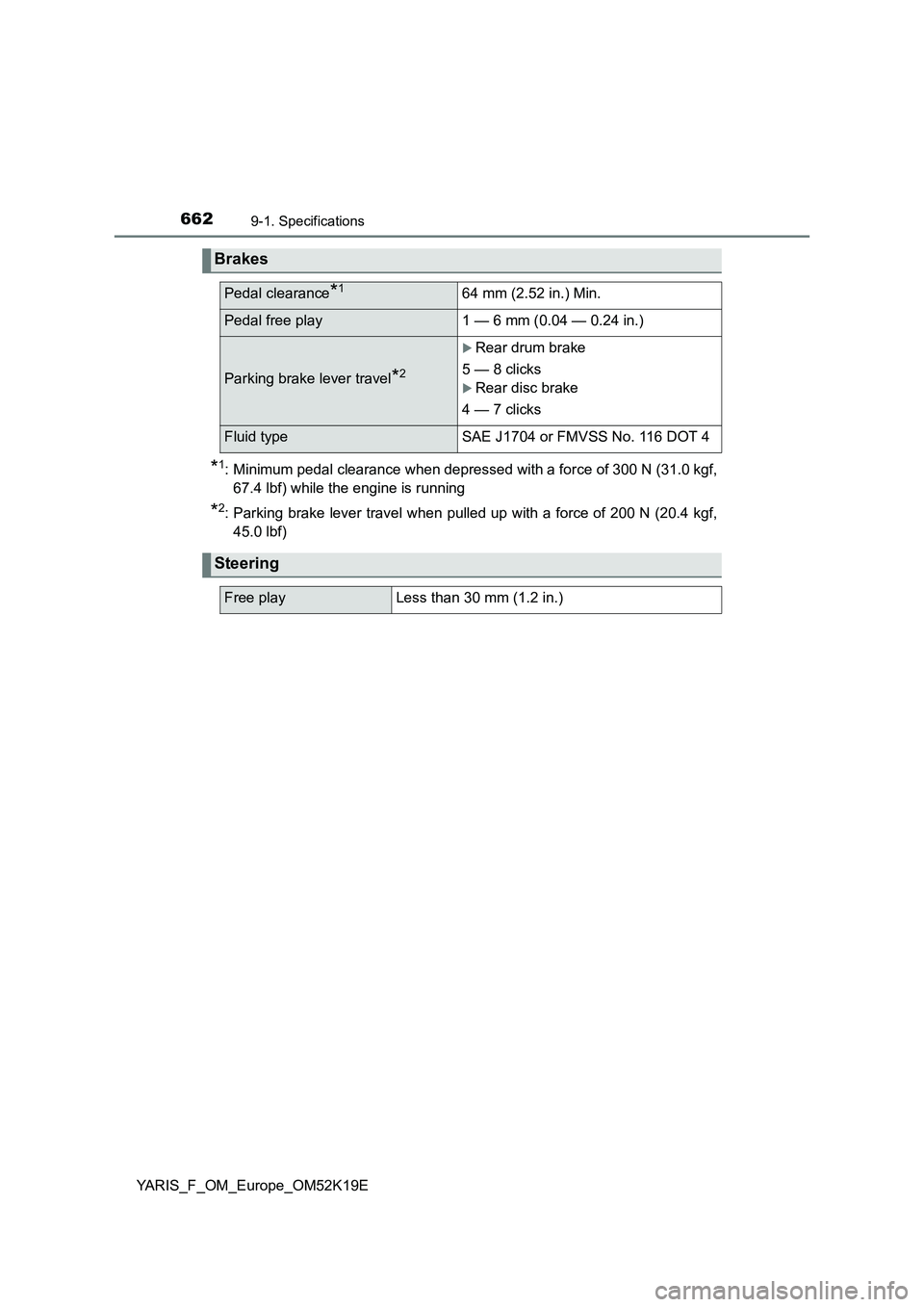

Page 662 of 700

6629-1. Specifications
YARIS_F_OM_Europe_OM52K19E
*1: Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Brakes
Pedal clearance*164 mm (2.52 in.) Min.
Pedal free play1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*2
Rear drum brake
5 — 8 clicks
Rear disc brake
4 — 7 clicks
Fluid typeSAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

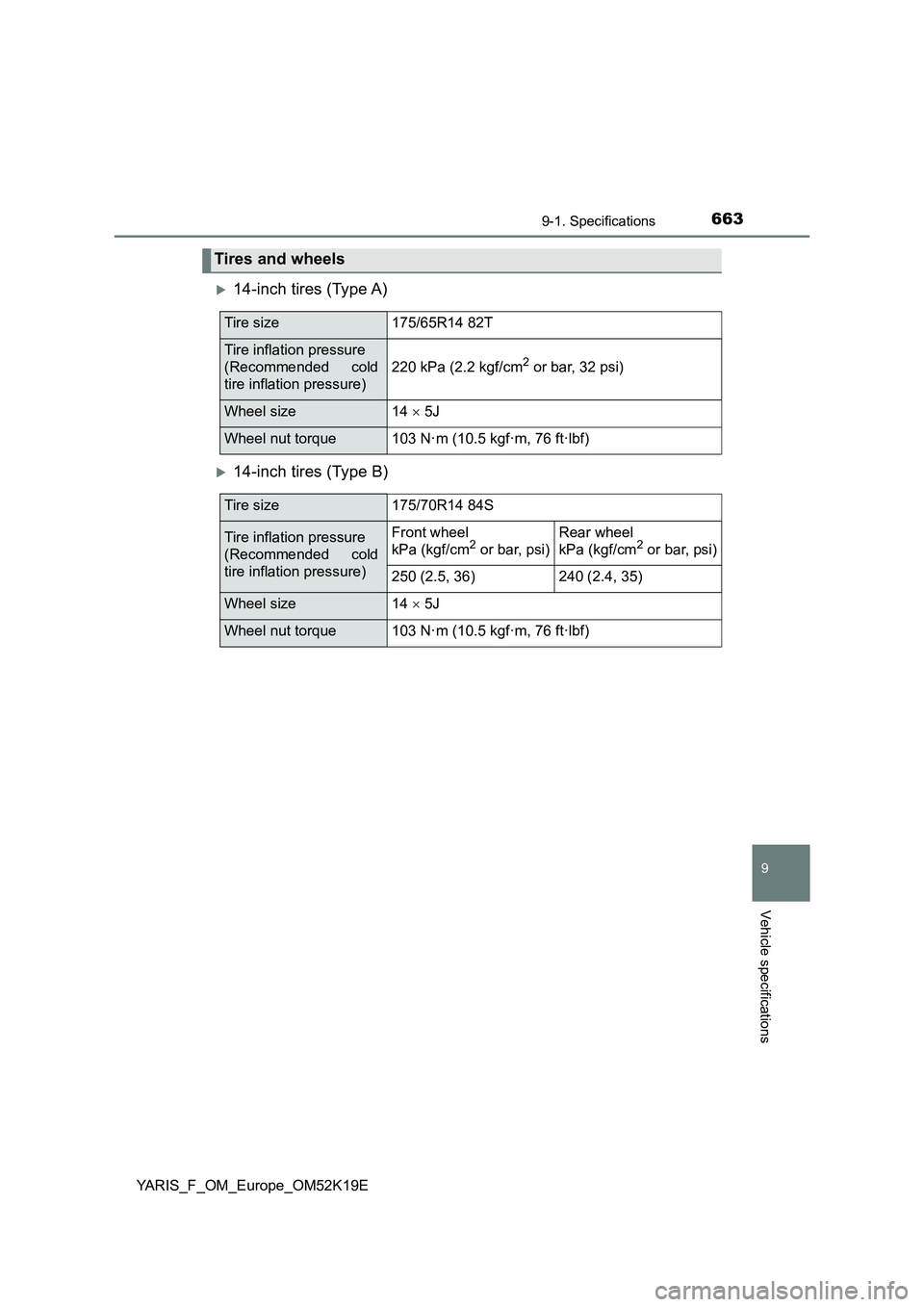

Page 663 of 700

6639-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E
14-inch tires (Type A)
14-inch tires (Type B)
Tires and wheels
Tire size175/65R14 82T
Tire inflation pressure
(Recommended cold
tire inflation pressure)
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size14 5J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size175/70R14 84S
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
250 (2.5, 36)240 (2.4, 35)
Wheel size14 5J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

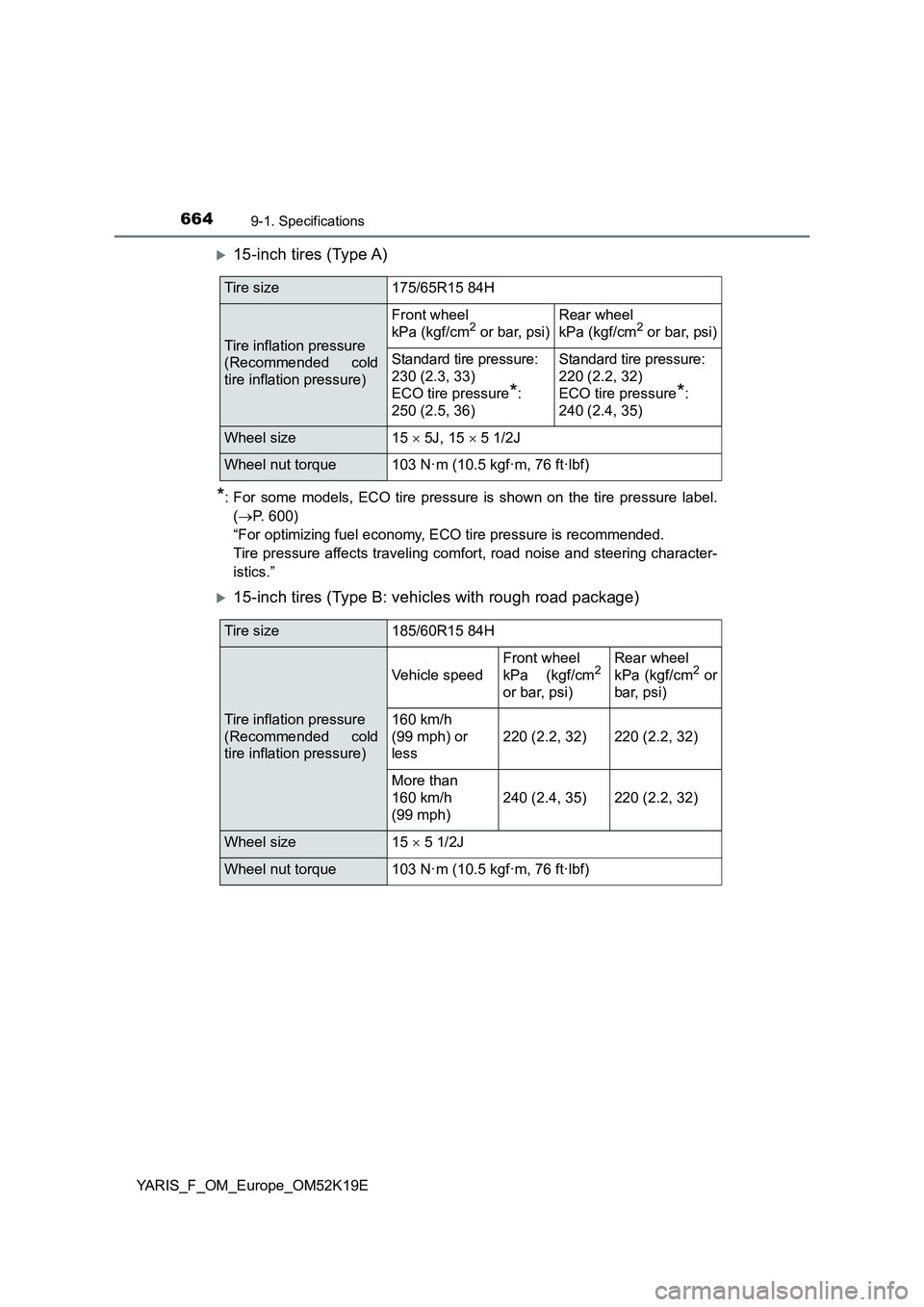

Page 664 of 700

6649-1. Specifications
YARIS_F_OM_Europe_OM52K19E
15-inch tires (Type A)
*: For some models, ECO tire pressure is shown on the tire pressure label.
( P. 600)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering character-
istics.”
15-inch tires (Type B: vehicles with rough road package)
Tire size175/65R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
Standard tire pressure:
230 (2.3, 33)
ECO tire pressure*:
250 (2.5, 36)
Standard tire pressure:
220 (2.2, 32)
ECO tire pressure*:
240 (2.4, 35)
Wheel size15 5J, 15 5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size185/60R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)220 (2.2, 32)
More than
160 km/h
(99 mph)
240 (2.4, 35)220 (2.2, 32)
Wheel size15 5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

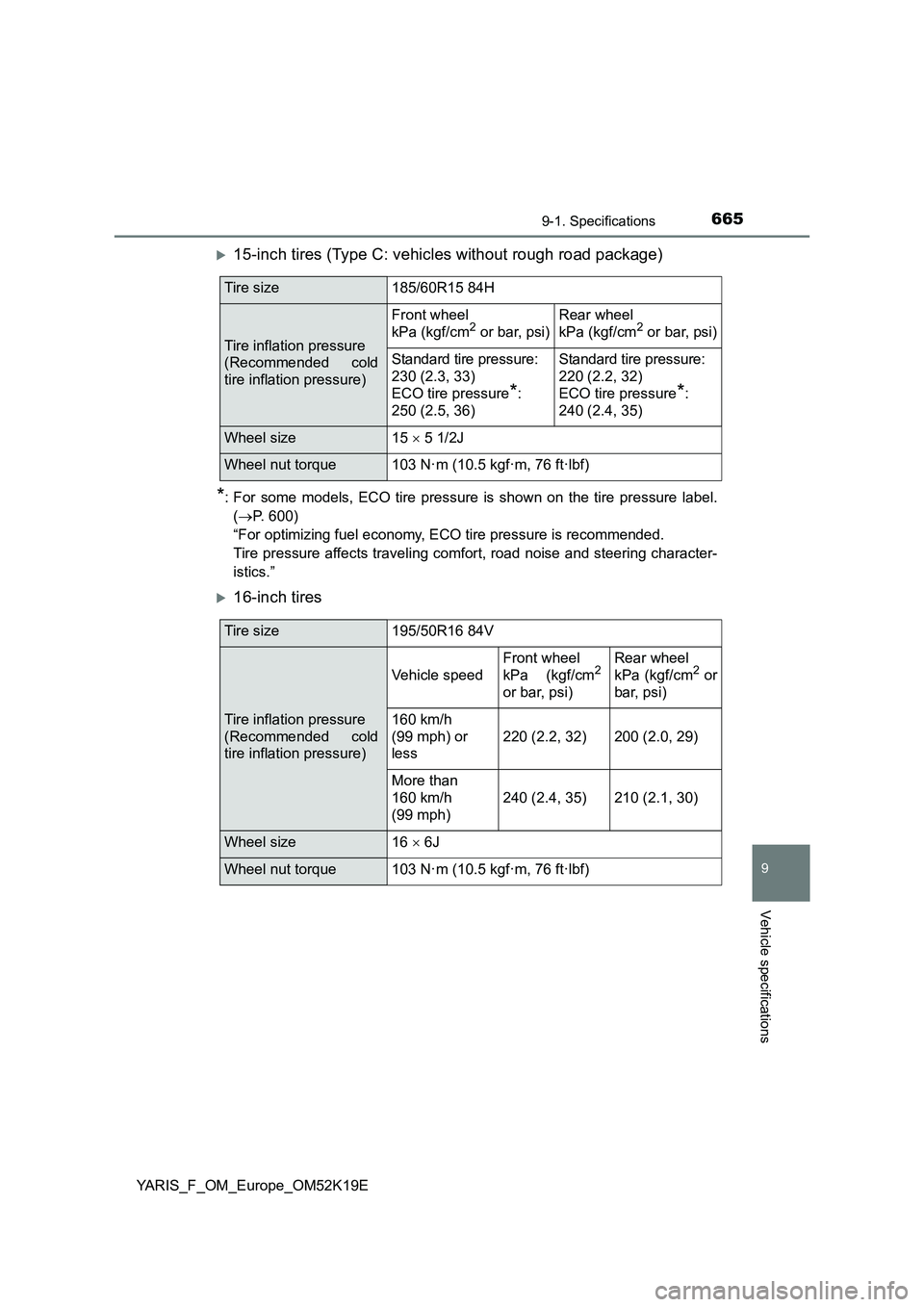

Page 665 of 700

6659-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E
15-inch tires (Type C: vehicles without rough road package)
*: For some models, ECO tire pressure is shown on the tire pressure label.
( P. 600)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering character-
istics.”
16-inch tires
Tire size185/60R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
Standard tire pressure:
230 (2.3, 33)
ECO tire pressure*:
250 (2.5, 36)
Standard tire pressure:
220 (2.2, 32)
ECO tire pressure*:
240 (2.4, 35)
Wheel size15 5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size195/50R16 84V
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)200 (2.0, 29)
More than
160 km/h
(99 mph)
240 (2.4, 35)210 (2.1, 30)
Wheel size16 6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

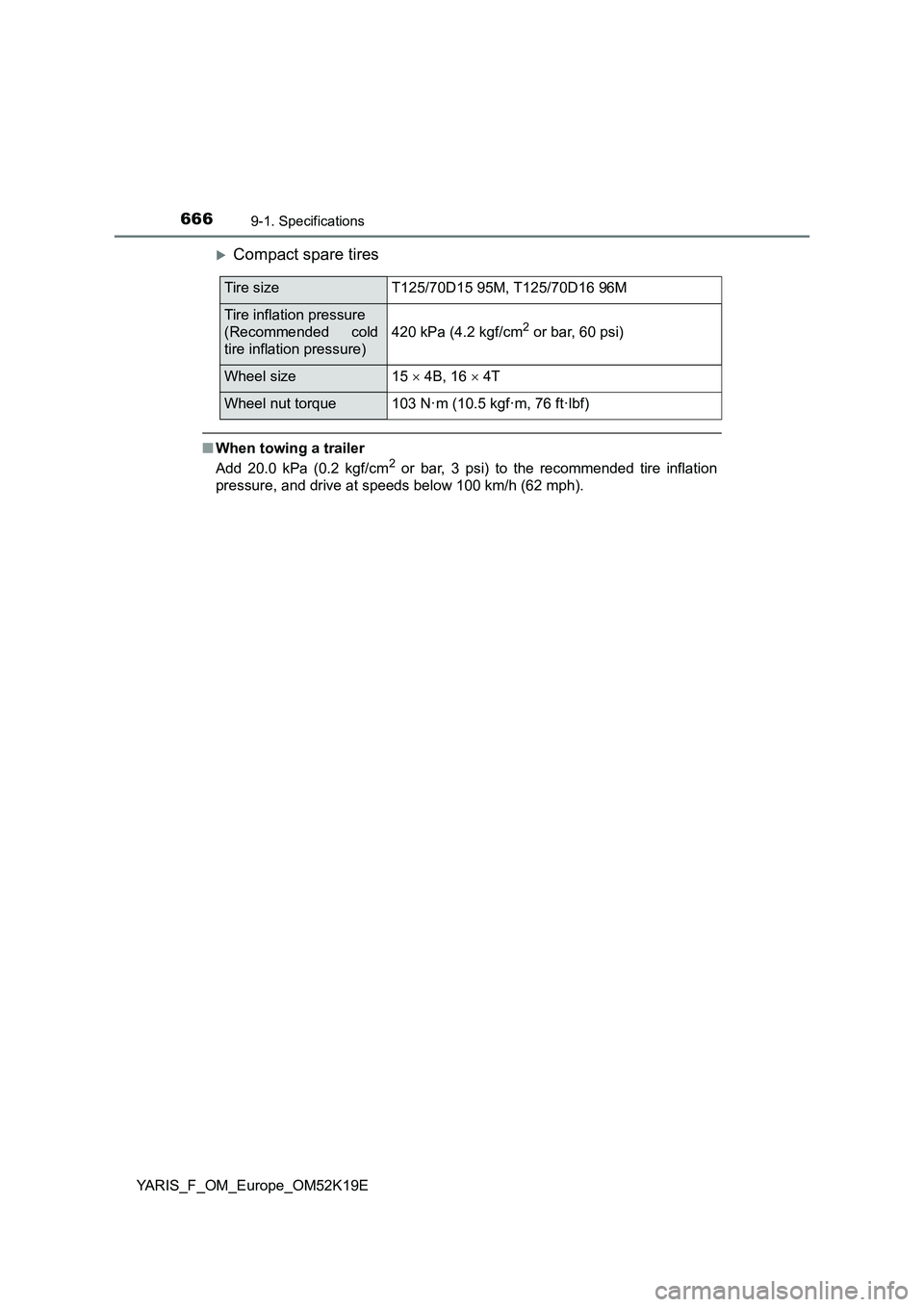

Page 666 of 700

6669-1. Specifications
YARIS_F_OM_Europe_OM52K19E
Compact spare tires
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
Tire sizeT125/70D15 95M, T125/70D16 96M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size15 4B, 16 4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

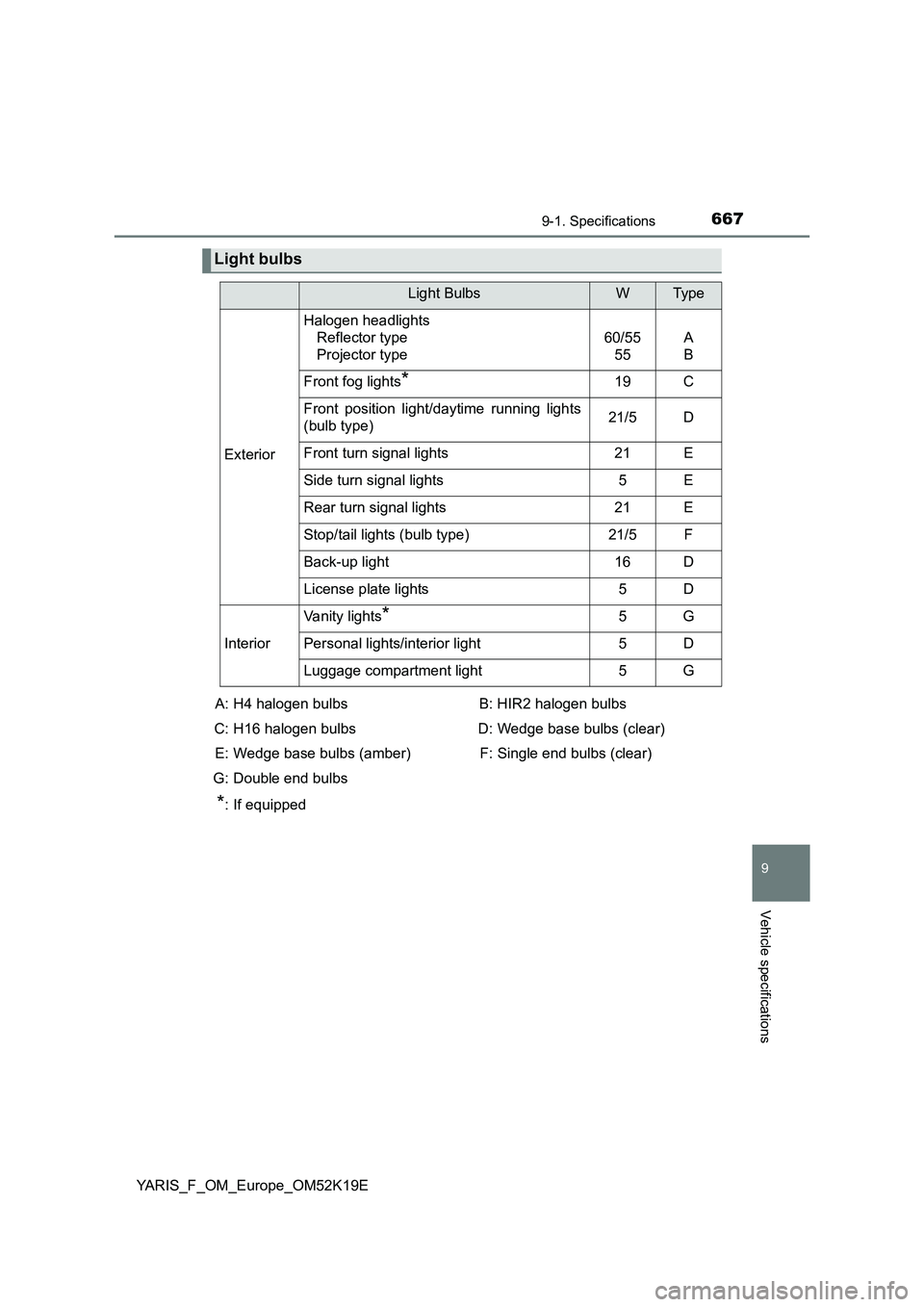

Page 667 of 700

6679-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E
Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights
Reflector type
Projector type
60/55
55
A
B
Front fog lights*19C
Front position light/daytime running lights
(bulb type)21/5D
Front turn signal lights21E
Side turn signal lights5E
Rear turn signal lights21E
Stop/tail lights (bulb type)21/5F
Back-up light16D
License plate lights5D
Interior
Vanity lights*5G
Personal lights/interior light5D
Luggage compartment light5G
A: H4 halogen bulbs
C: H16 halogen bulbs
E: Wedge base bulbs (amber)
G: Double end bulbs
B: HIR2 halogen bulbs
D: Wedge base bulbs (clear)
F: Single end bulbs (clear)
*: If equipped

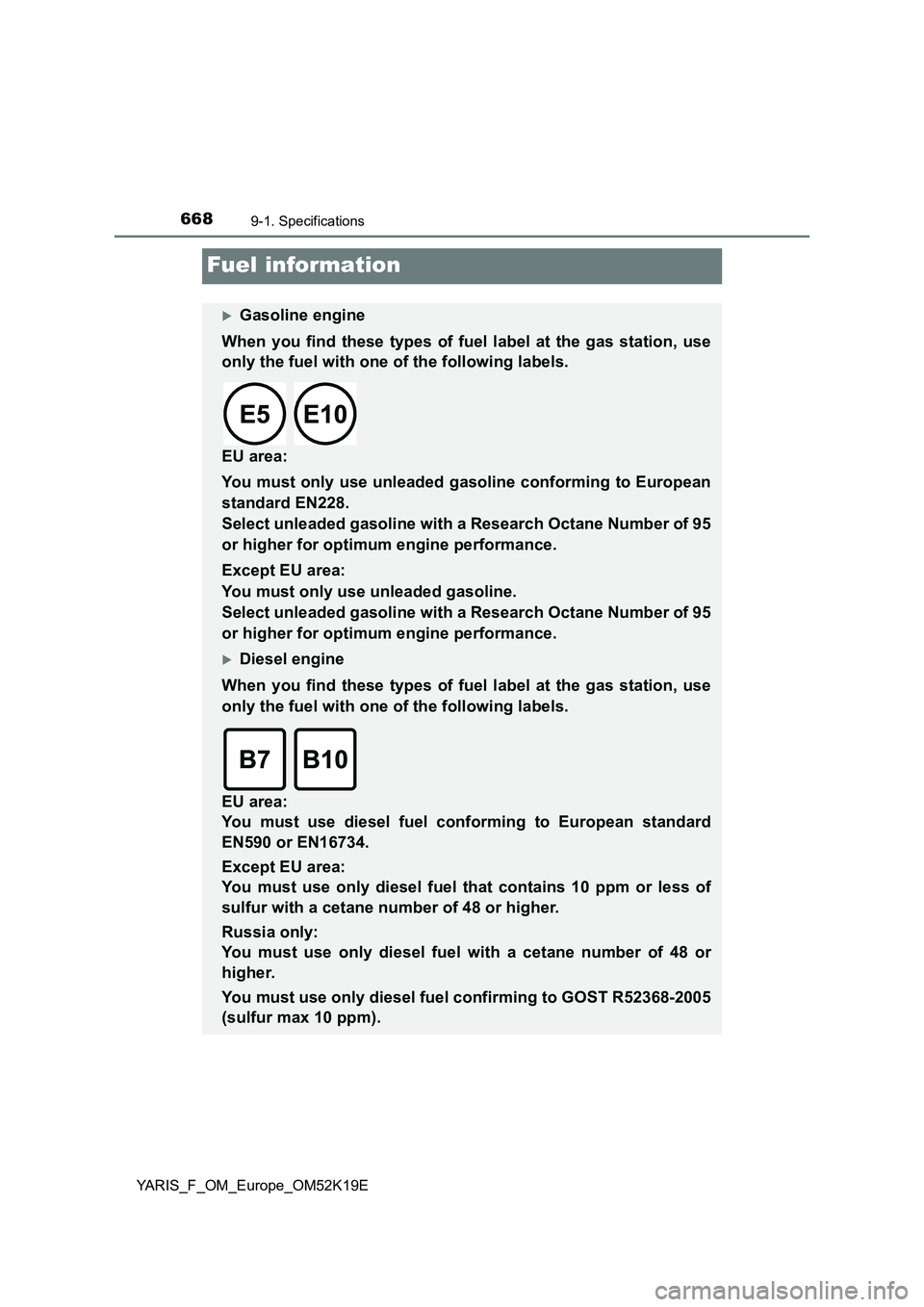

Page 668 of 700

6689-1. Specifications
YARIS_F_OM_Europe_OM52K19E
Fuel information
Gasoline engine
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Diesel engine
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.
EU area:
You must use diesel fuel conforming to European standard
EN590 or EN16734.
Except EU area:
You must use only diesel fuel that contains 10 ppm or less of
sulfur with a cetane number of 48 or higher.
Russia only:
You must use only diesel fuel with a cetane number of 48 or
higher.
You must use only diesel fuel confirming to GOST R52368-2005
(sulfur max 10 ppm).

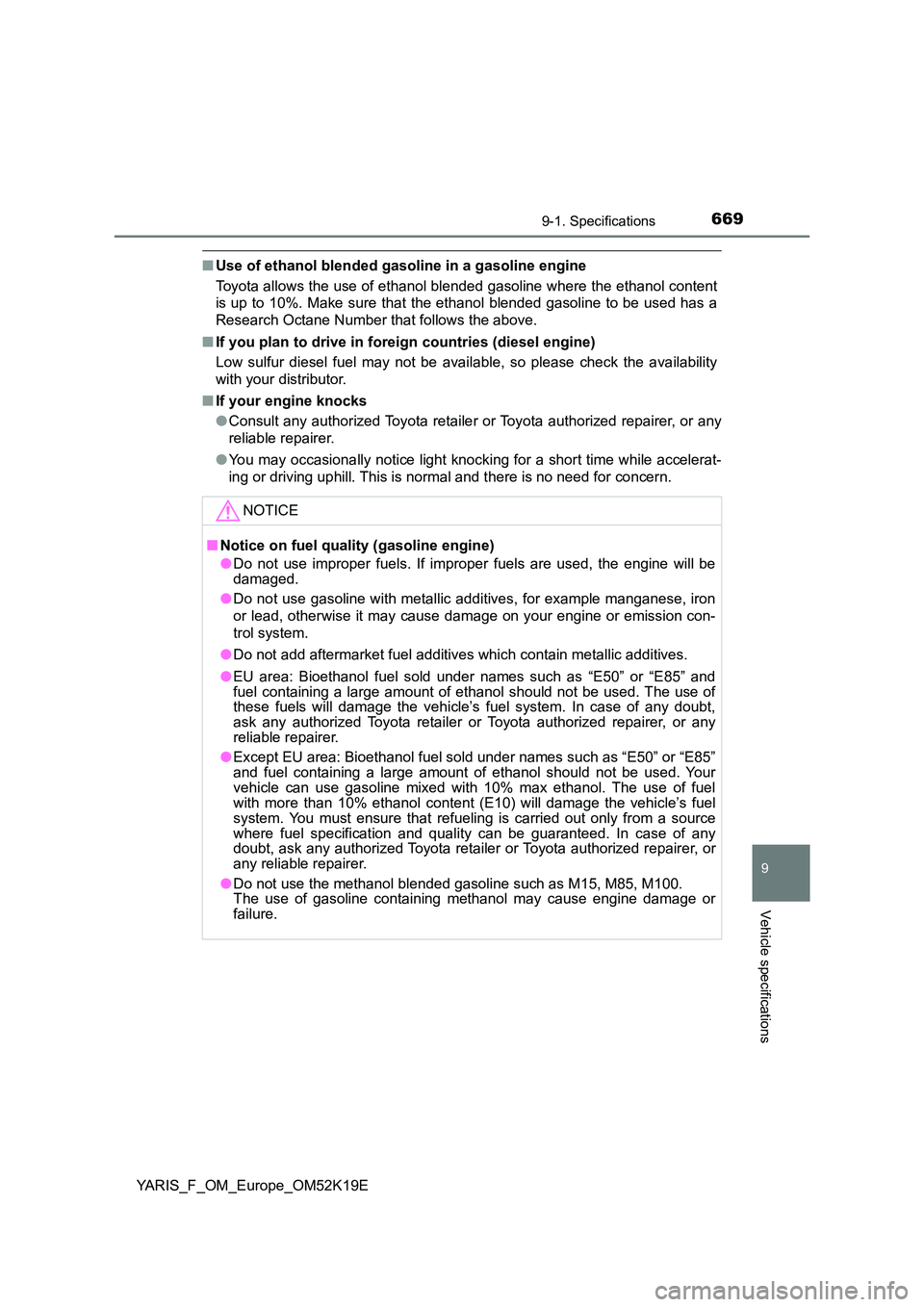

Page 669 of 700

6699-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be avai lable, so please check the availability
with your distributor.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on fuel quality (gasoline engine)
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. The use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. Yourvehicle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out only from a sourcewhere fuel specification and quality can be guaranteed. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing methanol may cause engine damage or failure.

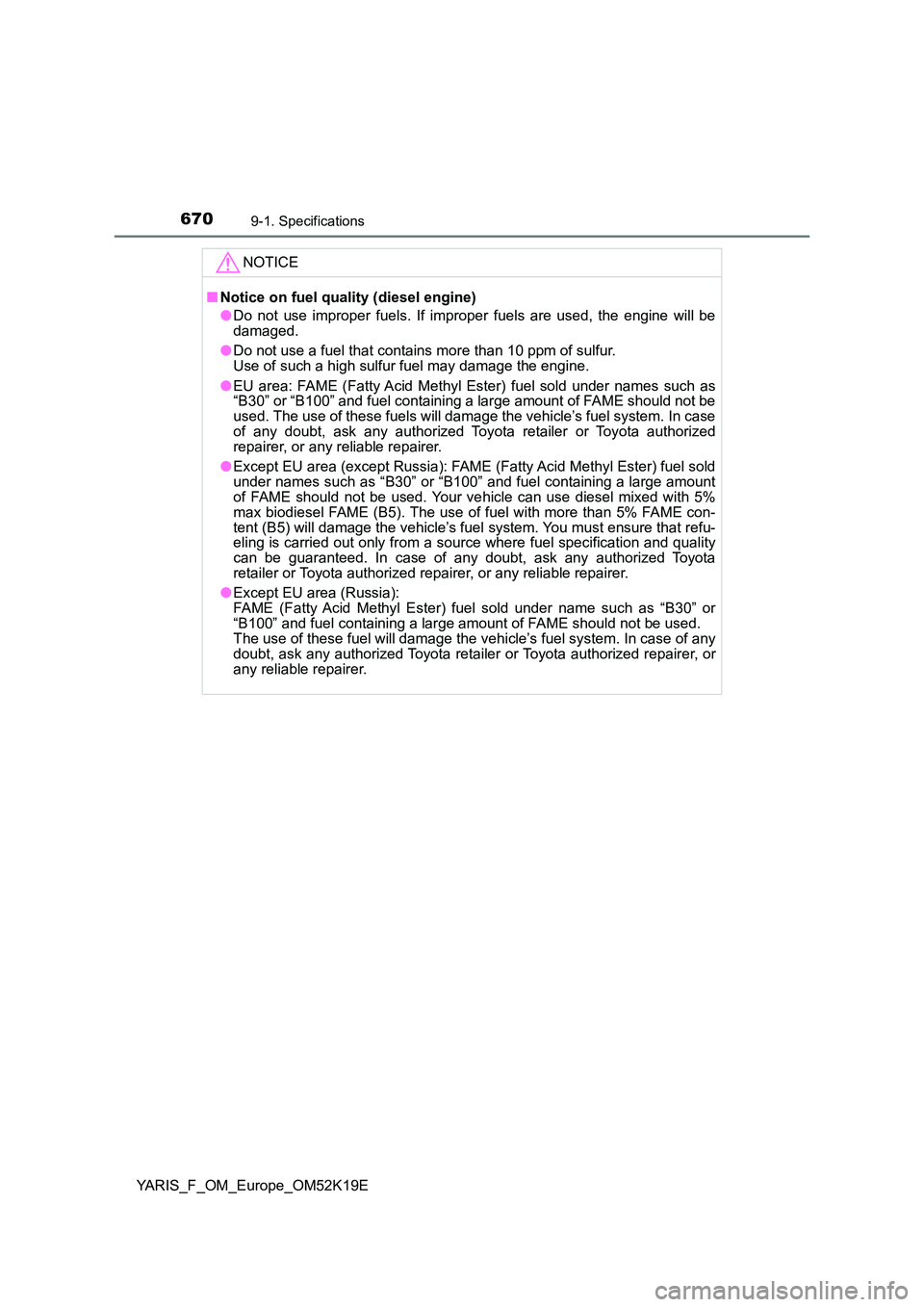

Page 670 of 700

6709-1. Specifications
YARIS_F_OM_Europe_OM52K19E
NOTICE
■Notice on fuel quality (diesel engine)
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use a fuel that contains more than 10 ppm of sulfur. Use of such a high sulfur fuel may damage the engine.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as “B30” or “B100” and fuel containing a large amount of FAME should not be used. The use of these fuels will damage the vehicle’s fuel system. In caseof any doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Except EU area (except Russia): FAME (Fatty Acid Methyl Ester) fuel sold under names such as “B30” or “B100” and fuel containing a large amount of FAME should not be used. Your v ehicle can use diesel mixed with 5% max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-tent (B5) will damage the vehicle’s fuel system. You must ensure that refu- eling is carried out only from a source where fuel specification and quality can be guaranteed. In case of any doubt, ask any authorized Toyotaretailer or Toyota authorized repairer, or any reliable repairer.
● Except EU area (Russia): FAME (Fatty Acid Methyl Ester) fuel sold under name such as “B30” or“B100” and fuel containing a large amount of FAME should not be used. The use of these fuel will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized repairer, orany reliable repairer.
