TOYOTA YARIS 2020 Owners Manual (in English)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2513-13. Rear View Monitor
3
When Driving
Once they are parallel, straighten the wheels and back your veh icle
slowly into the parking space. Continue checking the vehicle’s sur-
roundings and then stop the vehi cle in the best possible position. (If
the parking space has division lines, check whether the vehicle
width guide lines are parallel to them.)
When the shift lever is shifted from R to another shift lever p osition,
the screen returns to t he previous display.
●Images displayed on the monitor from the rear view parking came ra are
reversed images (mirror images).
● Because there may be a difference between the displayed image, such as
indicated below, and the actual conditions when parking, always verify the
safety at the rear of the vehicle and the surrounding area dire ctly with your
eyes.
• In the image of the parking space (or garage) displayed below, even
though the back end and distance guide lines appear parallel in the mon-
itor, they may not actually be parallel on the ground.
5
(Display condition) (Vehicle condition)
S

252
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-13. Rear View Monitor
Some variance occurs between the actual road and the displayed
road. Such variance in distance perspective could lead to an ac cident.
Note the following conditions that may cause a variance in dist ance
perspective.
■When the vehicle is tilted due to the weight of passengers and
load
When the vehicle rear is lower ed, the object displayed on the
screen appears farther than the actual distance.
• When parking in a space with a divi-
sion line on only one side of the park-
ing space, the division line and the
vehicle width guide line may appear
parallel on the monitor, but they may
not actually be parallel on the ground.
Variance Between Actual Road C onditions and Displayed Image
Object
Variance

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2533-13. Rear View Monitor
3
When Driving

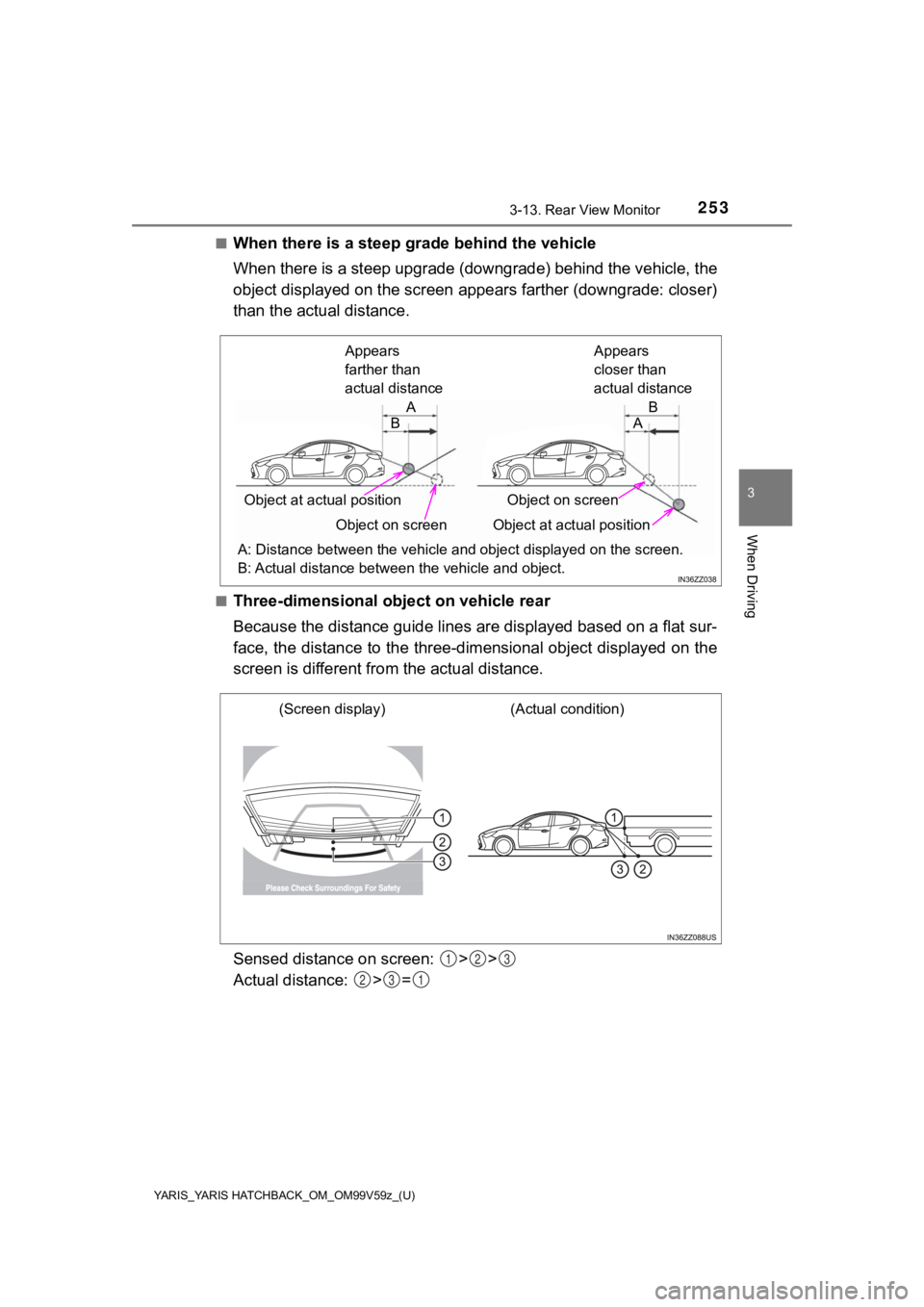

■When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the
object displayed on the screen appears farther (downgrade: clos er)
than the actual distance.
■Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat sur-
face, the distance to the three- dimensional object displayed on the
screen is different fro m the actual distance.
Sensed distance on screen: > >
Actual distance: > =
Appears
farther than
actual distance Appears
closer than
actual distance
Object at actual position Object on screen Object at actual position Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object. A
B B
A
(Actual condition)
(Screen display)
123
231

254
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-13. Rear View Monitor
Picture quality adjustment can be done while the shift lever is in
reverse (R).
There are four settings which c an be adjusted including, bright ness,
contrast, tint, and color. When ad justing, pay sufficient attention to the
vehicle surroundings.
Select the icon on the screen to display the tabs.
Select the desired tab item.
Adjust the brightness, contrast, tint, and color using the slider.
If you need to reset, press the reset button.
Select the icon on the screen to close the tab.
Picture Quality Adjustment
WARNING
■ Always adjust the picture quality of the rear view monitor while the
vehicle is stopped
Do not adjust the picture quality of the rear view monitor while driving the
vehicle. Adjusting the picture quality of the rear view monitor such as bright-
ness, contrast, color, and tint while driving the vehicle is dangerous as it
could distract your attention from the vehicle operation which could lead to
an accident.
1
2
3
4

255
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4Interior Features
4-1. Climate Control SystemOperating Tips .................. 256
Vent Operation .................. 257
Manual Type ..................... 259
Fully Automatic Type ........ 266
4-2. Audio System Antenna............................. 271
Operating Tips for Audio System ............................ 273
Audio Set .......................... 283
Audio Control Switch Operation ........................ 304
AUX/USB mode ................ 307
4-3. Bluetooth
®
Bluetooth®......................... 327
Bluetooth® Hands-Free ..... 339
Bluetooth® Audio .............. 353
Troubleshooting ................ 366
4-4. Interior Equipment Sunvisors .......................... 374
Interior Lights .................... 375
Accessory Socket ............. 378
Cup Holder ........................ 379
Bottle Holder ..................... 380
Storage Compartments ..... 381

256
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-1. Climate Control System
Operating Tips
• Operate the climate control system with the engine running.
• To prevent the battery from being discharged, do not leave the fan
control dial on for a long perio d of time with the ignition switched
ON when the engine is not running.
• Clear all obstructions such as l eaves, snow and ice from the hood
and the air inlet in t he cowl grille to imp rove the system efficiency.
• Use the climate control system to defog the windows and dehumi d-
ify the air.
• The recirculate mode should be used when driving through tunne ls
or while in a traffic jam, or when you would like to shut off o utside
air for quick cooling of the interior.
• Use the outside air position for ventilation or windshield defrosting.
• If the vehicle has been parked in direct sunlight during hot weather,
open the windows to let warm air escape, then run the climate con-
trol system.
• Run the air conditioner about 10 minutes at least once a month to
keep internal parts lubricated.
• Have the air conditioner checke d before the weather gets hot. Lack
of refrigerant may make the ai r conditioner less efficient.
The refrigerant specifications
are indicated on a label
attached to the inside of the
engine compartment. Check
the label before refilling the
refrigerant. If the wrong type of
refrigerant is used, it could
result in a serious malfunction
of the air conditioner.
For details, consult your Toyota
dealer.
Label

257
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-1. Climate Control System
4
Interior Features
Ve n t O p e r at io n
■Air vent open/close
The air vents can be fully opened and closed by operating the knob.
■Directing airflow
To adjust the direction of airflow, move the adjustment knob.
When using the air conditioner under humid ambient temperature conditions,
the system may blow fog from the vents. This is not a sign of t rouble but a
result of humid air being suddenly cooled.
Adjusting the Vents
Center vents (driver) and Side
ventsCenter vents (front passenger)
Open
Close Open
Close
Knob
Knob
1
2
1
2
Center vents (driver) and Side
ventsCenter vents (front passenger)
KnobKnob

258
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-1. Climate Control System
Selecting the Airflow Mode
Dashboard VentsDashboard and Floor Vents
Floor VentsDefroster and Floor Vents
Defroster Vents

259
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-1. Climate Control System
4
Interior Features
Manual Type
Temperature control dial
A/C switch
Fan control dial
Rear window defogger switchMode selector dial
Air intake selector
(recirculated air position)
Air intake selector
(outside air position)1
2
3
4
5
6
7

260
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-1. Climate Control System
■Temperature control dial
This dial controls temperature. Turn it clockwise for hot and coun-
terclockwise for cold.
■Fan control dial
This dial allows variable fan speeds.
The fan has seven speeds.
■Mode selector dial
Turn the mode selector dial to select airflow mode (P. 258).
■A/C switch
Press the A/C switch to turn the air conditioner on. The indica tor
light on the switch will illuminate when the fan control dial is in any
position except OFF.
■Air intake selector
This switch controls the source of air entering the vehicle.
Press the air intake selector switch to alternate between the o utside
air and recirculated air positions.
● Recirculated air position ( )
Outside air is shut off. Air wit hin the vehicle is recirculated.
● Outside air position ( )
Outside air is allowed to enter t he cabin. Use this mode for venti-
lation or windshield defrosting.
Control Switches
